2AB22T16wireless bluetooth speaker

User Manual Model:T16 Brand name:ETEKCITY FCC ID:2AB22T16 Production Introduction Thank you for purchasing our Bluetooth speaker system. This product supports Bluetooth 2.1+EDR, a great range of mobile phones, smart phones, tablets, laptops and various other Bluetooth enabled devices. Our modern design users the latest in electronic technology to produce a high end music experience and still keep its ultimate portable features with its built‐in rechargeable lithium battery and remote control. Please read the following instructions carefully before operating. Keep them safe for future reference. 1. Play/Pause 2. Next Song/Volume Up 3. Previous Song/Volume Down 4. Indicate Light 5． Power On/Off 6. Mini USB DC In 7. AUX in Jack 8. MIC 9. TF Slot 10.Speaker Unit Product Features ● Graceful sound quality, petty body but great sound volume. ● Decorous& fashionable facade. ● The latest blue‐tooth technology, wide be used. ● Control the music playing between speaker and mobile phone or other equipments with Bluetooth. ● Support lots of sound sources input. ● USB power supply or power adapter, built‐in rechargeable lithium battery, very easy to use. ● Support answer calling. Technical Parameters ● Speaker Unit：2＂ 3Ω ● Frequency Response：100Hz～18KHz ● S/N Ratio：≥70dB ● Bluetooth Standard: 2.1+EDR ● Bluetooth signal power：CLASS II ● Supports: A2DP，AVRCP，HF and etc. ● Signal Distance：8 ‐ 10M ● Power： DC5V 500mA ● Built‐in Battery: 3.7V 500mAH, re chargeable lithium battery. ● Playing Time: 7 hours ( middle volume) ● Product Size (D*H): 64X67 mm ● Weight: 195g How to Operate. Charge Up Connect the DC power 5V 500mA, indicate light red, it is charging up, till light put out, finish. ※ Charge up in OFF situation, 3 hours can be full; if in ON/WORKING situation, more or less 5 hours. ※ Please charge up before use this product. ON/OFF Turn On：Push the button to ON position, indicate light is shining. ※ There will be different color shine on the indicate light if this product start Bluetooth mode or AUX in mode. Please check below instruction： Activate Mode Change This product supports 3 modes: Bluetooth mode, AUX in mode and TF mode, can change to each other easily by pressing Play/Pause button. If the 3.5 mm jack of Audio cable insert into speaker, AUX mode default; if not, Bluetooth mode is starting. Bluetooth Mode Turn on, wait for the working lamp flicker blue color, Bluetooth mode start. •Pair： It is necessary to pair this product for the first operate, operation as below：once turn on the speaker, pairing status start, pair to this product, item code (name) is T16 （Noted：if the pass code is required, entry "0000"） ·Operation：After pairing is completed, you will be able to play music from you Bluetooth player wirelessly to the speaker. You will be able to control the functions with the PLAY/PAUSE, VOLUME UP/DOWN buttons, and also be able to answer/refuse your calling. Short press ,play/pause Short press ,previous song, ,next song. Long press ,volume decrease, ,volume increase. When coming call, short press to answer the call. When finished, short press to hang up. Long press ,change to MP3 mode. ·Connecting device memory: When you turn on the speaker in Bluetooth mode, it will connect with the device which work with it last time automatically. If the device is out of effective range, pair procedure start. Ps: There may be some difference between different devices, such as smart phones, computers and etc. which has Bluetooth function, before pair to this speaker, check devices manual first. AUX Line in Mode: The indication light will show a green color when an AUX cable is connected to the speaker. This will auto set the speaker to AUX Input Mode. When the speaker is used in AUX mode you will only be able to control the music Volume Up/Down from the speaker. Long press ,change to Bluetooth mode. TF Card Mode: With voice prompt when entered into MP3 mode. The indication light will show a green color. Supports music files like MP3,WMA,WAV,AMR,etc. When the speaker is used in TF mode you will only be able to control the music Volume Up/Down from the speaker. Long press ,change to AUX mode. Low Voltage Warning z The indicator light will flash red when the power is too low. Please recharge the speaker. No power, the speaker will switch off automatically. Instruction on Product Safety Maintenance ● Do not place this product under the high‐temperature and damp environment and make it be caught by rain or impacted by strong force. ● If this product gives out smoke or encounters other exceptions, quickly plug off the DC‐USB power cable Plug to avoid accidents and contact local franchiser or dial the seller for repair. ●The audio signal cable and power cable can not be pulled, tied, extruded, trampled or suspended with heavy objects to avoid damage to the insulation layer of the audio signal cable and USB power cable, which will lead to short circuit or bad contact. ● Please use attachment adapter. ● Please power off this product when it is not operated for a long time There is built‐in lithium battery in this product, please pay attention below note. Your products are made of the high‐quality materials and components and can be recycled for reuse. Notice that classified collection system of the local electric appliances or electronic products. If the products which packages include cross and recycling box symbol, they should be processed according to the local regulations, do not discard the products as common household rubbish. Package List ● T3 Pro Bluetooth Wireless Speaker....................................1 set ● User Manual ...................................................1 copy ● 3.5mm Stereo Audio Cable.............................................1 piece ● Standard USB to Mini USB Power Cable...........................1 piece * If the materials inside the package are not consistent with the accompanied list, please contact the manufacturer or retail seller who you purchased the unit from. This devic…

Text truncated - open the document above for the full version.

Aug.27, 2014 Federal Communication Commission Authorization and Evaluation Division FCC ID: 2AB22T16 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Parts List 4.Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Etekcity Corporation Contact person: Bryce Sanford Title: Manager

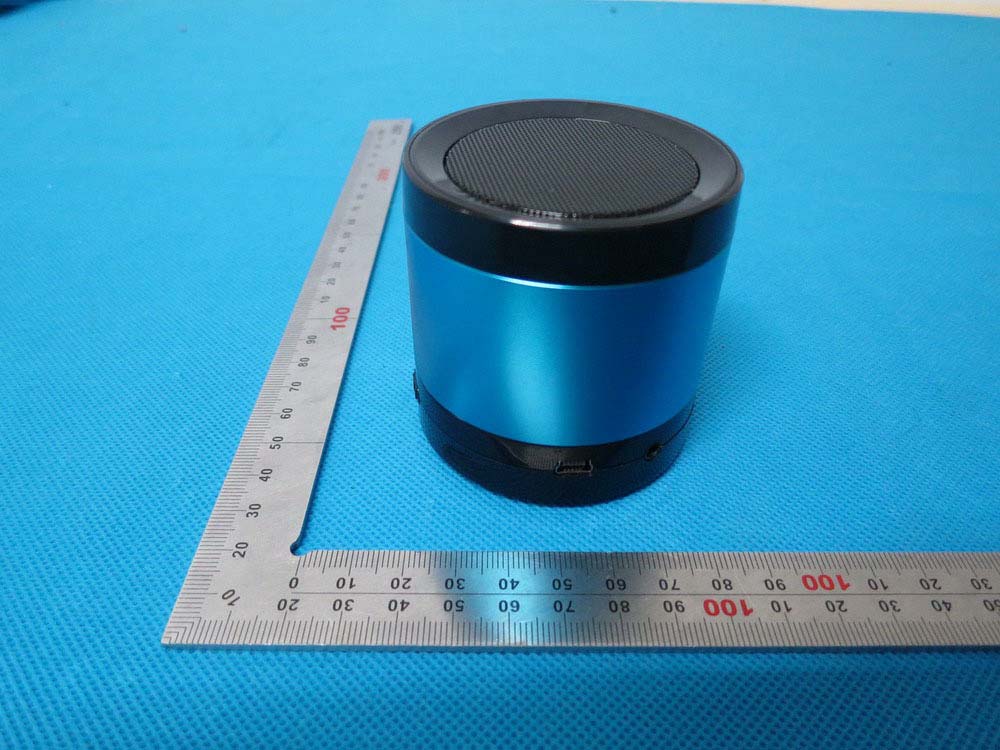

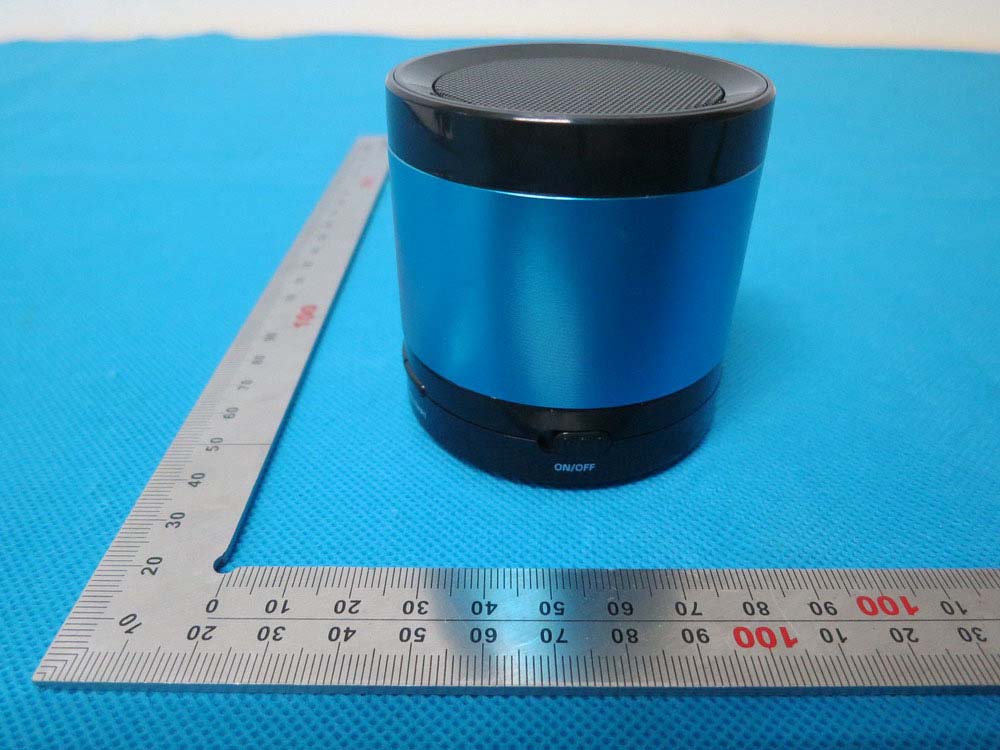

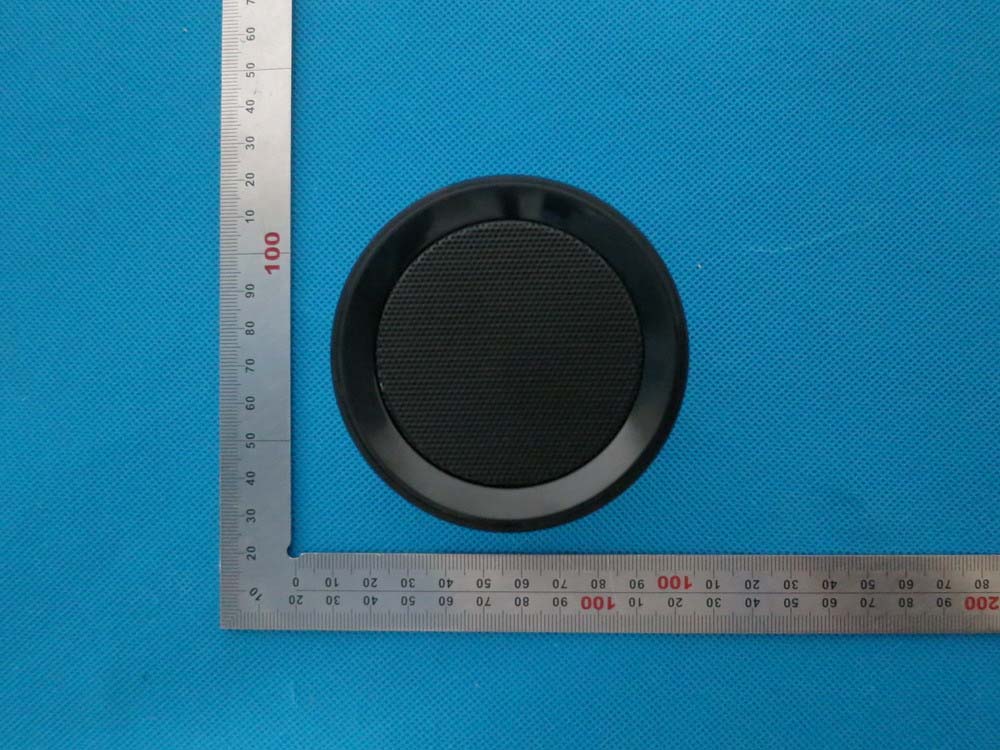

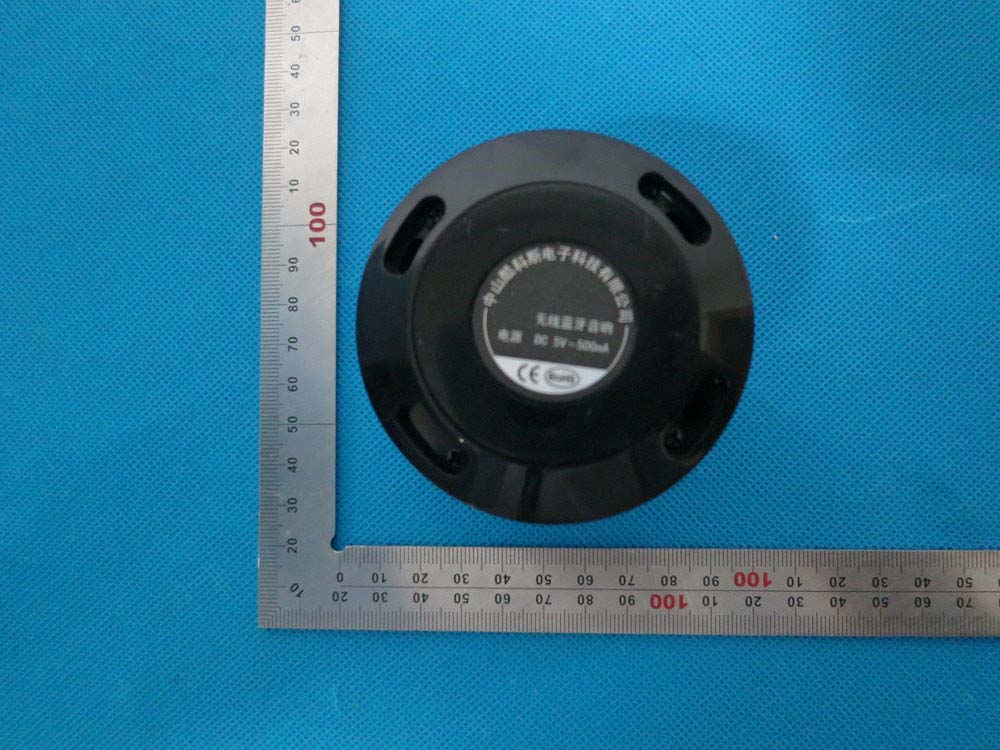

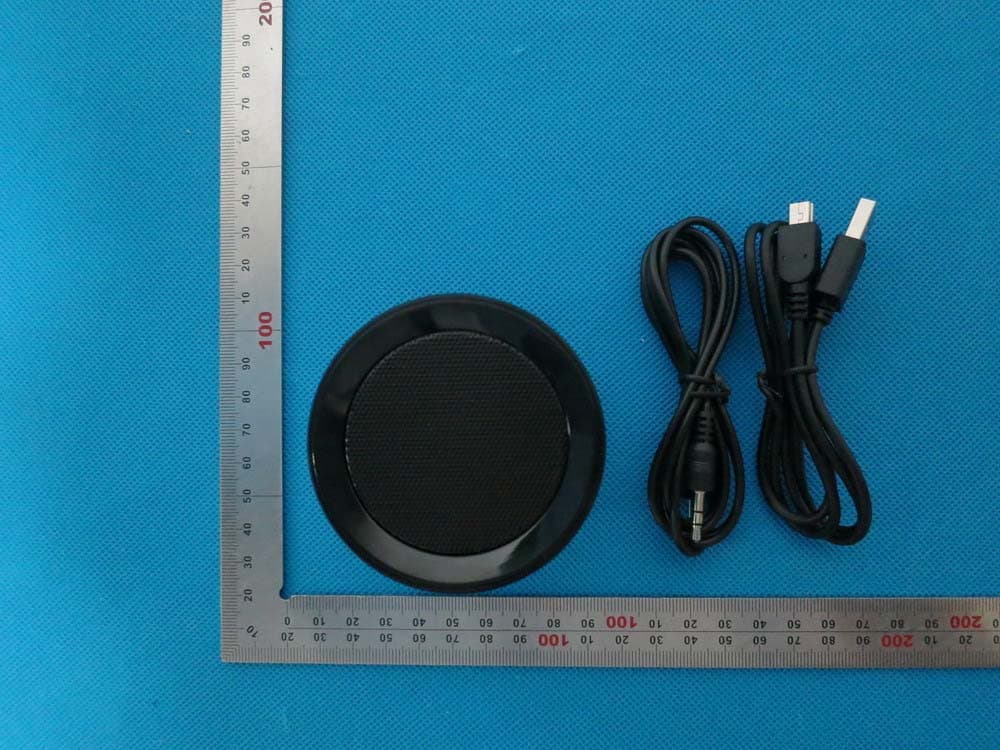

External Photos All VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC ID:2AB22T16

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna INTERNAL VIEW OF EUT-3

Report No.: AGC00302140802FE03 Page 1 of 67 FCC Test Report Report No.: AGC00302140802FE03 FCC ID : 2AB22T16 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : wireless mobile speaker BRAND NAME : ETEKCITY MODEL NAME : T16 CLIENT : Etekcity Corporation DATE OF ISSUE : Aug.26, 2014 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00302140802FE03 Page 2 of 67 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Aug.26, 2014Valid Original Report Report No.: AGC00302140802FE03 Page 3 of 67 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 5 2. GENERAL INFORMATION .................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ........................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ............................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) ....................................................................................... 8 2.7. TEST METHODOLOGY................................................................................................................ 8 2.8. SPECIAL ACCESSORIES ............................................................................................................ 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................... 8 3. MEASUREMENT UNCERTAINTY........................................................................................ 9 4. DESCRIPTION OF TEST MODES ........................................................................................ 9 5. SYSTEM TEST CONFIGURATION .................................................................................... 10 5.1. CONFIGURATION OF EUT SYSTEM ........................................................................................ 10 5.2. EQUIPMENT USED IN EUT SYSTEM ....................................................................................... 10 5.3. SUMMARY OF TEST RESULTS ................................................................................................ 10 6. TEST FACILITY .................................................................................................................. 11 7. PEAK OUTPUT POWER .................................................................................................... 12 7.1. MEASUREMENT PROCEDURE ................................................................................................ 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 12 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................... 13 8. 20DB BANDWIDTH ............................................................................................................ 19 8.1. MEASUREMENT PROCEDURE ................................................................................................ 19 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 19 8.3. LIMITS AND MEASUREMENT RESULTS .................................................................................. 19 9. CONDUCTED SPURIOUS EMISSION ............................................................................... 26 9.1. MEASUREMENT PROCEDURE ................................................................................................ 26 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 26 9.3. MEASUREMENT EQUIPMENT USED ....................................................................................... 26 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................... 26 10. RADIATED EMISSION ..................................................................................................... 30 10.1. MEASUREMENT PROCEDURE .............................................................................................. 30 10.2. TEST SETUP ............................................................................................................................ 32 10.3. TEST RESULT (Worst Modulation: GFSK) ............................................................................... 32 Report No.: AGC00302140802FE03 Page 4 of 67 11. BAND EDGE EMISSION .................................................................................................. 45 11.1. MEASUREMENT PROCEDURE .............................................................................................. 45 11.2. TEST SET-UP ........................................................................................................................... 45 11.3. TEST RESULT (Worst Modulation: GFSK) ............................................................................... 46 12. NUMBER OF HOPPING FREQUENCY ............................................................................ 50 12.1. MEASUREMENT PROCEDURE .............................................................................................. 50 12.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) .............................…

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
