2AB2FLS-A8-UHFTwo-Way Radio/Transceiver

1 / 11 Lisheng (Fujian) Communications Co., Ltd. LS-A8 UHF Simple Operation Instruction Radio View: NO. UNIT REMARK 1 Antenna Transmit/Receive signals, deliver wider communication coverage. 2 Speaker 3 Channel Selector Knob Turn the knob to select the channels from 1-16. 4 Power / Volume Knob Turn clockwise to switch on the radio, and turn counter-clockwise until a “click” is heard to switch off the radio. Turn the knob clockwise to increase the volume, and turn counter-clockwise to decrease the volume. 5 LED Indicator Receiving: Green Light bright, Transmitting: Red Light bright. 6 MIC Microphone 7 PTT (Push-To-Talk) Key Press and hold PTT key to transmit, and release it to receive. 8 SP/MIC cover Dustproof and Rainproof 9 Battery Pack Side Button PF1 Side Button PF2 10 Side Button PF3 You can short press (0.5S) or long press (2.5S) Side Button to enable the specified functions which can be programmed via the software. Press this key to activate the function (you will hear 1 Beep sound) and press again to quit (you can hear 2 Beep sound). 2 / 11 Lisheng (Fujian) Communications Co., Ltd. Programmable Button You can program the specified functions for side button via the software, the programmable functions as follows: NO. Items Remarks 1 Monitor 2 Monitor Momentary The radio will un-mute only when it receives a carrier signal. 3 Squelch Off 4 Squelch Off Momentary The radio will un-mute no matter there is a carrier signal or not. 5 Battery Capacity Announcement To know the current battery capacity. 6 Scrambler To make the communication privacy. 7 Compander To improve the SNR, that will make communication clearer. 8 Adjust TX Power Adjust the transmitting power of current channel. 9 VOX On/Off Activate/exit VOX function. 10 Scan Scan the activities from other channels. 11 Channel Lock To lock the current channel position, and the channel knob is invalid. 12 Emergency Alarm To transmit Emergency Alarm signals. Note：Your dealer may assign different functions for side button (long press or short press the key) in advanced. Basic Operation Power On/Off Turn the Power Knob (also called Volume Knob) clockwise to switch on the radio, you will hear a “power on beep” and a voice message will indicate the current channel number. Turn counter-clockwise to switch off the radio. (See Figure 1) Adjust the Volume Press the programmed “Monitor” or “Squelch Off” side button to listen the background noise, and turn the volume knob to increase or decrease the volume. (See Figure2) Select a Channel Turn the Channel Selector Knob to select your desired channel. If the Voice 3 / 11 Lisheng (Fujian) Communications Co., Ltd. announcement function is enable, your radio will automatically report the channel No. where the knob locates. (See figure 3) Transmit Keep pressing the PTT key and speak into the microphone with your normal voice, hold the radio about 2.5cm to 5cm from your mouth. (See figure 4) Receive Release the PTT key to receive. Programming Functions The following functions could be programmed via software. Press the programmed side button to activate the relevant function (long press or short press), you will hear 1 “Beep” when the function is activated. Press this button again to exit it and you will hear 2 “Beep” which means the function is closed. If functions are closed, please program firstly before use it. PTT ID The PTT ID is used for connecting or disconnecting with the repeaters or telephone systems. We have 3 Encode modes to transmit PTT ID code, as following: Begin of Tx: It will emit ID code while you press the PTT Key. End of Tx: It will emit ID code while you release the PTT key. Both Begin and End: It will emit ID code both while you press and release the PTT key. Note: This function is available at each channel. Monitor Function When signal come in, press the programmed “Monitor” side button to open signaling squelch and monitor the activities of the channel. No matter QT/DQT or the optional signaling is matched or not, it can monitor the activities of the current channel. Press this button again to close it. Note: it only monitor the valid signal but not the background noise. Monitor Momentary Keep pressing the programmed “Monitor Momentary” side button to open signaling squelch. No matter QT/DQT or optional signaling is matched or not, it can monitor the activities of the current channel. Release this button to close it. 4 / 11 Lisheng (Fujian) Communications Co., Ltd. Note: It only monitor the valid signal but not the background noise. Squelch off Press the programmed “Squelch Off” side button to open noise squelch. No matter the QT/DQT is matched or not, it can monitor the activities of the current channel. Press this side button again to close it. Note: If there is a valid signal, it monitors the audio signal. If not, it monitors the background noise. Squelch off Momentary Keep pressing the programmed “Squelch Off Momentary” side button to open noise squelch. No matter the QT/DQT is matched or not, it can monitor the activities of the current channel. Release this side button to close it. Note: If there is a valid signal, it monitors the audio signal. If not, it monitors the background noise Squelch Level (SQL) SQL function can filter the undue background noise to mute the speaker when the radio doesn’t receive any signals. You can set up the squelch level from 0 to 9. The higher squelch level, the stronger noise inhibiting ability. It’s not easy to receive the noise signal, but meanwhile you may miss some weak signals which maybe useful for you. On the contrary, the lower squelch level, it’s easier to receive the weak signals, but also easier to be affected by noise signals. Level 0 means to disable SQL function. You can set up the appropriate squelch level via software according to the current communication environment and requirements. Channel scan Press the programmed “Scan” side button to start scanning from the current channel, the radio will report “Scan On” and start to sc…

Text truncated - open the document above for the full version.

1234 A B C D 4321 D C B A ScaleSheet SizeFCSM No.DWG No.Rev 0 of 0 E LPFANT SWFINAL AMPDRIVE AMPAMPLO.SWAMPBUFF AMPTX VCO F.CONT ANT SW BA592 D204 RQA0011 Q201 Q201 2SK3078Q200 PBR951 Q204 KTC3770 TXVCC PH/L NJM2904V IC200 APC BATV DET UMC4 Q208 SW SW DTC144EE Q207 TXVCC TXC HSC277X2 D105 D109 TXVCCRXVCC 2SC4226 Q102 PLLVCC 2SC4226 Q101 MA2S111 2SC4617S D112 Q107 RIPPLE FILTER 2SJ243 UNC4 Q106 IC101 T/R SW TXC RX VCO 2SK508NV Q105 Q104 2SK508NV MA360 D505 MA2S376X4 D103 D105 F.CONT MA2S376X2 D104 D106 LOOP FILTER AMP IC100 MB15E03SL PLL IC PLLVCC TCVO X100 19.2M VCCN VR100 TO PLLVCC 2ND LOCAL UL LE DATA CLK EM78P451 IC400 CPU X801 32.768K TXD RXD READ/WRITE APC/TUNE SQ VOX SPC PLC TXC DEV GLED VCCN SHIFT SRC APCO MUTE EP DT CK BEEP RXC UL T1 T1B1 BUSY BATV DTA144EE Q400 RESET 5V 3.3V REG Q602 FP614633S5GTR Q801Q802 Q803 2SA1745X3 T5V R5V SAVE-5V TRX_CTL SAVE_CTL SK1 PTT 5V IC401 24C256 EEPROM SCL SDA HSC277X2 D205 D206 BEF TUNE AMP Q211 3SK318 RXVCC BEF TUNE Q210 3SK318 IST MIXER MCF XF204 XF205 38.85M RXVCC IF AMP 2SC4226 Q209 RXVCC XF200 450F CF IF IC AA32416 IC201 DET COIL C24 L411 RXVCC Q103 2SC4265 X2 2ND LOCAL AMP AF Q404 DTA114EE CHARGE SQ RXVCC AF OUT AF OUT AUDIO AMP TDA2822 IC500 SWSW SPC Q500 DTC144EE Q501 2SA1362 VCC BATT BATV VCC VOXI Q503 2SC4617 D500 1SS372 D E V LE SW Q402 DTC144EE GREEN VCC DEV CALL RED GREEN D101 D102 5V REG Q601 5002 VCC SW Q401 DTC144EE RED MIC M I C V O X I

Lisheng (Fujian) Communications Co., Ltd. 5#,Chongxiang St.,Econ.&Tech.Area,Quanzhou,Fujian,China Tel: +86-595-22419993 Fax: +86-595-22419993 March 31, 2014 Federal Communications Commission Re: FCC ID: 2AB2FLS-A8-UHF Applicant: Lisheng (Fujian) Communications Co., Ltd. Subject: justification letter for expanded frequency range 450 – 512 MHz You have asked the applicant for justification to have the 450 – 512 MHz freq range appear on he face of the FCC Grant of Certification for a Part 90 Certification. This frequency range contains frequencies regarded as usual & customary by United States Federal Government and its various departments, user organizations and the military to appear on the face of the equipment Grant of Certification. (1) The applicant plans to ensure that USA users, other than those specifically identified in this letter, not operate within bands which are not allowed by the Part 90, as controlled by the users’ FCC station license. (2) This device will not be marketed to USA users, other than those identified in the letter, namely the US Government and its various departments & military, for operation in frequency range out of Part 90. Programming of transmitter frequencies can only be performed by the manufacturer or authorized service and maintenance personnel. Sincerely, ------------------------------- Stone He/ Manager

Lisheng (Fujian) Communications Co., Ltd. 5#,Chongxiang St.,Econ.&Tech.Area,Quanzhou,Fujian,China Tel: +86-595-22419993 Fax: +86-595-22419993 Letter for Label Proposal FCC ID: 2AB2FLS-A8-UHF Mar. 27, 2014 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Dear Sirs: Lisheng (Fujian) Communications Co., Ltd. requests acceptance of the labeling proposal described below for transceivers bearing FCC identifier 2AB2FLS-A8-UHF. The subject transceivers are compact handheld models as shown in figure 1, authorized under 47CFR Part 90 for Land services. Figure 1. Because the majority of the transceiver housing is composed of display, speaker, operating controls, and a removable battery pack, there is extremely limited space available to attach the required label carrying the FCC identifier. Attaching the label to the battery pack is not acceptable because the battery pack is a removable item. For this reason, Lisheng (Fujian) Communications Co., Ltd. proposes placing the label carrying the FCC identifier inside the battery compartment as shown in figure 2. Lisheng (Fujian) Communications Co., Ltd. 5#,Chongxiang St.,Econ.&Tech.Area,Quanzhou,Fujian,China Tel: +86-595-22419993 Fax: +86-595-22419993 Proposed Label Location on EUT Figure 2. The consumer packaging for these models includes the battery pack as a separate item, NOT installed on the radio. As such, the FCC identifier will be readily visible to the user before the battery pack is installed and whenever the battery pack is removed or replaced. In this location, the label will also be protected from physical abuse and remain readable for the anticipated life of the device. The consumer packaging for these models is a "gift box" which does not allow the transceiver to be seen at time of purchase. In order to meet the requirements of 47CFR Part 2.925 (d), Lisheng (Fujian) Communications Co., Ltd. will add the FCC identifier "2AB2FLS-A8-UHF" to the outside of the consumer "gift box" packaging. Sincerely yours, ------------------------------- Stone He/ Manager

Page 1 of 1 Test Lab Attestation Letter Date of Test: 2014‐03‐10 Applicant Name: Lisheng (Fujian) Communications Co., Ltd. FCC ID: 2AB2FLS‐A8‐UHF Tested By: Wilson Chen Title: Test Engineer Email Address: wilson.chen @baclcorp.com Phone No.: +86‐755‐33320018 Statement of Compliance: Bay Area Compliance Laboratories Corp. (Shenzhen) declares that this Unit has been tested in accordance with the test method identified in this test report and that we observed it being tested. It also declares that the Unit complies with the relevant limits. All instrumentation and accessories used to test this unit for compliance to the indicated test method are calibrated regularly in accordance with ISO 17025:2005 requirements by laboratories accredited by A2LA, NVLAP, or ACLAS for the measurement parameters. The measurements were made at: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3 rd Phase of WanLi Industrial Building, Shi Hua Road, Fu Tian Free Trade Zone, Shenzhen, Guangdong, P.R. of China Test Lab Witness‐ Approved By: Sandy Wang Title of Witness: SAR Engineer Email Address: [email protected] Phone No.: +86‐755‐33320018

External Photos

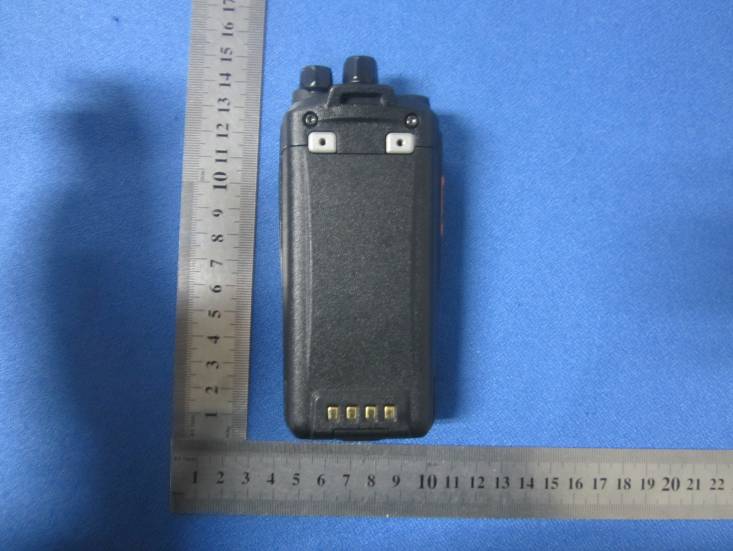

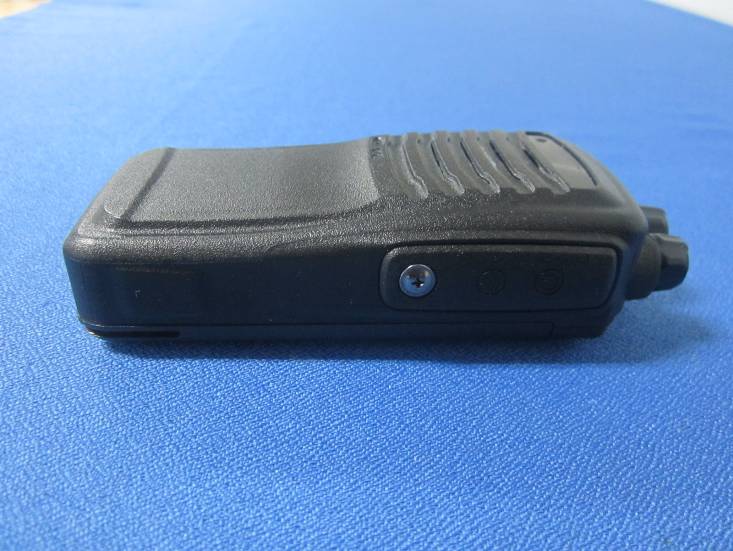

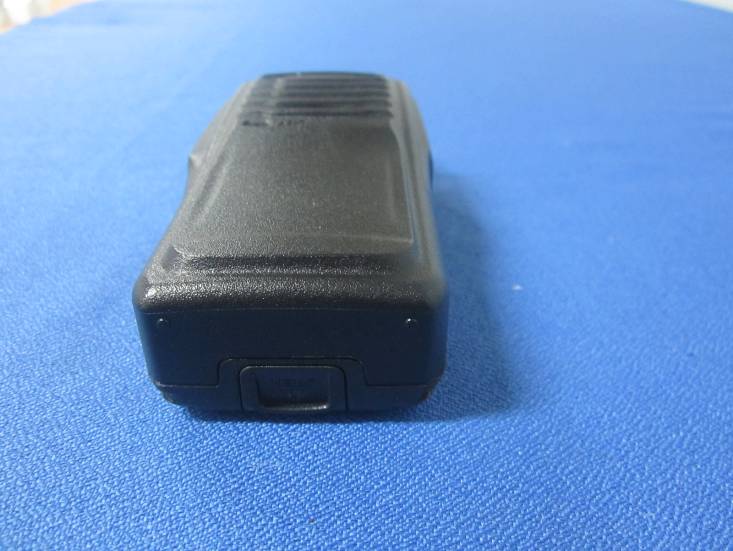

Applicant: Lisheng (Fujian) Communications Co., Ltd. FCC ID: 2AB2FLS-A8-UHF Model Name: LS-A8 UHF Model Name: LS-A8 UHF FCC ID: 2AB2FLS-A8-UHF The FCC identifier is marked in the product label and the RF exposure caution label is attached on the rear side of the cabinet. The user notice and warning statement are described in the user manual. . Proposed Label Location on EUT

Internal Photos

1 Operation Description RF Configuration Chart This circuit, we adopt the project of low local oscillator. The frequency range is 450-512MHz. First intermediate frequency （IF） is 38.85MHz. Second IF is 450KHz. In the circuit, we use PLL (Phase Locked Loop) to make the receiving/transmitting more stable. ANT 1. VCO Circuit The receiver use low local oscillator to operate, the circuit is made up as follows: In the circuit, the RX local oscillator is made up of Q105. The TX local oscillator is made up by Q104, their oscillator frequency are controlled by RX voltage control circuit which is made up of D104 and D106, the TX is controlled by voltage control circuit which consist of D101、D102、D103、D105. During operating, the circuit will be on RX or TX status. After RX/TX oscillated, the signals are sent to the AMP (amplify) circuit which consists of Q101 and Q102, to amplify. The signal is divided into two parts after being amplified. One part returns to PLL IC100 to balance to get the voltage difference，then the voltage difference will pass the lowpass circuit to filtering and control the RX/TX voltage control circuit. The other one will be sent to the RX/TX change-over switch D108、D109, which will divided into two parts of signals, one part will send to TX channel to amplify again, and the other parts will send to RX Mixer to mixing. Communal Channel RX-AMP MIXER Modulation Audio Power AMP 450KHZ TX-AMP TX-Push PLL AF-process Double Frequency 19.2MHZ Speaker MIC 2 In the circuit of audio, DCS, CTCSS modulation, the audio frequency are sent to audio baseband which inside IC400 for processing by MIC. After the audio frequency is processing, it would be sent to VCO to modulate. In IC400, the DCS and CTCSS signals generate two parts of signals, one is sent to VCO to modulate, the other one is sent to the XC1 to modulate. 2. The RX Circuit In the receiver circuit, the HF signals received from ANT, pass the communal channel (lowpass circuit) and enter the RX High-AMP Q211 to amplify. The amplified signals and the local oscillator signals from PLL are sent to the mixer Q210 to mix. After mixing, the signals are filtered by XF204、XF205 and get the first IF signal 38.85MHz. Re-send it to IC201 for the second mixing and get the second IF signal 450KHz, and demodulate it to get the AF signals, then the AF signals are sent to IC400 for DCS, CTCSS processing and AF filtering, finally the signals are sent to IC500 to amplify and spoken out by speaker. PLL IC IC100 RX local oscillator Q105 TX local oscillator Q104 Lowpass Filter Voltage Control D101 D102 D103 D105 Buffer AMP Q101、 Q102 C P U Voltage Control D104 D106 RX/TX Switch D108、 D109 TX Channel RX Mixer MIC Generating Audio Baseband, DCS and CTCSS IC400 VCO AF- Modulation 19.2MHZ XC100 Benchmark 3 ANT T1、T2 3. AF-Amplify (AMP) Circuit In the circuit, the signals modulated by IC201 are sent to IC400 to process DCS, CTCSS and frequency response of AF. After processing, the signals are sent to audio power amplifier which made up by IC500 and related periphery circuit to amplify and push the speaker. 4. The TX circuit In the TX circuit, the HF signals generated by VCO, are sent to the Q204、Q200 to amplify. Communal Channel IF Filter XF204、 XF205 High AMP CIRCUIT Q211 IF AMP Q209 MIXER Q210 Modulate circuit IC201 AF AMP IC500 Double Frequency Q103 Crystal benchmark XC100 RX local oscillator Speaker AF Processing IC400 AF Frequency Response Processing IC400 Audio Power-AMP IC500 Speaker Modulation Output IC201 4 After amplifying by Q204、Q200, the signals are sent to Q201 to amplify again. Finally, the signals will be sent to Q203 to amplify the power. The amplified power will re-pass the RX/TX switch tube made by D204, and send out by ANT through the communal channel. ANT 5. Microprocessor (MPU) The CPU system, which is made up by IC400, works on X801（32.768KHZ）to control the whole functions. 6. Emergency Call Circuit CPU will send out emergency calling signals when you press Emergency Call button. One is sent to VCO to modulate and send out by TX channel. The other one is sent to the audio power amplifier to amplify and send out emergency calling tone through the speaker. 7. Voice Announcement Circuit When select the channels, CPU will send out a voice data to the speaker to speak out. Emergency Call Button S401 CPU IC-400 VCO Audio Power Amplifier IC-500 Speaker TX Channel First AMP Q204 Second AMP Q200 Power control IC200 Driver Q201 Power-AMP Q203 ANT Switch D204 Communal Channel CPU IC400 5 CPU IC-800 Audio Power Amplifier IC-600 Speaker

Component Specification QTY Position NO. 0402 Capacitor 0.5P C 3 C137 C136 C135 0402 Capacitor 1.5P C 2 C123 C307 0402 Capacitor 2P C 1 C296 0402 Capacitor 2.5P C/B 5 C288 C286 C161 C313 C312 0402 Capacitor 3P C 1 C122 0402 Capacitor 4P C 3 C140 C139 C138 0402 Capacitor 5P C 4 C334 C130 C337 C305 0402 Capacitor 6P C 6 C314 C144 C143 C142 C141 C303 0402 Capacitor 7P C 5 C231 C162 C329 C328 C270 0402 Capacitor 10P J 2 C154 C153 0402 Capacitor 8P C 1 C335 0402 Capacitor 20P J 1 C233 0402 Capacitor 22P J 4 C165 C145 C425 C424 0402 Capacitor 27P J 1 C160 0402 Capacitor 82P J 5 C291 C159 C158 C156 C155 0402 Capacitor 100P J 7 C319 C134 C133 C132 C131 C413 C318 0402 Capacitor 220P J 8 C514 C513 C512 C511 C422 C421 C420 C419 LS-A8 UHF PCB BOM(450-512MHz) 0402 Capacitor 470P K 54 C412 C612 C611 C525 C230 C229C228 C227 C224 C223 C222 C221C220 C219 C215 C212 C211 C210C209 C208 C207 C206 C205 C204C203 C201 C200 C114 C113 C112C111 C110 C109 C108 C107 C106C105 C104 C101 C100 C613 C610C609 C519 C518 C218 C217 C216C214 C428 C429 C430 C431 C432 0402 Capacitor 102P K 28 C618 C617 C268 C267 C265 C264C263 C262 C242 C240 C239 C129C128 C127 C126 C125 C124 C103C102 C273 C287 C619 C515 C418 C417 C410 C409 C241 0402 Capacitor 472P K 2 C333 C332 0402 Capacitor 103P K 10 C504 C276 C275 C272 C271 C164 C163 C150 C415 C414 0402 Capacitor 273P K 3 C426 C427 C520 0402 Capacitor 223P K 1 C521 0402 Capacitor 104P K 38 C606 C605 C602 C509 C508 C507C502 C501 C310 C309 C306 C304C302 C301 C300 C299 C298 C297C121 C120 C119 C118 C607 C604C603 C601 C600 C510 C416 C407C406 C405 C404 C403 C402 C401 C400 C500 0402 Capacitor 224P K 1 C522 0402 Capacitor 474P K 1 C516 0402 Capacitor 105P K 5 C330 C524 C523 C408 C423 0603 Capacitor 1.5pF C 2 C294 C293 0603 Capacitor 2.0pF C 2 C320 C281 0603 Capacitor 2.5pF C 1 C284 0603 Capacitor 3.0pF C 1 C279 0603 Capacitor 4.0pF C 2 C292 C280 0603 Capacitor 5PF C 1 C283 0603 Capacitor 6PF C/D 2 C232 C269 0603 Capacitor 7.0pF C 1 C278 0603 Capacitor 22pF J 1 C234 0603 Capacitor 36pF J 1 C277 0603 Capacitor 47pF J 1 C289 0603 Capacitor 470P K 1 C202 0603 Capacitor 102 K 1 C235 0805 Ma g netic Bead 100R/101T 2 L225 L224 0402 Resistor 0R J 4 R112 R402 C285 R223 0402 Resistor 10R J 7 R505 R504 R503 R268 R103 R102 R100 0402 Resistor 22R J 3 R229 R228 R514 0402 Resistor 33R J 1 R205 0402 Resistor 47R J 3 R211 R209 R408 0402 Resistor 56R J 1 R282 0402 Resistor 470R J 4 R276 R275 R115 R520 0402 Resistor 100R J 8 R281 R280 R279 R138 R137 R136 R132 R519 0402 Resistor 150R J 2 R122 R120 0402 Resistor 180R J 1 R135 0402 Resistor 270R J 2 R251 R245 0402 Resistor 330R J 3 R227 R226 R133 0402 Resistor 560R J 1 R512 0402 Resistor 680R J 1 R231 0402 Resistor 1K J 17 R110 R109 R108 R107 R106 R105R104 R510 R507 R506 R428 R427 R426 R425 R420 R407 R274 0402 Resistor 1.5K J 1 R204 0402 Resistor 1.8K J 3 R278 R111 R518 0402 Resistor 2K J 1 R513 0402 Resistor 2.2K J 5 R607 R606 R501 R608 R258 0402 Resistor 2.7K J 2 R273 R272 0402 Resistor 3.3K J 8 R225 R222 R126 R125 R124 R609 R401 R400 0402 Resistor 4.7K J 5 R271 R140 R424 R421 R517 0402 Resistor 5.6k J 1 R127 0603 Resistor 8.2K J 1 R430 0402 Resistor 10K J 6 R502 R232 R113 R431 R253 R508 0402 Resistor 27K J 1 R422 0402 Resistor 33K J 2 R131 R405 0402 Resistor 47K J 23 R604 R603 R500 R201 R200 R129R119 R118 R511 R419 R418 R417R416 R415 R414 R413 R412 R411 R410 R203 R434 R435 R206 0402 Resistor 68K J 2 R337 R433 0402 Resistor 82K D 9 R269 R128 R244 R243 R242 R241 R240 R239 R238 0402 Resistor 100K J 10 R208 R207 R139 R117 R116 R509 R406 R134 R202 R259 0402 Resistor 120K J 5 R234 R233 R123 R409 R423 0402 Resistor 180K J 1 R257 0402 Resistor 220K J 3 R260 R515 R429 0402 Resistor 270K J 2 R285 R283 0402 Resistor 330K J 1 R130 0402 Resistor 470K J 2 R335 R286 0402 Resistor 1.0M J 6 R266 R265 R264 R262 R516 R256 0603 Resistor 0 Ω J 1 L202 0603 Resistor 47 Ω J 1 R210 0603 Resistor 1.0K J 1 R521 0805 Resistor 0R J 1 R217 1206 Resistor 0.39 Ω F 3 R237 R236 R235 0603 Ma g netic Bead 0603 601T/600R 5 L223 L102 L101 L100 L500 inductance patch/0603 2.2NH 1 L203 inductance patch/0603 18NH 2 L220 L219 inductance patch/0603 22NH 5 L222 L221 L105 L104 L103 inductance patch/0603 47NH 1 L251 inductance patch/0603 220NH 11 L205 L146 L121 L120 L119 L116 L115 L114 L113 L112 L400 inductance patch/0603 1UH 1 L118 inductance patch/0603 3.3UH 3 L108 L107 L106 inductance/0805 18NH 1 L111 inductance/0805 27NH 1 L147 inductance/0805 820NH 1 L250 inductance/0805 1UH 2 L201 L200 inductance/2520 1UH 1 L218 0805 Capacitor 104P K Nonpolarit y 2 C116 C115 Tantalum Capacitor ( SMD ) 2.2UF/1206 10V/16V 1 C117 0805 Capacitor 106P K 17 C608 C621 C620 C615 C614 C505C503 C317 C152 C151 C148 C622 C616 C506 C411 C316 C149 Diode ( SMD ) HVC376 6 D106 D105 D104 D103 D102 D101 Diode ( SMD ) BB535 1 D107 Diode ( SMD ) KDS160E-RTK/P 3 D112 D401 D400 Diode ( SMD ) BA592 1 D204 Diode ( SMD ) HSC277 4 D206 D205 D109 D108 Diode ( SMD ) HVC350B ( TF ) 4 D217 D212 D211 D209 Diode ( SMD ) 0603 Red li g ht 1 D402 Diode ( SMD ) 0603 Green li g ht 1 D403 Diode ( SMD ) 1SS372 1 D500 IC ( SMD ) LS-A8 1 IC400 IC ( SMD ) 1.50E+04 1 IC100 A udion ( SMD ) UMC4 1 IC101 IC ( SMD ) NJM2904 1 IC200 IC ( SMD ) A A32416 1 IC201 IC ( SMD ) 24C256 1 IC401 IC ( SMD ) TDA2822 1 IC500 Coil ( SMD ) E2-0.35-1.5-3TL 2 L209 L207 Coil ( SMD ) E2-0.35-1.5-4TL 6 L214 L213 L212 L210 L208 L206 Coil ( SMD ) E2-0.35-1.5-8TL 1 L204 A udion ( SMD ) 2SA1362 ( GR ) 1 Q501 A udion ( SMD ) 2SA1745-6-TL 5 Q608 Q607 Q609 Q502 Q400 A udion ( SMD ) KTC3770U-RTK/P 5 Q204 Q103 Q102 Q101 Q100 A udion ( SMD ) 2SC4617 ( S ) 2 Q107 Q503 A udion ( SMD ) 2SC5066 1 Q209 A udion ( SMD ) 2SJ243 1 Q106 Push Tube ( SMD ) 2SK3078 1 Q201 A udion ( SMD ) 2SK508 ( K52 ) 2 Q105 Q104 A udion ( SMD ) 3SK318 2 Q211 Q210 A udion ( SMD ) DTA144EE 1 Q208 Audion (SMD) DTC144EE 8 Q605 Q604 Q500 Q606 Q402 Q401 Q207 Q206 Diode (SMD) FP6146-33S5GTR(3.3V) 1 Q602 A udion ( SMD ) PBR951 1 Q200 Power tube ( SMD ) RQA0011 1 Q203 A udion ( SMD ) 5V/5002 D 1 Q601 Tact Switch TS-1191 1 S401 Diode ( SMD…

Text truncated - open the document above for the full version.

Tune up procedure The test frequency of this project covers 450MHz~512MHz. 1. It must provide an operational voltage (3.7~4.2V DC) to turn on the device and on one certain channel in service mode by means of company proprietary software. 2. The maximum gain of each individual device are adjusted until the target value met. Output power of range： 36.5 ± 1.0 dBm

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. SAR EVALUATION REPORT For Lisheng (Fujian) Communications Co., Ltd. 5#, Chongxiang St., Econ.&Tech. Area, Quanzhou, Fujian, China FCC ID: 2AB2FLS-A8-UHF Report Type: Original Report Product Type: Two-Way Radio/Transceiver Test Engineer: Wilson Chen Report Number: RSZ140304801-20 Report Date: 2014-03-11 Reviewed By: Sandy Wang SAR En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: RSZ140304801-20 SAR Evaluation Report 2 of 59 Attestation of Test Results EUT Information Company Name Lisheng (Fujian) Communications Co., Ltd. EUT Description Two-Way Radio/Transceiver FCC ID 2AB2FLS-A8-UHF Model Number LS-A8 UHF Test Date 2014-03-10 Mode Frequency (MHz) Model Max. SAR Level(s) Report Limit (W/Kg) Analog 450-512 LS-A8 UHF 12.5kHz Face up: 0.916 W/kg (50% duty cycle) Body-Back: 1.553W/kg (50% duty cycle) 8 Applicable Standards ANSI / IEEE C95.1: 2005 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fileds,3 kHz to 300 GHz. ANSI / IEEE C95.3: 2002 IEEE Recommended Practice for Measurements and Computations of Radio Frequency Electromagnetic Fields With Respect to Human Exposure to SuchFields,100 kHz—300 GHz. IEEE1528:2003 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques KDB procedures KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies KDB 643646 SAR Test Reduction Considerations for Occupational PTT Radios Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in ANSI/IEEE Standards and has been tested in accordance with the measurement procedures specified in IEEE 1528-2003 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: RSZ140304801-20 SAR Evaluation Report 3 of 59 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 EUT DESCRIPTION .................................................................................................................................................... 5 TECHNICAL SPECIFICATION ......................................................................................................................................... 5 REFERENCE, STANDARDS, AND GUILDELINES ............................................................................................... 6 SAR LIMITS ................................................................................................................................................................. 7 FACILITIES .................................................................................................................................................................. 8 DESCRIPTION OF TEST SYSTEM .......................................................................................................................... 9 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 16 EQUIPMENTS LIST & CALIBRATION INFORMATION .................................................................................................... 16 SAR MEASUREMENT SYSTEM VERIFICATION .............................................................................................. 17 LIQUID VERIFICATION ............................................................................................................................................... 17 SYSTEM ACCURACY VERIFICATION ........................................................................................................................... 19 SAR SYSTEM VALIDATION DATA ..................................................................................................................... 20 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 24 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR........................................................................ 24 CHEEK/TOUCH POSITION ........................................................................................................................................... 25 EAR/TILT POSITION ................................................................................................................................................... 25 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS .............................................................................. 26 SAR EVALUATION PROCEDURE ................................................................................................................................. 27 CONDUCTED OUTPUT POWER MEASUREMENT ........................................................................................... 28 PROVISION APPLICABLE ............................................................................................................................................ 28 TEST PROCEDURE ...................................................................................................................................................... 28 MAXIMUM OUTPUT POWER AMONG PRODUCTION UNITS .............…
