2AB2VM760ATablet PC

FCC Statment This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. RF warning statement The device has been evaluated to meet general RF exposure requirement.The device can be used in portable exposure condition without restriction.

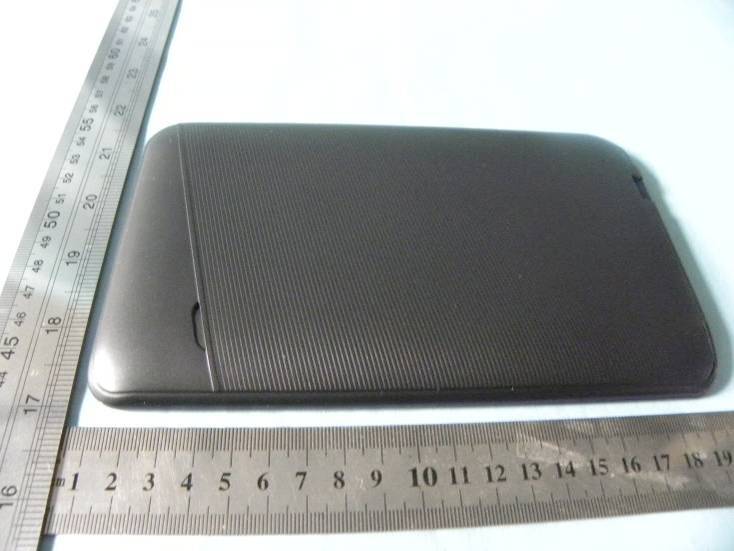

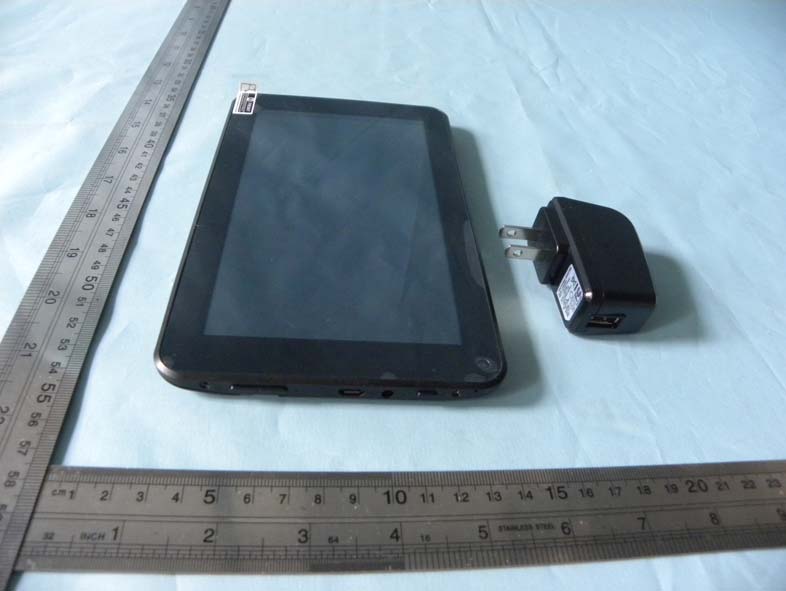

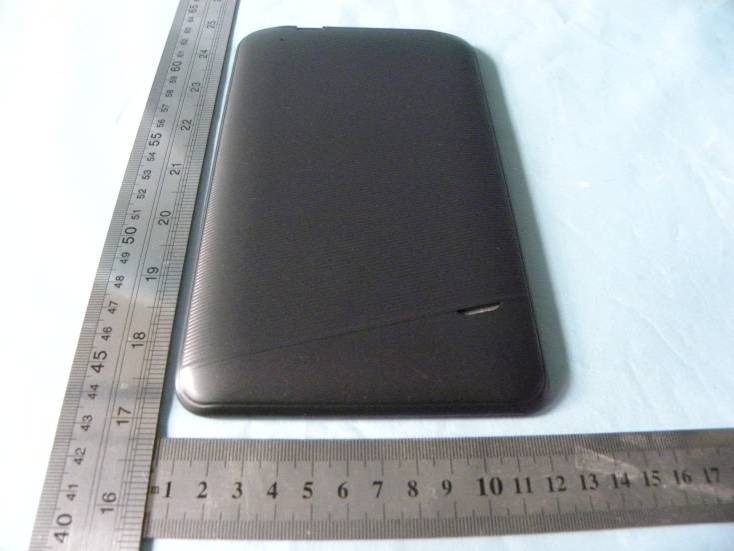

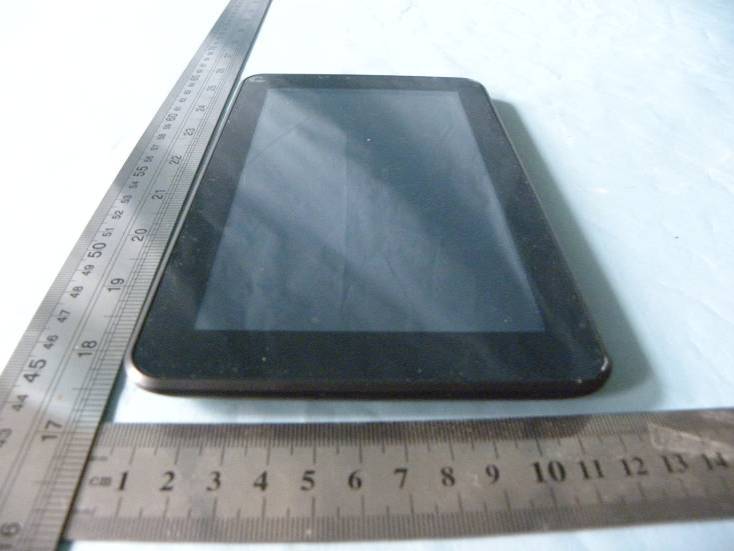

External photos of the EUT

Label Location （Following is a template of one model,others are similar with only model differene）

Internal photos of the EUT

Report No.: GTI20140031F-2 Page 2 of 24 Issued:2014-03-17 T E S T R E P O R T Test Report No. : GTI20140031F-2 March 16, 2014 ______________________________________________________________________________________________ Date of issue Equipment under Test : Tablet PC Model /Type : M760A Listed Models : M760B ~M760Z, M768A~M768Z, M779A~M779Z M786,M787,M797,M7816,M7817,M7818,M966, M737,M738,M816,M816K,M916A,M916B,M919 M1006,M1067,M1068,M789,M7819,M798,M1069 M728A,M728B,M729,M739,M766,M778,M1019 M717,M736,M7219,M7266,M900,M818 Applicant : EZ Net Technology Co., Ltd Address : Room 201-203, Block 2, Area A, Internet Ind. Base, Baoyuan Rd, Baoan, Shenzhen, China Manufacturer EZ Net Technology Co., Ltd Address : Room 201-203, Block 2, Area A, Internet Ind. Base, Baoyuan Rd, Baoan, Shenzhen, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTI20140031F-2 Page 3 of 24 Issued:2014-03-17 Contents 1. TEST STANDARDS .................................................................. 4 2. SUMMARY............................................................................. 5 2.1. General Remarks 5 2.2. Product Description 5 2.3. Equipment Under Test 5 2.4. EUT operation mode 5 2.5. Related Submittal(s) / Grant (s) 5 2.6. Internal Identification of AE used during the test 5 2.7. Modifications 6 2.8. EUT configuration 6 2.9. Configuration of Tested System 6 2.10. NOTE 7 3. TEST ENVIRONMENT............................................................... 8 3.1. Address of the test laboratory 8 3.2. Test Facility 8 3.3. Environmental conditions 8 3.4. Statement of the measurement uncertainty 8 3.5. Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS ............................................ 10 4.1. Conducted Emissions Test 10 4.2. Radiated Emission Test 13 5. TEST SETUP PHOTOS OF THE EUT .......................................... 18 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 18 Report No.: GTI20140031F-2 Page 4 of 24 Issued:2014-03-17 1. TEST STANDARDS The tests were performed according to following standards: 47 CFR FCC Part 15 Subpart B - Unintentional Radiators ANSI C63.4: 2009 – American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40GHz Report No.: GTI20140031F-2 Page 5 of 24 Issued:2014-03-17 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : March 10, 2014 Testing commenced on : March 14, 2014 Testing concluded on : March 15, 2014 2.2. Product Description The EZ Net Technology Co., Ltd’s Model: M760A or the “EUT” as referred to in this report; more general information as follows, for more details, refer to the user’s manual of the EUT. Name of EUT Tablet PC Model Number M760A FCC ID 2AB2VM760A WLAN Supported 802.11b/802.11g/802.11n WLAN FCC Operation frequency IEEE 802.11b: 2412MHz—2462MHz IEEE 802.11g: 2412MHz—2462MHz IEEE 802.11n HT20: 2412MHz—2462MHz IEEE 802.11n HT40: 2422MHz—2452MHz WLAN Modulation IEEE 802.11b: DSSS(CCK,DQPSK,DBPSK) IEEE 802.11g: OFDM(64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n HT20: OFDM (64QAM, 16QAM, QPSK,BPSK) IEEE 802.11n HT40: OFDM (64QAM, 16QAM, QPSK,BPSK) Android version 4.4.2 2.3. Equipment Under Test Power supply system utilised Power supply voltage : ○120V / 60 Hz ○115V / 60Hz ○12 V DC ○24 V DC  Other (specified in blank below) DC 3.70V/DC 5.0V adapter from AC120V/60Hz 2.4. EUT operation mode The EUT has been tested under typical operating condition. 2.5. Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for FCC ID: 2AB2VM760A filing to comply with the FCC Part 15, Subpart B Rules. 2.6. Internal Identification of AE used during the test AE ID* Description AE1 Battery AE2 Charger and USB cable Report No.: GTI20140031F-2 Page 6 of 24 Issued:2014-03-17 AE1 Model: 3570100 Manufacturer:HBT Capacitance: 2800mAh Nominal Voltage: 3.70V AE2: Model: FYA05010US Manufacturer: L.P.S Input: 100-240V～50/60Hz 0.6A Max Output: 5.0V DC 2.0A Power Cable Length: 80cm ○ Shielded ● Unshielded *AE ID: is used to identify the test sample in the lab internally. Note: We not used Charger when FCC Part 15B test. 2.7. Modifications No modifications were implemented to meet testing criteria. 2.8. EUT configuration The following peripheral devices and interface cables were connected during the measurement: ● - supplied by the manufacturer ○ - supplied by the lab ○ Power Cable Length (m) : / Shield : / Detachable : / ○ Multimeter Manufacturer : / Model No. : / 2.9. Configuration of Tested System Configuration of Tested System Equipment Used in Tested System No. Equipment Manufacturer Model No. Serial No. Lengthshielded/unshieldedNotes 1 PC DELL DIMEN SION E520 1RNN42X / / DOC PC EUT AC 120V/60Hz Printer Mouse AC 120V/60Hz Display Keyboard Report No.: GTI20140031F-2 Page 7 of 24 Issued:2014-03-17 2 Printer ESPOn C3990 C3990A / / DOC 3 Mouse DELL MO56U OA G0E02SY7 1.00munshielded DOC 4 Display DELL 1707FPt CN-OFC237-71618- 65G-AAKC / / DOC 5 Keyboard DELL L100 CNRH65665890726 009L / / DOC 6 USB Cable (EUT to PC) Star Computer Group USB 2.0N/A 0.80munshielded N/A 7 USB Cable (Printer to PC) Genshuo USB 2.0N/A 1.20munshielded N/A 8 Power line / / N/A 1.00munshielded N/A 2.10. NOTE 1. The EUT is a WCDMA Mobile Phone with WLAN and Bluetooth fuction,The functions of the EUT listed as below: Test Standards Reference Report WLAN FCC Part 15 C 15.247 GTI20140031F-1 USB Port FCC Part 15 B GTI20140031F-2 SAR FCC Part 2 §2.1093 GTI20140031F-3 Report No.: GTI20140031F-2 Page 8 of 24 Issued:2014-03-17 3. TEST ENVIRONMENT 3.1. Address of the test laboratory DTT Services Co.,Ltd 1F,2 Block,Jiaquan Building,Guanlan High-tech Park Baoan District, ShenZhen,Guangdong,China 3.2. Test Facility The test facility is recognized, certified, or accredited by…

Text truncated - open the document above for the full version.

Conducted Emission (AC Mains) Radiated Emission (30MHz-1GHz) Radiated Emission (1GHz-6GHz)
