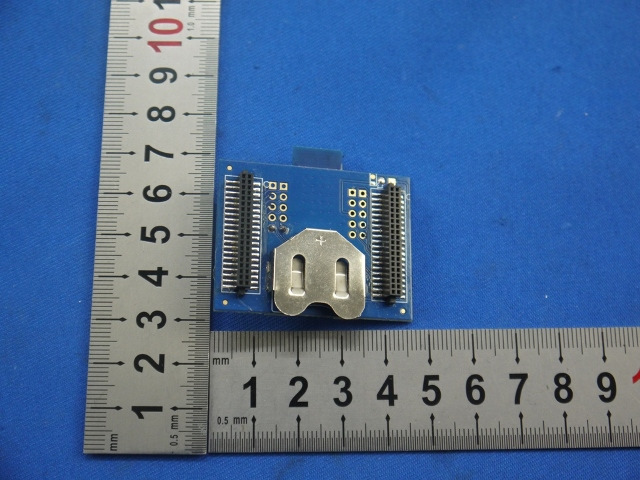

2AB359321-1Bluetooth 4.0 Low Energy Module

Rev1.4 (4/ 23) Confidential and Proprietary ©2012-2014 by Quintic Corporation, not for distribution. Confidential A Confidential Information contained herein is covered under Non-Disclosure Agreement (NDA). Preliminary datasheet, Quintic Corporation reserves right to modify without notification QS9321 Bluetooth 4.0 Low Energy Module User Manual Version 1.4 Rev1.4 (4/ 23) Confidential and Proprietary ©2012-2014 by Quintic Corporation, not for distribution. Confidential A Confidential Information contained herein is covered under Non-Disclosure Agreement (NDA). Preliminary datasheet, Quintic Corporation reserves right to modify without notification VERSION HISTORY Version Comment 0.1 First draft 0.9 Update pin out description 1.0 First release 1.1 Add the photo of QS9321 with shielding box 1.2 Change transparent transfer baud rate to 115200. Connect Pin19 to Vin in figure 1 and 7 1.3 Add CE note 1.4 Add model definition, Layout Guide instruction and Soldering Recommendations Rev1.4 (4/ 23) Confidential and Proprietary ©2012-2014 by Quintic Corporation, not for distribution. Confidential A Confidential Information contained herein is covered under Non-Disclosure Agreement (NDA). Preliminary datasheet, Quintic Corporation reserves right to modify without notification Table of Contents 1 Key Features ............................................................................................................................................... 1 2 Description .................................................................................................................................................. 3 2.1 Model Definition ................................................................................................................................. 3 2.2 Module description .............................................................................................................................. 3 3 Pin out ......................................................................................................................................................... 4 4 Electrical Characteristics ............................................................................................................................ 6 5 Layout and Physical Dimensions ................................................................................................................ 7 5.1 Physical dimensions ............................................................................................................................ 7 5.2 Layout guide ........................................................................................................................................ 7 6 Soldering Recommendations ...................................................................................................................... 9 7 Application Reference .............................................................................................................................. 10 7.1 Reference circuit schematic ............................................................................................................... 10 7.2 Feature ............................................................................................................................................... 10 7.3 Software ............................................................................................................................................. 10 Rev1.4 (4/ 23) Confidential and Proprietary ©2012-2014 by Quintic Corporation, not for distribution. Page 1 of 13 Confidential A Confidential Information contained herein is covered under Non-Disclosure Agreement (NDA). Preliminary datasheet, Quintic Corporation reserves right to modify without notification 1 Key Features  Bluetooth® 4.0 Low Energy wireless module  Frequency bands: 2400MHz to 2483.5MHhz  1Mbps on air data rate  Slave and Master mode operation  Support up to 8 simultaneous links in master mode  128-bit AES coprocessor  Complete BLE protocol stack and application profiles  Integrated 32-bit Cortex-M0 MCU with  64KB system memory  128KB flash  Ultra Low Power Consumption  2uA deep sleep mode  3uA sleep mode (32kHz RC OSC on)  DC-DC mode  9.25mA RX current at 3V  8.8mA TX current @0dBm Tx power at 3V  Non DC-DC mode  13.6mA RX current at 3V  13.3mA TX current @0dBm Tx power at 3V  Integrated DC-DC converter and LDO  Single 2.4V~3.6V power supply  High Performance  -95dBm RX sensitivity (Non DC-DC mode)  -93dBm RX sensitivity (DC-DC mode)  Tx power from -20dBm to 4dBm  Excellent link budget up to 99dB  Complete Protocol Stack and Profile  Bluetooth® v4.0  Bluetooth® v4.0 host stack including L2CAP , SMP, ATT, GATT, GAP  Qualified application profiles and services  Controller subsystem QDID: B021031  Host stack subsystem QDID: B021098  Profile subsystem QDID: B021946 Rev1.4( 4/ 23) Confidential and Proprietary ©2012-2014 by Quintic Corporation, not for distribution. Page 2 of 13 Confidential A Confidential Information contained herein is covered under Non-Disclosure Agreement (NDA). Preliminary datasheet, Quintic Corporation reserves right to modify without notification  Ease of Design  Small form factor: QS93221-PLCS, 12x18x2.4mm; QS9321-PLCM, 12x18x1.8mm  Easy to use command set over UART/SPI to communicate with App MCU  Application  Sports & Fitness  Healthcare & Wellness  Remote Control  PC Peripherals (mouse, keyboard)  Mobile Phone Accessories  Home/building Automation  Industrial automation  Wireless Sensor Networks Rev1.4( 4/ 23) Confidential and Proprietary ©2012-2014 by Quintic Corporation, not for distribution. Page 3 of 13 Confidential A Confidential Information contained herein is covered under Non-Disclosure Agreement (NDA). Preliminary datasheet, Quintic Corporation reserves right to modify without notification 2 Description 2.1 Model Definition Explain: 1. QS9321-PLCM, without shielding box, FCC ID: 2AB359321-…
