iPA18L Quickstart Guide English ( 3 – 4 ) Guía de inicio rápido Español ( 5 – 6 ) Guide d'utilisation rapide Français ( 7 – 8 ) Guida rapida Italiano ( 9 – 10 ) Schnellstart-Anleitung Deutsch ( 11 – 12 ) Snelstartgids Nederlands ( 13 – 14 ) Snabbstartsguide Svenska ( 15 – 16 ) Pikakäyttöopas Suomi ( 17 – 18 ) Appendix English ( 19 ) 3 BOX CONTENTS House Party  Audio Cable with 1/8” (3.5mm) connectors  Quickstart Guide  Safety Instructions & Warranty Information Booklet Quickstart Guide (English) Support For product registration, visit the ION website: ionaudio.com For additional product support, visit ionaudio.com/support For safety/warranty information, visit ionaudio.com/warranty WARNING: DO NOT splash or immers e in water or other liquids. Not for use in rain. Use only in dry locations. WARNING: DO NOT look directly into the dome light. Do not sit, stand, or apply pressure on the dome light. Quick Setup / Connection Diagram 1. Make sure all items listed in Box Contents at the beginning of this guide are included in the box. 2. READ SAFETY INSTRUCTI ON BOOKLET BEFORE USING THE PRODUCT. 3. For optimal performance, place Hous e Party in the center of the room so it is unobstructed by walls, furniture, etc. 4. Move Light Mode switch to OFF. 5. Turn down the Master Volume on the House Party. 6. Turn on House Party. 7. Connect your music player with an audio cable or Bluetooth (see Connecting with a Bluetooth Device for more details on this). 8. Adjust the volume on your music player and on House Party as needed. 9. Adjust the Light Mode switch on House Party as needed. 10. Turn off House Party when not in use. TOP PANEL MICROPHONE MP3 PLAYER (not included) REAR PANEL POWER MICROPHONE(not included) Included Audio Cable with 1/8” (3.5mm) connectors 4 Diagram and Parts Description 1. Microphone Input with Volume Control (1/4"): This mono input accepts a 1/4" input such as a microphone, guitar, or other musical instrument. 2. Auxiliary Input: This stereo 1/8” input can be used to connect a smartphone, MP3 player, or other audio sources. 3. Bluetooth: The Paired LED will be lit when a device is paired to House Party. This LED will not be lit when House Party is first powered on (unless it was previously paired with a device). Press the Disco nnect button to disconnect a paired Bluetooth device. 4. Master Volume Control: This adjusts the speaker’s main mix volume, which includes Microphone Input, Auxiliary Input, and the audio of a paired Bluetooth device. 5. Power LED: Indicates whether House Party is on or off. 6. Light Mode: There are three modes to select from for how the strobe lights react to the music. • Beat = the light reacts to the beat of the music. • Party = dome light spins and changes color whether there is music playing or not. • Off = the light is off and the lights in the dome are not spinning. 7. Dome: The lights in the dome can spin and react to the music playing (depending on the Light Mode that is selected). 8. Power Input: The integrated power cable is connected here. 9. Power ON/OFF Switch: Turns House Party on or off. 10. Fans: These air intake and air outtake vents operate when Light Mode is turned on to ensure the light dome operates efficiently. Note: Please ensure these vents do not get covered or blocked. Troubleshooting If the sound is distorted: Try lowering the volume c ontrol of your sound source or musical instrument. Also, try to reduce the overall volume of House Party. If there is too much bass: Try adjusting the tone or EQ control on your sound source to lower the bass level. This will allow you to play the music louder before clipping (distortion) occurs. If there is a high-pitched whistling noise when using microphones: This is probably feedback. Point the microphone away from the speaker. If you can’t hear the microphone over the music volume: Turn down the music vo lume from your source. Connecting with a Bluetooth Device 1. Turn on House Party using the power switch. 2. Navigate to your Bluetooth device’s setup scr een, find “House Party” and connect. Note: The next time you approach House Party with yo ur Bluetooth device, it will automatically re- connect. Note: If your Bluetooth device prompts for a pairing code, enter ‘0000’. 3. If your Bluetooth device is not able to connect to House Party, press the Bl uetooth Disconnect button on House Party to break previous Bluetooth connections and reset the Bluetooth module. 4. The Paired LED will light up solid when it is 'paired'. 5. Start music playback from your Bluetooth device. 6. To connect to another Bluetooth device, press the Bluetooth Disconnect button. Repeat Step 2. 7. To disconnect a connected Bl uetooth device, press the Bluetooth Disconnect button. Note: If you experience trouble connecting or playing music, update your device's OS. 1 2 3 4 5 6 7 *WARNING: Do not look directly into the dome light. Do not sit, stand, or apply p ressure on the dome li g ht. 8 9 10 5 Guía de inicio rápido (Español) Soporte Para registrar el producto, visite el sitio web de ION: ionaudio.com Para soporte adicional del producto, visite ionaudio.com/support Para información acerca de la seguridad y la garantía, visite ionaudio.com/warranty ADVERTENCIA: NO salpique ni sumerja el producto en agua u otros líquidos. No lo use bajo la lluvia. Úselo sólo en lugares secos. ADVERTENCIA: NO mire directamente a la luz del domo. No se siente, se pare o aplique presión sobre la luz del domo. Diagrama de instal ación y conexión rápida 1. Asegúrese que todos los artículos incluidos en Contenid o de la caja, al comienzo de esta guía, estén incluidos en la caja. 2. LEA EL FOLLETO DE INSTRUCCIONES DE SEG URIDAD ANTES DE UTILIZAR EL PRODUCTO. 3. Para lograr un rendimiento óptimo, coloque el House Party en el centro de la sala donde no esté obstaculizado por paredes, muebles, etc. 4. Mueva el interruptor de modo de luz a OFF. 5. Baje el control de volumen maestro del House Party. 6. Encienda el House Party. 7. Conecte su reproduct…

Text truncated - open the document above for the full version.

July 17, 2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AB3E-IPA18L _ Product Name: HOUSE PARTY Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics Long-term confidential  Block diagram Long-term confidential  Operation description Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name Jacky Liao Position Saty/EMI Dept Manager Company Name ION AUDIO,LLC Address 200 Scenic View Drive, Cumberland, RI 02864, U.S.A Tel +866-2-2717-2389 Fax +866-2-2717-2389 Email [email protected]

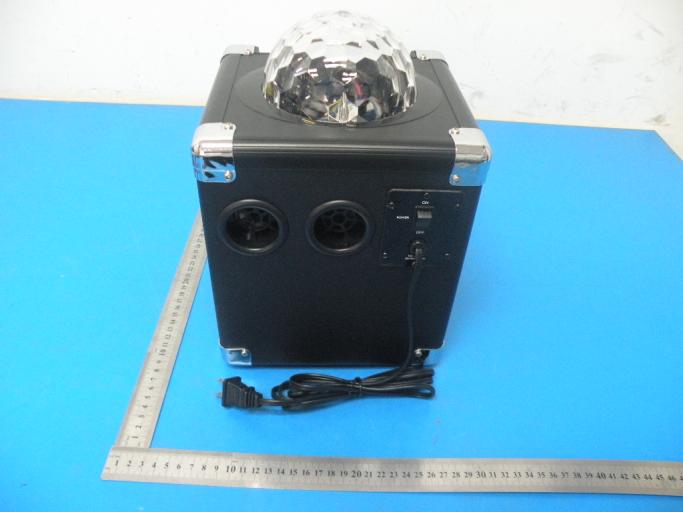

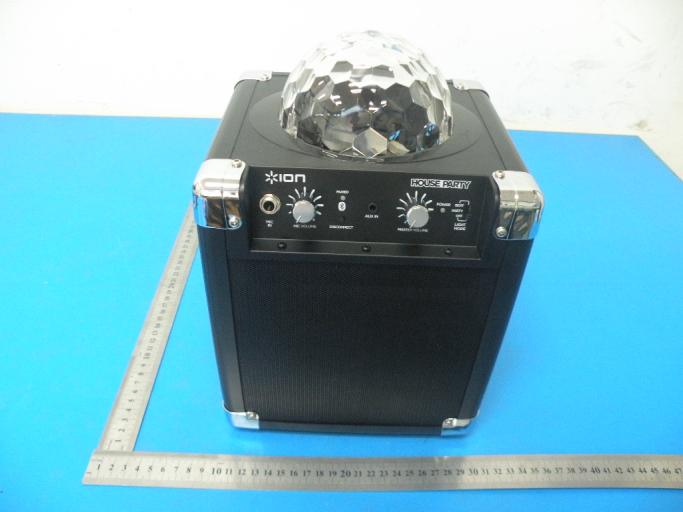

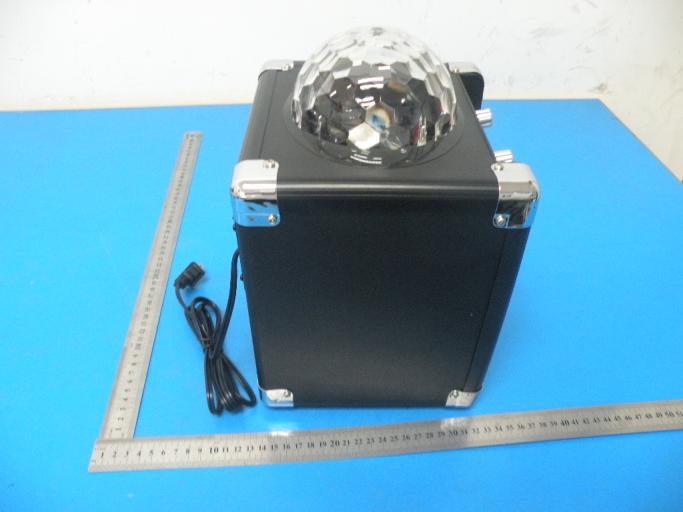

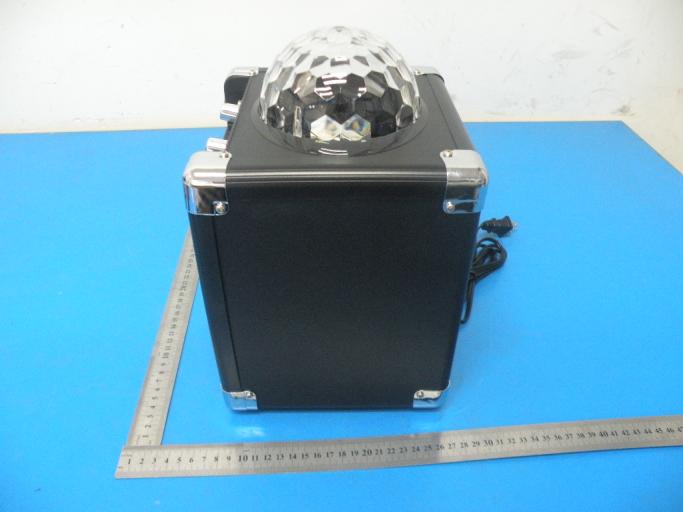

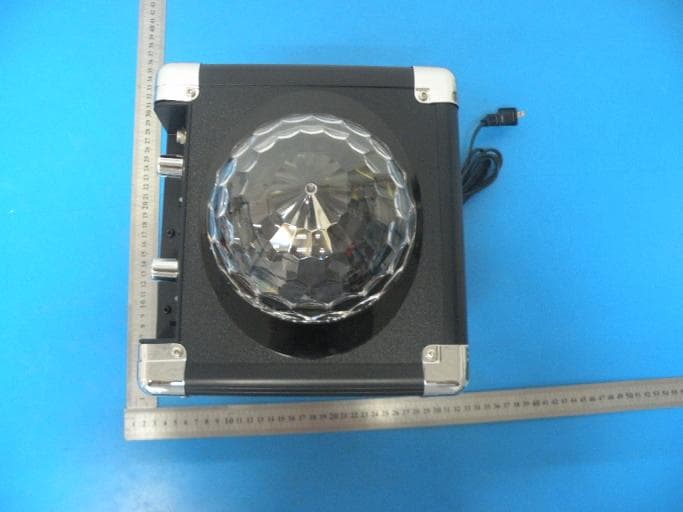

Label location

RF Exposure evaluation According to KDB 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2402 MHz -1.17dBm（ 0.764mW） output power] (0.764 mW /5mm) ·[√2.402 (GHz)]= 0.24 <3.0 for 1-g SAR Then SAR evaluation is not required

TEST REPORT FCC ID: 2AB3E-IPA18L IC: 10541A-IPA18L Applicant : ION AUDIO,LLC Address : 200 Scenic View Drive, Cumberland, RI 02864, U.S.A Equipment Under Test (EUT): Name : HOUSE PARTY Model : iPA18L Trademark : ION Standards : FCC PART 15, SUBPART C : 2014 (Section 15.247) RSS-247 ISSUE 1 MAY 2015; RSS-GEN ISSUE 4 NOV 2014 ANSI C63.4:2014 ; ANSI C63.10:2013 Report No : T1850622 01 Date of Test : June 10, 2015- June 17, 2015 Date of Issue : June 18, 2015 Tset Result : PA S S In the configuration tested, the EUT complied with the standards specified above Authorized Signature (Mark Zhu) Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Alpha Product Testing Co., Ltd. Or test done by Shenzhen Alpha Product Testing Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Alpha Product Testing Co., Ltd. Approvals in writing. Page 2 of 86 Report No.: T1850622 01 Contents 1. General Information ............................................................................................................... 5 1.1. Description of Device (EUT) ...............................................................................5 1.2. Accessories of device (EUT) ...............................................................................6 1.3. Test Lab information ............................................................................................6 2. Summary of test ...................................................................................................................... 7 2.1. Summary of test result .........................................................................................7 2.2. Assistant equipment used for test .........................................................................7 2.3. Block Diagram .....................................................................................................8 2.4. Test mode .............................................................................................................8 2.5. Test Conditions .....................................................................................................9 2.6. Measurement Uncertainty (95% confidence levels, k=2) ....................................9 2.7. Test Equipment ...................................................................................................10 3. Maximum Peak Output power ............................................................................................ 11 3.1. Limit ................................................................................................................... 11 3.2. Test Procedure .................................................................................................... 11 3.3. Test Setup ........................................................................................................... 11 3.4. Test Result .......................................................................................................... 11 4. Bandwidth ............................................................................................................................. 12 4.1. Limit ...................................................................................................................12 4.2. Test Procedure ....................................................................................................12 4.3. Test Result ..........................................................................................................12 5. Carrier Frequency Separation ............................................................................................. 18 5.1. Limit ...................................................................................................................18 5.2. Test Procedure ....................................................................................................18 5.3. Test Result ..........................................................................................................18 6. Number Of Hopping Channel ............................................................................................. 21 6.1. Limit ...................................................................................................................21 6.2. Test Procedure ....................................................................................................21 6.3. Test Result ..........................................................................................................21 7. Dwell Time ............................................................................................................................. 24 7.1. Test limit ............................................................................................................24 7.2. Test Procedure ....................................................................................................24 7.3. Test Results ........................................................................................................24 8. Radiated emissions ................................................................................................................ 31 8.1. Limit ...................................................................................................................31 8.2. Block Diagram of Test setup ..............................................................................32 8.3. Test Procedure ....................................................................................................33 8.4. Test Result ...............................................................................................…

Text truncated - open the document above for the full version.

Page 44 of 86 Report No.: T1850622 01 1GHz — 25GHz Radiated emissison Test result EUT: HOUSE PARTY M/N: iPA18L Power: AC 120V/60Hz Test date: 2015-06-12 Test site: 3m Chamber Tested by: Peter Test mode: 8- DQPSK Tx CH1 2402MHz Antenna polarity: Vertical No Freq (MHz) Read Level (dBuV/m) Antenna Factor (dB/m) Cable loss(d B) Amp Factor (dB) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Remark 1 4804 41.42 33.95 10.18 34.26 51.29 74 22.61 PK 2 4804 31.35 33.95 10.18 34.26 41.22 54 12.78 AV 3 7206 / 4 9608 / 5 12010 / Antenna Polarity: Horizontal 1 4804 40.46 33.95 10.18 34.26 50.33 74 23.67 PK 2 4804 30.35 33.95 10.18 34.26 40.22 54 13.78 AV 3 7206 / 4 9608 / 5 12010 / Note: 1, Measuring frequency from 1GHz to 25GHz 2, Spectrum Set for PK measure: RBW=1MHz, VBW=1MHz, Sweep time=Auto, Detector: PK 2, Spectrum Set for AV measure: RBW=1MHz, VBW=10Hz, Sweep time=Auto, Detector: PK 3, Result = Read level + Antenna factor + cable loss-Amp factor 4, All the other emissions not reported were too low to read and deemed to comply with FCC limit. Page 45 of 86 Report No.: T1850622 01 1GHz — 25GHz Radiated emissison Test result EUT: HOUSE PARTY M/N: iPA18L Power: AC 120V/60Hz Test date: 2015-06-12 Test site: 3m Chamber Tested by: Peter Test mode: 8- DQPSK Tx CH40 2441MHz Antenna polarity: Vertical No Freq (MHz) Read Level (dBuV/m) Antenna Factor (dB/m) Cable loss(d B) Amp Factor (dB) Result (dBuV/m) Limit (dBuV/ m) Margin (dB) Remark 1 4882 40.27 33.93 10.2 34.29 50.11 74 23.89 PK 2 4882 30.85 33.93 10.2 34.29 40.69 54 13.31 AV 3 7323 / 4 9764 / 5 12205 / Antenna Polarity: Horizontal 1 4882 40.4 33.93 10.2 34.29 50.28 74 13.72 PK 2 4882 29.91 33.93 10.2 34.29 39.75 54 14.25 AV 3 7323 / 4 9764 / 5 12205 / Note: 1, Measuring frequency from 1GHz to 25GHz 2, Spectrum Set for PK measure: RBW=1MHz, VBW=1MHz, Sweep time=Auto, Det ector: PK 2, Spectrum Set for AV measure: RBW=1MHz, VBW=10Hz, Sweep time=Auto, Detector: PK 3, Result = Read level + Antenna factor + cable loss-Amp factor 4, All the other emissions not reported were too low to read and deemed to comply with FCC limit. Page 46 of 86 Report No.: T1850622 01 1GHz — 25GHz Radiated emissison Test result EUT: HOUSE PARTY M/N: iPA18L Power: AC 120V/60Hz Test date: 2015-06-12 Test site: 3m Chamber Tested by: Peter Test mode: 8- DQPSK Tx CH79 2480MHz Antenna polarity: Vertical No Freq (MHz) Read Level (dBuV/m) Antenna Factor (dB/m) Cable loss(d B) Amp Factor (dB) Result (dBuV/m) Limit (dBuV/ m) Margin (dB) Remark 1 4960 40.27 33.98 10.22 34.25 50.22 74 23.78 PK 2 4960 30.40 33.98 10.22 34.25 40.35 54 13.65 AV 3 7440 / 4 9920 / 5 12400 / Antenna Polarity: Horizontal 1 4960 39.43 33.98 10.22 34.25 49.38 74 24.62 PK 2 4960 29.27 33.98 10.22 34.25 39.22 54 14.78 AV 3 7440 / 4 9920 / 5 12400 / Note: 1, Measuring frequency from 1GHz to 25GHz 2, Spectrum Set for PK measure: RBW=1MHz, VBW=1MHz, Sweep time=Auto, Detector: PK 2, Spectrum Set for AV measure: RBW=1MHz, VBW=10Hz, Sweep time=Auto, Detector: PK 3, Result = Read level + Antenna factor + cable loss-Amp factor 4, All the other emissions not reported were too low to read and deemed to comply with FCC limit. Page 47 of 86 Report No.: T1850622 01 9. Band Edge Compliance 9.1. Block Diagram of Test Setup  9.2. Limit All the lower and upper band-edges emissions appearing within restricted frequency bands shall not exceed the limits shown in RSS-GEN, all the other emissions outside operation shall be at least 20dB below the fundamental emissions, or comply with RSS-GEN limits. 9.3. Test Procedure All restriction band and non- restriction band have been tested ˈonly worse case is reported. 9.4. Test Result PASS. (See below detailed test data) Page 48 of 86 Report No.: T1850622 01 Radiated Method GFSK ( CH Low ) Band Edge Test result EUT: HOUSE PARTY M/N: iPA18L Power: AC 120V/60Hz Test date: 2015-06-17 Test site: 3m Chamber Tested by: Peter Test mode: Tx CH Low 2402MHz Antenna polarity: Vertical Freq (MHz) Read Level (dBuV/m) Antenna Factor (dB/m) Cable loss(d B) Amp Factor (dB) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Remark 2390 36.04 27.62 3.92 34.97 32.61 74 41.39 PK 2390 -- 27.62 3.92 34.97 -- 54 -- AV Antenna Polarity: Horizontal 2390 36.29 27.62 3.92 34.97 32.86 74 41.14 PK 2390 -- 27.62 3.92 34.97 -- 54 -- AV Note: 1, Spectrum Set for PK measure: RBW=1MHz, VBW=1MHz, Sweep time=Auto, Detector: PK 2, Spectrum Set for AV measure: RBW=1MHz, VBW=10Hz, Sweep time=Auto, Detector: PK 3, Result = Read level + Antenna factor + cable loss-Amp factor 4, All the other emissions not reported were too low to read and deemed to comply with FCC limit. Page 49 of 86 Report No.: T1850622 01 GFSK (CH High) Band Edge Test result EUT: HOUSE PARTY M/N: iPA18L Power: AC 120V/60Hz Test date: 2015-06-17 Test site: 3m Chamber Tested by: Peter Test mode: Tx CH High 2480MHz Antenna polarity: Vertical Freq (MHz) Read Level (dBuV/m) Antenna Factor (dB/m) Cable loss(d B) Amp Factor (dB) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Remark 2483.5 52.46 27.89 4 34.97 49.38 74 24.62 PK 2483.5 -- -- -- -- 54 -- AV Antenna Polarity: Horizontal 2483.5 53.12 27.89 4 34.97 50.04 74 23.96 PK 2483.5 -- -- -- -- 54 -- AV Note: 1, Spectrum Set for PK measure: RBW=1MHz, VBW=1MHz, Sweep time=Auto, Detector: PK 2, Spectrum Set for AV measure: RBW=1MHz, VBW=10Hz, Sweep time=Auto, Detector: PK 3, Result = Read level + Antenna factor + cable loss-Amp factor 4, All the other emissions not reported were too low to read and deemed to comply with FCC limit. Page 50 of 86 Report No.: T1850622 01 GFSK ( Hopping Low) Band Edge Test result EUT: HOUSE PARTY M/N: iPA18L Power: AC 120V/60Hz Test date: 2015-06-17 Test site: 3m Chamber Tested by: Peter Test mode: Tx Antenna polarity: Vertical Freq (MHz) Read Level (dBuV/m) Antenna Factor (dB/m) Cable loss(d B) Amp Factor (dB) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Remark 2390 36.17 27.62 3.92 34.97 32.74 74 41.26 PK 2390 -- 27.62 3.92 34.97 -- 54 -- AV Antenna Polarity: Horizontal 2390 36.85 27.62 3.92 34.97 33.42 74…

Text truncated - open the document above for the full version.

Photos of Radiated emission Photos of Conducted Emission test
