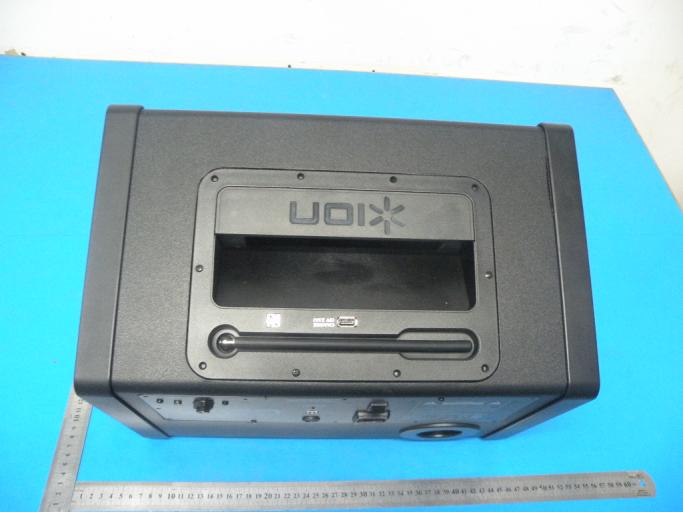

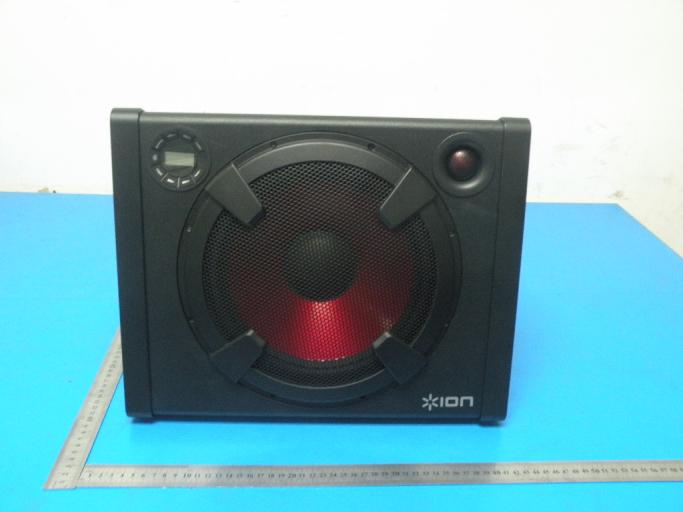

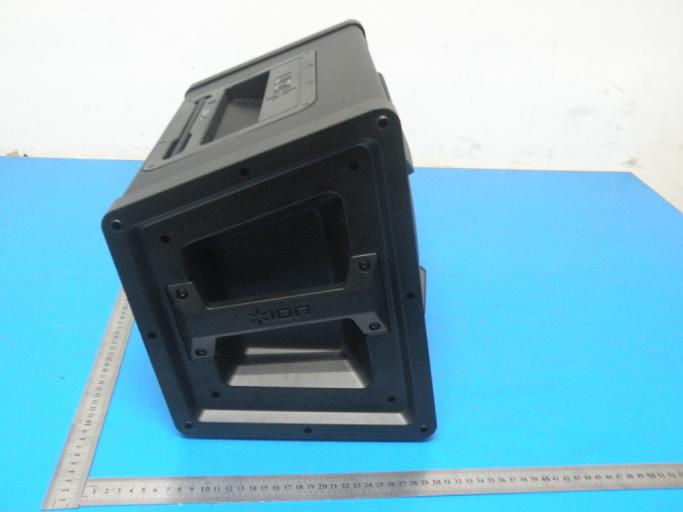

2AB3E-IPA29Rechargeable Speaker System

Road Rider Quickstart Guide English ( 3 – 6 ) Guía de inicio rápido Español ( 7 – 10 ) Guide d'utilisation rapide Français ( 11 – 14 ) Guida rapida Italiano ( 15 – 18 ) Schnellstart-Anleitung Deutsch ( 19 – 22 ) Snelstartgids Nederlands ( 23 – 26 ) Appendix English ( 27 ) 3 Quickstart Guide (English) Introduction 1. Make sure all items listed in the Box Contents are included in the box. 2. READ THE SAFETY & WARRANTY MANUAL BEFORE USING THE PRODUCT . 3. MAKE SURE THE BATTERY IS COMPLETELY CHARGED PRIOR TO FIRST USE FOR MAXIMUM BATTERY LIFE . 4. Study the connection diagram. Box Contents Road Rider 3.5mm (1/8”) to 3.5mm (1/8”) cable Power Cable (AC) (standard IEC) 12V Power Cable (DC) Quickstart Guide Safety & Warranty Manual Support This unit has flashing lights. If utilized in a motor vehicle, please obey local laws and regulations regarding allowed lighting configurations. For the latest information about this product (system requirements, compatibility information, etc.) and product registration, visit ionaudio.com . Rechargeable Batteries Rechargeable lead-acid batteries are the same type used in automobiles. As with your car battery, how you use this battery has a significant impact on its lifespan. With proper use and treatment, a lead-acid battery can last for years. Here are some recommendations for getting the longest life from the internal battery. General Usage Charge fully before use. Charge fully before storing. Storage For best product longevity, do not store at exceedingly hot (greater than 90°F / 32°C) or exceedingly cold (less than 32°F / 0°C) temperatures. It is acceptable to leave your sound system plugged in. This will not overcharge the battery. If you leave the battery level low and do not charge it for 6 months, it may permanently lose capacity. Repair If the battery fails to charge, check the fuse near the power cable input. If the fuse is not intact, please replace it. The battery can be replaced (details in the Technical Specifications). For Warranty and Parts, contact the Parts Dept. at 401-658-3743 or by visiting ionaudio.com. Disposal Bring the unit to a recycling center or dispose of in accordance with local ordinances. 4 Road Rider Quick Setup Connection Diagram Items not listed under the Box Contents are sold separately. Features 1. Volume –: Decreases the speaker volume on Road Rider. 2. Volume +: Increases the speaker volume on Road Rider. 3. Tune +: Press and release this button to go to the next FM radio station. 4. Tune –: Press and release this button to select a previous FM radio station. 5. Mic +: Press and release this button to increase the level of a connected microphone. 6. Mic –: Press and release this button to decrease the level of a connected microphone. 7. Light: Press and release this button to cycle through the speaker light mode. The lights can be set to illuminate solid, pulsate, or turn off. 8. Bluetooth Button: Press the Bluetooth button to disconnect a paired Bluetooth device. 9. Source: Press and release this button to change the listening source between FM and Bluetooth. 10. Charging Indicator: With the battery charging indicator, when the power cable is connected, movement of the top battery segment shows the battery is charging. When the power cable is disconnected, the battery segment shows the level of the battery. 11. Bluetooth Icon: The Bluetooth icon will be lit solid when a device is paired to Road Rider. 12. Antenna: Adjust this FM antenna to get the best radio reception. Fold this down when not using the radio and when moving the unit. 13. USB Charging Port: Connect your device’s charge cable here to charge it. USB charging only functions when the unit’s power is turned on. Note: To charge smartphones and tablets faster, put the device’s screen to sleep. 14. NFC (near-field communication) : Touch and briefly hold your supported and enabled device to the NFC logo to pair the device. 15. Auxiliary input: This stereo 3.5mm (1/8”) input can be used to connect a CD player, MP3 player, or other audio source. 16. Microphone Input: This mono input accepts a 1/4" input such as a microphone, guitar, or other musical instrument. 17. Power Cable Input (DC): Insert the included power cable here to power Road Rider from a vehicle’s 12V power outlet. 18. Power Cable Input (IEC): Insert the included power cable here to charge the unit. Note that the Road Rider can be used with the power cable while it simultaneously charges the battery. 19. Power ON/OFF Switch: Turns Road Rider on or off. Please note that while Road Rider is connected to a power source, it does not need to be powered on to charge the battery. 20. Charge LED: This illuminates when the unit is charging and goes out once charging is completed. REAR PANEL AC POWER (for charging) TOP PANEL MICROPHONE MP3 PLAYER TABLET V EHICLE DC POWER OUTLET (for charging) 15 16 17 19 18 20 Road Rider 12 13 14 8 5 6 7 2 1 3 9 4 10 11 5 Pairing a Bluetooth Device 1. Turn on your Bluetooth device. 2. Power on Road Rider and press the Source button to switch to Bluetooth mode, shown on the display as — — — to search for Bluetooth devices. 3. Navigate to your Bluetooth device’s setup screen, find “Road Rider” and connect. Note: If your Bluetooth device prompts for a pairing code, enter “0000”. 4. The Bluetooth icon will be lit solid when a device is “paired” to Road Rider. Note: Users should consider updating their OS if experiencing trouble with pairing or playing music. 5. Press the Bluetooth button to disconnect a paired Bluetooth device. Pairing a Bluetooth Device Using NFC NFC (near-field communication) allows data exchange from device s, such as pairing, by gently bumping them together. Check in your device’s manual to see if this feature is supported. To use NFC to pair with Road Rider: 1. In order to use NFC, your device must be turned on and unlocked. 2. Enter your device’s Settings menu and check that NFC is turned On (one time step). 3. Power on Road Rider. 4. Put Road Rider in Blueto…

Text truncated - open the document above for the full version.

2015-11-12 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AB3E-IPA29 Product Name: Rechargeable Speaker System Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics Long-term confidential  Block diagram Long-term confidential  Operation description Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name Jacky Liao Position Saty/EMI Dept Manager Company Name ION AUDIO,LLC Address 200 Scenic View Drive, Cumberland, RI 02864, U.S.A Tel +866-2-2717-2389 Fax +866-2-2717-2389 Email [email protected]

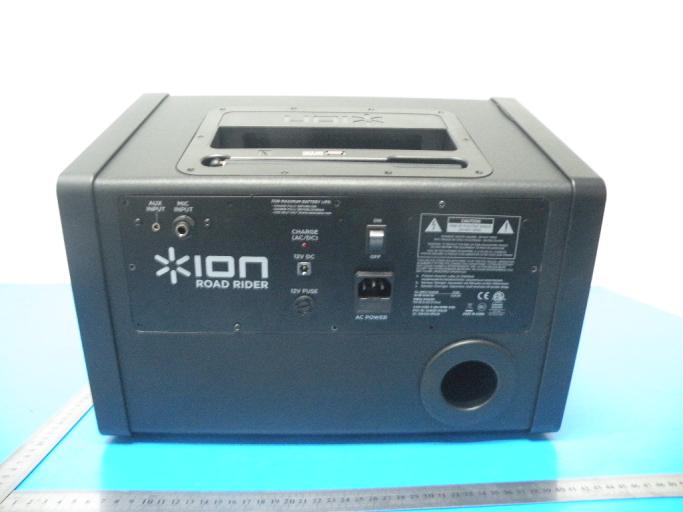

REV M 2015.10.20 Road Rider iPA29 Layer 4- Pantone Black C Layer 3- Pantone 877C (Silver) Layer 5- Pantone Cool Gray 9C Rev L: 1. Added F10AL250V below 12V FUSE 2. FUSE Changed to AC FUSE 13.5V FUSE T10AL 250VAC 13.5V 10A T3.15AL 250VAC

FCC ID: 2AB3E-IPA29 RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2480MHz 4.51dBm(2.82mW) output power] (2.82mW /5mm) ·[√2.480(GHz)]= 0.890 <3.0 for 1-g SAR Then SAR evaluation is not required
