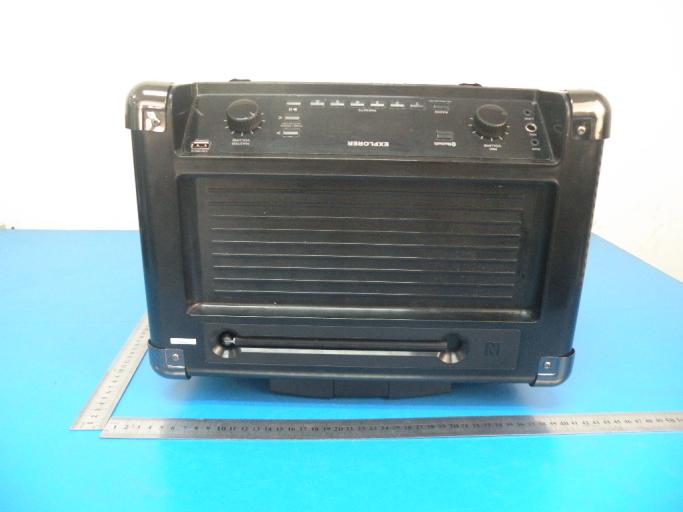

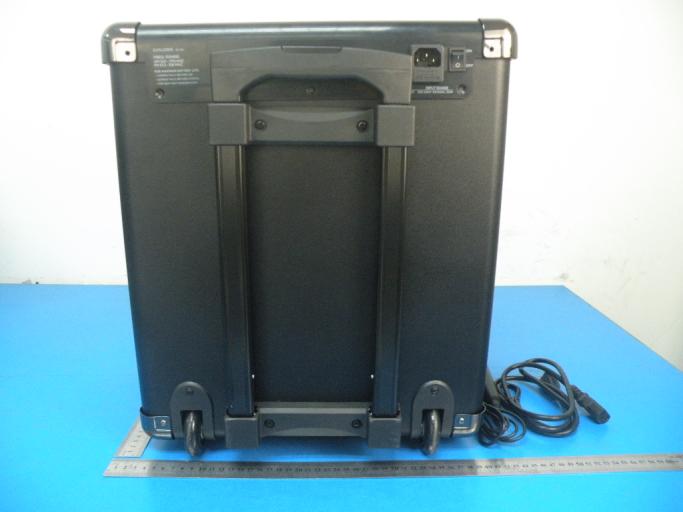

Explorer iPA76S Quickstart Guide English ( 2 – 6 ) Guía de inicio rápido Español ( 7 – 11 ) Guide d'utilisation rapide Français ( 12 – 16 ) Guida rapida Italiano ( 17 – 21 ) Schnellstart-Anleitung Deutsch ( 22 – 26 ) Snelstartgids Nederlands ( 27 – 31 ) 2 Quickstart Guide (English) Introduction 1. Make sure all items listed in the Box Contents are included in the box. 2. READ THE SAFETY & WARRANTY MANUAL BEFORE USING THE PRODUCT . 3. MAKE SURE THE BATTERY IS COMPLETELY CHARGED PRIOR TO FIRST USE FOR MAXIMUM BATTERY LIFE . 4. Study the connection diagram. 5. Ensure the Master Volume on Explorer is at zero. 6. Connect your devices. 7. Raise the volume to a comfortable level. 8. Return the Master Volume to zero when you are finished using Explorer. Box Contents Explorer Microphone with mic cable 3.5mm (1/8”) to 3.5mm (1/8”) cable Power Cable (standard IEC) Quickstart Guide Safety & Warranty Manual Support For the latest information about this product (system requirements, compatibility information, etc.) and product registration, visit ionaudio.com . Rechargeable Batteries Rechargeable lead-acid batteries are the same type used in auto mobiles. As with your car battery, how you use this battery has a significant impact on its lifespan. With proper use and tr eatment, a lead-acid battery can last for years. Here are some recommendations for getting the longest life from the internal battery. General Usage Charge fully before use.Charge fully before storing. Storage For best product longevity, do not store at exceedingly hot (greater than 90°F / 32°C) or exceedingly cold (less than 32°F / 0°C) temperatures. It is acceptable to leave your sound system plugged in. This w ill not overcharge the battery. If you leave the battery level low and do not charge it for 6 months, it may permanently lose capacity. Repair If the battery fails to charge, check the fuse near the power cable input. If the fuse is not intact, please replace it. The battery can be replaced (details in the Technical Specifications). For Warranty and Parts, contact the Parts Dept. at 401-658-3743 or by visiting ionaudio.com. Disposal Bring the unit to a recycling center or dispose of in accordance with local ordinances. 3 LINK LINK LINK Quick Setup Connection Diagram Items not listed under the Box Contents are sold separately. Features 1. Microphone Input with Volume Control (1/4"): This mono input accepts a 1/4" input such as a microphone, guitar, or other musical instrument. 2. Auxiliary input: This stereo 3.5 mm (1/8”) input can be used to connect a CD player, MP3 player, or other audio source. 3. Bluetooth Button : Press the Bluetooth button to disconnect a paired Bluetooth device. 4. Speaker Link: Connect two or more Explorers together using a 1/8” (3.5 mm) stereo aux cable from the Link Output of one Explorer to the Aux Input of the second Explorer. A 2’ cable is included but a longer one can be purchased from a local electronics retailer. 5. Bluetooth Icon: The Bluetooth icon will not be lit when Explorer is first powered on (unless it was previously paired with a device). The Bluetooth ic on will be lit solid when a device is paired to Explorer. 6. Master Volume Control: This adjusts the speaker’s main mix volume, wh ich includes the Microphone Input, Auxiliary Input, Radio, and the audio of a paired Bluetooth device. REAR PANEL POWER (for charging) TOP PANEL MICROPHONE MP3 PLAYER TABLET LINKING TWOEXPLORER iPA76Ss LINK 1 2 3 4 6 7 8 9 131 3 141 4 161 6 171 7 1 8 151 5 5 121 2 101 0 111 1 1 9 4 7. AM/FM Presets: Store a favorite radio station and quickly tune to a preset radio station. There are 6 numeric positions to store AM band presets and 12 numeric positions to store FM band presets (6 numeric positions for FM1 and 6 numeric positions for FM2). To add a preset: A. Select either the AM, FM1, or FM2 band and then use the Radio buttons to select the desired radio station. B. Press and hold a numeric preset button to assign the curre nt station to that preset num ber. The display will show “SAVE” to show the station has been saved. To use an added preset, tap a preset number once lightly to go to the stored radio station. 8. Radio Selector: This button sets the Radio to AM, FM1, FM2 or turns the radio off. 9. Decimal Icon: The decimal icon will be lit wh en Explorer is powered on. The decimal icon will not be lit when Explorer is powered off. 10. Display: Displays the current radio station, ba ttery status, and Bluetooth status. 11. Charging Indicator: With the battery charging indicator, when the power cable is connected, movement of the top battery segment shows the battery is charging. When fully ch arged, all battery segments will be lit without blinking. When the power cable is disconnected, the battery segment shows the level of the battery. 12. Lightning Bolt Icon: The lightning bolt icon will illuminate when th e IEC power cable is connected to wall power. 13. Tune/Track Buttons: Tap these buttons to tune in a radio station or go to the previous/next track on a Bluetooth connected device. To "seek" (jump to the next available stat ion), hold either button down for a few seconds until it starts to seek a station. The unit will remember the last station it was on and st art at that station when powered off and on again. 14. Play/Pause: Press to play or pause a track from a connected Bluetooth device. 15. USB Charging Port: Connect your device’s charge cable here to charge it. USB charging only functions when the unit’s power is turned on. Note : To charge smartphones and tablets faster, put the device’s screen to sleep. 16. Antenna: Adjust this FM antenna to get the best radio reception. Fold this down when not using the radio and when moving the unit. 17. NFC (near-field communication) : Touch and briefly hold your supported and enabled device to the NFC logo to pair the device. 18. Power Cable Input (IEC): Insert the included power cable here to charge the unit. Note that the Explorer can be used with the power…

Text truncated - open the document above for the full version.

2015-10-22 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AB3E-IPA76SF Product Name: Wireless Rechargeable Speaker System Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics Long-term confidential  Block diagram Long-term confidential  Operation description Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name Jacky Liao Position Saty/EMI Dept Manager Company Name ION AUDIO,LLC Address 200 Scenic View Drive, Cumberland, RI 02864, U.S.A Tel +866-2-2717-2389 Fax +866-2-2717-2389 Email [email protected]

ION Audio, LLC Date: November 10, 2015 Dear Sirs, Model Similarity: All models covered by this report are identical, except model no., brand name and appearance of enclosure (for color and silk-screen only) for marketing purpose. Yours sincerely, Name Jacky Liao Position Manager Company Name ION Audio, LLC Address 200 Scenic View Drive, Cumberland, RI 02864, U.S.A. Tel 886 2 2717 2389 Fax 886 2 2717 2735 Email [email protected] Explorer iPA76Sxx (x can be A-Z, 0-9 or blank) All models are electrically identical, except model no., brand name and appearance of enclosure (for color and silk-screen only) are different for marketing purpose.

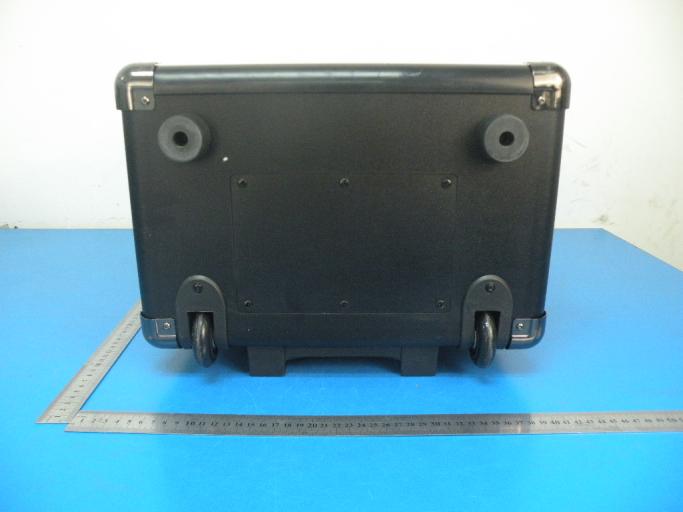

LABEL LOCATION

规格尺寸 材质要求 印刷要求 表面处理 用量 粘贴位置 83x51mm 不干胶贴纸 (贴纸厚度0.13mm) 两色印刷（黑底，文字:cool grey 6c） 表面过光膜 1PC 贴于机器底部 安规贴纸A0 ION 2015-10-29 IPA76S GM15463 17.7.036.0142 IPA76S

FCC ID: 2AB3E-IPA76SF RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2480MHz 4.29dBm(2.69mW) output power] (2.69mW /5mm) ·[√2.480(GHz)]= 0.846 <3.0 for 1-g SAR Then SAR evaluation is not required
