2AB3E-IRB02Party Bot Micro

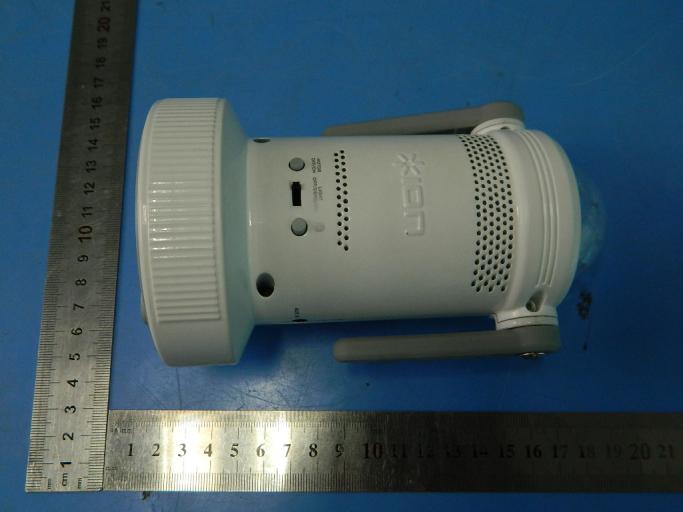

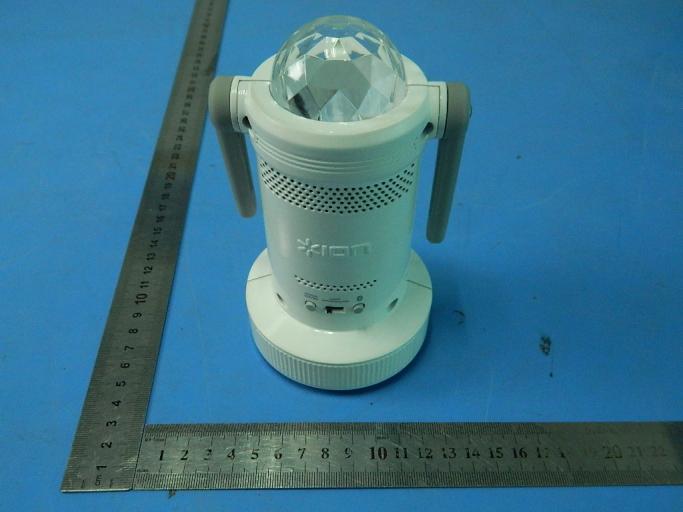

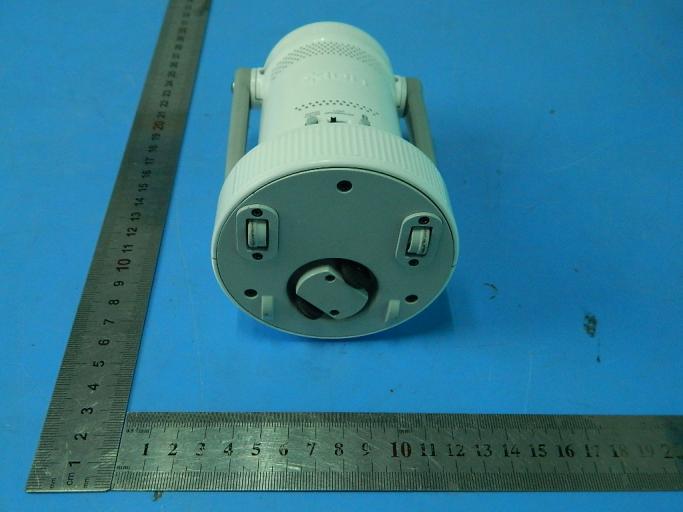

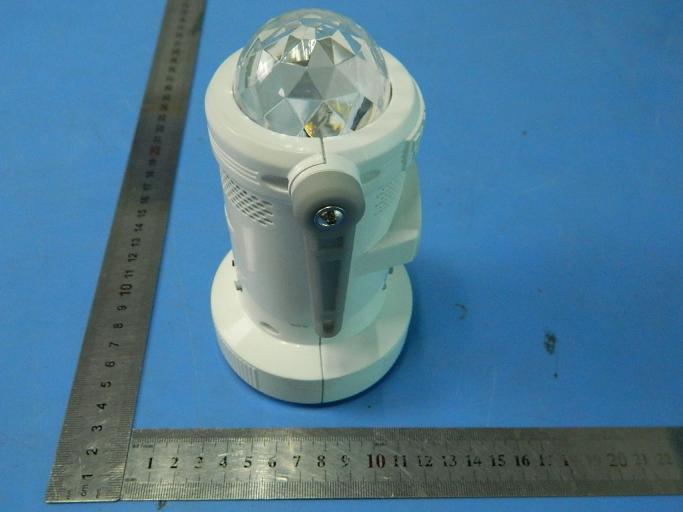

Box Contents: Party Bot Micro, USB Charging Cable, Quickstart Guide. Charging Party Bot Micro: Use the included micro-USB cable to connect Party Bot Micro to (A) a USB power adapter connected to a power outlet or (B) your computer (powered on) for 3 hours. Front Panel Controls: (1) Bluetooth Pairing Light (solid red when powered on, solid blue when paired, blinks red when the battery is low, blinks purple when Bluetooth connected with low battery) (2) Volume - (3) Power (4) Volume + (5) Charging Light (red when charging, turns off once charging is complete). Real Panel Controls: (6) Micro-USB Charging Port (7) Motor On/Off (8) Light Off / Demo / On (9) Bluetooth Disconnect (hold for 2 seconds to disconnect from a Bluetooth device) (10) 1/8” (3.5 mm) Input Getting Started: (1) Press and hold the Power button for 2 seconds to power on Party Bot Micro. (2) Open Bluetooth settings on your music device (smartphone, tablet, etc.). (3) Connect to Party Bot Micro. (4) Play music and adjust Party Bot Micro's volume using the Volume - and Volume + buttons. (5) Adjust the Party Light switch and the Motor switch to turn the lights and motor on or off. For best party light results, use in a dark room. When using the motor feature, use on the floor or on a surface under supervision. Party Bot Micro cannot sense the edge of a table. Party Light Settings: Adjust this switch to turn the lights on and off, or put Party Bot Micro into Demo mode. When in Demo Mode, pressing the Power button will: • Powers on the unit (both lights and speaker) • Powers off the unit after 2 minutes if there is no Bluetooth connection For the complete safety and warranty manual, please visit ionaudio.com/warranty. Contenido de la caja: Party Bot Micro, cable de carga USB, guía de inicio rápido. Cómo cargar el Party Bot Micro: Utilice el cable micro USB incluido para conectar el Party Bot Micro a (A) un adaptador de alimentación USB conectado a una toma de corriente o (B) su ordenador (encendido) durante 3 horas. o Controles del panel frontal: (1) Luz de apareamiento Bluetooth (se ilumina de color rojo permanentemente cuando se enciende, de color azul permanentemente cuando se aparea, parpadea en rojo cuando la batería está por agotarse y parpadea en violeta cuando el Bluetooth se conecta con batería baja) (2) Volumen - (3) Encendido (4) Volumen + (5) Luz de carga (roja durante la carga, se apaga una vez completada la carga). Controles del panel trasero: (6) Puerto de carga Micro-USB (7) Motor encendido/apagado (8) Luces apagadas / demo / encendidas (9) Desconexión de Bluetooth (mantenga pulsado durante 2 segundos para desconectar de un dispositivo Bluetooth) (10) Entrada de 3,5 mm (1/8 pulg.) Para comenzar: (1) Mantenga pulsado el botón Power (Encendido) durante 2 segundos para encender el Party Bot Micro. (2) Abra la configuración Bluetooth en su dispositivo musical (smartphone [teléfono inteligente], tableta, etc.). (3) Conéctelo al Party Bot Micro. (4) Reproduzca un tema y ajuste el volumen del Party Box Micro utilizando los botones Volume - y Volume + (Volumen - y volumen +). (5) Ajuste el interruptor Party Light (Luces de fiesta) y el interruptor Motor para encender o apagar las luces y el motor. Para obtener los mejores resultados del Party Light, úselo en un ambiente oscuro. Cuando utilice la característica del motor, úselo en el piso o sobre una superficie bajo supervisión. El Party Bot Micro no puede detectar el borde de una mesa. Ajustes de las luces de fiesta: Ajuste este interruptor para encender o apagar las luces, o para poner al Party Bot Micro en modo demo. En modo demo, apretar el botón de encendido: • enciende la unidad (tanto las luces como el altavoz) • apaga la unidad después de 2 minutos sin conexiones Bluetooth Para obtener el manual sobre la seguridad y garantía visite ionaudio.com/warranty. Contenu de la boîte : Party Bot Micro, câble de rechargement USB, guide de démarrage rapide. Rechargement de la batterie du Party Bot Micro : Utilisez le câble mini-USB inclus afin de brancher le Party Bot Micror à (A) un adaptateur d’alimentation USB branché à une prise secteur, ou (B) à un ordinateur (sous tension) pendant 3 heures. ou Commandes du panneau avant : (1) Indicateur de jumelage Bluetooth (rouge lorsque l’appareil est sous tension, bleu lorsqu'il est jumelé, clignote rouge lorsque la batterie est faible, clignote violet lorsque la batterie de l’appareil Bluetooth connecté est faible). (2) Volume - (3) Interrupteur d’alimentation (4) Volume + (5) DEL de rechargement (rouge lors du rechargement, s'éteint lorsque le rechargement est terminé. Commandes du panneau arrière : (6) Port de rechargement micro-USB (7) Interrupteur du moteur (8) Sélecteur du mode d’éclairage (9) Déconnexion Bluetooth (maintenez enfoncée pendant 2 secondes pour déconnecter un appareil Bluetooth) (10) Entrée 3,5 mm Mise en route : (1) Maintenez l’interrupteur d’alimentation enfoncé pendant 2 secondes afin de mettre le Party Bot Micro sous tension. (2) Accédez aux paramètres Bluetooth de votre lecteur de musique (smartphone, tablette, etc.). (3) Connectez-le au Party Bot Micro. (4) Faites jouer de la musique et réglez le volume du Party Bot Micro avec les touches Volume - et Volume +. (5) Réglez le sélecteur d’éclairage et l’interrupteur du moteur pour activer ou désactiver les lumières et le moteur. Pour de meilleurs résultats, utilisez-le dans une pièce sombre. Lorsque vous mettez en marche le moteur, assurez-vous d’utiliser l’appareil au sol ou sur une surface sous surveillance. Le Party Bot Micro ne peut détecter le rebord d'une table. Réglages du sélecteur du mode d’éclairage : Ajustez ce sélecteur pour activer et désactiver les lumières, ou pour mettre le Party Bot Micro en mode démo. En mode démonstration, appuyer sur l’interrupteur d’alimentation permet : • de mettre l’appareil sous tension (lumières et enceinte) • d’éteindre automatiquement l’appareil après 2 minutes lorsqu'aucun appareil Bluetooth n’est jumelé Pour consulte…

Text truncated - open the document above for the full version.

August 29, 2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AB3E- IRB02 Product Name: Party Bot Micro Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics Long-term confidential  Block diagram Long-term confidential  Operation description Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name Jacky Liao Position Saty/EMI Dept Manager Company Name ION AUDIO,LLC Address 200 Scenic View Drive, Cumberland, RI 02864, U.S.A Tel +866-2-2717-2389 Fax +866-2-2717-2389 Email [email protected] 2AB3E-IRB02

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation.

RF Exposure evaluation According to KDB 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2441MHz 3.01dBm(2.00mW） output power] (2 mW /5mm) ·[√2.441 (GHz)]= 0.63 <3.0 for 1-g SAR Then SAR evaluation is not required

TEST REPORT FCC ID: 2AB3E-IRB02 IC: 10541A-IRB02 Applicant : ION AUDIO,LLC Address : 200 Scenic View Drive, Cumberland, RI 02864, U.S.A Equipment Under Test (EUT): Name : Party Bot Micro Model : iRB02 Trademark : N/A Standards : FCC PART 15, SUBPART C : 2014 (Section 15.247) RSS-247 ISSUE 1 MAY 2015; RSS-GEN ISSUE 4 NOV 2014 ANSI C63.4:2014 ; ANSI C63.10:2013 Report No : T1851001 08 Date of Test : August 03- August 28, 2015 Date of Issue : August 29, 2015 Test Result : PA S S In the configuration tested, the EUT complied with the standards specified above Authorized Signature (Mark Zhu) Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Alpha Product Testing Co., Ltd. Or test done by Shenzhen Alpha Product Testing Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Alpha Product Testing Co., Ltd. Approvals in writing. Page 2 of 76 Report No.: T1851001 08 Contents 1. General Information ............................................................................................................... 5 1.1. Description of Device (EUT) ...............................................................................5 1.2. Accessories of device (EUT) ...............................................................................6 1.3. Test Lab information ............................................................................................6 2. Summary of test ...................................................................................................................... 7 2.1. Summary of test result .........................................................................................7 2.2. Assistant equipment used for test .........................................................................7 2.3. Block Diagram .....................................................................................................8 2.4. Test mode .............................................................................................................8 2.5. Test Conditions .....................................................................................................9 2.6. Measurement Uncertainty (95% confidence levels, k=2) ....................................9 2.7. Test Equipment ...................................................................................................10 3. Maximum Peak Output power ............................................................................................ 11 3.1. Limit ................................................................................................................... 11 3.2. Test Procedure .................................................................................................... 11 3.3. Test Setup ........................................................................................................... 11 3.4. Test Result .......................................................................................................... 11 4. Bandwidth ............................................................................................................................. 12 4.1. Limit ...................................................................................................................12 4.2. Test Procedure ....................................................................................................12 4.3. Test Result ..........................................................................................................12 5. Carrier Frequency Separation ............................................................................................. 18 5.1. Limit ...................................................................................................................18 5.2. Test Procedure ....................................................................................................18 5.3. Test Result ..........................................................................................................18 6. Number Of Hopping Channel ............................................................................................. 21 6.1. Limit ...................................................................................................................21 6.2. Test Procedure ....................................................................................................21 6.3. Test Result ..........................................................................................................21 7. Dwell Time ............................................................................................................................. 24 7.1. Test limit ............................................................................................................24 7.2. Test Procedure ....................................................................................................24 7.3. Test Results ........................................................................................................24 8. Radiated emissions ................................................................................................................ 31 8.1. Limit ...................................................................................................................31 8.2. Block Diagram of Test setup ..............................................................................32 8.3. Test Procedure ....................................................................................................33 8.4. Test Result ..............................................................................................…

Text truncated - open the document above for the full version.

Page 41 of 76 Report No.: T1851001 08 1GHz — 25GHz Radiated emissison Test result EUT: Party Bot Micro M/N: iRB02 Power: DC 3.7V from Battery Test date: 2015-08-28 Test site: 3m Chamber Tested by: Peter Test mode: π/4 DQPSK Tx CH79 2480MHz Antenna polarity: Vertical No Freq (MHz) Read Level (dBuV/m) Antenna Factor (dB/m) Cable loss(d B) Amp Factor (dB) Result (dBuV/m) Limit (dBuV/ m) Margin (dB) Remark 1 4960 42.67 33.98 10.22 34.25 52.62 74 21.38 PK 2 4960 32.52 33.98 10.22 34.25 42.47 54 11.53 AV 3 7440 / 4 9920 / 5 12400 / Antenna Polarity: Horizontal 1 4960 43.05 33.98 10.22 34.25 53 74 21 PK 2 4960 32.62 33.98 10.22 34.25 42.57 54 11.43 AV 3 7440 / 4 9920 / 5 12400 / Note: 1, Measuring frequency from 1GHz to 25GHz 2, Spectrum Set for PK measure: RBW=1MHz, VBW=1MHz, Sweep time=Auto, Detector: PK 2, Spectrum Set for AV measure: RBW=1MHz, VBW=10Hz, Sweep time=Auto, Detector: PK 3, Result = Read level + Antenna factor + cable loss-Amp factor 4, All the other emissions not reported were too low to read and deemed to comply with FCC limit. Page 42 of 76 Report No.: T1851001 08 1GHz — 25GHz Radiated emissison Test result EUT: Party Bot Micro M/N: IRB02 Power: DC 3.7V from Battery Test date: 2015-08-28 Test site: 3m Chamber Tested by: Peter Test mode: 8- DQPSK Tx CH1 2402MHz Antenna polarity: Vertical No Freq (MHz) Read Level (dBuV/m) Antenna Factor (dB/m) Cable loss(d B) Amp Factor (dB) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Remark 1 4804 42.66 33.95 10.18 34.26 52.53 74 21.47 PK 2 4804 32.05 33.95 10.18 34.26 41.92 54 12.08 AV 3 7206 / 4 9608 / 5 12010 / Antenna Polarity: Horizontal 1 4804 42.34 33.95 10.18 34.26 52.21 74 21.79 PK 2 4804 31.71 33.95 10.18 34.26 41.58 54 12.42 AV 3 7206 / 4 9608 / 5 12010 / Note: 1, Measuring frequency from 1GHz to 25GHz 2, Spectrum Set for PK measure: RBW=1MHz, VBW=1MHz, Sweep time=Auto, Detector: PK 2, Spectrum Set for AV measure: RBW=1MHz, VBW=10Hz, Sweep time=Auto, Detector: PK 3, Result = Read level + Antenna factor + cable loss-Amp factor 4, All the other emissions not reported were too low to read and deemed to comply with FCC limit. iRB02 Page 43 of 76 Report No.: T1851001 08 1GHz — 25GHz Radiated emissison Test result EUT: Party Bot Micro M/N: IRB02 Power: DC 3.7V from Battery Test date: 2015-08-28 Test site: 3m Chamber Tested by: Peter Test mode: 8- DQPSK Tx CH40 2441MHz Antenna polarity: Vertical No Freq (MHz) Read Level (dBuV/m) Antenna Factor (dB/m) Cable loss(d B) Amp Factor (dB) Result (dBuV/m) Limit (dBuV/ m) Margin (dB) Remark 1 4882 42.47 33.93 10.2 34.29 52.31 74 21.69 PK 2 4882 32.14 33.93 10.2 34.29 41.98 54 12.02 AV 3 7323 / 4 9764 / 5 12205 / Antenna Polarity: Horizontal 1 4882 42.43 33.93 10.2 34.29 52.27 74 21.73 PK 2 4882 32.04 33.93 10.2 34.29 41.88 54 12.12 AV 3 7323 / 4 9764 / 5 12205 / Note: 1, Measuring frequency from 1GHz to 25GHz 2, Spectrum Set for PK measure: RBW=1MHz, VBW=1MHz, Sweep time=Auto, Detector: PK 2, Spectrum Set for AV measure: RBW=1MHz, VBW=10Hz, Sweep time=Auto, Detector: PK 3, Result = Read level + Antenna factor + cable loss-Amp factor 4, All the other emissions not reported were too low to read and deemed to comply with FCC limit. iRB02 Page 44 of 76 Report No.: T1851001 08 1GHz — 25GHz Radiated emissison Test result EUT: Party Bot Micro M/N: IRB02 Power: DC 3.7V from Battery Test date: 2015-08-28 Test site: 3m Chamber Tested by: Peter Test mode: 8- DQPSK Tx CH79 2480MHz Antenna polarity: Vertical No Freq (MHz) Read Level (dBuV/m) Antenna Factor (dB/m) Cable loss(d B) Amp Factor (dB) Result (dBuV/m) Limit (dBuV/ m) Margin (dB) Remark 1 4960 42.23 33.98 10.22 34.25 52.18 74 21.82 PK 2 4960 41.45 33.98 10.22 34.25 51.4 54 2.6 AV 3 7440 / 4 9920 / 5 12400 / Antenna Polarity: Horizontal 1 4960 42.55 33.98 10.22 34.25 52.5 74 21.5 PK 2 4960 31.92 33.98 10.22 34.25 41.87 54 12.13 AV 3 7440 / 4 9920 / 5 12400 / Note: 1, Measuring frequency from 1GHz to 25GHz 2, Spectrum Set for PK measure: RBW=1MHz, VBW=1MHz, Sweep time=Auto, Detector: PK 2, Spectrum Set for AV measure: RBW=1MHz, VBW=10Hz, Sweep time=Auto, Detector: PK 3, Result = Read level + Antenna factor + cable loss-Amp factor 4, All the other emissions not reported were too low to read and deemed to comply with FCC limit. iRB02 Page 45 of 76 Report No.: T1851001 08 9. Band Edge Compliance 9.1. Block Diagram of Test Setup  9.2. Limit All the lower and upper band-edges emissions appearing within restricted frequency bands shall not exceed the limits shown in RSS-GEN, all the other emissions outside operation shall be at least 20dB below the fundamental emissions, or comply with RSS-GEN limits. 9.3. Test Procedure All restriction band and non- restriction band have been tested ˈonly worse case is reported. 9.4. Test Result PASS. (See below detailed test data) Page 46 of 76 Report No.: T1851001 08 Radiated Method GFSK ( CH Low ) Band Edge Test result EUT: Party Bot Micro M/N: iRB02 Power: DC 3.7V from Battery Test date: 2015-08-28 Test site: 3m Chamber Tested by: Peter Test mode: Tx CH Low 2402MHz Antenna polarity: Vertical Freq (MHz) Read Level (dBuV/m) Antenna Factor (dB/m) Cable loss(d B) Amp Factor (dB) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Remark 2390 42.61 27.62 3.92 34.97 39.18 74 34.82 PK 2390 -- 27.62 3.92 34.97 -- 54 -- AV 2400 41.94 27.62 3.94 34.97 38.53 74 35.47 PK 2400 -- 27.62 3.94 34.97 -- 54 -- AV Antenna Polarity: Horizontal 2390 42.1 27.62 3.92 34.97 38.67 74 35.33 PK 2390 -- 27.62 3.92 34.97 -- 54 -- AV 2400 42.31 27.62 3.94 34.97 38.9 74 35.1 PK 2400 -- 27.62 3.94 34.97 -- 54 -- AV Note: 1, Spectrum Set for PK measure: RBW=1MHz, VBW=1MHz, Sweep time=Auto, Detector: PK 2, Spectrum Set for AV measure: RBW=1MHz, VBW=10Hz, Sweep time=Auto, Detector: PK 3, Result = Read level + Antenna factor + cable loss-Amp factor 4, All the other emissions not reported were too low to read and deemed to comply with FCC limit. Page 47 of 76 Report No.: T1851001 08 GFSK (CH High) Band Edge Test result EUT: Party Bot Micro M/N: iRB02 Power: DC 3.7V f…
