2AB3E-ISP197Portable BT Speaker 360 LEDs w/ strap

SUPPORT.IONAUDIO.COM RESET

ION Audio, LLC Covered Equipment Certification Attestation Letter 8/18/2026 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2AB3E-ISP197 ION Audio, LLC (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules.This includes certifying that the equipment for which authorization is sought does not include cybersecurity or anti­virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc.(or any of its successors and as signees) cybersecurity or anti­virus software pursuant to DA­24­886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. ION Audio, LLC (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Hill Lien Title: Director of Compliance Company Name: ION Audio, LLC Date: 8/18/2026

ION Audio, LLC * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 8/18/2026 TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTN.: Reviewing Engineer FCC ID: 2AB3E-ISP197 FRN of applicant: 0024611568 Per section 2.911(d)(7) of the FCC rules, ION Audio, LLC (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: ION Audio, LLC FCC Registration Number (FRN): 0024611568 Physical U.S. Company Address: 200 Scenic View Drive, Cumberland, RI 02864, U.S.A. Contact Person: Hill Lien Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Agent Signed (if different from Applicant): Signed: Signed: Printed name: Hill Lien Printed name: Hill Lien Title: Director of Compliance Title: Director of Compliance Company Name: ION Audio, LLC Company Name: ION Audio, LLC Date: 8/18/2026 Date: 8/18/2026

ION Audio, LLC Family Certification Attestation Letter 8/18/2026 Nemko Canada Inc 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2AB3E-ISP197 Models: iSP197, iSP197****** (“*” can be “a-z”, “A-Z”, “0-9”, blank, “-”, “+” or any character, symbol, alphanumeric) We hereby request Family Certification for the above-mentioned Models based on them being electrically, and physically identical apart from model name, appearance in color or decorating parts and silkscreen for marketing purpose. Signed: Printed name: Hill Lien Title: Director of Compliance Date: 8/18/2026

ION Audio, LLC August 18, 2026 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 REQUEST FOR CONFIDENTIALITY - FCC FCC ID: 2AB3E-ISP197 Pursuant to Sections 0.457(d) and 0.459 of the Commission’s Rules and FCC Guidance document 726920, we hereby request permanent confidential treatment of exhibits identified as such in the table below and request they are permanently withheld from public review based on the documents containing trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjustified benefits to its competitors. We also request short-term confidentiality on certain exhibits until the intended date of marketing as outlined below. We request the exhibits be withheld from public view for a period of insert number of days (cannot exceed 180 days) days. We attest marketing of the product will only commence after the period of short-term confidentiality expires, or if marketing is to commence before the requested number of days listed above, the grantee will inform Nemko to release the Short-Term Confidentiality information withheld on the FCC equipment authorization website. Exhibit Type of Confidentiality Requested Block Diagrams ☒ Permanent ☐ Short Term External Photos ------------------ ☐ Short Term Internal Photos ☐ Permanent* ☐ Short Term Operation Description ☒ Permanent ☐ Short Term Parts List & Placement/BOM ☐ Permanent ☐ Short Term Tune-Up Procedure ☐ Permanent ☐ Short Term Schematic Diagrams ☒ Permanent ☐ Short Term Test Setup Photos ------------------ ☐ Short Term User’s Manual ☐ Permanent* ☐ Short Term The asterisked items (*) require further information to be provided in this justification letter before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. Note: any documents held under the Short-Term confidentiality will automatically become public after the requested time if an appropriate extension request has not been received. Any exhibits (i.e., schematic diagrams) that may have already been requested to have “Permanent” confidentiality as shown above need not be repeated under Short-Term confidentiality request. Sincerely, Signed: Printed name: Hill Lien Title: Director of Compliance Company Name: ION Audio, LLC

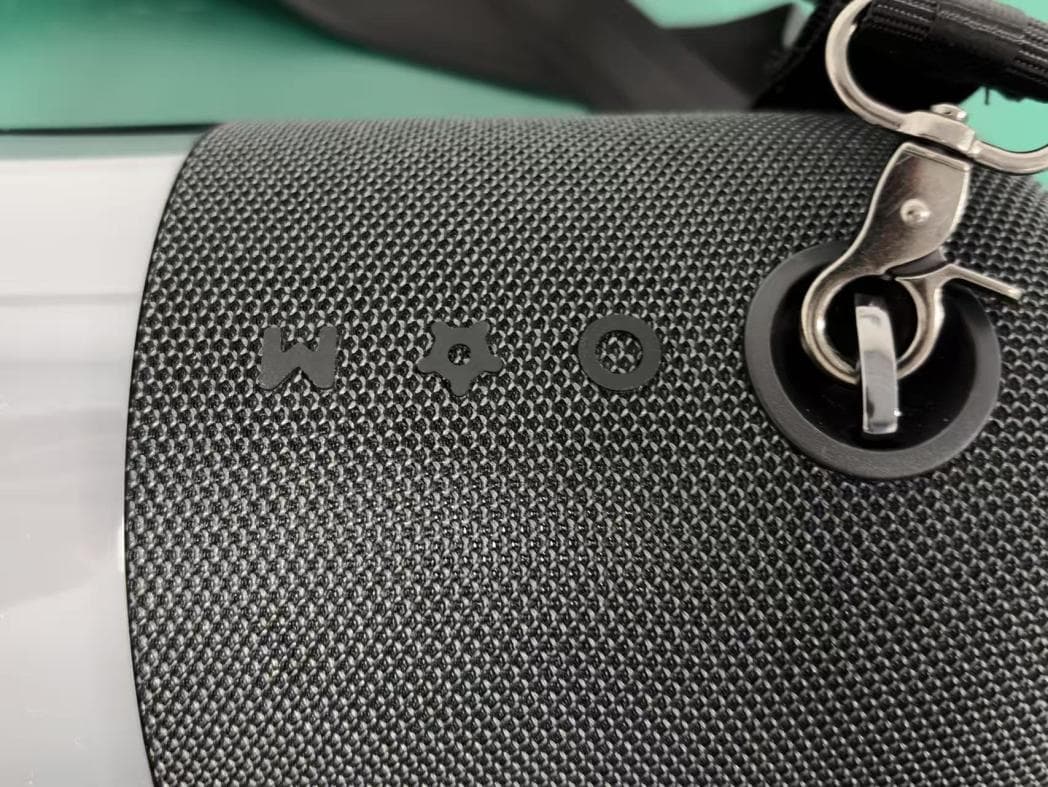

External Photos M/N: iSP197 External Photos M/N: iSP197 External Photos M/N: iSP197 External Photos M/N: iSP197 External Photos M/N: iSP197

Internal Photos M/N: iSP197 Internal Photos M/N: iSP197 Internal Photos M/N: iSP197 Internal Photos M/N: iSP197 Bluetooth Antenna Internal Photos M/N: iSP197 Internal Photos M/N: iSP197 Internal Photos M/N: iSP197 Internal Photos M/N: iSP197 Internal Photos M/N: iSP197 Internal Photos M/N: iSP197

Page 1 of 3 Report No. ESTE-R2608061 FCC RF EXPOSURE REPORT ION Audio, LLC Portable BT Speaker 360° LEDs w/ strap Model Number: iSP197 Additional Model: iSP197****** (“*” can be “a-z”, “A-Z”, “0-9”, blank, “-”, “+” or any character, symbol, alphanumeric) FCC ID: 2AB3E-ISP197 Applicant: ION Audio, LLC Address: 200 Scenic View Drive, Cumberland, RI 02864, USA Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2608061 Date of Test: Jul. 11, 2026 to Aug. 03, 2026 Date of Report: Aug. 07, 2026 Page 2 of 3 Report No. ESTE-R2608061 1. Applicable Standards FCC Part 2(Section 2.1093) FCC KDB 447498 D04 Interim General RF Exposure Guidance v01 2. Exposure Evaluation of Portable or Mobile Devices Human exposure to RF emissions from portable devices (47 CFR §2.1093), as defined by the FCC, must be evaluated with respect to the FCC-adopted limits for SAR. Evaluation of mobile devices, as defined by the FCC, may also be performed with respect to SAR limits, but in such cases it is usually simpler and more cost-effective to evaluate compliance with respect to field strength or power density limits. For certain devices that are designed to be used in both mobile and portable configurations similar to those described in 47 CFR §2.1091(d)(4), such as certain desktop phones and wireless modem modules, compliance for mobile configurations is also satisfied when the same device is evaluated for SAR compliance in portable configurations. The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 300 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Page 3 of 3 Report No. ESTE-R2608061 3. Evaluation Results Mode CH (MHz) Peak output Power （dBm） Antenna Gain (dBi) effective radiated power （dBm） Target power (dBm) Max. Target power (mW) SAR Test Exemption Limit (mW) GFSK 2402 5.90 -0.58 3.17 3±1 2.512 2.72 2441 5.49 -0.58 2.76 2±1 1.995 2.72 2480 4.93 -0.58 2.20 2±1 1.995 2.72 π/4- DQPSK 2402 5.84 -0.58 3.11 3±1 2.512 2.72 2441 5.49 -0.58 2.76 2±1 1.995 2.72 2480 4.94 -0.58 2.21 2±1 1.995 2.72 8-DPSK 2402 6.24 -0.58 3.51 3±1 2.512 2.72 2441 5.66 -0.58 2.93 2±1 1.995 2.72 2480 5.26 -0.58 2.53 2±1 1.995 2.72 BLE 1M 2402 5.06 -0.58 2.33 2±1 1.995 2.72 2440 4.70 -0.58 1.97 1±1 1.585 2.72 2480 2.33 -0.58 -0.40 0±1 1.259 2.72 Note: 1. Limited=3060*(0.5/20)^x, x=-log(60/(3060*√f)). 2. We choose f=2.48GHz (Highest frequency operate at bluetooth) to calculate MPE limit as higher frequency will have lower MPE limits. 3. SAR Test Exclusion Thresholds is 2.72mW for separation distance 5mm. Therefore, SAR test is not required. End of Test Report

Page 1 of 56 Report No. ESTE-R2608059 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of ION Audio, LLC Portable BT Speaker 360° LEDs w/ strap Model Number: iSP197 Additional Model: iSP197****** (“*” can be “a-z”, “A-Z”, “0-9”, blank, “-”, “+” or any character, symbol, alphanumeric) FCC ID: 2AB3E-ISP197 Applicant: ION Audio, LLC Address: 200 Scenic View Drive, Cumberland, RI 02864, USA Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2608059 Date of Test: Jul. 11, 2026 to Aug. 03, 2026 Date of Report: Aug. 07, 2026 Page 2 of 56 Report No. ESTE-R2608059 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION .......................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................... 5 1.1. Description of Device (EUT) ............................................................................................................ 5 1.2. Antenna Information ......................................................................................................................... 5 1.3. Information of RF Cable ................................................................................................................... 5 2. SUMMARY OF TEST ........................................................................................................................... 6 2.1. Summary of test result ..................................................................................................................... 6 2.2. Test Facilities ..................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................ 8 2.4. Assistant equipment used for test .................................................................................................. 8 2.5. Block Diagram ................................................................................................................................... 8 2.6. Test mode .......................................................................................................................................... 9 2.7. Channel List ..................................................................................................................................... 10 2.8. Power Setting of Test Software .................................................................................................... 10 2.9. Test Equipment ............................................................................................................................... 11 3. MAXIMUM PEAK OUTPUT POWER ................................................................................................... 13 3.1. Limit ................................................................................................................................................... 13 3.2. Test Setup ........................................................................................................................................ 13 3.3. Spectrum Analyzer Setting ............................................................................................................ 13 3.4. Test Procedure ................................................................................................................................ 13 3.5. Test Result ....................................................................................................................................... 13 4. 20 DB BANDWIDTH ......................................................................................................................... 14 4.1. Limit ................................................................................................................................................... 14 4.2. Test Setup ........................................................................................................................................ 14 4.3. Spectrum Analyzer Setting ............................................................................................................ 14 4.4. Test Procedure ................................................................................................................................ 14 4.5. Test Result ....................................................................................................................................... 14 5. CARRIER FREQUENCY SEPARATION .............................................................................................. 15 5.1. Limit ................................................................................................................................................... 15 5.2. Test Setup ........................................................................................................................................ 15 5.3. Spectrum Analyzer Setting ............................................................................................................ 15 5.4. Test Procedure ................................................................................................................................ 15 5.5. Test Result ....................................................................................................................................... 15 6. NUMBER OF HOPPING CHANNEL ................................................................................................... 16 6.1. Limit ................................................................................................................................................... 16 6.2. Test Setup .......................................................................…

Text truncated - open the document above for the full version.

Page 1 of 49 Report No. ESTE-R2608059 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Frequency[MHz] 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.981 2401.544 2402.525 --- --- DH5 Ant1 2441 0.966 2440.529 2441.495 --- --- DH5 Ant1 2480 0.957 2479.541 2480.498 --- --- 2DH5 Ant1 2402 1.308 2401.376 2402.684 --- --- 2DH5 Ant1 2441 1.287 2440.367 2441.654 --- --- 2DH5 Ant1 2480 1.311 2479.364 2480.675 --- --- 3DH5 Ant1 2402 1.284 2401.376 2402.660 --- --- 3DH5 Ant1 2441 1.302 2440.376 2441.678 --- --- 3DH5 Ant1 2480 1.293 2479.370 2480.663 --- --- Page 2 of 49 Report No. ESTE-R2608059 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 DH5-Ant1-2480 Page 3 of 49 Report No. ESTE-R2608059 2DH5-Ant1-2402 2DH5-Ant1-2441 Page 4 of 49 Report No. ESTE-R2608059 2DH5-Ant1-2480 3DH5-Ant1-2402 Page 5 of 49 Report No. ESTE-R2608059 3DH5-Ant1-2441 3DH5-Ant1-2480 Page 6 of 49 Report No. ESTE-R2608059 Page 7 of 49 Report No. ESTE-R2608059 Appendix B: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Conducted Peak Power[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 5.90 ≤20.97 PASS DH5 Ant1 2441 5.49 ≤20.97 PASS DH5 Ant1 2480 4.93 ≤20.97 PASS 2DH5 Ant1 2402 5.84 ≤20.97 PASS 2DH5 Ant1 2441 5.49 ≤20.97 PASS 2DH5 Ant1 2480 4.94 ≤20.97 PASS 3DH5 Ant1 2402 6.24 ≤20.97 PASS 3DH5 Ant1 2441 5.66 ≤20.97 PASS 3DH5 Ant1 2480 5.26 ≤20.97 PASS Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS Page 8 of 49 Report No. ESTE-R2608059 DH5-Ant1-2480-PASS 2DH5-Ant1-2402-PASS Page 9 of 49 Report No. ESTE-R2608059 2DH5-Ant1-2441-PASS 2DH5-Ant1-2480-PASS Page 10 of 49 Report No. ESTE-R2608059 3DH5-Ant1-2402-PASS 3DH5-Ant1-2441-PASS Page 11 of 49 Report No. ESTE-R2608059 3DH5-Ant1-2480-PASS Page 12 of 49 Report No. ESTE-R2608059 Appendix C: Carrier frequency separation Test Result TestMode Antenna Frequency[MHz] Result[MHz] Limit[MHz] Verdict DH5 Ant1 2402 1.017 ≥0.654 PASS DH5 Ant1 2441 1.035 ≥0.654 PASS DH5 Ant1 2480 0.966 ≥0.654 PASS 2DH5 Ant1 2402 1.029 ≥0.874 PASS 2DH5 Ant1 2441 0.882 ≥0.874 PASS 2DH5 Ant1 2480 1.011 ≥0.874 PASS 3DH5 Ant1 2402 1.176 ≥0.868 PASS 3DH5 Ant1 2441 1.152 ≥0.868 PASS 3DH5 Ant1 2480 1.005 ≥0.868 PASS Page 13 of 49 Report No. ESTE-R2608059 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS DH5-Ant1-2480-PASS Page 14 of 49 Report No. ESTE-R2608059 2DH5-Ant1-2402-PASS 2DH5-Ant1-2441-PASS Page 15 of 49 Report No. ESTE-R2608059 2DH5-Ant1-2480-PASS 3DH5-Ant1-2402-PASS Page 16 of 49 Report No. ESTE-R2608059 3DH5-Ant1-2441-PASS 3DH5-Ant1-2480-PASS Page 17 of 49 Report No. ESTE-R2608059 Page 18 of 49 Report No. ESTE-R2608059 Appendix D: Time of occupancy Test Result TestMode Antenna Frequency[MHz] BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.375 311 0.117 ≤0.4 PASS DH3 Ant1 Hop 1.630 171 0.279 ≤0.4 PASS DH5 Ant1 Hop 2.880 107 0.308 ≤0.4 PASS 2DH1 Ant1 Hop 0.385 312 0.120 ≤0.4 PASS 2DH3 Ant1 Hop 1.620 173 0.280 ≤0.4 PASS 2DH5 Ant1 Hop 2.870 102 0.293 ≤0.4 PASS 3DH1 Ant1 Hop 0.383 310 0.119 ≤0.4 PASS 3DH3 Ant1 Hop 1.620 175 0.284 ≤0.4 PASS 3DH5 Ant1 Hop 2.870 102 0.293 ≤0.4 PASS Page 19 of 49 Report No. ESTE-R2608059 Test Graphs DH1-Ant1-Hop-PASS DH3-Ant1-Hop-PASS Page 20 of 49 Report No. ESTE-R2608059 DH5-Ant1-Hop-PASS Page 21 of 49 Report No. ESTE-R2608059 2DH1-Ant1-Hop-PASS Page 22 of 49 Report No. ESTE-R2608059 2DH3-Ant1-Hop-PASS Page 23 of 49 Report No. ESTE-R2608059 2DH5-Ant1-Hop-PASS Page 24 of 49 Report No. ESTE-R2608059 3DH1-Ant1-Hop-PASS Page 25 of 49 Report No. ESTE-R2608059 3DH3-Ant1-Hop-PASS Page 26 of 49 Report No. ESTE-R2608059 3DH5-Ant1-Hop-PASS Page 27 of 49 Report No. ESTE-R2608059 Page 28 of 49 Report No. ESTE-R2608059 Appendix E: Number of hopping channels Test Result TestMode Antenna Frequency[MHz] Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS Page 29 of 49 Report No. ESTE-R2608059 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS 3DH5-Ant1-Hop-PASS Page 30 of 49 Report No. ESTE-R2608059 Page 31 of 49 Report No. ESTE-R2608059 Appendix F: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 5.30 -40.92 ≤-14.70 PASS DH5 Ant1 High 2480 4.64 -47.93 ≤-15.36 PASS DH5 Ant1 Low Hop_2402 5.32 -39.35 ≤-14.69 PASS DH5 Ant1 High Hop_2480 3.25 -40.43 ≤-16.76 PASS 2DH5 Ant1 Low 2402 5.30 -41.41 ≤-14.70 PASS 2DH5 Ant1 High 2480 4.28 -49.92 ≤-15.72 PASS 2DH5 Ant1 Low Hop_2402 5.13 -41.30 ≤-14.87 PASS 2DH5 Ant1 High Hop_2480 3.23 -41.53 ≤-16.77 PASS 3DH5 Ant1 Low 2402 5.23 -43.21 ≤-14.77 PASS 3DH5 Ant1 High 2480 4.58 -49.59 ≤-15.42 PASS 3DH5 Ant1 Low Hop_2402 0.09 -40.72 ≤-19.91 PASS 3DH5 Ant1 High Hop_2480 2.94 -41.99 ≤-17.06 PASS Page 32 of 49 Report No. ESTE-R2608059 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2480-PASS DH5-Ant1-Hop_2402-PASS Page 33 of 49 Report No. ESTE-R2608059 DH5-Ant1-Hop_2480-PASS 2DH5-Ant1-2402-PASS Page 34 of 49 Report No. ESTE-R2608059 2DH5-Ant1-2480-PASS 2DH5-Ant1-Hop_2402-PASS Page 35 of 49 Report No. ESTE-R2608059 2DH5-Ant1-Hop_2480-PASS 3DH5-Ant1-2402-PASS Page 36 of 49 Report No. ESTE-R2608059 3DH5-Ant1-2480-PASS 3DH5-Ant1-Hop_2402-PASS Page 37 of 49 Report No. ESTE-R2608059 3DH5-Ant1-Hop_2480-PASS Page 38 of 49 Report No. ESTE-R2608059 Appendix G: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 30~26500 5.30 -40.64 ≤-14.70 PASS DH5 Ant1 2441 30~26500 4.94 -41.39 ≤-15.06 PASS DH5 Ant1 2480 30~26500 4.64 -41.99 ≤-15.36 PASS 2DH5 Ant1 2402 30~26500 5.30 -42.26 ≤-14.70 PASS 2DH5 Ant1 2441 30~26500 4.37 -41.40 ≤-15.63 PASS 2DH5 Ant1 2480 30~26500 4.28 -42.17 ≤-15.72 PASS 3DH5 Ant1 2402 30~26500 5.23 -40.75 ≤-14.77 PASS 3DH5 Ant1 2441 30~26500 5.16 -42.11 ≤-14.84 PASS 3DH5 Ant1 2480 30~26500 4.58 -41.74 ≤-15.42 PASS Page 39 of 49 Report No. ESTE-R2608059 Test Graphs DH5-Ant1-2402-30~26500-PASS DH5-Ant1-2441-30~26500-PASS DH5-Ant1-2480-30~26500-PASS Pag…

Text truncated - open the document above for the full version.

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT Center Frequency HorizontalVertical 2400MHz 2450MHz2500MHz2400MHz2450MHz 2500MHz -1.26-0.76-0.58-5.25-2.46-1.86 MAX. Gain -0.58dBi PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD No. 333, Kexing Road, Xiangzhou District, Zhuhai City, Guangdong Province, China Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Frequency (MHz) Gain(dBi) MaxMinAvg 2400-1.26174-30.0801-7.18716 2450-0.765802-36.5604-7.48023 2500-0.585582-22.0315-6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Frequency (MHz) Gain(dBi) MaxMinAvg 2400-5.2537-22.1424-12.4294 2450-2.4652-24.5837-10.4702 2500-1.86120-29.5214-9.20432

Conducted Test Radiated Test (30-1000 MHz) Radiated Test (Above 1GHz)
