2AB3E-ISP38PWireless Stereo Speaker with Built-In Lighting

"This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centim eters between the radiator and your body."

Rev 11/20/07 Ion Audio, LLC Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AB3E-ISP38P Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematic Diagram Circuit Description BlcokDiagram.pdf SchematicDiagram.pdf CircuitDescription.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Ion Audio, LLC (signature) Andy Wu/Safety Compliance Project Manager 2015-01-28

Ion Audio, LLC Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2015-01-28 SUBJECT: FCC Application for 2AB3E-ISP38P To Whom It May Concern: We, the undersigned, hereby authorize Lisa Wang at SHENZHEN EMTEK CO., LTD. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by SHENZHEN EMTEK CO., LTD. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Andy Wu/Safety Compliance Project Manager

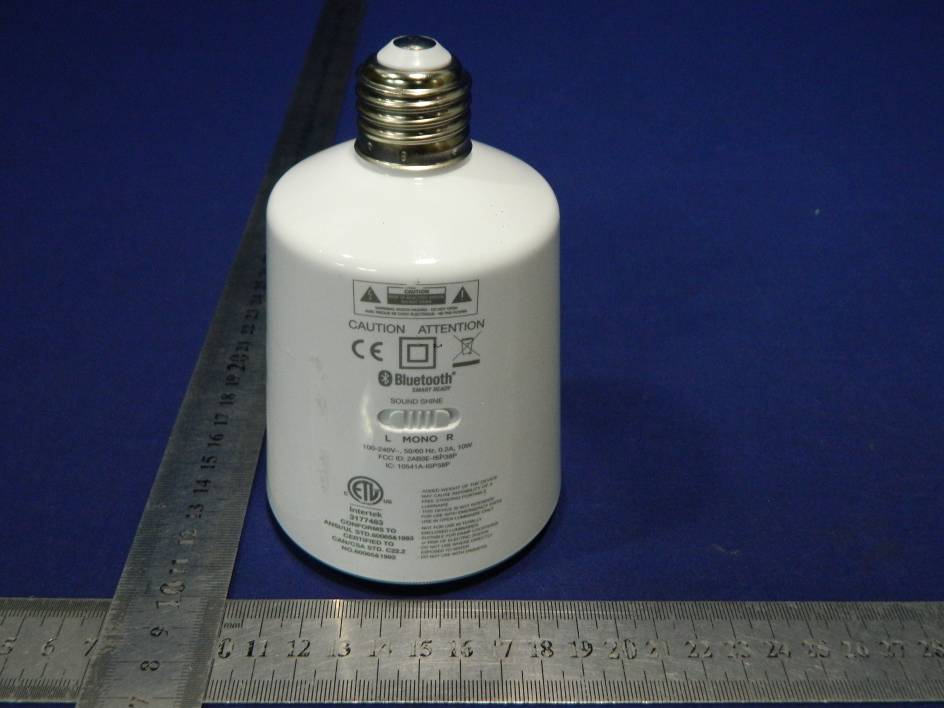

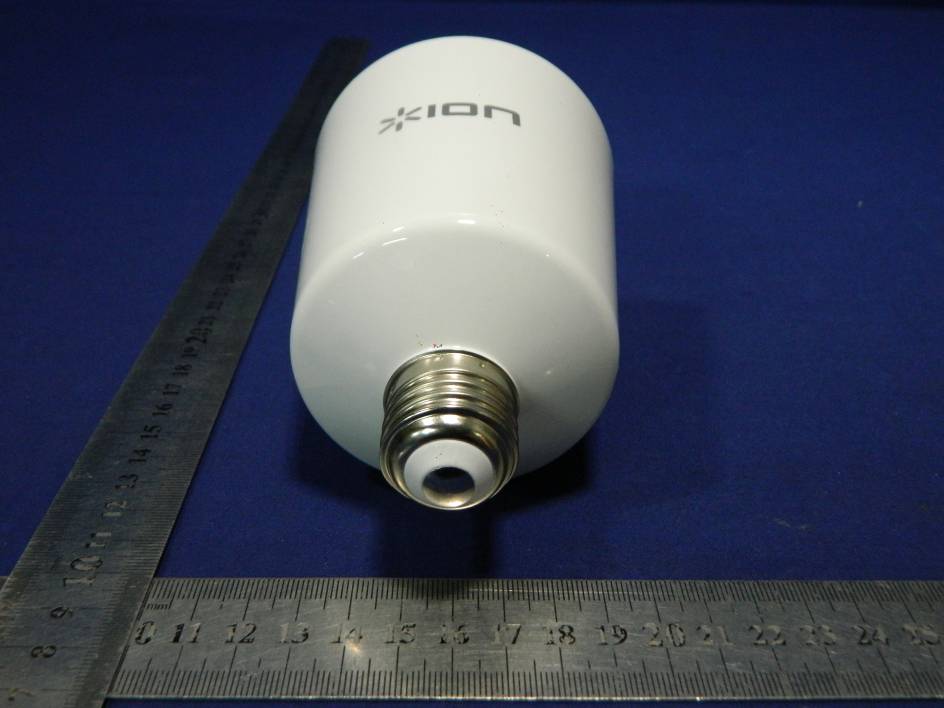

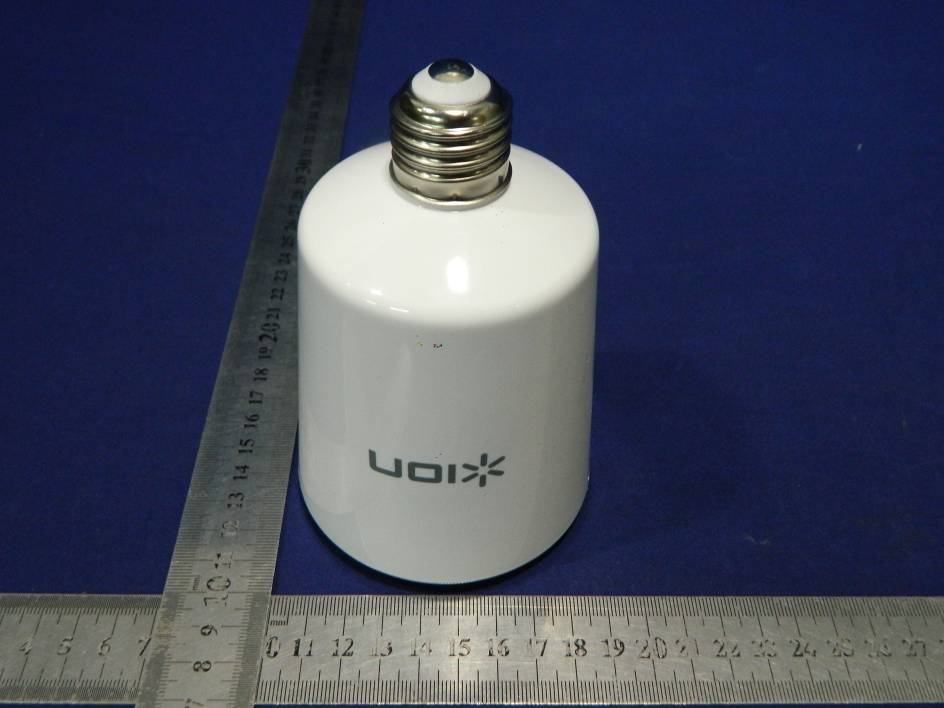

External Photos

Internal Photos Bluetooth Module Antenna

FCC ID : 2AB3E-ISP38P RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the followi ng table shall be used to evaluat e the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 11.1 Friis transmission form ula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. 11.2 Measurement Result BT DTS Channel Freq. (MHz) modulation conducted power (mW) conducted power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 2402 GFSK 5.22 7.178 7dBm to 9dBm 9 1.58 0.00251 1 2440 GFSK 7.09 8.509 7dBm to 9dBm 9 1.58 0.00251 1 2480 GFSK 7.03 8.469 7dBm to 9dBm 9 1.58 0.00251 1 BT DSS Channel Freq. (MHz) modulation conducted power (mW) conducted power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 2402 GFSK 1.06 0.245 -1dBm to 1dBm 1 1.58 0.00040 1 2441 GFSK 1.81 2.573 2dBm to 4dBm 4 1.58 0.00079 1 2480 GFSK 2.36 3.735 2dBm to 4dBm 4 1.58 0.00079 1 2402 π /4 - DQPSK 0.82 -0.880 -1dBm to 1dBm 1 1.58 0.00040 1 2441 π /4- DQPSK 1.55 1.900 0dBm to 2dBm 2 1.58 0.00050 1 2480 π /4- DQPSK 2.01 3.032 2dBm to 4dBm 4 1.58 0.00079 1 2402 8DPSK 0.87 -0.626 -1dBm to 1dBm 1 1.58 0.00040 1 2441 8DPSK 1.60 2.038 2dBm to 4dBm 4 1.58 0.00079 1 2480 8DPSK 2.06 3.131 2dBm to 4dBm 4 1.58 0.00079 1

TRF No.:FCC 15.247/A Page 1 of 60 Report No.: ES150120204E1 Ver.1.0 Access to the World FCC 47 CFR PART 15 SUBPART C CERTIFICATION TEST REPORT For Wireless Stereo Speaker with Built-In Lighting MODEL No.: Sound Shine FCC ID: 2AB3E-ISP38P Trademark: ION REPORT NO.: ES150120204E1 ISSUE DATE: February 09, 2015 Prepared for Ion Audio, LLC 200 Scenic View Drive, Suite 201 Cumberland, RI 02864, U.S.A Prepared by SHENZHEN EMTEK CO., LTD. Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 TRF No.:FCC 15.247/A Page 2 of 60 Report No.: ES150120204E1 Ver.1.0 Access to the World Table of Contents 1 TEST RESULT CERTIFICATION ............................................................................................................. 3 2 EUT TECHNICAL DESCRIPTION............................................................................................................ 4 3 SUMMARY OF TEST RESULT ................................................................................................................ 5 4 TEST METHODOLOGY ........................................................................................................................... 6 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................... 6 4.2 MEASUREMENT EQUIPMENT USED .......................................................................................... 6 4.3 DESCRIPTION OF TEST MODES ................................................................................................ 7 5 FACILITIES AND ACCREDITATIONS ...................................................................................................... 8 5.1 FACILITIES .................................................................................................................................... 8 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ..................................................................... 8 6 TEST SYSTEM UNCERTAINTY .............................................................................................................. 9 7 SETUP OF EQUIPMENT UNDER TEST ............................................................................................... 10 7.1 RADIO FREQUENCY TEST SETUP 1 ........................................................................................ 10 7.2 RADIO FREQUENCY TEST SETUP 2 ........................................................................................ 10 7.3 CONDUCTED EMISSION TEST SETUP .................................................................................... 11 7.4 SUPPORT EQUIPMENT ............................................................................................................. 11 8 FREQUENCY HOPPING SYSTEM REQUIREMENTS ......................................................................... 12 8.1 STANDARD APPLICABLE ........................................................................................................... 12 8.2 EUT PSEUDORANDOM FREQUENCY HOPPING SEQUENCE ............................................... 12 8.3 EQUAL HOPPING FREQUENCY USE ....................................................................................... 13 8.4 FREQUENCY HOPPING SYSTEM ............................................................................................. 13 9 TEST REQUIREMENTS ........................................................................................................................ 14 9.1 20DB BANDWIDTH ..................................................................................................................... 14 9.2 CARRIER FREQUENCY SEPARATION ..................................................................................... 20 9.3 NUMBER OF HOPPING FREQUENCIES ................................................................................... 26 9.4 AVERAGE TIME OF OCCUPANCY (DWELL TIME) ................................................................... 28 9.5 MAXIMUM PEAK CONDUCTED OUTPUT POWER .................................................................. 31 9.6 CONDUCTED SUPRIOUS EMISSION ....................................................................................... 37 9.7 RADIATED SPURIOUS EMISSION ............................................................................................ 43 9.8 CONDUCTED EMISSION TEST ................................................................................................. 57 9.9 ANTENNA APPLICATION ............................................................................................................ 60 TRF No.:FCC 15.247/A Page 3 of 60 Report No.: ES150120204E1 Ver.1.0 Access to the World 1 TEST RESULT CERTIFICATION Applicant: Ion Audio, LLC 200 Scenic View Drive, Suite 201 Cumberland, RI 02864, U.S.A Manufacturer: SHENZHEN FENDA TECHNOLOGY CO., LTD. Fenda Hi-Tech Park, Zhoushi Road, Shiyan Town, Baoan District, Shenzhen City, Guangdong, China Product Description: Wireless Stereo Speaker with Built-In Lighting Model Number: Sound Shine File Number: ES150120204E1 Date of Test: January 20, 2015 to February 09, 2015 Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS The above equipment was tested by SHENZHEN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.247 The test results of this report relate only to the tested sample identified in this report Date of Test : January 20, 2015 to February 09, 2015 Test by : KingKong /Tester Prepared by : Yaping Shen/Editor Approve & Authorized Signer : Lisa Wang/Manager TRF No.:FCC 15.247/A Page 4 of 60 Report No.: ES150120204E1 Ver.1.0 Access to t…

Text truncated - open the document above for the full version.

Setup photos LINE CONDUCTED EMISSION TEST RADIATED EMISSION TEST
