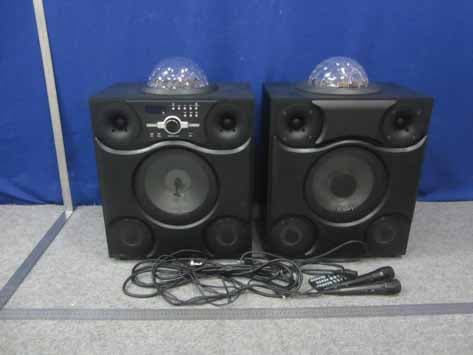

2AB3E-ISP45Active Subwoofer

Mega Party Express Quickstart Guide English ( 2 – 5 ) Guía de inicio rápido Español ( 6 – 10 ) Guide d'utilisation rapide Français ( 11 – 15 ) Guida rapida Italiano ( 16 – 20 ) Kurzanleitung Deutsch ( 21 – 25 ) Snelstartgids Nederlands ( 26 – 30 ) Appendix English ( 31 ) 2 POWER Quickstart Guide (English) 1. Make sure all items listed in the Box Contents are included in the box. 2. READ SAFETY INSTRUCTION BOOKLET BEFORE USING THE PRODUCT. 3. Study the connection diagram. 4. Make sure all input devices such as microphones, CD players, or digital media players are turned off and volume settings are set at "zero." 5. Connect all devices as shown. 6. Switch everything on in the following order: • audio input sources (i.e. micr ophones, instruments, CD players) • Mega Party Express 7. When turning off, always reverse this operation: • Mega Party Express • any input devices Support For complete system requirements, comp atibility information, and product re gistration, visit the ION website: ionaudio.com . For the latest information about this product, visit ionaudio.com/mega-party-express . For additional product support, visit ionaudio.com/support . For safety/warranty information, visit ionaudio.com/warranty . WARNING: Do not look directly into the dome light. Do not sit, stand, or apply pressure on the dome light. Caution: Do not expose Mega Party Express to rain or stand in water. Connection Diagram Box Contents  Mega Party Express  Microphone  Remote Control  Speaker Link Cable  Antenna Cable  Power Cable (standard IEC)  Quickstart Guide  Safety Instructions & Warranty Information Booklet ! Microphone Tablet* Right Front Ri g ht Rear iPod* Microphone Power Microphone *not included Antenna Cable Connector Left Front Speaker Link Cable 3 Front Panel Description 1. Dome: The dome light can react to the music playing (depending on the Dome Mode that is selected). There are three modes to select from for how the dome lights react to the music. • M1 = In Auto mode, the dome lights spin and change color with a predetermined pattern regardless of the beat of the music playing. • M2 = In Beat Sync mode, the dome lights spin and change color to the beat of the music playing. • Off = the dome lights are off. 2. Power Button: Turns the Media Panel on or off. Ensure the rear panel power switch is in the “On” position. 3. Media Panel: Controls for the Bluetooth, USB, and FM radio sources as well as the accessing the Menu functions. See the Remote Control section for details on using additional controls. 4. Prev: Press to go to the previous USB track. When listening to Bluetooth sources, pressing Prev in some apps may go to another playlist or music genre. When listening to the FM radio, press the Prev button once to skip back through the FM stations and hold the button down to seek back through the channel presets. 5. Next: Press to advance to the next USB track. When listening to Bluetooth sources, pressing Next in some apps may go to another playlist or music genre. When listening to the FM radio, press the Next button once to skip forward through the FM stations and hold the button down to seek forward through the channel presets. 6. LCD: Displays the Media Panel modes for Bluetooth, FM radio, USB and Aux. Aim the included remote control here to adjust the settings. Note: The LCD comes with a plastic protector on it. Remove this for optimal viewing of the LCD. 7. Mic Input 1 and 2: Connect a dynamic microphone to these 1/4” inputs. Control the volume of the 1/4” inputs using the Menu option “MI__”. 8. Volume/Multi: Adjust to control the overall volume of the speakers. When navigating through the Menu, this is used to adjust the different functions. 9. USB Port: Connect your USB flash drive to play music. Rear Panel Description 1. Speaker Link: For stereo output, connect the speaker link cable from the right speaker to the left speaker using the included Speaker Link cable. Turn the ring clockwise on both ends of the cable to secure the cable. 2. Aux Input: Connect a CD player, digital media player, or other audio source to this RCA stereo auxiliary input. 3. Line Output: Connect these RCA outputs to another active (powered) speaker. 4. Antenna Connector : Connect the included antenna cable here to get the best FM radio reception. 5. Delay Time: Adjusts the amount of the delay effect on microphone inputs 1-3. 6. Mic Treble: Adjusts the treble frequencies on microphone inputs 1-3. 7. Mic Bass: Adjusts the bass frequencies on microphone inputs 1-3. 8. Mic 3 Volume: Adjusts the volume for the Mic 3 input. 9. Mic 3 Input: Connect a 1/4” microphone here. 10. Power On/Off: Adjust this switch to power the unit on or off. The Media Panel Power button or the remote control Power button will still need to be pressed to power on the Media Panel. 11. Power Input: Insert the included power cable here to power the unit. WARNING: Do not look directly into the dome light. Do not sit, stand, or apply pressure on the dome light. 5 6 7 1 2 3 4 8 9 1 0 1 1 1 3 5 6 7 1 23 4 8 9 101 0 111 1 1 2 6 7 8 9 POWER 3 4 5 4 Remote Control Note: In order to use the remote control for the first time, first pull out the tab attached to the battery compartment. To change the remote battery, follow the diagram located on the back of the remote. Use a 3V DC CR2025 lithium button cell battery for replacement. Note: Aim the remote straight at th e front of the speaker woofer. Room lighting and battery life can affect the operating range of the remote control. 1. Power Button: Press this button to power on the unit or to put it into low power mode. Ensure the rear panel Power switch is in the “On” position. 2. Source: Press this to select one of the modes: BT (Bluetooth), USB, Radio, or Aux. 3. Menu: Cycles through the menu options. Use the Volume/Multi knob to change the selected parameter: • B = Bass adjustment • T = Treble adjustment • MI = Microphone level adjustment (a microphone will need to be plugged into the unit in orde…

Text truncated - open the document above for the full version.

775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision Histor y Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 Ion Audio, LLC 2014-09-30 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Ion Audio, LLC hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Active Su bwoofer, MEGA PARTY EXPRESS FCC ID: 2AB3E-ISP45 Sincerely, signature Andy Wu/Engineer E-mail: [email protected] Phone: 886-2-2717-2389 Ext.:38 Fax: 886-2-2717-2735 Address: 200 Scenic View Drive, Suite 201 Cumberland, RI 02864, U.S.A. SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Ion Audio, LLC 2014-09-30 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AB3E-ISP45 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, sign ature Andy Wu/Engineer E-mail: [email protected] Phone: 886-2-2717-2389 Ext.:3 8 Fa x: 886-2-2717-2735 Address: 200 Scenic View Drive, Suite 201 Cumberland, RI 02864, U.S.A.



FCC ID: 2AB3E-ISP45

BT Module Antenna

FCC ID : 2AB3E-ISP45 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 11.1 Friis transmission formula: Pd=(Pout*G)\(4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. 11.2 Measurement Result Antenna gain: 0 dBi Mode Max Output Peak power (dBm) Output Peak power (mW) Antenna Gain Numeric Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/cm 2 ) GFSK 1.05 1.27 1.00 0.00025 1 GFSK 1.02 1.26 1.00 0.00025 1 GFSK 1.90 1.55 1.00 0.00031 1 Π/4DQPSK -0.67 0.86 1.00 0.00017 1 Π/4DQPSK -0.62 0.87 1.00 0.00017 1 Π/4DQPSK 0.26 1.06 1.00 0.00021 1 8DPSK 0.61 1.15 1.00 0.00023 1 8DPSK -0.60 0.87 1.00 0.00017 1 8DPSK 0.24 1.06 1.00 0.00021 1

TRF No：FCC 15.247/A Page 1 of 57 Report No: ES140813156E ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENTS OF Active Subwoofer MODEL No.: MEGA PARTY EXPRESS FCC ID: 2AB3E-ISP45 Trade Mark: ION REPORT NO: ES140820257E ISSUE DATE: September 20, 2014 Prepared for Ion Audio, LLC 200 Scenic View Drive, Suite 201 Cumberland, RI 02864, U.S.A. Prepared by SHENZHEN EMTEK CO., LTD Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 TRF No：FCC 15.247/A Page 2 of 57 Report No: ES140813156E VERIFICATION OF COMPLIANCE Applicant: Ion Audio, LLC 200 Scenic View Drive, Suite 201 Cumberland, RI 02864, U.S.A. Manufacturer: Dolsonmuse (Foshan Nanhai) Electronic CO., LTD. Pingtang Industrial Park, Guanyao, Nanhai, Foshan, Guangdong, China Product Description: Active Subwoofer Model Number: MEGA PARTY EXPRESS Trade Mark: ION Serial Number: N/A File Number: ES140820257E Date of Test: September 10, 2014 to September 20, 2014 We hereby certify that: The above equipment was tested by SHENZHEN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247. The test results of this report relate only to the tested sample identified in this report. Date of Test : September 10, 2014 to September 20, 2014 Prepared by : Joe Xia/Editor Reviewer : Jack Li/Supervisor Approve & Authorized Signer : Lisa Wang/Manager TRF No：FCC 15.247/A Page 3 of 57 Report No: ES140813156E Ta b l e o f C o n t e n t s 1. GENERAL INFORMATION ................................................................................................. 5 1.1 Product Description ................................................................................................................................. 5 1.2 Related Submittal(s) / Grant (s)............................................................................................................... 5 1.3 Test Methodology ................................................................................................................................... 5 1.4 Special Accessories ................................................................................................................................. 5 1.5 Equipment Modifications ........................................................................................................................ 5 1.6 Test Facility ............................................................................................................................................. 6 2. System Test Configuration ...................................................................................................... 7 2.1 EUT Configuration .................................................................................................................................. 7 2.2 EUT Exercise .......................................................................................................................................... 7 2.3 Test Procedure ......................................................................................................................................... 7 2.4 Limitation ................................................................................................................................................ 7 2.5 Configuration of Tested System .............................................................................................................. 11 2.6 Description of test modes ...................................................................................................................... 12 3. Summary of Test Results ....................................................................................................... 13 4. Conducted Emissions Test .................................................................................................... 14 4.1 Measurement Procedure: ....................................................................................................................... 14 4.2 Test SET-UP (Block Diagram of Configuration) .................................................................................. 14 4.3 Measurement Equipment Used: ............................................................................................................ 14 4.4 Conducted Emission Limit ......................................................................................................................... 14 4.5 Measurement Result: ............................................................................................................................. 15 5. Radiated Emission Test ......................................................................................................... 17 5.1 Measurement Procedure ........................................................................................................................ 17 5.2 Test SET-UP (Block Diagram of Configuration) .................................................................................. 18 5.3 Measurement Equipment Used: ............................................................................................................ 19 5.4 Measurement Result .............................................................................................................................. 20 6. Channel Separation test ........................................................................................................ 30 6.1 Measurement Procedure ........................................................................................................................ 30 6.2 Test SET-UP (Block Diagram of Configuration) .................…

Text truncated - open the document above for the full version.

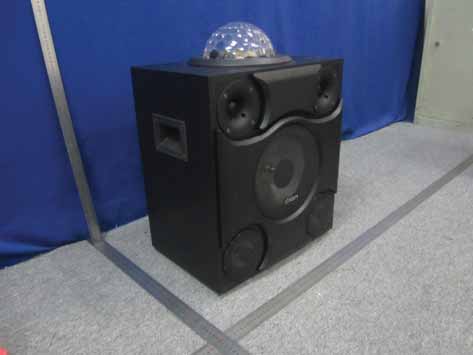

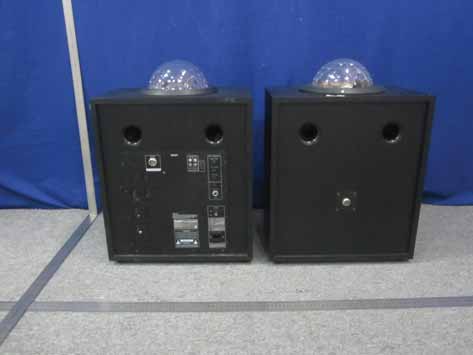

 ConductedEmissionsTe s t            RadiatedEmissionTe s t
