2AB3E-ISP50Patio Mate

ION Audio, LLC
Patio Mate - FCC ID 2AB3E-ISP50 - ION Audio, LLC
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Sep 26, 2015
Application Purpose
Original Equipment
Date of Application
Sep 26, 2015
Equipment Note
Patio Mate
Frequency Range
2402.00000000 - 2480.00000000
Company
ION Audio, LLC
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗

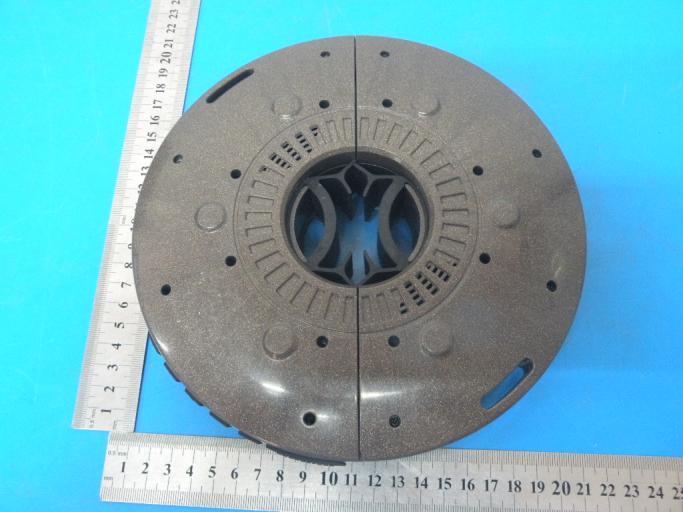

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Patio Mate Quickstart Guide English ( 3 – 9 ) Guía de inicio rápido Español ( 10 – 14 ) Guide d'utilisation rapide Français ( 15 – 19 ) Guida rapida Italiano ( 20 – 24 ) Schnellstart-Anleitung Deutsch ( 25 – 29 ) Snelstartgids Nederlands ( 30 – 34 ) 3 Quickstart Guide (English) Introduction Box Contents Patio Mate Micro-USB Cable Hanging Strap Quickstart Guide Support For the latest information about this product (system requirements, compatibility information, etc.) and product registration, visit ionaudio.com. For safety/warranty information, visit ionaudio.com/warranty. Trademarks and Licenses ION Audio is a trademark of ION Audio, LLC, registered in the U.S. and other countries. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by ION Audio is under license. All other product or company names are trademarks or registered trademarks of their respective owners. 4 Safety Instructions: Read and follow these instructions, heed all warnings, and keep this document in a safe place for future reference. Clean only with dry cloth. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Connect this product to a power supply only of the type described in these operating instructions, or as marked on the unit. Keep this product away from direct contact with liquids. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. Caution: To reduce the risk of electric shock, do not remove any cover. No user-serviceable parts inside. Refer servicing to qualified service personnel only. Notice Concerning FCC Regulations: You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (a) reorient or relocate the receiving antenna; (b) move this unit; (c) increase the separation between the equipment and receiver; (d) connect the equipment into an outlet on a circuit different from that to which the receiver is connected; (e) be sure that all cables are properly shielded, using a choke or ferrite where appropriate; (f) consult the dealer or an experienced radio/television technician for help. 5 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. RSS Statement for Canadian models: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device ESD / EFT Warning: This unit may contain a microcomputer for signal processing and control functions. In very rare situations, severe interference, noise from an external source, or static electricity may cause it to lock up. In the unlikely event that this should happen, turn off the unit, wait at least five seconds, and then turn it back on again. Correct Disposal of This Product: This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling. This device complies with Industry Canada's licence-exempt RSSs. IC déclaration: Cet appareil est conforme aux CNR exemptes de licence d'Industrie Canada . Son fonctionnement est soumis aux deux conditions suivantes : ( 1 ) Ce dispositif ne peut causer d'interférences ; et ( 2 ) Ce dispositif doit accepter toute interférence , y compris les interférences qui peuvent causer un mauvais fonctionnement de l'appareil. 6 Quick Setup Press the Open button on Patio Mate and fit the base to a pole style umbrella. The clamp fits 1.0”–1.6” (25–41 mm) diameter umbrella poles. Use the included strap with a cantilever style umbrella. Pass the strap through the mounts and fold the flap over the Velcro strips to hang from a cantilever umbrella. Pole style umbrella Cantilever style umbrella Hanging strap 7 Features Front Panel 1. Power/Charging LED: The LED will be solid green when p…

Text truncated - open the document above for the full version.

Cover Letter(s)

2015-09-22 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AB3E-ISP50 Product Name: Patio Mate Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics Long-term confidential  Block diagram Long-term confidential  Operation description Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name Jacky Liao Position Saty/EMI Dept Manager Company Name ION AUDIO,LLC Address 200 Scenic View Drive, Cumberland, RI 02864, U.S.A Tel +866-2-2717-2389 Fax +866-2-2717-2389 Email [email protected]

ID Label/Location Info

Model: iSP50 DC 5V-500mA FCC ID: 2AB3E-ISP50

RF Exposure Info

RF Exposure evaluation According to KDB 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2441 MHz 2.01dBm(1.589mW) output power] (1.589mW /5mm) ·[√2.441 (GHz)]= 0.5 <3.0 for 1-g SAR Then SAR evaluation is not required

Test Report

TEST REPORT FCC ID: 2AB3E-ISP50 IC: 10541A-ISP50 Applicant : ION AUDIO,LLC Address : 200 Scenic View Drive, Cumberland, RI 02864, U.S.A Equipment Under Test (EUT): Name : Patio Mate Model : iSP50 Trademark : ION Standards : FCC PART 15, SUBPART C : 2014 (Section 15.247) RSS-247 ISSUE 1 MAY 2015; RSS-GEN ISSUE 4 NOV 2014 ANSI C63.4:2014 ; ANSI C63.10:2013 Report No : T1851097 07 Date of Test : August 13- September 08, 2015 Date of Issue : September 09, 2015 Test Result : PASS In the configuration tested, the EUT complied with the standards specified above Authorized Signature (Mark Zhu) Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Alpha Product Testing Co., Ltd. Or test done by Shenzhen Alpha Product Testing Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Alpha Product Testing Co., Ltd. Approvals in writing. Page 2 of 74 Report No.: T1851097 07 Contents 1. General Information ............................................................................................................... 5 1.1. Description of Device (EUT) ...............................................................................5 1.2. Accessories of device (EUT) ...............................................................................6 1.3. Test Lab information ............................................................................................6 2. Summary of test ...................................................................................................................... 7 2.1. Summary of test result .........................................................................................7 2.2. Assistant equipment used for test .........................................................................7 2.3. Block Diagram .....................................................................................................8 2.4. Test mode .............................................................................................................8 2.5. Test Conditions .....................................................................................................9 2.6. Measurement Uncertainty (95% confidence levels, k=2) ....................................9 2.7. Test Equipment ...................................................................................................10 3. Maximum Peak Output power ............................................................................................ 11 3.1. Limit ................................................................................................................... 11 3.2. Test Procedure .................................................................................................... 11 3.3. Test Setup ........................................................................................................... 11 3.4. Test Result .......................................................................................................... 11 4. Bandwidth ............................................................................................................................. 12 4.1. Limit ...................................................................................................................12 4.2. Test Procedure ....................................................................................................12 4.3. Test Result ..........................................................................................................12 5. Carrier Frequency Separation ............................................................................................. 18 5.1. Limit ...................................................................................................................18 5.2. Test Procedure ....................................................................................................18 5.3. Test Result ..........................................................................................................18 6. Number Of Hopping Channel ............................................................................................. 21 6.1. Limit ...................................................................................................................21 6.2. Test Procedure ....................................................................................................21 6.3. Test Result ..........................................................................................................21 7. Dwell Time ............................................................................................................................. 24 7.1. Test limit ............................................................................................................24 7.2. Test Procedure ....................................................................................................24 7.3. Test Results ........................................................................................................24 8. Radiated emissions ................................................................................................................ 31 8.1. Limit ...................................................................................................................31 8.2. Block Diagram of Test setup ..............................................................................32 8.3. Test Procedure ....................................................................................................33 8.4. Test Result ...............................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Photos of Radiated emission Photos of Conducted Emission test

Contact Information

Applicant

Hill Lien(Director of Compliance)
[email protected]886-2-2717-2389Fax: 886-2-2717-2735

Test Firm

Shenzhen Alpha Product Testing Co., Ltd.Mark Zhu
[email protected]86-755-86375552Fax: 86-755-26736857

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz1.59 mW
Confidentiality
Long Term
Grant Notes
Output power listed is conducted.
