2AB3E-ISP56Plunge

Plunge Quickstart Guide English ( 3 – 9 ) Guía de inicio rápido Español ( 10 – 15 ) Guide d'utilisation rapide Français ( 16 – 21 ) Guida rapida Italiano ( 22 – 27 ) Schnellstart-Anleitung Deutsch ( 28 – 33 ) Snelstartgids Nederlands ( 34 – 39 ) iSP56 3 Quickstart Guide (English) Introduction 1. Make sure all items listed in the Box Contents are included in the box. 2. READ THE SAFETY & WARRANTY MANUAL BEFORE USING THE PRODUCT. 3. MAKE SURE THE BATTERY IS COMPLETELY CHARGED PRIOR TO FIRST USE FOR MAXIMUM BATTERY LIFE. 4. Study the connection diagram. Box Contents Plunge Micro-USB Charging Cable 3.5mm (1/8”) to 3.5mm (1/8”) cable Quickstart Guide Safety & Warranty Manual Support For the latest information about this product (system requirements, compatibility information, etc.) and product registration, visit ionaudio.com. WARNING: Keep any non-water-resistant devices (phones, music players, etc.) in a dry place where they will not be affected by water and cause a risk of electric shock. 4 Quick Setup Connection Diagram Items not listed under the Box Contents are sold separately. Playing Music Charging AUXILIARY AUDIO SOURCE TABLET or SMARTPHONE USB POWER (for charging) USB POWER (for charging) 5 Features 1. Auxiliary Input*: This stereo 3.5 mm (1/8”) input can be used to connect a CD player, MP3 player, or other audio source. 2. Micro USB Port*: Open the bottom cover to access the USB port. Use the included USB cable to connect this to a USB port on your computer or phone charger to recharge Plunge's battery. Note: Make sure Plunge and connections are dry before charging. Never charge when wet. 3. Bluetooth Button: Press and hold this button to disconnect a paired Bluetooth device. 4. Bluetooth LED: This blinks when Bluetooth pairing or illuminates solid when connected to a Bluetooth device. 5. Call Receive / Call End / Play / Pause: Press to play or pause a track from a connected Bluetooth device. When Bluetooth-paired, press and release this button to answer a phone call. The phone’s ringtone will be heard through Plunge’s speaker until the call is answered. When the call has been disconnected, Plunge will resume playing music. To reject an incoming call, press and hold this button. *IMPORTANT: Cover the Aux In and the Micro USB port with the cap in the locked position when using Plunge in water. 12 3 4 5 6 7 8 9 1010 1111 1212 Note: If the speaker fills with water, the sound will be muffled until the water has drained from the speaker. Open the air-tight cap before taking Plunge on a plane to prevent speaker damage. 6 6. Power On/Off Switch: Press and hold this button to turn Plunge on/off. While Plunge is connected to a power source, it does not need to be powered on to charge the battery. Note: Plunge will power off after 10 minutes if there is no Bluetooth connection or no audio signal being received. 7. Charging Indicator: The LED will slowly blink when the battery needs charging. The LED is solid red when the battery is charging. When the power is on and the battery is fully charged, this LED will be solid green. 8. Volume Up: Press this to increase the speaker volume on Plunge. 9. Volume Down: Press this to decrease the speaker volume on Plunge. Note: Press the Volume Up and Volume Down buttons at the same time to enable or disable voice prompts. 10. Next Track: Press and release this button to skip to the next Bluetooth track. Press and hold this button for 2 seconds to enable your connected smartphone's voice assistant (e.g. Siri ® , Google ® , etc), and then speak into the microphone. 11. Previous Track: Press and release this button once to go to the beginning of the track. Note: With some apps, pressing the Previous Track button or Next Track button may go to another playlist or music genre. 12. Microphone: Talk into this after receiving a call. 13. Tripod Mount (bottom panel): Attach a tripod to this 1/4” (6.35 mm) threaded mount. Pairing or Disconnecting a Bluetooth Device 1. Turn on your Bluetooth device. 2. Power on Plunge and it will automatically go into pairing mode to search for Bluetooth devices. You will know you are in pairing mode when the Bluetooth icon is slowly flashing. 3. Navigate to your Bluetooth device’s setup screen, find “Plunge” and connect. Note: If your Bluetooth device prompts for a pairing code, enter “0000”. 4. Press and release the Bluetooth button to disconnect a paired Bluetooth device. 5. To connect to another Bluetooth device, repeat step 3. Note: Maximum range will be achieved when using devices with Bluetooth 4.0. 1313 7 Using the Phone Note: You must power on and pair Plunge with your Bluetooth device before using it to listen to music or as a speakerphone. Using the Phone: When you have an incoming call, Plunge’s speaker will play a ringtone. 1. To answer the call, press Plunge's Call Receive button. Note: If you get an incoming call during music playback, the music will pause until you end the call. 2. Speak into the microphone and adjust the call volume using the Volume buttons. 3. To end the call, press the Call End button. 4. To reject an incoming call, press and hold the Call Receive button. Troubleshooting If the sound is distorted: Try lowering the volume control of your sound source. Also, try to reduce the overall volume of Plunge. If there is too much bass: Try adjusting the tone or EQ control on your sound source to lower the bass level. This will allow you to play the music louder before clipping (distortion) occurs. 9 Trademarks and Licenses ION Audio is a trademark of ION Audio, LLC, registered in the U.S. and other countries. Google is a registered trademark of Google Inc. Siri is a trademark of Apple Inc., registered in the U.S. and other countries. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by ION Audio is under license. All other product or company names are trademarks or registered trademarks of their respective owners. 10 Guía de inicio rápido (Español) Introducció…

Text truncated - open the document above for the full version.

Date: Nov. 18, 2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AB3E-ISP56 Product Name: Plunge Request for Short-Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission rules, and in accordance with the FCC Public notice dated June 15, 2004 (DA 04-1705), we hereby request short-term confidentiality for the following items prior to marketing the device.:  Test Setup Photos  External Photos  Internal Photos  User Manual These documents contain detailed system and equipment description and related information about the product which ION AUDIO,LLC considers to be proprietary, confidential, and a custom design and, otherwise would not release to the general public. Since this design is a basis from which future technological products will evolve, ION AUDIO,LLC considers this information to be of benefit to its competitors, and that the disclosure of information in these documents would give competitors an unfair advantage in the market. This request is being made retroactively due to an over site on our part. We understand that the information has been publicly available 180 days after date of grant. Dated this 11/18/2015 By: Jacky Liao Signature Printed Title: Director On behalf of : ION AUDIO,LLC Telephone: +886-2-2717 2389

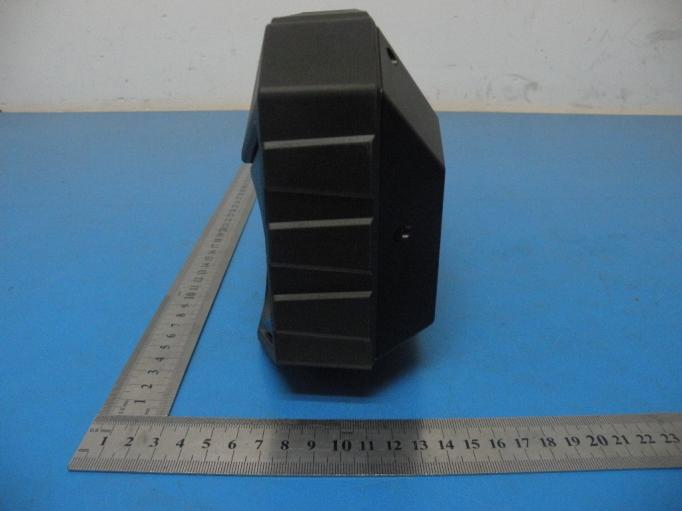

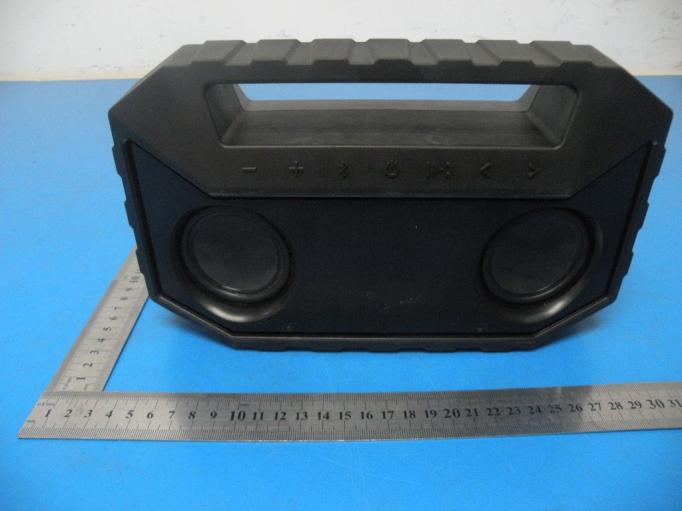

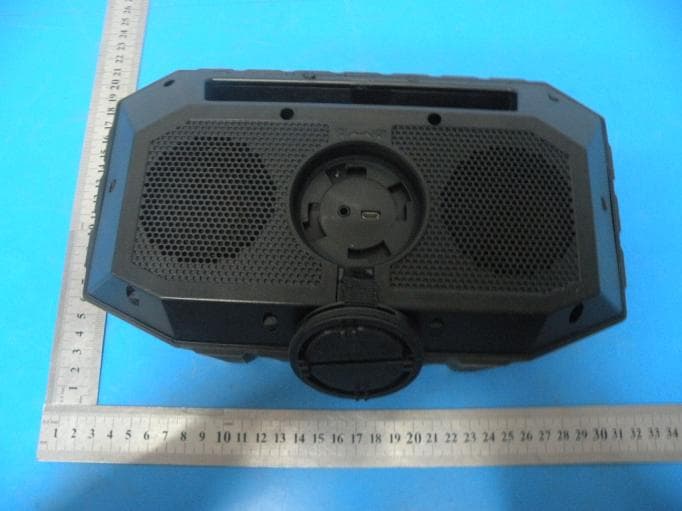

WH Technology Corp. Date of Issue: Nov. 11, 2015 Report No. : F15081002 13. Photos of EUT WH Technology Corp. Date of Issue: Nov. 11, 2015 Report No. : F15081002 WH Technology Corp. Date of Issue: Nov. 11, 2015 Report No. : F15081002 WH Technology Corp. Date of Issue: Nov. 11, 2015 Report No. : F15081002

WH Technology Corp. Date of Issue: Nov. 11, 2015 Report No. : F15081002 WH Technology Corp. Date of Issue: Nov. 11, 2015 Report No. : F15081002 WH Technology Corp. Date of Issue: Nov. 11, 2015 Report No. : F15081002 ---------END OF THE REPORT-------

FCC ID: 2AB3E-ISP56 Prediction of MPE at a given distance 1. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) 2. Test Procedure Equation from page 18 of OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to the antenna G = numeric gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna FCC ID: 2AB3E-ISP56 3. Result Maximum peak output power at antenna input terminal:4.17 (dBm) Maximum peak output power at antenna input terminal: 2.61 (mW) Antenna gain(typical): 0 (dBi) Maximum antenna gain: 1 (numeric) Prediction distance: 20 (cm) Sourse Based Time Average Duty Cycle: 100 (%) Prediction frequency: 2480 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1 (mW/cm^2) Power density at prediction frequency: 0.00052 (mW /cm^2) Power density at prediction frequency: 0.0052 (W/m^2 Power density at a given distance is 0.00052<1 mW/cm^2

WH Technology Corp. Date of Issue: Nov. 11, 2015 Report No. : F15081002 TEST REPORT FCC ID: 2AB3E-ISP56 Applicant : ION AUDIO,LLC Address : 200 Scenic View Drive, Cumberland, RI 02864, U.S.A Equipment Under Test (EUT): Name : Plunge Model : iSP56 Trademark : ION Standards : FCC PART 15, SUBPART C : 2014 (Section 15.247) RSS-247 ISSUE 1 MAY 2015; RSS-GEN ISSUE 4 NOV 2014 ANSI C63.4:2014 ; ANSI C63.10:2013 Report No : F15081002 Date of Test : August 13- November 07, 2015 Date of Issue : November 11, 2015 Test Result : PASS In the configuration tested, the EUT complied with the standards specified above Authorized Signature Mike Lee/ Manager Engineer Dept. WH Technology Corp. Date of Issue: Nov. 11, 2015 Report No. : F15081002 Contents 1. General Information ............................................................................................................... 4 1.1. Description of Device (EUT) ...............................................................................4 1.2. Accessories of device (EUT) ...............................................................................5 1.3. Lab information ....................................................................................................5 2. Summary of test ...................................................................................................................... 6 2.1. Summary of test result .........................................................................................6 2.2. Assistant equipment used for test .........................................................................6 2.3. Block Diagram .....................................................................................................7 2.4. Test mode .............................................................................................................7 2.5. Test Conditions .....................................................................................................8 2.6. Measurement Uncertainty (95% confidence levels, k=2) ....................................8 2.7. Test Equipment .....................................................................................................9 3. Maximum Peak Output power ............................................................................................ 10 3.1. Limit ...................................................................................................................10 3.2. Test Procedure ....................................................................................................10 3.3. Test Setup ...........................................................................................................10 3.4. Test Result ..........................................................................................................10 4. Bandwidth ............................................................................................................................. 11 4.1. Limit ................................................................................................................... 11 4.2. Test Procedure .................................................................................................... 11 4.3. Test Result .......................................................................................................... 11 5. Carrier Frequency Separation............................................................................................. 17 5.1. Limit ...................................................................................................................17 5.2. Test Procedure ....................................................................................................17 5.3. Test Result ..........................................................................................................17 6. Number Of Hopping Channel.............................................................................................. 20 6.1. Limit ...................................................................................................................20 6.2. Test Procedure ....................................................................................................20 6.3. Test Result ..........................................................................................................20 7. Dwell Time ............................................................................................................................. 23 7.1. Test limit ............................................................................................................23 7.2. Test Procedure ....................................................................................................23 7.3. Test Results ........................................................................................................23 8. Radiated emissions ................................................................................................................ 30 8.1. Limit ...................................................................................................................30 8.2. Block Diagram of Test setup ..............................................................................31 8.3. Test Procedure ....................................................................................................32 8.4. Test Result ..........................................................................................................32 9. Band Edge Compliance ........................................................................................................ 48 WH Technology Corp. Date of Issue: Nov. 11, 2015 Report No. : F15081002 9.1. Block Diagram of Test Setup .............................................................................48 9.2. Limit ...................................................................................................................48 9.3. Test Procedure .............................…

Text truncated - open the document above for the full version.

WH Technology Corp. Date of Issue: Nov. 11, 2015 Report No. : F15081002 12. Test setup photo 12.1. Photos of Radiated emission WH Technology Corp. Date of Issue: Nov. 11, 2015 Report No. : F15081002 12.2. Photos of Conducted Emission test
