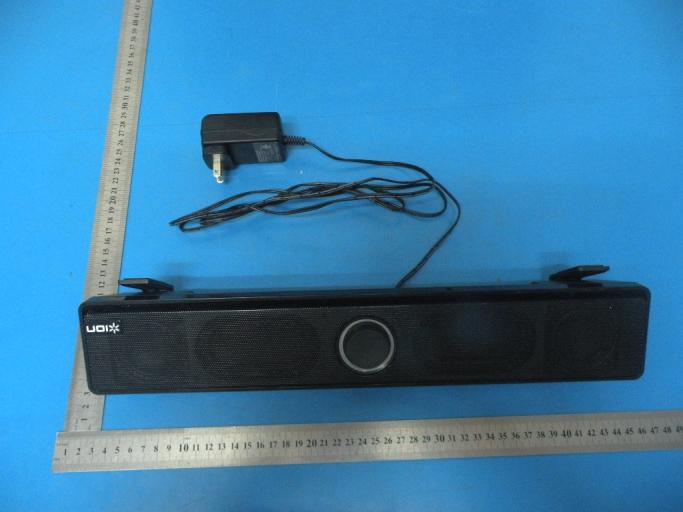

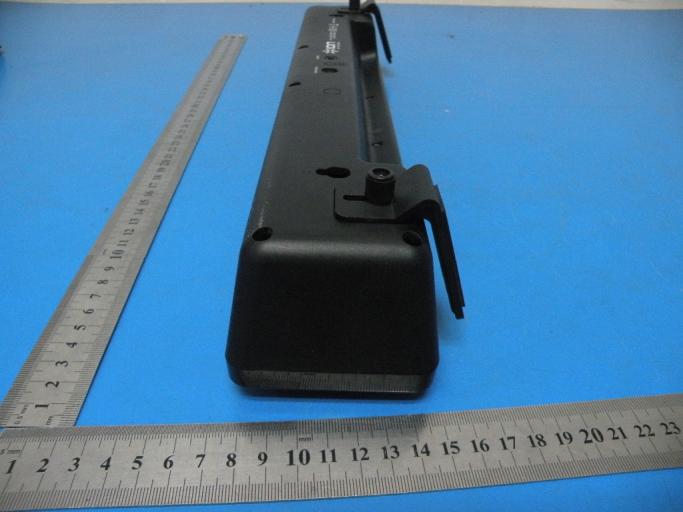

2AB3E-IT55SPAir LP Speaker

Quickstart Guide English ( 2 – 8 ) Guía de inicio rápido Español ( 9 – 15 ) Guide d'utilisation rapide Français ( 16 – 22 ) Guida rapida Italiano ( 23 – 29 ) Schnellstart-Anleitung Deutsch ( 30 – 36 ) Snelstartgids Nederlands ( 37 – 43 ) Air LP ™ System 2 Quickstart Guide (English) Introduction Box Contents Make sure that the items listed below are included in the box: • Air LP ™ • Air LP Speaker • Air LP Power Adapter • Air LP Speaker Power Adapter • Dust Cover • USB Cable • RCA Cable • 1/8” (3.5 mm) Aux Cable • 45 RPM Adapter • Felt Slipmat • Software CD • Quickstart Guide • Safety & Warranty Manual Support For the latest information about this product (system requirements, compatibility information, etc.) and product registration, visit ionaudio.com. Connection Diagram Items not listed under the Box Contents are sold separately. Air LP Features 1. Platter – Place your record here. 2. 45 RPM Adapter Holder – Holds the included 45 RPM adapter. When not using the adapter, please place it in this holder. 3. Tonearm – The fixed tonearm can be raised and lowered by hand, or by pressing the raise / lower lever. 4. Arm Clip – This specially designed arm clip secures the tonearm while at rest or when not in use. The arm clip has been designed to remain in the up position while unlocked. Air LP Speaker Music Device (optional) 1 2 3 4 5 7 6 8 9 10 11 Power 3 5. Raise / Lower Lever – Raises and lowers the tonearm. 6. 33 / 45 / 78 Switch – This switch controls the RPM of the turntable platter. Note: For best results when playing 78 RPM vinyl records, use a 78 stylus (sold separately). Only use a 78 stylus with 78 RPM vinyl records. Purchase the iCT06rs 78 stylus at ionaudio.com/ict06rs. 7. Autostop switch – This switch turns autostop on or off. When autostop is on, the platter will start spinning when the tonearm is placed over the record and stop spinning when the record has reached the end. (When autostop is off, the platter will always spin regardless of the position of the tonearm.) Note: If your vinyl record stops before it reaches the end of the music, turn Autostop to the off position for this particular record. This is generally recommended for 45 RPM records. 8. Headphone Jack – Connect headphones (sold separately) to listen to your vinyl playback. 9. Bluetooth Button – Press this button to start Bluetooth pairing. If after 5 minutes no Bluetooth speaker can be found to pair with, the Bluetooth transmitter will become inactive, and the LED will turn off. If currently connected, press this to disconnect from a currently connected Bluetooth device. 10. Bluetooth LED – This LED blinks when pairing with a Bluetooth device. Once fully paired, the LED will remain solid. The LED will be off when Bluetooth is inactive, and when the Air LP is turned off. 11. Volume – Adjust this to control the headphone and Bluetooth output level. 12. RCA Output* – The audio from a playing vinyl record is sent to this line-level RCA audio output. This must not be connected to phono level devices. 13. USB Audio Output – Use the included USB cable to connect your turntable to your computer. The USB connection will send audio from the turntable to your computer. Please see the Using Air LP With Your Computer section of this manual for information. 14. Power Cable Input – Use the included adapter to connect to wall power. 15. Power Button – Press this button to turn Air LP on/off. Air LP Turntable will re-connect to your last used Bluetooth Speaker when powering on, if it is in range. 16. Aux Input – Connect a CD player, digital media player, or other audio source to this 1/8” stereo auxiliary input. The audio from the Aux Input is also transmitted over a Bluetooth connection. IMPORTANT: Remove the plastic cartridge cover (needle cover) before operating the turntable. *WARNING: The RCA outputs are LINE level. Please only connect these to LINE level inputs. You may damage your receiver if you plug in a LINE level device into a PHONO level input. 12 13 14 15 16 IMPORTANT: Place the included felt slipmat on the platter; then place your record on the felt slipmat to carefully hold your records. 4 34 1 2 Air LP Speaker Features 1. Power/Volume Knob – The Air LP Speaker can be powered on or off by pressing and releasing the Power/Volume knob. 2. Power/Volume Knob LED – The Power/Volume Knob LED ring will be lit solid red when it is powered on and in pairing mode. The LED ring will be lit solid blue when it is connected to a Bluetooth device. 3. Power Jack – Connect the included 12V DC, 1.6A power supply here to power the Air LP Speaker. 4. Aux Input – Connect a CD player, MP3 player, or other audio source to this stereo 3.5 mm (1/8”) input. Using Air LP Speaker with Air LP Air LP has a Bluetooth transmitter to send audio to a Bluetooth speaker wirelessly. 1. Power on your Air LP turntable. 2. Press and release the Bluetooth button on Air LP to start pairing to your Bluetooth device. 3. To power on Air LP Speaker, press and release the Power/Volume knob. The Power/Volume Knob LED ring will be solid red showing it is powered on and in pairing mode. 4. Once the Air LP turntable is connected to the Air LP Speaker, the Bluetooth LED on the Air LP turntable will be solid. The LED ring on the Air LP Speaker will be solid blue once it is connected. Note: Air LP will connect to the closest Bluetooth speaker that is near it. If after 5 minutes no Bluetooth speaker can be found to pair with, the Bluetooth transmitter will become inactive, and the LED will turn off. 5. Play music on your Air LP turntable. 6. Adjust the volume knob on the Air LP Speaker by rotating the knob. 7. To disconnect pairing, press and hold the Volume knob on Air LP Speaker for two seconds, or press the Bluetooth button on Air LP Turntable. The LED ring on the Air LP Speaker will return to red, and the Bluetooth LED on Air LP Turntable will be off. Note: Move other Bluetooth receivers/speakers out of range of Air LP (30’/9.1m or more) or turn them off to connect…

Text truncated - open the document above for the full version.

2015-09-23 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AB3E-IT55SP Product Name: Air LP Speaker Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics Long-term confidential  Block diagram Long-term confidential  Operation description Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name Jacky Liao Position Saty/EMI Dept Manager Company Name ION AUDIO,LLC Address 200 Scenic View Drive, Cumberland, RI 02864, U.S.A Tel +866-2-2717-2389 Fax +866-2-2717-2389 Email [email protected]

ION Audio, LLC Date: September 25, 2015 Dear Sirs, iT55SPxx (x can be A-Z, 0-9 or blank) Model Similarity: All models covered by this report are identical, except model no., brand name and appearance of enclosure (for color and silk-screen only) for marketing purpose. Yours sincerely, Name Jacky Liao Position Manager Company Name ION Audio, LLC Address 200 Scenic View Drive, Cumberland, RI 02864, U.S.A. Tel 886 2 2717 2389 Fax 886 2 2717 2735 Email [email protected] Model:iT55SPxx (x can be A-Z, 0-9 or blank) All models covered are electrically identical, except model no., brand name and appearance of enclosure (for color and silk-screen only) is different for marketing purpose.

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. 1PCS (贴 机身背部) 不干胶贴纸 哑胶 印 刷 要 求黑底白字 55x20mm ION 周霞 2015.09.28 W210 FCC贴纸 GM15132 W210 A0 Model: iT55SP

2AB3E-IT55SP RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2480MHz 1.75dBm(1.50mW) output power] (1.50mW /5mm) ·[√2.480(GHz)]= 0.472 <3.0 for 1-g SAR Then SAR evaluation is not required

TEST REPORT FCC ID: 2AB3E-IT55SP Applicant : ION AUDIO,LLC Address : 200 Scenic View Drive, Cumberland, RI 02864, U.S.A Equipment Under Test (EUT): Name : Air LP Speaker Model : iT55SPxx (x can be A-Z, 0-9 or blank) Trademark : ION Standards : FCC PART 15, SUBPART C : 2014 (Section 15.247) ANSI C63.4:2014 ; ANSI C63.10:2013 Report No : T1851237 02 Date of Test : August 31- September 14, 2015 Date of Issue : September 15, 2015 Test Result : PA S S In the configuration tested, the EUT complied with the standards specified above Authorized Signature (Mark Zhu) Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Alpha Product Testing Co., Ltd. Or test done by Shenzhen Alpha Product Testing Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Alpha Product Testing Co., Ltd. Approvals in writing. Page 2 of 76 Report No.: T1851237 02 Contents 1. General Information ............................................................................................................... 4 1.1. Description of Device (EUT) ...............................................................................4 1.2. Accessories of device (EUT) ...............................................................................5 1.3. Test Lab information ............................................................................................5 2. Summary of test ...................................................................................................................... 6 2.1. Summary of test result .........................................................................................6 2.2. Assistant equipment used for test .........................................................................6 2.3. Block Diagram .....................................................................................................7 2.4. Test mode .............................................................................................................7 2.5. Test Conditions .....................................................................................................8 2.6. Measurement Uncertainty (95% confidence levels, k=2) ....................................8 2.7. Test Equipment .....................................................................................................9 3. Maximum Peak Output power ............................................................................................ 10 3.1. Limit ...................................................................................................................10 3.2. Test Procedure ....................................................................................................10 3.3. Test Setup ...........................................................................................................10 3.4. Test Result ..........................................................................................................10 4. Bandwidth ............................................................................................................................. 11 4.1. Limit ................................................................................................................... 11 4.2. Test Procedure .................................................................................................... 11 4.3. Test Result .......................................................................................................... 11 5. Carrier Frequency Separation ............................................................................................. 17 5.1. Limit ...................................................................................................................17 5.2. Test Procedure ....................................................................................................17 5.3. Test Result ..........................................................................................................17 6. Number Of Hopping Channel ............................................................................................. 20 6.1. Limit ...................................................................................................................20 6.2. Test Procedure ....................................................................................................20 6.3. Test Result ..........................................................................................................20 7. Dwell Time ............................................................................................................................. 23 7.1. Test limit ............................................................................................................23 7.2. Test Procedure ....................................................................................................23 7.3. Test Results ........................................................................................................23 8. Radiated emissions ................................................................................................................ 30 8.1. Limit ...................................................................................................................30 8.2. Block Diagram of Test setup ..............................................................................31 8.3. Test Procedure ....................................................................................................32 8.4. Test Result ..........................................................................................................32 9. Band Edge Co…

Text truncated - open the document above for the full version.

Photos of Radiated emission Photos of Conducted Emission test
