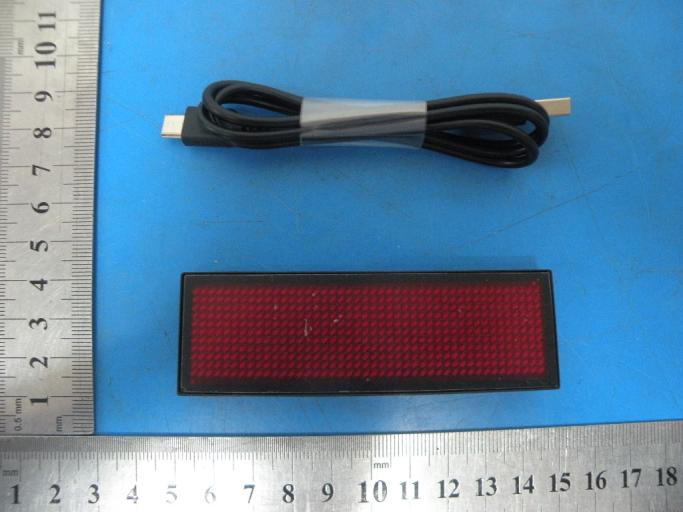

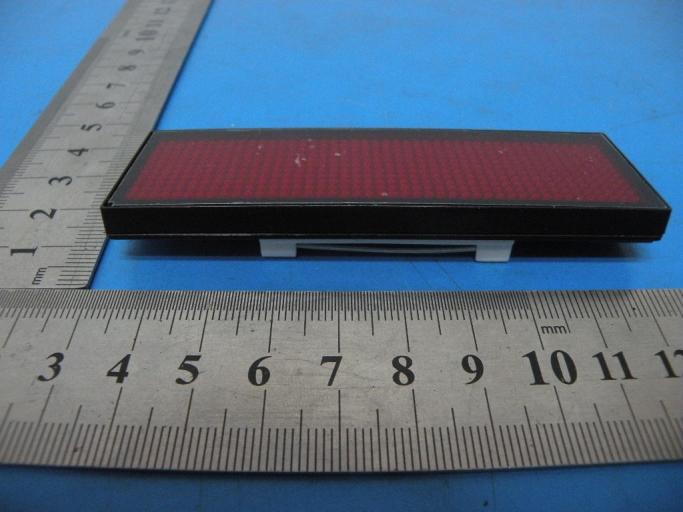

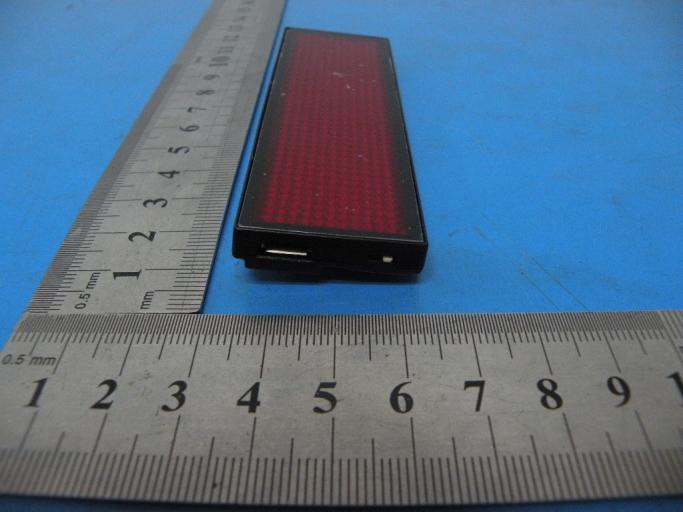

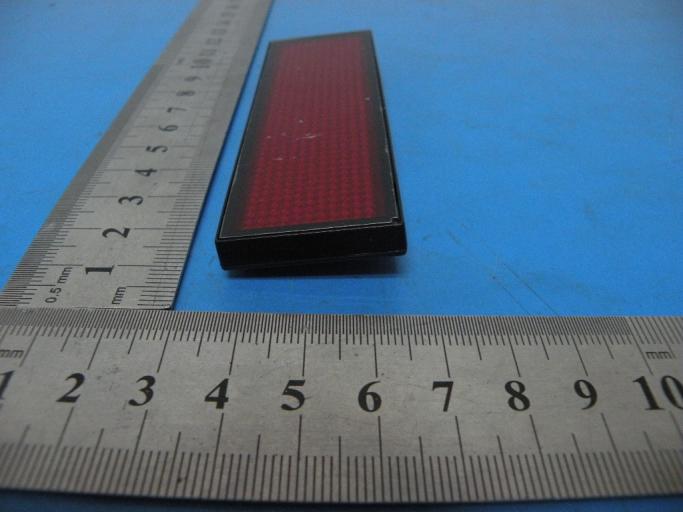

2AB3E-IUL8Smart Badge

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Warnings: This device complies with Industry Canada’s licence-exempt RSSs Operation is subject to the following two conditions: (1) This device may not cause interference and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. This radio transmitter (identify the device by certification number, or model number if Category II) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Le présent émetteur radio (identifier le dispositif par son numéro de certification ou son numéro de modèle s'il fait partie du matériel de catégorie I) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur

Model No: iUL8

FCC ID: 2AB3E-IUL8 RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2402MHz 0.91dBm(1.23mW) output power] (1.23mW /5mm) ·[√2.402(GHz)]= 0.382 <3.0 for 1-g SAR Then SAR evaluation is not required

Page 1 of 46 Report No.: T1851503 08 TEST REPORT FCC ID: 2AB3E-IUL8 IC: 10541A- IUL8 Applicant : ION AUDIO,LLC Address : 200 Scenic View Drive, Cumberland, RI 02864, U.S.A Equipment under Test (EUT): Name : Smart Badge Model : iUL8 Trademark : ION Standards: FCC PART 15, SUBPART C : 2015 (Section 15.247) ANSI C63.4:2014 Report No : T1851503 08 Date of Test : October 16- October 28, 2015 Date of Issue : November 03, 2015 Test Result : PA S S In the configuration tested, the EUT complied with the standards specified above Authorized Signature (Mark Zhu) Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Alpha Product Testing Co., Ltd. Or test done by Shenzhen Alpha Product Testing Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Alpha Product Testing Co., Ltd. Approvals in writing. FCC ID: 2AB3E-IUL8 IC: 10541A-IUL8 ANSI C63.4:2014 and ANSI C63.10:2013 Page 2 of 46 Report No.: T1851503 08 TABLE OF CONTENT Description Page 1 General Information --------------------------------------------------------------------------------------- 5 1.1 Description of Device (EUT) --------------------------------------------------------------------- 5 1.2 Description of Test Facility ----------------------------------------------------------------------- 6 2 EMC Equipment List ------------------------------------------------------------------------------------ 6 3 Test Procedure ------------------------------------------------------------------------------------------- 7 4 Summary of Measurement ---------------------------------------------------------------------------- 8 4.1 Summary of test result ---------------------------------------------------------------------------- 8 4.2 Test connection ------------------------------------------------------------------------------------- 8 4.3 Assistant equipment used for test ---------------------------------------------------------------- 9 4.4 Test mode ------------------------------------------------------------------------------------------- 9 4.5 Test Conditions ----------------------------------------------------------------------------------- 10 4.6 Measurement Uncertainty (95% confidence levels, k=2)----------------------------------- 10 5 Spurious Emission ---------------------------------------------------------------------------------- 11 5.1 Radiation Emission ------------------------------------------------------------------------------ 11 5.1.1 Radiation Emission Limits(15.209) ----------------------------------------------------------- 11 5.1.2 Test Setup ----------------------------------------------------------------------------------------- 11 5.1.3 Test Procedure ------------------------------------------------------------------------------------ 13 5.1.4 Test Equipment Setting For emission test Result -------------------------------------------- 13 5.1.5 Test Condition ------------------------------------------------------------------------------------ 14 5.1.6 Test Result ---------------------------------------------------------------------------------------- 14 6 POWER LINE CONDUCTED EMISSION ------------------------------------------------------- 20 6.1 Conducted Emission Limits(15.207) ---------------------------------------------------------- 20 6.2 Test Setup ----------------------------------------------------------------------------------------- 20 6.3 Test Procedure ------------------------------------------------------------------------------------ 21 6.4 Test Results --------------------------------------------------------------------------------------- 21 7 Conducted Maximum Output Power ----------------------------------------------------------- 24 7.1 Test limit ------------------------------------------------------------------------------------------ 24 7.2 Test Procedure ------------------------------------------------------------------------------------ 24 7.3 Test Setup ----------------------------------------------------------------------------------------- 24 7.4 Test Results --------------------------------------------------------------------------------------- 24 8 PEAK POWER SPECTRAL DENSITY ---------------------------------------------------------- 26 8.1 Test limit ------------------------------------------------------------------------------------------ 26 8.2 Method of measurement ------------------------------------------------------------------------ 26 8.3 Test Setup ----------------------------------------------------------------------------------------- 26 8.4 Test Results --------------------------------------------------------------------------------------- 27 9 Bandwidth ---------------------------------------------------------------------------------------------- 30 9.1 Test limit ------------------------------------------------------------------------------------------ 30 9.2 Method of measurement ------------------------------------------------------------------------ 30 9.3 Test Setup ----------------------------------------------------------------------------------------- 30 9.4 Test Results --------------------------------------------------------------------------------------- 30 10 Band Edge Check ------------------------------------------------------------------------------------ 34 10.1 Test limit ------------------------------------------------------------------------------------------ 34 10.2 Test Procedure ------------------------------------------------------------------------------------ 34 10.3 Test Setup ----------------------------------------------------------------------------------------- 34 10.4 Test Result ------…

Text truncated - open the document above for the full version.

Photos of Radiated emission Photos of Conducted Emission test
