2AB3J-87011A2-STX, A3-STX

FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

LRP electronic GmbH DATE : 2014-10-17 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Company name: Global United Technology Services Co., Ltd. Address: 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China Person: Hans Hu to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Applicant name: LRP electronic GmbH Address: Hanfwiesenstrasse 15 73614 Schorndorf Germany By: Helge Behrens Signature Printed Title: Manager On behalf of : LRP electronic GmbH Telephone: +49 7181 40980

Request for Confidentiality: LRP electronic GmbH DATE : 2014-10-17 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AB3J-87011 Product Name: LRP electronic GmbH Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. B y: Helge Behrens Signature Printed Title: Manager On behalf of : LRP electronic GmbH Telephone: +49 7181 40980

W el is We dec ectrica differ Mo clare , ally id rent fo odel di ,that m entica r mark ifferen model al， o king u nce let 8701 only m use. tter 1, 87 0 odel n 020 ar no re

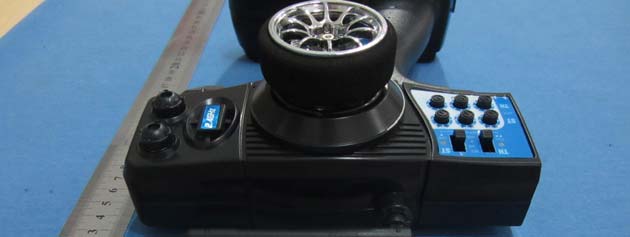

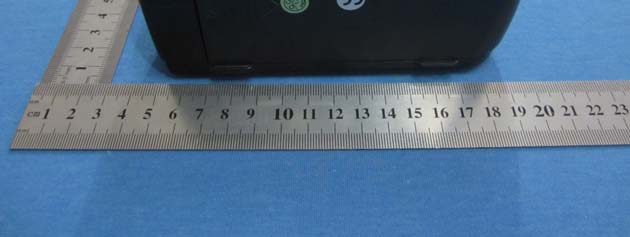

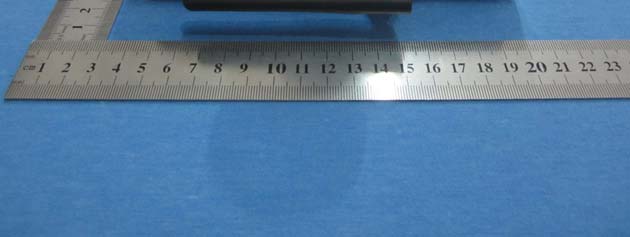

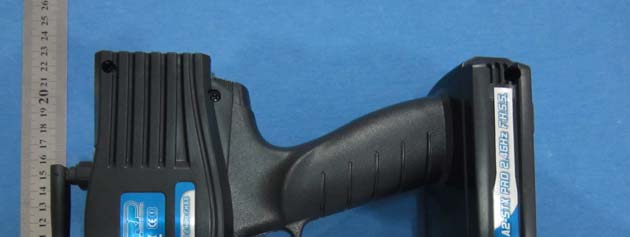

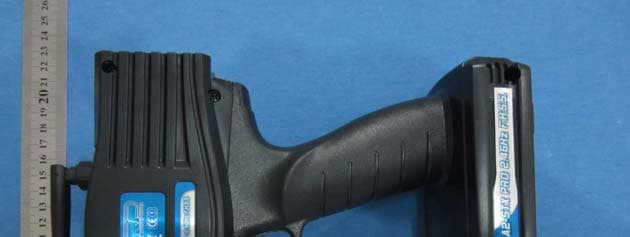

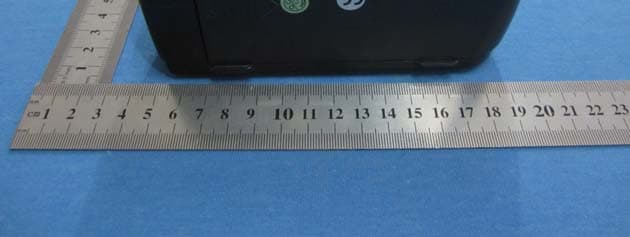

Report No.: GTSE1409128801 Global United Technology Services Co., Ltd. Project No.: GTSE14091288RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 19 of 24 9 EUT Constructional Details Report No.: GTSE1409128801 Global United Technology Services Co., Ltd. Project No.: GTSE14091288RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 20 of 24 Report No.: GTSE1409128801 Global United Technology Services Co., Ltd. Project No.: GTSE14091288RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 21 of 24

Label Length: 50mm Width: 15mm Product Name: A2-STX Model No.: 87011 FCC ID: 2AB3J-87011 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.

Label location

Report No.: GTSE1409128801 Global United Technology Services Co., Ltd. Project No.: GTSE14091288RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 22 of 24 Report No.: GTSE1409128801 Global United Technology Services Co., Ltd. Project No.: GTSE14091288RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 23 of 24 Report No.: GTSE1409128801 Global United Technology Services Co., Ltd. Project No.: GTSE14091288RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 24 of 24 ------End-------

RF Exposure evaluation According to KDB 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Ant gain 2dBi, so Ant numeric gain=1.58 Field strength = 97.81 dBuV/m @3m So pt ={ [10 ( 97.81 /20) /10 6 x3] 2 /30x1.58 }x1000 mW = 1.147 mW So (1.147mW/5mm)x √2.410 GHz =0.36 < 3 Then SAR evaluation is not required

Global United Technology Services Co., Ltd. Report No.: GTSE1409128801 Authorized Signature: Robinson Lo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the GTS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of GTS International Electrical Approvals or testing done by GTS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by GTS International Electrical Approvals in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” FCC Report Applicant: LRP electronic GmbH Address of Applicant: Hanfwiesenstrasse 15 73614 Schorndorf Germany Equipment Under Test (EUT) Product Name: A2-STX, A3-STX Model No.: 87011, 87020 FCC ID: 2AB3J-87011 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.249 Date of sample receipt: 28 September 2014 Date of Test: 28 September to 10 October 2014 Date of report issued: 10 October 2014 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSE1409128801 Global United Technology Services Co., Ltd. Project No.: GTSE14091288RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 17 4 Contents Page 1 COVER PAGE .......................................................................................................................................... 1 4 CONTENTS .............................................................................................................................................................. 2 5 TEST SUMMARY .................................................................................................................................................... 3 6 GENERAL INFORMATION ................................................................................................................................... 4 6.1 CLIENT INFORMATION ............................................................................................................................................ 4 6.2 GENERAL DESCRIPTION OF EUT ............................................................................................................................. 4 6.3 EUT OPERATION MODE .......................................................................................................................................... 5 6.4 TEST FACILITY ........................................................................................................................................................ 5 6.5 TEST LOCATION ...................................................................................................................................................... 5 6.6 TEST INSTRUMENTS LIST: ....................................................................................................................................... 6 7 TEST RESULTS AND MEASUREMENT DATA ................................................................................................ 7 7.1 ANTENNA REQUIREMENT: ....................................................................................................................................... 7 7.2 RADIATED EMISSION .............................................................................................................................................. 8 7.2.1 Field Strength Of The Fundamental Signal ......................................................................................... 10 7.2.2 Spurious Emissions ................................................................................................................................. 11 7.3 20DB BANDWIDTH ............................................................................................................................................... 15 Report No.: GTSE1409128801 Global United Technology Services Co., Ltd. Project No.: GTSE14091288RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 17 5 Test Summary Test Item Section in CFR 47 Result Antenna requirement 15.203 Passed Field strength of the fundamental signal 15.249 (a) Passed Spurious emissions 15.209/15.205 Passed Band edge 15.249 (d) Passed 20dB Occupied Bandwidth 15.215 (c) Passed Report No.: GTSE1409128801 Global United Technology Services Co., Ltd. Project No.: GTSE14091288RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 17 6 General Information 6.1 Client Information Applicant: LRP electronic GmbH Address of Applicant: Hanfwiesenstrasse 15 73614 Schorndorf Germany Manufacturer/ Factory: LRP electronic GmbH Address of Manufacturer/ Factory: Hanfwiesenstrasse 15 73614 Schorndorf Germany 6.2 General Description of EUT Product Name: A2-STX, A3-STX Item No.: 87011, 87020 Operation Frequency: 2410MHz~2474MHz Channel numbers:…

Text truncated - open the document above for the full version.

Report No.: GTSE1409128801 Global United Technology Services Co., Ltd. Project No.: GTSE14091288RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 18 of 24 8 Test Setup Photo Radiated Emission
