2AB5RBAD123Point-of-care hand hygiene device

SwipeSense, Inc. 1355 Peachtree St NE Suite 700 Atlanta, GA 30309 (404) 975-1686 Badge Model: 123.0 Page 1 of 4 Badge User Manual SwipeSense, Inc. 1355 Peachtree St NE Suite 700 Atlanta, GA 30309 (404) 975-1686 Badge Model: 123.0 Page 2 of 4 Safety and Regulatory Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. RF Exposure: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Warnings • This Device is for indoor use only. • This Device is only to be installed by trained SwipeSense personnel. • Do not open the Device as there are no user serviceable parts inside and this product is powered at all times. • Do not use if the case is cracked or worn. Caution Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. SwipeSense, Inc. 1355 Peachtree St NE Suite 700 Atlanta, GA 30309 (404) 975-1686 Badge Model: 123.0 Page 3 of 4 System Description The SwipeSense System combines point-of-care hand hygiene with real-time usage data to eliminate dependency on manual observations and increase compliance with infection control procedures. Our fully integrated system seamlessly provides real-time hand hygiene data from across the enterprise with exceptional clarity. The SwipeSense System creates a Thread network using Location Hubs that funnel all data back to a central Comm Hub device. The system is comprised of: • Badges worn on individual employees • Asset tags attached to assets that should be tracked • Hygiene sensors mounted to hygiene dispensers tracks employee hand sanitation frequency • Entry sensors installed in door thresholds to provide real time feedback • Location hubs monitor employee presence in patient rooms and asset locations • Communication hub located on each unit collects the data generated within the network and transmits to the cloud. Once the data is uploaded to the cloud, it is accessible to all administrators. SwipeSense, Inc. 1355 Peachtree St NE Suite 700 Atlanta, GA 30309 (404) 975-1686 Badge Model: 123.0 Page 4 of 4 Product Description The Badge is a small device that is designed to be either worn by a person, or attached to an asset. It provides a dynamic signal that is motion aware and reduces frequency when stationary to save power and extend battery life. This signal is detected by Location Hubs across the unit, with all observations being aggregated together on the central Comm Hub device to establish real-time position. Getting Started Before the Badge will start collecting any useful data it needs to be assigned to a person or asset, but this will normally be done before you receive the device by your Partner Success Manager. For customers that manage some or all their own assignment, designated users with elevated permission will receive extra training and be able to use the device ID printed on the back to register a Badge to a person or asset. Normal Use All you need to do once the Badge is registered, is wear it or attach it to the assigned asset. It will be continually tracked by the system and provide real-time location updates. Cleaning If a Badge becomes dirty you can clean it with a damp cloth or mild detergent. The device is sealed and protected against incidental splashing, but it is not rated as waterproof and should not be submerged or intentionally exposed to water. Battery and Disposal The Badge contains a sealed CR2450 battery that is not user-replaceable. When the battery is running low, you will receive an email prompting you to replace and properly dispose of the Badge before it stops working. Dispose of the device and battery in accordance with local requirements for electronic waste and batteries.

US Tech 3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 FAX:770-740-1508 www.ustech-lab.com SDoC Attestation Letter Date: August 24, 2026 Subject: SDoC Attestation Letter: FCC ID: 2AB5RBAD123 The following equipment meets FCC Part 15 SDoC Requirements for digital device: Responsible Party: SwipeSense, Inc. 1335 Peachtree St. NE Ste. 700 Atlanta GA 30309 USA Jeremy Jass Title: Principal Hardware Architect Telephone: (404) 245-0855 Email: [email protected] Equipment: Model Name: BAD123 Sincerely, By: __________________________ George Yang __- Agent (Signature/Title) (Print name)

Request for Confidentiality Date: Aug 13, 2026_____ Subject: Confidentiality Request for: ___FCC ID: 2AB5RBAD123 Pursuant to FCC 47 CRF 0.457(d) and 0.459, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual SwipeSense, Inc. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Sincerely, By: __________________________ ___George Yang __- Agent (Signature/Title) (Print name)

FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:08-20-2026 Gentlemen: Bysignaturebelow,weherebyappoint US TechemployeesAlanGhasianiandGeorgeYangtoact as our agentswithregardtoallFCCequipmentauthorizations.Thisappointmentwillremainineffectuntil otherwisenotified. Ifurther certiftyby signaturebelowthat no party(per47 CFR1.2002(b)) totheapplication is subjectto a denialofFederalbenefits,including FCC benefits,pursuanttoSection5301oftheAnti-DrugAbuseActof 1988,21U.S.C.853(a). Thisappointmentincludestheauthoritytocomplete FCC Form731onourbehalfandsigntheapplication asanauthorizedagent. Name:JeremyJass SWIPE SENSE Title:PrincipalHardwareArchitect Signature: Date:2026-08-20

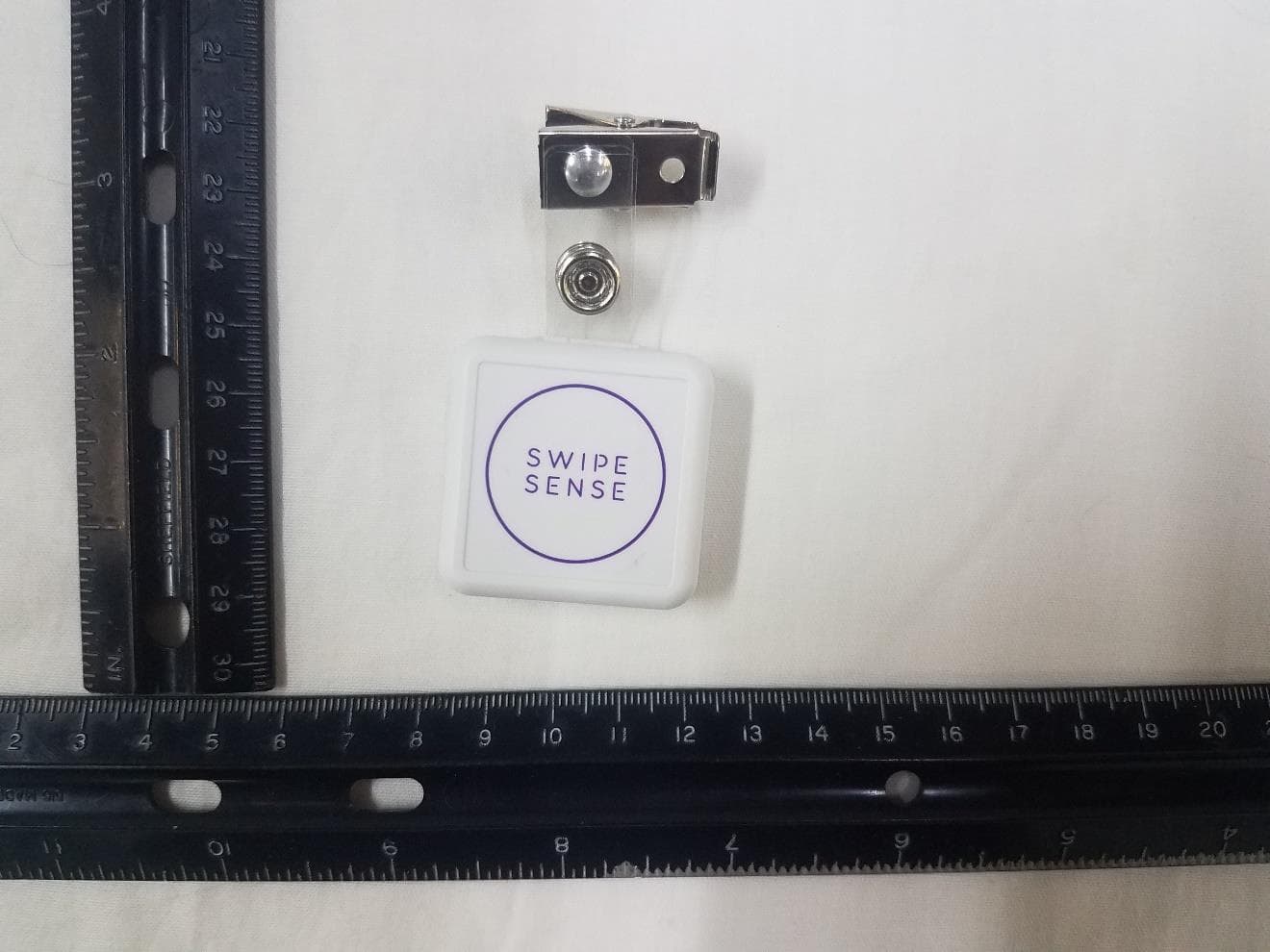

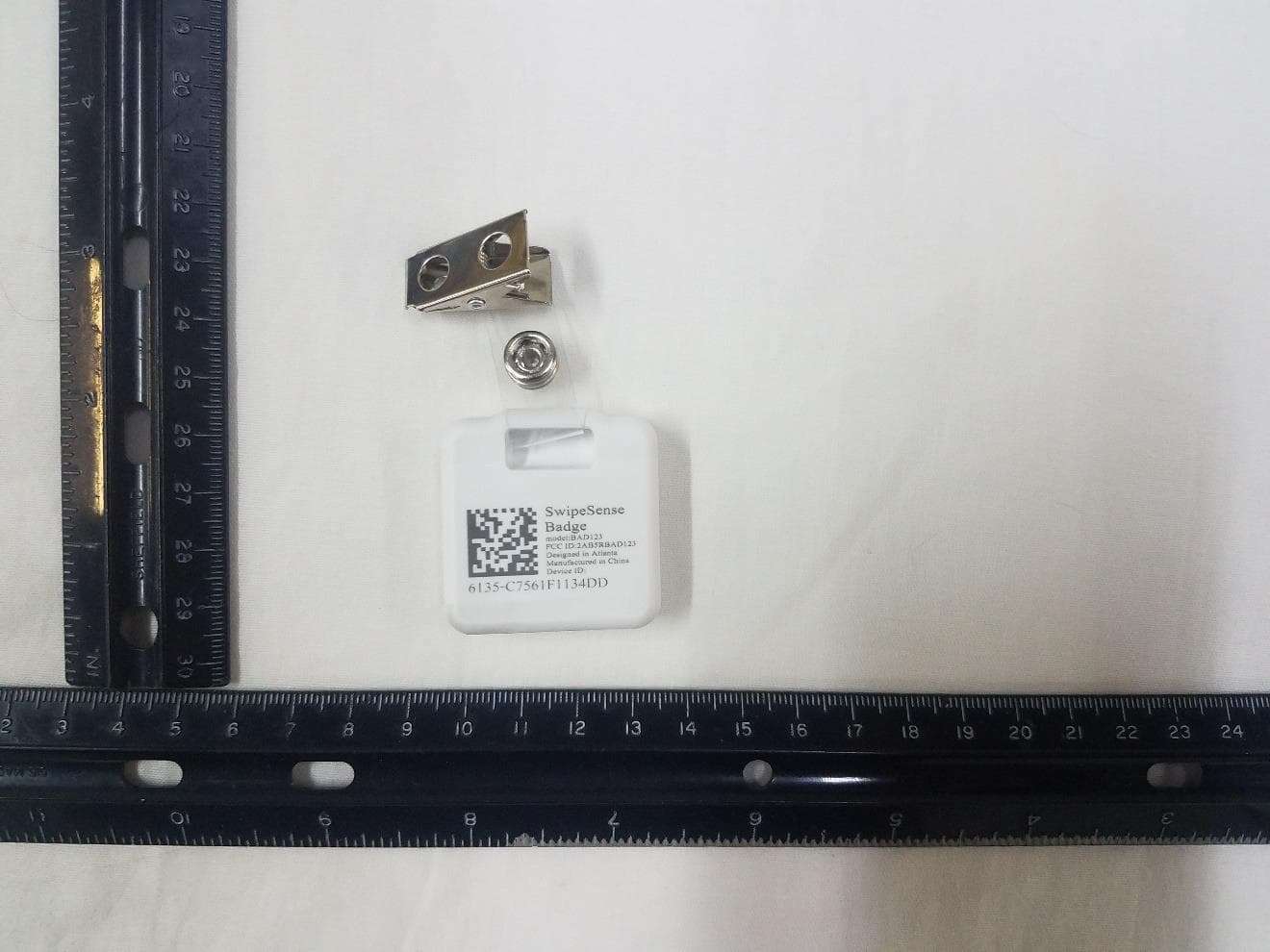

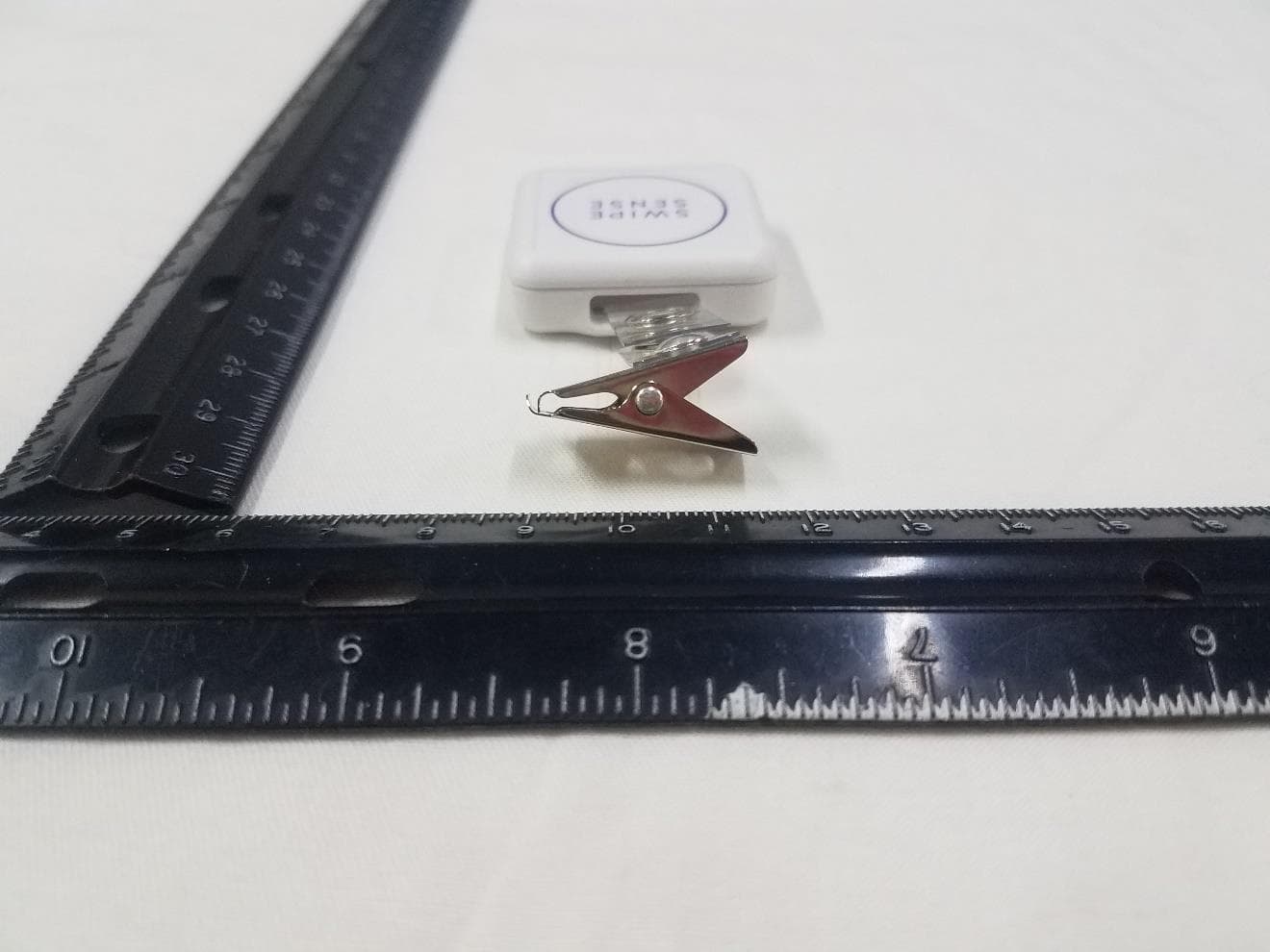

US Tech Test Report: FCC Part 15 Certification FCC ID: 2AB5RBAD123 Test Report Number: 26-0136 Issue Date: July, 22 2026 Customer: SwipeSense, Inc. Model: BAD123 Page 1 of 6 EXTERNAL PHOTOGRAPHS Figure 1. Top of EUT US Tech Test Report: FCC Part 15 Certification FCC ID: 2AB5RBAD123 Test Report Number: 26-0136 Issue Date: July, 22 2026 Customer: SwipeSense, Inc. Model: BAD123 Page 2 of 6 Figure 2. Back of EUT US Tech Test Report: FCC Part 15 Certification FCC ID: 2AB5RBAD123 Test Report Number: 26-0136 Issue Date: July, 22 2026 Customer: SwipeSense, Inc. Model: BAD123 Page 3 of 6 Figure 3. Left Side of EUT US Tech Test Report: FCC Part 15 Certification FCC ID: 2AB5RBAD123 Test Report Number: 26-0136 Issue Date: July, 22 2026 Customer: SwipeSense, Inc. Model: BAD123 Page 4 of 6 Figure 4. Right Side of EUT US Tech Test Report: FCC Part 15 Certification FCC ID: 2AB5RBAD123 Test Report Number: 26-0136 Issue Date: July, 22 2026 Customer: SwipeSense, Inc. Model: BAD123 Page 5 of 6 Figure 5. Front of EUT US Tech Test Report: FCC Part 15 Certification FCC ID: 2AB5RBAD123 Test Report Number: 26-0136 Issue Date: July, 22 2026 Customer: SwipeSense, Inc. Model: BAD123 Page 6 of 6 Figure 6. Bottom of EUT

US Tech Test Report: FCC Part 15 Certification FCC ID: 2AB5RBAD123 Test Report Number: 26-0136 Issue Date: July, 22 2026 Customer: SwipeSense, Inc. Model: BAD123 Page 1 of 1 123.0 Badge FCC Label Information Notes: • FCC ID text is 1.15mm tall

US Tech Test Report: FCC Part 15 Certification FCC ID: 2AB5RBAD123 Test Report Number: 26-0136 Issue Date: August 24, 2026 Customer: SwipeSense, Inc. Model: BAD123 Page 1 of 6 INTERNAL PHOTOGRAPHS Figure 1. EUT, Front Cover Removed US Tech Test Report: FCC Part 15 Certification FCC ID: 2AB5RBAD123 Test Report Number: 26-0136 Issue Date: August 24, 2026 Customer: SwipeSense, Inc. Model: BAD123 Page 2 of 6 Figure 2. Battery compartment US Tech Test Report: FCC Part 15 Certification FCC ID: 2AB5RBAD123 Test Report Number: 26-0136 Issue Date: August 24, 2026 Customer: SwipeSense, Inc. Model: BAD123 Page 3 of 6 Figure 3. Back of Main PCB US Tech Test Report: FCC Part 15 Certification FCC ID: 2AB5RBAD123 Test Report Number: 26-0136 Issue Date: August 24, 2026 Customer: SwipeSense, Inc. Model: BAD123 Page 4 of 6 Figure 4. Front of Main PCB US Tech Test Report: FCC Part 15 Certification FCC ID: 2AB5RBAD123 Test Report Number: 26-0136 Issue Date: August 24, 2026 Customer: SwipeSense, Inc. Model: BAD123 Page 5 of 6 Figure 5. Close-up BLE radio layout US Tech Test Report: FCC Part 15 Certification FCC ID: 2AB5RBAD123 Test Report Number: 26-0136 Issue Date: August 24, 2026 Customer: SwipeSense, Inc. Model: BAD123 Page 6 of 6 Figure 6. Enclosure with Main PCB Removed

US Tech Test Report: FCC Part 15 Certification FCC ID: 2AB5RBAD123 Test Report Number: 26-0136 Issue Date: July 22, 2026 Customer: SwipeSense, Inc. Model: BAD123 Page 1 of 2 SAR Exclusion: General SAR Test Exclusion per FCC KDB 447498 D01 v06, Section 4.3 For devices evaluated in accordance with FCC KDB 447498 D01 v06, SAR test exclusion may be considered based on the maximum source-based time- averaged conducted output power of the RF channel, including the applicable tune-up tolerance, and the minimum separation distance applicable to the exposure condition. For frequencies from 100 MHz to 6 GHz and minimum test separation distances of 50 mm or less, the SAR test exclusion calculation is: **[(Maximum source-based time-averaged conducted output power, mW) / (Minimum test separation distance, mm)] × √f(GHz)** The calculated result must be: ≤ 3.0 for 1-g SAR ≤ 7.5 for 10-g extremity SAR Where: Maximum source-based time-averaged conducted output power is the maximum conducted RF output power, including tune-up tolerance, adjusted by any applicable source-based time- averaging or duty-cycle factor permitted by the FCC guidance. Minimum test separation distance is the smallest separation distance, in millimeters, applicable to the intended exposure condition. f(GHz) is the RF channel frequency expressed in GHz. A simplified expression for the source-based time-averaged power is: P SBTA = P max,tune-up × Duty Factor where the duty factor or time-averaging factor is applied only when supported by the transmitter operating characteristics and permitted by the applicable FCC guidance. Result: [(10.26 mW x (4.16%)) / ( 5.0 mm)] × √f(2.44GHz) = 0.013 ≤ 3.0 for 1-g SAR The minimum separation distance is 5.0 mm for portable application. See RF Test Report page 16-17 for Duty Factor measurement. See RF Test Report page 50 for Conducted Output power measurement. US Tech Test Report: FCC Part 15 Certification FCC ID: 2AB5RBAD123 Test Report Number: 26-0136 Issue Date: July 22, 2026 Customer: SwipeSense, Inc. Model: BAD123 Page 2 of 2 Maximum Public Exposure to RF (MPE) CFR 15.247 (i), CFR 1.1310 (e) The maximum exposure level to the public from the RF power of the EUT shall not exceed a power density, S as per the respective limits in Table 1 below, at a distance, d, of 20 cm (Mobile condition) from the EUT. TABLE 1—LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1,500 f/1500 30 1,500-100,000 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Therefore, for: MPE for 2400 MHz – 2483.5 MHz for Bluetooth LE: Limit: 1.0 mW/cm 2 Peak Power (dBm) = 10.11 dBm Peak Power (Watts) = 0.01 W Gain of Transmit Antenna = +0.7 dB i =1.17 numeric(Highest Gain Antenna) d = Distance = 20 cm = 0.2 m S = (PG/ 4d 2 ) = EIRP/4A = 0.01(1.17)/4*π*0.2*0.2 = 0.0117/0.5030 = 0.0233 W/m 2 = (0.0233 W/m 2 ) (1m 2 /W) (0.1 mW/cm 2 ) = 0.00233 mW/cm 2 which is << less than S = 1.0 mW/cm 2 Separation Distance = 20 cm for Mobile Application.

Antenna Gain Report for BAD123 Badge See Theory of Operation for antenna design details. Measurements: Highest Field Strength at 3m: 106.07 dBμV/m Power delivered to antenna: +10.11 dBm Distance: 3m Calculate EIRP: EIRP(dBm) = E(dBμV/m) + 20log 10 (d) – 104.8 EIRP = 106.07 + 20log 10 (3) – 104.8 EIRP = 106.07 + 9.542 – 104.8 EIRP = 10.812 dBm Calculate Gain: G(dBi) = EIRP – P antenna G = 10.812 – 10.11 G ≈ 0.70 dBi

Page 1 of 65 Application For Part 2, Subpart J, Paragraph 2.907 Equipment Authorization of Certification for an Intentional Radiator per Part 15, Subpart C, paragraphs 15.207, 15.209 and 15.247 For the SwipeSense, Inc. Model Number: BAD123 FCC ID: 2AB5RBAD123 UST Project: 26-0136 Issue Date: August 24, 2026 Total Pages : 65 3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com Page 2 of 65 I certify that I am authorized to sign for the Test Agency and that all of the statements in this report and in the Exhibits attached hereto are true and correct to the best of my knowledge and belief: US TECH (Agent Responsible For Test): By: Alan Ghasiani Name: Title: Compliance Engineer – President Date: August 24, 2026 This report shall not be reproduced except in full. This report may be copied in part only with the prior written approval of US Tech. The results contained in this report are subject to the adequacy and representative character of the sample provided. This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the U.S. Government. 3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com US Tech Test Report: FCC Part 15 Certification FCC ID: 2AB5RBAD123 Test Report Number: 26-0136 Issue Date: August 24, 2026 Customer: SwipeSense, Inc. Model: BAD123 Page 3 of 65 MEASUREMENT TECHNICAL REPORT COMPANY NAME: SwipeSense, Inc. ADDRESS: 1355 Peachtree St. NE Ste. 700 Atlanta GA 30309 USA MODEL: BAD123 FCC ID: 2AB5RBAD123 DATE: August 24, 2026 This report concerns (check one): ☒Original grant □Class II change Equipment type: BLE (Bluetooth Low Energy) Technical: BLE 2402 MHz - 2480 MHz (Channels 0-39) Type of modulation: GFSK Data/Bit Rate: 1 MBPS Antenna Gain: See Table 4 Maximum Output Power: +10.11 dBm (Measured) Software used to program EUT: Proprietary Test Software EUT firmware number: N/A Power setting: Maximum level (+10 dB) ☒Disclaimer (check if applicable): Unless otherwise noted, the information presented in this section has been provided by the client and is assumed to be accurate and complete. All calculations, assessments, and conclusions herein are based on the client-supplied data. The testing laboratory has not independently verified this information and shall not be held responsible for any inaccuracies or omissions in the client-provided content. Report prepared by: US Tech 3505 Francis Circle Alpharetta, GA 30004 FCC Lab Designation#: US5301 CANADA Lab Code: 9000A-1, CAB ID: US0031 US Tech Test Report: FCC Part 15 Certification FCC ID: 2AB5RBAD123 Test Report Number: 26-0136 Issue Date: August 24, 2026 Customer: SwipeSense, Inc. Model: BAD123 Page 4 of 65 Table of Contents Paragraph Title Page 1. General Information .......................................................................................... 8 1.1. Purpose of this Report ................................................................................. 8 1.2. Characterization of Test Sample ................................................................. 8 1.3. Product Description ..................................................................................... 8 1.4. Configuration of Tested System .................................................................. 9 1.5. Test Facility ................................................................................................. 9 1.6. Related Submittal(s)/Grant(s) ...................................................................... 9 2. Tests and Measurements ............................................................................... 11 2.1. Test Equipment ......................................................................................... 11 2.2. Modifications to EUT Hardware ................................................................. 12 2.3. Number of Measurements for Intentional Radiators (15.31(m)) ................. 12 2.4. Frequency Range of Radiated Measurements (Part 15.33) ...................... 13 2.4.1. Intentional Radiator ............................................................................ 13 2.4.2. Unintentional Radiator ........................................................................ 13 2.5. Measurement Detector Function and Bandwidth (CFR 15.35) .................. 13 2.5.1. Detector Function and Associated Bandwidth .................................... 13 2.5.2. Corresponding Peak and Average Requirements .............................. 13 2.5.3. Pulsed Transmitter Averaging ............................................................ 14 2.6. EUT Antenna Requirements (CFR 15.203) ............................................... 15 2.7. Restricted Bands of Operation (Part 15.205) ............................................. 16 2.8. Transmitter Duty Cycle (Part15.35 (c)) ...................................................... 16 2.9. Antenna Conducted Intentional and Spurious Emissions (CFR 15.209, 15.247(d)) ............................................................................................................. 17 2.10. Intentional Radiator, Radiated Emissions (CFR 15.209, 15.247(d)) ...... 32 2.11. Band Edge Measurements (CFR 15.247(d)) .......................................... 37 2.12. Six (6) dB Bandwidth (CFR 15.247(a)(2)) .............................................. 46 2.13. Maximum Peak Conducted Output Power (CFR 15.247 (b) (3)) ............ 49 2.14. Power Spectral Density (CFR 15.247(e)) ............................................... 53 2.15. Intentional Radiator Power Lines Conducted Emissions (CFR 15.207) . 56 2.16. Intentional Radiator, Radiated Emissions (CFR 15.209) ........................ 56 2.16.1. Intentional Radiated Emissions, Antenna 0 .................................... 57 2.16.2. Intentional Radiated Emissions, Antenna 1 .................................... 61 2.17. Measurement Uncertainty .....................................................…

Text truncated - open the document above for the full version.

US Tech Test Report: FCC Part 15 Certification FCC ID: 2AB5RBAD123 Test Report Number: 26-0136 Issue Date: July 22, 2026 Customer: SwipeSense, Inc. Model: BAD123 Page 1 of 6 TEST CONFIGURATION PHOTOGRAPHS Figure 1. Radiated Emissions Test Setup Note 1: The cable indicated by the blue arrow are for radio programming only. Note 2: EUT was tested in three orthogonal positions to determine the worst case position for final testing. US Tech Test Report: FCC Part 15 Certification FCC ID: 2AB5RBAD123 Test Report Number: 26-0136 Issue Date: July 22, 2026 Customer: SwipeSense, Inc. Model: BAD123 Page 2 of 6 Figure 2. Radiated Emissions Test Setup, .15 MHz to 30 MHz US Tech Test Report: FCC Part 15 Certification FCC ID: 2AB5RBAD123 Test Report Number: 26-0136 Issue Date: July 22, 2026 Customer: SwipeSense, Inc. Model: BAD123 Page 3 of 6 Figure 3. Radiated Emissions Test Setup, 30 MHz to 200 MHz US Tech Test Report: FCC Part 15 Certification FCC ID: 2AB5RBAD123 Test Report Number: 26-0136 Issue Date: July 22, 2026 Customer: SwipeSense, Inc. Model: BAD123 Page 4 of 6 Figure 4. Radiated Emissions Test Setup, 200 MHz to 1GHz US Tech Test Report: FCC Part 15 Certification FCC ID: 2AB5RBAD123 Test Report Number: 26-0136 Issue Date: July 22, 2026 Customer: SwipeSense, Inc. Model: BAD123 Page 5 of 6 Figure 5. Radiated Emission Test Setup, above 1 GHz US Tech Test Report: FCC Part 15 Certification FCC ID: 2AB5RBAD123 Test Report Number: 26-0136 Issue Date: July 22, 2026 Customer: SwipeSense, Inc. Model: BAD123 Page 6 of 6 Figure 6. Bench Test Setup
