LOST AND FOUND UNIVERSAL LOCATOR/PAGER USER MANUAL Included: - 1 Transmitter - 1 Backing board + Clip - 1 Dry-Erase Marker - 2 Tags - 2 Double Sided Adhesive Strips Operating Instructions: 1. Mount the Lost & Found board to a fixed location in the home or workplace. (i.e. wall, fridge, inside of a cupboard, etc). 2. List frequently lost items on the board. (i.e. keys, remotes, glasses cases, purses, etc). 3. Attach Lost and Found Tags to the frequently lost items listed on the board using the key ring hole or double sided adhesive strips. 4. To find an item, turn the dial on the Lost and Found Transmitter to match the missing item number and press the button for 3 seconds. This will cause the corresponding Tag to beep. 5. Once the Tag is found, press the button on the tag to stop the beeping. Battery Replacement for Tags: Suggested battery change every 5/6 months. 1. Locate battery cover. 2. Slide battery cover off of tag. 3. Remove battery. 4. Replace 1 CR2032 3V button cell battery with positive side up. 5. Slide battery cap back onto tag. Transmitter Battery Replacement: Suggested battery change every 2 years. 1. Slide Transmitter out of clip. 2. Locate top of Transmitter. 3. Pull top of Transmitter to separate from bottom. 4. Remove batteries. 5. Replace 2 CR2032 3V button cell batteries with positive side up. 6. Place top of Transmitter back on bottom. 7. Slide back into clip. Warning: DO NOT mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries. DO NOT dispose of batteries in fire. Batteries may explode or leak. Please dispose of batteries properly. Warning: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Separate approval is required for all other operating configurations, including portable configurations with respect to CFR Title 47 Part 2.1093 and different antenna configuration. Any changes or modifications of this product, not approved by manufacturer will void the user’s authority to operate the equipment. The FCC regulates marketing, sale and importation of radio frequency devices. When importing a radio frequency (RF) device the importer or ultimate consignee, or their designated broker, may be required to declare that the radio frequency device meets the FCC importation conditions under Title 47 of the Code of Federal Regulation (CFR) Section 2.1204. See KDB 997198 Importation Guidelines for more details. The antenna must be installed such that it is a distance of at least 20 cm between the antenna and users. The antenna must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi transmitter product codes. Any changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment.

Lamanna Co. May 08, 2014 Federal Communications Commission Authorization and Evaluation Division RE: Confidentiality Request regarding application for certification of FCC ID: 2AB6J-01 Dear Sir/Madam: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we Lamanna Co. hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics 2AB6J 01_Schem.pdf Parts List 2AB6J 01_PartsLst.pdf Block diagrams 2AB6J 01_BlkDia.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ___________________________ Ryan Lamanna, Owner Lamanna Co. May 8 th , 2014

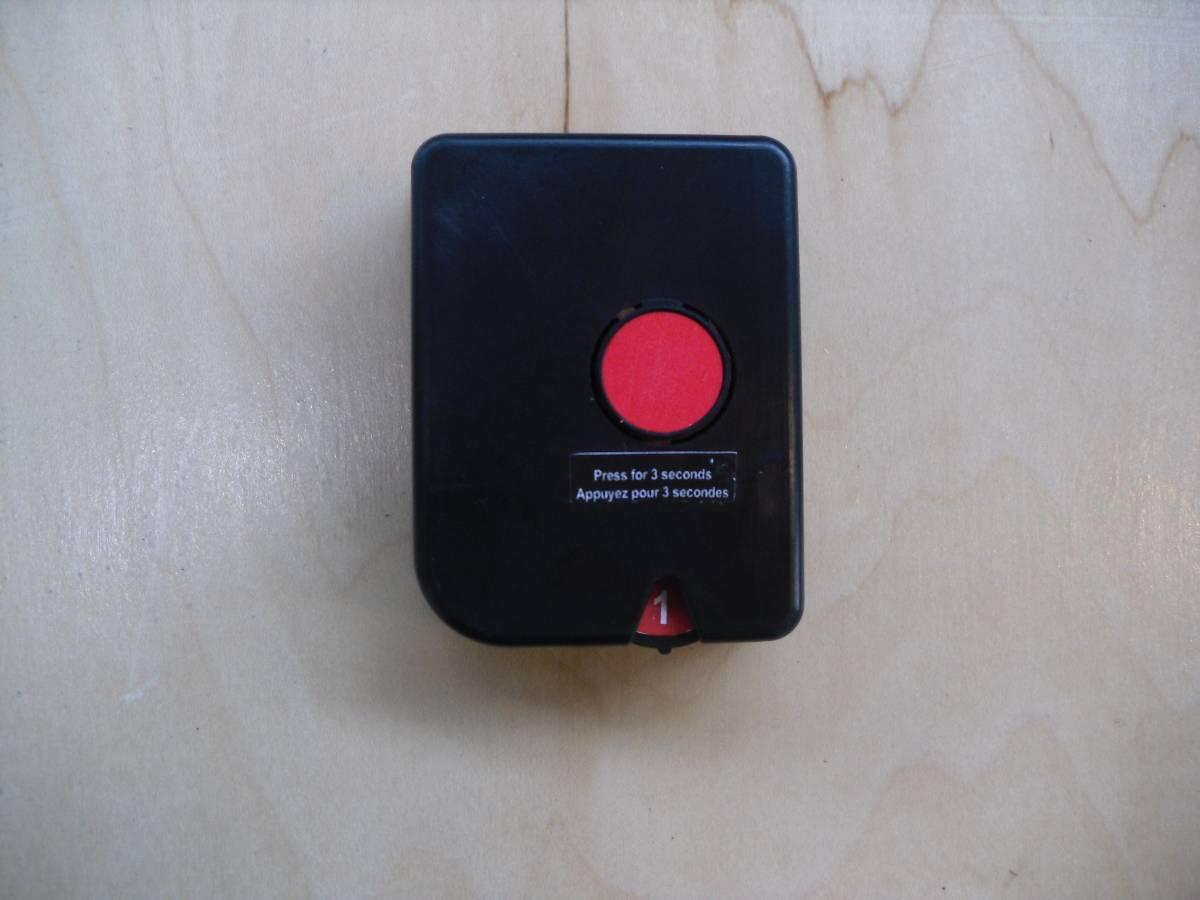

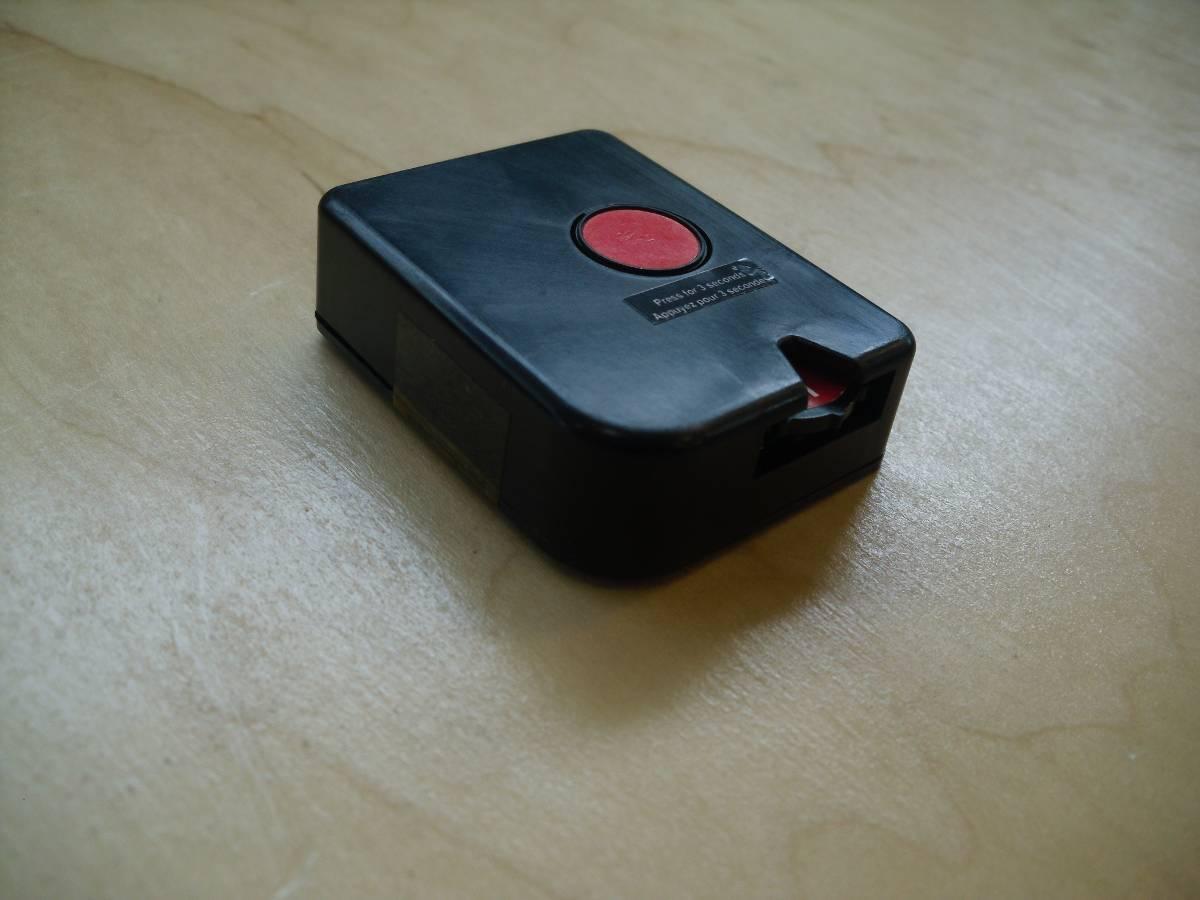

Client Lamanna Co. Product Lost & Found Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C:2014 Page 1 of 6 EUT EXTERNAL PHOTOS EUT exterior: View 1 Client Lamanna Co. Product Lost & Found Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C:2014 Page 2 of 6 EUT exterior: View 2 Client Lamanna Co. Product Lost & Found Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C:2014 Page 3 of 6 EUT exterior: View 3 Client Lamanna Co. Product Lost & Found Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C:2014 Page 4 of 6 EUT exterior: View 4 Client Lamanna Co. Product Lost & Found Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C:2014 Page 5 of 6 EUT exterior: View 5 Client Lamanna Co. Product Lost & Found Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C:2014 Page 6 of 6 EUT exterior with receiver tags

LABEL

LABEL LOCATION LABEL LOCATION: On the back of Transmitter

Client Lamanna Co. Product Lost & Found Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C:2014 Page 1 of 5 EUT INTERNAL PHOTOS EUT interior: Enclosure opened, view 1 Client Lamanna Co. Product Lost & Found Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C:2014 Page 2 of 5 EUT interior: Enclosure opened, view 2 Client Lamanna Co. Product Lost & Found Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C:2014 Page 3 of 5 EUT interior: PCB close-up side 1 _ Photo 1 Client Lamanna Co. Product Lost & Found Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C:2014 Page 4 of 5 EUT interior: PCB close-up side 1 _ Photo 2 Client Lamanna Co. Product Lost & Found Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C:2014 Page 5 of 5 EUT interior: PCB close-up side 2

Operational Description In transmitter, rotary switch is communicative with the transmitter microcontroller which produces a serial coded waveform based on the selected position of the rotary switch once the button is pressed. The transmitter microcontroller is communicative with the RF transmitter module that generates an RF frequency and modulates the carrier frequency to represent the serial coded waveform. The modulated carrier frequency signal is transmitted through transmitter antenna. The receiver antenna captures the modulated carrier frequency signal emitted by the transmitter. The receiver antenna is communicative with the RF receiver. The RF receiver demodulates the modulated carrier frequency signal into a serial coded waveform. The RF receiver is communicative with the receiver microcontroller which decodes the serial coded waveform and determines whether to send a square wave to activate buzzer. Once the selected receiver buzzer is activated, the user locates the receiver and presses the button to reset the circuit, thus turning off the buzzer.
