2AB6X52593Bluetooth Module

kbsound iselect bt fcc.doc 14/11/2013 KBSOUND ® iSelect Bluetooth FCC CERTIFICATION PROJECT 1. Overview 2. Installation 3. Operation 4. Technical specifications 5. Technology kbsound iselect bt fcc.doc 14/11/2013 Overview KBSOUND ® iSelect is a sound device specially designed for quick and easy installation, allowing the user to listen to his favorite FM stations and also, the music stored in any device that has the ability to transmit via Bluetooth (smartphone, tablet, computer, ...) KBSOUND ® iSelect is being sold in 3 different kits: • electronic module + remote control unit + 2x2,5" in-ceiling speaker • electronic module + remote control unit + 2x5" in-ceiling speaker • electronic module + remote control unit The 2,5" and 5" kits are final solutions: all the components are included for install sound in a room. The last kit, named KBSOUND ® Space, is a custom made audio solution. It ́s open ended allowing the user to choose his loudspeakers and amplifiers to fulfill the specific design requirements. The KBSOUND ® Bluetooth Accessory can be installed fitted into the electronic module of each of these kits kbsound iselect bt fcc.doc 14/11/2013 Installation Installation manuals are attached in annexes: • CC-1148 : iSelect 2,5" kit installation manual • CC-1150 : iSelect 5" kit installation manual • CC-1184 : Bluetooth Accessory installation manual Operation User manual are attached in annex: • CC-1152ENG : iSelect user manual Technical specifications 52391/ 92 , 52398/ 93M I NNOR M ALM A XCOM M E NTS M eas urem ent s200x 53x 56m m Volt age185230265Vac 50Hz , t erm inal F, N (ref . 52391, 52398) 90120140Vac50/ 60Hz , t erm inal F, N (ref . 52392, 52393) Cons um pt ion dem and10Wt er m inals F, N Out put s ignal (16 ohm s )1, 5Wt er m inals L, R P as s band4520. 000H z A ux . am plif ier s w it c h on s ignal1214V dct er m inals 62, 4 (r ef . 52398/ 93) Dis t ort ion0, 1% Lef t / right c hannel s eparat ion58dB FM Frequenc y range87, 5108M Hz FM ant enna im pedanc e75ohm sRF c onnec t or FM ant enna s ens it iv it y1, 73, 5uV FM t uner dis t ort ion0, 10, 5% Num ber of FM s t at ion pre-s et s30 52593MINNORMALMAXNOTES Measurements54,8x37x20mmwidth x height x depth Alimentación3,3VVdcinternal connector Consumo 0,1W Bluetooth spec. Wireless transceiver RF2,4GHz Power RF10mWeirp Antenna RF2,5dBSMA connector Range5m Class2 BT2.1 + EDR A2DP 1.2 AVRCP 1.4 52391 is the electronic module for 230Vac iSelect kits 52392 is the electronic module for 120Vac iSelect kits 52593 is the Bluetooth accesory to be fitted into the electronic modules kbsound iselect bt fcc.doc 14/11/2013 Technology The electronic module has the following components built-in: • power supply (230Vac or 120Vac depending on the model) • microcontroller • audio processor • audio amplifier • IR transceiver • Bluetooth transceiver Technology used for Bluetooth is Bluetooth 2.1+EDR Bluetooth module is MB-C05-AT with CSR BlueCore05 chip manufactured by SMART DESIGN TECHNOLOGY CORPORATION LTD. ( www.modulestek.com) The Bluetooth module is mainly an audio receiver module. Also, it can send some information like the title, artist and album of the song playing. See annex ET-389 Electrical schemes See annexes: • E687_1 and F687_1 is the electrical scheme and pcb mounting for 52391 model (230Vac) • E687_2 and F687_2 is the electrical scheme and pcb mounting for 52392 model (120Vac) • E536_1, F536_1, E537_3 and F537_3 is the electrical scheme and pcb mounting for IR remote control unit • E732_1 and F732_1 is the electrical scheme and pcb mounting for 52593 model (Bluetooth audio receiver) kbsound iselect bt fcc.doc 14/11/2013 CC-1148 : iSelect 2,5" kit installation manual GER Identifier les éléments qui composentle kit module d’électronique télécommande hauts-parleurs de 2,5”/16 ohms hauts-parleurs de 2,5”/16 ohms KB SOUND ME L R ® iSelect De beschrijvingvan de verschillende elementen vande kit Elektronische moduleafstandsbediening2,5”/16 ohms luidsprekers2,5”/16 ohms luidsprekers+IR KB SOUND ME L R ® iSelect . Kontroller delene som følger med -settet Fjernkontroll 2 " 16 ohms høyttalere 2 " 16 ohms høyttalere + IR KB SOUND Kontrollenhet ME LR ,5 / ,5 / ® iSelect NOR Prüfen Sie den Lieferumfang des Kits auf Vollständigkeit Elektronik-ModulFernbedienungLautsprecher 2,5" / 16 ohmsLautsprecher 2,5" / 16 ohms+IR KB SOUND ME LR ® iSelect Identificare gli elementi che compongono ilkit modulo di elettronica omando a distanza altoparlanti di 2,5 ” /16 ohms altoparlanti di 2,5 ” /16 ohms+IR KB SOUND MELR c ® iSelect D NL I N F ENG The components included in the Electronic module2,5 ” /16 ohms loudspeakers 2,5 ” /16 ohms loudspeakers+IR KB SOUND ME L R Remote control ® iSelect kit are as follows: E + - Red Black R + - Red Black L M Warning: More than one cannot be installed kits in the same room. KB SOUND ® iSelect Electrónica Integral de Sonido S.A.behält sich das Recht auf Änderungenohne Ankündigung vor. ElectrónicaIntegral de sonido, S.A. übernimmtkeine Verantwortung für Fehler oderAuslassungen in diesem Handbuch. Electrónica Integral de Sonido S.A. Electrónica Integral de Sonido S.A.behoudt zich het recht voor zondervoorafgaande kennisgeving wijzigingenaan te brengen. wijst alle aansprakelijkheid voor evt. fouten of onachtzaamheden indeze handleiding van de hand. Electrónica Integral de Sonido, S.A.forbeholder seg retten til å foretaendringer uten forvarsel. ElectrónicaIntegral de Sonido, S.A. er ikkeansvarlig for eventuelle feil ellerutelatelser som kan forekomme i dennehåndboken. Electrónica Integral de Sonido, S.A. siriserva il diritto di apportare dellemodifiche senza previo avviso.Electrónica Integral de Sonido, S.A. nonè responsabile degli errori od omissionidi questo manuale. CC-1148-03 ENG DF Electrónica Integral de Sonido S.A. Electrónica Integral de Sonido S.A. se réserve le droit d ́introduire deschangements sans avertissementpréalable. ne se responsabilise pas des erreurs ou des omissions de cemanuel.Electrónica Integral de Sonido, S.A.r…

Text truncated - open the document above for the full version.

Modular Approval Request FCC FCC ID: 2AB6X52593 Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. Yes, it has its own RF shielding 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Yes, it does have it 3. The modular transmitter must have its own power supply regulation. Yes 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. Yes, the modular transmitter complies with these requirements 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Yes. The modular transmitter was tested in a stand-alone configuration 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Yes. The applicant agrees with this 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. Yes. It can be see in the operational description 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. Yes, the modular transmitter complies with the RF exposure requirements Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). Name and surname of applicant (or N ame and surname of applicant (or Name and surname of applicant (or Name and surname of applicant (or authorized authorizedauthorized authorized representative): representative): representative): representative): Sabina Ruiz Sabina RuizSabina Ruiz Sabina R Date: Date: Date: Date: July 18, 2014 July 18, 2014July 18, 2014 July 18, 2014 Signature: Signature: Signature: Signature: P.A. P.A.P.A. P.A.

TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Date: July 15, 2014 Ref: Permanent Confidentiality request for FCC ID: 2AB6X52593 To whom it may concern: Pursuant to §0.457(d)(1)(ii) and §0.459 of the Commission’s Rules (47 C.F.R.) and §552 (b)(4) of the Freedom of Information Act, ELECTRONICA INTEGRAL DE SONIDO S.A. hereby request permanent confidentiality to avoid release of sensitive information of the product to the public. For the product stated above, we request that the following information be withheld from public disclose: - Schematics - Operational description - Block diagrams The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to ELECTRONICA INTEGRAL DE SONIDO S.A. and provide unjustified benefits to our competitors. ELECTRONICA INTEGRAL DE SONIDO S.A. understand that pursuant to §0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Sincerely, By:Luis Abós P.A. Title: R&D Manager Signature Company: ELECTRONICA INTEGRAL DE SONIDO S.A. Telephone / Fax: +34976465550 e-mail: [email protected]

TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Date: July 15, 2014 Ref: Short term Confidentiality request for FCC ID: 2AB6X52593 To whom it may concern: Pursuant to §0.457(d)(1)(ii) and §0.459 of the Commission’s Rules (47 C.F.R.) and §552 (b)(4) of the Freedom of Information Act, ELECTRONICA INTEGRAL DE SONIDO S.A. hereby request short-term confidentiality to avoid premature release of sensitive information prior to marketing or release of the product to the public. For the product stated above, we request that the following information be temporarily withheld from public disclose for an initial period of 180 days: - External photographs - Internal photographs - Test setup photographs - User’s guide It is understood that no extensions of the short-term confidentiality may be requested. Sincerely, By:Luis Abós P.A. Title: R&D Manager Signature Company: ELECTRONICA INTEGRAL DE SONIDO S.A. Telephone / Fax: +34976465550 e-mail: [email protected]

TUV SUD BABT FCB O ctagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Date: July 15, 2014 RF exposure analysis for the FCC ID: 2AB6X52593 RF exposure analysis for the family of equipment with FCC ID: 2AB6X52593 According to the §2.1093 (2), this device is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use in mobile and portable conditions. The output power of the device is extremely low (2.23 mW conducted, 3.96 mW eirp) and far below the 60/f(GHz) mW (60/2.45 mW = 24.48 mW) threshold.

AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 42929RRF.001A1 Page 1 of 50 2014-07-23 FCC LISTED, REGISTRATION NUMBER: 720267 Informe de ensayo nº: Test report No: NIE: 42929RRF.001A1 Test report (Modification 1) USA FCC Part 15.247 Radio Frequency Devices. Operation within the bands 902 - 928 MHz, 2400 -2483.5 MHz, and 5725 - 5850 MHz. Identificación del objeto ensayado ...................... : Identification of item tested In-ceiling FM tuner and Bluetooth audio receiver Marca ................................................................... : Trade KBSOUND Modelo y/o referencia tipo .................................. : Model and /or type reference 52593 Other identification of the product .................... : Commercial name: KBSOUND Bluetooth Accessory FCC ID: 2AB6X52593 Final HW version ................................................ : 1.3 Final SW version ................................................. : 1.9 Serial number ...................................................... : --- Características ..................................................... : Features Bluetooth EDR audio receiver, FM tuner, AC power supply. Peticionario ......................................................... : Applicant Electrónica Integral de Sonido, S.A. Pol. Malpica G. Quejido 87-88, 50016. Zaragoza. SPAIN. CIF: A50836204 Contact person: Luis Abós Telephone: +34 976 465 550 e-mail: [email protected] Método de ensayo solicitado, norma ................... : Test method requested, standard USA FCC Part 15.247 10-1-12 Edition: Operation within the bands 902 - 928 MHz, 2400 -2483.5 MHz, and 5725 - 5850 MHz. -Conducted tests: FCC 15.247 Subclause (a) (1). 20 dB Bandwidth and Carrier frequency separation FCC 15.247 Subclause (a) (1) (iii). Number of hopping channels FCC 15.247 Subclause (a) (1) (iii). Time of occupancy (Dwell Time) FCC 15.247 Subclause (b). Maximum peak output power and antenna gain FCC 15.247 Subclause (d). Emission limitations conducted (Transmitter) FCC part 15.247 and Filing and Measurement Guidelines for Frequency Hopping Spread Spectrum System DA 00-705 Released March 30, 2000. ANSI C63.10-2009: American National Standard for Testing Unlicensed Wireless Devices. Resultado .............................................................. : IN COMPLIANCE AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 42929RRF.001A1 Page 2 of 50 2014-07-23 Summary Aprobado por (nombre / cargo y firma) ........... : Approved by (name / position & signature) A. Llamas RF Lab. Manager Fecha de realización ........................................... : Date of issue 2014-07-23 Formato de informe No. ...................................... : Report template No FDT11_15 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 42929RRF.001A1 Page 3 of 50 2014-07-23 Index Competences and guarantees ......................................................................................................................... 4 General conditions ......................................................................................................................................... 4 Uncertainty .................................................................................................................................................... 4 Usage of samples ........................................................................................................................................... 4 Test sample description ................................................................................................................................. 5 Test samples supplier .................................................................................................................................... 5 Testing period ................................................................................................................................................ 5 Environmental conditions .............................................................................................................................. 5 Modifications to the reference test report ...................................................................................................... 5 Remarks and comments ................................................................................................................................. 6 Testing verdicts ............................................................................................................................................. 6 Appendix A – Test result ............................................................................................................................... 7 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 42929RRF.001A1 Page 4 of 50 2014-07-23 Competences and guarantees AT4 wireless is a laboratory with a measurement facility in compliance with the requirements of Section 2.948 of the FCC rules and has been added to the list of facilities whose measurements data will be accepted in conjuction with applications for Certification under Parts 15 or 18 of the Commission's Rules. Registration Number: 720267. In order to assure the traceability to other national and international laboratories, AT4 wireless has a calibration and maintenance program for its measurement equipment. AT4 wireless guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated on the r…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: 2AB6X52593 Report No.: T140708W04-RP Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 34 Rev.00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Audio Product Model: Bluetooth Accessory Trade Name: KBSOUND Issued to ELECTRONICA INTEGRAL DE SONIDO S.A. Pol.Malpica G.Quejido 87-88, 50016 Zaragoza (Spain) Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: July 10, 2014 Compliance Certification Services Inc. FCC ID: 2AB6X52593 Report No.: T140708W04-RP Page 2 Rev.00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 July 10, 2014 Initial Issue ALL Doris Chu Compliance Certification Services Inc. FCC ID: 2AB6X52593 Report No.: T140708W04-RP Page 3 Rev.00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .................................................................................................... 4 2. EUT DESCRIPTION ........................................................................................................................... 5 3. TEST METHODOLOGY .................................................................................................................... 6 3.1 EUT CONFIGURATION ........................................................................................................................ 6 3.2 EUT EXERCISE .................................................................................................................................... 6 3.3 GENERAL TEST PROCEDURES ............................................................................................................. 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS......................................................... 7 3.5 DESCRIPTION OF TEST MODES ........................................................................................................... 8 4. INSTRUMENT CALIBRATION ........................................................................................................ 9 4.1 MEASURING INSTRUMENT CALIBRATION ...................................................................................... 9 4.2 MEASUREMENT EQUIPMENT USED ......................................................................................... 9 4.3 MEASUREMENT UNCERTAINTY ............................................................................................. 10 5. FACILITIES AND ACCREDITATIONS ........................................................................................ 11 5.1 FACILITIES ....................................................................................................................................... 11 5.2 EQUIPMENT ...................................................................................................................................... 11 5.3 TABLE OF ACCOREDITATIONS AND LISTINGS .................................................................................. 12 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................... 13 6.1 SETUP CONFIGURATION OF EUT ....................................................................................................... 13 6.2 SUPPORT EQUIPMENT ............................................................................................................... 13 7. FCC PART 15.247 REQUIREMENTS ............................................................................................. 14 7.1 BAND EDGES MEASUREMENT ................................................................................................ 14 7.2 SPURIOUS EMISSIONS ................................................................................................................. 24 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................................... 34 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: 2AB6X52593 Report No.: T140708W04-RP Page 4 Rev.00 1. TEST RESULT CERTIFICATION Applicant: ELECTRONICA INTEGRAL DE SONIDO S.A. Pol.Malpica G.Quejido 87-88, 50016 Zaragoza (Spain) Equipment Under Test: Audio Product Trade Name: KBSOUND Model: Bluetooth Accessory Date of Test: July 8 ~ 9, 2014 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Miller Lee Angel Cheng Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. FCC ID: 2AB6X52593 Report No.: T140708W04-RP Page 5 Rev.00 2. EUT DESCRIPTION Product Audio Product Trade Name KBSOUND Model Number Bluetooth Accessory Model Discrepancy N/A Received Date July 8, 2014 Power Supply Powered from host device Frequency Range 2402 ~ 2480 MHz Modulation Technique GFSK for 1Mbps; /4-DQPSK for 2Mbps; 8DPSK for 3Mbps Number of Channels 79 Channels Antenna Specification Gain: 2.5 dBi Antenna Designation ½ wave length stub Antenna Remark: 1. The sample selected for test was production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: 2AB6X525…

Text truncated - open the document above for the full version.

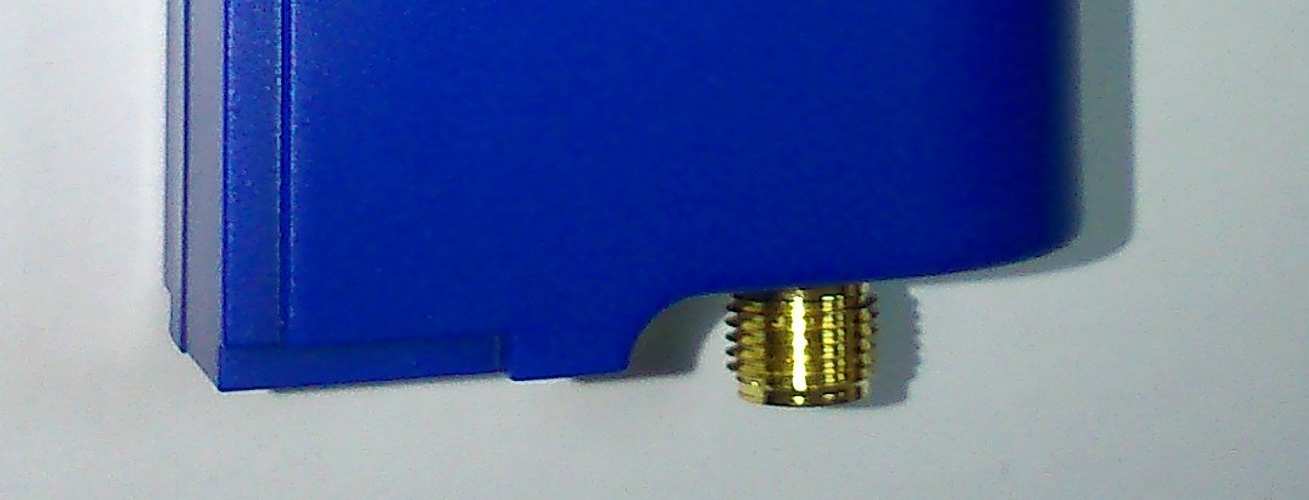

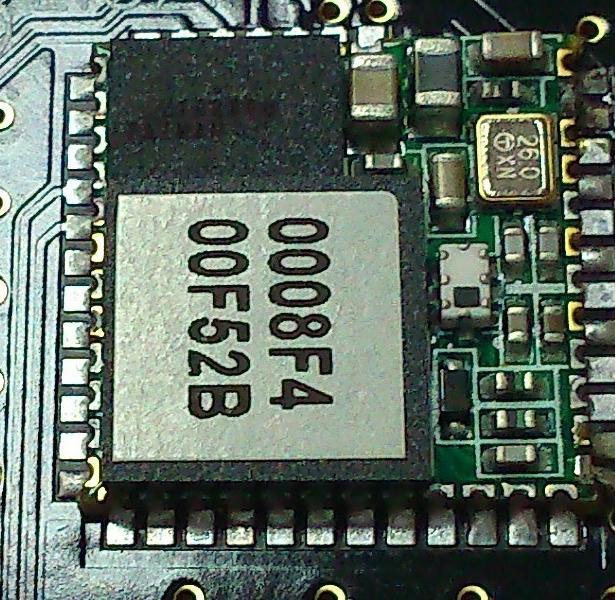

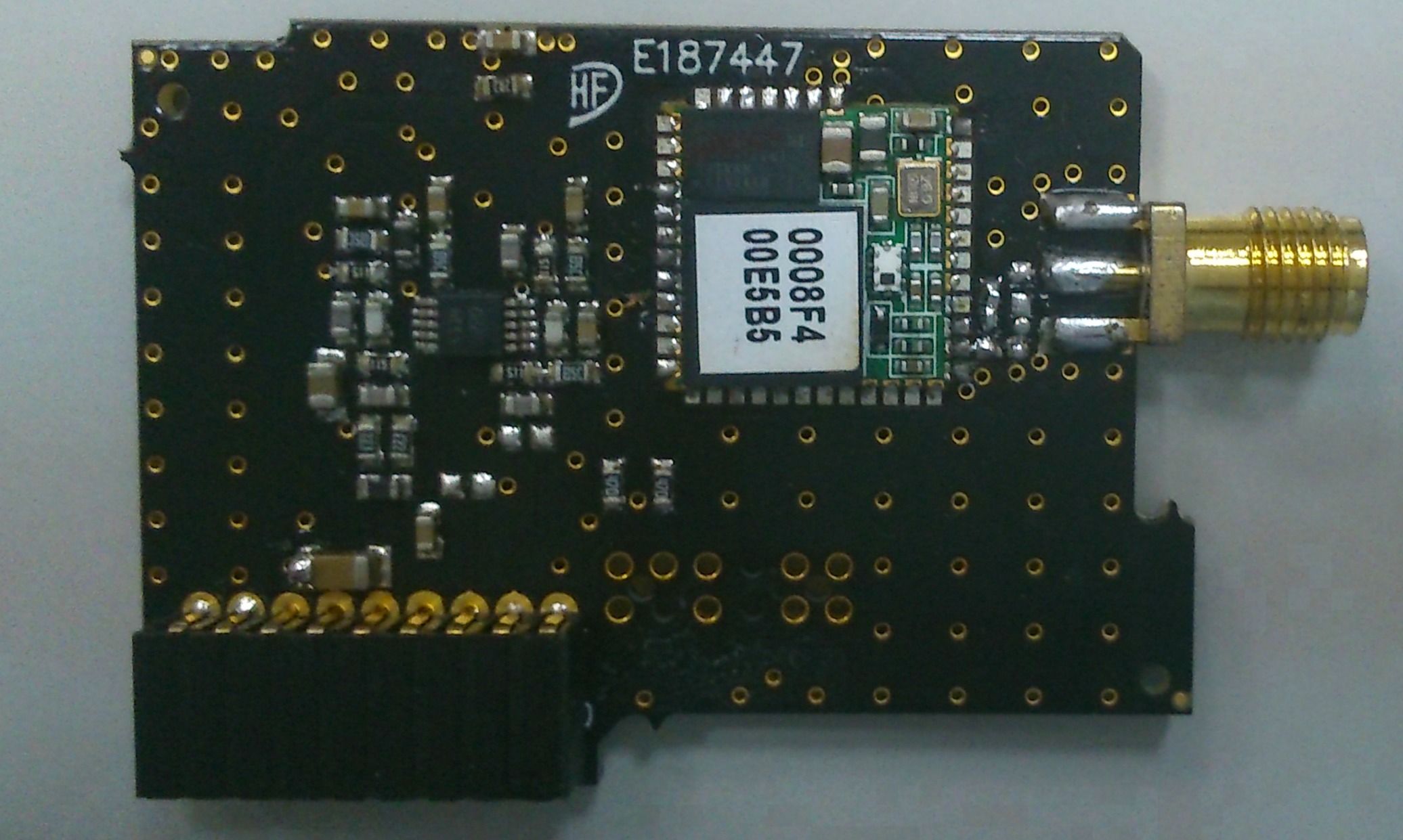

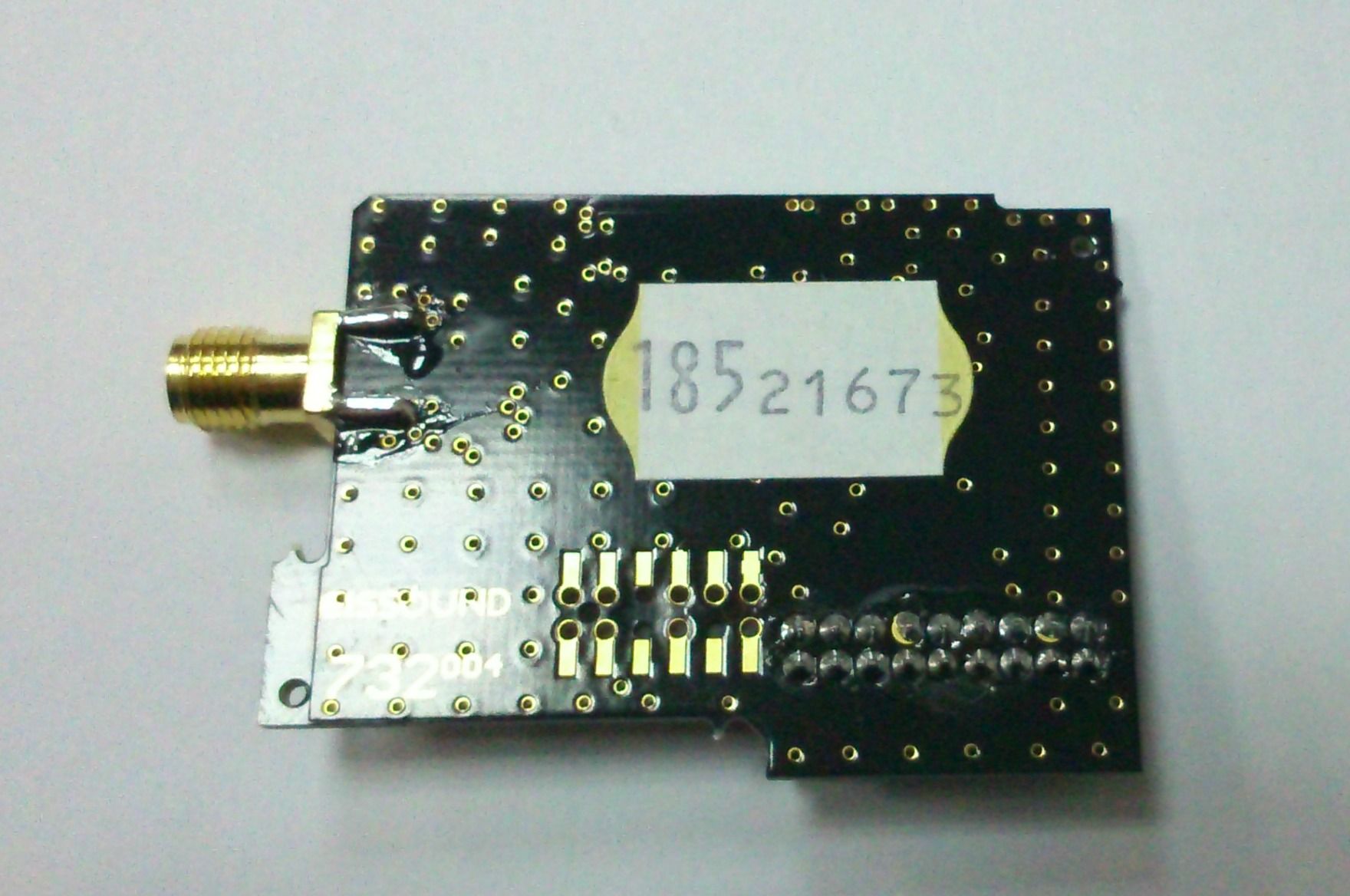

AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 42929RRF.001 Page 1 of 4 2014-07-15 Appendix B - Photographs AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 42929RRF.001 Page 2 of 4 2014-07-15 EQUIPMENT VIEW AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 42929RRF.001 Page 3 of 4 2014-07-15 EQUIPMENT FOR CONDUCTED MEASUREMENTS AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 42929RRF.001 Page 4 of 4 2014-07-15 TEST SET-UP FOR CONDUCTED MEASUREMENTS

AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 42929RRF.001 Page 1 of 4 2014-07-15 Appendix B - Photographs AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 42929RRF.001 Page 2 of 4 2014-07-15 EQUIPMENT VIEW AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 42929RRF.001 Page 3 of 4 2014-07-15 EQUIPMENT FOR CONDUCTED MEASUREMENTS AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 42929RRF.001 Page 4 of 4 2014-07-15 TEST SET-UP FOR CONDUCTED MEASUREMENTS
