2AB6Z-C1201Personal Alert and Notification Device

User’s Manual for Personal Alert and Notification Device User Manual Ver sion 1.0 User’s Manual for Personal Alert and Notification Device 1. Introduction This Wireless Module - Android is a wearable wireless device with vibration motor. This Wireless adapter is a Personal Alert and Notification Device which can work with Android device. The device works with a power-optimized true system-on-chip (SoC) solution for proprietary 2.4-GHz applications with RF frequency range from 2402MHz to 2480MHz. When installs a special app in the Android device, the device can easily be found in the Android device and be paired with it. Then the android device can easily find the device with the geographical position and make it vibrating. 2. Package Contents 1pc Personal Alert and Notification Device. Package with small Vacuum formed Tray. 3. Security Because wireless networks rely on radio signals to transmit data, they are not as secure as wire network. Wireless networks are susceptible to viruses and breaches like eavesdropping and need to be protected in order to be secure. There are many security measures to safeguard wireless networks, protect the data, and keep unauthorized users out. Hotspots, on the other hand, are often free of standard security practices in an effort to make it easy for anyone to connect. It may be found that some pay hotspots administered by service providers offer have some level of security, however, when using a hotspot, it’s always a good idea to be proactive and to employ security measures of your own. 4. ENVIRONMENTAL Operating Operating Temperature: 0°C to +70 °C Relative Humidity: 5-90% (non-condensing) User’s Manual for Personal Alert and Notification Device Storage Temperature: -40°C to +80°C (non-operating) Relevant Humidity: 5-95% (non-condensing) MTBF caculation Over 150,000hours 5 Disclaimer THESE MATERIALS AND INFORMATION ARE PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED , INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT. We use reasonable efforts to include accurate and up-to-date information on this document; it does not, however, make any representations as to its accuracy or completeness of the information, text, graphics, links or other items contained within these materials. Your use of this Document is at your own risk. Its suppliers, and other parties involved in creating and delivering this Document’s contents shall not be liable for any special, indirect, incidental, or consequential damages, including without limitation, lost revenues or lost profits. FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. User’s Manual for Personal Alert and Notification Device NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

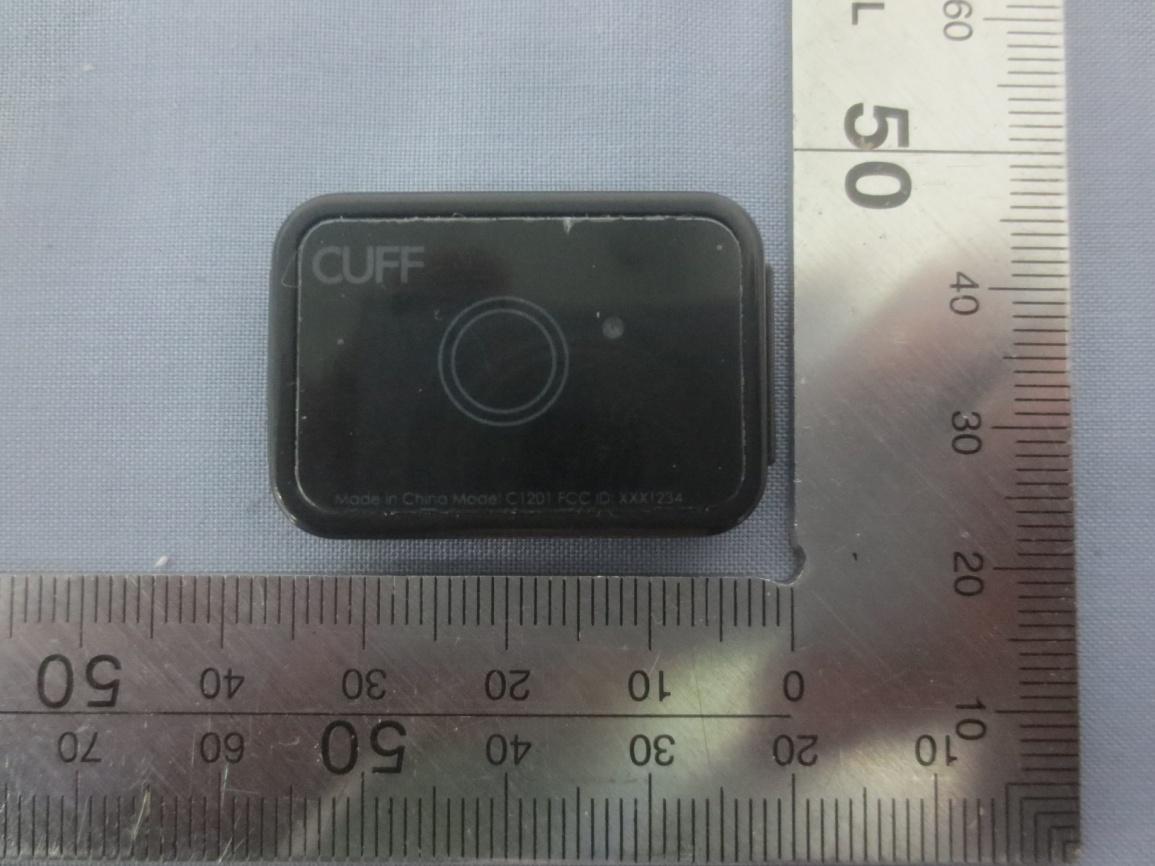

Report No: CCIS14110093701 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS141100937RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 33 of 38 8 EUT Constructional Details Report No: CCIS14110093701 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS141100937RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 34 of 38 Report No: CCIS14110093701 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS141100937RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 35 of 38

Label and label location Label 丝印 label location Label location

Report No: CCIS14110093701 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS141100937RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 36 of 38 Report No: CCIS14110093701 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS141100937RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 37 of 38 Report No: CCIS14110093701 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS141100937RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 38 of 38 ------End of report------

SAR Evaluation According to 447498 D01 General RF Exposure Guidance v05. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [ f(GHz) ] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison Worse case is as below: The maximum output power of EUT (lowest channel) is -6.88dBm =0.21 mW, So the calculated result is: [0.21 mW/ 5 mm] · [ 2.402(GHz)] = 0.07 < 3.0 for 1-g SAR Then SAR evaluation is not required

Shenzhen Zhongjian Nanfang Testing Co., Ltd. Report No: CCIS14110093701 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the CCIS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1 Cover Page FCC REPORT (BLE) Applicant: HUNG WAI PRODUCTS LIMITED Address of Applicant: Unit 11, 12/F, New Commerce Centre, 19 On Sum Street, Shatin, Hong Kong Equipment Under Test (EUT) Product Name: Personal Alert and Notification Device Model No.: C1201 FCC ID: 2AB6Z-C1201 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: 10 Nov., 2014 Date of Test: 11 Nov., to 14 Nov., 2014 Date of report issued: 14 Nov., 2014 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No: CCIS14110093701 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS141100937RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 2 of 38 2 Version Version No. Date Description 0014 Nov., 2014 Original Prepared by: Date: 14 Nov., 2014 Report Clerk Reviewed by: Date: 14 Nov., 2014 Project Engineer Report Cleeeeeeeeeeeeeeerrrrrrrrrrkkkkkkkkkkkkkk Report No: CCIS14110093701 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS141100937RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 3 of 38 3 Contents Page 1 COVER PAGE ................................................................................................................................................... 1 2 VERSION ........................................................................................................................................................... 2 3 CONTENTS ....................................................................................................................................................... 3 4 TEST SUMMARY .............................................................................................................................................. 4 5 GENERAL INFORMATION .............................................................................................................................. 5 5.1 CLIENT INFORMATION ............................................................................................................................................ 5 5.2 GENERAL DESCRIPTION OF E.U.T. ....................................................................................................................... 5 5.3 TEST ENVIRONMENT AND MODE ............................................................................................................................ 7 5.4 DESCRIPTION OF SUPPORT UNITS ........................................................................................................................ 7 5.5 LABORATORY FACILITY.......................................................................................................................................... 7 5.6 LABORATORY LOCATION ....................................................................................................................................... 7 5.7 TEST INSTRUMENTS LIST ....................................................................................................................................... 8 6 TEST RESULTS AND MEASUREMENT DATA ............................................................................................. 9 6.1 ANTENNA REQUIREMENT: ...................................................................................................................................... 9 6.2 CONDUCTED PEAK OUTPUT POWER .................................................................................................................. 10 6.3 OCCUPY BANDWIDTH .......................................................................................................................................... 12 6.4 POWER SPECTRAL DENSITY ............................................................................................................................... 15 6.5 BAND EDGE ......................................................................................................................................................... 17 6.5.1 Conducted Emission Method ..................................................................................................................... 17 6.5.2 Radiated Emission Method ......................................................................................................................... 19 6.6 SPURIOUS EMISSION ........................................................................................................................................... 24 6.6.1 Conducted Emission Method .................................................................................................…

Text truncated - open the document above for the full version.

Report No: CCIS14110093701 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS141100937RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 32 of 38 7 Test Setup Photo Radiated Spurious Emission
