2AB6Z-DK-13001Mini-InFinity Android Media Player with Touch LCD

User Manual Version 1.0 For Mini-InFinity Android Media Player with Touch LCD This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio technician for help. Description: These are the user Manual for a Mini-InFinity Android media player with touch LCD. This unit will be a smaller version of the Darko InFinity unit, but will utilize an Android processor. This unit will have capacitance touch screen. Specifications: 1. Housing :  Will be made of 4 main parts Back Housing - will hold a majority of the components and is where the access panel will be located Front Ring - will hold acrylic panel in place, used to connect back housing to acrylic panel. Access Panel Cover - will cover the access panel, will have holes for power input and headphone output, holes will be covered with thin grommet 2. 7.0in TFT LCD Screen:  LCD Resolution: 800x480  Video Resolution: 720x480  Innolux: AT070TN92  Capacitive Touch Screen Overlay 3. Processor:  Allwinner Technology: A13 Processor 4. 1pc SD Card Slot:  Supports SDHC and up to 16GB  For external memory  For software update  Accessible from access panel 5. Internal Memory:  Standard 2GB built in memory 6. 2pcs built in tact switches  Accessible from access panel  Will be used to enter CSR mode and update the OS 7. 2pcs Standard USB-A jack mounted to main PCB  For internal memory access  Accessible from access panel  For software update  Will be able to connect to different components for additional accessories such as:  Wi-Fi Dongle (not include in package of the product)  USB Printer (not include in package of the product)  USB camera (not include in package of the product)  Product Selector Module 8. 1pc DTCN-A-4F - 4-pin female connector  Accessible from access panel  Will be able to connect to barcode scanner module 9. 1pc Female Barrel Jack mounted to main PCB  For power input  Accessible from access panel  Note: All AC adapters must have "I" type barrel jack 10. 1pc 3.5mm Female Headphone Jack  Will connect to customer supplied headphones or other audio device  Will output 85mW audio  Accessible from access panel  Audio will not pop, buzz, or hiss during playback, video switching, or standby 11. 1pc 1" Speaker  Will be mounted inside back housing  Will output 2W audio Production Parameter: 1. Power Supply: Input 100-240VAC, 50-60Hz, Output 12VDC 1.5A 2. Working power: 8W (12V 650mA) 3. Working temperature: -10°C——+40°C 4. Working humidity: 10%——95% 5. Store temperature: -20°C——+60°C Functions & Features: This media player will function as an Android OS based device. It will utilize several different applications that will allow several different functions depending on the modules connected to the device. Modified Android OS Will use a modified version of the DUCO Android OS, with customized powering ON, loading, and desktop screens; Note: OS will be 3-tiered Application Level - In the application a preset application will play constantly. A standard level user will not be able to access any level other than the application level. CSR Level - In this level a CSR will be able to perform various actions such as viewing metrics, setting up the Wi-Fi setting, and updating both the internal and external memory. This level will have limited options so that a CSR does not have the ability to disable the unit accidentally. Administrative Level - This level will completely unlock the unit and allow it to be used as a standard tablet. Most production units will utilize custom applications;  Custom Applications The custom applications will allow interaction between the optional USB modules The custom applications will be either designed by the marketer of the media player or by the manufacturing factory. All custom applications must be ran from internal memory Software Update  All modes must be accessible via software update  Software update can be done via SD card or USB drive Software update procedure must be similar to current android media player software update procedure Custom Android 4.0 OS Specifications Description : This software will be the custom OS software for Mini-InFinity Android Media Player, this OS will allow 3 different levels of users. This software will perform the following functions; allow added security at the store level by prevent an in-store user the ability to perform any actions with the unit other than interact with the intended application; an in-store CSR (customer service representative) or assembly technician will have the ability to perform simple setting changes such as adjusting the network settings, changing the appli…

Text truncated - open the document above for the full version.

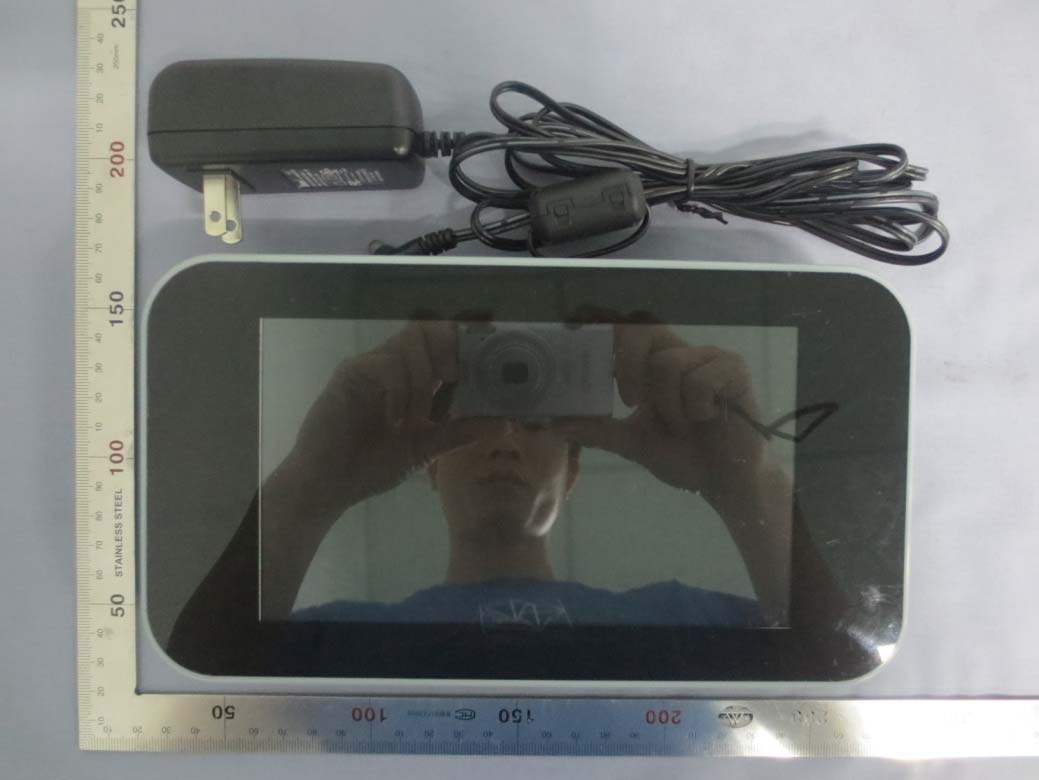

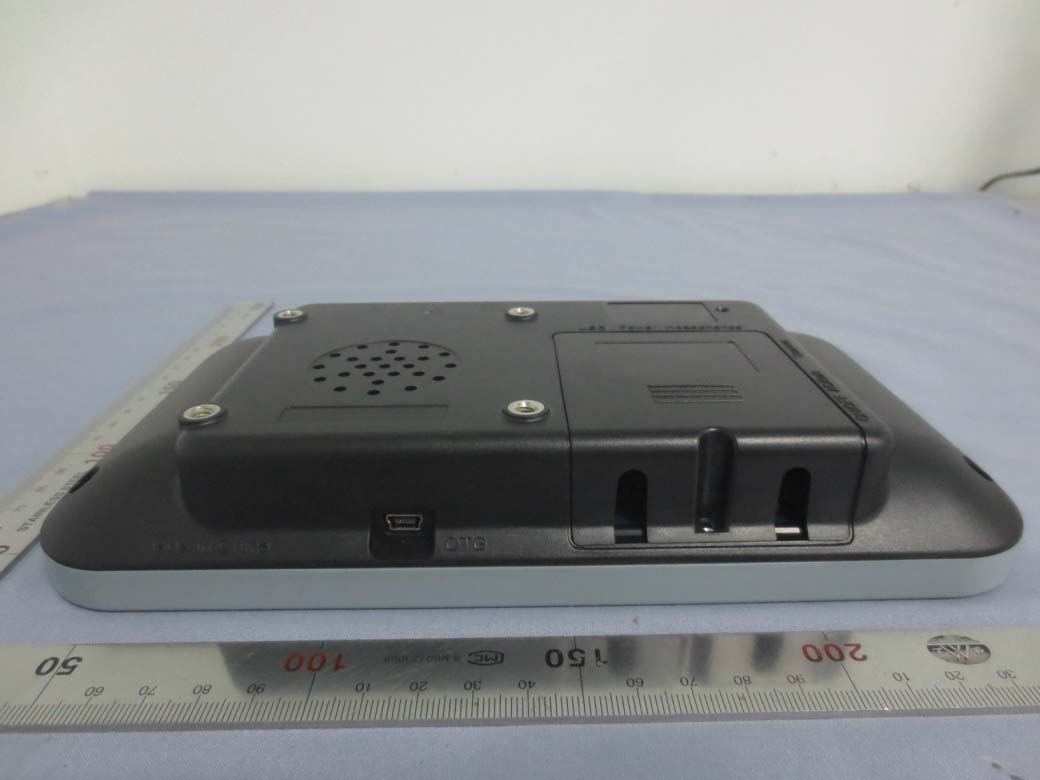

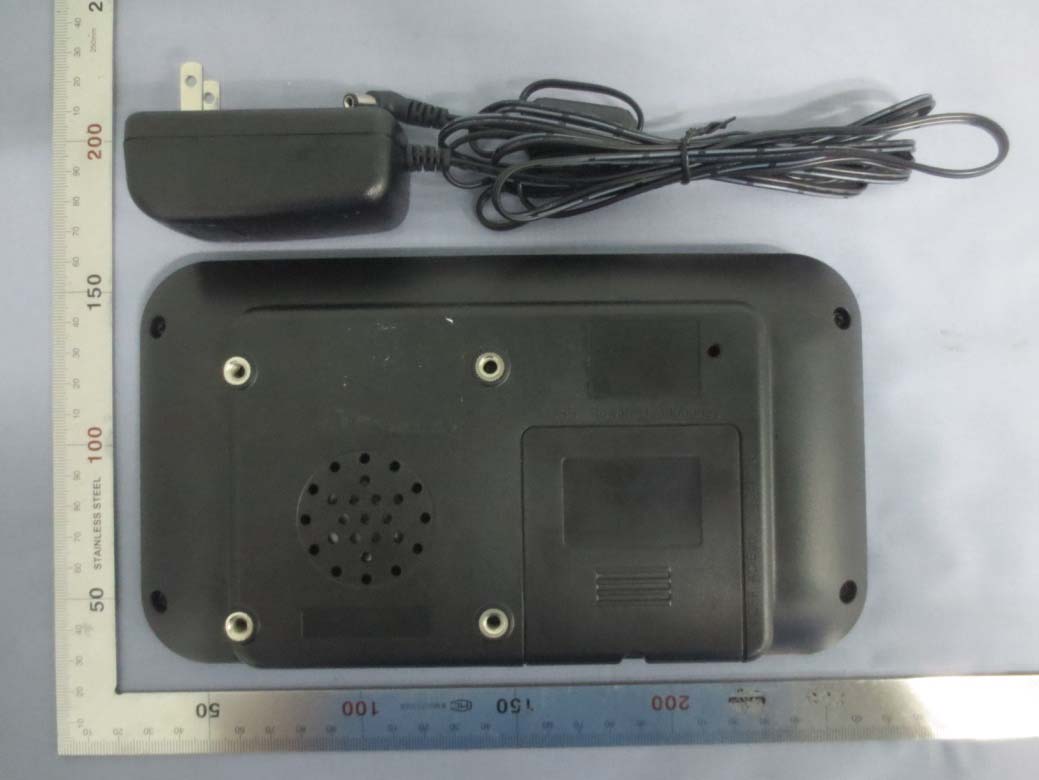

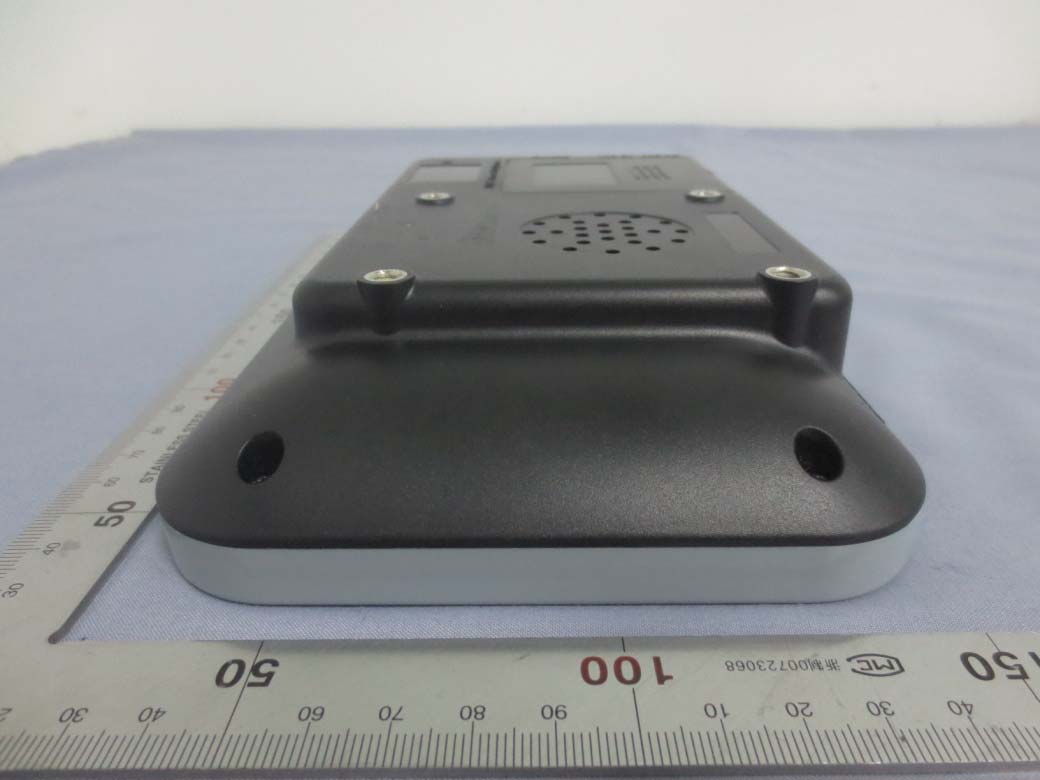

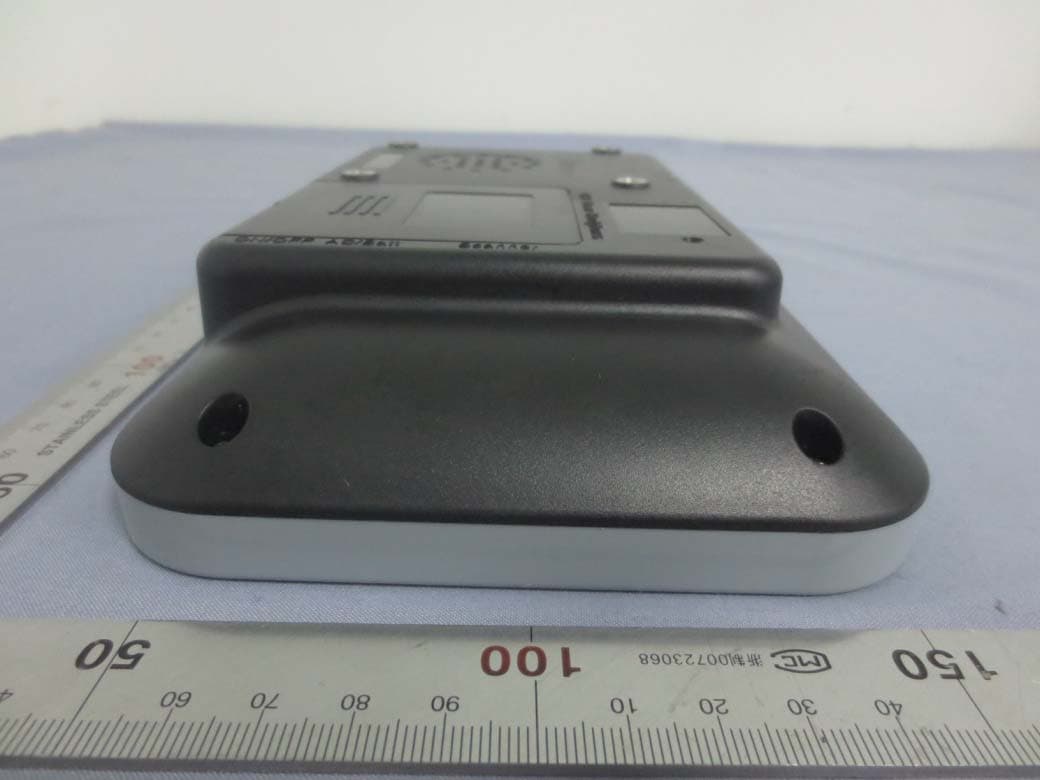

Report No: CCIS14040021301 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400213RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 77 of 87 8 EUT Constructional Details Report No: CCIS14040021301 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400213RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 78 of 87 Report No: CCIS14040021301 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400213RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 79 of 87 Report No: CCIS14040021301 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400213RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 80 of 87 Report No: CCIS14040021301 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400213RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 81 of 87

Label Label location Label location

Report No: CCIS14040021301 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400213RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 82 of 87 Report No: CCIS14040021301 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400213RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 83 of 87 Report No: CCIS14040021301 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400213RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 84 of 87 Report No: CCIS14040021301 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400213RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 85 of 87 Report No: CCIS14040021301 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400213RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 86 of 87 Report No: CCIS14040021301 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400213RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 87 of 87 ----- -End of report------

Prediction of MPE at a given distance 1. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Frequency range (MHz) Electric field strength (V/m rms) Magnetic field strength (A/m rms) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 614 1.63 *(100) 6 3.0-30 1842/f 4.89/f *(900/f2) 6 30-300 61.4 0.163 1.0 6 300-1500 f/300 6 1500-100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3 –1.34 614 1.63 *(100) 30 1.34 –30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1 30 2. Test Procedure Equation from page 18 of OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to the antenna G = numeric gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna 3. Result Frequency (MHz) Maximum Output power (dBm) Maximum Output power (mW) Antenna Gain (dBi) Antenna Gain (numeric) Distance (cm) Result (mW/cm 2 ) Limits for General Population/ Uncontrolled Exposure (mW/cm 2 ) 2441 7.61 5.77 7 5.01 20.00 0.006 1

Shenzhen Zhongjian Nanfang Testing Co., Ltd. Report No: CCIS14040021301 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the CCIS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1 Cover Page FCC REPORT Applicant: HUNG WAI PRODUCTS LIMITED Address of Applicant: Unit 11, 12/F., New Commerce Centre, 19 On Sum Street, Shatin, Hong Kong Equipment Under Test (EUT) Product Name: Mini-InFinity Android Media Player with Touch LCD Model No.: DK-13001, 502-0709A13MT FCC ID: 2AB6Z-DK-13001 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: 14 Apr., 2014 Date of Test: 14 Apr., to 22 Apr., 2014 Date of report issued: 23 Apr., 2014 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No: CCIS14040021301 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400213RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 2 of 87 2 Version Version No. Date Description 00 23 Apr., 2014 Original Prepared by: Date: 23 Apr., 2014 Report Clerk Reviewed by: Date: 23 Apr., 2014 Project Engineer Report No: CCIS14040021301 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400213RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 3 of 87 3 Contents Page 1 COVER PAGE ................................................................................................................................................... 1 2 VERSION ........................................................................................................................................................... 2 3 CONTENTS ....................................................................................................................................................... 3 4 TEST SUMMARY .............................................................................................................................................. 4 5 GENERAL INFORMATION .............................................................................................................................. 5 5.1 CLIENT INFORMATION ...................................................................................................................................................... 5 5.2 GENERAL DESCRIPTION OF E.U.T. ...................................................................................................................................... 5 5.3 TEST MODE .................................................................................................................................................................... 7 5.4 LABORATORY FACILITY ...................................................................................................................................................... 7 5.5 LABORATORY LOCATION ................................................................................................................................................... 7 5.6 TEST INSTRUMENTS LIST .................................................................................................................................................... 8 6 TEST RESULTS AND MEASUREMENT DATA ............................................................................................. 9 6.1 ANTENNA REQUIREMENT .................................................................................................................................................. 9 6.2 CONDUCTED EMISSIONS ................................................................................................................................................. 10 6.3 CONDUCTED OUTPUT POWER .......................................................................................................................................... 13 6.4 20DB OCCUPY BANDWIDTH ............................................................................................................................................ 17 6.5 CARRIER FREQUENCIES SEPARATION .................................................................................................................................. 21 6.6 HOPPING CHANNEL NUMBER .......................................................................................................................................... 26 6.7 DWELL TIME ................................................................................................................................................................. 27 6.8 PSEUDORANDOM FREQUENCY HOPPING SEQUENCE ............................................................................................................. 31 6.9 BAND EDGE .............................................................................................................................…

Text truncated - open the document above for the full version.

Report No: CCIS14040021301 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400213RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 75 of 87 7 Test Setup Photo Radiated Spurious Emission Report No: CCIS14040021301 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400213RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 76 of 87 Conducted Emission
