2AB9HZTWJ662088Walking Talking

5 ” W

Block Diagram Filter Oscillation 27.145MHz Switch key 27.145MHz ANTENNA Speaker Modulation

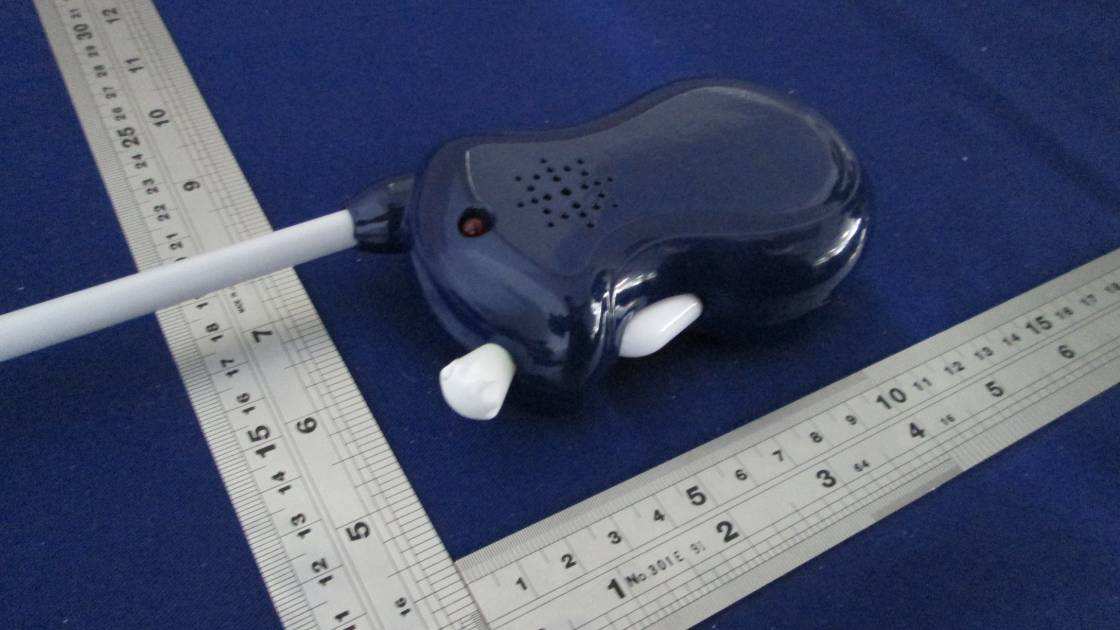

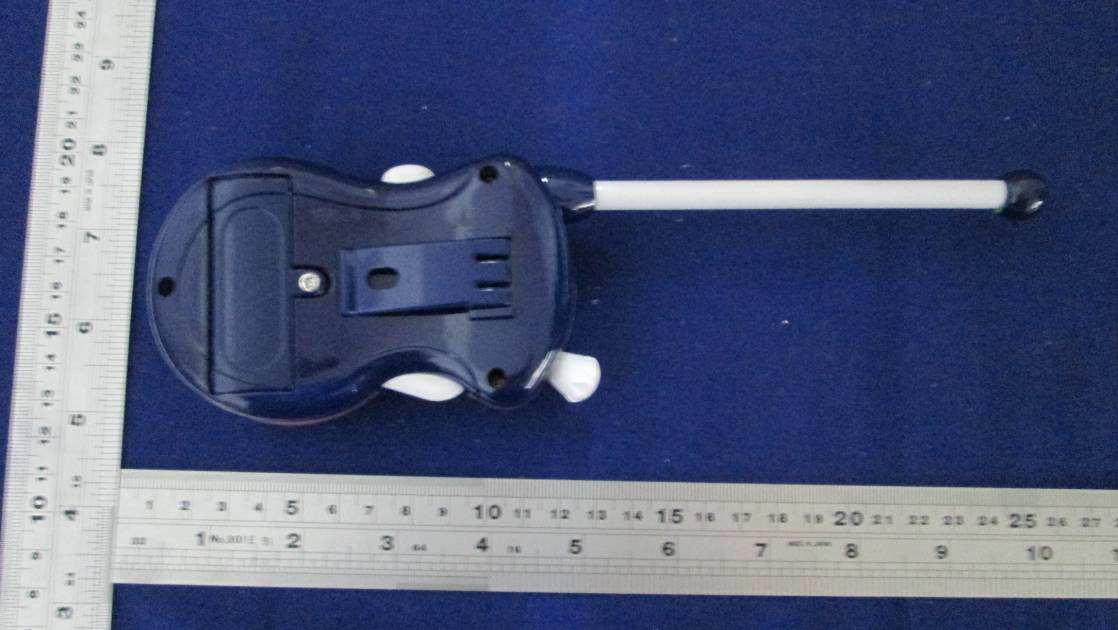

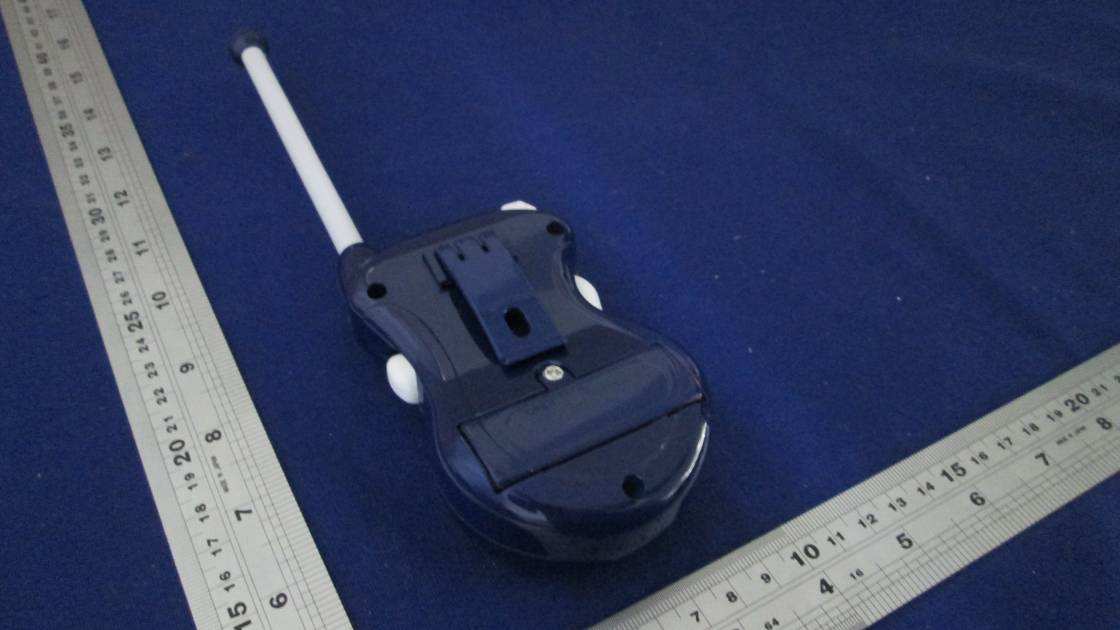

External Photos

Internal Photos

Technical description Description Function Component Antenna Transmit modulated RF signal ANTENNA Filter Suppression of spurious emissions L2, C9 Oscillation . Generate 27.145MHz Oscillation Signal . Q1, T1 Modulation Modulate the carrier . Q2, Q3, Q4, Q5 Antenna Type: Integral antenna with plastic enclosure Antenna Gain: 0dBi Modulation Type: AM modulation The nominal conducted output power specified: -38.00dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -40.15dBm (+/- 3dB)

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a portable transmitter for a Walking Talking operating at 27.145 MHz. The EUT is powered by one 9.0V 6F22 size battery. F or more detail information pls. refer to the user manual. Antenna Type: Integral antenna with plastic enclosure Antenna Gain: 0dBi The nominal conducted output power specified: -38.00dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -40.15dBm (+/- 3dB) Modulation Type: AM modulation According to the KDB 447498: T he worst-case peak radiated emission for the EUT is 57.0dBμV/m at 3m in the frequency 27.145MHz The EIRP = [(FS*D) ^2 / 30] mW= -38.23dBm The ERP = EIRP – 2.15 = -40.38 dBm which is within the production variation. The maximun conducted output power specified is -35dB m =0.0003mW The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = 474 * [1 + log(100/f(MHz)]/2 = 371.2 mW Since the conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. The average factor is not applicable for this device as the transmitted signal is a continuously signal. FCC ID: 2AB9HZTWJ662088

Transmitter Circuit Diagram R11 27.145 27.14527.145 27.145M MM MHz

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 CENTRESKY CRAFTS (SHANTOU) CO LTD. Application For Certification FCC ID: 2AB9HZTWJ662088 Walking Talking Model: 351197 Additi onal Models: C30041, C30042, C30043, C30044, C30045, C30046, C30047, C30048, C30049, C30050, C30051, C30052, C30053, C30054, C30056, C30057, C30058, C30059, A-2002, A-2003, A-2004, A- 2005, A-2006, A-2007, A-2008, A-2009, A-2010, A-2011, A-2012, A- 2013, A-2014, A-2015, A-2016, A-2017, A-2018, A-2019, A-2020, A- 2021, A-2022, A-2023, A-2024, A-2025, A-2026, A-2027, A-2028, A- 2029, A-2030, A-2031, A-2032, A-2033, A-2034, A-2035, A-2036, A- 2037, A-2038, A-2039, A-2040, A-2041, A-2042, A-2043, A-2044, A- 2045, A-2046, A-2047, A-2048, A-2049, A-2050 Transceiver (half duplex) Report No.: SZHH00860519-001 We her eby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-13] Prepar ed and Checked by: Approved by: Sign on file Jimmy Wen Assistant Engineer Andy Yan Project Engineer Date: May 9, 2014 INTERTEK TESTING SERVICES Report No.: SZHH00860519-001 FCC ID: 2AB9HZTWJ662088 TRF No.: FCC 15C_TX_b i G E N E R A L INFORMATION CENTRESKY CRAFTS (SHANTOU) CO LTD. MODEL: 351197 FCC ID: 2AB9HZTWJ662088 Grantee : CENTRESKY CRAFTS (SHANTOU) CO LTD. Grantee Address: Da Pu Mei Industrial Park, Huai Nan Lian Xin, Cheng Hai District Shantou, Guangdong Province China Contact Person: Wenna Du Tel: 86-754-85160059 Manufacturer: CENTRESKY CRAFTS (SHANTOU) CO LTD. Manufacturer Address: Da Pu Mei Industrial Park, Huai Nan Lian Xin, Cheng Hai District Shantou, Guangdong Province China Model: 351197 Type of EUT: Transceiver Description of EUT: Walking Talking Serial Number: N/A FCC ID : 2AB9HZTWJ662088 Date of Sample Submitted: April 15, 2014 Date of Test: May 9, 2014 Report No.: SZHH00860519-001 Report Date: May 9, 2014 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: SZHH00860519-001 FCC ID: 2AB9HZTWJ662088 TRF No.: FCC 15C_TX_b ii SUMMARY OF TEST RESULT C E N T R E SKY CRAFTS (SHANTOU) CO LTD. MODEL: 351197 FCC ID: 2AB9HZTWJ662088 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247( e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 Pass Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231( a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231( e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses an Integral antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: SZHH00860519-001 FCC ID: 2AB9HZTWJ662088 TRF No.: FCC 15C_TX_b iii T a b l e of Contents 1.0 General Description .......................................................................................1 1.1 Product Description..........................................................................................1 1.2 Related Submittal(s) Grants..............................................................................1 1.3 Test Meth…

Text truncated - open the document above for the full version.

Radiated Photos
