2AB9OBTDONGLEBT Dongle

BT dongle user manual 1 Introduction 1 Introduction 1 Introduction 1 Introduction 1.1 1.11.1 1.1 BT dongle BT dongle BT dongle BT dongle The BT 4.0 Low Energy Dongle is design for Bluetooth standard BLE electronic accessories via Bluetooth connectivity. It is available in the 2.4GHz ISM band Class 2 Radio, compatible with Bluetooth Core Specification Version 4.0 BLE and EDR. ISSC IS1677SM single chip solution combines transceiver and baseband function to decrease the external components. 1.2 1.2 1.2 1.2 The features The featuresThe features The features - Bluetooth EDR & BLE 4.0 - RF receiver - GFSK typical -90dBm, - π/4 PSK typical -90dBm, - 8DPSK typical -83dBm - BLE typical -92dBm - Low power 3.3V RF operation - RF transmitter output power Class 2 - Internal ROM and 4Mibts of flash - I2C for external EEPROM and authentication chip (to enable functionality between your appcessory and the iPod, iPhone and iPad) - 1 LED driver 1.3 I 1.3 I1.3 I 1.3 Inst nstnst nstallation allation allation allation instruction instructioninstruction instruction Step 1. Open the cover of console. Step 2. Insert the dongle into specified port on the console. Step 3. When the dongle is connected, it can be used. 1.4 1.4 1.4 1.4 FCC FCCFCC FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference BT dongle user manual T will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  -Reorient or relocate the receiving antenna  -Increase the separation between the equipment and receiver  -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected  -Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1.5 1.51.5 1.5 Further Further Further Further Information InformationInformation Information If you have further requirements, please feel free to E-mail us at: coordìnator@lìfespanfìtness.com

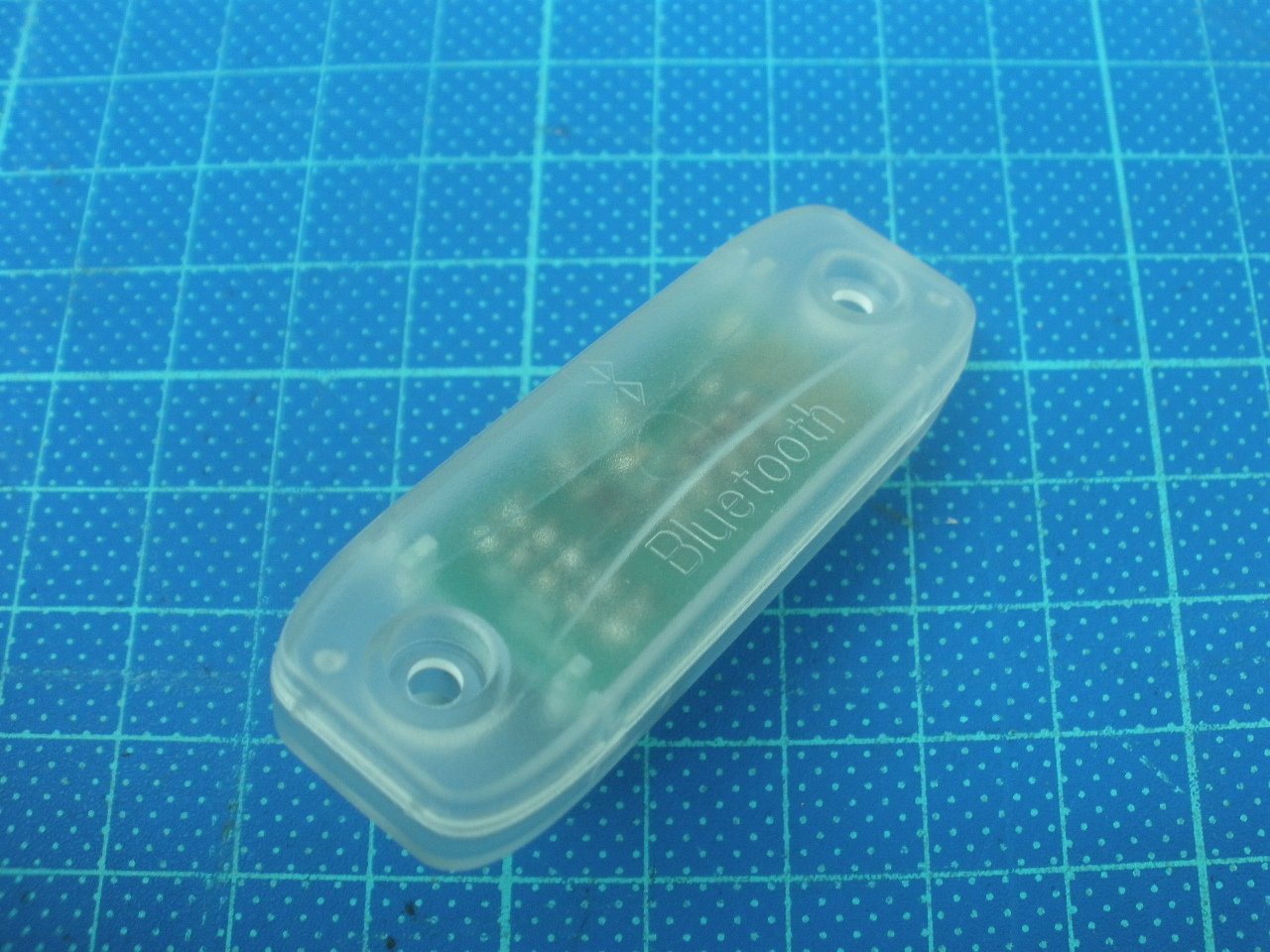

External photo of EUT BT Dongle

Label location

Internal photo of EUT BT Dongle Internal photo of EUT RF module Antenna

FCC ID: 2AB9OBTDONGLE Report No.: 150100371TWN-001 Page 1 of 35 EMC TEST REPORT Report No. : 150100371TWN-001 Model No. : BT Dongle Issued Date : Jul. 16, 2015 Applicant: Strength Master Fitness Tech Co. Ltd No. 398, Sec. 1, Yaofeng Rd., Puxin Township, Changhua County, Taiwan Test Method/ Standard: 47 CFR FCC Part 15.247 & ANSI C63.4 2009 KDB 558074 D01 v03r03 Test By: Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan FCC Laboratory Registration Number: 93910 It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). The test report was prepared by: Sign on File Evelyn Lee/ Officer These measurements were taken by: Sign on File Wayne Chen / Engineer The test report was reviewed by: Name Jimmy Yang Title Senior Engineer FCC ID: 2AB9OBTDONGLE Report No.: 150100371TWN-001 Page 2 of 35 Table of Contents 1. Summary of Test Data................................................................................................................. 3 2. General Information.................................................................................................................... 4 3. Maximum 6 dB Bandwidth......................................................................................................... 8 4. Maximum Output Power........................................................................................................... 12 5. Power Spectral Density............................................................................................................. 14 6. RF Antenna conducted Spurious............................................................................................... 18 7. Radiated Spurious Emission ..................................................................................................... 22 8. Emission on Band Edge ............................................................................................................ 28 FCC ID: 2AB9OBTDONGLE Report No.: 150100371TWN-001 Page 3 of 35 1. Summary of Test Data Test Requirement Applicable Rule (Section 15.247) Result Minimum 6 dB Bandwidth 15.247(a)(2) KDB 558074 D01 v03r03 Pass Maximum Peak Conducted Output Power 15.247(b)(3) Pass Power Spectral Density 15.247(e) Pass Emissions In Non-Restricted Frequency Bands 15.247(d) Pass Emissions In Restricted Frequency Bands (Radiated emission measurements) 15.247(d), 15.205, 15.209 Pass Emission On The Band Edge 15.247(d), 15.205 Pass AC Power Line Conducted Emission 15.207 Pass Antenna Requirement 15.203 Pass FCC ID: 2AB9OBTDONGLE Report No.: 150100371TWN-001 Page 4 of 35 2. General Information 2.1 Identification of the EUT Product: BT Dongle Model No: BT Dongle FCC ID: 2AB9OBTDONGLE Operating Frequency: 2402MHz ~ 2480MHz Channel Number: 40 Channels Access scheme: See section 2.3 Modulation: GFSK Rated Power: DC 3.3V Power Cord: N/A Sample Received: Jul. 14, 2014 Sample condition: Workable Test Date(s): Jan. 14, 2015 ~ Jul. 16, 2015 Note 1: This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Note 2: When determining the test conclusion, the Measurement Uncertainty of test has been considered. FCC ID: 2AB9OBTDONGLE Report No.: 150100371TWN-001 Page 5 of 35 2.2 Description of EUT Transmit path Modulation mode Chain 0/Main BT 4.0 V 2.3 Channel Number of EUT Channel No. Frequency Channel No. Frequency Channel No. Frequency Channel No. Frequency 0 2402 10 2422 20 2442 30 2462 1 2404 11 2424 21 2444 31 2464 2 2406 12 2426 22 2446 32 2466 3 2408 13 2428 23 2448 33 2468 4 2410 14 2430 24 2450 34 2470 5 2412 15 2432 25 2452 35 2472 6 2414 16 2434 26 2454 36 2474 7 2416 17 2436 27 2456 37 2476 8 2418 18 2438 28 2458 38 2478 9 2420 19 2440 29 2460 39 2480 FCC ID: 2AB9OBTDONGLE Report No.: 150100371TWN-001 Page 6 of 35 2.4 Antenna description The EUT uses a permanently connected antenna. Antenna Gain : 0 dBi Antenna Type : PCB Antenna Connector Type : Fixed 2.5 Peripherals equipment Peripherals Brand Model No. Serial No. Data cable Notebook PC DELL Latitude D610 1YWZK1S RS232 1 meter × 1 2.6 Operation mode The EUT was supplied with DC 3.3V. FCC ID: 2AB9OBTDONGLE Report No.: 150100371TWN-001 Page 7 of 35 2.7 Applied test modes and channels Test items Mode Channel Antenna Minimum 6 dB Bandwidth BT 4.0 0, 20, 39 Chain0 Maximum peak conducted output power BT 4.0 0, 20, 39 Chain0 Power Spectral Density BT 4.0 0, 20, 39 Chain0 RF Antenna Conducted Spurious BT 4.0 0, 20, 39 Chain0 Radiated spurious Emission 30MHz~1GHz BT 4.0 20 Chain0 Radiated Spurious Emission 10GHz~10th Harmonic BT 4.0 0, 20, 39 Chain0 Emission on the Band Edge BT 4.0 0, 39 Chain0 AC Power Line Conducted Emission BT 4.0 0, 20, 39 Chain0 2.8 Power setting of test software Channels & power setting software provided by the client was used to change the operating channels as well as the output power level and is going to be installed in the final end product. Software Version: ISRT.exe V 2.1.25.4149…

Text truncated - open the document above for the full version.

Conducted Emission Test set-up photo Conducted Emission Test set-up photo Radiated Emission Test set-up photo Radiated Emission Test set-up photo Radiated Emission Test set-up photo
