CAMI (HK) COMPANY LIMITED Room 903, 9/F, New commerce centre, 19 On Sum Street, Shatin, N.T. Hong Kong Date: 2014-4-19 FCC ID: 2AB9ZIPD-UNVBT Subject: FM Function Declaration To Whom it may concern, This device is acting as slave and operating in the 88.1 – 107.9 MHz band. FM function is supported but not able to operate on non-US frequencies . 1> How does this device operate? This device operating frequency rang from 88.1 to 107.9MHz. Total 199 channels. Channel separation is 100KHz. 2> Provide information on the device and its antenna. The device is a low power communication device(FM Transmitter). The EUT use a integral antenna. 3> How is it installed? The transmitter is powered from 12V in car. It can be connected to the car power socket outlet only. 4> What test procedure was used? According to ANSI C63.10-2009 and FCC Part15.239 5> If tested in a car,how was it configured/tested? Not tested in a car ,it was tested in a chamber. 6> Was the turing rang properly verified? Yse, It is only allowed to tune between 88.1 to 107.9MHz 7> Was the bandwidth properly tested with maximum audio input? The test was performed with the maximum audio input. And play typical audio signal(music song). We have indicated the operating condition in the test report,see clause 2.2 8> Provide the test report Test Report Submitted. CAMI (HK) COMPANY LIMITED Room 903, 9/F, New commerce centre, 19 On Sum Street, Shatin, N.T. Hong Kong Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Yours sincerely, Signatory Signature Name: Rayyeung Title: CEO Email: [email protected]

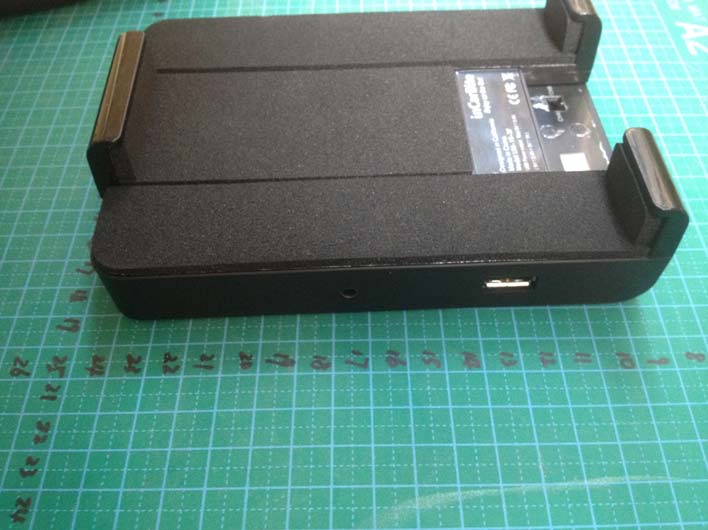

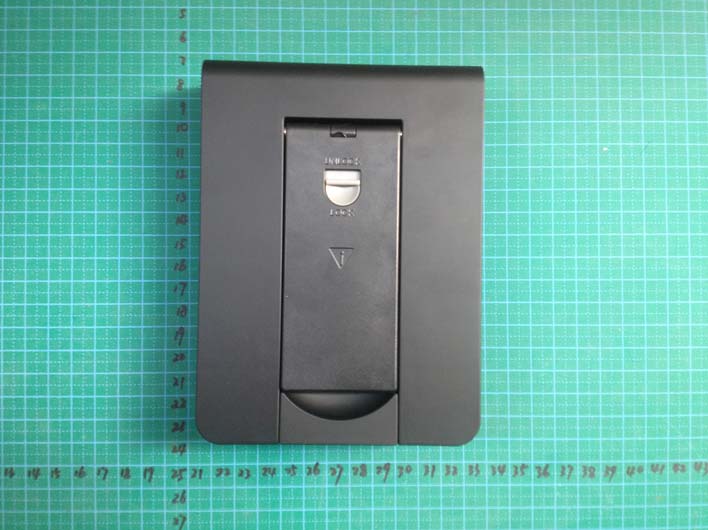

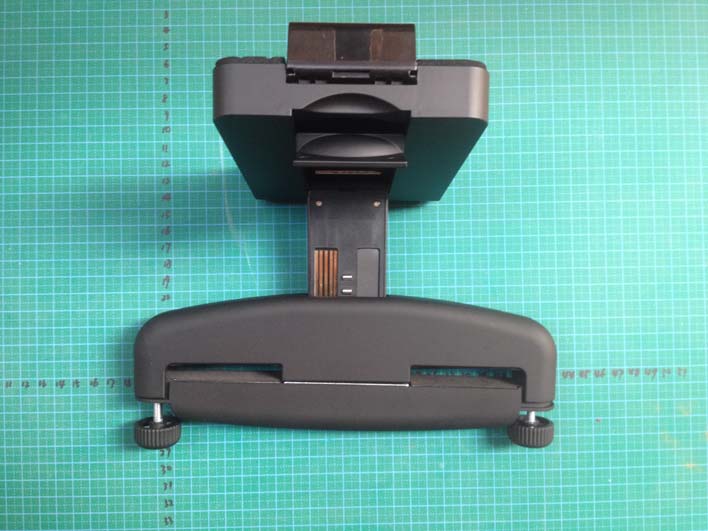

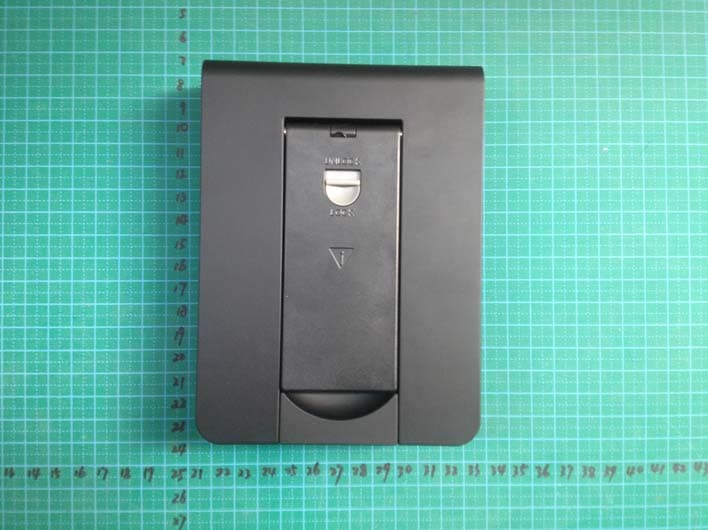

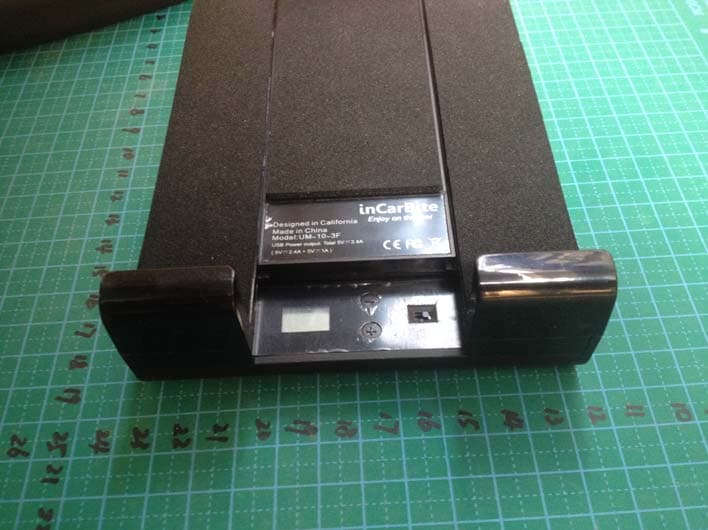

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9

5*2.7cm

Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16

FCC RADIO TEST REPORT Prepared For CAMI (HK) COMPANY LIMITED Product Name: Universal Tablet mount Trade Name: N/A Model Name : IPD-UNVBT, UM-10-3R, UM-10-3F, UM-10-3, IPD-UNV FCC ID: 2AB9ZIPD-UNVBT Prepared By DongGuan Precise Testing Service Co.,Ltd. Room 203-204, 2F, Xinye Building, No.67 Shijing, Guanzhang Road, Dongguan, China Report No. PTS20140412F1 Test Date: Apr. 09 ~ Apr. 16, 2014 Date of Report : Apr.16, 2014 Page 2 of 30 Report No.: PTS20140412F1 ` VERIFICATION OF COMPLIANCE Applicant: CAMI (HK) COMPANY LIMITED Address Room 903, 9/F, New commerce centre, 19 On Sum Street, Shatin, N.T. Hong Kong Manufacturer Name: JIANGMEN CITY XANTOUR TECHNOLOGY CO., LTD Address: Room 101-102, building 8, die cui garden. NO.37 zhen xing road 1, xin hui area, jiang men city, Guangdong province, China Product Description: Universal Tablet mount Brand Name: N/A Model Name: IPD-UNVBT, UM-10-3R, UM-10-3F, UM-10-3, IPD-UNV Model difference: Only model names are different. Test procedure ANSI C63.4 Standards FCC Part15.239 Prepared by : Assistant Reviewer : Supervisor Approved & Authorized Signer : Jacky Ou / Manager Page 3 of 30 Report No.: PTS20140412F1 ` Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 7 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3 . ANTENNA REQUIREMENT 11 3.1 STANDARD REQUIREMENT 11 3.2 EUT ANTENNA 11 3.3 CONDUCTED EMISSION MEASUREMENT 12 3.3.1 POWER LINE CONDUCTED EMISSION LIMITS 12 3.3.2 TEST PROCEDURE 13 3.3.3 DEVIATION FROM TEST STANDARD 13 3.3.4 TEST SETUP 13 3.2.5 TEST RESULT 14 3.4 RADIATED EMISSION MEASUREMENT 15 3.4.1 RADIATED EMISSION LIMITS 15 3.4.2 TEST PROCEDURE 16 3.4.3 DEVIATION FROM TEST STANDARD 16 3.4.4 TEST SETUP 17 3.4.5 TEST RESULTS (BLOW 30MHZ) 19 3.4.6 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 20 4 . BANDWIDTH TEST 26 4.1 TEST PROCEDURE 26 4.2 DEVIATION FROM STANDARD 26 4.3 TEST SETUP 26 4.4 TEST RESULTS 27 5 . EUT TEST PHOTO 30 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 4 of 30 Report No.: PTS20140412F1 ` 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.239) Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A 15.203 Antenna Requirement Pass 15.239 Radiated Spurious Emission Pass 15.239 Occupied Bandwidth Pass Page 5 of 30 Report No.: PTS20140412F1 ` 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC FRN Registration No.:238937; IC Registration No.:9270A-1 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 6 of 30 Report No.: PTS20140412F1 ` 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Universal Tablet mount Trade Name N/A Model Name IPD-UNVBT Serial Model UM-10-3R, UM-10-3F, UM-10-3, IPD-UNV Model Difference Only model names are different. Product Description The EUT is a Universal Tablet mount Operation Frequency: 88.1-107.9MHz Modulation Type: FM Number Of Channel 199CH(See NOTE 2) Antenna Designation: integral antenna Antenna Gain(Peak) 1.0dBi Output Power: 46.32 dBuV/m (AV Max.) Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Adapter DC 12V Battery N/A Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. 2. Channel Frequency (MHz) 01 88.1 02 88.2 ...... ...... 99 97.9 100 98.0 ...... ...... 198 107.8 199 107.9 Page 7 of 30 Report No.: PTS20140412F1 ` 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 88.1MHz Mode 2 98.1MHz Mode 3 107.9MHz For Conducted Emission Final Test Mode Description Mode 4 N/A For Radiated Emission Final Test Mode Description Mode 1 88.1MHz Mode 2 98.1MHz Mode 3 107.9MHz Note: (1) The measurements are performed at the highest, middle, lowest available channels. (2) During testing, the EUT was actively playing music set to its maximum audio volume in order to generate the worst case emissions (e.g. to generate the maximum bandwidth during bandwidth test). The tuning range of the EUT was manually verified and the conclusion is that it only works at selected channels within 88.1-107.9MHz, not below and not above this range. Page 8 of 30 Report No.: PTS20140412F1 ` 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED E-1 EUT E-2 Car adapter C2 C1 E-3 DC battery E-4 Headphone C3 Page 9 of 30 Report No.: PTS20140412F1 ` 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories were used to form a representative test configuration during the tests. Item Equipment Mfr/Brand Model/Type No. Series No. Note E-1 Universal Tablet mount N/A IPD-UNVBT N/A EUT E-2 Car Adapter N/A SK02G-0520200U N/A N/A E-3 DC battery N/A 1…

Text truncated - open the document above for the full version.

Page 30 of 30 Report No.: PTS20140412F1 ` 5. EUT TEST PHOTO Radiated Measurement Photos
