2ABAV0203001Valta Socket

Owner Operating Manual, Vers 12/2013 – US/ Can Page 1 of 10 Valta User manual (support page) Section 3: VALTA Starter Kit Section 3.1: Valta starter kit package contents Thank you for purchasing the Valta starter kit. Each package contains the following:  1 v-Hub  1 AC Power Adaptor (for v-Hub)  1 Ethernet Cable (for v-Hub)  2 Valta Sockets Section 3.2: IMPORTANT SAFETY INSTRUCTIONS Please read the following safety and operating instructions before using the product and retain for future reference. For v-Hub WARNING: Use only indoors and in dry locations.  Do not use this equipment (v-Hub) and all related accessories near or under water, for example, near a bathtub, wash bowl, kitchen sink or laundry tub, in a wet basement, near a swimming pool, under the rain, aquariums, do not plunge any parts in water or any other liquid.  Use only indoors and in dry locations. SAFETY IMPORTANT: When using Valta v-Hub device, basic safety precaution should always be followed to reduce the risk of fire, electric shock, damage to equipment, loss of property, server injury to persons or even loss of life, including the following:  Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lighting.  Use only the Power Adapter supplied with the package, if necessary order a new replacement AC power adapter from Valta or authorized retailers using Owner Operating Manual, Vers 12/2013 – US/ Can Page 2 of 10 the original model number.  Do not insert the AC power adaptor into an extension cord, receptacle or outlet unless the prongs can be fully inserted, failure to do so may cause electric shock or excessive heat resulting in a fire.  Plug AC power adaptor directly to a proper grounded wall outlet.  Do not overload power outlet and extensions cords, otherwise it can result in fire or serious electrical shock.  To prevent overheating, situate the product away from heat sources such as radiators, heat registers, stoves, or other fixtures, appliances and products that produce heat.  Unplug with caution the product from power outlets if it emits smoke, an abnormal smell or make unusual noise. There conditions may cause fire or electrical shock.  Do not remote the cover or disassemble any components of this product. This product contains no user-serviceable parts.  Unplug the product from the power outlet before cleaning. Do not use liquid or if aerosol cleaners, use a damp cloth or a microfiber cloth for cleaning.  This product should never be placed near or over radiator or heat register, nor in any area where proper ventilation is not provided.  Do not allow anything to rest on the v-Hub device, its power cord, or power adapter.  Do not install the product where its power cord may be walked or stumbled on.  Unplug the power from power outlet if the power adapter cord or power adapter prongs are damaged or frayed, if liquid has been spilled onto the product, if the product has been exposed to rain, water or any other liquid, if the internal components of the v-Hub or it power adapter are exposed.  The power supply adapter is intended to be correctly oriented in a vertical or floor mount position, the prongs are not designed to hold the power adapter in place if it is plugged upside down, for example do not use facing down outlets on a ceiling, under a table or in a cabinet.  The equipment and accessories must be operated only for its intended use and not for any other purposes. For Valta Socket Owner Operating Manual, Vers 12/2013 – US/ Can Page 3 of 10 Warning: Power Sources DO NOT plug your Valta Socket into a power outlet that differs from the source indicated for safe use on the Valta Socket. If you are uncertain of the type of electrical power supplied to your home, please consult your local power company. Warning: Earthing and Polarization Your Valta Socket has a three-wire earthing-type AC plug (a three-prong plug). This Socket is designed to be inserted into an earthing-type outlet only and will fit into the power outlet only ONE way. This is a safety feature. If you are unable to plug your Valta Socket directly and/or fully into your wall outlet, DO NOT attempt to force it in. NEVER attempt to dismantle the Socket in any way (or to alter an extension cord) to make it fit into a two-prong wall socket. DO NOT attempt to defect the safety purpose of the earthing feature by using a three to two prong adapter. Instead, contact a local licensed electrician to install the proper polarized wall outlet. Owner Operating Manual, Vers 12/2013 – US/ Can Page 4 of 10 Warning: Proper Earthing This Valta Socket can ONLY plug into a properly earthed wall outlet for safety. If you are not sure if your home’s electrical wiring has proper earthing, please have it checked by a qualified/licensed electrician. Warning: Power Adaptor Safety  When routing the AC power adaptor of the v-Hub, DO NOT place it near heavy foot traffic areas or pinched by items placed upon or against them.  If your AC adaptor’s tip head and/or protective jacket begins to rip or frag, exposing the internal wiring, shielding, etc,. disconnect it from the power source and discontinue use of the AC adaptor immediately. See the Warranty Information section of this owner’s manual for important details. Warning: Liquid, Rain and Moisture: Avoiding Electric Shock  DO NOT operate your Valta Socket near rain or water that’s spilled or contained (e.g. bathtub, water bowl, kitchen sink, laundry tub, Sauna room, in a wet basement; or near a swimming pool and the like).  NEVER spill liquid of any kind on the Socket.  DO NOT operate your Valta Socket if liquid of any kind is spilled onto or inside the unit. Warning: Object Entry: Avoiding Fire or Electric Shock NEVER PUSH objects of any kind into your Valta Socket through openings (three-prong switch outlet) as they may touch dangerous voltage points or short-out parts that could result in fire or electric shock. Warning: Overloading DO NOT overl…

Text truncated - open the document above for the full version.

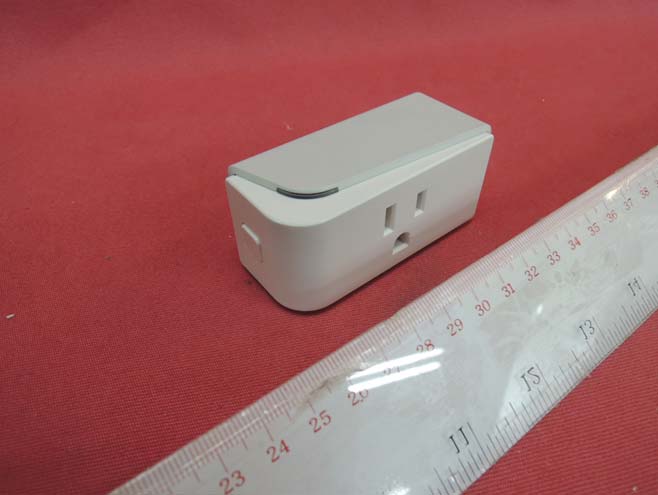

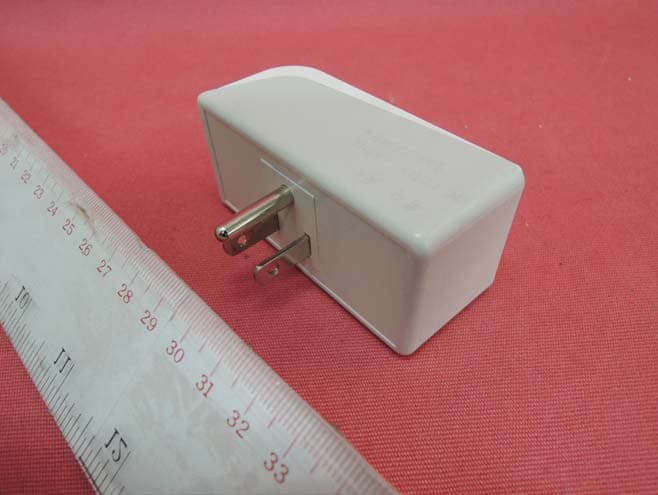

INTERTEK TESTING SERVICE Report No.: 13051881HKG-010 FCC ID: 2ABAV0203001 Equipment Photographs Model: 0203001011 (External)

Label Location

INTERTEK TESTING SERVICE Report No.: 13051881HKG-010 FCC ID: 2ABAV0203001 Equipment Photographs Model: 0203001011 (Internal) INTERTEK TESTING SERVICE Report No.: 13051881HKG-010 FCC ID: 2ABAV0203001 Equipment Photographs Model: 0203001011 (Internal) INTERTEK TESTING SERVICE Report No.: 13051881HKG-010 FCC ID: 2ABAV0203001 Equipment Photographs Model: 0203001011 (Internal) INTERTEK TESTING SERVICE Report No.: 13051881HKG-010 FCC ID: 2ABAV0203001 Equipment Photographs Model: 0203001011 (Internal) INTERTEK TESTING SERVICE Report No.: 13051881HKG-010 FCC ID: 2ABAV0203001 Equipment Photographs Model: 0203001011 (Internal)

Analysis Report Report No.: 130521881HKG-010 The Equipment Under Test (EUT) is a transceiver and it is a RF power socket. The EUT operates in the frequency is 921.286MHz (single channel). The EUT is powered by 120VAC. When the EUT is powered on, the LED will flash. The socket starts searching for corresponding control hub. After pairing, the LED will stop flashing. Antenna Type: Internal helical antenna Antenna Gain: 0dBi Nominal rated field strength: 83.2dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 86.2dBμV/m at 3m in frequency 0.921286GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.125mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.125mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (0.921286) mW = 15.63 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13051881HKG-010 i FCC ID: 2ABAV0203001 IC: 11561A-0203001 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Liricco Technologies Limited BRAND NAME: Valta Socket MODEL: 0203001011, 0203001012, 0203001013 FCC ID: 2ABAV0203001 IC: 11561A-0203001 Grantee: Liricco Technologies Limited Grantee Address: Rm. 213, 2/F., Enterprise Place, Hong Kong Science Park, Shatin, New Territories, Hong Kong. Contact Person: Angela Ng Tel: (852) 26903691 Fax: (852) 26903693 e-mail: [email protected] Manufacturer: Dongguan Richtek Electronics Co., Ltd Manufacturer Address: 508, Bldg.4, Tech Innovation Park, Songshan Lake National Hi-Tech Industrial Development Zone, Dongguan, Guangdong 523808, China. Brand Name: Valta Socket Model: 0203001011, 0203001012, 0203001013 Type of EUT: Transceiver Description of EUT: Valta Socket Serial Number: N/A FCC ID / IC: 2ABAV0203001 / 11561A-0203001 Date of Sample Submitted: Oct 21, 2013 Date of Test: Oct 29, 2013 to December 02, 2013 Report No.: 13051881HKG-010 Report Date: January 13, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13051881HKG-010 ii FCC ID: 2ABAV0203001 IC: 11561A-0203001 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT Liricco Technologies Limited BRAND NAME: Valta Socket MODEL: 0203001011, 0203001012, 0203001013 FCC ID: 2ABAV0203001 IC: 11561A-0203001 TEST SPECIFICATION REFERENCE RESULTS Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.4 Pass Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition RSS-210 Issue 8, December 2010 RSS-Gen Issue 3, December 2010 Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13051881HKG-010 iii FCC ID: 2ABAV0203001 IC: 11561A-0203001 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 2 1.4 Test Facility .................................................................................................. 2 2.0 System Test Configuration............................................................................ 3 2.1 Justification................................................................................................... 3 2.2 EUT Exercising Software .............................................................................. 3 2.3 Special Accessories...................................................................................... 3 2.4 Equipment Modification................................................................................. 4 2.5 Measurement Uncertainty ............................................................................. 4 2.6 Support Equipment List and Description........................................................ 4 3.0 Emission Results ........................................................................................... 5 3.1 Field Strength Calculation ............................................................................. 5 3.2 Radiated Emission Configuration Photograph ............................................... 6 3.3 Radiated Emission Data ............................................................................... 6 3.4 Conducted Emission Configuration Photograph ............................................ 6 3.5 Conducted Emission Data....................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 13051881HKG-010 FCC ID: 2ABAV0203001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: 0203001011 Radiated Emission 0203001011 13051881HKG-010 A  B  INTERTEK TESTING SERVICE Report No: 13051881HKG-010 FCC ID: 2ABAV0203001 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: 0203001011 Radiated Emission 0203001011 13051881HKG-010 A  B 

INTERTEK TESTING SERVICE Report No: 13051881HKG-010 FCC ID: 2ABAV0203001 i Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) Model: 0203001011 INTERTEK TESTING SERVICE Report No: 13051881HKG-010 FCC ID: 2ABAV0203001 ii Configuration Photographs Worst-Case Line-Conducted Emissions (Rear View) Model: 0 203001011 INTERTEK TESTING SERVICE Report No: 13051881HKG-010 FCC ID: 2ABAV0203001 iii Configuration Photographs Worst-Case Line-Conducted Emissions (Side View) Model: 0 203001011
