2ABAW-QDWT001Wireless sensor transmitter and receiver

105 Lexington Rd. Unit #1, Waterloo, Ontario, N2J 4R7, Canada Phone: +1-519-725-8365 www.QDACSystems.com Product Information Sheet QDAC Wireless Tag Version 1.0 WT001 By QDAC Systems 105 Lexington Rd, Unit #1, Waterloo, Ontario, N2J 4R7, Canada Page: 2 Phone: +1-519-725-8365 www.QDACSystems.com Product Name QDAC Wireless Tag Model Number WT001 Document Release Date November 15 2013 Document Version 1.0 1 Product Description The QDWT001 is a fully self contained wireless RF tag that uses a transceiver operating at 433 MHz to send data it has recorded from an externally connected digital sensor and to receive commands. The tag will respond to commands that will change operating parameters like logging data internally until the unit is able to communicate with a receiver to offload data. The tag includes an external connector to which a digital sensor, like a temperature probe, can be connected. Characteristic Value Radio Frequency 433 MHz Radio Transmit Power 10 dBm Transmission Rate Variable - maximum of once every 10 seconds Transmission Duration 12.5 milli-seconds per transmission Battery Internal Lithium Operating Temperature -40 C to +80 C External Sensor Connector 5 pin IP69k rated connector for external digital sensor Enclosure IP69k UV Stabilized ABS 2 Regulatory Conformance & Compliance Statements The FCC ID for this device is 2ABAW-QDWT001. The FCC authorization has been granted to (ie. "grantee"): QDAC Inc. 105 Lexington Rd. Waterloo ON N2J 4R7 Canada 519-725-8365 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 105 Lexington Rd, Unit #1, Waterloo, Ontario, N2J 4R7, Canada Page: 3 Phone: +1-519-725-8365 www.QDACSystems.com This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense. CAUTION: Any changes or modifications to this unit not expressly approved by QDAC Inc. could void the user’s authority to operate this equipment. Industry Canada Compliance Statement Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Déclaration d’Industrie Canada Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

105 Lexington Rd. Unit #1, Waterloo, Ontario, N2J 4R7, Canada Phone: +1-519-725-8365 Fax: +1-519-725-8370 www.QDACSystems.com January 28, 2014 Subject: FCC Attestation Letter Applicant: QDAC Inc. FCC ID: 2ABAW-QDWT001 FCC Grantee Code: 2ABAW FRN: 0023098460 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: January 28, 2014 SUBJECT: FCC Application for FCC ID: 2ABAW-QDWT001 To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Verification Authorization procedure pursuant to Part 15, Subpart B - Unintentional Radiators, portion of this composite filing. Regards,

January 30, 2014 Ultratech Engineering Labs, Inc. 3000 Bristol Circle Oakville, Ontario L6H 6G4 Subject: Application for Equipment Certification under FCC Part 15, Subpart C, Section 15.231 Momentarily Operation at 433.92 MHz Applicant: QDAC Inc. Product: QDAC Wireless Sensor Tag Model No.: WT001 FCC ID: 2ABAW-QDWT001 Dear Sir/Madam: As appointed agent for QDAC Inc., we submit this application for equipment certification of the above product. Kindly review all required documents uploaded to your E-Filing Site. If you have any queries, please do not hesitate to contact us. Yours truly, Dan Huynh Dan Huynh Authorized Agent UltraTech Group of Labs FCC TCB & IC CB Ultratech’s Accreditations: 0685 91038 1309 46390-2049 NVLAP LAB CODE 200093-0 SL2-IN-E-1119R Korea KCC-RRA CA2049 TL363_B TPTDP DA1300 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected]

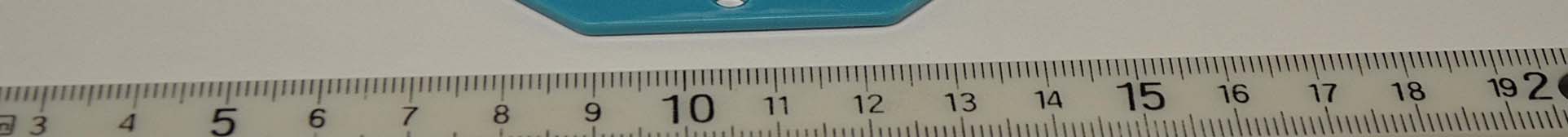

105 Lexington Rd. Unit #1, Waterloo, Ontario, N2J 4R7, Canada Phone: +1-519-725-8365 Fax: +1-519-725-8370 www.QDACSystems.com Subject: QDWT001 Label Location Applicant: QDAC Inc. IC: 11259A-QDWT001 FCC ID: 2ABAW-QDWT001 FCC Grantee Code: 2ABAW Note, dimensions of ruler are in Inches.

QDAC Wireless Sensor Tag Model: WT001 FCC ID: 2ABAW-QDWT001 Applicant: QDAC Inc. 105 Lexington Rd. Unit #1 Waterloo, Ontario Canada N2J 4R7 In Accordance With Federal Communications Commission (FCC) Part 15, Subpart C, Section 15.231 Low Power Transmitter & Momentarily Operation (433.92 MHz) UltraTech's File No.: QDAC-004F15C231R01 This Test report is Issued under the Authority of Tri M. Luu Vice President of Engineering UltraTech Group of Labs Date: March 3, 2014 Report Prepared by: Dan Huynh Issued Date: March 3, 2014 Tested by: Mr. Hung Trinh Test Dates: December 13 & 16, 2013  The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected.  This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] Korea KCC-RRA 91038 1309 46390-2049 NVLAP LAB CODE 200093-0 SL2-IN-E- 1119R CA2049 FCC Part 15, Subpart C, Section 15.231 QDAC Wireless Sensor Tag, Model: WT001 FCC ID: 2ABAW-QDWT001 ULTRATECH GROUP OF LABS File #: QDAC-004F15C231R01 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 March 3, 2014 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION.............................................................................................................................................. 1 1.1. SCOPE ........................................................................................................................................................................ 1 1.2. RELATED SUBMITTAL(S)/GRANT(S) ........................................................................................................................ 1 1.3. NORMATIVE REFERENCES ...................................................................................................................................... 1 EXHIBIT 2. PERFORMANCE ASSESSMENT.................................................................................................................... 2 2.1. CLIENT INFORMATION .............................................................................................................................................. 2 2.2. EQUIPMENT UNDER TEST (EUT) INFORMATION ................................................................................................... 2 2.3. EUT’S TECHNICAL SPECIFICATIONS....................................................................................................................... 3 2.4. LIST OF EUT’S PORTS............................................................................................................................................... 3 2.5. ANCILLARY EQUIPMENT ........................................................................................................................................... 3 2.6. TEST SETUP BLOCK DIAGRAM ................................................................................................................................ 4 EXHIBIT 3. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS............................................... 5 3.1. CLIMATE TEST CONDITIONS.................................................................................................................................... 5 3.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TESTS..................................................................... 5 EXHIBIT 4. SUMMARY OF TEST RESULTS ..................................................................................................................... 6 4.1. LOCATION OF TESTS ................................................................................................................................................ 6 4.2. APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS ....................................................................... 6 4.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES ................................................ 6 EXHIBIT 5. TEST DATA ..................................................................................................................................................... 7 5.1. PROVISIONS FOR PERIODIC TRANSMITTERS [47 CFR 15.231(a)] ....................................................................... 7 5.2. TRANSMITTER RADIATED EMISSIONS [47 CFR §§ 15.231(b), 15.209 & 15.205]................................................... 8 5.3. 20 dB BANDWIDTH [47 CFR 15.231(c)].................................................................................................................... 12 EXHIBIT 6. TEST EQUIPMENT LIST ............................................................................................................................... 13 EXHIBIT 7. MEASUREMENT UNCERTAINTY................................................................................................................. 14 7.1. LINE CONDUCTED EMISSION MEASUREMENT UNCERTAINTY ......................................................................... 14 7.2. RADIATED EMISSION MEASUREMENT UNCERTAINTY .......................................................................................14 FCC Part 15, Subpart C, Section 15.231 Page 1 of 14 QDAC Wireless Sensor Tag, Model: WT001 FCC ID: 2ABAW-QDWT001 ULTRATECH GROUP OF LABS File #: QDAC-004F15C231R01 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 March 3, 2014 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Te…

Text truncated - open the document above for the full version.

ANNEX 1 - TEST SETUP PHOTOGRAPHS QDAC Inc. QDAC Wireless Sensor Tag, Model WT001 FCC ID: 2ABAW-QDWT001 A1 - 1 Radiated Emissions at 3m Distance Orthogonal Position 1 ANNEX 1 - TEST SETUP PHOTOGRAPHS QDAC Inc. QDAC Wireless Sensor Tag, Model WT001 FCC ID: 2ABAW-QDWT001 A1 - 2 Radiated Emissions at 3m Distance Orthogonal Position 2 ANNEX 1 - TEST SETUP PHOTOGRAPHS QDAC Inc. QDAC Wireless Sensor Tag, Model WT001 FCC ID: 2ABAW-QDWT001 A1 - 3 Radiated Emissions at 3m Distance Orthogonal Position 3
