2ABB6-DX020Heated insole with Remote control

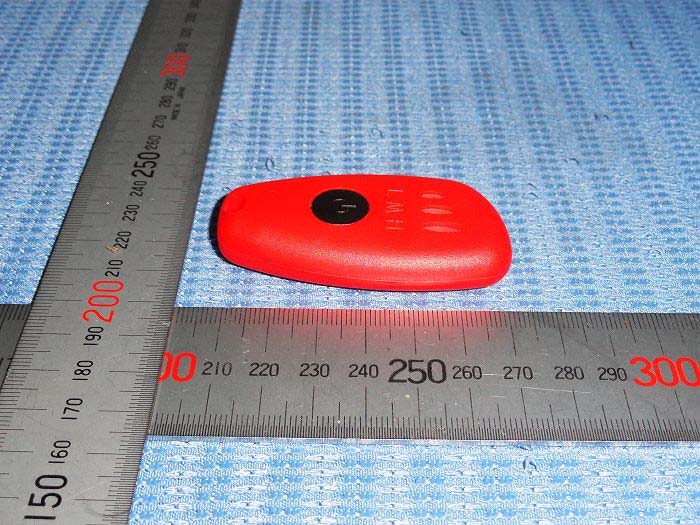

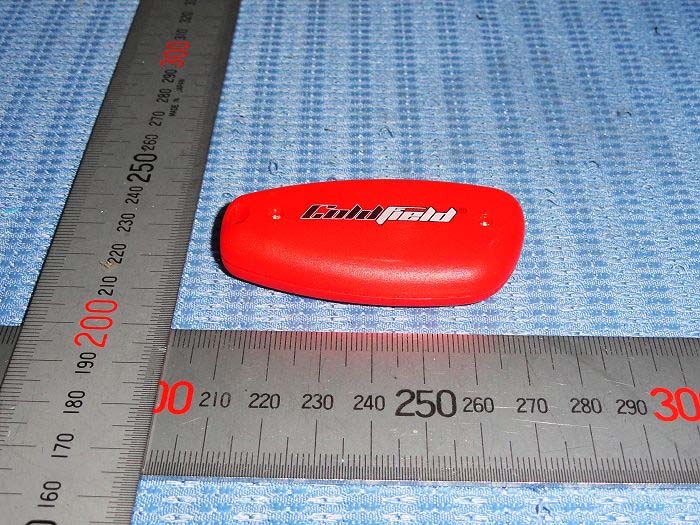

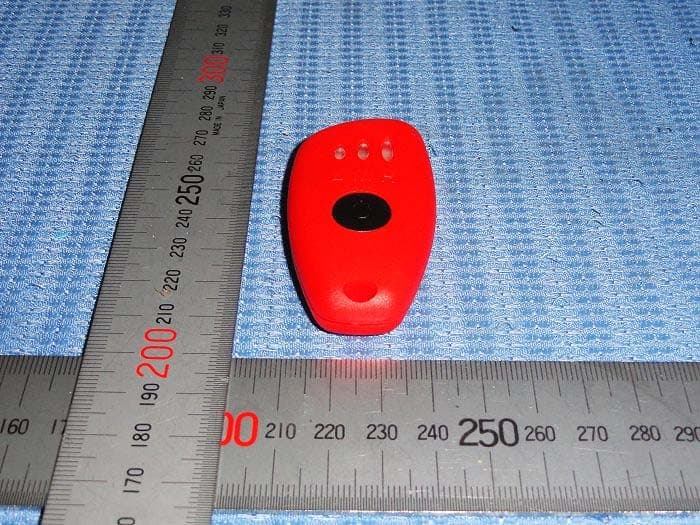

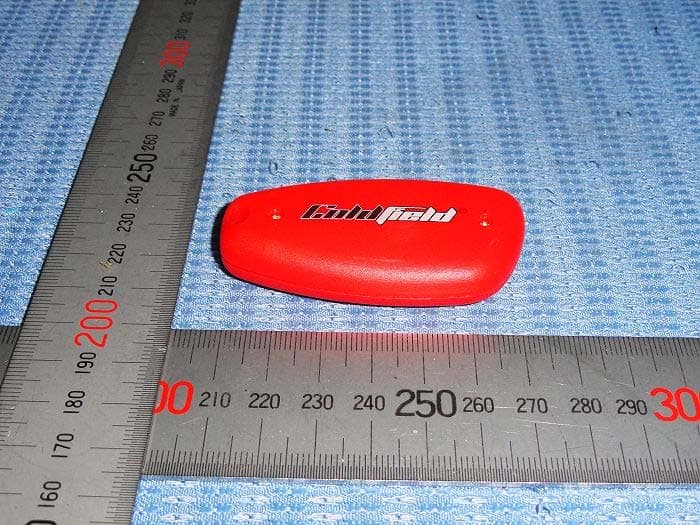

*Using Heating insole 1, Match remote control with heating insole The first using: move the button to left, then the light is quickly flash, means is “ ON”. Press the button right to “ OFF”, This is for recharge situation 2, Remote control: （Three steps adjust） ①.ON is the first step,The LED is flash at L position quickly. The temperature is from 35°C to 37°C cyclically heating. ②.The second step,The LED flash at M position.The temperature is from 35°C to 44°C cyclically heating. ③.The third step,The LED flash at H position. The temperature is from 35°C (87.8°F)to 48°C cyclically heating. ④.OFF, all LED flash same time, means closed 3.Using Heating Insole button. There is another LED inside insole as indicateor light Put buttom to left, is heating situation, the LED will flash about 5 seconds per time when in L heat postion. Same way, the LED will flash 2 times per 5 seconds when in M postion, LED will flash 3times per 5 seconds in H position Notice 1.Charging: When heating insole is charging,the charginger’s LED is red. When it is fully charged,the LED is green. For the first charging,continue to charge 3 to 4 hours after fully charged. 2. Storage: When you do not use the heated insole. Please it fully charging . To assure the performance of the battery, give it recharge every 90 days. Keep it in the cool and dry place. 3.Do not put the insole in water , fire, wet and high temperature place. Do not strike heated insole. Do not dismantle, so as to avoid causing danger or damage to the heated insole. 4.Do not wear the heated insole to run,climb,play ball,skake or other aggravating activities, so as to avoid causing danger or damage to the heated insole. 5,when charge, please turn the button to right Measurement: 1# size 36—38, 2# size 39—41, 3# size 42--44 , 4# size 45—47. Trim to fit if needed. Applicable shoes: Suit for men & ladies all kind of shoes e.g. .shoe leather, boot, cloth shoes, casual shoes, sport shoes etc. Applicable people: all the people , especially student, teacher, worker, armyman, policeman and out door working people ect Factory Configuration a pair of insoles, a piece of battery Charger, a package bag or carton. The product has applied for patents. Do not copy. Imitation must investigate and affix liability. FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

DATE : Nov 18, 2013 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ABB6-DX020 Product Name: Heated insole with Remote control Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this Nov 18, 2013 Agency agreement expiration date: Usually Give 8 - 12 Months By: Henry Liu Signature Printed Title: Manager On behalf of : NINGHAI DONG XIANG LEISURE CO.,LTD Telephone: +86-574-65591816

FCC ID: 2ABB6-DX020

ISO/IEC17025Accredited Lab. Report No: FCC 1310164-01 File reference No: 2013-11-05 Applicant: NINGHAI DONG XIANG LEISURE CO.,LTD Product: Heated insole with Remote control Model No: DX020 Trademark: N/A Test Standards: FCC Part 15 Subpart C, Paragraph 15.231 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4&FCC Part 15 Subpart C, Paragraph 15.231 regulations for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: November 05, 2013 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO LTD 5/F,Block 4, Anhua Industrial Zone.,No.8 TaiRan Rd.CheGongMiao,FuTian District, Shenzhen,CHINA. Tel (755) 83448688 Fax (755) 83442996 Report No: 1310164-01 Page 2 of 25 Date: 2013-11-05 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement˖ The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meets with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:1999 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.:899988. IC-Registration No.: IC5205A-02 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration No.: IC 5205A-02. Report No: 1310164-01 Page 3 of 25 Date: 2013-11-05 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT .......................................................................................... 4 1.4 Submitted Sample............................................................................................. 4 1.5 Test Duration.................................................................................................... 5 1.6 Test Uncertainty.................................................................................................5 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment......................................................................... 6 3.0 Technical Details............................................................................................. 7 3.1 Summary of Test Results..................................................................................... 7 3.2 Test Standards.................................................................................................. 7 4.0 EUT Modification............................................................................................. 7 5.0 Power Line Conducted Emission Test...................................................................... 8 5.1 Schematics of the Test........................................................................................ 8 5.2 Test Method and Test Procedure............................................................................ 8 5.3 Configuration of the EUT.................................................................................... 8 5.4 EUT Operating Condition......................................…
