2ABC4CAC3Access control terminal

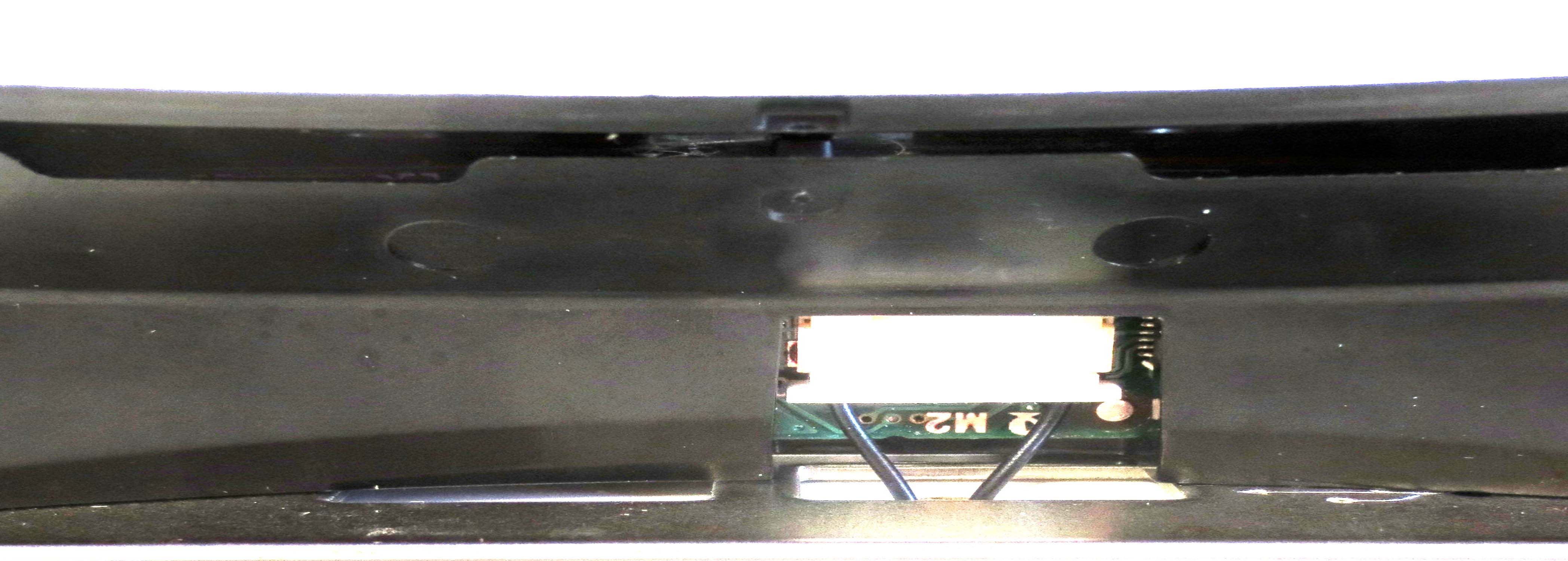

Installation of OWS Spider and CAC Module HT24 Lock Regulatory Information Federal Communications Commission (FCC) Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Copyright 2014 – Not for distribution without express permission from OpenWays 2 Version 1.5 Regulatory Information NFC TYPES MODULATION FREQUENCY TYPE A UPLINK ASK 100% 13.56 MHz DOWNLINK LOAD MODULATION(ASK) 13.56 Mhz + 848 kHz subcarrier TYPE B UPLINK ASK 10% 13.56 MHz DOWNLINK LOAD MODULATION(BPSK) 13.56 Mhz + 848 kHz subcarrier TYPE F UPLINK ASK 10% 13.56 MHz DOWNLINK LOAD MODULATION(ASK) 13.56 MHz Copyright 2014 – Not for distribution without express permission from OpenWays 3 Version 1.5 Items Needed •T-10 Screw driver •Phillips Screwdriver •Flat head screwdriver •Complete CAC All-In-One Kit •Complete HT Spider Kit •HT CAC Mounting Plate Copyright 2014 – Not for distribution without express permission from OpenWays 4 Version 1.5 Tools and Parts Required •T-10 (Torx) Screwdriver •HT Spider •HT Harness •CAC AIO Module •HT CAC Wedge Copyright 2014 – Not for distribution without express permission from OpenWays 5 Version 1.5 Remove HT Lock from Door •Starting with the Inside trim remove the thumb-turn and handle Copyright 2014 – Not for distribution without express permission from OpenWays 6 Version 1.5 Remove HT Lock from Door •Using a T-10 screwdriver and turning the thumb turn to project the dead-bolt remove the screws Copyright 2014 – Not for distribution without express permission from OpenWays 7 Version 1.5 Remove HT Lock from Door •Before removing the thumb-turn return it to the original position (dead-bolt retracted into lock case) Copyright 2014 – Not for distribution without express permission from OpenWays 8 Version 1.5 Remove HT Lock from Door •With a flat head screw driver use the notch at the bottom to pry the escutcheon off the inside trim. •Be careful not to scratch the escutcheon or the door. Copyright 2014 – Not for distribution without express permission from OpenWays 9 Version 1.5 Remove HT Lock from Door •Unplug the privacy wire Copyright 2014 – Not for distribution without express permission from OpenWays 10 Version 1.5 Remove HT Lock from Door •Remove the 4 screws •Be careful, as these screws are removed the outside trim will be free come off the door •Also, if there are no screws holding this plate on the door, it will fall off •If these screws are present there is no need to remove them Copyright 2014 – Not for distribution without express permission from OpenWays 11 Version 1.5 Remove HT Lock from Door •Pull the Outside trim off the door Copyright 2014 – Not for distribution without express permission from OpenWays 12 Version 1.5 Install Spider Board •Remove the six screws holding on the back plate of the lock Copyright 2014 – Not for distribution without express permission from OpenWays 13 Version 1.5 Install Spider Board •Lift clips (if present) on both sides of the plug •Unplug Reader cable •Unplug the Power cable Copyright 2014 – Not for distribution without express permission from OpenWays 14 Version 1.5 Install Spider Board •Connect Harness Copyright 2014 – Not for distribution without express permission from OpenWays 15 Version 1.5 Install Spider Board •Flip the HT Reader cable up and insert it into the spider reader port Spider reader port 1 2 Copyright 2014 – Not for distribution without express permission from OpenWays 16 Version 1.5 Install Spider Board •Flip the spider down until the it is lays over the HT24 Main PCB as shown Copyright 2014 – Not for distribution without express permission from OpenWays 17 Version 1.5 Install Spider Board •Plug the Spider power cable into the HT24 main PCB power port •Plug the HT24 power cable into the Spider power port 1 2 3 Copyright 2014 – Not for distribution without express permission from OpenWays 18 Version 1.5 Re-Assemble Lock •Plug the privacy wire back into lock PCB •The plug has 3 pins, the port on the PCB may have 5 pins. It this is the case insert the plug in the center. Leaving 1 pin on each side Copyright 2014 – Not for distribution without express permission from OpenWays 19 Version 1.5 Re-Assemble Lock •Make sure CAC wires have not overlapped •Place the back plate on the lock pulling the excess privacy wire through the grommet •Leave about 2 inches (5 centimeters) of the harness outside the lock Copyright 2014 – Not for distribution without express permission from OpenWays 20 Version 1.5 Re-Assemble Lock •Replace 6 T-10 screws Copyright 2014 – Not for distribution without e…

Text truncated - open the document above for the full version.

Installation of OWS Spider and CAC Module HT28 Lock Regulatory Information Federal Communications Commission (FCC) Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Copyright 2014 – Not for distribution without express permission from OpenWays Version 1.5 2 Regulatory Information NFC TYPES MODULATION FREQUENCY TYPE A UPLINK ASK 100% 13.56 MHz DOWNLINK LOAD MODULATION(ASK) 13.56 Mhz + 848 kHz subcarrier TYPE B UPLINK ASK 10% 13.56 MHz DOWNLINK LOAD MODULATION(BPSK) 13.56 Mhz + 848 kHz subcarrier TYPE F UPLINK ASK 10% 13.56 MHz DOWNLINK LOAD MODULATION(ASK) 13.56 MHz Copyright 2014 – Not for distribution without express permission from OpenWays Version 1.5 3 Items Needed •T-10 Screw driver •Phillips Screwdriver •Flat head screwdriver •Complete CAC All-In-One Kit •Complete HT Spider Kit •HT CAC Mounting Plate Copyright 2014 – Not for distribution without express permission from OpenWays Version 1.5 4 Tools and Parts Required •T-10 (Torx) Screwdriver •HT Spider •HT Harness •CAC AIO Module •HT CAC Wedge Copyright 2014 – Not for distribution without express permission from OpenWays Version 1.5 5 Remove HT Lock from Door •Starting with the Inside trim remove the thumb-turn and handle Copyright 2014 – Not for distribution without express permission from OpenWays Version 1.5 6 Remove HT Lock from Door •Using a T-10 screwdriver and turning the thumb turn to project the dead-bolt remove the screws Copyright 2014 – Not for distribution without express permission from OpenWays Version 1.5 7 Remove HT Lock from Door •Before removing the thumb-turn return it to the original position (dead-bolt retracted into lock case) Copyright 2014 – Not for distribution without express permission from OpenWays Version 1.5 8 Remove HT Lock from Door •With a flat head screw driver use the notch at the bottom to pry the escutcheon off the inside trim. •Be careful not to scratch the escutcheon or the door. Copyright 2014 – Not for distribution without express permission from OpenWays Version 1.5 9 Remove HT Lock from Door •Unplug the privacy wire Copyright 2014 – Not for distribution without express permission from OpenWays Version 1.5 10 Remove HT Lock from Door •Remove the 4 screws •Be careful, as these screws are removed the outside trim will be free come off the door •Also, if there are no screws holding this plate on the door, it will fall off •If these screws are present there is no need to remove them Copyright 2014 – Not for distribution without express permission from OpenWays Version 1.5 11 Remove HT Lock from Door •Pull the Outside trim off the door Copyright 2014 – Not for distribution without express permission from OpenWays Version 1.5 12 Install Spider Board •Remove the six screws holding on the back plate of the lock Copyright 2014 – Not for distribution without express permission from OpenWays Version 1.5 13 Install Spider Board •Lift black clip and remove reader cable •Unplug the Power cable Copyright 2014 – Not for distribution without express permission from OpenWays Version 1.5 14 Install Spider Board •Flip the HT Reader cable up and insert it into the spider reader port Spider reader port 1 2 Copyright 2014 – Not for distribution without express permission from OpenWays Version 1.5 15 Install Spider Board •Flip the spider down until it is lays over the HT28 Main PCB as shown Copyright 2014 – Not for distribution without express permission from OpenWays Version 1.5 16 Install Spider Board •Insert the Spider into the reader port and close the clip as shown Copyright 2014 – Not for distribution without express permission from OpenWays Version 1.5 17 Install Spider Board •Plug the lock Power into the Spider power port •Tuck the power cable to the side of PCB power port •Plug Spider power to main PCB 1 2 3 Copyright 2014 – Not for distribution without express permission from OpenWays Version 1.5 18 Install Spider Board •Connect Harness Copyright 2014 – Not for distribution without express permission from OpenWays Version 1.5 19 Re-Assemble Lock •Plug the privacy wire back into lock PCB •The plug has 3 pins, the port on the PCB may have 5 pins. It this is the case insert the plug in the center. Leaving 1 pin on each side Copyright 2014 – Not for distribution without express permission from OpenWays Version 1.5 20 Re-Assemble Lock •Make sure CAC wires have not overlapped •Place the back plate on the lock pulling the excess privacy wire through the grommet •Leave about 2 inches (5 centimeters) of the harness outside the lock Copyright 2014 – No…

Text truncated - open the document above for the full version.

CAC3 Antenna PCB Top layout Figure 1: Top layout Bottom layout Figure 2: Bottom layout

CAC3 AIO Mainboard PCB Board Pictures Figure 1: PCB top side Figure 2: PCB bottom side
