2ABDCBH-06Bluetooth Stereo Headset

1 User’s manual BH-06 Bluetooth Stereo Headset SPECIFICATIONS Model no BH-06 Version. Bluetooth V.3.0+EDR Bluetooth Profiles HSP,HFP,A2DP,AVRCP Effective Range 10Meters Music Time 15 Hours Talk Time 18Hours Standby Time Up to 250 Hours Input DC : 5V/500ma Charge Time 4~5Hours Dimensions 19*21.5*8.5cm 2 About BH-06 BH-06 is a stereo headset with Bluetooth technology. It supports the following Bluetooth profiles: HSP —— Speaker Profile HFP —— Hands-free Profile A2DP—— Advanced Audio Distribution Profile AVRCP——Audio/Video Remote Control Profile Overview 1 2 Volume UP 3 MFB 4 Volume down 5 Next 6 microphone 7 preview 8 3.5 headset port 9 micro USB power charger port 3 Rotating BH‐06 can offer rotating function , it can save a lot of space when you carry BH‐06 away. 3.5 headset port When battery is run out or you want to use BH‐06 in some place not allow use Bluetooth , you can easy plug 3.5 headset cable to 3.5 headset port, and easy use BH‐06 just like cable headset. Charging the battery with USB cable • Step1: Insert USB charging cable into any USB port have more than 500ma (PC/NB/power bank/adapter) • Step2: Connect charging cable with the charging port of BH-06. • When the red light is on, the BH-06 is charging. • When the blue light is on, the BH-06 battery is charged fully. • It takes about 4~5 hours to full charge the battery. Warning: • The battery is rechargeable. • First time charging : Before use BH-06, please charge the battery fully 4 How to use A. power on and paring long push MFB button till headset have “power on” and “paring” notice,BH-06 will waiting for paring with voice device. Then the red/blue LED will become blink alternately. B. Pairing the BH-06 with Bluetooth devices Be sure BH-06 in paring mode first. Press and hold the MFB for 3 seconds, till Red and blue Led blink alternately, or you hear the indication “Do Do” twice come out. And then release the MFB. The unit will become pairing mode. B) Pairing the BH-06 with Bluetooth device (mobile phone, pad, notebook...) Please make sure your Bluetooth device has Bluetooth function that can be used. Specific pairing procedures were not the same with different Bluetooth device. Please refer to your Bluetooth device manual for further information. Steps as follows: a) Please keep the BH-06 and Bluetooth device in the range of 1 meter when pairing. b) Start the Bluetooth device and search the Bluetooth devices. c) Wait the BH-06 enter into pairing mode (Please refer to “how to enter into pairing mode”). After got the BH-06 on the list, select “BH-06”in the Bluetooth device list. a) Almost all Bluetooth device no need enter pass word but some version Bluetooth device maybe need it, if need it ,the password is”0000”, and press the key of” Yes” or “confirmed”. b) After successful pairing, select “BH-06” in the Bluetooth device list, and press “connect”. c) After successful connecting, the blue LED of the BH-06 will quickly blinks twice or three times every 4 seconds. 5 Making calls with the BH-06 Function Status of BH-06 Operation Redial last number Standby mode Short press MFB twice quickly Volume up Conversation mode Short press or hold + key. When the volume is adjusted to max, you will hear an indication tone. Volume down Conversation mode Short press or hold – key. When the volume is adjusted to min, you will hear an indication tone. Answer calling Ringing Short press MFB Reject calling Ringing Short press MFB twice quickly Playing music When the BH-06 connects with the Bluetooth device which supports A2DP, you can enjoy music through BH-06. Function Status of headset Operation Pause Playing music Short press MFB Play Standby Short press MFB Last song Playing music Press “ “ key Next song Playing music press “ ” key Volume up Playing music push “ +” key. When the volume is adjusted to max, you will hear an indication tone. 6 Volume down Playing music press “– “key. When the volume is adjusted to min, you will hear an indication tone. Notes: . • When you use BH-06 remote control the function of last song/next song/pause, it needs your mobile phone or Bluetooth transmitter supports AVRCP. Please refer to the instruction of your mobile phone or Bluetooth transmitter. for further information. LED indicator A) In Charging mode LED indicator Status of the BH-06 Red LED is on Charging Blue LED is on Finish charging B) In use mode LED Indicator Status of the headset Red and blue LEDs blink alternately Pairing mode Blue LED quickly blinks once every 2 seconds. Not connected to a device Blue LED gradually turns on and off Conversation mode Red LED blinks twice every 20 seconds Low power Note. Re-connecting to a Bluetooth device 1.Automatic connecting Every time the BH-06 is power on, it will connect to the last connected device, and connected automatically. 2.Manual connecting to last connected device When the BH-06 in standby mode and did not connect to any devices, short press MFB button once, it will connect to last connected device automatically. 7 FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Inc…

Text truncated - open the document above for the full version.

DATE : 19 November 2013 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen TCT Testing Technology Co.,Ltd __1F, Building 1, Yibaolai Industrial Park, Qiaotou Village, Fuyong Town,Baoan District, Shenzhen, China. Jack.kang, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with BRIGHT DRAGON TECHNOLOGY LIMITED FLAT 52, 9/F., SINO LND.PLAZA, NO.9, KAI CHEUNG RD., KOWLOONBAY, KLN. H.K. Dated this 19 November 2013 Agency agreement expiration date: 20 October 2014 By: GARY PAI Signature Printed Title: Manager On behalf of : BRIGHT DRAGON TECHNOLOGY LIMITED Telephone: 86-13602681220

DATE : 19 November 2013 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ABDCBH-06__ _ Product Name: Bluetooth Stereo Headset Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 19 November 2013 By: GARY PAI Signature Printed Title: Manager On behalf of : BRIGHT DRAGON TECHNOLOGY LIMITED Telephone: 86-13602681220

Statement We need adding models for certificate approval is BH-01, BH-01A, BH-01B, BH-02, BH-02A, BH-02B, BH-03, BH-03A, BH-03B, BH-04, BH-04A, BH-04B, BH-05, BH-05A, BH-05B, BH-06A, BH-06B, BH-07, BH-07A, BH-07B, BH-08, BH-08A, BH-08B, BH-09, BH-09A, BH-09B, Xtream H2, Xtream H3. The basic Model NO.: BH-06 WE HEREBY STATE THAT THESE MODELS ARE IDENTICAL IN INTERIOR STRUCTURE, ELECTRICAL CIRCUITS AND COMPONENTS, AND JUST MODEL NAMES ARE DIFFERENT FOR THE MARKETING REQUIREMENT. Your assistance on this matter is highly appreciated. Yours sincerely, Signature: Date: 2013/11/19 GARY PAI /Manager Company Name: BRIGHT DRAGON TECHNOLOGY LIMITED Address: FLAT 52, 9/F., SINO LND.PLAZA, NO.9, KAI CHEUNG RD., KOWLOONBAY, KLN. H.K.

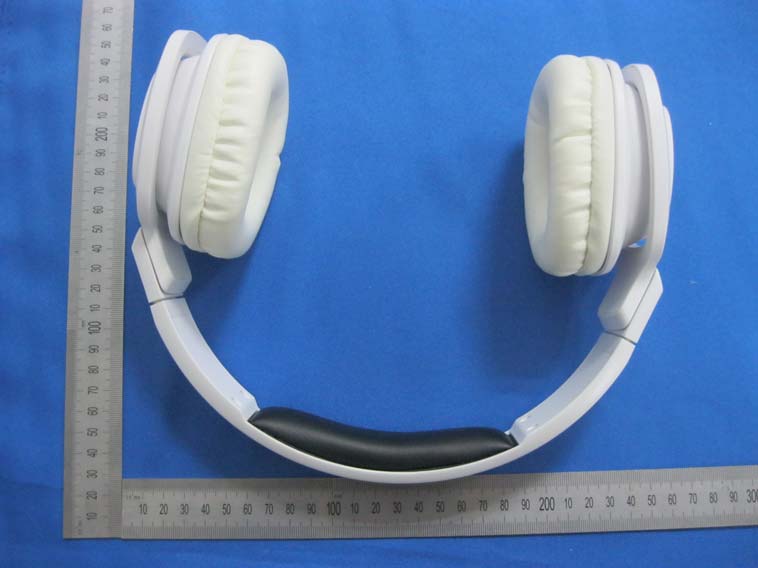

External photo

LABEL ARTWORK AND LOCATION Label size: L*W=40*6mm FCC ID: 2ABDCBH-06 FCC ID Label Location

Internal photo

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2480MHz -0.95dBm(0.804mW) output power] (0.804 /5) ·[√2.480(GHz)]= 0.25 <3.0 for 1-g SAR Then SAR evaluation is not required

FCC ID TEST REPORT for Bluetooth Stereo Headset Model: BH-06 FCC ID: 2ABDCBH-06 Prepared for: BRIGHT DRAGON TECHNOLOGY LIMITED FLAT 52, 9/F., SINO LND.PLAZA, NO.9, KAI CHEUNG RD., KOWLOONBAY, KLN. H.K. Prepared by: Shenzhen TCT Testing Technology Co.,Ltd 1F, Building 1, Yibaolai Industrial Park, Qiaotou Village, Fuyong Town, Baoan District, Shenzhen, Guangdong, China TEL: +86-0755-27673339 FAX: +86-0755-27673332 Report Number：TCT131108016F2-1 Date of Test： Nov. 11-Nov. 20, 2013 Date of Report： Nov. 20, 2013 The results detailed in this test report relate only to the specific sample(s) tested. It is the Application’s responsibility to ensure that all production units are manufactured with equivalent EMC characteristics. This report is not to be reproduced except in full, without written approval from TCT Testing Technology. FCC ID: 2ABDCBH-06 Report Number: TCT131108016F2-1 Page 2 of 53 Table of Contents 1.0 General Details................................................................................................................................................... 3 1.1 Test Lab Details ........................................................................................................................................... 3 1.2 Applicant Details ......................................................................................................................................... 3 1.3 Description of EUT...................................................................................................................................... 4 1.4 Statement ..................................................................................................................................................... 4 1.5 Test Engineer ............................................................................................................................................... 4 2.0 Test equipments and Associated Equipment used during the test................................................................. 5 2.1 Test Equipments........................................................................................................................................... 5 2.2 AE used during the test ................................................................................................................................ 5 3.0 Technical Details................................................................................................................................................ 6 3.1 Summary of test results ............................................................................................................................... 6 3.2 Test Standards .............................................................................................................................................. 6 4.0 EUT Modification.............................................................................................................................................. 6 5.0 Measurement Uncertainty（95% confidence levels, k=2)............................................................................. 6 6.0 Power Line Conducted Emission Test.............................................................................................................. 7 7.0 20dB Bandwidth Measurement...................................................................................................................... 11 8.0 Maximum Peak Output Power....................................................................................................................... 15 9.0 Carrier Frequency Separation........................................................................................................................ 21 10.0 Number of Hopping Channels...................................................................................................................... 25 11.0 Time of Occupancy (Dwell Time)................................................................................................................. 27 12.0 Band edge Measurement...............................................................................................................................31 13.0 Spurious Emission Test.................................................................................................................................. 40 14.0 Antenna Requirement................................................................................................................................... 52 15.0 FCC ID Label................................................................................................................................................. 53 FCC ID: 2ABDCBH-06 Report Number: TCT131108016F2-1 Page 3 of 53 1.0 General Details 1.1 Test Lab Details Name : Shenzhen Tongce Testing Lab Address: 1F, Leinuo Watch Building, Fuyong Town, Baoan Dist, Shenzhen, China Telephone: 13410377511 Fax: -- The test facility is recognized, certified, or accredited by the following organizations: FCC Registration Number: 572331 Shenzhen TCT Testing Technology Co., Ltd., Shenzhen EMC Laboratory: Shenzhen Tongce Testing Lab The 3m Semi-anechoic chamber has been registered and fully described in a report with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. Registration Number: 572331 Industry Canada (IC) The 3m Semi-anechoic chamber of Shenzhen TCT Testing Technology Co., Ltd. has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing Registration Number IC: 10668A-1 1.2 Applicant Details Applicant: BRIGHT DRAGON TECHNOLOGY LIMITED Address: FLAT 52, 9/F., SINO LND.PLAZA, NO.9, KAI CHEUNG RD., KOWLOONBAY, KLN. H.K. Telephone: -- Fax: -- Manufacturer: ODSONIC COMPUTER CO., Address: 4F. #5 BUILDING(JI AN TAI INDUSTRIAL PAPK) FU QIAO, FU YONG TOWN, BAO AN AREA, SHEN ZHEN, GUANGDONG P.R.C Telephone: 86-13602681220 Fax: 86-755-29929245 FCC ID…

Text truncated - open the document above for the full version.

Setup photo Radiated test Conducted test
