2ABEN-4ZH58Wireless Charger Transmitter

Head office, Hanrim B/D, 924, Kosaek‐Dong Kwonsun‐Gu, Suwon‐Si, Gyeonggi‐Do, Korea 13 December 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: I, the undersigned, hereby authorize Lab Manager Feel. Jeong (or Logan. Lee) and of SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Feel. Jeong (or Logan. Lee) of SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Jae‐kyung Lee Hanrim Postech Co., Ltd.

Head office, Hanri m B/D, 924, Kosaek-Dong Kwonsun-Gu, Suwon-si, Gyeonggi-Do, Korea 13 December 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Request of Confidentiality for FCC ID: 2ABEN-4ZH58 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Hanrim Postech Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain tr ade secrets and proprietary i nformation not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and pro vide unjustified benefits to its competito rs . We are also hereby request Short-Ter m Confidentiality fo r 180 days after the gr ant as outlined in Public Notice DA 04-1705. This pro vision will gi ve Hanrim Po ste ch Co., Ltd. temporary confidentiality of commercially sensitive information pr ior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Schematics 3Operation Description 4KDB Inquiry Short-Ter m 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and al l accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincere ly, Jae-kyung Lee Hanrim Postech Co., Ltd.

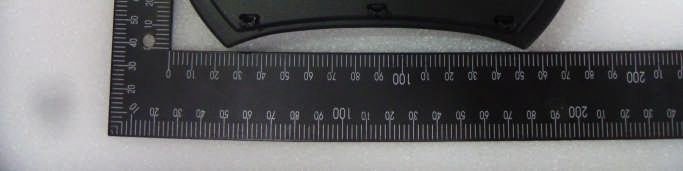

Model : 4ZH58-AP100/AP010 External photos of EUT Model : 4ZH58-AP100/AP010 Front view of EUT Rear view of EUT Model : 4ZH58-AP100/AP010 Top view of EUT Bottom view of EUT Model : 4ZH58-AP100/AP010 Side view of EUT

Hanrim Postech Co., Ltd. 4ZH58-AP100/AP010 Label Drawing Bo5om of Product Label

Model :4ZH58-AP100/AP010 Internal photos of EUT Model :4ZH58-AP100/AP010 Internal view of EUT Model :4ZH58-AP100/AP010 Top view of main board with shielding can Top view of main board without shielding can Loop Coil Antenna Model :4ZH58-AP100/AP010 Bottomview of main board with shielding can Bottom view of main board without shielding can

Report Number :F690501/RF-RTL007136-1 Page:2of16 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.ee.sgs.com/korea RTT5041-20(2013.07.27) (1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) INDEX TABLE OF CONTENTSPage 1. General Information -----------------------------------------------------------------------3 2. Test Result -----------------------------------------------------------------------------------8 Report Number :F690501/RF-RTL007136-1 Page:3of16 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.ee.sgs.com/korea RTT5041-20(2013.07.27) (1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) 1. General information 1.1. Testing laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 3FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 - 400-2, Gomae-dong, Giheung-gu, Yongin-si, Gyeonggi-do, Korea 446-901 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. :+82 31 428 5700 Fax No. :+82 31 427 2371 1.2. Details of applicant Applicant:Hanrim Postech Co., Ltd. Address: Head office, Hanrim B/D, 924, Kosaek-Dong, Kwonsun-Gu, Suwon-si, Gyeonggi-Do, Korea Contact Person:Lee, Jae Kyung Phone No.:+82 31 259 5170 1.3. Description of EUT Kind of Product Wireless charger transmitter Model Name 4ZH58-AP100/AP010 Power Supply DC 12.60 V (Used vehicle battery) Frequency Range 87㎑~ 110㎑ Operating Conditions -30°C~ 75°C Antenna Type Inductive loop coil antenna H/W version 50-231-011-01 S/W version V1.0.5 1.4. Declarations by the manufacturer - Operation temperature: -30°C~ 75°C 1.5. Test report revision RevisionReport numberDescription 0F690501/RF-RTL007136Initial 1F690501/RF-RTL007136-1 Added information item 5.2 of KDB 680106 Report Number :F690501/RF-RTL007136-1 Page:4of16 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.ee.sgs.com/korea RTT5041-20(2013.07.27) (1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) 1.6. Test Equipment List EquipmentManufacturerModelS/NCal DateCal IntervalCal Due. Spectrum Analyzer R&SFSV30101004Jul. 20, 2013 Annual Jul. 20, 2014 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 15191519-039Jul. 29, 2013BiennialJul. 29, 2015 E-Field Probe D.A.R.E Calibrations E-field probe 10㎑- 4㎓ 12I00078SNO11Nov. 23, 2012 Annual Nov. 23, 2013 B-Field ProbeNardaBN 2300/90.10J-0025Jan. 21, 2013AnnualJan. 21, 2014 Exposure Level Meter NardaELT-400J-0015Jan. 21, 2013AnnualJan. 21, 2014 Anechoic Chamber WILL TECHNOLOGY L × W × H (7.0 m × 4.0 m× 3.0 m) N/AN/AN/AN.C.R. Mobile Test Unit R&SCMU200109496Feb. 13, 2013 Annual Feb. 13, 2014 1.7. Worst case of test configurations In order to check all kinds of possible configurations, EUT was evaluated with appropriate client and under each charging condition as below table. EUT configuration Charging current (㎃) Mobile phoneDescription Charging Mode 1) with resistive load 25Maximum resistive load 250Medium resistive load 500Minimum resistive load Charging Mode 2) with client device (FCC ID : BCG-E2430A) A1387Less than 1 % of battery A1387Less than 50 % of battery A1387100 % full charging of battery Charging Mode 2) with client device (FCC ID : A3LSHVE300SA) SHV-E300SLess than 1 % of battery SHV-E300SLess than 50 % of battery SHV-E300S100 % full charging of battery 1) Test Jig was used during the test to satisfy each current status by using resistive loads. Output current = 25㎃/ 250㎃/ 500㎃ 2) WPC device with client device was investigated each battery status. Report Number :F690501/RF-RTL007136-1 Page:5of16 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.ee.sgs.com/korea RTT5041-20(2013.07.27) (1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) Battery status during charging condition : -Less than 1 % of battery -Less than 50 % of battery -100 % of battery Galaxy S4 (SHV-E300S) Plot#1 – less than 1 % of batteryPlot#2 – less than 50 % of batteryPlot#3 – 100 % of battery I Phone (A1387) Plot#1 – less than 1 % of batteryPlot#2 – less than 50 % of batteryPlot#3 – 100 % of battery Report Number :F690501/RF-RTL007136-1 Page:6of16 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.ee.sgs.com/korea RTT5041-20(2013.07.27) (1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) Operating configurations : Galaxy S4 (SHV-E300S) -While the client device was in airplane mode (Trace#1 “M1”) -While the client device was connected to an active data connection (Trace#2 “M2”) The device was tested under all modes and bands like 2G and 3G. In the result,GSM1900 / GPRS / 1 TXwas found inMiddle channel. -While the wireless charger is charging without the client device. (Trace#3 “M3”) -While the wireless charger is charging with …

Text truncated - open the document above for the full version.

Report Number:F690501/RF-RTL007137Page:2of17 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.ee.sgs.com/korea RTT5041-20(2013.07.27) (1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) INDEX TABLE OF CONTENTS Page 1. General Information --------------------------------------------------------------------------3 2. Field Strength of Fundamental & Spurious emissions -------------------------------9 Report Number:F690501/RF-RTL007137Page:3of17 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.ee.sgs.com/korea RTT5041-20(2013.07.27) (1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 3FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 - 400-2, Gomae-dong, Giheung-gu, Yongin-si, Gyeonggi-do, Korea 446-901 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone:+82 31 428 5700 FAX:+82 31 427 2371 1.2. Details of Applicant Applicant:Hanrim Postech Co., Ltd. Address: Head office, Hanrim B/D, 924, Kosaek-Dong, Kwonsun-Gu, Suwon-si, Gyeonggi-Do, Korea Contact Person:Lee, Jae Kyung Phone No.:+82 31 259 5170 1.3. Description of EUT Kind of Product Wireless charger transmitter Model Name 4ZH58-AP100/AP010 Power Supply DC 12.60 V (Used vehicle battery) Frequency Range 87㎑~ 110㎑ Operating Conditions -30°C~ 75°C Maximum Field strength 37.27㏈㎶/m at 3 m / -42.73㏈㎶/m at 300 m Antenna Type Inductive loop coil antenna H/W version 50-231-011-01 S/W version V1.0.5 1.4. Declarations by the manufacturer - Operation temperature: -30°C~ 75°C Report Number:F690501/RF-RTL007137Page:4of17 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.ee.sgs.com/korea RTT5041-20(2013.07.27) (1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) 1.5. Test Equipment List EquipmentManufacturerModelS/NCal DateCal IntervalCal Due. Spectrum Analyzer R&SFSV30101004Jul. 20, 2013 Annual Jul. 20, 2014 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 15191519-039Jul. 29, 2013BiennialJul. 29, 2015 Test ReceiverR&SESU40100075Feb. 15, 2013AnnualFeb. 15, 2014 Mobile Test Unit R&SCMU200109496Feb. 13, 2013 Annual Feb. 13, 2014 Turn Table INNCO SYSTEMS DT-3000S-3TN/AN/AN/AN.C.R. Anechoic Chamber SY Corporation L × W × H (21.5 m × 13.0 m × 9.0 m) N/AN/AN/AN.C.R. 1.6. Worst case of test configurations In order to check all kinds of possible configurations, EUT was evaluated with appropriate client and under each charging condition as below table. EUT configuration Charging current (㎃) Mobile phoneDescription Charging Mode 1) with resistive load 25Maximum resistive load 250Medium resistive load 500Minimum resistive load Charging Mode 2) with client device (FCC ID : BCG-E2430A) A1387Less than 1 % of battery A1387Less than 50 % of battery A1387100 % full charging of battery Charging Mode 2) with client device (FCC ID : A3LSHVE300SA) SHV-E300SLess than 1 % of battery SHV-E300SLess than 50 % of battery SHV-E300S100 % full charging of battery 1) Test Jig was used during the test to satisfy each current status by using resistive loads. Output current = 25㎃/ 250㎃/ 500㎃ 2) WPC device with client device was investigated each battery status. Report Number:F690501/RF-RTL007137Page:5of17 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.ee.sgs.com/korea RTT5041-20(2013.07.27) (1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) Battery status during charging condition : -Less than 1 % of battery -Less than 50 % of battery -100 % of battery Galaxy S4 (SHV-E300S) Plot#1 – less than 1 % of batteryPlot#2 – less than 50 % of batteryPlot#3 – 100 % of battery I Phone (A1387) Plot#1 – less than 1 % of batteryPlot#2 – less than 50 % of batteryPlot#3 – 100 % of battery Report Number:F690501/RF-RTL007137Page:6of17 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.ee.sgs.com/korea RTT5041-20(2013.07.27) (1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) Operating configurations : Galaxy S4 (SHV-E300S) -While the client device was in airplane mode (Trace#1 “M1”) -While the client device was connected to an active data connection (Trace#2 “M2”) The device was tested under all modes and bands like 2G and 3G. In the result,GSM1900 / GPRS / 1 TXwas found inMiddle channel. -While the wireless charger is charging without the client device. (Trace#3 “M3”) -While the wireless charger is charging with the client device turned off. (Trace#4 “M4”) Plot – fundamental emission comparison -The level of Trace#2 was more than Trace#1, 3 and 4 so Trace#2 was selected. -Trace#2 asGSM850 / GPRS / 1 TXwhich was found inMiddle channelshould be tested with the client d…

Text truncated - open the document above for the full version.

Test setup photos of EUT A. the photos of Field strength with Resistive load. Charging current(25 mA) Charging current(250 mA) Charging current(500 mA) B. the photos of Field strength with client device Client device(Galaxy S4) Client device(I phone) C. the photos of E-field test with Resistive load. Charging current(25 mA) Charging current(250 mA) Charging current(500 mA) D. the photos of E-field test with client device Client device(Galaxy S4) Client device(I phone) E. the photos of H-field test with Resistive load. Charging current(25 mA) Charging current(250 mA) Charging current(500 mA) F. the photos of H-field test with client device Client device(Galaxy S4) Client device(I phone)
