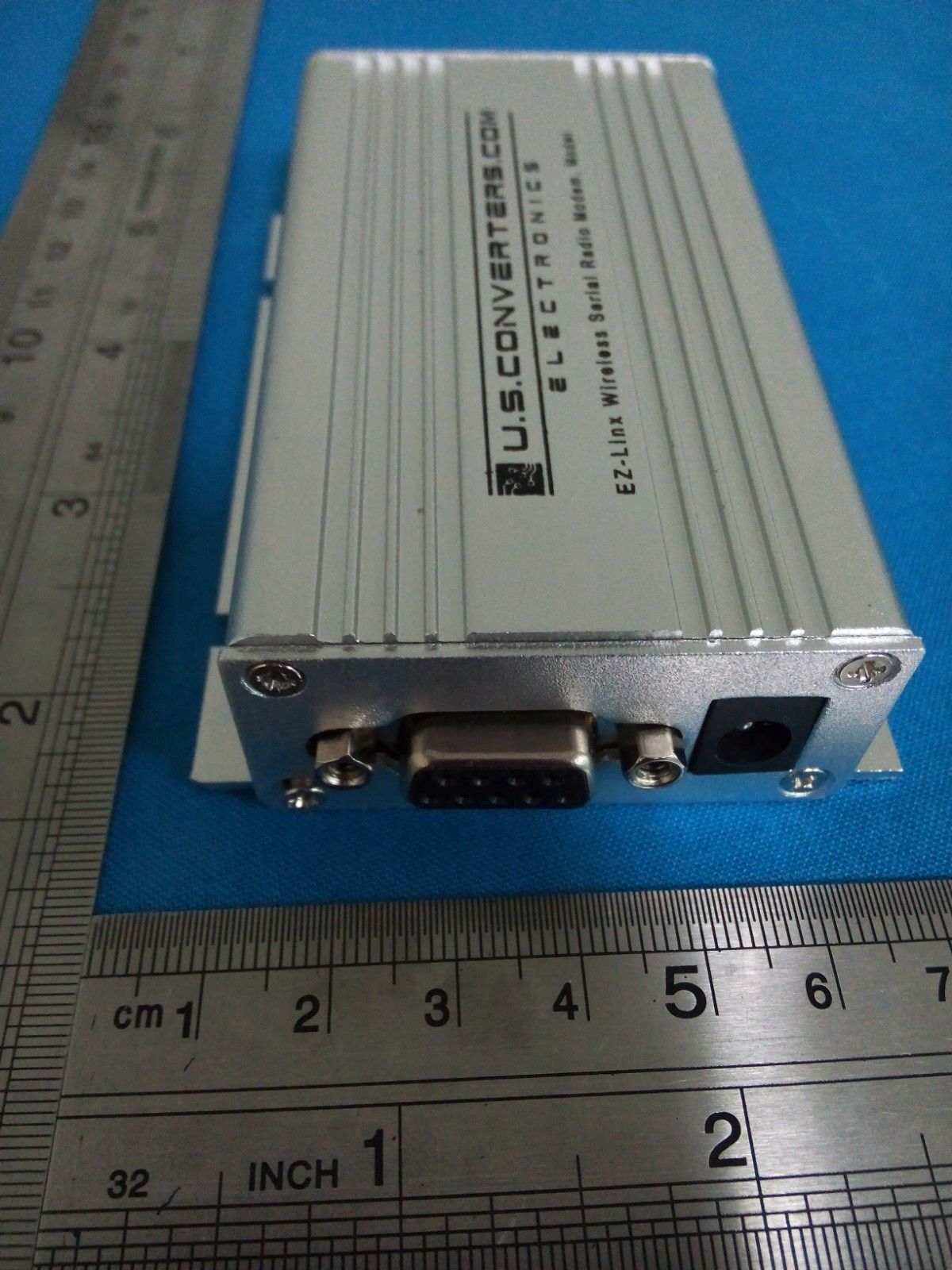

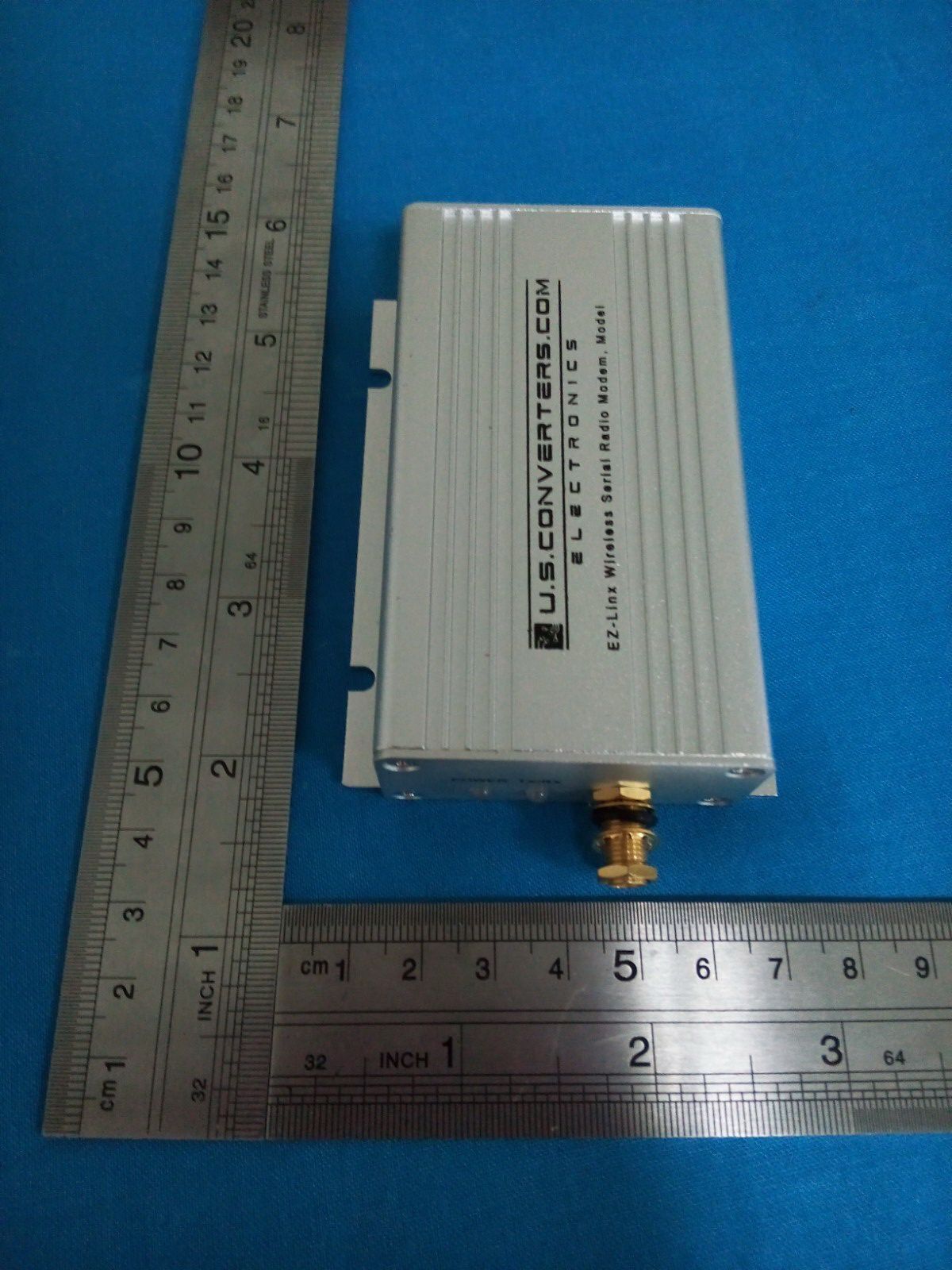

2ABEO-EZ50BWireless Serial Radio Modem

Additional FCC user information Only the 3dBi small suction cup antenna with reverse thread SMA connector, as shipped with the product, is legal to use with this product in the US.

Jizhuo Technology SHENZHEN JIZHUO TECHNOLOGY CO., LTD EZ50B Wireless Serial Radio Modem User’s Manual DVER 2.0 SHENZHEN JIZHUO TECHNOLOGY CO., LTD TEL:+86-755-83304518-805 Mobile:86+13692285161 FAX: +86-755-83302824 Website： http://www. jizhuo.com Email:[email protected] MSN:[email protected] Address: NO.813,212BLD,Tairan Tech Park, Futian District Shenzhen China Post Code： 518040 JiZhuo Technology EZ50B Wireless Serial Radio Modem SHENZHEN JIZHUO TECHNOLOGY CO., LTD TEL：0755-83304518 83308451 Tech:0755-61319411 61319410 WEB: http://www.jizhuo.com - 1- EZ50B Wireless Serial Radio Modem EZ50B data transmission module is highly integrated micro-power half-duplex wireless data transmission module, which use "TI" high-performance RF chips and high-speed microcontroller. Module provides eight channels, and is equipped with professional set-up software for the user to change parameters, the module is transparent transmission mode, no user-written set and transmission procedures; you can transmit data of any size. Module is small, the use of voltage is wide, easy to use’s Applications： Features： ※ Water, electricity, gas, heating automatic meter reading system ※Frequency: 915MHz ※Wireless smart terminal PDA ※Wireless Queue System ※Wireless alarm and security system ※Smart Card ※Medical and electronic instrumentation automation control ※Intelligent teaching equipment ※ Intelligent home automation and lighting control ※ Wireless electronic scale ※ Distance:1200m(1200Bps) ※Modulation:GFSK ※ Transparent transmission ※ Built-in watchdog to ensure long-term reliable operation ※ UART/TTL、RS232、RS485 Interface ※Convenient and flexible ※Almost 512 bytes data buffer ※Suitable for built-in installation JiZhuo Technology EZ50B Wireless Serial Radio Modem SHENZHEN JIZHUO TECHNOLOGY CO., LTD TEL：0755-83304518 83308451 Tech:0755-61319411 61319410 WEB: http://www.jizhuo.com - 2- EZ50B wireless module, the use of ISM frequency band, without application frequency; can be set to 8 communication channels, transmitting with high power , high receiver sensitivity-121dbm, size 110mm * 85mm * 25mm (without antenna base) , a large number of the billing system to use, very convenient for users to embedded wireless systems. EZ50B the use of transparent transmission, in order to ensure the reliability and stability of the user's system, plus the transmission checksum or CRC checksum error detection mode, the error data retransmission. Transceiver module buffer of 512 bytes, means that users can be in any state 512 bytes of data transfer , when the speed is greater than the serial port is set to air rate, is theoretically unlimited length can send information packets, but does not recommend users to send long data packets, the proposed length of each packet data between 60 ~ 100B, generally not longer than the 120B, and recommended user program using the ARQ mode, the error data packets retransmission. As follows: If the actual error rate 10-4, users need to send 1KB about 10000bit information, if the 1KB data as a packet, sent at least theoretically, there will be a data error in the receiver, then the 1KB data can never be received correctly. If it is divided into 10 packages, each package 100B, then send 10 packets, the packets according to a probability of only 1 error, the error in the form of a packet retransmission by ARQ 1, although it took more than 1 packet and the efficiency decreased by about 10%, but it can guarantee all the information is correctly received. EZ50B set parameters, the market is no longer used wireless modules used in the traditional way to change the parameters of the jumper, causing long-term use because it brings bad, options less dynamic change is not easy, a lot of inconvenience. EZ50B using the serial port setting parameters easy and quick, easy set refers to the chip embedded in the user program and operating software in the background. Meanwhile module 1200/2400/4800/9600/19200/38400bps six kinds of rate and 8 frequencies; provide UART / TTL, RS232, RS485 three kinds of interfaces. Choice for users. JiZhuo Technology EZ50B Wireless Serial Radio Modem SHENZHEN JIZHUO TECHNOLOGY CO., LTD TEL：0755-83304518 83308451 Tech:0755-61319411 61319410 WEB: http://www.jizhuo.com - 3- In the work on, EZ50B There are two ways of working, first for the conventional model, which module is powered On, is in receive mode; you also can be sending data. The second is sleep mode, that is, through the power module in a dormant state, it must be user-controlled mode wake-up pin block, the module can send and receive data. In the application of EZ50B module, the module uses a wide voltage range, but also divided into two kinds of voltage, the first for the 5V power supply module, also known as conventional module, the voltage of DC 4.5V -5.5V. users in the use of power to DC power supply, the current must be greater than 200mA, but to choose a good power supply ripple. Module pin definition EZ50B module J1,J2 interfaces seat, detail as follows: Item No PinSpecificationUser TerminalRemark 1GND User GND User GND J1 2+5V User GND+ User GND+ 1 Null 2 TXD TTL/RS232： data transmit， user equipment receiver 3 RXD TTL/RS232： data receive， user equipment transmit 4 Null 5GND User Interface user equipment interface 6 Null 7 Null J2 8、9 Null Dimensions: JiZhuo Technology EZ50B Wireless Serial Radio Modem SHENZHEN JIZHUO TECHNOLOGY CO., LTD TEL：0755-83304518 83308451 Tech:0755-61319411 61319410 WEB: http://www.jizhuo.com - 4- Appearance : JiZhuo Technology EZ50B Wireless Serial Radio Modem SHENZHEN JIZHUO TECHNOLOGY CO., LTD TEL：0755-83304518 83308451 Tech:0755-61319411 61319410 WEB: http://www.jizhuo.com - 5- Installation Dimensions JiZhuo Technology EZ50B Wireless Serial Radio Modem SHENZHEN JIZHUO TECHNOLOGY CO., LTD TEL：0755-83304518 83308451 Tech:0755-61319411 61319410 WEB: http://www.jizhuo.com - 6- Module with user equipment connection Note: EZ50B did not have sleep in the state, the module of the SLE feet mu…
