2ABF4SF2014B49AToy RC Bumper Car Set

Block Diagram Filter RF power amplifier and Modulator Oscillator 49.860MHz Encoder Control key 49.860MHz ANT1 U1 128KHz

[April 10, 2014]

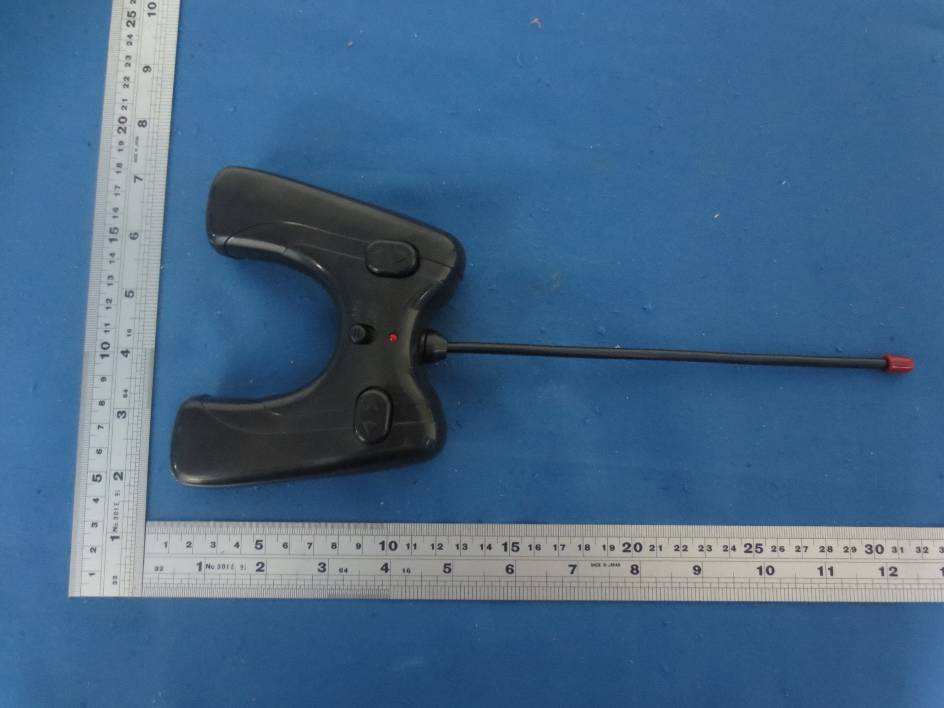

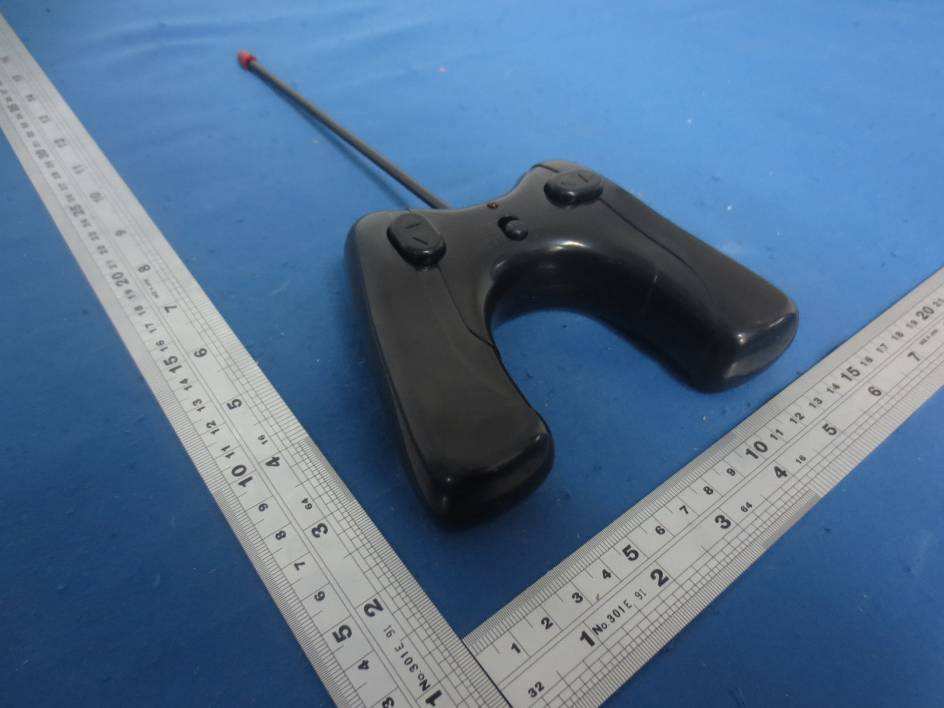

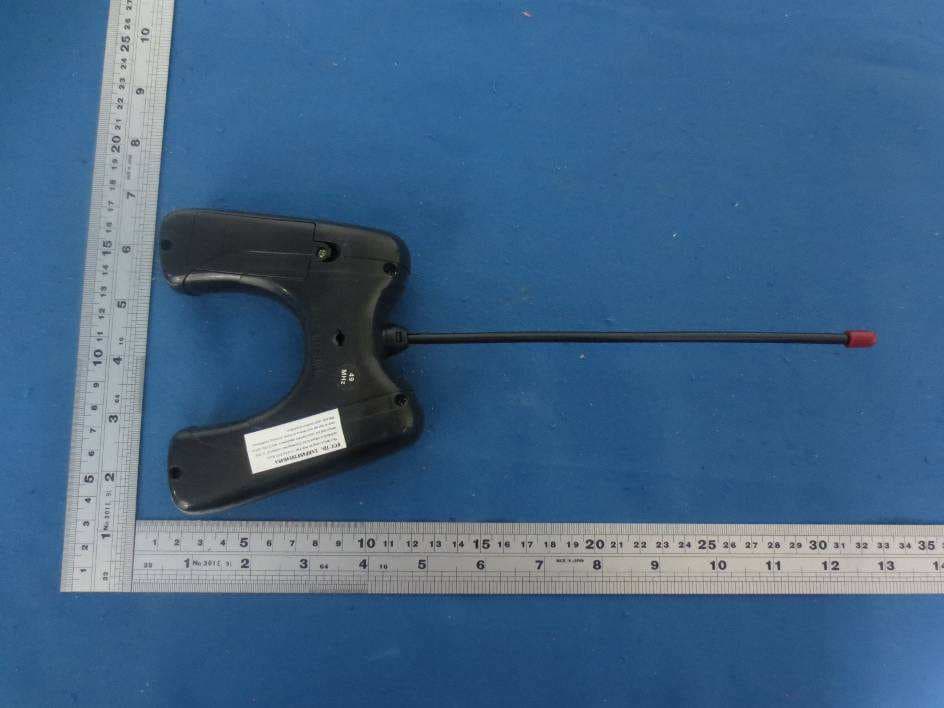

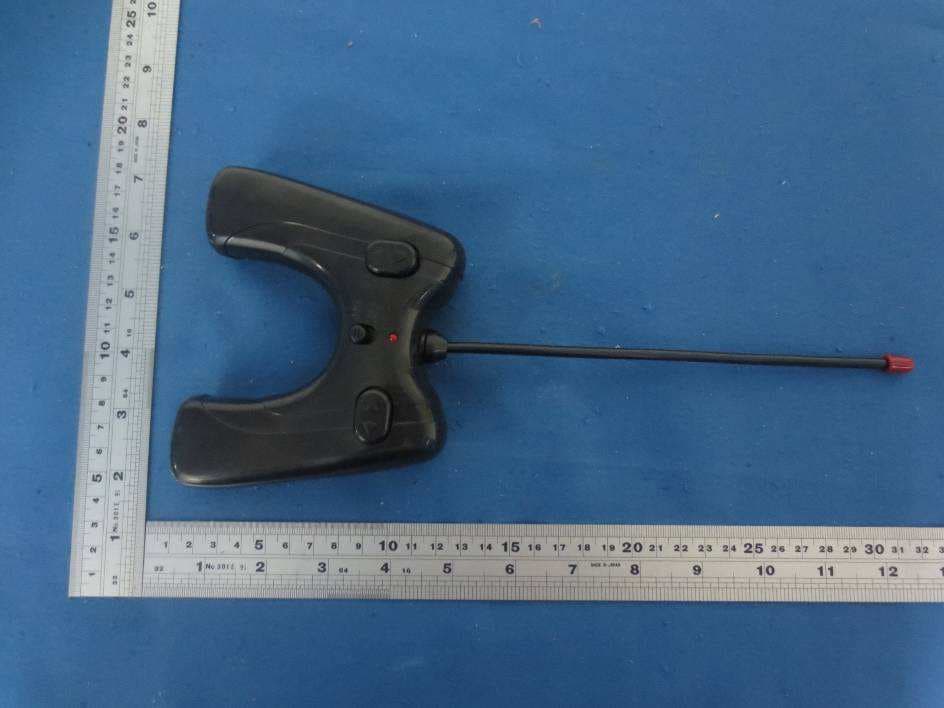

External Photos

Label Artwork and Location

Internal Photos

Technical description Description Function Component Antenna Transmit modulated RF signal ANT1 Filter Suppression of spurious emissions L3, C7 RF power amplifier and modulation Modulate the carrier and amplify the modulated RF signal Q1 Oscillator Generate 49.860 MHz carrier Y1, Q2 Encoder IC Generate code signal to modulator U1 Type of antenna: integral antenna with plastic enclosure Type of modulation: Pulse modulation Antenna Gain: 0dBi The nominal conducted output power specified: -24.00dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -26.15dBm (+/- 3dB)

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a portable transmitter for a Toy RC Bumper Car Set operating at 49.860 MHz which is controlled by a crystal. The EUT is powered by two 1.5V AAA size batteries. For more detail information pls. refer to the user manual. Antenna Type: integral antenna with plastic enclosure Antenna Gain: 0dBi The nominal conducted output power specified: -24.00dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -26.15dBm (+/- 3dB) Modulation Type: Pulse modulation According to the KDB 447498: T he worst-case peak radiated emission for the EUT is 70.4dBμV/m at 3m in the frequency 49.860MHz The EIRP = [(FS*D) ^2 / 30] mW = -24.83dBm The ERP = EIRP – 2.15 = -26.98 dBm which is within the production variation. The maximum conducted output power specified is -21.0 dBm = 0.008mW The source- based time-averaging conducted output power = 0.008 * Duty Cycle mW < 0.1m W The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = 474 * [1 + log(100/f(MHz)]/2 =308.6mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation The duration of one cycle = 19.02 ms Effective period of the cycle = 1.56 ms x 4 + 0.48 ms x 10 = 11.04 ms DC = 11.04 ms / 19.02 ms = 0.5804 or 58.04% FCC ID: 2ABF4SF2014B49A

Transmitter Circuit 49.860MHz NC 1M C4 NC NC

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6 F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 GUANGDONG SHIFENG TOYS INDUSTRIAL CO.,LTD Application F or Certification FCC ID: 2ABF4SF2014B49A Toy RC Bumper Car Set Model: SF2014B Brand Name: BLUE HAT Transmitter Report No.: GZHH00148995-001 W e hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-13] P repared and Checked by: Approved by: Sign on file Jimmy Wen Assistant Engineer Andy Yan Project Engineer Date: April 25, 2014 INTERTEK TESTING SERVICES Report No.: GZHH00148995-001 FCC ID: 2ABF4SF2014B49A TRF No.: FCC 15C_TX_b i G ENERAL INFORMATION GUANGDONG SHIFENG TOYS INDUSTRIAL CO.,LTD MODEL: SF2014B FCC ID: 2ABF4SF2014B49A G rantee: GUANGDONG SHIFENG TOYS INDUSTRIAL CO.,LTD Grantee Address: Chenghua Industrial Zone,Wenguan Road,Chenghai District,Shantou City,Guangdong,China Contact Person: Joyce Zhou Tel: 86-754-85877555 Manufacturer: GUANGDONG SHIFENG TOYS INDUSTRIAL CO.,LTD Manufacturer Address: Chenghua Industrial Zone,Wenguan Road,Chenghai District,Shantou City,Guangdong,China Model: SF2014B Type of EUT: Transmitter Description of EUT: Toy RC Bumper Car Set Serial Number: N/A FCC ID : 2ABF4SF2014B49A Date of Sample Submitted: April 10, 2014 Date of Test: April 21, 2014 Report No.: GZHH00148995-001 Report Date: April 25, 2014 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: GZHH00148995-001 FCC ID: 2ABF4SF2014B49A TRF No.: FCC 15C_TX_b ii SUMMARY OF TEST RESULT GUANGDONG SHIFENG TOYS INDUSTRIAL CO.,LTD MODEL: SF2014B FCC ID: 2ABF4SF2014B49A TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 1 5.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Antenna Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 1 5.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 Pass Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses an integral antenna which, in accordance to section 15.203, is considered sufficient to comply with the provisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: GZHH00148995-001 FCC ID: 2ABF4SF2014B49A TRF No.: FCC 15C_TX_b iii Table of Contents 1.0 General Description.......................................................................................1 1.1 Product Description..........................................................................................1 1.2 Related Submittal(s) Grants..............................................................................1 1.3 Test Methodology.............................................................................................1 1.4 Test Facility......................................................................................................1 2.0 System Test Configuration ............................................................................2 2.1 Justification ......................................................................................................2 2.2 EUT Exercising Software.......................................................…

Text truncated - open the document above for the full version.

Radiated Photos
