2ABFESPRM20Gimbal

Gimbal DISCLAIMER AND WARNING Thank you for purchasing our Gimbal. Before you start PLEASE read this manual and become familiar with Gimbals’ components and operating modes to ensure proper operation. The information contains herein affects your safety and your legal rights and responsibility. Failure to read and follow the instructions and warnings may result in serious injury to you or damage to your device or property. By using this product, you hereby signify that you have read this document carefully and that you understand and agree to abide by the terms and conditions herein. You agree that you are solely responsible for you conduct while using this product and for any consequences thereof. You agree to use this product only for purposes that are proper and in accordance with all terms, precautions, practices, policies and guidelines our company has made and may make available. Our company accepts no liability for damage, injury or any legal responsibility incurred directly or indirectly from the use of this product. The user shall observe safe and lawful practices including, but not limited go those set forth herein. GLOSSARY The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product. Warning: Procedures, which if not properly followed, may incur property damage, grave accident, or serious injury. CAUTION: Procedures, which if not properly followed, may incur property damage and serious injury. NOTICE: Procedures, which if not properly followed, may incur property damage or minor injury. DISCLAIMER AND WARNING WARNING Read the ENTIRE User guide to become familiar with the features of our Gimbal before operating. Failure to operate the product correctly can result in damage to the product or personal property, and cause serious injury. This is a sophisticated product. It must be operated with caution and common sense and requires some basic mechanical ability. In- correct Use of product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. DO NOT use with incompatible components or in any way otherwise as mentioned or instructed in the product documents provided by our company. This Safety Guidelines herein contain instructions for safety, operation and maintenance. It is essential to read and follow all of the instructions and warnings in the user manual, prior to assembly, setup or use, in order to operate the product correctly and avoid damage or serious injury. SAFETY OPERATION GUIDELINE The Gimbal should be used in temperatures from 0°C to 40°C. Use of the battery in environments above 40°C can lead to a fire or explosion. Use of battery below 0°C can lead to serious damage. IMPORTANT BATTERY SAFETY INFORMATION • DO NOT use any third-party or unknown accessories or batteries. • DO NOT disassemble the battery. • DO NOT short-circuit the battery. Short circuiting may occur when the battery touches other metal objects. • DO NOT charge the battery in direct sunlight. • Always charge the battery in a designated space, away from people and animals. • DO NOT leave a battery on prolonged charge when not in use. • If the battery has a high surface temperature, leave it to cool before you try to re- charge it. • DO NOT charge the battery if the ambient temperature is below 10°C or above 45°C. • Always use the supplied charger and observe manufacturer charging requirements. • Battery performance is best when within normal room temperature (5°C-20°C). • Batteries need to be charged before use. STORAGE 1. DO NOT leave the Stabilizer Gimbal hicle on hot days. 2. Store Gimbal in dry environment, and never store the Gimbal in any environment with temperature of over 60°C. 3. Do not leave the Gimbal unused for too long after it has been completely discharged to prevent over-discharge of battery which may result in battery damage and permanent damage. SAFETY OPERATION GUIDELINE ■CAUTION: 1. The Gimbal a high -precision control device, damaged may be caused to gimbal if it is dropped or subject to external force, and this many result in malfunction. 2. Make sure the rotation of Gimbal axes is not blocked by external force when the gimbal is power on. 3. 3. The Gimbal is not waterproof or water-resistant. Prevent contacts of any kind of liquid or clear with. Prevent contacts of any kind of liquid or clear with. It is recommended to use dry cloth for cleaning. 4. Protect the Gimbal from dust and sand during use. ■NOTICE 1. Hold the Gimbal’s Handle still in when it is powering up to ensure it starts up successfully. 2. Make sure the batteries are fully charged before each time of use. 3. Discharge the battery to 40%~65% if it will NOT be used for over 10 days. This can greatly extend the battery life." 4. Charge and Discharge the battery completely once every 3 months to keep it active. Get to know the Gimbal The gimbal is a high-precision control device. Connect to APP, it has more face tracking, time-lapse function, etc. which can offer you professional grade video. 1. Smartphone Clamp- hold smartphone steady. 2. Pan Motor- it allow you gimbal to rotate 330 degrees horizontally 3. Battery Level Indicator- The button shows how much power is left. 0-33% “L” light on 34-66% “L” and “M” lights on 67%-100% “L” “M” “H” lights on 4. Joystick- Control movement UP/DOWN (tilt motor) and LEFT/RIGHT 5. Bluetooth Light- Blue Light is connected, Flashing is trying to connected. 6. Operation Mode indicator Light-Display current operation mode of the Gimbal 6.1 Light- Gimbal in Pan & Tilt Follow Mode 6.2 Light- Gimbal in Pan Follow Mode 6.3 Light- Gimbal in Lock Mode 7. Power ON/OFF and Press 2 times to bring the Mobile phone to bring the Mobile phone to its original position Power ON/OFF- press and holder the button (8) for 3-4 seconds until the three light (6.1 )(6.2)(6.3) flashes blue, than turn on (Defaul…

Text truncated - open the document above for the full version.

2020-05-06 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Huatongwei International Inspection Co., Ltd./ 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China / Hans Hu,. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with General Sensing Systems LLC /250 CLEARBROOK RD, STE 260 Agency agreement expiration date: 2021-05-05 By: John Smith Signature Printed Title: Manager On behalf of : General Sensing Systems LLC Telephone: 9145922288

2020-05-06 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ABFESPRM20 Product Name: Gimbal Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  External photos  Internal photos  User manual  Setup photos These materials contain trade secrets and proprietary information and are not customarily released to the public within six months. The public disclosure of this information within six months might be harmful to the company and provide unjustified benefits to our competitors. By: John Smith Signature Printed Title: Manager On behalf of : General Sensing Systems LLC Telephone: 9145922288

2020-05-06 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ABFESPRM20 Product Name: Gimbal Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. By: John Smith Signature Printed Title: Manager On behalf of : General Sensing Systems LLC Telephone: 9145922288

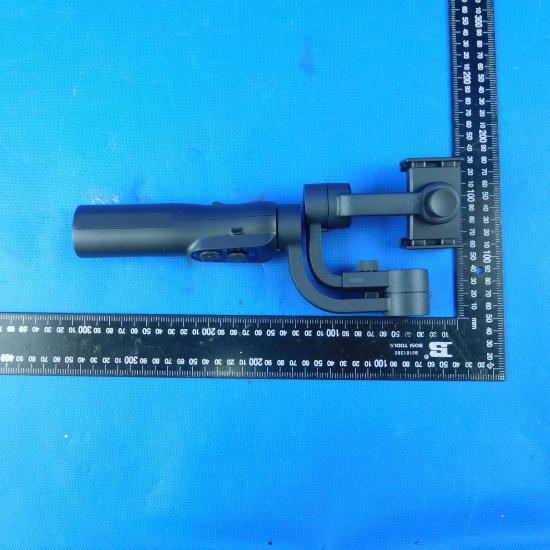

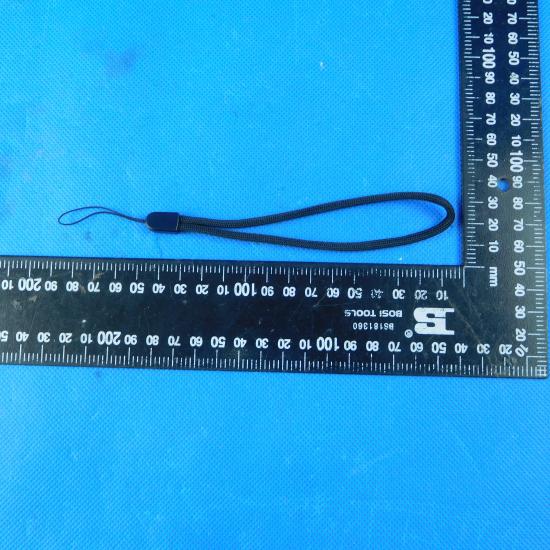

External Photos

Internal Photos

FCC ID: 2ABFESPRM20 RF Exposure Evaluation REQUIREMENT KDB447498 D01 General RF Exposure Guidance v06, Clause 4.3.1(a) [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 Where -f(GHz) is the RF channel transmit frequency in GHz -Power and distance are rounded to the nearest mW and mm before calculation -The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion. TEST RESULT Passed Not Applicable Type Test Channel Conducted Power (dBm) Maximum Tune-up (dBm) Calculating data Limit Result BT EDR 39 -3.95 -3.00 0.1566 3.00 Pass BT BLE 19 -1.32 -1.00 0.2481 3.00 Pass Note: 1) The maximum antenna gain is -0.68 dBi 2) The exposure evaluation safety distance is 5mm.

Page: 1 of 31 TEST REPORT Report No. ...................................... : CHTEW20040164 Report Verification: Project No.................................： SHT2004006501EW FCC ID ............................................. : 2ABFESPRM20 Applicant’s name ........................... : General Sensing Systems LLC Address ............................................. : 250 CLEARBROOK RD, STE 260 Manufacturer.....................................: General Sensing Systems LLC Address..............................................: 250 CLEARBROOK RD, STE 260 Test item description .................... : Gimbal Trade Mark ....................................... : Gimbal Model/Type reference ....................... : SPRM20 Listed Model(s) ................................. : - Standard ......................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of receipt of test sample..........: Apr.09, 2020 Date of testing.............................: Apr.10, 2020- Apr.20, 2020 Date of issue...............................: Apr.21, 2020 Result .................. ........................: PASS Compiled by ( Position+Printed name+Signature): File administrator Fanghui Zhu Supervised by (Position+Printed name+Signature): Project Engineer Kiki Kong Approved by (Position+Printed name+Signature): RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW20040164 Page: 2 of 31 Issued: 2020-04-21 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) Contents 1. TEST S T AN D AR D S A N D R E P O R T V E R S I O N 3 1.1. Test Standards 3 1.2. Report version 3 2. TEST DESCRIPTION 4 3. SUMMARY 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Testing Laboratory Information 6 4. TEST CONFIGURATION 7 4.1. Test frequency list 7 4.2. Descriptions of Test mode 7 4.3. Test mode 7 4.4. Support unit used in test configuration and system 8 4.5. Testing environmental condition 8 4.6. Measurement uncertainty 8 4.7. Equipment Used during the Test 9 5. TEST CONDITIONS AND RESULTS 11 5.1. Antenna Requirement 11 5.2. AC Conducted Emission 12 5.3. Peak Output Power 15 5.4. 20 dB Bandwidth 16 5.5. 99% Occupied Bandwidth 17 5.6. Carrier Frequencies Separation 18 5.7. Hopping Channel Number 19 5.8. Dwell Time 20 5.9. Duty Cycle Correction Factor (DCCF) 21 5.10. Pseudorandom Frequency Hopping Sequence 22 5.11. Conducted Band edge and Spurious Emission 23 5.12. Radiated Band edge Emission 25 5.13. Radiated Spurious Emission 27 6. APPENDIX REPORT 31 Report No.: CHTEW20040164 Page: 3 of 31 Issued: 2020-04-21 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) 1. TEST STAND ARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: ‒ FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ‒ ANSI C63.10:2013: American National Standard for Testing Unlicensed Wireless Devices ‒ KDB 558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid System Devices Operating under Section 15.247 of The FCC Rules 1.2. Report version Revision No. Date of issue Description N/A 2020-04-21 Original Report No.: CHTEW20040164 Page: 4 of 31 Issued: 2020-04-21 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) 2. TEST DESCRIPTION Report clause Test Items Standard Requirement Result 5.1 Antenna Requirement 15.203/15.247 (c) PASS 5.2 AC Conducted Emission 15.207 PASS 5.3 Peak Output Power 15.247 (b)(1) PASS 5.4 20 dB Bandwidth 15.247 (a)(1) PASS 5.5 99% Occupied Bandwidth - PASS *1 5.6 Carrier Frequency Separation 15.247 (a)(1) PASS 5.7 Hopping Channel Number 15.247 (a)(1) PASS 5.8 Dwell Time 15.247 (a)(1) PASS 5.9 Duty Cycle Correction Factor - PASS *1 5.10 Pseudorandom Frequency Hopping Sequence 15.247(b)(4) PASS 5.11 Conducted Band Edge and Spurious Emission 15.247(d)/15.205 PASS 5.12 Radiated Band Edge Emission 15.205/15.209 PASS 5.13 Radiated Spurious Emission 15.247(d)/15.205/15.209 PASS Note: ‒ The measurement uncertainty is not included in the test result. ‒ *1: No requirement on standard, only report these test data. Report No.: CHTEW20040164 Page: 5 of 31 Issued: 2020-04-21 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) 3. SUMMARY 3.1. Client Information Applicant: General Sensing Systems LLC Address: 250 CLEARBROOK RD, STE 260 Manufacturer: General Sensing Systems LLC Address: 250 CLEARBROOK RD, STE 260 3.2. Product Description Name of EUT: Gimbal Trade Mark: Gimbal Model No.: SPRM20 Listed Model(s): - Power supply: DC 3.7V Battery information: Model: LT18650 3.7V 4000mAh 3.3. Radio Specification Description Bluetooth version: V4.2 Support function *2 : EDR Modulation: GFSK, π/4DQPSK, 8DPSK Operation frequency: 2402MHz~2480MHz Channel number: 79 Channel separation: 1MHz Antenna type: PCB Antenna Antenna gain: -0.68 dBi Note: *2: only show the RF function assoc…

Text truncated - open the document above for the full version.

Radiated Emission AC Conducted Emission
