2ABFI-RCM30113SD CARD MOBILE DVR

Shenzhen Richda Technology Co.,Ltd
SD CARD MOBILE DVR - FCC ID 2ABFI-RCM30113 - Shenzhen Richda Technology Co.,Ltd
Click to zoom

Application Details

Equipment Class
PCB - PCS Licensed Transmitter
Date of Grant
Jan 27, 2014
Application Purpose
Original Equipment
Date of Application
Jan 27, 2014
Equipment Note
SD CARD MOBILE DVR
Frequency Range
1852.40000000 - 1907.60000000
Company
Shenzhen Richda Technology Co.,Ltd
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

ID Label/Location Info

↗

Internal Photos

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

User Manual for SD Card Mobile DVR 1 SD Card Mobile DVR USER mANual Model: RCM-MDR301WDG FCC ID: 2ABFI-RCM30113 Ver. 3.0 User Manual for SD Card Mobile DVR 2 Contents 1. System Introduction ....................................................................................................................................... 4 1.1. Features .............................................................................................................................................. 4 1.2. Appearance ........................................................................................................................................ 5 1.3. Remote Control ................................................................................................................................. 6 1.4. Front panel ......................................................................................................................................... 7 1.4.1. LED indicators: ...................................................................................................................... 8 1.4.2. SD card: ................................................................................................................................. 8 1.5. Back panel ......................................................................................................................................... 9 2. Specifications ................................................................................................................................................ 9 3. Technique Parameters .................................................................................................................................. 10 4. GUI .............................................................................................................................................................. 12 4.1. Login................................................................................................................................................ 12 4.2. System Main Interface ..................................................................................................................... 12 4.3. Video Records Playback .................................................................................................................. 13 4.4. System Settings ............................................................................................................................... 14 4.4.1. Basic Settings ...................................................................................................................... 15 4.4.2. Recording Settings ............................................................................................................... 15 4.4.3. Sub-Stream Settings ............................................................................................................. 17 4.4.4. Power Management ............................................................................................................. 17 4.4.5. Alarm Settings ..................................................................................................................... 18 4.4.6. Security Settings .................................................................................................................. 19 4.4.7. Network Settings: ................................................................................................................ 20 4.5. System Info ...................................................................................................................................... 22 4.6. Management Tools ........................................................................................................................... 23 4.6.1. Log Management ................................................................................................................. 23 4.6.2. SD Card Management.......................................................................................................... 24 4.6.3. Default Settings ................................................................................................................... 25 4.6.4. Config Management ............................................................................................................ 25 5. Device Installation ....................................................................................................................................... 26 5.1 Cable Definition ...................................................................................................................... 26 5.1.1 Power Cable ................................................................................................................................ 26 5.1.2 Audio/Video Input and Output Cable ......................................................................................... 27 5.1.3 Alarm Input and Output Cable .................................................................................................... 28 User Manual for SD Card Mobile DVR 3 5.2. Main Board Outside View .................................................................................................................... 29 5.2.1. MDR300 PCB............................................................................................................................ 29 5.2.2. MDR300X PCB ......................................................................................................................... 29 6. System Upgrade User Guideline ................................................................................................................. 30 6.1. MU-MINI-RFS.crc(Record File System)Upgrade ..................................................................... 30 6.2. MU-MINI-APP.crc(Application Program)Upgrade ................................................................... 30 6.3. MCU Upgrade ...............................................…

Text truncated - open the document above for the full version.

Cover Letter(s)

Report No. : UL05420131204FCC003-4 Page: 1 of 6 RF Exposure Evaluation Declaration Product Name : SD Card Mobile DVR Model No. : RCM-MDR301WDG FCC ID: 2ABFI-RCM30113 Applicant : Shenzhen Richda Technology Co., Ltd Address : 3rd Floor, NO64 Building, Longguan West Road, Longhua, Shenzhen Date of Receipt : 04/12/2013 Issued Date : 17/01/2014 Report No. : UL05420131204FCC003-4 Report Version : V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, CNAS or any agency of the Government. The test report shall not be reproduced except in full without the written approval of Unilab Corporation. Report No. : UL05420131204FCC003-4 Page: 2 of 6 RF Exposure Evaluation Declaration Issued Date : 17/01/2014 Report No. : UL05420131204FCC003-4 Product Name : SD Card Mobile DVR Applicant : Shenzhen Richda Technology Co., Ltd Address : 3rd Floor, NO64 Building, Longguan West Road, Longhua, Shenzhen Manufacturer : Shenzhen Richda Technology Co., Ltd Address : 3rd Floor, NO64 Building, Longguan West Road, Longhua, Shenzhen Model No. : RCM-MDR301WDG EUT Voltage Extreme Low:6V, Nominal:12V, Extreme High:48V Brand Name : N/A Applicable Standard : FCC OET Bulletin 65 Supplement C (Edition 01-01) Test Result : Complied Performed Location : Unilab (Shanghai) Co.,Ltd. FCC 2.948 register number is 714465 No.1350, Lianxi Road, Pudong New District, Shangha, China TEL:+86-21-5027-5125/FAX:+86-21-5027-5126-876 Documented By : (Technical Engineer: Andy Wei) Reviewed By : (Senior Engineer: Forest Cao) Approved By : (Supervisor: Eva Wang) Report No. : UL05420131204FCC003-4 Page: 3 of 6 1. EUT Description Product Name: SD Card Mobile DVR Model Name: RCM-MDR301WDG Hardware Version: v0022 Software Version: V101230 RF Exposure Environment: Uncontrolled GSM/ EDGE Support Band: GSM850/PCS1900 EDGE Class: 12 Tx Frequency Range: GSM 850: 824.2MHz to 848.8MHz PCS 1900: 1850.2MHz to 1909.8MHz Rx Frequency Range: GSM 850: 869.2MHz to 893.8MHz PCS 1900: 1930.2MHz to 1989.8MHz Type of modulation: GSM/GPRS: GMSK EDGE:8PSK Antenna Type: Internal Antenna Peak Gain: GSM 850: 2.1dBi PCS 1900: 2.1dBi WCDMA Support Band: WCDMA Band II Tx Frequency Range: WCDMA Band II: 1850MHz ~1910MHz Rx Frequency Range: WCDMA Band II: 1930MHz ~1990MHz Type of modulation: WCDMA(UMTS): QPSK Antenna Type: Internal Antenna Peak Gain: WCDMA Band II: 2.6dBi Support Band: WCDMA Band V Tx Frequency Range: WCDMA Band V: 824MHz ~849MHz Rx Frequency Range: WCDMA Band V: 869MHz ~894MHz Type of modulation: WCDMA(UMTS): QPSK Antenna Type: Internal Antenna Peak Gain: WCDMA Band V: 2.6dBi WLAN Frequency Range: 2400MHz~2483.5MHz Type of Modulation: DSSS(BPSK/QPSK/CCK) OFDM(BPSK/QPSK/16QAM/64QAM) MIMO-OFDM(BPSK/QPSK/16QAM/64QA M) Channel Number: 13 Antenna Type: Internal Antenna Peak Gain: 3.0dBi Report No. : UL05420131204FCC003-4 Page: 4 of 6 2. RF Exposure Evaluation 2.1 Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range(MHz) Electric Filed Strength (V/m) Magnetic Filed Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A)Limits for Occupation/Control Exposures 300-1500 -- --F/3006 1500-100,000 -- --56 (B)Limits for General Occupation/UnControlled Exposures 300-1500 -- --F/15006 1500-100,000 -- --130 F= Frequency in MHz Formula transmission formula: Pd = (Pout*G)/(4*Pi*R2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 2.2.Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 22°Cand 45% RH. Report No. : UL05420131204FCC003-4 Page: 5 of 6 2.3.Test Result of RF Exposure Evaluation This device is evaluated by mobile device with general population/uncontrolled exposure condition For this device, the calculation is using the most conservative values, and the results are as follows: Test Mode ERP (dBm) EIRP (dBm) Peak EIRP (mW) Average EIRP (mW) Calculated RF Exposure at d = 20cm (mW/cm2) MPE Limit (mW/cm2) GSM850 29.87 32.02 1592 200.45 0.16 0.55 PCS1900 / 28.45 349 88.10 0.02 1.00 EDGE850 29.06 31.21 1321 166.34 0.03 0.55 EDGE1900 / 28.39 690 86.90 0.02 1.00 Test Mode ERP (dBm) EIRP (dBm) Peak EIRP (mW) Calculated RF Exposure at d = 20cm (mW/cm2) MPE Limit (mW/cm2) WCDMA Band V 20.32 22.47 176.60 0.04 0.55 WCDMA Band II / 21.78 150.66 0.03 1.00 Test Mode Antenna Gain (dBi) Maximum Output Power (dBm) Maximum Output Power (mW) Average EIRP (mW) Calculated RF Exposure at d = 20cm (mW/cm2) MPE Limit (mW/cm2) GSM850 2.1 35 3162.28 645.65 0.13 0.55 PCS1900 2.1 32 1584.89 323.59 0.07 1.00 EDGE850 2.1 35 3162.28 645.65 0.13 0.55 EDGE1900 2.1 32 1584.89 323.59 0.07 1.00 Test Mode Antenna Gain (dBi) Maximum Output Power (dBm) Maximum Output Power From Antenna (mW) Calculated RF Exposure at d = 20cm (mW/cm2) MPE Limit (mW/cm2) WCDMA Band V 2.6 25 575.44 0.12 0.55 WCDMA Band II 2.6 25 575.44 0.12 1.00 Report No. : UL05420131204FCC003-4 Page: 6 of 6 Test Mode Antenna Gain (dBi) Maximum Output Power (dBm) Maximum Output Power From Antenna (mW) Calculated RF Exposure at d = 20cm (mW/cm2) MPE Limit (mW/cm2) WLAN 2.4G 3.0 20 199.53 0.04 1.00 This device can pass RF exposure limit.

ID Label/Location Info

2ABFI-RCM30113 Label Location Shenzhen Richda Technology Co.,Ltd Mode: RCM-MDR301WDG FCC ID: 2ABFI-RCM30113 This Device Complies with the FCC Standards

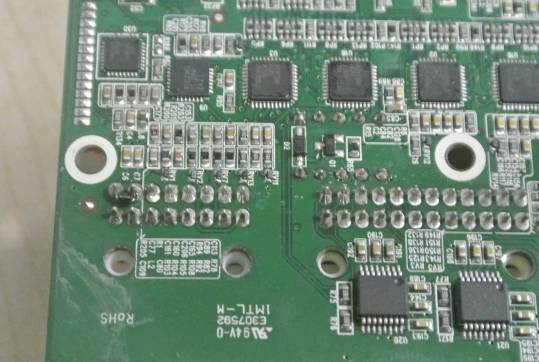

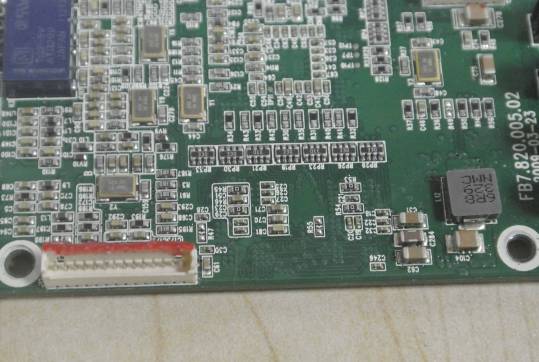

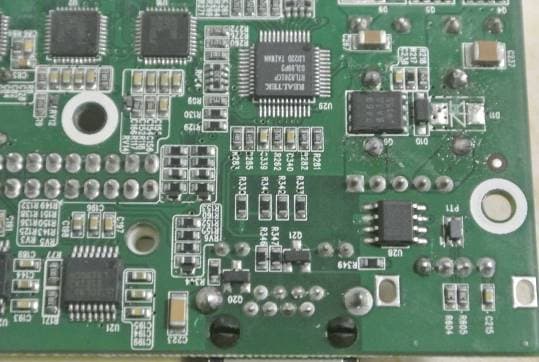

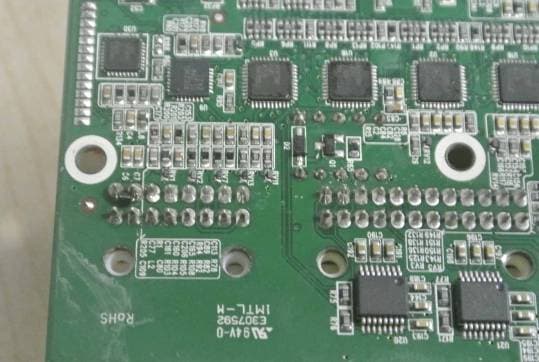

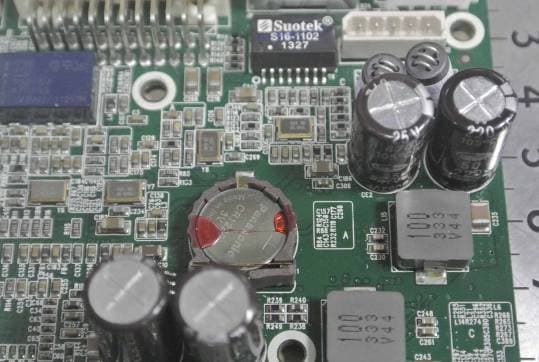

Internal Photos

Model Name: RCM-MDR301WDG Report Number: UL05420131204FCC003-6 Page 1 of 12 EUT PHOTOS for RCM-MDR301WDG View of EUT-1 View of EUT-2 Model Name: RCM-MDR301WDG Report Number: UL05420131204FCC003-6 Page 2 of 12 View of EUT-3 View of EUT-4 Model Name: RCM-MDR301WDG Report Number: UL05420131204FCC003-6 Page 3 of 12 View of EUT-5 View of EUT-6 Model Name: RCM-MDR301WDG Report Number: UL05420131204FCC003-6 Page 4 of 12 View of EUT-7 View of EUT-8 Model Name: RCM-MDR301WDG Report Number: UL05420131204FCC003-6 Page 5 of 12 View of EUT-9 View of EUT-10 Model Name: RCM-MDR301WDG Report Number: UL05420131204FCC003-6 Page 6 of 12 View of EUT-11 View of EUT-12 Model Name: RCM-MDR301WDG Report Number: UL05420131204FCC003-6 Page 7 of 12 View of EUT-13 View of EUT-14 Model Name: RCM-MDR301WDG Report Number: UL05420131204FCC003-6 Page 8 of 12 View of EUT-15 View of EUT-16 Model Name: RCM-MDR301WDG Report Number: UL05420131204FCC003-6 Page 9 of 12 View of EUT-17 View of EUT-18 Model Name: RCM-MDR301WDG Report Number: UL05420131204FCC003-6 Page 10 of 12 View of EUT-19 View of EUT-20 Model Name: RCM-MDR301WDG Report Number: UL05420131204FCC003-6 Page 11 of 12 View of EUT-21 View of EUT-22 Model Name: RCM-MDR301WDG Report Number: UL05420131204FCC003-6 Page 12 of 12 View of EUT-23

Test Report

RF Test Report Test in accordance with Federal Communications Commission(FCC) CFR TITLE 47, Parts 2, 22, 24 Product Name : SD Card Mobile DVR Model No. : RCM-MDR301WDG FCC ID : 2ABFI-RCM30113 Applicant : Shenzhen Richda Technology Co., Ltd Address : 3rd Floor,NO64 Building,Longguan West Road,Longhua,Shenzhen Date of Receipt : 12-04-2013 Test Date : 12-04-2013~12-04-2014 Issued Date : 01/14/2014 Report No. : UL05420131204FCC003-2 Report Version : V1.0 Notes: The test results only relate to these samples which have been tested. Partly using this report will not be admitted unless been allowed by Unilab. Unilab is only responsible for the complete report with the reported stamp of Unilab. Unilab(Shanghai) Co.,Ltd. Report No. : UL05420131204FCC003-2 Page 2 of 69 Page: 2 of 69 Test Report Certification Issued Date : 2013-12-24 Report No. : UL28620131105CE/FCC/IC 014-2 Product Name : SD Card Mobile DVR Applicant : Shenzhen Richda Technology Co., Ltd Address : 3rd Floor,NO64 Building,Longguan West Road,Longhua,Shenzhen Manufacturer : Shenzhen Richda Technology Co., Ltd Address : 3rd Floor,NO64 Building,Longguan West Road,Longhua,Shenzhen Model No. : RCM-MDR301WDG EUT Voltage : MIN: 6V, NOR: 12V, MAX: 48V Brand Name : N/A FCC ID: 2ABFI-RCM30113 Applicable Standard : ANSI/TIA-603-D-2010; FCC CFR Title 47 Part 2; FCC CFR Title 47 Part 22 Subpart H; FCC CFR Title 47 Part24 Subpart E; Test Result : Complied Performed Location : Unilab (Shanghai) Co., Ltd. FCC 2.948 register number is 714465 No. 1350, Lianxi Rd. Pudong New District, Shanghai, China TEL: +86-21-50275125 FAX: +86-21-50275126 Documented By : (Technical Engineer: Andy Wei) Reviewed By : (Senior Engineer: Forest Cao) Approved By : (Supervisor: Eva Wang) Unilab(Shanghai) Co.,Ltd. Report No. : UL05420131204FCC003-2 Page 3 of 69 Page: 3 of 69 TABLE OF CONTENTS SUMMARY OF TEST RESULT ....................................................................................................................................... 4 1. General Information ........................................................................................................................................ 5 1.1. EUT Description ...................................................................................................................................... 5 1.2. Mode of Operation ................................................................................................................................. 7 1.3. Tested System Details .......................................................................................................................... 9 1.4. Configuration of Tested System ........................................................................................................... 9 1.5. EUT Exercise Software ......................................................................................................................... 9 2. Technical Test ................................................................................................................................................... 10 2.1. Test Environment .................................................................................................................................. 10 3. Peak Output Power ......................................................................................................................................... 11 3.2. Test Setup .............................................................................................................................................. 11 3.3. Limit ......................................................................................................................................................... 12 3.4. Test Procedure ...................................................................................................................................... 13 3.5. Uncertainty ............................................................................................................................................. 13 3.6. Test Result ............................................................................................................................................. 14 4. Occupied Bandwidth ........................................................................................................................................ 19 4.1. Test Equipment ..................................................................................................................................... 19 4.2. Test Setup .............................................................................................................................................. 19 4.3. Limit ......................................................................................................................................................... 20 4.4. Test Procedure ...................................................................................................................................... 20 4.5. Uncertainty ............................................................................................................................................. 20 4.6. Test Result ............................................................................................................................................. 21 5.Spurious Emission At Antenna Terminals (+/- 1MHz) ................................................................................. 33 5.1. Test Equipment ..................................................................................................................................... 33 5.2. Test Setup .............................................................................................................................................. 33 5.3. Limit ......................................................................................................................................................... 34 5.4. Test Procedure ...…

Text truncated - open the document above for the full version.

Test Setup Photos

Product Name: SD Card Mobile DVR Test Setup Photos Model Name: RCM-MDR301WDG Report Number: UL05420131204FCC003-8 Page 1 of 3 TEST SETUP PHOTOS for Part 22&24 Occupied Bandwidth, Conducted Power Measurement, Spurious Emission At Antenna Terminals (+/- 1MHz), Conducted Spurious Emission Measurement Setup Frequency Stability Under Temperature & Voltage Variations Setup Product Name: SD Card Mobile DVR Test Setup Photos Model Name: RCM-MDR301WDG Report Number: UL05420131204FCC003-8 Page 2 of 3 Radiated Spurious Measurement(below 30MHz) Setup ERP Test, Radiated Spurious Measurement(30MHz to 1GHz) Setup Product Name: SD Card Mobile DVR Test Setup Photos Model Name: RCM-MDR301WDG Report Number: UL05420131204FCC003-8 Page 3 of 3 Radiated Spurious Measurement (Above 1GHz), EIRP Test Setup

Contact Information

Applicant

Yingping Liang
[email protected]86-755-81713882Fax: 86-755-82556661

Test Firm

UniLab (Shanghai) Co., Ltd.Wang Rong
[email protected]86-21-50275125Fax: 86-21-50275126

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
624E1.85 GHz - 1.91 GHz151.00 mW4M15F9W28.29 Hz
Confidentiality
Long Term
Grant Notes
Power listed is EIRP for Part 24 and ERP for Part 22. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter. The antenna installation and operating configurations of this transmitter, including any applicable source-based time-averaging duty factor, antenna gain, and cable loss must satisfy MPE categorical Exclusion Requirements of Part 2.1091. Users must be provided with instructions and transmitter operating conditions for satisfying RF exposure compliance. RF exposure compliance may need to be addressed at the time of licensing, as required by the responsible FCC bureau(s), including antenna co-location requirements of Part 1.1307(b)(3).
