2ABGH-R678ELOrbic Magic (Mobile Phone with (5G NR/ LTE/ WCDMA/ GSM/BT/WIFI)

To get started, you’ll need these items included in your package: • Activation card • SIM tool • Charger/ USB Type C Cable Quick Start Guide TM Set up your Google TM Account: Using your Mobile Internet: Security Settings: Bluetooth Connectivity: Notification and Status Icons: Initial Phone Setup: Before turning on your phone, charge it fully. Insert the small end of the USB cable into the phone. Insert the larger end into the charger and plug it into an outlet. Connect to Wi-Fi – Select and connect to a specific network; password will be needed if network is secured. Google Services – Log in to your Google account and Google Services, select and accept Privacy Policy options. Set Screen Lock – Select options and enter password. Option to add one or more fingerprints to unlock screen. Open the Google folder from the home screen and select the GMAIL application . • Tap Add an email address, Google. • Tap Create account and follow on screen prompts. Open the Google folder from the home screen and select the GMAIL application . • Touch the Home key > swipe up for apps > Settings > Accounts > Add Account. • Tap the type of account you want to add. • Follow the screen prompts to enter information about the account. Most accounts require username and password. • Touch the Home key > swipe up for apps > Settings > Security > Screen lock. • Touch None, Swipe, Pattern, PIN or Password. • Touch None to disable screen lock. • Touch Swipe to enable and allow unlocking by swiping black area on the screen. • Touch Pattern to create a pattern that you will draw on the screen to unlock it. • Touch PIN or Password to create a PIN or Password that must be entered to unlock the screen. • For Pattern, PIN or Password, select your preference for notifications and their contents to show the phone is locked. Press Done. • Touch the Home Key > swipe up for apps > Settings > Security > Fingerprint • Follow prompts on screen. • Touch Home Key > swipe up for apps > Contacts • Tap Merge & fix. Select option to restore from other device, Merge duplicates, add people you email often. • Touch > Settings > voicemail • Follow options to set up. • Touch > . • Touch and hold the “1” key on the keypad. When prompted, enter your voicemail password. • Follow the voice prompts to listen to the messages and manage your mailbox. • Touch Home Key > swipe up for apps > Contacts • Tap Search contacts > type the name of the contact you are looking for Note: Settings apply to all email accounts you have set up. • Touch Home > . • Tap > Settings > General Settings. • Customize based on your preferences. • Touch Home key > swipe up for apps > Settings > Apps and notifications > Notifications • Set your preferences for different apps notifications. • To create an app shortcut, touch and hold any preloaded or downloaded app and drag it onto the home screen. • On the bottom of the home screen is a customizable area for your primary applications. You can keep up to five applications here. Drag applications in or out of this area to customize. • Touch Home key > swipe up for apps > Chrome • Touch Home key > swipe up for apps > Settings > Network & Internet > Mobile network • Tap to enable or disable Mobile data WARNING: Only use the approved chargers with your device. Incompatible chargers or tampering with the charger port could damage and void the warranty. To turn ON, press and hold the Power/Lock button located on the right edge of your phone. To turn OFF, press and hold the Power/Lock button and follow the prompts. • From the home screen, tap . • Tap Start chat. • From the home screen, tap . • Tap Start chat. • Enter the name or number of the recipient. • Enter your message. • To add an attachment to your message, tap . • To add a picture to your message, tap • Tap to send your message. • Touch the Home Screen > swipe up for apps > Settings > Connected devices > Connection preferences > Bluetooth. • Touch the switch to turn Bluetooth ON/OFF > Pair new device. • Make sure Bluetooth is turned ON. • To easily identify your phone, you can change the name. • Touch Home Screen > swipe up for apps > Settings > Connected devices. • Touch (Device name) > Rename this device. • Enter a name and touch RENAME to continue. • Your phone will scan for and display the names of all available Bluetooth devices in the area. Touch > Refresh if you want your phone to scan again. • Touch the name of the device you want to pair with. FCC ID2ABGH-R678EL Max. SAR (W/kg) – Head1.6W/kg Max. SAR (W/kg) – Body1.6W/kg HAC (Hearing Aid Compatible) & Rating M4/T3 • Touch the Home Screen > swipe up for apps > Settings > Network & Internet > Wi-Fi. • Make sure Wi-Fi is ON. • Select network or touch Add Network. • Enter the network SSID and other required information. • Touch Connect. Set up a Pin or Pattern Set up Fingerprint Turn ON/OFF Pairing Devices Accessing Google Account Settings and Notifications Make and Receive Calls: Voicemail Setup: Add new contacts and synchronize them with your Google account and other accounts. To access contacts: Touch the Home Screen > swipe up for apps > Contacts • From the Home Screen, tap the Phone icon. • Tap the Keypad icon . • Enter the number you want to call or the first letters of the contact’s name and select the contact. • Tap the Call icon to place the call . • Tap the Answer icon to answer an incoming call. • Touch the sign on the lower right. • Enter the contact name, phone numbers, email address, and any additional information. Importing Contacts Voicemail Setup Checking Voicemail How to Make and Receive Calls Contact Lookup Adding Contacts Connecting to Wi-Fi Regulatory Agency Information Notification Panel Shortcut Buttons Accessing the Web Enabling Mobile Data Turning Phone ON/OFF Charging Battery Initial Prompts Creating a New Account Adding an Email Account Text and Picture Messaging: Quick Settings: Sending a Text Connect with other Bluetooth devices that are located within a distance of approximately 30 feet. Bluet…

Text truncated - open the document above for the full version.

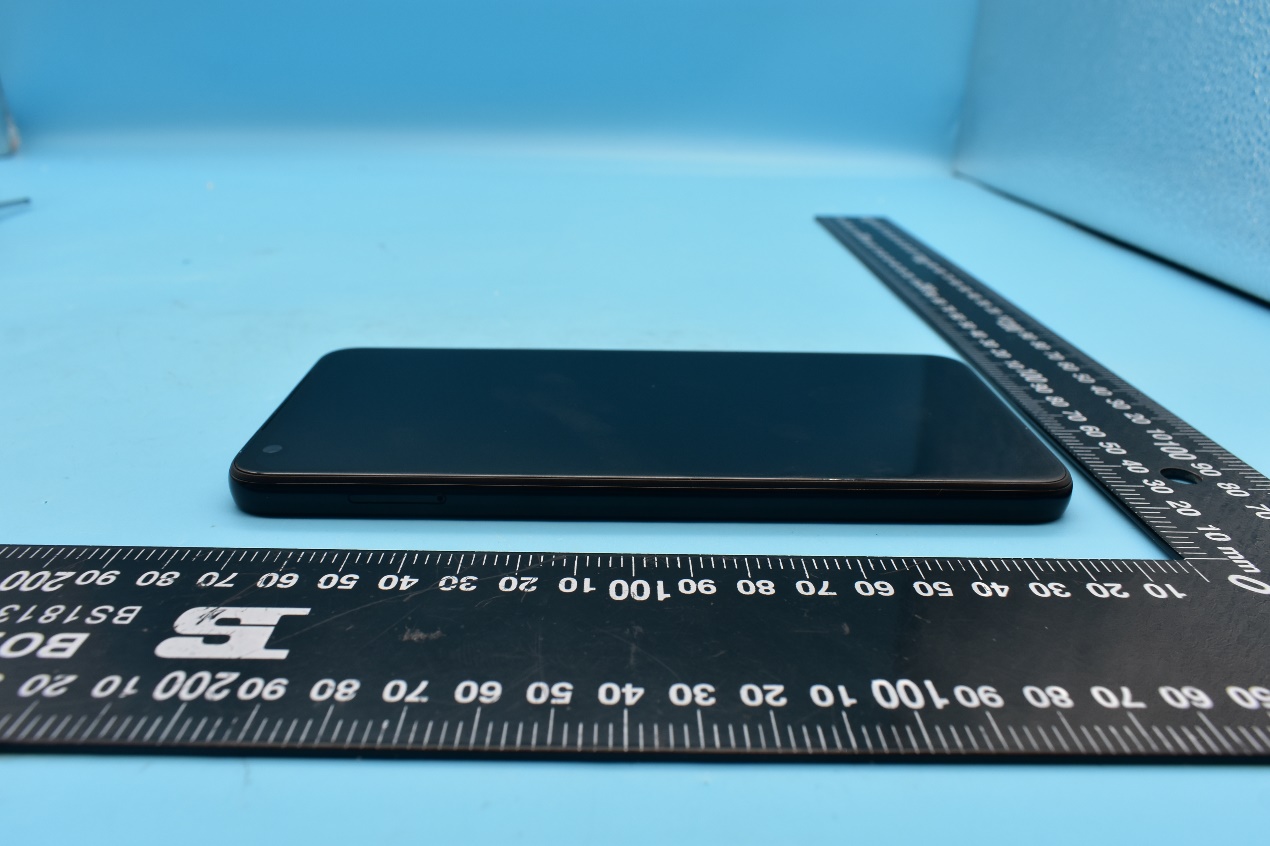

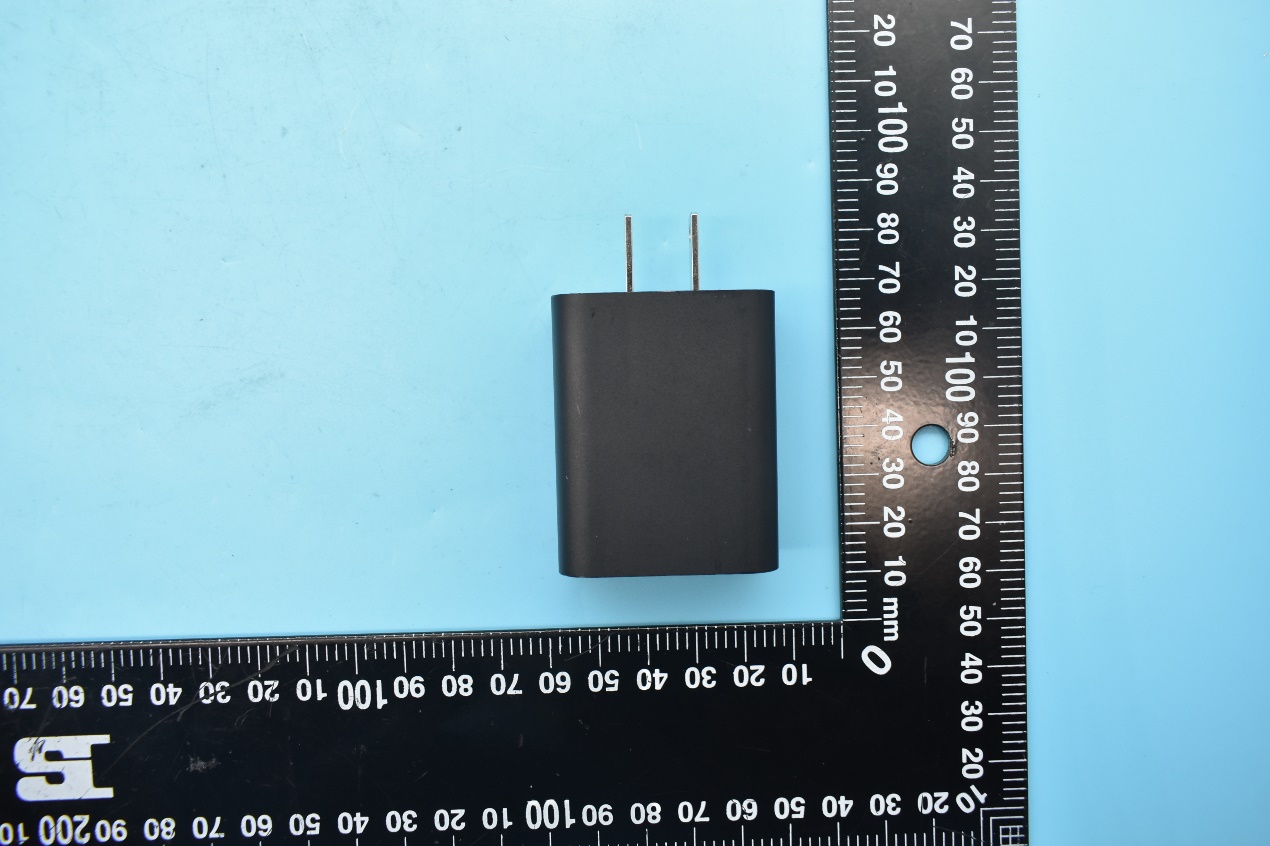

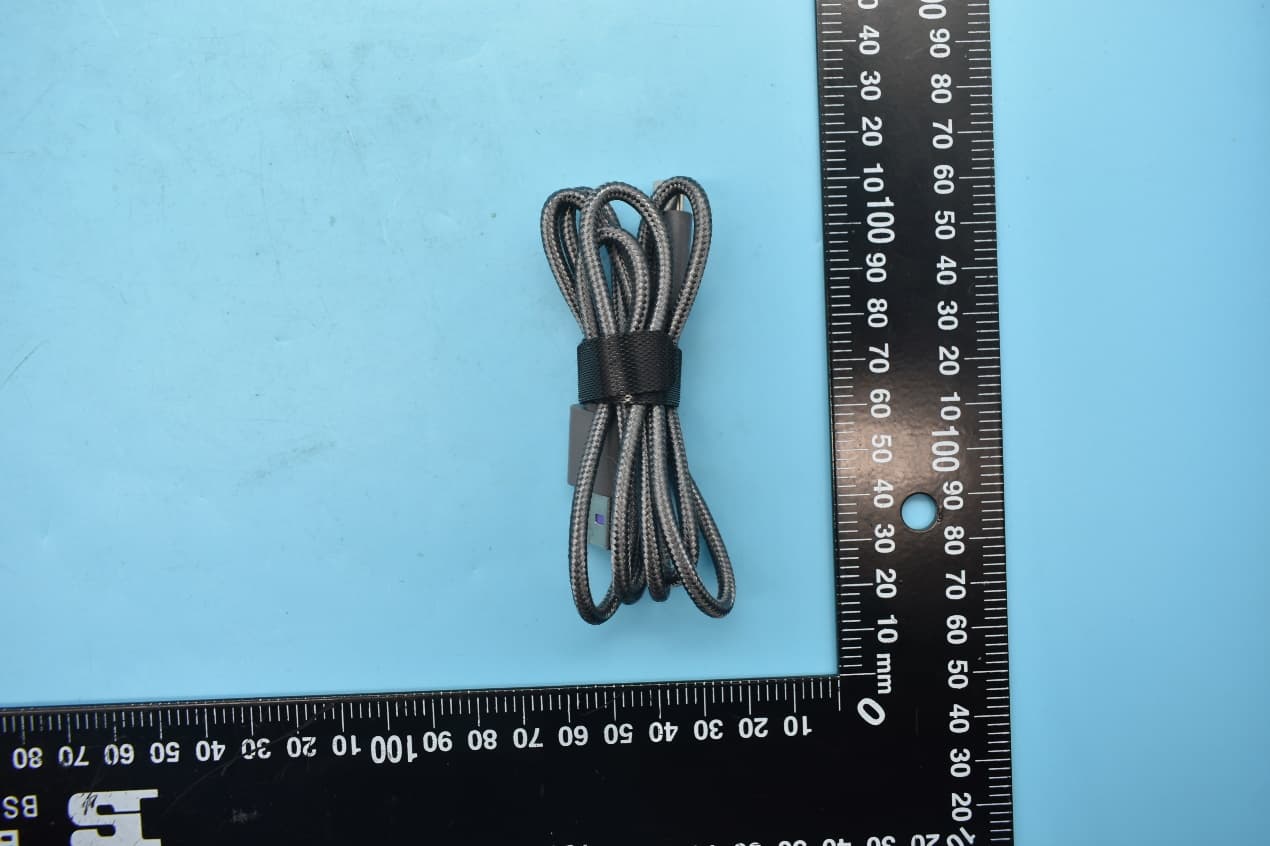

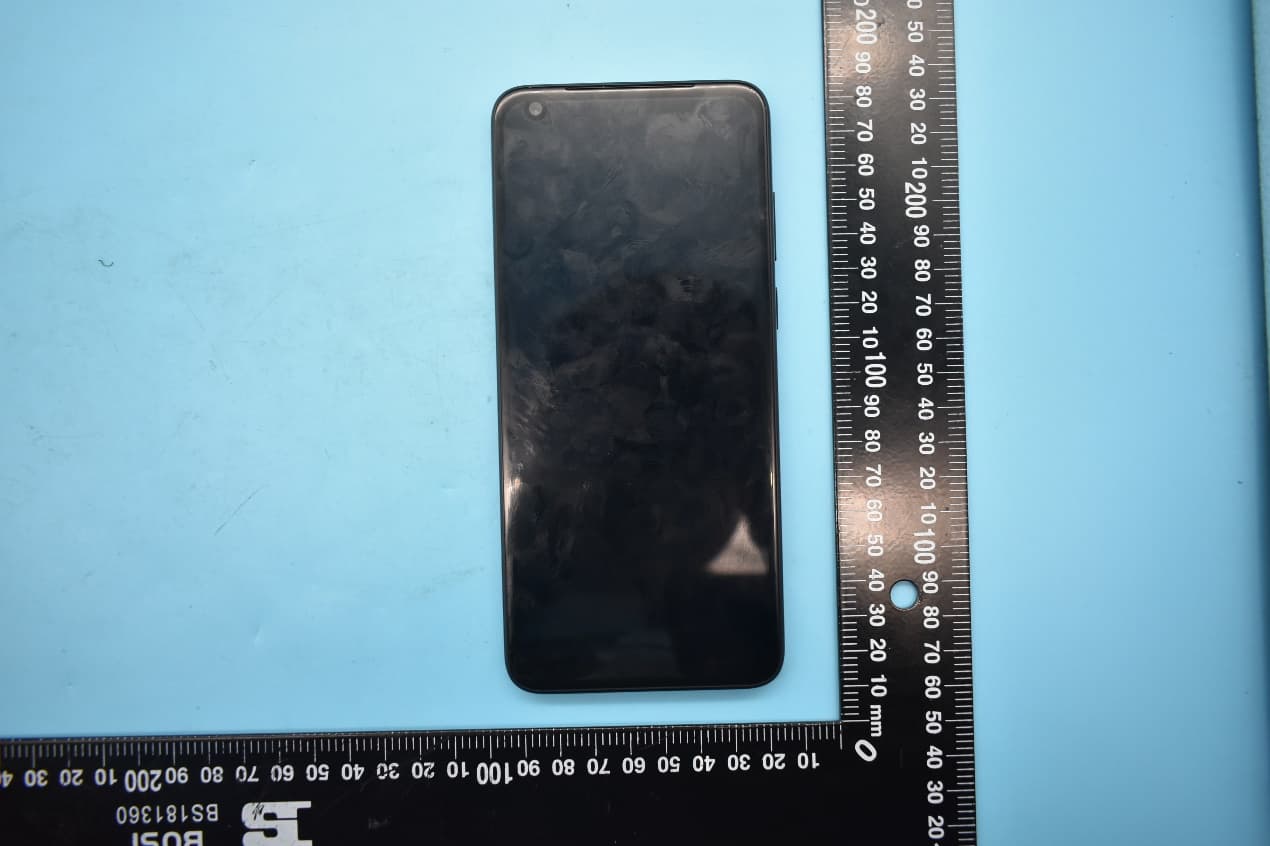

FCC ID:2ABGH-R678EL External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view 7. Accessories

1. Label 2. Label location To view device FCC ID on a device look at the label in the battery compartment, for devices without a battery door there is a E-label information available by selecting: Settings > About phone

FCC ID:2ABGH-R678EL Internal Photos 1. EUT uncover view 2. Antenna view WWAN Main Antenna 1 WLAN Aux Antenna WWAN Aux Antenna 0 WIFI/Bluetooth Antenna WWAN Main Antenna 0

MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ20100013S01 Annex C Plots of System Performance Check Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.11.18 System Check_750MHz_Head Communication System: UID 0, CW (0); Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750 Medium parameters used: f = 750 MHz; σ = 0.929 S/m; ε r = 42.139; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(10.09, 10.09, 10.09); Calibrated: 2020.11.30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW 750/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.35 W/kg CW 750/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 50.76 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 3.18 W/kg SAR(1 g) = 2.08 W/kg; SAR(10 g) = 1.4 W/kg Maximum value of SAR (measured) = 2.34 W/kg 0 dB = 2.34 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2021.01.08 System Check_750MHz_Head Communication System: UID 0, CW (0); Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750 Medium parameters used: f = 750 MHz; σ = 0.924 S/m; ε r = 42.14; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(10.09, 10.09, 10.09); Calibrated: 2020.11.30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW 750/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.19 W/kg CW 750/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 49.15 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 2.98 W/kg SAR(1 g) = 2.04 W/kg; SAR(10 g) = 1.37 W/kg Maximum value of SAR (measured) = 2.20 W/kg 0 dB = 2.20 W/kg = 3.42 dBW/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.11.27 System Check_835MHz_Head Communication System: UID 0, CW (0); Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835 Medium parameters used: f = 835 MHz; σ = 0.942 S/m; ε r = 42.881; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(9.3, 9.3, 9.3); Calibrated: 2020.01.03; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW835/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.58 W/kg CW835/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.69 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 3.56 W/kg SAR(1 g) = 2.42 W/kg; SAR(10 g) = 1.59 W/kg Maximum value of SAR (measured) = 2.61 W/kg 0 dB = 2.61 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2021.01.12 System Check_835MHz_Head Communication System: UID 0, CW (0); Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835 Medium parameters used: f = 835 MHz; σ = 0.94 S/m; ε r = 42.88; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(9.74, 9.74, 9.74); Calibrated: 2020.11.30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW835/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.23 W/kg CW835/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 48.58 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 3.04 W/kg SAR(1 g) = 2.41 W/kg; SAR(10 g) = 1.56 W/kg Maximum value of SAR (measured) = 2.22 W/kg 0 dB = 2.22 W/kg = 3.47 dBW/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.11.12 System Check_1750MHz_Head Communication System: UID 0, CW (0); Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL_1750 Medium parameters used: f = 1750 MHz; σ = 1.418 S/m; ε r = 39.531; ρ = 1000 kg/m 3 Ambient Temperature：23.1 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(7.99, 7.99, 7.99); Calibrated: 2020.01.03; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW 1750/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 11.1 W/kg CW 1750/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 88.08 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 17.8 W/kg SAR(1 g) = 9.56 W/kg; SAR(10 g) = 5.15 W/kg Maximum value of SAR (measured) = 11.0 W/kg 0 dB = 11.0 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.12.31 System Check_1750MHz_Head Communication System: UID 0, CW (0); Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL_1750 Medium parameters used: f = 1750 MHz; σ = 1.378 S/m; ε r = 39.551; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX…

Text truncated - open the document above for the full version.

MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ20100013S01 Annex D Plots of Maximum SAR Test Results Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.11.27 GSM850_GPRS(4 TX slots)_Right Tilt _Ch251 Communication System: UID 0, GSM850(class 12) (0); Frequency: 848.8 MHz;Duty Cycle: 1:2.08 Medium: HSL_835 Medium parameters used: f = 849 MHz; σ = 0.964 S/m; ε r = 42.971; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(9.3, 9.3, 9.3); Calibrated: 2020.01.03; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch850/Area Scan (71x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.448 W/kg Ch850/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.92 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 1.21 W/kg SAR(1 g) = 0.523 W/kg; SAR(10 g) = 0.249 W/kg Maximum value of SAR (measured) = 0.562 W/kg 0 dB = 0.562 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.11.16 GSM1900_GPRS(4 TX slots)_Right Cheek _Ch661 Communication System: UID 0, PCS1900(class 12) (0); Frequency: 1880 MHz;Duty Cycle: 1:2.08 Medium: HSL_1900 Medium parameters used: f = 1880 MHz; σ = 1.321 S/m; ε r = 39.882; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(7.74, 7.74, 7.74); Calibrated: 2020.01.03; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch661/Area Scan (71x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.397 W/kg Ch661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.072 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 0.810 W/kg SAR(1 g) = 0.332 W/kg; SAR(10 g) = 0.151 W/kg Maximum value of SAR (measured) = 0.365 W/kg 0 dB = 0.365 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.11.16 WCDMA Band II_RMC 12.2Kbps_Right Cheek_Ch9400 Communication System: UID 0, UMTS-FDD (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: HSL_1900 Medium parameters used: f = 1880 MHz; σ = 1.321 S/m; ε r = 39.882; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(7.74, 7.74, 7.74); Calibrated: 2020.01.03; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch9400/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.239 W/kg Ch9400/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.824 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.669 W/kg SAR(1 g) = 0.233 W/kg; SAR(10 g) = 0.095 W/kg Maximum value of SAR (measured) = 0.248 W/kg 0 dB = 0.248 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.11.12 WCDMA Band IV_RMC 12.2Kbps_Right Cheek_Ch1413 Communication System: UID 0, UMTS-FDD (0); Frequency: 1732.6 MHz;Duty Cycle: 1:1 Medium: HSL_1750 Medium parameters used: f = 1733 MHz; σ = 1.412 S/m; ε r = 39.814; ρ = 1000 kg/m 3 Ambient Temperature：23.1 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(7.99, 7.99, 7.99); Calibrated: 2020.01.03; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch1413/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.611 W/kg Ch1413/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.396 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 1.05 W/kg SAR(1 g) = 0.467 W/kg; SAR(10 g) = 0.227 W/kg Maximum value of SAR (measured) = 0.526 W/kg 0 dB = 0.526 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.11.27 WCDMA Band V_RMC 12.2Kbps_Right Cheek_Ch4233 Communication System: UID 0, UMTS-FDD (0); Frequency: 846.6 MHz;Duty Cycle: 1:1 Medium: HSL_835 Medium parameters used: f = 847 MHz; σ = 0.959 S/m; ε r = 43.168; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(9.3, 9.3, 9.3); Calibrated: 2020.01.03; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch4233/Area Scan (71x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.476 W/kg Ch4233/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.04 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.825 W/kg SAR(1 g) = 0.410 W/kg; SAR(10 g) = 0.223 W/kg Maximum value of SAR (measured) = 0.463 W/kg 0 dB = 0.463 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.11.16 LTE Band 2_20MHz_QPSK_1RB_0Offset_Right Cheek_Ch18900 Communication System: UID 0, LTE (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Me…

Text truncated - open the document above for the full version.

128189251128189251 824.2836.4848.8824.2836.4848.8 27.3127.2727.5028.0018.3118.2718.5019.00 27.3227.2927.5228.0018.3218.2918.5219.00 27.1327.1227.3628.0021.1321.1221.3622.00 27.3327.2127.2028.0023.0722.9522.9423.74 26.5526.5426.5627.0023.5523.5423.5624.00 25.3325.2325.3726.0016.3316.2316.3717.00 24.7624.9424.5225.5018.7618.9418.5219.50 24.9024.9624.6925.5020.6420.7020.4321.24 24.8024.8924.8425.5021.8021.8921.8422.50 128189251128189251 824.2836.4848.8824.2836.4848.8 30.6830.6730.7932.0021.6821.6721.7923.00 30.7130.6930.8232.0021.7121.6921.8223.00 30.5730.6430.7432.0024.5724.6424.7426.00 30.5130.6330.6832.0026.2526.3726.4227.74 30.1130.2330.4231.0027.1127.2327.4228.00 24.3524.5524.7825.5015.3515.5515.7816.50 24.5224.5624.6125.5018.5218.5618.6119.50 24.4924.3724.5025.5020.2320.1120.2421.24 24.2624.2824.2225.5021.2621.2821.2222.50 512661810512661810 1850.218801909.81850.218801909.8 27.8128.2627.9529.0018.8119.2618.9520.00 27.7828.2427.9129.0018.7819.2418.9120.00 27.6528.1027.8029.0021.6522.1021.8023.00 27.5327.9527.6629.0023.2723.6923.4024.74 27.3127.7827.5028.5024.3124.7824.5025.50 22.9923.7123.0924.0013.9914.7114.0915.00 22.8223.5422.9224.0016.8217.5416.9218.00 22.6723.2922.7724.0018.4119.0318.5119.74 22.5523.1222.5424.0019.5520.1219.5421.00 512661810512661810 1850.218801909.81850.218801909.8 26.2226.3126.2427.0017.2217.3117.2418.00 26.2326.3226.2627.0017.2317.3217.2618.00 26.1326.1726.1127.0020.1320.1720.1121.00 26.0126.0026.1227.0021.7521.7421.8622.74 25.5525.8025.7326.5022.5522.8022.7323.50 24.5724.5824.5225.0015.5715.5815.5216.00 24.5324.5224.7225.0018.5318.5218.7219.00 24.3924.4324.4925.0020.1320.1720.2320.74 24.1424.3124.2625.0021.1421.3121.2622.00 Max.26.32Max.22.80 EDGE 4 Tx slots GPRS 2 Tx slots AntennaAnt 7 Mode EDGE 3 Tx slots EDGE 4 Tx slots GPRS 4 Tx slots EDGE 1 Tx slot EDGE 2 Tx slots GPRS 1 Tx slot GPRS 2 Tx slots GPRS 3 Tx slots AntennaAnt 8 GSM1900Burst Average Power (dBm)Frame-Average Power (dBm) TX Channel Frequency (MHz) GSM 1 Tx slot Tune-up Limit (dBm) Tune-up Limit (dBm) EDGE 1 Tx slot EDGE 2 Tx slots EDGE 3 Tx slots GPRS 3 Tx slots GPRS 4 Tx slots GSM1900Burst Average Power (dBm)Frame-Average Power (dBm) TX Channel Frequency (MHz) GSM 1 Tx slot GPRS 1 Tx slot Tune-up Limit (dBm) Tune-up Limit (dBm) DateAnt 0 EDGE 3 Tx slots EDGE 4 Tx slots GPRS 3 Tx slots GPRS 4 Tx slots EDGE 1 Tx slot EDGE 2 Tx slots GPRS 1 Tx slot GPRS 2 Tx slots DateAnt 2 GSM850Burst Average Power (dBm)Frame-Average Power (dBm) Tune-up Limit (dBm) TX Channel Frequency (MHz) GSM 1 Tx slot Tune-up Limit (dBm) EDGE 2 Tx slots EDGE 3 Tx slots EDGE 4 Tx slots GPRS 3 Tx slots GPRS 4 Tx slots EDGE 1 Tx slot Frequency (MHz) GSM 1 Tx slot GPRS 1 Tx slot GPRS 2 Tx slots Tune-up Limit (dBm) Tune-up Limit (dBm) GSM850Burst Average Power (dBm)Frame-Average Power (dBm) TX Channel 9262 9400 9538 1312 1413 1513 4132 4183 4233 9662 9800 9938 1537 1638 1738 4357 4408 4458 1852.4 1880 1907.6 1712.4 1732.6 1752.6 826.4 836.6 846.6 3GPP Rel 99 RMC 12.2Kbps 24.54 24.78 24.64 25.50 25.19 25.30 25.21 26.00 21.08 21.11 21.15 22.00 3GPP Rel 6 HSDPA Subtest-1 23.31 23.38 23.36 24.00 24.53 24.51 24.50 25.00 20.99 21.07 20.98 22.00 3GPP Rel 6 HSDPA Subtest-2 23.31 23.48 23.34 24.00 24.60 24.41 24.54 25.00 21.27 21.07 21.23 22.00 3GPP Rel 6 HSDPA Subtest-3 22.76 23.08 22.58 23.50 23.99 23.93 23.99 24.50 20.37 20.50 20.71 21.50 3GPP Rel 6 HSDPA Subtest-4 22.63 22.91 22.56 23.50 24.01 23.91 24.02 24.50 20.74 20.65 20.67 21.50 3GPP Rel 8 DC-HSDPA Subtest-1 21.80 21.45 21.60 22.00 23.22 23.35 23.04 24.00 20.12 20.20 20.11 3GPP Rel 8 DC-HSDPA Subtest-2 21.67 21.37 21.54 22.00 23.17 22.98 23.00 24.00 20.11 20.04 20.00 0.00 3GPP Rel 8 DC-HSDPA Subtest-3 21.00 21.11 21.30 21.50 22.87 22.60 22.71 23.50 19.70 19.47 19.59 -0.50 3GPP Rel 8 DC-HSDPA Subtest-4 21.05 21.12 21.04 21.50 22.65 22.58 22.58 23.50 19.68 19.72 19.60 -0.50 3GPP Rel 6 HSUPA Subtest-1 23.34 23.39 22.95 24.00 24.68 24.27 24.51 25.00 21.02 20.99 21.08 22.00 3GPP Rel 6 HSUPA Subtest-2 22.74 22.80 22.43 23.00 24.08 23.83 24.11 25.00 20.56 20.53 20.54 21.00 3GPP Rel 6 HSUPA Subtest-3 23.30 23.36 22.98 23.50 24.54 24.32 24.62 24.00 21.02 21.20 21.05 22.00 3GPP Rel 6 HSUPA Subtest-4 23.31 23.37 22.84 23.50 24.47 24.32 24.58 25.00 21.04 21.02 20.98 20.00 3GPP Rel 6 HSUPA Subtest-5 23.36 23.45 22.89 24.00 24.50 24.28 24.56 25.00 21.15 21.14 21.17 22.00 3GPP Rel 7 HSPA+ (16QAM) Subtest-1 23.38 23.37 22.90 24.00 24.04 23.93 24.05 25.00 21.01 21.17 21.06 22.00 9262 9400 9538 1312 1413 1513 4132 4183 4233 9662 9800 9938 1537 1638 1738 4357 4408 4458 1852.4 1880 1907.6 1712.4 1732.6 1752.6 826.4 836.6 846.6 3GPP Rel 99 RMC 12.2Kbps 18.32 18.46 18.42 19.00 18.44 18.61 18.54 19.00 24.28 24.30 24.34 25.00 3GPP Rel 6 HSDPA Subtest-1 18.08 18.13 18.12 19.00 17.51 17.63 17.61 18.00 23.21 23.17 23.18 24.00 3GPP Rel 6 HSDPA Subtest-2 18.10 18.15 18.08 19.00 17.56 17.58 17.64 18.00 23.22 23.18 23.19 24.00 3GPP Rel 6 HSDPA Subtest-3 17.44 17.57 17.57 18.50 17.04 17.11 17.18 17.50 22.72 22.63 22.68 23.50 3GPP Rel 6 HSDPA Subtest-4 17.55 17.65 17.45 18.50 16.99 17.13 17.12 17.50 22.66 22.67 22.56 23.50 3GPP Rel 8 DC-HSDPA Subtest-1 17.10 17.30 17.32 18.00 16.93 16.60 16.63 17.50 22.56 22.74 22.80 23.50 3GPP Rel 8 DC-HSDPA Subtest-2 17.78 17.50 17.41 18.00 16.44 16.52 16.53 17.50 22.41 22.50 22.57 23.50 3GPP Rel 8 DC-HSDPA Subtest-3 17.26 17.44 17.21 17.50 16.00 16.21 16.20 17.00 22.14 22.31 22.31 23.00 3GPP Rel 8 DC-HSDPA Subtest-4 17.42 17.25 17.34 17.50 16.34 16.27 16.31 17.00 22.18 22.05 22.14 23.00 3GPP Rel 6 HSUPA Subtest-1 18.11 18.12 18.16 19.00 17.54 17.66 17.64 18.00 23.15 23.20 23.15 24.00 3GPP Rel 6 HSUPA Subtest-2 17.46 17.64 17.07 18.00 16.99 17.17 17.14 17.50 22.69 22.67 22.64 23.00 3GPP Rel 6 HSUPA Subtest-3 18.01 18.07 18.12 19.00 17.67 17.69 17.69 18.00 23.23 23.21 23.17 24.00 3GPP Rel 6 HSUPA Subtest-4 18.06 18.03 18.08 19.00 17.52 17.59 17.61 18.00 23.17 23.26 23.15 24.00 3GPP Rel 6 HSUPA Subtest-5 18.06 18.07 18.13 19.00 17.54 17.61 17.67 18.00 23.22 23.16 23.13 24.00 3GPP…

Text truncated - open the document above for the full version.

REPORT No.：SZ20100013S01 Annex E DASY Calibration Certificate MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1- 3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755 -36698555 Fax: 86- 755-36698525 Http://www.morlab.cn E-mail: [email protected]

Add: No.5 1 Xueyuan Road, HaTel: +86-10-62304633-2079 dichna N CALIBRATION1In1` N411114 11191V CNAS L0570d' Fax '+86110-b23046002 04 China E-mail: cttlachinattl com http://www.chinattl.en C lient KEHU Certificate No: Z1860194 CAL-1Li1N CERTIFICATE Object D750V3-SN: 1173 Calibration Procedure(s) FF-Z11-003-01 Calibration Procedures for dipole validation kits Calibration date: June 21, 2018 This calibration Certificate documents the traceab ility to national standards, which real ize the physical un its of measurements(S I). The measurements and the uncertainties with confidence probabi-ity are g iven on the fo llowing pages and are part of the certificate. A ll cal ibrations have been conducted in the c losed laboratory facility: environment temperature(223)C and hum idity<70%. Cal ibration Equipment used (M&TE critica-for calibration) Primary Standards ID # Cal Date(Calibrated by, Certificate No.) Schedu ed Calibration Power Meter NRVD Power sensor NRV-Z5 Reference Probe EX3DV4 DAE4 Secondary Standards 102083 01-Nov-17 (CTTL, No.J17X08756) Oct-18 100542 01-Nov-17 (CTTL, No.J17X08756) Oct-18 SN 7464 12-Sep1 7(S PEAG, No. EX3-7464-Sep17) Sep-18 SN 1525 02ct-17(SPEAG,No.DAE4-1525ctl7) Oct-18 ID # Ca Date(Ca librated by, Certificate No.) Schedu ed Ca libration S igna l Generator E4438C NetworkAnalyzer E5071 C MY49071430 23-Jan-18 (CTTL, No.JI8X00560) Jan-19 MY46110673 24-Jan-18 (CTTL, No.J18X00561) Jan-19 Name Function . Signature Calibrated by Reviewed by Approved by Issued: June 26, 2018 Th is calibration certificate sha l l not be reproduced except in full without written approval of the laboratory. Certificate No: Z 18-60194 Page 1 of8 In Collaboration with CAUBRA71ON LABORATORY Add: N 51 Xueyuan Road, Haidian District, Beijing, 100191, China Tel86-10-62304633-2079 Fax86-10-62304633-2504 E-mail: [email protected] http://www.chinatti.cn Gssary: TSL tissue s-mu lating quid ConvF sensitivity in TSL I NORMx,y,z N/A not app licable or not measured Calibration is Performed According to the Following Standards: a) IEEE Std 1528-2013, "IEEE Recommended Practice for Determining the Peak SpatiaAveraged Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techn ques", June 2013 b) IEC 62209-1, "Measurement procedure for assessment of specific absorption rate of human exposure to rad io frequency fields from hand-held and body-mounted wireless communication devices- Part 1: Device used next to the ear (Frequency range of 300MHz to 6GHz)", July 2016 c) IEC 62209-2, "Procedure to measure the Specific Absorption Rate (SAR) For wireless communication devices used in close proxim ity to the human body (frequency range of 30MHz to 6GHz)", March 2010 d) KDB865664, SAR Measurement Requirements for 100 MHz to 6 GHz Additional Documentation: e) DASY4/5 System Handbook Methods Applied and Interpretation of Parameters: . Measurement Conditions: Further deta i ls are avai lable from the Validation Report at the end of the certificate. Al l figures stated in the certificate are val id at the frequency ind cated. . Antenna Parameters with TSL: The dipole is mounted with the spacer to position its feed point exactly below the center marking of the flat phantom section, with the arms oriented para l lel to the body axis. . Feed Point Impedance and Return Loss: These parameters are measured with the d ipole positioned under the liquid fi l led phantom The impedance stated s transformed from the measurement at the SMA connector to the feed point. The Return Loss ensures low reflected power. No uncertainty requ ired . Electrical Delay: One-way delay between the SMA connector and the antenna feed point. No uncertainty required. SAmeasured: SAR measured at the stated antenna input power. SAnormalized: SAR as measured, normal ized to an input power of 1 W at the antenna connector. SAR for nominal TSL parameters: The measured TSL parameters are used to calculate the nom inal SAR resu lt. The reported uncertainty of measurement is stated as the standard uncerta inty of Measurement mu ltip lied by the coverage factor k=2, wh ich for a normal distribution Corresponds to a coverage probability of approximately 95% Certificate No: Z18-60194 Page 2 of 8 -n Collaboration win ;m1l Add: No.51 Xueyuan Road, Haidian District, Beijing, 100191, China Tel86-10-62304633-2079 Fax86-1062304633-2504 E-mail: [email protected] http://www.chinattl.cn Measurement Conditions 99Df1P99D9 DASY Version DASY52 52.10.1.1476 4 Extrapolation Advanced Extrapolation Phantom Triple F lat Phantom 5.1C 4 Distance Dipole Center - TSL 15 mm with Spacer 4 Zoom Scan Resolution dx, dy, dz = 5 mm Frequency 750 MHz 1 MHz I I 1 Head TSL parameters SAR result with Head TSL SAR averaged over 1 cm3 (1 g) of Head TSL Cond ition SAR measured 250 mW input power 2.02mW/g SAR for nom ina l Head TSL parameters norma l ized to 1W 8.26mW/g18.8 % (k=2) SAR averaged over 10 cm3 (10 g) of Head TSL Condition SAR measured 250 mW input power 1.34mW/g SAR for nom inal Head TSL parameters normalized to 1W 5.45 mW /g18.7 % (k=2 Body TSL parameters SAR result wit…

Text truncated - open the document above for the full version.
