2ABGH-RC178LWRTOrbic Smart Wrist (LTE/WCDMA/BT/WiFi)

Product Safety & Warranty Keep the device (“Product”) away from dust, water, damp areas, precipitation and humidity. Dust, water, liquids, precipitation and humidity may cause overheating, electrical leakage, and/or Product failure. The Product, battery, charger and AC adapter are not waterproof. Keep them away from liquid, fuels and chemicals. If the Product gets wet, do not place the Product in an oven, microwave or dryer, as this will damage the Product and could cause a fire or explosion. Only use the battery and charger approved by the manufacturer. Using other brands may cause battery leakage, overheating, explosion or even fire. Do not use the Product where it might cause danger. Do NOT text and drive. Battery Use • Handle and store batteries properly to avoid injury or damage. Most battery issues arise from improper handling and, particularly, from the continued use of damaged batteries. • Do not disassemble or open crush, bend or deform, puncture or shred • Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to water or other liquids, expose to fire, explosion or other hazard. • Only use the battery for the system for which it is specified • Only use the battery with a charging system that has been qualified with the system per CTIA Certification Requirements for Battery System Compliance to IEEE 1725. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage, or other hazard. • Do not short circuit a battery or allow metallic conductive objects to contact battery terminals. • Replace the battery only with another battery that has been qualified with the system per this standard, IEEE-Std-1725. Use of an unqualified battery may present a risk of fire, Important Safety Information 23 explosion, leakage or other hazard. • Only authorized service providers shall replace battery. (If the battery is non-user replaceable). • Promptly dispose of used batteries in accordance with local regulations • Battery usage by children should be supervised. • Avoid dropping the device or battery. If the device or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection. • Improper battery use may result in a fire, explosion, or other hazard. • The maximum operating temperature is 40°C while the watch is in charging status and it’s 50°C while the watch is Non-charging status. Note: The battery shall only be serviced by the manufacturer. CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries in accordance with local regulations. Health Warnings • If you have a pacemaker or other internal electronic device, consult your physician before using a heart rate monitor and/or any other electronic device. • The Orbic device heart rate monitor feature omits green light and flashes occasionally, consult your physician if you have epilepsy or are sensitive to flashing lights. • Be sure to always consult your physician before beginning or modifying any physical exercise programs. The Orbic device, accessories, heart rate monitor, and related data are intended to be used for recreational purposes only and not for medical purposes and are not intended to diagnose, monitor, treat, cure, or prevent any disease or condition. Please see your physician for any diagnosis. The heart rate readings are for reference only, and no responsibility is accepted for the 4 5 consequences of any erroneous readings. While the heart rate monitor technology of the Orbic device typically provides an accurate estimate of a user’s heart rate, there are inherent limitations with the technology that may cause some of the heart rate readings to be inaccurate under certain circumstances, including the user’s physical characteristics, fit of the device, and type and intensity of activity. The Orbic device relies on sensors that track your movement and other metrics. The data and information provided by this device is intended to be a close estimation of your activity and the metrics tracked, but may not be completely accurate, including step, distance, sleep, heart rate, and calorie data. Outdoor Activity Warnings • Your Orbic device is able to suggest various outdoor activities, such as biking, hiking, walking and running. Be sure to follow all the rules and guidelines of the pathway you are traveling on. • Ensure that you have the proper gear and supplies for your activity before navigating along unfamiliar paths and trails. • Make sure your bicycle, equipment and hardware are properly maintained and that all parts are correctly installed. • Always use your best judgment and exercise common sense when making off-road navigational decisions. The Orbic device is designed only to provide suggestions for outdoor activities. It is not a replacement for attentiveness and proper preparation for outdoor activities. Do not follow the route suggestions if they suggest an illegal course or would put you in an unsafe situation. • Always be aware of your surroundings and be mindful of your route. Always carefully compare information displayed on the device to all available navigation sources, including trail signs, trail conditions, weather conditions, and other factors that may affect safety while exercising outdoor. • Always be mindful of the effects of the environment and the inherent risks of the activity before embarking on off-road activities, especially the impact that weather and weather- related trail conditions can have on the safety of your activity. Cleaning and Maintenance The Product, the battery and the charger are not waterproof. Do not use them in places with high humidity like a bathroom and also avoid spilling any liquids on the Product, battery or charger. Use a soft cloth to clean the Product, the battery and the charger. Do not use alcohol, diluted liquid or benzene to clean the Product. Disposal of Product and Batteries Follow local regulations…

Text truncated - open the document above for the full version.

Date: 03/11/2021 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: T he Reliance Communications LLC, the undersigned, hereby authorizes Mrs. Wendy Zhan from Shenzhen Moriah Communications Technology Co., Ltd., to act on the behalf of the Reliance Communications LLC solely in matters relating to the application for an FCC equipment authorization for FCC ID: 2ABGH-RC178LWRT including the signing of documents in connection with this Application. Necessary acts carried out Shenzhen Moriah Communications T echnology Co., Ltd. on our behalf of the Reliance Communications LLC in connection with the Application shall have the same effect as acts of the Reliance Communications LLC. Reliance Communications LLC also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Thank you for your attention to this matter. Yours Sincerely. Signatory: 心八／乙＼ Contact name: Saqib Ghouri Title: Director, Product Management Tel: 631-240-8394 Email: [email protected] Company name: R eliance Communications LLC

Reliance Communications LLC Date: 03/11/2021 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Request of Confidentiality for FCC ID: 2ABGH-RC178LWRT To Whom it m ay concern: Pursuant to sections 0.457 and 0.459 of Commission's Rules(CFR 47), and Section 552(b)(4) of the Freedom of Information Act,Panasonic India Private Limited hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. T he public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competito「s. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA04-1705. This prov函on will give Panasonic India Private Limited temporary confidentiality of commercially sensitive information prior to product release. The re_guested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 BOM 5 Tune up procedure 6 External Photos SHORT-TERM 7 Internal Photos 8 Test-Setup Photos 9 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Signatory: O趴v2.-, Name: Saqib Ghouri Company name: Reliance Communications LLC A ddress: 91 Colin Drive, Unit 1, HOLBROOK, New York 11741, United States Tel: 631-240-8394 Email: [email protected]

Declaration To whom it may concern: We have declared below featured for FCC equipment authorization, Device FCC ID: 2ABGH-RC178LWRT Don't operate on Channels 12 and 13. US 2.4G channel 12-13 and Country code selection are disabled through proprietary software and are not user changeable Should you have any questions, please feel free to contact me. Date:03/11/2021 Signature: C?,--\l一凶 Name: Saqib Ghouri Title: Director, Product Management Company name: Reliance Communications LLC

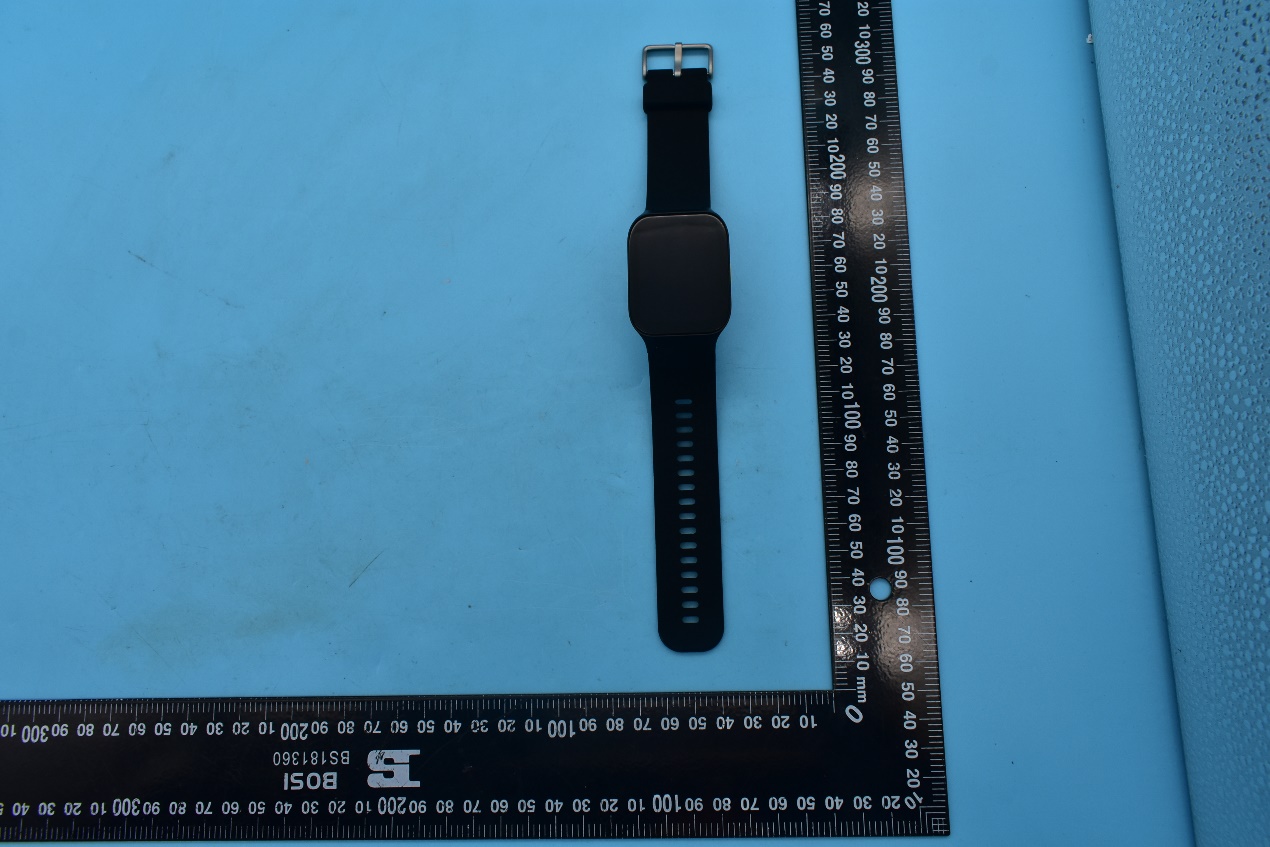

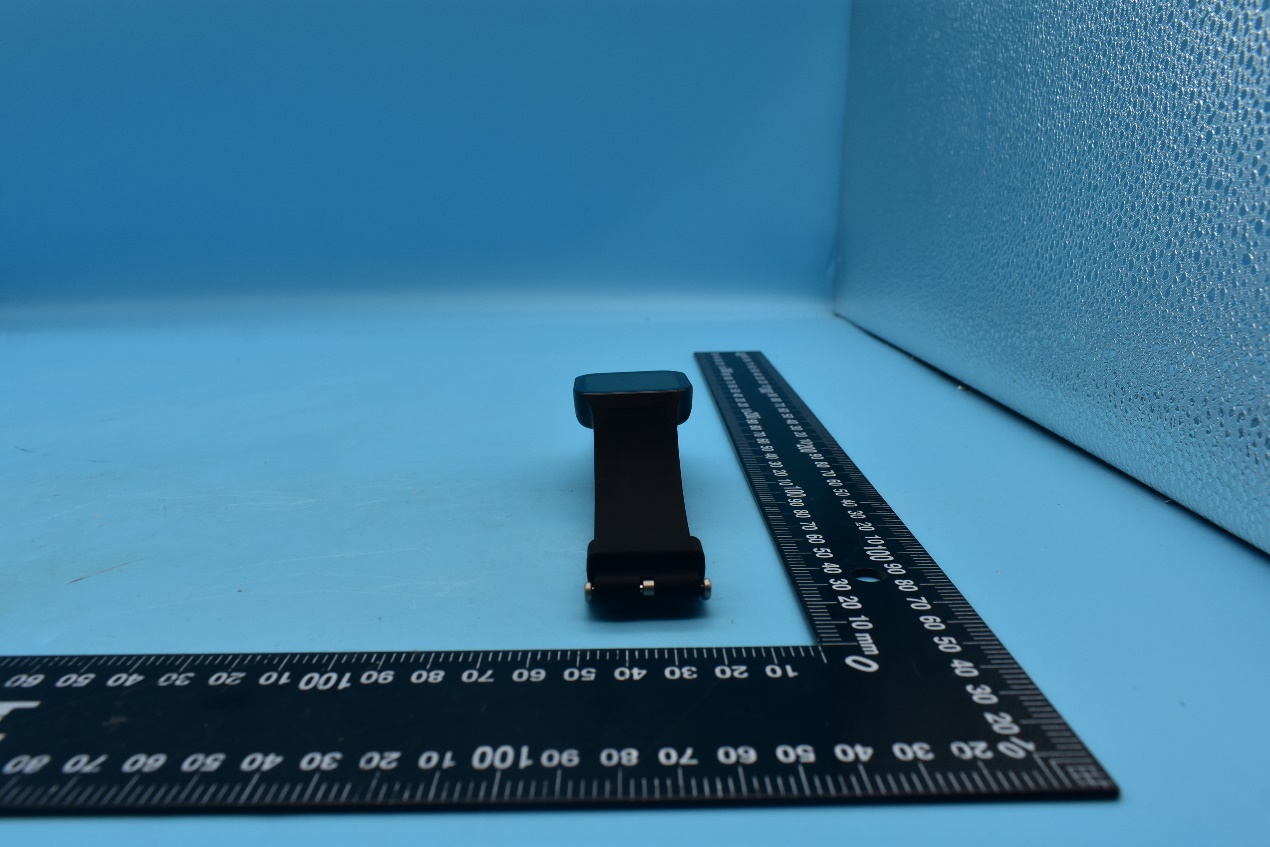

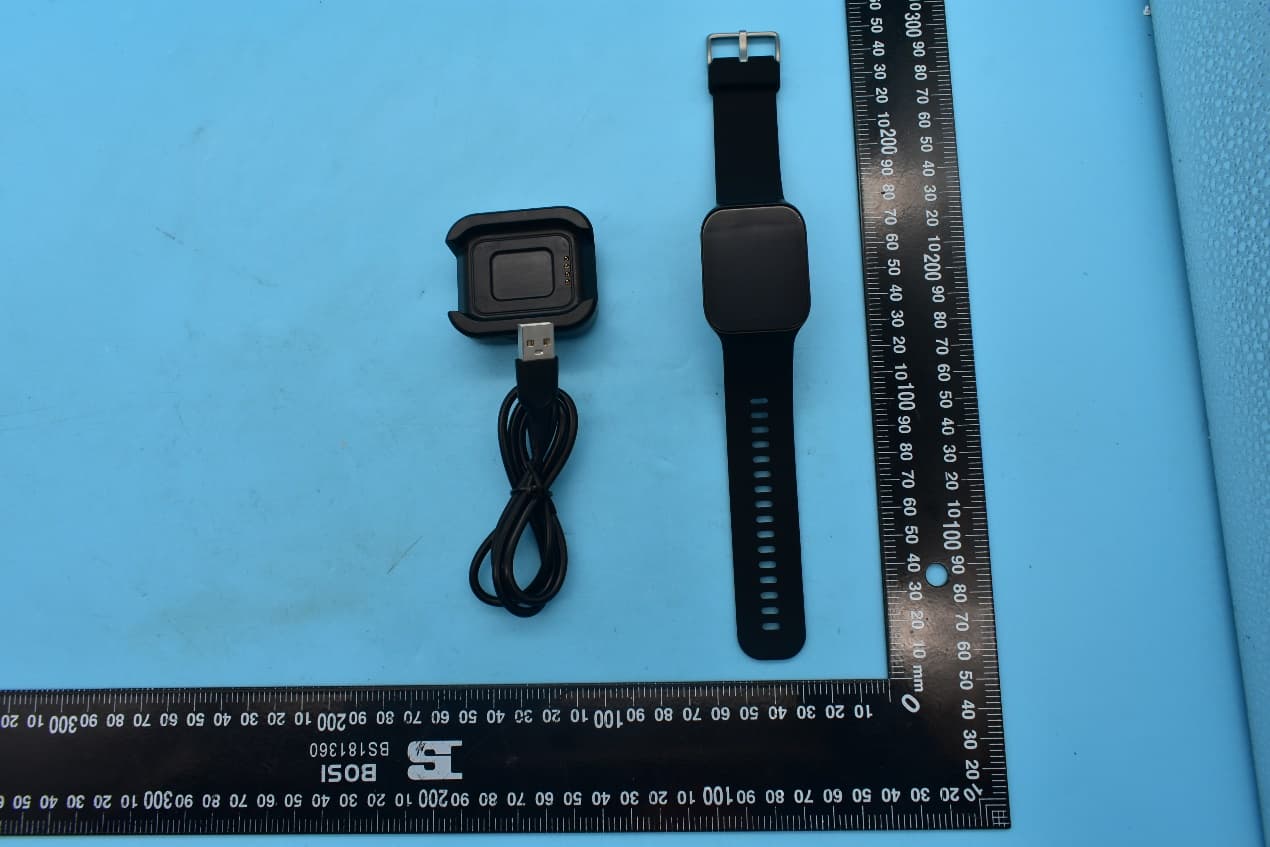

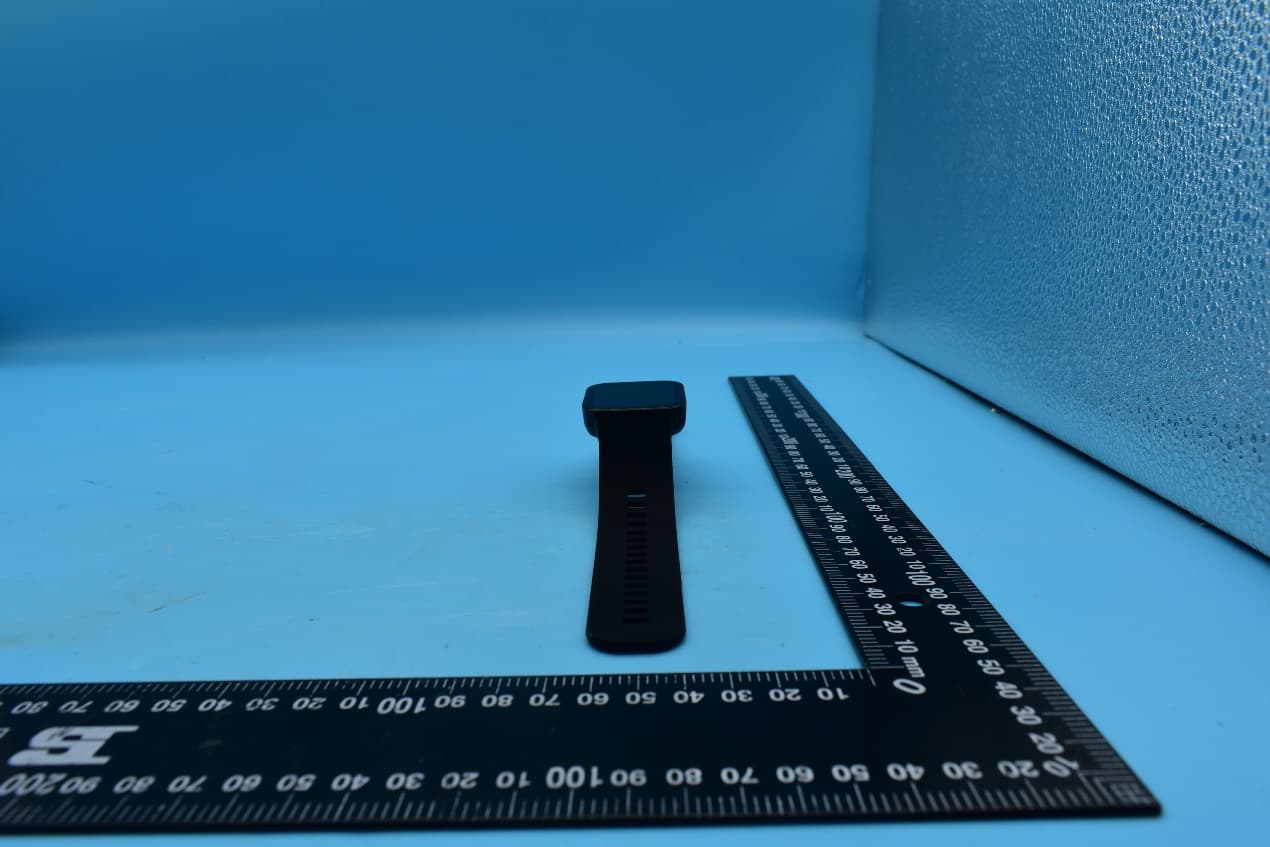

FCC ID:2ABGH-RC178LWRT External Photos 1.EUT front view 2.EUT rear view 3.EUT left side view 4.EUT right side view 5.EUT top view 6.EUT bottom view 7. Accessories

1.Label 2.Label location To view device FCC ID on a device look at the label in the battery compartment, for devices without a battery door there is a E-label information available by selecting: Settings > About phone

FCC ID:2ABGH-RC178LWRT Internal Photos 1.EUT uncover view 2. Antenna view WCDMA/LTE Antenna Bluetooth/Wi-Fi Antenna

MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ21040156S01 Annex C Plots of System Performance Check Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2021.02.15 System Check_750MHz_Head Communication System: UID 0, CW (0); Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750 Medium parameters used: f = 750 MHz; σ = 0.904 S/m; ε r = 42.081; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(10.09, 10.09, 10.09); Calibrated: 2020.11.30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW750/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.60 W/kg CW750/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 62.32 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 5.15 W/kg SAR(1 g) = 2.01 W/kg; SAR(10 g) = 1.34 W/kg Maximum value of SAR (measured) = 3.61 W/kg 0 dB = 3.61 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2021.02.16 System Check_835MHz_Head Communication System: UID 0, CW (0); Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835 Medium parameters used: f = 835 MHz; σ = 0.918 S/m; ε r = 41.962; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(9.74, 9.74, 9.74); Calibrated: 2020.11.30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW835/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 4.66 W/kg CW835/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 71.45 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 6.53 W/kg SAR(1 g) = 2.36 W/kg; SAR(10 g) = 1.51 W/kg Maximum value of SAR (measured) = 4.66 W/kg 0 dB = 4.66 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2021.02.17 System Check_1750MHz_Head Communication System: UID 0, CW (0); Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL_1750 Medium parameters used: f = 1750 MHz; σ = 1.389 S/m; ε r = 41.233; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(8.53, 8.53, 8.53); Calibrated: 2020.11.30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW1750/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 17.7 W/kg CW1750/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 109.4 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 30.1 W/kg SAR(1 g) = 9.19 W/kg; SAR(10 g) = 5.08 W/kg Maximum value of SAR (measured) = 17.5 W/kg 0 dB = 17.5 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2021.02.18 System Check_1900MHz_Head Communication System: UID 0, CW (0); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900 Medium parameters used: f = 1900 MHz; σ = 1.431 S/m; ε r = 41.164; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(8.13, 8.13, 8.13); Calibrated: 2020.11.30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW1900/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 18.2 W/kg CW1900/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 116.1 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 30.4 W/kg SAR(1 g) = 10.01 W/kg; SAR(10 g) = 5.11 W/kg Maximum value of SAR (measured) = 18.0 W/kg 0 dB = 18.0 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2021.02.19 System Check_2450MHz_Head Communication System: UID 0, CW (0); Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450 Medium parameters used: f = 2450 MHz; σ = 1.851 S/m; ε r = 40.321; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(7.34, 7.34, 7.34); Calibrated: 2020.11.30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW2450/Area Scan (71x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 14.6 W/kg CW2450/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 85.49 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 26.2 W/kg SAR(1 g) = 13.33 W/kg; SAR(10 g) = 6.12 W/kg Maximum value of SAR (measured) = 13.1 W/kg 0 dB = 13.1 W/kg

MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ21040156S01 Annex D Plots of Maximum SAR Test Results Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2021.02.18 WCDMA Band II_RMC 12.2Kbps_Front Side_10mm_Ch9400 Communication System: UID 0, UMTS-FDD (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: HSL_1900 Medium parameters used: f = 1880 MHz; σ = 1.321 S/m; ε r = 39.882; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(8.13, 8.13, 8.13); Calibrated: 2020.11.30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch9400/Area Scan (51x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.505 W/kg Ch9400/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.67 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.596 W/kg SAR(1 g) = 0.352 W/kg; SAR(10 g) = 0.201 W/kg Maximum value of SAR (measured) = 0.374 W/kg 0 dB = 0.374 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2021.02.17 WCDMA Band IV_RMC 12.2Kbps_Front Side_10mm_Ch1413 Communication System: UID 0, UMTS-FDD (0); Frequency: 1732.6 MHz;Duty Cycle: 1:1 Medium: HSL_1750 Medium parameters used: f = 1733 MHz; σ = 1.412 S/m; ε r = 39.814; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(8.53, 8.53, 8.53); Calibrated: 2020.11.30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch1413/Area Scan (51x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.361 W/kg Ch1413/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.88 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 0.406 W/kg SAR(1 g) = 0.242 W/kg; SAR(10 g) = 0.140 W/kg Maximum value of SAR (measured) = 0.261 W/kg 0 dB = 0.261 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2021.02.16 WCDMA Band V_RMC 12.2Kbps_Front Side_10mm_Ch4182 Communication System: UID 0, UMTS-FDD (0); Frequency: 836.4 MHz;Duty Cycle: 1:1 Medium: HSL_835 Medium parameters used: f = 836.4 MHz; σ = 0.943 S/m; ε r = 42.978; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(9.74, 9.74, 9.74); Calibrated: 2020.11.30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch4182/Area Scan (51x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0134 W/kg Ch4182/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.461 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.0190 W/kg SAR(1 g) = 0.011 W/kg; SAR(10 g) = 0.00704 W/kg Maximum value of SAR (measured) = 0.0117 W/kg 0 dB = 0.0117 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2021.02.18 LTE Band 2_20MHz_QPSK_1RB_0Offset_Front Side_10mm_Ch18900 Communication System: UID 0, LTE (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: HSL_1900 Medium parameters used: f = 1880 MHz; σ = 1.321 S/m; ε r = 39.882; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(8.13, 8.13, 8.13); Calibrated: 2020.11.30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch18900/Area Scan (51x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.369 W/kg Ch18900/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.59 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.415 W/kg SAR(1 g) = 0.240 W/kg; SAR(10 g) = 0.133 W/kg Maximum value of SAR (measured) = 0.265 W/kg 0 dB = 0.265 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2021.02.17 LTE Band 4_20MHz_QPSK_1RB_0Offset_Front Side_10mm_Ch20175 Communication System: UID 0, LTE (0); Frequency: 1732.5 MHz;Duty Cycle: 1:1 Medium: HSL_1750 Medium parameters used: f = 1732.5 MHz; σ = 1.412 S/m; ε r = 39.834; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(8.53, 8.53, 8.53); Calibrated: 2020.11.30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch20175/Area Scan (51x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.280 W/kg Ch20175/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.39 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.298 W/kg SAR(1 g) = 0.179 W/kg; SAR(10 g) = 0.103 W/kg Maximum value of SAR (measured) = 0.193 W/kg 0 dB = 0.193 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2021.02.16 LTE Band 5_10MHz_QPSK_1RB_0Offset_Front Side_10mm_Ch20525 Communication System: UID 0, LTE (0)…

Text truncated - open the document above for the full version.

MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ21040156S01 Annex E DASY Calibration Certificate

Add: No.5 1 Xueyuan Road, HaTel: +86-10-62304633-2079 dichna N CALIBRATION1In1` N411114 11191V CNAS L0570d' Fax '+86110-b23046002 04 China E-mail: cttlachinattl com http://www.chinattl.en C lient KEHU Certificate No: Z1860194 CAL-1Li1N CERTIFICATE Object D750V3-SN: 1173 Calibration Procedure(s) FF-Z11-003-01 Calibration Procedures for dipole validation kits Calibration date: June 21, 2018 This calibration Certificate documents the traceab ility to national standards, which real ize the physical un its of measurements(S I). The measurements and the uncertainties with confidence probabi-ity are g iven on the fo llowing pages and are part of the certificate. A ll cal ibrations have been conducted in the c losed laboratory facility: environment temperature(223)C and hum idity<70%. Cal ibration Equipment used (M&TE critica-for calibration) Primary Standards ID # Cal Date(Calibrated by, Certificate No.) Schedu ed Calibration Power Meter NRVD Power sensor NRV-Z5 Reference Probe EX3DV4 DAE4 Secondary Standards 102083 01-Nov-17 (CTTL, No.J17X08756) Oct-18 100542 01-Nov-17 (CTTL, No.J17X08756) Oct-18 SN 7464 12-Sep1 7(S PEAG, No. EX3-7464-Sep17) Sep-18 SN 1525 02ct-17(SPEAG,No.DAE4-1525ctl7) Oct-18 ID # Ca Date(Ca librated by, Certificate No.) Schedu ed Ca libration S igna l Generator E4438C NetworkAnalyzer E5071 C MY49071430 23-Jan-18 (CTTL, No.JI8X00560) Jan-19 MY46110673 24-Jan-18 (CTTL, No.J18X00561) Jan-19 Name Function . Signature Calibrated by Reviewed by Approved by Issued: June 26, 2018 Th is calibration certificate sha l l not be reproduced except in full without written approval of the laboratory. Certificate No: Z 18-60194 Page 1 of8 In Collaboration with CAUBRA71ON LABORATORY Add: N 51 Xueyuan Road, Haidian District, Beijing, 100191, China Tel86-10-62304633-2079 Fax86-10-62304633-2504 E-mail: [email protected] http://www.chinatti.cn Gssary: TSL tissue s-mu lating quid ConvF sensitivity in TSL I NORMx,y,z N/A not app licable or not measured Calibration is Performed According to the Following Standards: a) IEEE Std 1528-2013, "IEEE Recommended Practice for Determining the Peak SpatiaAveraged Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techn ques", June 2013 b) IEC 62209-1, "Measurement procedure for assessment of specific absorption rate of human exposure to rad io frequency fields from hand-held and body-mounted wireless communication devices- Part 1: Device used next to the ear (Frequency range of 300MHz to 6GHz)", July 2016 c) IEC 62209-2, "Procedure to measure the Specific Absorption Rate (SAR) For wireless communication devices used in close proxim ity to the human body (frequency range of 30MHz to 6GHz)", March 2010 d) KDB865664, SAR Measurement Requirements for 100 MHz to 6 GHz Additional Documentation: e) DASY4/5 System Handbook Methods Applied and Interpretation of Parameters: . Measurement Conditions: Further deta i ls are avai lable from the Validation Report at the end of the certificate. Al l figures stated in the certificate are val id at the frequency ind cated. . Antenna Parameters with TSL: The dipole is mounted with the spacer to position its feed point exactly below the center marking of the flat phantom section, with the arms oriented para l lel to the body axis. . Feed Point Impedance and Return Loss: These parameters are measured with the d ipole positioned under the liquid fi l led phantom The impedance stated s transformed from the measurement at the SMA connector to the feed point. The Return Loss ensures low reflected power. No uncertainty requ ired . Electrical Delay: One-way delay between the SMA connector and the antenna feed point. No uncertainty required. SAmeasured: SAR measured at the stated antenna input power. SAnormalized: SAR as measured, normal ized to an input power of 1 W at the antenna connector. SAR for nominal TSL parameters: The measured TSL parameters are used to calculate the nom inal SAR resu lt. The reported uncertainty of measurement is stated as the standard uncerta inty of Measurement mu ltip lied by the coverage factor k=2, wh ich for a normal distribution Corresponds to a coverage probability of approximately 95% Certificate No: Z18-60194 Page 2 of 8 -n Collaboration win ;m1l Add: No.51 Xueyuan Road, Haidian District, Beijing, 100191, China Tel86-10-62304633-2079 Fax86-1062304633-2504 E-mail: [email protected] http://www.chinattl.cn Measurement Conditions 99 D f1P 99 D9 DASY Version DASY52 52.10.1.1476 4 E x t r a p o l a t i o n A d v a n c e d E x t r a p o l a t i o n P h a n t o m T r i p l e F l a t P h a n t o m 5 . 1 C 4 Distance Dipole Center - TSL 15 mm with Spacer 4 Z o o m S c a n R e s o l u t i o n d x , d y , d z = 5 m m F r e q u e n c y 7 5 0 M H z 1 M H z I I 1 Head TSL parameters SAR result with Head TSL SAR averaged over 1 cm3 (1 g) of Head TSL Cond ition SAR measured 250 mW input power 2.02mW/g SAR for nom ina l Head TSL parameters norma l ized to 1W 8.26mW/g18.8 % (k=2) SAR averaged over 10 cm3 (10 g) of Head TSL Condition SAR measured 250 mW input power 1.34mW/g SAR for nom inal Head TSL parameters normalized to 1W 5.45 mW /g18.7 % (k=2 Body TSL parameters SAR result with Body TSL SAR averaged over 1 Cm3 (1 g) of Body TSL Condition SARmeasured 25mW Inputpwer 2 13mWg SAR for nomina Body TSL parameters normalized to 1W 1 8.65 mW /g18.8 % (k=2) I SAR averaged over 10 cm3 (10 g) of Body TSL SAR measured 250 mW input power 1.41 mW / g SAR for nom ina l Body TSL parameters Certificate No: Z18-60194 Page 3 of 8 In Collaboration with cAu IA Add: No.5 1 Xueyuan Road, Haidian District, Beijing, 100191, China Tel86 10-62304633-2079 Fax86-10-62304633-2504 E-mail: [email protected] http://www.chinattl.cn Appendix (Additional assessments outside the scope of CNAS L0570) Antenna Parameters with Head TSL Impedance, transformed to feed point55.20-3.01j0 Return Loss -24.9dB Antenna Parameters with Body TSL Impedance, transformed to feed point52.30-4.51j0 Return Loss -26.1 dB G…

Text truncated - open the document above for the full version.

3 Add: No.5 I Xueyuan Road, HaTel: +86-10-62304633-2079 dan District, Beijing, 100191, China vnuorvt i ivnFax: +86-10-62304633-2504 11111h, CNAS L0570 E-mail: [email protected] http://www.chinattl.cn Cl ient KEHU Certificate No: Z18-60195 CALIBRATN CERTIFICATE Object D835V2 SN: 4d227 Ca l ibration Procedure(s) Calibration Procedures for d ipole validation kits Calibration date: June 22, 2018 This ca-ibration Certificate documents the traceabi lity to national standards, which realize the physical units of measurements(S I). The measurements and the uncertainties with confidence probability are given on the following pages and are part of the certificate. All calibrations have been conducted in the closed laboratory facility: environment temperature(223)C and humidity<70%. Cal ibration Equipment used (M&TE critical for ca ibration) Primary Standards D # Ca l Date(Calibrated by, Certificate No.) Scheduled Calibration Power Meter NRVD Power sensor NRV-Z5 Reference Probe EX3DV4 DAE4 Secondary Standards 102083 01-Nov-17 (CTTL, No.J17X08756) Oct-18 100542 01-Nov-17 (CTTL, N J 17X08756) Oct-18 SN 7464 12-Sep-17(SPEAG,N EX3-7464-Sep17) Sep-18 SN 1525 02-Oct-17(SPEAG,No.DAE4-1525_Oct17) Oct-18 ID # Ca l Date(Cal ibrated by, Certificate No.) Scheduled Calibration S ignal Generator E4438C NetworkAna lyzer E5071 C MY49071430 23-Jan-18 (CTTL, No.J18X00560) Jan-19 MY46110673 24-Jan18 (CTTL, No.J18X00561) Jan-19 Name Function Signature Ca l ibrated by Reviewed by Approved by Issued: June 26, 2018 This ca libration certificate shall not be reproduced except in full without written approval of the laboratory. Certificate No: Z 18-60195 Page I of 8 In Collaboration with z71 Add: No.51 Xueyuan Road, Haidian District, Beijing, 100191, China Tel86-10-62304633-2079 Fax86-10-62304633-2504 E-mail: [email protected] http://wwwchinattl.cn Glossary: TSL tissue simu lating l iqu id ConvF sensitivity in TSL / NORMx,y,z N/A not applicable or not measured Ca-ibration is Performed According to the Following Standards: a EEE Std 1528-2013, " IEEE Recommended Practice for Determ in ing the Peak Spati…

Text truncated - open the document above for the full version.
