2ABGH-RC609LSMOrbic Fun with GSM, WCDMA, LTE, Bluetooth and WiFi

1 User Manual 2 Table of Contents Overview ...........................................................6 Getting Started ...........................................................................6 Assemble Your Device ..................................8 Installing a SD Card/SIM Card .............................................8 Charging the Battery ...............................................................8 Set Up Your Device ......................................10 Turn Your Device ON/OFF ..................................................10 Initial Setup ................................................................................10 Secure Your Device................................................................10 Touchscreen Gestures ...........................................................11 Know Your Device ........................................12 Home Screen .............................................................................12 Previewing the Home Screen ...........................................13 Customizing the Home Screen ........................................13 Widgets .........................................................................................14 App Shortcuts ............................................................................15 Folders ...........................................................................................15 Status Bar.....................................................................................16 Notification Panel ....................................................................17 Using the Onscreen Keyboard ..........................................18 Editing Text .................................................................................20 Selecting Text ...........................................................................23 Screen Timeout/Sleep Mode ON ...................................25 Adjusting Volume ....................................................................27 Connecting Your Phone to the Computer ................28 Phone Calls ...................................................29 Making Calls...............................................................................29 Making an International Call .............................................29 Calling from the Recents Call Menu .............................30 Making a call from the Contact list ...............................30 Making an Emergency Call ................................................30 Answering or Rejecting Calls ............................................31 Answering or declining an incoming call ....................32 Checking missed calls ..........................................................33 3 Using In-Call Options ............................................................33 Using the Recent Call Menu ..............................................34 Messaging .....................................................38 Sending a Message ................................................................38 Replying / Forwarding a Message ..................................38 Deleting a Message/Thread ..............................................39 Message Settings ...................................................................39 Sending a Multimedia Message (MMS) .....................39 Resuming a Draft Message ...............................................40 Searching Messages .............................................................40 Email ................................................................41 Adding an Account ..................................................................41 Removing an Account ...........................................................41 Composing an Email...............................................................41 Responding to an Email .......................................................42 Working with Multiple Email Messages .....................42 Switching Between Google Accounts .........................43 Labeling an Email ....................................................................43 Email Settings ...........................................................................44 Google™ Apps ..........................................................................45 Maps ................................................................47 Opening and viewing Maps ...............................................47 Viewing Location Details ....................................................47 Camera ...........................................................50 Capturing a Photo ..................................................................50 Recording a Video ..................................................................50 Camera Settings.......................................................................51 Calendar .........................................................52 Creating an Event ....................................................................52 Editing/Deleting an Event ...................................................52 Sharing an Event ......................................................................52 Calendar Settings ...................................................................52 Clock ...............................................................53 Set an Alarm ..............................................................................53 Google Photos ..............................................54 4 Sharing Albums, Photos, or Videos ..............................54 Deleting Albums, Photos, or Videos .............................54 Editing Photos ..........................................................................54 Creating an Animation or Collage ..................................54 Music ..............................................................55 Viewing your Music Library ...............................................55 Copying Music Files to the Device .......…

Text truncated - open the document above for the full version.

Reliance Communications LLC Date: 2022/05/25 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The Reliance Communications LLC, the undersigned, hereby authorizes Mrs. Wendy Zhan from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of the Reliance Communications LLC solely in matters relating to the application for an FCC equipment authorization for FCC ID: 2ABGH-RC609LSM including the signing of documents in connection with this Application. Necessary acts carried out Shenzhen Morlab Communications Technology Co., Ltd. on our behalf of the Reliance Communications LLC in connection with the Application shall have the same effect as acts of the Reliance Communications LLC. Reliance Communications LLC also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Thank you for your attention to this matter. Yours Sincerely, Signatory: Contact name: Saqib Ghouri Reliance Communications LLC Title: Director, Product Management Tel: 631-240-8394 Email: [email protected] Company name: Reliance Communications LLC

Reliance Communications LLC Date: 2022/05/25 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Request of Confidentiality for FCC ID: 2ABGH-RC609LSM To Whom it may concern: Pursuant to sections 0.457 and 0.459 of Commission’s Rules (CFR 47), and Section 552(b)(4) of the Freedom of Information Act, Reliance Communications LLC hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days from grant date as outlined in Public Notice DA04-1705. This provision will give Reliance Communications LLC temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 BOM 5 Tune up procedure SHORT-TERM 6 External Photos 7 Internal Photos 8 Test-Setup Photos 9 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Reliance Communications LLC Signatory： Contact name: Saqib Ghouri Title: Director, Product Management Tel: 631-240-8394 Email: [email protected] Company name: Reliance Communications LLC

Reliance Communications LLC UNII Declaration Letter We have declared below featured for FCC equipment authorization, device FCC ID: 2ABGH-RC609LSM (1) DFS Device -- Master, Client with Radar detection capability , Client without radar detection capability, N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) Passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 2412 – 2472 MHz Yes, No Yes, No Yes, No Yes, No 2422 – 2462 MHz Yes, No Yes, No Yes, No Yes, No 5745 – 5825 MHz Yes, No Yes, No Yes, No Yes, No 5755 – 5795 MHz Yes, No Yes, No Yes, No Yes, No 5180 – 5240 MHz Yes, No Yes, No Yes, No Yes, No 5190 – 5230 MHz Yes, No Yes, No Yes, No Yes, No 5260 – 5320 MHz Yes, No Yes, No Yes, No Yes, No 5270 – 5310 MHz Yes, No Yes, No Yes, No Yes, No 5500 – 5700 MHz Yes, No Yes, No Yes, No Yes, No 5510 – 5670 MHz Yes, No Yes, No Yes, No Yes, No (3) Country code selection ability - Yes , No If no, pls explain how was implemented : Country is selected as US by default and user can not change the country code. (4) Meet 15.202 requirement - Yes , No , pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply , No Apply , (If apply , pls help to provide explanation on how it was implement (By hardware or software , and how software was controlled) Reliance Communications LLC The device configuration can not be modified by user as program is not exposed to user by any means. Hardware does not allow USB connection for user which is must to change the configuration. If you have any questions, please feel free to contact me at the address shown below. Signatory: Contact name: Saqib Ghouri Title: Director, Product Management Tel: 631-240-8394 Email: [email protected] Company name: Reliance Communications LLC

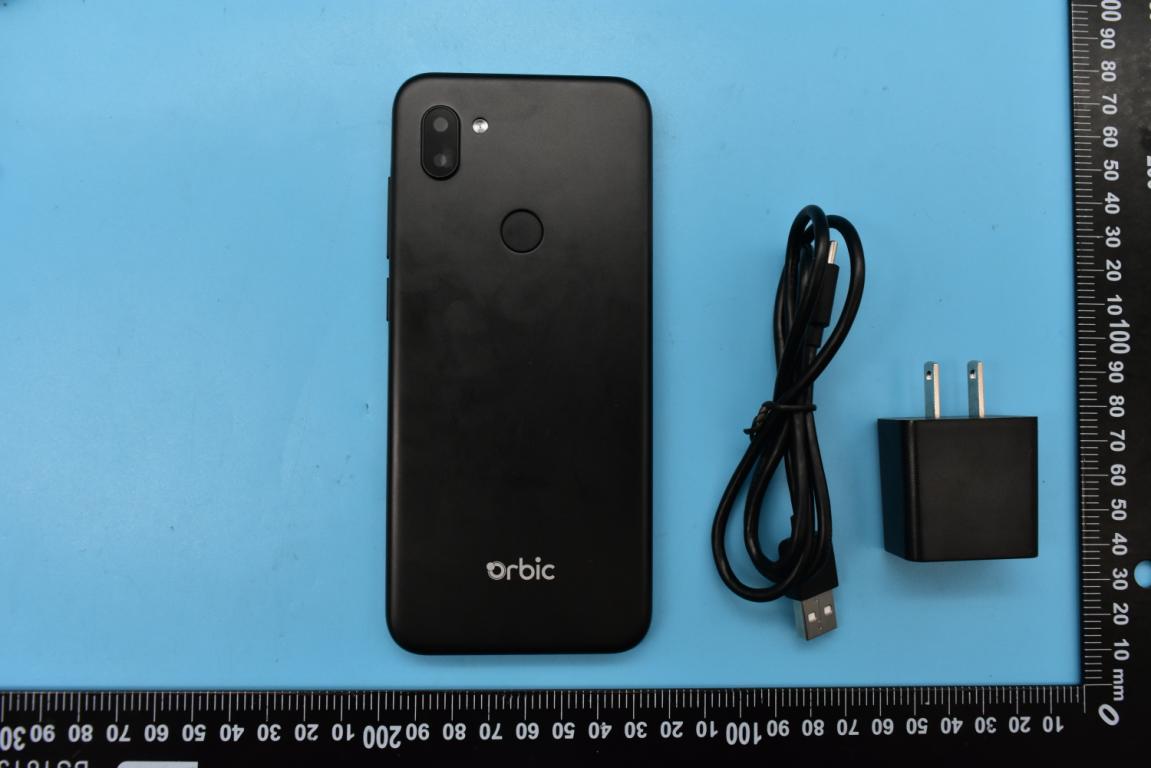

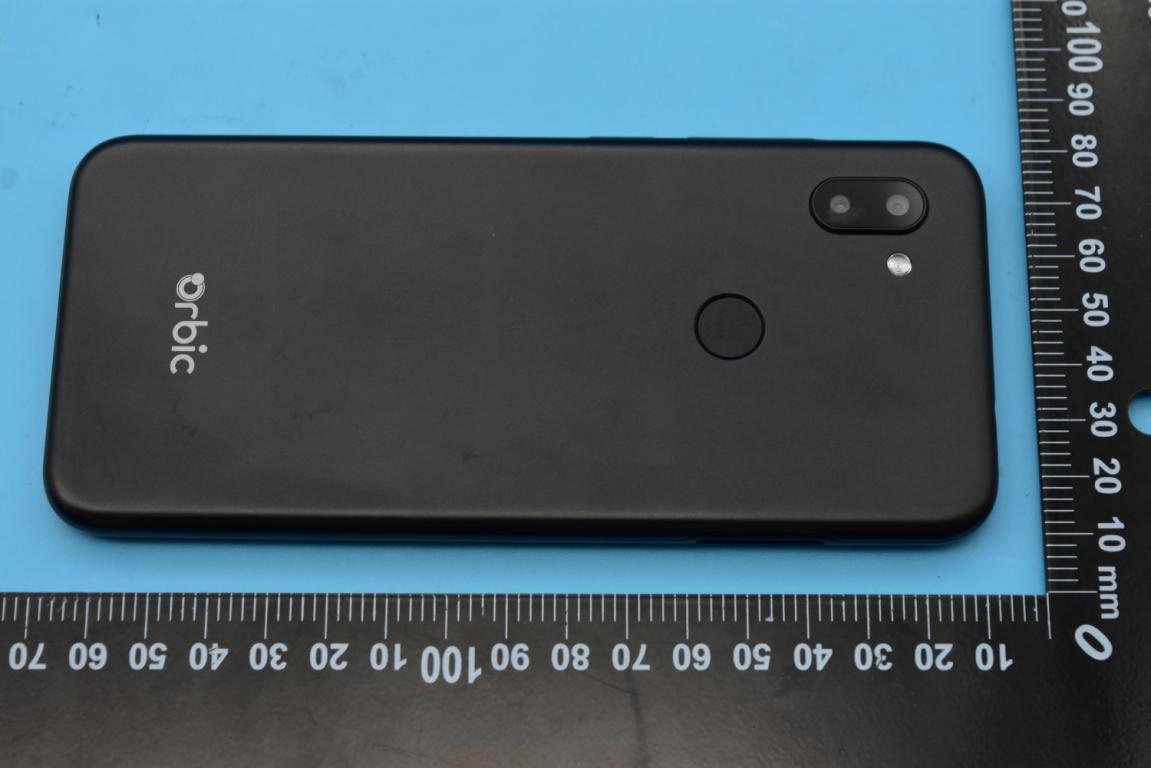

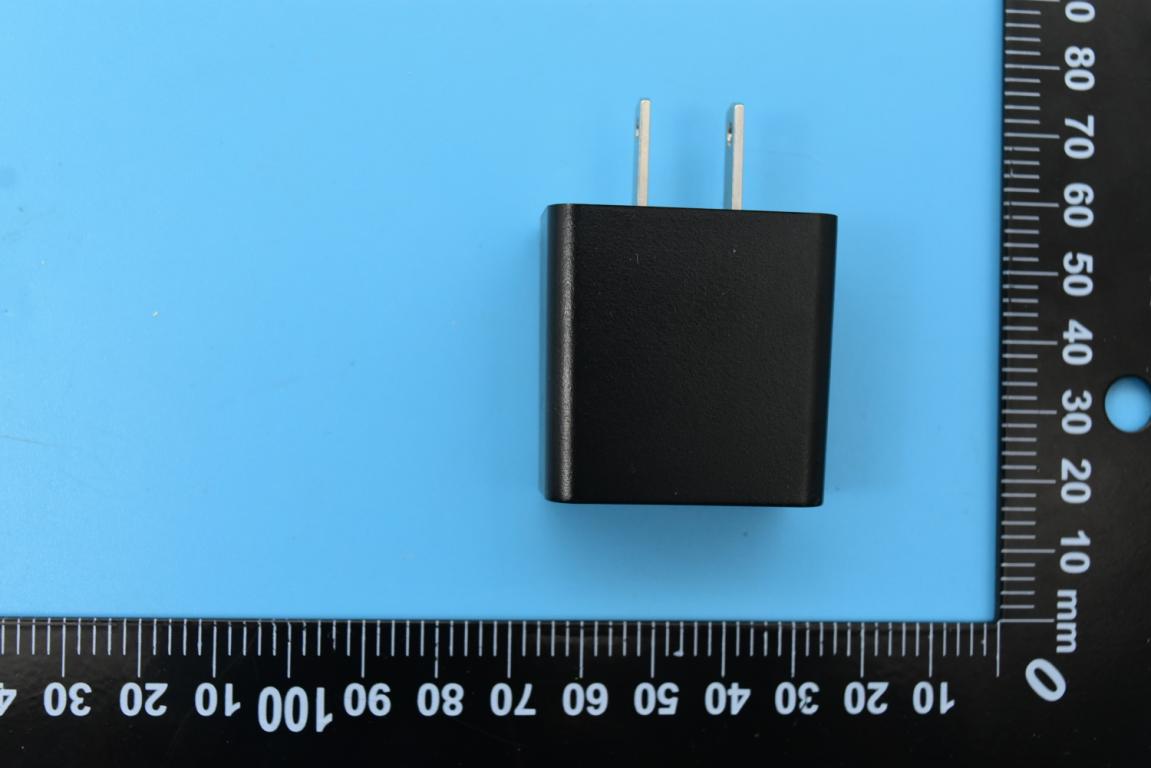

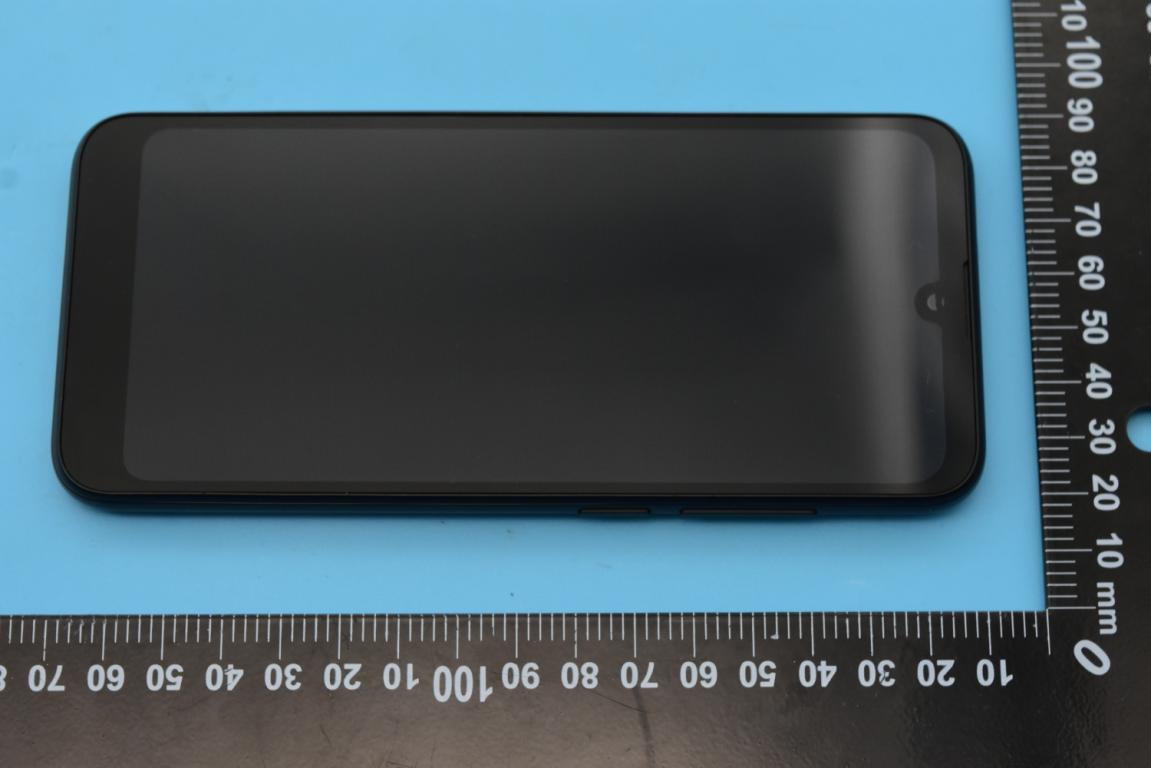

FCC ID: 2ABGH-RC609LSM External Photos 1.EUT front view 2.EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view 7. Accessories

1. Label 2. Label location To view device FCC ID on a device look at the label in the battery compartment, for devices without a battery door there is a E-label information available by selecting: Settings > About phone

FCC ID: 2ABGH-RC609LSM Internal Photos 1.EUT uncover view 2. Antenna view GSM/WCDMA/LTE Antenna Bluetooth/Wi-Fi Antenna Diversity Antenna

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22030314S01 Annex C Plots of System Performance Check Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.04.26 System Check_750MHz_Head Communication System: UID 0, CW (0); Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750 Medium parameters used: f = 750 MHz; σ = 0.904 S/m; ε r = 41.883; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(10.2, 10.2, 10.2) @ 750 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW750/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.31 W/kg CW750/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 51.63 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 3.19 W/kg SAR(1 g) = 2.08 W/kg; SAR(10 g) = 1.44 W/kg Maximum value of SAR (measured) = 2.31 W/kg 0 dB = 2.31 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.04.16 System Check_900MHz_Head Communication System: UID 0, CW (0); Frequency: 900 MHz;Duty Cycle: 1:1 Medium: HSL_900 Medium parameters used: f = 900 MHz; σ = 0.973 S/m; ε r = 41.629; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(9.81, 9.81, 9.81) @ 900 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW900/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.95 W/kg CW900/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 58.05 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 4.50 W/kg SAR(1 g) = 2.93 W/kg; SAR(10 g) = 1.85 W/kg Maximum value of SAR (measured) = 3.75 W/kg 0 dB = 3.75 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.04.18 System Check_1800MHz_Head Communication System: UID 0, CW (0); Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: HSL_1800 Medium parameters used: f = 1800 MHz; σ = 1.415 S/m; ε r = 40.254; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(8.26, 8.26, 8.26) @ 1800 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW1800/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 14.8 W/kg CW1800/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 89.58 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 18.2 W/kg SAR(1 g) = 10.45 W/kg; SAR(10 g) = 5.32 W/kg Maximum value of SAR (measured) = 14.3 W/kg 0 dB = 14.3 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.04.10 System Check_2000MHz_Head Communication System: UID 0, CW (0); Frequency: 2000 MHz;Duty Cycle: 1:1 Medium: HSL_2000 Medium parameters used: f = 2000 MHz; σ = 1.437 S/m; ε r = 40.299; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(7.99, 7.99, 7.99) @ 2000 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW2000/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 15.4 W/kg CW2000/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 91.02 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 19.5 W/kg SAR(1 g) = 10.72 W/kg; SAR(10 g) = 5.49 W/kg Maximum value of SAR (measured) = 15.2 W/kg 0 dB = 15.2 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.04.25 System Check_2450MHz_Head Communication System: UID 0, CW (0); Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450 Medium parameters used: f = 2450 MHz; σ = 1.847 S/m; ε r = 39.427; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(7.42, 7.42, 7.42) @ 2450 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW2450/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 21.4 W/kg CW2450/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 92.42 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 28.1 W/kg SAR(1 g) = 13.68 W/kg; SAR(10 g) = 6.33 W/kg Maximum value of SAR (measured) = 20.9 W/kg 0 dB = 20.9 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.04.20 System Check_5250MHz_Head Communication System: UID 0, CW (0); Frequency: 5250 MHz;Duty Cycle: 1:1 Medium: HSL_5250 Medium parameters used: f = 5250 MHz; σ = 4.789 S/m; ε r = 37.942; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liqu…

Text truncated - open the document above for the full version.

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22030314S01 Annex D Plots of Maximum SAR Test Results Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.04.16 GSM850_GPRS(4 TX slots)_Right Cheek_Ch189 Communication System: UID 0, GSM850(class 12) (0); Frequency: 836.4 MHz;Duty Cycle: 1:2.08 Medium: HSL_900 Medium parameters used: f = 836.4 MHz; σ = 0.958 S/m; ε r = 40.843; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(9.81, 9.81, 9.81) @ 836.4 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch189/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.208 W/kg Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.831 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.259 W/kg SAR(1 g) = 0.199 W/kg; SAR(10 g) = 0.151 W/kg Maximum value of SAR (measured) = 0.229 W/kg 0 dB = 0.229 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.04.10 GSM1900_GPRS(4 TX slots)_Right Cheek_Ch661 Communication System: UID 0, GSM1900(class 12) (0); Frequency: 1880 MHz;Duty Cycle: 1:2.08 Medium: HSL_2000 Medium parameters used: f = 1880 MHz; σ = 1.321 S/m; ε r = 39.882; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(7.99, 7.99, 7.99) @ 1880 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch661/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0596 W/kg Ch661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.157 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 0.0730 W/kg SAR(1 g) = 0.046 W/kg; SAR(10 g) = 0.028 W/kg Maximum value of SAR (measured) = 0.0598 W/kg 0 dB = 0.0598 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.04.10 WCDMA Band II_RMC 12.2Kbps_Right Cheek_Ch9400 Communication System: UID 0, UMTS-FDD (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: HSL_2000 Medium parameters used: f = 1880 MHz; σ = 1.321 S/m; ε r = 39.882; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(7.99, 7.99, 7.99) @ 1880 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch9400/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.184 W/kg Ch9400/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.223 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.225 W/kg SAR(1 g) = 0.146 W/kg; SAR(10 g) = 0.091 W/kg Maximum value of SAR (measured) = 0.183 W/kg 0 dB = 0.183 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.04.18 WCDMA Band IV_RMC 12.2Kbps_Right Cheek_Ch1413 Communication System: UID 0, UMTS-FDD (0); Frequency: 1732.6 MHz;Duty Cycle: 1:1 Medium: HSL_1800 Medium parameters used: f = 1733 MHz; σ = 1.366 S/m; ε r = 41.367; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(8.26, 8.26, 8.26) @ 1732.6 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch1413/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.275 W/kg Ch1413/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.979 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.324 W/kg SAR(1 g) = 0.216 W/kg; SAR(10 g) = 0.139 W/kg Maximum value of SAR (measured) = 0.267 W/kg 0 dB = 0.267 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.04.16 WCDMA Band V_RMC 12.2Kbps_Right Cheek_Ch4182 Communication System: UID 0, UMTS-FDD (0); Frequency: 836.4 MHz;Duty Cycle: 1:1 Medium: HSL_900 Medium parameters used: f = 836.4 MHz; σ = 0.958 S/m; ε r = 40.843; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(9.81, 9.81, 9.81) @ 836.4 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch4182/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.258 W/kg Ch4182/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.783 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.272 W/kg SAR(1 g) = 0.213 W/kg; SAR(10 g) = 0.165 W/kg Maximum value of SAR (measured) = 0.244 W/kg 0 dB = 0.244 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.04.10 LTE Band 2_20MHz_QPSK_1RB_0Offset_Right C…

Text truncated - open the document above for the full version.

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22030314S01 Annex E Conducted Power Note: Conducted power unit: dBm The target power was recorded in the manufacture document. 128189251128189251 824.2836.4848.8824.2836.4848.8 31.3631.4831.4032.0022.3622.4822.4023.00 31.3631.4731.4132.0022.3622.4722.4123.00 29.5229.5629.4830.0023.5223.5623.4824.000.08 27.3227.4427.4128.0023.0623.1823.1523.740.12 26.1826.2426.2127.0023.1823.2423.2124.000.06 26.1226.1026.1127.0017.1217.1017.1118.000.02 25.4725.5525.4926.0019.4719.5519.4920.000.08 23.3423.4223.5224.0019.0819.1619.2619.740.18 20.6120.5920.6421.0017.6117.5917.6418.000.05 Max.31.48Max.23.56 512661810512661810 1850.218801909.81850.218801909.8 29.4529.5229.4530.0020.4520.5220.4521.00 29.4629.5329.4730.0020.4620.5320.4721.00 26.4526.3626.3327.0020.4520.3620.3321.000.12 24.5024.5524.4325.0020.2420.2920.1720.740.12 23.1623.1723.1224.0020.1620.1720.1221.000.05 25.6625.4725.6126.0016.6616.4716.6117.000.19 24.6224.5224.5625.0018.6218.5218.5619.000.10 23.2623.2023.1824.0019.0018.9418.9219.740.08 22.5522.4622.4123.0019.5519.4619.4120.000.14 Max.29.53Max.20.53 926294009538131214131513413241824233 966298009938153716381738435744074458 1852.418801907.61712.41732.61752.6826.4836.4846.6 3GPP Rel 99RMC 12.2Kbps22.3922.4722.4123.0023.1123.1823.1424.0022.5622.6122.5123.00 3GPP Rel 6HSDPA Subtest-119.4419.6119.4720.5019.7619.9119.9920.5020.2620.2520.3421.50 3GPP Rel 6HSDPA Subtest-218.4818.6218.5319.5018.7918.9419.0220.5019.3119.2519.4120.50 3GPP Rel 6HSDPA Subtest-317.6717.8517.7118.5017.9618.1318.2019.5018.5018.4618.5720.50 3GPP Rel 6HSDPA Subtest-417.5817.7317.6318.8017.8718.0318.0919.5018.3618.3518.4720.50 3GPP Rel 8DC-HSDPA Subtest-119.4619.6119.6020.5019.9020.0020.1320.5020.3420.3420.3921.50 3GPP Rel 8DC-HSDPA Subtest-218.3018.4518.4119.5018.7018.8818.9219.5019.1819.1619.2420.50 3GPP Rel 8DC-HSDPA Subtest-317.4317.5217.6018.5017.7918.0018.0019.5018.3118.2718.3020.50 3GPP Rel 8DC-HSDPA Subtest-417.5217.6717.6218.5017.9118.0918.1419.5018.3818.3618.3820.50 3GPP Rel 6HSUPA Subtest-118.5018.5718.5019.5018.7518.9619.0719.5019.3119.3019.3920.50 3GPP Rel 6HSUPA Subtest-218.4818.5618.4819.5018.7518.9419.0519.5019.2819.2619.3520.50 3GPP Rel 6HSUPA Subtest-318.2018.3118.2019.5018.4518.6618.6319.5019.0019.0019.0620.50 3GPP Rel 6HSUPA Subtest-419.4419.5619.4320.5019.7319.9119.9520.5020.2320.2720.3221.50 3GPP Rel 6HSUPA Subtest-518.4518.5118.3819.5018.6618.8618.8619.5019.2019.1819.2920.50 3GPP Rel 7 HSPA+ (16QAM) Subtest-117.7117.7217.6718.5018.1318.2718.2319.5018.5118.4718.5119.50 Cable Loss0.8Cable Loss0.8Cable Loss0.6 Max.22.47Max.23.18Max.22.61 Tune-up Limit (dBm) Mode Attenuator TX Channel Rx Channel Frequency (MHz) Mode AttenuatorCable Loss : 0.8 Tune-up Limit (dBm) Tune-up Limit (dBm) BandWCDMA Band II (dBm)WCDMA Band IV (dBm)WCDMA Band V (dBm) EDGE 4 Tx slots EDGE 1 Tx slot EDGE 2 Tx slots EDGE 3 Tx slots GPRS 2 Tx slots GPRS 3 Tx slots GPRS 4 Tx slots GSM1900Burst Average Power (dBm)Frame-Average Power (dBm) TX Channel Frequency (MHz) GSM 1 Tx slot GPRS 1 Tx slot Tune-up Limit (dBm) Ch Delta > 0.5 0.08 Tune-up Limit (dBm) Mode AttenuatorCable Loss : 0.6 EDGE 2 Tx slots EDGE 3 Tx slots EDGE 4 Tx slots GPRS 3 Tx slots GPRS 4 Tx slots EDGE 1 Tx slot Frequency (MHz) GSM 1 Tx slot GPRS 1 Tx slot GPRS 2 Tx slots Tune-up Limit (dBm) Tune-up Limit (dBm) Ch Delta > 0.5 0.12 GSM850Burst Average Power (dBm)Frame-Average Power (dBm) TX Channel Full Power BW [MHz]Modulation RB Size RB Offset Low Channel Middle Channel High Channel BW [MHz] Modulation RB Size RB Offset Low Channel Middle Channel High Channel 187001890019100200502017520300 18601880190017201732.51745 20QPSK10 22.6122.6422.58 20QPSK1023.4223.5023.49 20QPSK149 22.5922.5322.46 20QPSK14923.2823.3623.35 20QPSK199 22.5322.4922.47 20QPSK19923.2023.3323.45 20QPSK500 21.4421.5321.46 20QPSK50022.4922.6222.59 20QPSK5024 21.4521.5021.50 20QPSK502422.4922.5722.57 20QPSK5050 21.5021.4621.52 20QPSK505022.3822.4922.50 20QPSK1000 21.4321.5221.48 20QPSK100022.4822.5222.59 2016QAM10 21.4921.4921.51 2016QAM1022.3522.6522.52 2016QAM149 21.3321.6321.59 2016QAM14922.5022.2722.41 2016QAM199 21.4621.3121.71 2016QAM19922.2922.5122.35 2016QAM500 21.3921.3621.34 2016QAM50022.4822.4122.55 2016QAM5024 21.3521.4021.41 2016QAM502422.7422.8522.74 2016QAM5050 21.4321.4021.47 2016QAM505022.7022.7122.71 2016QAM1000 21.4621.4721.34 2016QAM100022.7222.8022.81 2064QAM10 21.4121.6021.34 2064QAM1022.4622.5722.79 2064QAM149 21.3621.5421.45 2064QAM14922.5022.4322.31 2064QAM199 21.3121.6421.64 2064QAM19922.7722.3422.81 2064QAM500 21.4121.3321.38 2064QAM50022.4722.5622.51 2064QAM5024 21.4421.3821.43 2064QAM502422.4922.6022.54 2064QAM5050 21.4321.4421.38 2064QAM505022.5322.4822.50 2064QAM1000 21.3121.2821.29 2064QAM100022.5622.5422.63 186751890019125200252017520325 1857.518801902.51717.51732.51747.5 15QPSK10 22.4222.4522.36 15QPSK1023.2923.3323.43 15QPSK137 22.2122.5722.45 15QPSK13723.3323.4223.34 15QPSK174 22.5822.5022.58 15QPSK17423.2023.4223.45 15QPSK360 21.1821.2721.26 15QPSK36022.4322.5022.53 15QPSK3620 21.1721.3621.33 15QPSK362022.4722.6022.56 15QPSK3639 21.2921.3021.27 15QPSK363922.5222.5122.60 15QPSK750 21.2121.2721.23 15QPSK75022.4722.4922.50 1516QAM10 21.3021.3821.32 1516QAM1022.4122.6322.35 1516QAM137 21.4321.4621.32 1516QAM13722.4922.4922.33 1516QAM174 21.3821.5021.50 1516QAM17422.3522.6522.44 1516QAM360 21.1721.2221.25 1516QAM36022.3622.3822.57 1516QAM3620 21.2…
