2ABGRMVX400MoniVox Smart Device

USER MANUAL GENERAL CONFIGURATIONS MONIVOX SMART DEVICE - MVX400 PRODUCT SPECIFICATIONS 4 ACCESSORIES INCLUDED 9 GENERAL DEFINITIONS 12 Used Terms 12 Shortcuts 12 Dynamic use of the service buttons (top of the screen) 12 BASIC CONFIGURATION OF YOUR MVX400 AT POWER UP FOR THE FIRST TIME 14 1. SELECT A LANGUAGE 14 2. TO LOG IN 14 3. CONFIGURATION SCREENS OF YOUR MVX400 15 4. DETAILED SETTING SCREENS OF YOUR MVX400 16 FCC COMPLIANT 23 TABLE OF CONTENTS EXTERNAL COMMUNICATION Digital radio MOTOTRBO™ Motorola (digital slot data port)01 GPRS quad band module (Telit GL865 QUAD)01 Ethernet (TCP/IP)01 PORTS RS232 (DB9) 01 USB 2.0 external (host) 04 USB 2.0 (DB15 to communicate with the digital radio) 01 GPIO (programmable IN/OUT) 08 Monitor (VGA 1024x768) 01 External microphone (RJ45) 01 Audio IN (DB15) 01 Audio OUT (P2) 01 I2C (internal, not used) 01 OPERACIONAL SYSTEM AND MICROPROCESSOR Operational SystemAndroid 2.3 Microprocessador ARM Cortex A81GHz PRODUCT SPECIFICATIONS MEMORY Mass memory Micro SD card (SD card not included)01 Memory SDRAM DDR3 1GB01 NAND eMMC 4GB01 GENERAL INFORMATION SIM Card01 RTC battery holder CR1220 (access through bottom lid)01 RTC01 Watch dog timer01 LED indicator (On - Radio - App - Link - Fail)05 Buzzer01 External power DC9~36VDC Product operating temperature 0~60°C Reset Button Power Status App Status Boot Fail Radio Connection IP Link USB port RJ 45 MIC IN USB port AUX PIN to MOTOTRBO radio (use MVX-AB0025) GPRS CNT to antenna Power 9-36 VCD (use MVX-AU0012) 08 GPIO ports VGA monitor port RJ 45 CNT Ethernet port 02 USB portsAUDIO OUT to speaker RS323 port SIM CARD Micro SD CARD CR1220 Battery Holder ACCESSORIES INCLUDED PRODUCTPART NUMBERQUANTIT Y Cabo conversor DC-DCMVX-AU001201 Transformador automático AC/DCMVX-AU001301 Plug adaptador, BRMVX-AU001401 Antena magnetica GPRS 02 mts.MVX-AU0019 01 Parafuso borboletaMVX-AB002203 Porca auto travante inox M5MVX-AB002302 Cabo PP conexão MVX400/RadioMVX-AB002501 Suporte MVX400MVX-AB002001 Manual do usuárioMVX-AB002601 Tampa de borracha powerMVX-AB0024 01 Base de silicone moldado 3M clearMVX-AB003404 Parafuso philips plastic 3 x 10 panela - baseMVX-AB003505 Cabo manga fonte de alimentação DC-DCMVX-AB003601 MVX-AU0019MVX-AU0036 MVX-AB0025 MVX-AU0012 MVX-AU0014 MVX-AU0013 MVX400 12 GENERAL DEFINITIONS Used Terms “Default” means “factory standard”. “App” means MoniVox Application in this manual. “Android™” is the operational system used in the MVX400. Shortcuts Left mouse button (one click) - move command (Enter). Right mouse button (one click) - command to go back. Note: Do not use the double-click. Clicking the left mouse button inside the field, if there is no keyboard, a virtual keyboard is opened in the bottom of the screen. For vertical scrolling of the screen, click and hold the right mouse button and drag vertically. Dynamic use of the service buttons (top of the screen) Click on the button at the top of the screen “Add” to select the option to add a record. After entering a new record, click the button at the top of the screen “Save”. To delete a record, select it and click the following icon at the top of the screen “Delete” (if you want to find an existing record, select the filter field, the search is dynamic). The screens do not have the option to save logs, registry changes are saved when you exit the screen (by clicking the right mouse button). MVX400 13 MVX400 Front LEDs Observe the operation of the LEDs and compare with the following table. Adjacent is the legend with the status of the LEDs. ACTIONSLEDS ONRADIOAPPLINKFAIL After activation of the MVX400 and during the BOOT of Android After successfully BOOT of Android After unsuccessfully BOOT of Android without App service After unsuccessfully BOOT of Android with App service Active connection of MVX400 with MOTOTRBO™ base radio Inactive connection of MVX400 with MOTOTRBO™ base radio App not working properly App is working correctly App RoIP with keep alive for at least 1 PEER App RoIP with keep alive failure to all PEERS App RoIP is not available for any PEER OnOff Legend Flashing USB INSTALL LED “ON” flashing every 1 second (1 Hz) - during installation / verification LED “ON” flashes 3 times per second (3 Hz) (for 5 seconds) - flawless installation LED “FAIL” flashes 3 times per second (3 Hz) (for 5 seconds) - completed the process with a mistake/error. MVX400 14 BASIC CONFIGURATION OF YOUR MVX400 AT POWER UP FOR THE FIRST TIME 1. SELECT A L ANGUAGE Default: Portuguese (Brazil) Select the language you want (left mouse button) and exit the screen (click the right mouse button) Click the grid button on the right side of the screen to view available applications. 2. TO LOG IN Enter username and Password User (default): MASTER Password (default): #mvx400 After their first session, the MVX400 will ask for a new password, click the “yes” button and change the MASTER password. Current Password: #mvx400 New password: Minimum of 6 characters with at least one letter and one number. Confirm Password: Repeat new password. MVX400 15 3. CONFIGURATION SCREENS OF YOUR MVX400 Icon - Configuration MVX400 MVX400 Administration Permissions Backup SIM card E-mail Destination of mass data storage Idiom Date and time MoniVox Application Manager Installation of MoniVox application Manage MoniVox applications Master configurations Master password MVX400 Informations MVX400 serial numver Version Network Ethernet Wi-Fi GPRS test Bluetooth System Dynamic DNS Local FTP MOTOTRBO™ Administration MOTOTRBO™ State Users Management MVX400 Managing access profiles Manage Users MVX400 16 4. DETAILED SET TING SCREENS OF YOUR MVX400 MVX400 Configurations > Network > Ethernet Ethernet Configuration Apply changes (this icon applies the changes to this screen) Enables Ethernet - setting default “enabled”. Keep the setting enabled to access Ethernet and click “apply changes” to force the connection, if it is not done automatically. Use DHCP Use DHCP - setting default “enabled” Keep this setting “e…

Text truncated - open the document above for the full version.

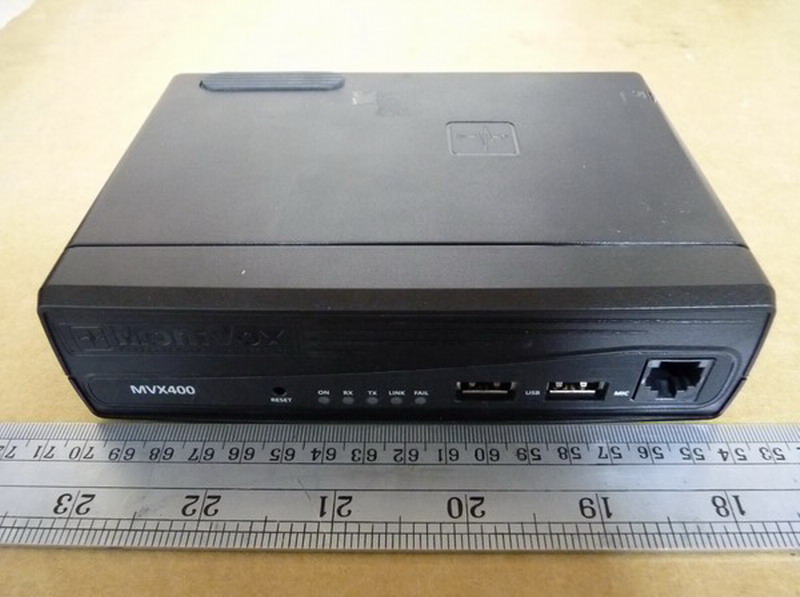

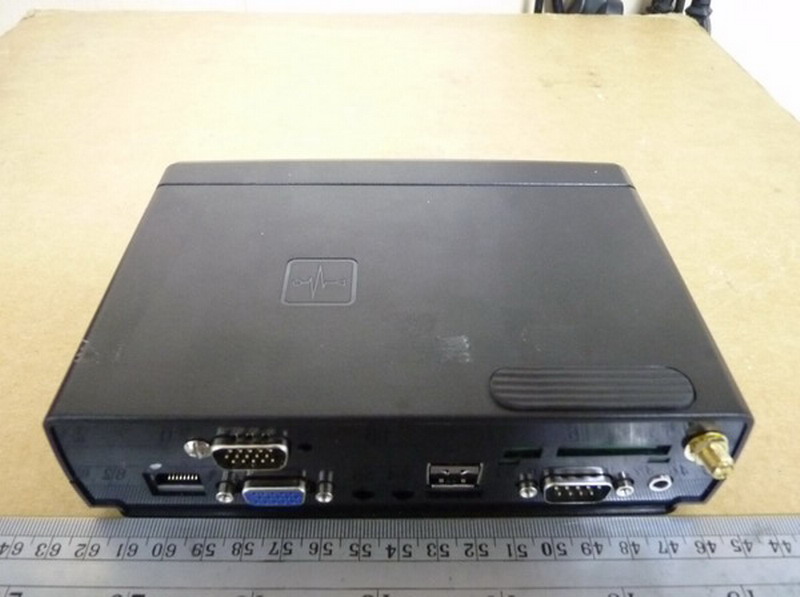

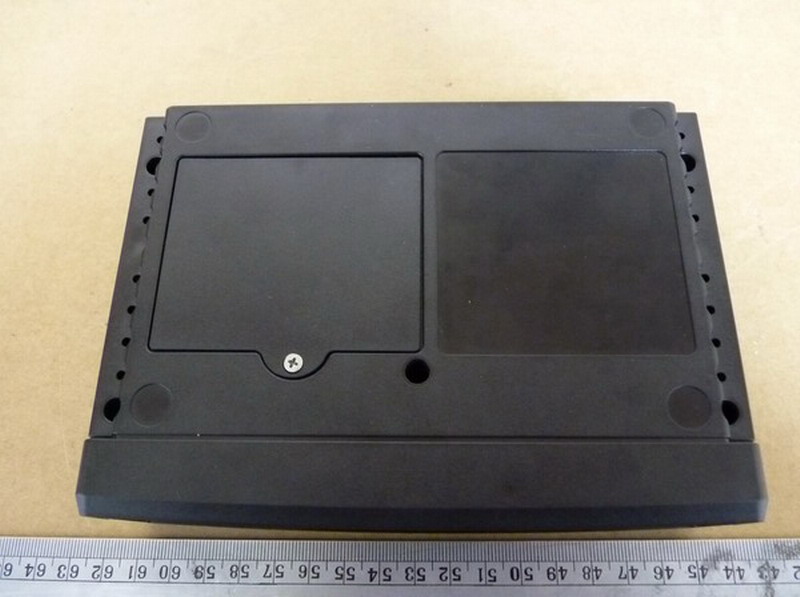

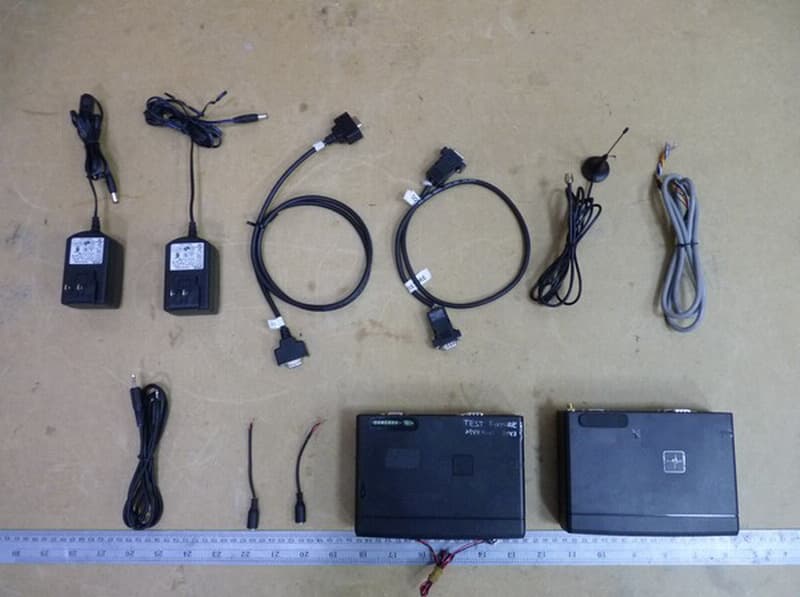

Registration number: W6M21309-13566-FCC FCC ID: 2ABGRMVX400 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 2 of 14 External Photos Registration number: W6M21309-13566-FCC FCC ID: 2ABGRMVX400 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 3 of 14 Registration number: W6M21309-13566-FCC FCC ID: 2ABGRMVX400 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 4 of 14 Registration number: W6M21309-13566-FCC FCC ID: 2ABGRMVX400 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 5 of 14 Registration number: W6M21309-13566-FCC FCC ID: 2ABGRMVX400 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 6 of 14

SIM CARD Micro SD CARD CR1220 Battery Holder

Registration number: W6M21309-13566-FCC FCC ID: 2ABGRMVX400 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 7 of 14 Internal Photos Registration number: W6M21309-13566-FCC FCC ID: 2ABGRMVX400 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 8 of 14 Registration number: W6M21309-13566-FCC FCC ID: 2ABGRMVX400 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 9 of 14 Registration number: W6M21309-13566-FCC FCC ID: 2ABGRMVX400 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 10 of 14

Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 02 m normally can be maintained between the user and the device. MPE Calculation Method E ＝ Electric field (V/m) P ＝ output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Frequency (Band) Max output power (W) Antenna numeric Gain Power Density(S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result GSM 850 2.143 3 0.8506 1.0 Complies PCS 1900 0.902 3 0.3579 1.0 Complies From the peak EUT RF output power, the minimum mobile separation distance, d=0.2 m, as well as the gain of the used antenna, the RF power density can be obtained.

of Applicant: MoniVox do Brasil Ltda. Address: Avenida das Nacoes Unidas, 17891- 13 Andar-Vila Almeida CEP Sao Paulo-SP 04795-100 Brazil Tested and Prepared by Worldwide Testing Services (Taiwa n) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21309-13566-P-2224 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 22/24 TEST REPORT for MoniVox Smart Device Model No.: MVX400 FCC ID: 2ABGRMVX400 Report Number: W6M21309-13566-P-2224 FCC ID: 2ABGRMVX400 Certification of Test Report Applicant : MoniVox do Brasil Ltda. Avenida das Nacoes Unidas, 17891-13 Andar-Vila Almeida CEP 04795-100-Sao Paulo-SP Brazil Manufacturer: AOPEN Incorporated 5F., No.15, Ln. 128, Sinhu 1 st Rd., Neihu District, Taipei City 114, Taiwan (R.O.C.) Tested Equipment : Type Description : MoniVox Smart Device Model Number : MVX400 Brand Name : MoniVox Operation Frequency : 824.2-848.8MHz / 1850.2 - 1909.8 MHz RF Output Power : 1) Band 850 MHz : 22.98 dBm (ERP) 2) Band 1900 MHz : 21.64 dBm (EIRP) Power Supply : Adaptor ( I/P: AC 100-240 V / 50-60 Hz / 0.8 A, O/P: 12 Vdc / 2 A ) Regulation Applied : 47CFR Part 22 (2011-10) and Part 24 (2011-10) Test Method : 47CFR Part 2 (2011), TIA/EIA-603C (2004) and ANSI C63.4 (2003) I HEREBY CERTIFY THAT: The test results written in this report were derived conscientiously in accordance with the requirements and procedures of 47CFR Part 2(2011), TIA/EIA-603C (2004), and it was found that the device described above is in compliance with the applicable limits specified in 47CFR Part 22/24. Note: 1.The result of this test report is valid only in connection to the sample has been tested at the laboratory of Worldwide Testing Services (Taiwan) Co. Ltd. 2.This test report shall always be duplicated in full pages unless the written approval of the testing laboratory is obtained. Test Engineer: December 30, 2013 Rick Chen Date WTS-Lab. NameSignature Technical responsibility for area of testing: December 30, 2013 Kevin Wang Date WTS Name Signature Report Number: W6M21309-13566-P-2224 FCC ID: 2ABGRMVX400 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 71 TABLE OF CONTENTS 1. SUMMARY .......................................................................................................................................3 1.1 D ESCRIPTION OF TESTED EQUIPMENT...........................................................................................3 1.2 D ATE OF TESTING PROCESSING....................................................................................................3 1.3 M ODIFICATION INFORMATION.....................................................................................................3 1.4 TEST STANDARDS.........................................................................................................................3 1.5 SUMMARY OF TEST RESULT..........................................................................................................4 2. GENERAL INFORMATION ..........................................................................................................5 2.1 T ESTING LABORATORY................................................................................................................5 2.1.1 Location ..............................................................................................................................5 2.1.2 Details of accreditation status ............................................................................................5 2.1.3 Test location, where different from Worldwide Testing Services (Taiwan) Co., Ltd. ........5 2.2 D ETAILS OF APPROVAL HOLDER...................................................................................................5 2.3 DESCRIPTION OF TESTED SYSTEM................................................................................................6 2.4 TEST ENVIRONMENT....................................................................................................................6 2.5 G ENERAL TEST REQUIREMENT....................................................................................................7 2.6 TEST EQUIPMENT LIST.................................................................................................................8 3. RF POWER OUTPUT ...................................................................................................................10 3.1 TEST PROCEDURE.......................................................................................................................10 3.1.1 Conducted Method ............................................................................................................10 3.1.2 Radiated Method ...............................................................................................................10 3.2 T EST RESULTS...........................................................................................................................12 4. MODULATION CHARACTERISTICS ......................................................................................19 4.1 TEST PROCEDURE.......................................................................................................................19 4.2 T EST RESULTS...........................................................................................................................19 5. OCCUPIED BANDWIDTH...........................................................................................................20 5.1 T EST PROCEDURE.......................................................................................................................20 5.2 TEST RESULTS...........................................................................................................................20 6. SPURIOUS EMISSIONS AT ANTENNA TERMINALS ................................…
