2ABGY-FX1092DIN Display Audio

Bluetooth USB/MP3/WMA RECEIVER User's Manual FX109 E n g l i s h 2 CONTENTS 1. FUNCTIONS........................................................................................................3 2. ...........................................................................................4GETTING STARTED 3. ...............................................................................5LISTENING TO THE RADIO 4. ................................................................................................6USB PLAYBACK USB PLAYBACK.................................................................................................7 Functions of the Buttons on the Head Unit...........................................................3 Home Screen Descriptions..................................................................................3 5. BLUETOOTH......................................................................................................8 6. BLUETOOTH PHONE........................................................................................9 7. 24BIT DSP AUDIO OPERATION.....................................................................10 8. WIRING DIAGRAM...........................................................................................12 24BIT DSP AUDIO OPERATION......................................................................11 9. SPECIFICATION...............................................................................................13 E n g l i s h 3 FunctionsoftheButtonson the Head Unit Volume Up/Down Microphone USB Jack Hold: Press: Power Mute Hold: Press: Voice Assistant Home 1. FUNCTIONS Tuner Radio Setting Menu Phone Mirroring Audio Setting Bluetooth Phone Home Screen Descriptions USB Playback Bluetooth Audio AV IN E n g l i s h 2. GETTING STARTED 1. Press the [ ] button on front panel to turn on the unit. 4. Press the [ ] button on the front panel to mute or restore volume. 5. Press the [ / ] buttons on the front panel to increase / decrease the volume. 6. Tap to view the Clock. 2. Tap [ ] 3. Tap the corresponding key and set the value. Activates or deactivates the key-touch tone. To adjust the LCD display backlight Select the language used for the control screen and setting items. To automatically demo this unit’s major features cyclic on LCD display. Adjust the clock time. Sets the desired function in the steering remote controller. Select the time display format. Turn On/Off the parking mode. The voice recognition function of the cell-phone. [Beep Tone] [Dimmer] [Language] [Demo] [Time/Date] [SWC Learing]n [Clock Mode] []Parking Mode [Voice Control] [] Parking Assist Guide [] Parking Guide Adjust [Rear AV In] [Camera In] [Information] [Default] [Factory Mode] System Mode Display parking guidelines to enable easier parking when you shift the gear to the reverse position. If you select [ON] for [Parking Guidelines], you can adjust the parking guidelines. Set up the input device of the AV-IN terminal. Set the camera to be displayed when you shift the gear to the reverse (R) position. To view all detailed information of the system. Restores the default settings. Reset back to factory default settings. Bluetooth Mode Phone Mirror Displays the Bluetooth Settings screen. Displays the Phone Mirror Settings screen. AV-IN 10:30AM10:30AM 01-01-2020 4 1 E n g l i s h 3. LISTENING TO THE RADIO Recalling a Preset Station A total of 6 preset positions exists to store individual radio stations in memory. Auto Seek Selecting The Radio Band Manual Seek Tap on [ / ] buttons to automatically search for the next radio station. Tap on buttons to select one radio band among FM/AM. [ / ] Tap and hold buttons to Manual search for the next radio station. [ / ] Radio Setup Tap on [ ] button to access the Radio Setup Menu. Auto Store Local Seek RDS Clock Sync Automatically searches and stores the 6 stations with the strongest signals for the selected band. To receive more radio stations or only stations with strong signal, you can adjust the tuner sensitivity. Synchronizing the Radio Data System station timedata and this unit’s clock. Presets Tap and hold to select the preset position to save the current frequency. [ ] Tap on to select the desired preset station. [ ] Area This option allows you to select the appropriatefrequency spacing for your area. 23456 123456 FM3 AM3 5 E n g l i s h 4. USB PLAYBACK Play / Pause Selecting a Track 1. Tap on buttons to move to the beginning of the previous/next track. [ / ] 2. Tap and hold the buttons to Fast forward/backford. [ / ] Music Function Setup Tap on buttons to Play or Pause audio playback. [ / ] Tap on [ ] button to access the Music playback Function Setup Menu. Repeat Shuffle Off:Normal playback On:Shuffling plays all files 1 All:Repeats all files One:Repeats current file Folder:Repeat all files in current folder Alblum Art Wallpaper You can set the Album Art to the background image. Tap [ON] or [OFF] to enable/disable this function. Video Playback Searches file [ ]:Reset to the factory settings [ ]: 1. to display the Playback List. Tap on [ ] button 2. Tap on [ ], and then tap desired item from the content list. [ / ]:Searches the previous/ next content. Tap and hold to fast forward or fast backward [NORMAL]/[16:9]/[4:3]:Select a screen mode [ ]:Adjust image quality in video screen [ / ]:Play/Pause 6 E n g l i s h 4. USB PLAYBACK Selecting a Track In a List 1. to display the Playback List. Tap on [ ] button 2. Select whether you search by audio files [ ] / video files [ ]. 3. Tap [ / ] to moves to the upper hierarchy 4. Touch the desired folder. When you tap a folder its contents are displayed. 5. Tap desired item from the content list, the playback starts. 7 E n g l i s h 5. BLUETOOTH Play / Pause Selecting a Track 1. Tap on buttons to move to the beginning of the previous/next track. [ / ] 2. Tap and hold the buttons to Fast forward/backford. [ / ] Music Function Setup Tap on buttons to Play or Pause audio playback. [ / ] T…

Text truncated - open the document above for the full version.

Electronica Clarion S.A. de C.V. I, the signer, Alberto Gil Ramirez The only difference between the two products is the model, and the others is same. • Item Name：2DIN Display Audio ModelNumber：FX109 , GX2800 FCC ID：2ABGY-FX109 Name: Alberto Gil Ramirez Title: Engineering Manager Company: Electronica Clarion S.A. de C.V.

DATE : 2020.03.31 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ABGY-FX109 Product Name: 2DIN Display Audio Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. N ame: Alberto Gil Ramirez Title: Engineering Manager Company: Electronica Clarion S.A. de C.V.

DATE : 2020.03.31 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint EST Technology Co., Ltd. Address: Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Electronica Clarion S.A. de C.V. Address: Avenida Nueve Oriente No. 3,Zona Ind Valle de Oro,San Juan del Rio, Queretaro,Mexico (Applicant Name and address) Name: Alberto Gil Ramirez Title: Engineering Manager Company: Electronica Clarion S.A. de C.V.

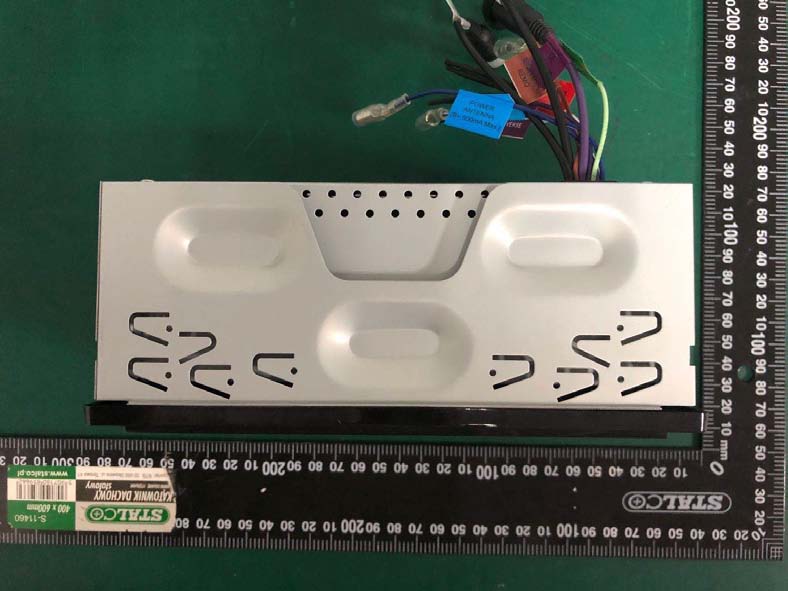

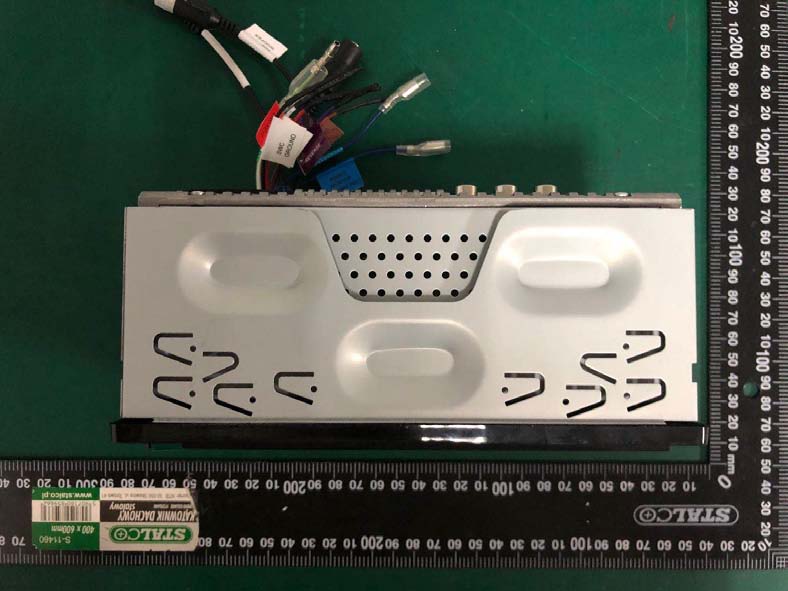

External Photos M/N: FX109 External Photos M/N: FX109 External Photos M/N: FX109

TOP LABEL For Model : FX109 (CLARION BRAND)*C/NO:SMPOXXXX* DATE:2020-03-19 PART NO:706-FXXXXXX-XX-XX COLOR: SILVER BACKGROUND/BLACK LETTERING SIZE: 80X45mm SCALE:1/1 FX109 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES AND REGULATIONS.OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE,AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE INCLUD-ING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. Frequency Range: AM: 522-1620 KHz FM: 87.5-108 MHz Speaker Impedance: 4 - 8 Ohms Interference Absorption Circuit DC12V 15A Negative Ground BATTERY(+) A4 YELLOW A6ORANGE/WHITE ILLUME GROUNDBLACK A8 IGNITION (ACC) A7RED LEFT REAR SPEAKER (-) B8 LEFT FRONT SPEAKER (-) B6 LEFT REAR SPEAKER (+) B7 RIGHT FRONT SPEAKER (-) B4 GREY/BLACK LEFT FRONT SPEAKER (+) B5 GREEN/BLACK WHITE/BLACK GREEN WHITE RIGHT FRONT SPEAKER (+) B3 GREY RIGHT REAR SPEAKER (+) B1 VIOLET RIGHT REAR SPEAKER (-) B2 VIOLET/BLACK FUNCTION/LABEL PIN WIRE COLOR Cable Rubber A 1 5 WHITE WHITE YELLOW YELLOW PURPLE RED RED RED WHITE RCA CONNECTOR FUNCTION CHART NO.WIRE COLOURFUNCTION/LABEL REAR LINE OUT LEFT 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 FRONT LINE OUT LEFT REAR LINE OUT RIGHT FRONT LINE OUT RIGHT CAMERA IN VIDEO OUT AV IN RIGHT AV IN LEFT VIDEO IN DASH DVR REMOTE SWC KEY2 SWC GROUND SWC KEY1 REVERSE PARKING External MIC SUB WOOFER OE REMOTE POWER ANTENNA (B+,500mA Max) POWER REMOTE OUT (B+,500mA Max) FCC ID: 2ABGY-FX109 IC: 12359A-FX109 IC: 12359A-FX109

Internal Photos M/N: FX109 Internal Photos M/N: FX109 Internal Photos M/N: FX109 Internal Photos M/N: FX109 Internal Photos M/N: FX109 Internal Photos M/N: FX109 Bluetooth ant

FCC ID: 2ABGY-FX109 EST Technology Co. ,Ltd Report No. ESTE-R2003121 Page 1 of 4 FCC 47 CFR MPE REPORT Electronica Clarion S.A. de C.V. 2DIN Display Audio Model Number: FX109 Additional Model: GX2800 FCC ID: 2ABGY-FX109 Prepared for: Electronica Clarion S.A. de C.V. Avenida Nueve Oriente No. 3,Zona Ind Valle de Oro,San Juan del Rio, Queretaro,Mexico Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2003121 Date of Test: Mar. 23-25, 2020 Date of Report: Mar. 30, 2020 FCC ID: 2ABGY-FX109 EST Technology Co. ,Ltd Report No. ESTE-R2003121 Page 2 of 4 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density FCC ID: 2ABGY-FX109 EST Technology Co. ,Ltd Report No. ESTE-R2003121 Page 3 of 4 1.2. MPE Calculation Method E (V/m) = d G×P×30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d×377 G×P×30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained FCC ID: 2ABGY-FX109 EST Technology Co. ,Ltd Report No. ESTE-R2003121 Page 4 of 4 2. Conducted Power Result Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) Target power (dBm) Antenna gain (dBi) (Linear) GFSK 2402 3.12 2.05 3 ±1 0 1 2441 2.90 1.94 2±1 0 1 2480 2.40 1.73 2±1 0 1 8-DPSK 2402 4.69 2.94 4 ±1 0 1 2441 4.36 2.72 4±1 0 1 2480 3.86 2.43 3±1 0 1 3. Calculated Result and Limit Mode Target power (dBm) Antenna gain Power Density (S) (mW/cm 2 ) Limited of Power Density (S) (mW/cm 2 ) Test Result (dBi) (Linear) GFSK 4 0 1 0.00050 1 Compiles 8-DPSK 5 0 1 0.00063 1 Compiles End of Test Report

FCC ID: 2ABGY-FX109 EST Technology Co., Ltd Report No. ESTE-R2003120 Page 1 of 66 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Electronica Clarion S.A. de C.V. 2DIN Display Audio Model Number: FX109 Additional Model: GX2800 FCC ID: 2ABGY-FX109 Prepared for: Electronica Clarion S.A. de C.V. Avenida Nueve Oriente No. 3,Zona Ind Valle de Oro,San Juan del Rio, Queretaro,Mexico Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2003120 Date of Test: Mar. 23-25, 2020 Date of Report: Mar. 30, 2020 FCC ID: 2ABGY-FX109 EST Technology Co., Ltd Report No. ESTE-R2003120 Page 2 of 66 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. Antenna Information ........................................................................................................................ 5 2. SUMMARY OF TEST ......................................................................................................................... 6 2.1. Summary of test result ...................................................................................................................... 6 2.2. Test Facilities ................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................. 8 2.4. Assistant equipment used for test ..................................................................................................... 8 2.5. Block Diagram ................................................................................................................................. 8 2.6. Test mode ......................................................................................................................................... 9 2.7. Channel List ................................................................................................................................... 10 2.8. Power Setting of Test Software ...................................................................................................... 10 2.9. Test Equipmen ................................................................................................................................ 11 3. MAXIMUM PEAK OUTPUT POWER ................................................................................................. 12 3.1. Limit ............................................................................................................................................... 12 3.2. Test Setup ....................................................................................................................................... 12 3.3. Spectrum Analyzer Setting ............................................................................................................. 12 3.4. Test Procedure ................................................................................................................................ 12 3.5. Test Result ...................................................................................................................................... 13 4. 20 DB BANDWIDTH ....................................................................................................................... 17 4.1. Limit ............................................................................................................................................... 17 4.2. Test Setup ....................................................................................................................................... 17 4.3. Spectrum Analyzer Setting ............................................................................................................. 17 4.4. Test Procedure ................................................................................................................................ 17 4.5. Test Result ...................................................................................................................................... 18 5. CARRIER FREQUENCY SEPARATION .............................................................................................. 22 5.1. Limit ............................................................................................................................................... 22 5.2. Test Setup ....................................................................................................................................... 22 5.3. Spectrum Analyzer Setting ............................................................................................................. 22 5.4. Test Procedure ................................................................................................................................ 22 5.5. Test Result ...................................................................................................................................... 23 6. NUMBER OF HOPPING CHANNEL .................................................................................................. 27 6.1. Limit ............................................................................................................................................... 27 6.2. Test Setup ....................................................................................................................................... 27 6.3. Spectrum Analyzer Setting .........................................…

Text truncated - open the document above for the full version.

Radiated Test (30-1000 MHz) Radiated Test (Above 1GHz)
