2ABHY-LD99-3Smart Table

Reorient or relocate the receiving antenna. FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Shenzhen Champion Industry Co., Ltd. FCC Declaration of Conformity Dec. 26, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, Shenzhen Champion Industry Co., Ltd. (Address: Longqin Road No. 13, Shahu, Pingshan New Area, Shenzhen China 518118) declare for the equipment identified by: Product Description: Smart Table Model Number: LD99-3 Tradename or Brands: Etable that: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. And DoC testing is pending at this moment, but will execute and finish the required DoC testing in an FCC accredited Laboratory before marketing the device in the U.S. The following Accredited Test Firm will complete DoC testing: Accredited Test Firm or Laboratory: PEP Certification Corp. Accreditation: APEC TEL TW1075 Yours Sincerely, Shenzhen Champion Industry Co., Ltd. <SIGNATURE of Huimin Qian > ---------------------------------------------------------- Director and Deputy General Manager

Shenzhen Champion Industry Co., Ltd. Dec. 26, 2013 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2ABHY-LD99-3. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematic Diagram Schematics.pdf Circuit Description Circuit Description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Shenzhen Champion Industry Co., Ltd. <SIGNATURE of Huimin Qian > ---------------------------------------------------------- Director and Deputy General Manager

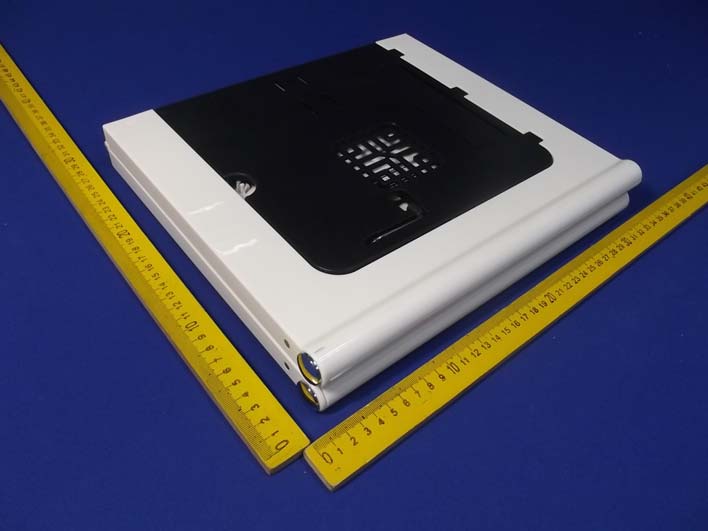

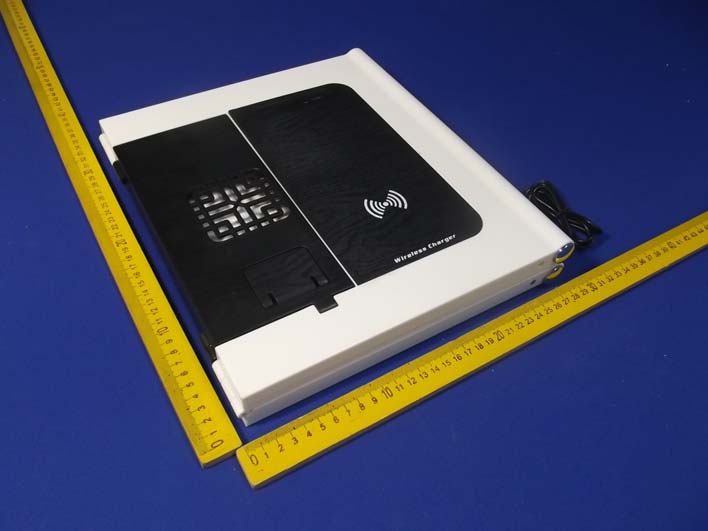

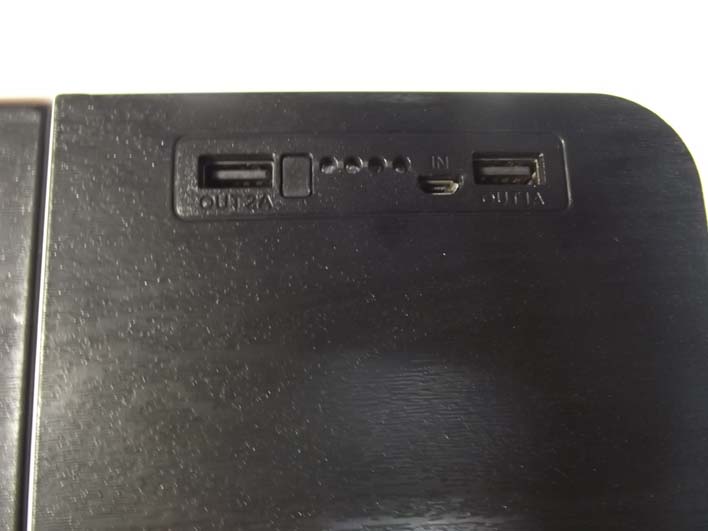

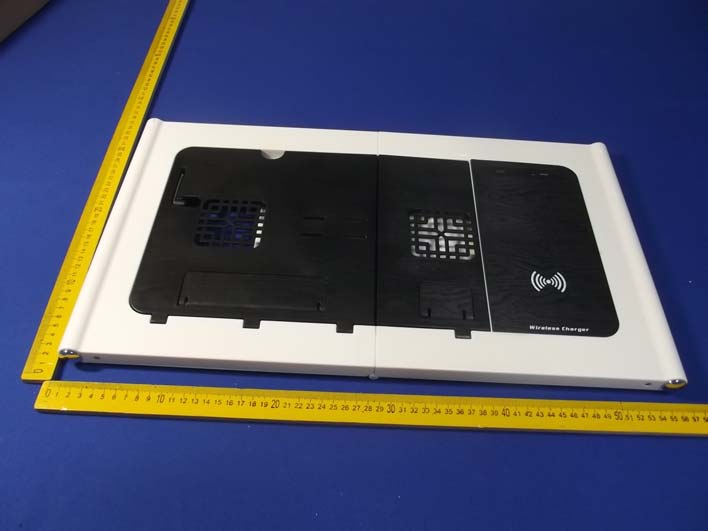

Figure 1 The EUT-Overall View Figure 2 The EUT-Overall View Figure3 The EUT-Overall View Figure 4 The EUT-Overall View Figure 5 The EUT-Overall View Figure 6 The EUT-Port View

Product Name: Smart Table Model No.: LD99-3 FCC ID: 2ABHY-LD99-3 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Label Location On EUT

Figure 7 The EUT-Inside View Figure 8 PCB of the EUT View Figure 9 PCB of the EUT View Figure 10 PCB of the EUT View Figure 11 PCB of the EUT View Figure 12 The EUT-Battery View

Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2ABHY-LD99-3 Page 1 of 5 Shenzhen Anbotek Compliance Laboratory Limited Tel: (86)755-26066544 Fax: (86)755-26014772 www.anbotek.com RF EXPOSURE TEST REPORT for Shenzhen Champion Industry Co., Ltd. Smart Table Model No.: LD99-3 Prepared for : Shenzhen Champion Industry Co., Ltd. Address : Longqin Road No. 13, Shahu, Pingshan New Area, Shenzhen China 518118 Prepared By : Shenzhen Anbotek Compliance Laboratory Limited Address : 1/F., Building 1, SEC Industrial Park, No.0409 Qianhai Road, Nanshan District, Shenzhen, Guangdong, China Tel: (86) 755-26066544 Fax: (86) 755-26014772 Date of Test : Nov. 27~ Dec. 09, 2013 Date of Report : Dec. 09, 2013 Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2ABHY-LD99-3 Page 2 of 5 Shenzhen Anbotek Compliance Laboratory Limited Tel: (86)755-26066544 Fax: (86)755-26014772 www.anbotek.com 1. GENERAL INFORMATION 1.1. Description of Device (EUT) Description : Smart Table Model Number : LD99-3 Test Power Supply : DC 5V Frequency : 113-176KHz Modulation : Pulse Modulation Applicant : Shenzhen Champion Industry Co., Ltd. Address : Longqin Road No. 13, Shahu, Pingshan New Area, Shenzhen China 518118 Manufacturer : Shenzhen Champion Industry Co., Ltd. Address : Longqin Road No. 13, Shahu, Pingshan New Area, Shenzhen China 518118 Date of Sample received : Nov. 27, 2013 Date of Test : Nov. 27~ Dec. 09, 2013 Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2ABHY-LD99-3 Page 3 of 5 Shenzhen Anbotek Compliance Laboratory Limited Tel: (86)755-26066544 Fax: (86)755-26014772 www.anbotek.com 2. RF EXPOSURE EVALUATION 2.1. Test Equipment Item Equipment Manufacturer Model No. Serial No. Fre RangeLast Cal. Cal. Interval 1. Exposure Level Tester Narda ELT-400 N-0100 1Hz~ 400KHz Apr. 23, 2013 1 Year 2. Field Sensor ETS-Lindgren HI-6105 00086945 100KHz~ 6GHz Apr. 23, 2013 1 Year 2.2. Radio Frequency Radiation Exposure Limits According to FCC CFR 47 Part 1, 1.1307(b) and 1.1310, and KDB 680106 D01v02: § 1.1310 The criteria listed in table 1 shall be used to evaluate the environmental impact of human exposure to radio frequency(RF) radiation as specified in § 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of § 2.1093 of this chapter. Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (min) (A) Limits for Occupational/ Controlled Exposure 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 f/300 6 1500-100000 5 6 (B) Limits for Occupational/ Uncontrolled Exposure 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/ f 2 30 300-300 27.5 0.073 0.2 30 300-1500 f/1500 30 1500-100000 1.0 30 f=frequency in MHz *=Plane-wave equivalent power density (1) Occupational/controlled exposure limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when a person is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. The phrase fully aware in the context of applying these exposure limits means that an exposed person has received written and/or verbal Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2ABHY-LD99-3 Page 4 of 5 Shenzhen Anbotek Compliance Laboratory Limited Tel: (86)755-26066544 Fax: (86)755-26014772 www.anbotek.com information fully explaining the potential for RF exposure resulting from his or her employment. With the exception of transient persons, this phrase also means that an exposed person has received appropriate training regarding work practices relating to controlling or mitigating his or her exposure. Such training is not required for transient persons, but they must receive written and/or verbal information and notification (for example, using signs) concerning their exposure potential and appropriate means available to mitigate their exposure. The phrase exercise control means that an exposed person is allowed to and knows how to reduce or avoid exposure by administrative or engineering controls and work practices, such as use of personal protective equipment or time averaging of exposure. (2) General population/uncontrolled exposure limits apply in situations in which the general public may be exposed, or in which persons who are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. 2.3. Test Setup 2.4. Test Setup 1. The equipment under test was placed on a wooden desk inside of shield room. Then, a preliminary scan was performed to determine the positions of maximum electromagnetic field at five positions (Above ,Top, Right , Left , Bottom edges) and specific distance based (10cm)on the general separation distance between this product and human body as following table. 2. This device and the test result is compliance with FCC KDB 680106 D01v02 item 5.2) below, can be excluded from FCC submitting an RF exposure evaluation. (a) Power transfer frequency is less that 1 MHz; (b) Output power from each primary coil is less than 5 watts; (c) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils; (d) Client device is inserted in or placed directly in contact with the transmitter; (e) The maximum coupling surface area of the transmit (charging) device is between 60cm² and 400cm² ; EUT C A B D Field Probe 10cm Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2ABHY-LD99-3 Page 5 of 5 Shenzhen Anbotek Compliance Laboratory Limited Tel: (86)755-26066544 Fax: (86)755-26014772 www.anbo…
