2ABLK-813G-1BROADBAND CPE

813G-1 Indoor GPON HGU Version 1.0 Date 2015.08.06 Copyright@2015Mitrastar Network Technology Incorporation Quick Installation Guide Model List: Product Description Product Name POTS USB WiFi 2.4 UPS 813G-1 Service Gateway 813G-1 2 1 1 1 1. How to Use the Devices? The device can be used in two types: Standing type and Wall mount type: a) Standing type (Vertically stand as below) b) Wall mount type (LED up and Cables down) 2. Hardware Connections a.Use a Gigabit Ethernet Cable to connect a computer to an ETHERNET port for initial configuration and/or internet connection. b. Use the provided UPS source to the POWER Socket. c. Connect the USB dongle to the USB port if USB wants to be used. Model: 813G-1 (Refer to the Pic.) Connectors order top down LED order top down Reset POWER FXS 1 BROADBAND FXS 2 SERVICE Ethernet 1 WiFi 2.4GHz Ethernet 2 ETHERNET 1 Ethernet 3 ETHERNET 2 Ethernet 4 ETHERNET 3 USB ETHERNET 4 UPS PHONE 1 PHONE 2 USB 3. Configurations Step1: In your browser, go to http://192.168.1.1, the following screen appears, enter the default username and password: admin/admin and click Login. Step2: After Log into the Web GUI, click Quick Start, then configure the device for Internet Connection and Wireless connection. Step 3: Click Connect to Internet, Configure the Connection Type and DNS that ISP assigned. Step 4: Click Configure Wireless Network, Enable the wireless and configure the SSID as you like, the wireless WPA/WPA2 password will be generated automatically. Search the SSID CXNK12345678, type the correct WiFi password, then your Notebookcan be connected to the device via WiFi for the internet. Click Here Certifications Federal Communications Commission (FCC) Interference Statement The device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operations. This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio/television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement • This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. • IEEE 802.11b, 802.11g or 802.11n (20MHz) operation of this product in the U.S.A. is firmware-limited to channel 1 through 11. IEEE 802.11n (40MHz) operation of this product in the U.S.A. is firmware-limited to channel 3 through 9. • This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Notices Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The device complies with the essential requirements of the R&TTE Directive 1995/5/EC. Radiation Exposure Statement This equipment complies with EU radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. National Communications Commission (NCC) Article 12 Without permission, any company, firm or user shall not alter the frequency, increase the power, or change the characteristics and functions of the original design of the certified lower power frequency electric machinery. Article 14 The application of low power frequency electric machineries shall not affect the navigation safety nor interfere a legal communication, if an interference is found, the service will be suspended until improvement is made and the interference no longer exists. Industry Canada (IC) CAN ICES-3 (B)/NMB-3(B) This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Cedispositifestconforme à la norme CNR-192 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnementestsujet aux deux conditions suivantes: (1) ledispositif ne doit pas produire de brouillagepréjudiciable, et (2) cedispositifdoit accepter tout brouillagereçu, y compris un brouillage susceptible de provoquer un fonctionnementindésirable. IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Déclarationd'exposition aux radiations: Cetéquipementestconforme aux limitesd'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cetéquipementdoitêtreinstallé et utilisé avec un minimum de 20cm de distance entre la source de rayonnement et votre corps. Indoor GPON HGU has been evaluated according to the standard of IEC60825-1:2014, 3…

Text truncated - open the document above for the full version.

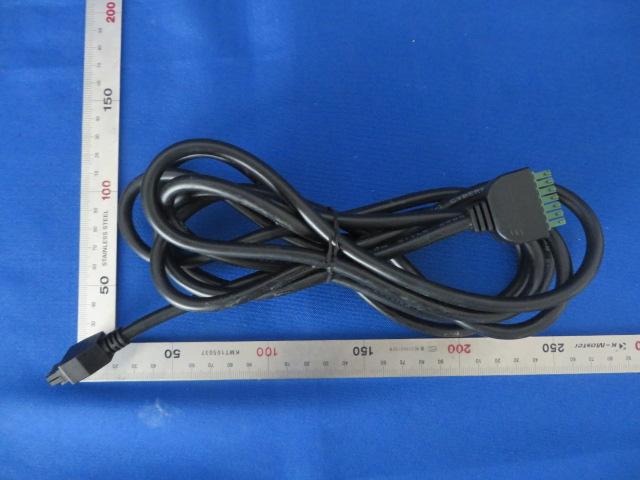

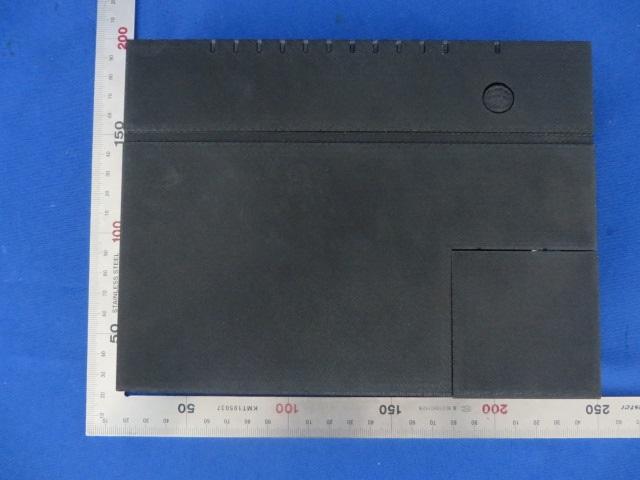

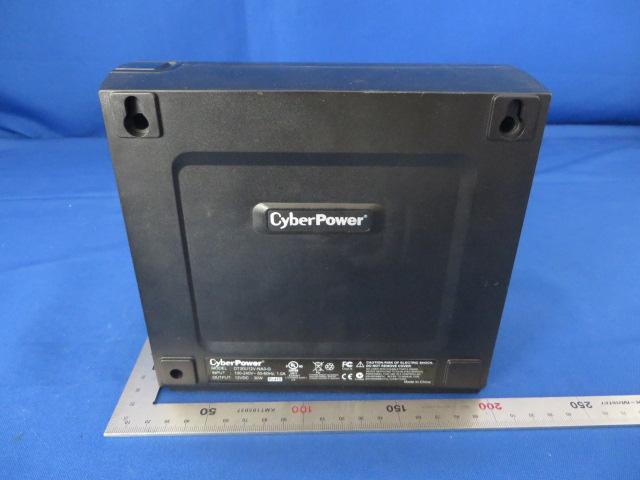

External Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (10) EUT Photo (11) EUT Photo (12) EUT Photo (13) EUT Photo (14) EUT Photo

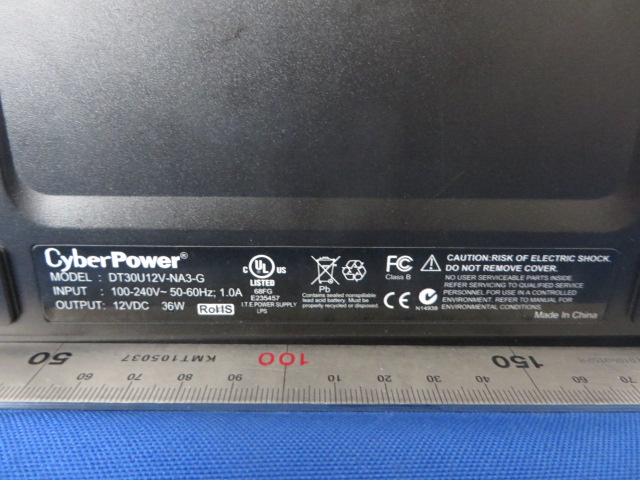

Label Label Location

1 of 6 Internal Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (10) EUT Photo (11) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 1507RSU00902 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 08-26-2015 Web: www.mrt-cert.com Page Number: 1 of 5 RF Exposure Evaluation Declaration FCC ID: 2ABLK-813G-1 APPLICANT: Calix Inc. Application Type: Certification Product: BROADBAND CPE Model No.: 813G-1 Trademark: Calix FCC Classification: Digital Transmission System (DTS) Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1507RSU00902 Page Number: 2 of 5 Revision History Report No. Version Description Issue Date 1507RSU00902 Rev. 01 Initial report 08-26-2015 Report No.: 1507RSU00902 Page Number: 3 of 5 1. PRODUCT INFORMATION 1.1. Equipment Description Product Name BROADBAND CPE Model No. 813G-1 Frequency Range 802.11b/g/n-HT20: 2412 ~ 2462 MHz 802.11n-HT40: 2422 ~ 2452 MHz Maximum Output Power 802.11b: 24.59dBm 802.11g: 24.48dBm 802.11n-HT20: 26.66dBm 802.11n-HT40: 23.21dBm Type of Modulation 802.11b: DSSS 802.11g/n: OFDM Report No.: 1507RSU00902 Page Number: 4 of 5 2. RF Exposure Evaluation 2.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- f/1500 6 1500-100,000 -- -- 1 30 f= Frequency in MHz Calculation Formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 r = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1mW/cm². If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No.: 1507RSU00902 Page Number: 5 of 5 2.2. Test Result of RF Exposure Evaluation Product BROADBAND CPE Test Item RF Exposure Evaluation Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3.6dBi for 802.11b/g, and 1.47dBi for 802.11n-HT20 & n-HT40 in logarithm scale. Test Mode Frequency Band (MHz) Maximum Average Output Power (dBm) Power Density at R = 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) 802.11b 2412 ~ 2462 24.59 0.1311 1 802.11g 2412 ~ 2462 24.48 0.1279 1 802.11n-HT20 2412 ~ 2462 26.66 0.1293 1 802.11n-HT40 2422 ~ 2452 23.21 0.0584 1 CONCULISON: The WLAN 2.4GHz Band can transmit simultaneously. Therefore, the Max Power Density at R (20 cm) = 0.1311mW/cm 2 < 1mW/cm 2 . So the EUT complies with the requirement. The End

MRT Technology (Suzhou) Co., Ltd Report No.: 1507RSU00901 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 08-26-2015 Web: www.mrt-cert.com FCC ID: 2ABLK-813G-1 Page Number: 1 of 173 IC: 4009A-813G1 FCC ID: 2ABLK-813G-1 IC: 4009A-813G1 APPLICANT: Calix Inc. Application Type: Certification Product: BROADBAND CPE Model No.: 813G-1 Trademark: Calix FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Rule Part(s): RSS-247 Issue 1 Test Procedure(s): ANSI C63.10-2013, KDB 558074 D01v03r03, KDB 662911 D01v02r01 Test Date: July 01 ~ August 03, 2015 MEASUREMENT REPORT FCC PART 15.247 & IC RSS-247 WLAN 802.11b/g/n Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 D01v03r03. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 2 of 173 IC: 4009A-813G1 Revision History Report No. Version Description Issue Date 1507RSU00901 Rev. 01 Initial report 08-26-2015 Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 3 of 173 IC: 4009A-813G1 CONTENTS Description Page §2.1033 General Information .......................................................................................................... 5 1. INTRODUCTION ...................................................................................................................... 6 1.1. Scope ........................................................................................................................... 6 1.2. MRT Test Location ....................................................................................................... 6 2. PRODUCT INFORMATION ...................................................................................................... 7 2.1. Equipment Description ................................................................................................. 7 2.2. Working Frequencies.................................................................................................... 8 2.3. Description of Available Antennas ................................................................................ 8 2.4. Description of Antenna RF Port .................................................................................... 9 2.5. Test Mode .................................................................................................................... 9 2.6. Device Capabilities ..................................................................................................... 10 2.7. Test Configuration ....................................................................................................... 11 2.8. EMI Suppression Device(s)/Modifications .................................................................... 11 2.9. Labeling Requirements ................................................................................................ 11 3. DESCRIPTION of TEST ......................................................................................................... 12 3.1. Evaluation Procedure ................................................................................................. 12 3.2. AC Line Conducted Emissions ................................................................................... 12 3.3. Radiated Emissions .................................................................................................... 13 4. ANTENNA REQUIREMENTS................................................................................................. 14 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................. 15 6. MEASUREMENT UNCERTAINTY ......................................................................................... 16 7. TEST RESULT ....................................................................................................................... 17 7.1. Summary .................................................................................................................... 17 7.2. 6dB Bandwidth Measurement ..................................................................................... 18 7.2.1. Test Limit ................................................................................................................ 18 7.2.2. Test Procedure used ............................................................................................... 18 7.2.3. Test Setting ............................................................................................................. 18 7.2.4. Test Setup .............................................................................................................. 18 7.2.5. Test Result .............................................................................................................. 19 7.3. Output Power Measurement ....................................................................................... 31 7.3.1. Test Limit ................................................................................................................ 31 7.3.2. Test Procedure Used .............................................................................................. 31 7.3.3. Test Setting ............................................................................................................. 31 Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 4 of 173 IC: 4009A-813G1 7.3.4. Test Setup .............................................................................................................. 31 7.3.5. Test Result of Output Power ...........…

Text truncated - open the document above for the full version.

Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 46 of 173 IC: 4009A-813G1 802.11n-HT20 AVGPSD - Ant 1 / Ant 0 + 1 Channel 01 (2412MHz) Channel 06 (2437MHz) Channel 11 (2462MHz) Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 47 of 173 IC: 4009A-813G1 802.11n-HT40 AVGPSD - Ant 1 / Ant 0 + 1 Channel 03 (2422MHz) Channel 06 (2437MHz) Channel 09 (2452MHz) Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 48 of 173 IC: 4009A-813G1 7.5. Conducted Band Edge and Out-of-Band Emissions 7.5.1. Test Limit The limit for out-of-band spurious emissions at the band edge is 30dB below the fundamental emission level, as determined from the in-band power measurement of the DTS channel performed in a 100kHz bandwidth per the PSD procedure. 7.5.2. Test Procedure Used ANSI C63.10 Section 11.11 7.5.3. Test Settitng 1. Reference level measurement (a) Set instrument center frequency to DTS channel center frequency (b) Set the span to ≥ 1.5 times the DTS bandwidth (c) Set the RBW = 100 kHz (d) Set the VBW ≥ 3 x RBW (e) Detector = peak (f) Sweep time = auto couple (g) Trace mode = max hold (h) Allow trace to fully stabilize 2. Emission level measurement (a) Set the center frequency and span to encompass frequency range to be measured (b) RBW = 100kHz (c) VBW = 300kHz (d) Detector = Peak (e) Trace mode = max hold (f) Sweep time = auto couple (g) The trace was allowed to stabilize Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 49 of 173 IC: 4009A-813G1 7.5.4. Test Setup Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 50 of 173 IC: 4009A-813G1 7.5.5. Test Result Test Mode Data Rate (Mbps) Channel No. Frequency (MHz) Limit Result Ant 0 802.11b 1 01 2412 30dBc Pass 802.11b 1 06 2437 30dBc Pass 802.11b 1 11 2462 30dBc Pass 802.11g 6 01 2412 30dBc Pass 802.11g 6 06 2437 30dBc Pass 802.11g 6 11 2462 30dBc Pass 802.11n-HT20 6.5 01 2412 30dBc Pass 802.11n-HT20 6.5 06 2437 30dBc Pass 802.11n-HT20 6.5 11 2462 30dBc Pass 802.11n-HT40 13.5 03 2422 30dBc Pass 802.11n-HT40 13.5 06 2437 30dBc Pass 802.11n-HT40 13.5 09 2452 30dBc Pass Ant 1 802.11n-HT20 6.5 01 2412 30dBc Pass 802.11n-HT20 6.5 06 2437 30dBc Pass 802.11n-HT20 6.5 11 2462 30dBc Pass 802.11n-HT40 13.5 03 2422 30dBc Pass 802.11n-HT40 13.5 06 2437 30dBc Pass 802.11n-HT40 13.5 09 2452 30dBc Pass Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 51 of 173 IC: 4009A-813G1 Test Mode Data Rate (Mbps) Channel No. Frequency (MHz) Limit Result Ant 0 / Ant 0 + 1 802.11n-HT20 6.5 01 2412 30dBc Pass 802.11n-HT20 6.5 06 2437 30dBc Pass 802.11n-HT20 6.5 11 2462 30dBc Pass 802.11n-HT40 13.5 03 2422 30dBc Pass 802.11n-HT40 13.5 06 2437 30dBc Pass 802.11n-HT40 13.5 09 2452 30dBc Pass Ant 1 / Ant 0 + 1 802.11n-HT20 6.5 01 2412 30dBc Pass 802.11n-HT20 6.5 06 2437 30dBc Pass 802.11n-HT20 6.5 11 2462 30dBc Pass 802.11n-HT40 13.5 03 2422 30dBc Pass 802.11n-HT40 13.5 06 2437 30dBc Pass 802.11n-HT40 13.5 09 2452 30dBc Pass Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 52 of 173 IC: 4009A-813G1 802.11b Out-of-Band Emissions - Ant 0 100kHz PSD Reference Level Channel 01 (2412MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 53 of 173 IC: 4009A-813G1 Channel 11 (2462MHz) High Band Edge Spurious Emission Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 54 of 173 IC: 4009A-813G1 802.11g Out-of-Band Emissions - Ant 0 100kHz PSD Reference Level Channel 01 (2412MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 55 of 173 IC: 4009A-813G1 Channel 11 (2462MHz) High Band Edge Spurious Emission Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 56 of 173 IC: 4009A-813G1 802.11n-HT20 Out-of-Band Emissions - Ant 0 100kHz PSD Reference Level Channel 01 (2412MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 57 of 173 IC: 4009A-813G1 Channel 11 (2462MHz) High Band Edge Spurious Emission Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 58 of 173 IC: 4009A-813G1 802.11n-HT40 Out-of-Band Emissions - Ant 0 100kHz PSD Reference Level Channel 03 (2422MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 59 of 173 IC: 4009A-813G1 Channel 9 (2452MHz) High Band Edge Spurious Emission Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 60 of 173 IC: 4009A-813G1 802.11n-HT20 Out-of-Band Emissions - Ant 1 100kHz PSD Reference Level Channel 01 (2412MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 61 of 173 IC: 4009A-813G1 Channel 11 (2462MHz) High Band Edge Spurious Emission Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 62 of 173 IC: 4009A-813G1 802.11n-HT40 Out-of-Band Emissions - Ant 1 100kHz PSD Reference Level Channel 03 (2422MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 63 of 173 IC: 4009A-813G1 Channel 9 (2452MHz) High Band Edge Spurious Emission Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 64 of 173 IC: 4009A-813G1 802.11n-HT20 Out-of-Band Emissions - Ant 0 / Ant 0 + 1 100kHz PSD Reference Level Channel 01 (2412MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 65 of 173 IC: 4009A-813G1 Channel 11 (2462MHz) High Band Edge Spurious Emission Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 66 of 173 IC: 4009A-813G1 802.11n-HT40 Out-of-Band Emissions - Ant 0 / Ant 0 + 1 100kHz PSD Reference Level Channel 03 (2422MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 67 of 173 IC: 4009A-813G1 Channel 9 (2452MHz) Hi…

Text truncated - open the document above for the full version.

Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 71 of 173 IC: 4009A-813G1 Channel 9 (2452MHz) High Band Edge Spurious Emission Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 72 of 173 IC: 4009A-813G1 7.6. Radiated Spurious Emission Measurement 7.6.1. Test Limit All out of band emissions appearing in a restricted band as specified in Section 15.205 of the Title 47 CFR must not exceed the limits shown in Table per Section 15.209. FCC Part 15 Subpart C Paragraph 15.209 Frequency [MHz] Field Strength [V/m] Measured Distance [Meters] 0.009 - 0.490 2400/F (kHz) 300 0.490 - 1.705 24000/F (kHz) 30 1.705 - 30 30 30 30 - 88 100 3 88 - 216 150 3 216 - 960 200 3 Above 960 500 3 7.6.2. Test Procedure Used ANSI C63.10 Section 6.3 (General Requirements) ANSI C63.10 Section 6.4 (Standard test method below 30MHz) ANSI C63.10 Section 6.5 (Standard test method above 30MHz to 1GHz) ANSI C63.10 Section 6.6 (Standard test method above 1GHz) 7.6.3. Test Setting Peak Field Strength Measurements 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = as specified in Table 1 3. VBW = 3MHz Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 73 of 173 IC: 4009A-813G1 4. Detector = peak 5. Sweep time = auto couple 6. Trace mode = max hold 7. Trace was allowed to stabilize Table 1 - RBW as a function of frequency Frequency RBW 9 ~ 150 kHz 200 ~ 300 Hz 0.15 ~ 30 MHz 9 ~ 10 kHz 30 ~ 1000 MHz 100 ~ 120 kHz > 1000 MHz 1 MHz Average Field Strength Measurements 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW ≥ 1/T 4. De As an alternative, the instrument may be set to linear detector mode. Ensure that video filtering is applied in linear voltage domain (rather than in a log or dB domain). Some instruments require linear display mode in order to accomplish this. Others have a setting for Average-VBW Type, which can be set to “Voltage” regardless of the display mode 5. Detector = Peak 6. Sweep time = auto 7. Trace mode = max hold 8. Allow max hold to run for at least 50 times (1/duty cycle) traces Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 74 of 173 IC: 4009A-813G1 7.6.4. Test Setup 9kHz ~ 30MHz Test Setup: 30MHz ~ 1GHz Test Setup: Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 75 of 173 IC: 4009A-813G1 1GHz ~ 18GHz Test Setup: 18GHz ~25GHz Test Setup: Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 76 of 173 IC: 4009A-813G1 7.6.5. Test Result Test Mode: 802.11b - Ant 0 Test Site: AC1 Test Channel: 01 Test Engineer: Roy Cheng Remark: 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 4853.3 38.0 2.7 40.7 74.0 -33.3 Peak Horizontal * 6253.3 36.2 4.7 40.9 85.3 -44.4 Peak Horizontal 9142.7 34.7 9.8 44.5 74.0 -29.5 Peak Horizontal * 9789.2 34.8 11.4 46.2 85.3 -39.1 Peak Horizontal 4652.5 37.0 2.2 39.2 74.0 -34.8 Peak Vertical * 6253.3 36.1 4.7 40.8 85.3 -44.5 Peak Vertical 8365.3 35.1 8.0 43.1 74.0 -30.9 Peak Vertical * 9789.2 35.1 11.4 46.5 85.3 -38.8 Peak Vertical Note 1: “*” is not in restricted band, its limit is 30dBc of the fundamental emission level (115.3dBμV/m). Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 77 of 173 IC: 4009A-813G1 Test Mode: 802.11b - Ant 0 Test Site: AC1 Test Channel: 06 Test Engineer: Roy Cheng Remark: 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 4625.3 37.3 2.1 39.4 74.0 -34.6 Peak Horizontal * 6253.3 35.8 4.7 40.5 88.2 -47.7 Peak Horizontal 8342.3 34.9 8.0 42.9 74.0 -31.1 Peak Horizontal * 9789.2 34.3 11.4 45.7 88.2 -42.5 Peak Horizontal 4565.2 37.0 1.9 38.9 74.0 -35.1 Peak Vertical * 6936.0 35.6 6.6 42.2 88.2 -46.0 Peak Vertical 8369.0 35.1 8.0 43.1 74.0 -30.9 Peak Vertical * 9765.2 34.4 11.4 45.8 88.2 -42.4 Peak Vertical Note 1: “*” is not in restricted band, its limit is 30dBc of the fundamental emission level (118.2dBμV/m). Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 78 of 173 IC: 4009A-813G1 Test Mode: 802.11b - Ant 0 Test Site: AC1 Test Channel: 11 Test Engineer: Roy Cheng Remark: 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 4556.4 36.9 1.8 38.7 74.0 -35.3 Peak Horizontal * 6398.4 36.5 5.4 41.9 87.7 -45.8 Peak Horizontal 8456.7 35.5 8.2 43.7 74.0 -30.3 Peak Horizontal * 9745.2 34.9 11.3 46.2 87.7 -41.5 Peak Horizontal 4693.4 36.9 2.3 39.2 74.0 -34.8 Peak Vertical * 6395.2 35.4 5.4 40.8 87.7 -46.9 Peak Vertical 8636.4 36.2 8.8 45.0 74.0 -29.0 Peak Vertical * 9723.1 33.9 11.1 45.0 87.7 -42.7 Peak Vertical Note 1: “*” is not in restricted band, its limit is 30dBc of the fundamental emission level (117.7dBμV/m). Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: 1507RSU00901 FCC ID: 2ABLK-813G-1 Page Number: 79 of 173 IC: 4009A-813G1 Test Mode: 802.11g - Ant 0 Test Site: AC1 Test Channel: 01 Test Engineer: Roy Cheng Remark: 1. Averag…
