2ABLK-844E-1WiFi Concurrent 4 Port GE LAN VoIP Ethernet Gateway with USB

844E-1 WIFI Dual Band 4 GE LAN Ethernet Gateway with USB Version 1.0 Date 2015.01.19 Copyright@2015 Mitrastar Network Technology Incorporation Quick Installation Guide Model List: Product Description Product Name POTS USB WiFi 2.4 WiFi 5.0 UPS Wall Adapter 844E-1 Service Gateway 844E-1 2 1 1 1 1 1 844E-2 Service Gateway 844E-2 2 1 1 1 1 1 1. How to Use the Devices? The device can be used in two types: Standing type and Wall mount type: a) Standing type (Vertically stand as below) b) Wall mount type (LED up and Cables down) 2. Hardware Connections for the 4 models a.Use a Gigabit Ethernet Cable to connect a computer to an ETHERNET port for initial configuration and/or internet connection. b. Use the provided UPS or Power Adaptor source to the POWER Socket. Need to push the ON/OFF button to the ON position if Power Adaptor is used. d. Connect the USB dongle to the USB port if USB wants to be used. Model: 844E-1 (Refer to the Pic.) Rear Panel (From Up to Down) Front Panel LED printing (From Up to Down) USB POWER RESET BROADBAND ETHERNET 4 SERVICE ETHERNET 3 WiFi 2.4GHz ETHERNET 2 WiFi 5GHz ETHERNET 1 ETHERNET 4 PHONE 1 ETHERNET 3 PHONE 2 ETHERNET 2 POWER ETHERNET 1 PHONE 1 PHONE 2 USB 3. Configurations Step1: In your browser, go to http://192.168.1.1, the following screen appears, enter the default username and password: admin/admin and click Login. Step2: After Log into the Web GUI, click Quick Start, then configure the device for Internet Connection and Wireless connection. Step 3: Click Connect to Internet, Configure the Connection Type and DNS that ISP assigned. Step 4: Click Configure Wireless Network, Enable the wireless and configure the SSID as you like, the wireless WPA/WPA2 password will be generated automatically. Click Here Search the SSID CXNK12345678, type the correct WiFi password, then your Notebookcan be connected to the device via WiFi for the internet. Certifications Federal Communications Commission (FCC) Interference Statement The device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operations. This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio/television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement • This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. • For operation within 5.15 ~ 5.25GHz frequency range, it is restricted to indoor environment. • IEEE 802.11b, 802.11g or 802.11n (20MHz) operation of this product in the U.S.A. is firmware-limited to channel 1 through 11. IEEE 802.11n (40MHz) operation of this product in the U.S.A. is firmware-limited to channel 3 through 9. • This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Notices Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The device complies with the essential requirements of the R&TTE Directive 1995/5/EC. Radiation Exposure Statement This equipment complies with EU radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. National Communications Commission (NCC) Article 12 Without permission, any company, firm or user shall not alter the frequency, increase the power, or change the characteristics and functions of the original design of the certified lower power frequency electric machinery. Article 14 The application of low power frequency electric machineries shall not affect the navigation safety nor interfere a legal communication, if an interference is found, the service will be suspended until improvement is made and the interference no longer exists. Industry Canada (IC) CAN ICES-3 (B)/NMB-3(B) This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-192 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body…

Text truncated - open the document above for the full version.

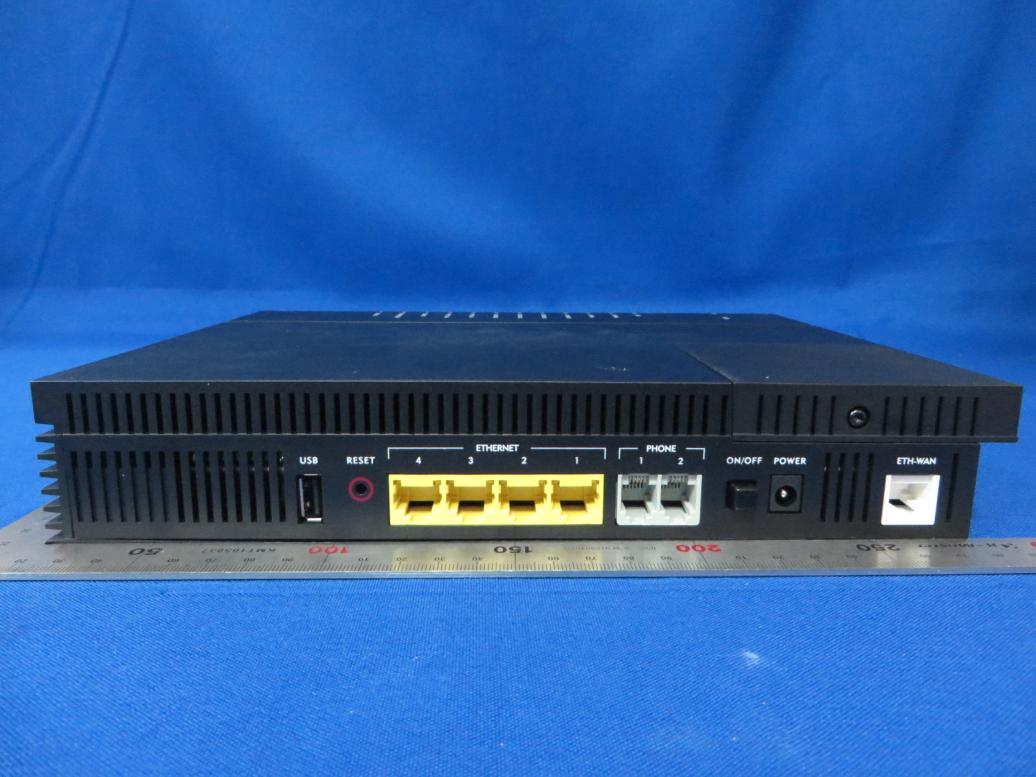

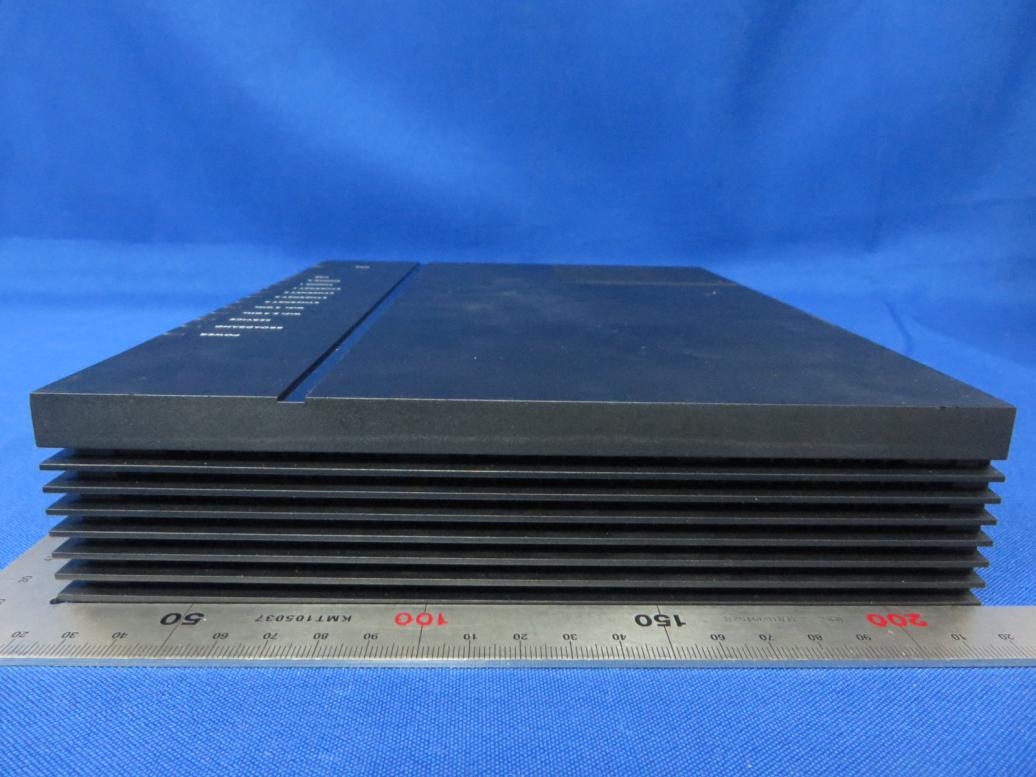

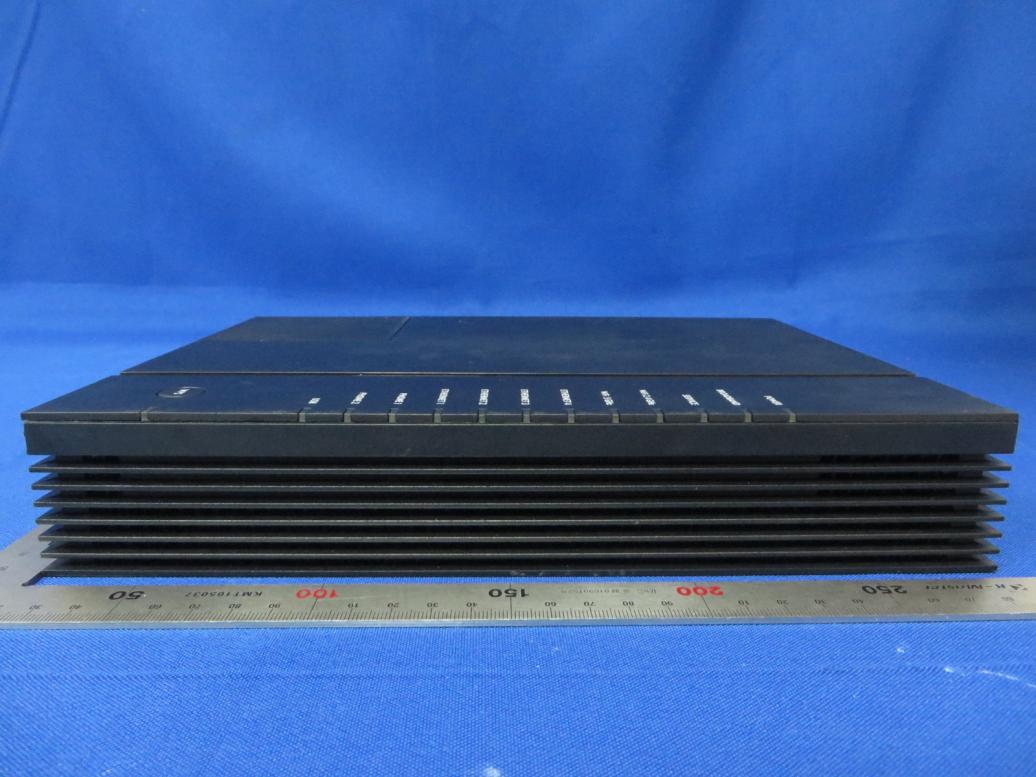

External Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (10) EUT Photo

Label Label Location

Internal Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (10) EUT Photo (11) EUT Photo

Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 41 of 394 Channel 165 (5825MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 42 of 394 802.11ac-VHT40 26dB Bandwidth & 99% Bandwidth - Ant 0 / Ant 0 + 1 + 2 + 3 Channel 38 (5190MHz) Channel 46 (5230MHz) Channel 54 (5270MHz) Channel 62 (5310MHz) Channel 102 (5510MHz) Channel 118 (5590MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 43 of 394 Channel 134 (5670MHz) Channel 142 (5710MHz) Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 44 of 394 802.11ac-VHT80 26dB Bandwidth & 99% Bandwidth - Ant 0 / Ant 0 + 1 + 2 + 3 Channel 42 (5210MHz) Channel 58 (5290MHz) Channel 106 (5530MHz) Channel 122 (5610MHz) Channel 138 (5690MHz) Channel 155 (5775MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 45 of 394 802.11a 26dB Bandwidth & 99% Bandwidth - Ant 1 / Ant 0 + 1 + 2 + 3 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 52 (5260MHz) Channel 60 (5300MHz) Channel 64 (5320MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 46 of 394 Channel 100 (5500MHz) Channel 120 (5600MHz) Channel 140 (5700MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 47 of 394 802.11n-HT20 26dB Bandwidth & 99% Bandwidth - Ant 1 / Ant 0 + 1 + 2 + 3 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 52 (5260MHz) Channel 60 (5300MHz) Channel 64 (5320MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 48 of 394 Channel 100 (5500MHz) Channel 120 (5600MHz) Channel 140 (5700MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 49 of 394 802.11n-HT40 26dB Bandwidth & 99% Bandwidth - Ant 1 / Ant 0 + 1 + 2 + 3 Channel 38 (5190MHz) Channel 46 (5230MHz) Channel 54 (5270MHz) Channel 62 (5310MHz) Channel 102 (5510MHz) Channel 118 (5590MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 50 of 394 Channel 134 (5670MHz) Channel 151 (5755 MHz) Channel 159 (5795 MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 51 of 394 802.11ac-VHT20 26dB Bandwidth & 99% Bandwidth - Ant 1 / Ant 0 + 1 + 2 + 3 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 52 (5260MHz) Channel 60 (5300MHz) Channel 64 (5320MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 52 of 394 Channel 100 (5500MHz) Channel 120 (5600MHz) Channel 140 (5700MHz) Channel 144 (5720MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 53 of 394 Channel 165 (5825MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 54 of 394 802.11ac-VHT40 26dB Bandwidth & 99% Bandwidth - Ant 1 / Ant 0 + 1 + 2 + 3 Channel 38 (5190MHz) Channel 46 (5230MHz) Channel 54 (5270MHz) Channel 62 (5310MHz) Channel 102 (5510MHz) Channel 118 (5590MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 55 of 394 Channel 134 (5670MHz) Channel 142 (5710MHz) Channel 151 (5755MHz) Channel 159 (5795MHz)

MRT Technology (Suzhou) Co., Ltd Report No.: 1501RSU00602 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 03-21-2015 Web: www.mrt-cert.com FCC ID: 2ABLK-844E-1 Page Number: 1 of 394 FCC ID: 2ABLK-844E-1 APPLICANT: Calix Inc. Application Type: Certification Product: WiFi Concurrent 4 Port GE LAN VoIP Ethernet Gateway with USB Model No.: 844E-1 Trademark: Calix FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 Test Procedure(s): ANSI C63.10-2013, KDB 789033 D02v01, KDB 662911 D01v02r01, KDB 644545 D03v01 Test Date: Jan. 13 ~ Mar. 08, 2015 MEASUREMENT REPORT FCC PART 15.407 WLAN 802.11a/n/ac Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 789033 D02v01. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 2 of 394 Revision History Report No. Version Description Issue Date 1501RSU00602 Rev. 01 Initial report 03-21-2015 Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 3 of 394 CONTENTS Description Page §2.1033 General Information ............................................................................................................ 6 1. INTRODUCTION ........................................................................................................................ 7 1.1. Scope .............................................................................................................................. 7 1.2. MRT Test Location .......................................................................................................... 7 2. PRODUCT INFORMATION ........................................................................................................ 8 2.1. Equipment Description .................................................................................................... 8 2.2. Applicable Standards ...................................................................................................... 9 2.3. Working Frequencies ...................................................................................................... 9 2.4. Description of Available Antennas ................................................................................. 11 2.5. Description of Antenna RF Port ..................................................................................... 12 2.6. Test Mode ..................................................................................................................... 12 2.7. Test Software ................................................................................................................. 13 2.8. Device Capabilities ........................................................................................................ 14 2.9. Test Configuration ......................................................................................................... 15 2.10. EMI Suppression Device(s)/Modifications ..................................................................... 15 2.11. Labeling Requirements ................................................................................................. 16 3. DESCRIPTION OF TEST ......................................................................................................... 17 3.1. Evaluation Procedure .................................................................................................... 17 3.2. AC Line Conducted Emissions ...................................................................................... 17 3.3. Radiated Emissions ....................................................................................................... 18 4. ANTENNA REQUIREMENTS .................................................................................................. 19 5. TEST EQUIPMENT CALIBRATION DATE .............................................................................. 20 6. MEASUREMENT UNCERTAINTY ........................................................................................... 21 7. TEST RESULT ......................................................................................................................... 22 7.1. Summary ....................................................................................................................... 22 7.2. 26dB Bandwidth Measurement ..................................................................................... 24 7.2.1. Test Limit ....................................................................................................................... 24 7.2.2. Test Procedure used ..................................................................................................... 24 7.2.3. Test Setting .................................................................................................................... 24 7.2.4. Test Setup ..................................................................................................................... 24 7.2.5. Test Result ..................................................................................................................... 25 7.3. 6dB Bandwidth Measurement ....................................................................................... 81 Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 4 of 394 7.3.1. Test Limit ....................................................................................................................... 81 7.3.2. Test Procedure used ..............................................................................................…

Text truncated - open the document above for the full version.

Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 66 of 394 802.11ac-VHT40 26dB Bandwidth & 99% Bandwidth - Ant 2 / Ant 0 + 1 + 2 + 3 Channel 38 (5190MHz) Channel 46 (5230MHz) Channel 54 (5270MHz) Channel 62 (5310MHz) Channel 102 (5510MHz) Channel 118 (5590MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 67 of 394 Channel 134 (5670MHz) Channel 142 (5710MHz) Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 68 of 394 802.11ac-VHT80 26dB Bandwidth & 99% Bandwidth - Ant 2 / Ant 0 + 1 + 2 + 3 Channel 42 (5210MHz) Channel 58 (5290MHz) Channel 106 (5530MHz) Channel 122 (5610MHz) Channel 138 (5690MHz) Channel 155 (5775MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 69 of 394 802.11a 26dB Bandwidth & 99% Bandwidth - Ant 3 / Ant 0 + 1 + 2 + 3 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 52 (5260MHz) Channel 60 (5300MHz) Channel 64 (5320MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 70 of 394 Channel 100 (5500MHz) Channel 120 (5600MHz) Channel 140 (5700MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 71 of 394 802.11n-HT20 26dB Bandwidth & 99% Bandwidth - Ant 3 / Ant 0 + 1 + 2 + 3 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 52 (5260MHz) Channel 60 (5300MHz) Channel 64 (5320MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 72 of 394 Channel 100 (5500MHz) Channel 120 (5600MHz) Channel 140 (5700MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 73 of 394 802.11n-HT40 26dB Bandwidth & 99% Bandwidth - Ant 3 / Ant 0 + 1 + 2 + 3 Channel 38 (5190MHz) Channel 46 (5230MHz) Channel 54 (5270MHz) Channel 62 (5310MHz) Channel 102 (5510MHz) Channel 118 (5590MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 74 of 394 Channel 134 (5670MHz) Channel 151 (5755 MHz) Channel 159 (5795 MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 75 of 394 802.11ac-VHT20 26dB Bandwidth & 99% Bandwidth - Ant 3 / Ant 0 + 1 + 2 + 3 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 52 (5260MHz) Channel 60 (5300MHz) Channel 64 (5320MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 76 of 394 Channel 100 (5500MHz) Channel 120 (5600MHz) Channel 140 (5700MHz) Channel 144 (5720MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 77 of 394 Channel 165 (5825MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 78 of 394 802.11ac-VHT40 26dB Bandwidth & 99% Bandwidth - Ant 3 / Ant 0 + 1 + 2 + 3 Channel 38 (5190MHz) Channel 46 (5230MHz) Channel 54 (5270MHz) Channel 62 (5310MHz) Channel 102 (5510MHz) Channel 118 (5590MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 79 of 394 Channel 134 (5670MHz) Channel 142 (5710MHz) Channel 151 (5755MHz) Channel 159 (5795MHz)

Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 56 of 394 802.11ac-VHT80 26dB Bandwidth & 99% Bandwidth - Ant 1 / Ant 0 + 1 + 2 + 3 Channel 42 (5210MHz) Channel 58 (5290MHz) Channel 106 (5530MHz) Channel 122 (5610MHz) Channel 138 (5690MHz) Channel 155 (5775MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 57 of 394 802.11a 26dB Bandwidth & 99% Bandwidth - Ant 2 / Ant 0 + 1 + 2 + 3 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 52 (5260MHz) Channel 60 (5300MHz) Channel 64 (5320MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 58 of 394 Channel 100 (5500MHz) Channel 120 (5600MHz) Channel 140 (5700MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 59 of 394 802.11n-HT20 26dB Bandwidth & 99% Bandwidth - Ant 2 / Ant 0 + 1 + 2 + 3 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 52 (5260MHz) Channel 60 (5300MHz) Channel 64 (5320MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 60 of 394 Channel 100 (5500MHz) Channel 120 (5600MHz) Channel 140 (5700MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 61 of 394 802.11n-HT40 26dB Bandwidth & 99% Bandwidth - Ant 2 / Ant 0 + 1 + 2 + 3 Channel 38 (5190MHz) Channel 46 (5230MHz) Channel 54 (5270MHz) Channel 62 (5310MHz) Channel 102 (5510MHz) Channel 118 (5590MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 62 of 394 Channel 134 (5670MHz) Channel 151 (5755MHz) Channel 159 (5795 MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 63 of 394 802.11ac-VHT20 26dB Bandwidth & 99% Bandwidth - Ant 2 / Ant 0 + 1 + 2 + 3 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 52 (5260MHz) Channel 60 (5300MHz) Channel 64 (5320MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 64 of 394 Channel 100 (5500MHz) Channel 120 (5600MHz) Channel 140 (5700MHz) Channel 144 (5720MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 65 of 394 Channel 165 (5825MHz)

Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 80 of 394 802.11ac-VHT80 26dB Bandwidth & 99% Bandwidth - Ant 3 / Ant 0 + 1 + 2 + 3 Channel 42 (5210MHz) Channel 58 (5290MHz) Channel 106 (5530MHz) Channel 122 (5610MHz) Channel 138 (5690MHz) Channel 155 (5775MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 81 of 394 7.3. 6dB Bandwidth Measurement 7.3.1. Test Limit The minimum 6dB bandwidth shall be at least 500 kHz. 7.3.2. Test Procedure used KDB 789033 D02v01 - Section C.2 7.3.3. Test Setting 1. Set center frequency to the nominal EUT channel center frequency. 2. RBW = 100 kHz. 3. VBW ≧ 3 × RBW. 4. Detector = Peak. 5. Trace mode = max hold. 6. Sweep = auto couple. 7. Allow the trace to stabilize. 8. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 6 dB relative to the maximum level measured in the fundamental emission. 7.3.4. Test Setup Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 82 of 394 7.3.5. Test Result Test Mode Data Rate (Mbps) Channel No. Frequency (MHz) 6dB Bandwidth (MHz) Limit (MHz) Result Ant 0 / Ant 0 + 1 + 2 + 3 802.11a 6 149 5745 16.45 ≥0.5 Pass 802.11a 6 157 5785 16.44 ≥0.5 Pass 802.11a 6 165 5825 16.45 ≥0.5 Pass 802.11n-HT20 6.5 149 5745 17.66 ≥0.5 Pass 802.11n-HT20 6.5 157 5785 17.65 ≥0.5 Pass 802.11n-HT20 6.5 165 5825 17.67 ≥0.5 Pass 802.11n-HT40 13.5 151 5755 36.41 ≥0.5 Pass 802.11n-HT40 13.5 159 5795 36.40 ≥0.5 Pass 802.11ac-VHT20 6.5 149 5745 17.65 ≥0.5 Pass 802.11ac-VHT20 6.5 157 5785 17.67 ≥0.5 Pass 802.11ac-VHT20 6.5 165 5825 17.65 ≥0.5 Pass 802.11ac-VHT40 13.5 151 5755 36.44 ≥0.5 Pass 802.11ac-VHT40 13.5 159 5795 36.42 ≥0.5 Pass 802.11ac-VHT80 29.3 155 5775 75.23 ≥0.5 Pass Ant 1 / Ant 0 + 1 + 2 + 3 802.11a 6 149 5745 16.44 ≥0.5 Pass 802.11a 6 157 5785 16.48 ≥0.5 Pass 802.11a 6 165 5825 16.45 ≥0.5 Pass 802.11n-HT20 6.5 149 5745 17.70 ≥0.5 Pass 802.11n-HT20 6.5 157 5785 17.65 ≥0.5 Pass 802.11n-HT20 6.5 165 5825 17.67 ≥0.5 Pass 802.11n-HT40 13.5 151 5755 36.39 ≥0.5 Pass 802.11n-HT40 13.5 159 5795 36.40 ≥0.5 Pass 802.11ac-VHT20 6.5 149 5745 17.78 ≥0.5 Pass 802.11ac-VHT20 6.5 157 5785 17.66 ≥0.5 Pass 802.11ac-VHT20 6.5 165 5825 17.69 ≥0.5 Pass 802.11ac-VHT40 13.5 151 5755 36.42 ≥0.5 Pass 802.11ac-VHT40 13.5 159 5795 36.40 ≥0.5 Pass 802.11ac-VHT80 29.3 155 5775 74.01 ≥0.5 Pass Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 83 of 394 Test Mode Data Rate (Mbps) Channel No. Frequency (MHz) 6dB Bandwidth (MHz) Limit (MHz) Result Ant 2 / Ant 0 + 1 + 2 + 3 802.11a 6 149 5745 16.43 ≥0.5 Pass 802.11a 6 157 5785 16.47 ≥0.5 Pass 802.11a 6 165 5825 16.44 ≥0.5 Pass 802.11n-HT20 6.5 149 5745 17.69 ≥0.5 Pass 802.11n-HT20 6.5 157 5785 17.70 ≥0.5 Pass 802.11n-HT20 6.5 165 5825 17.68 ≥0.5 Pass 802.11n-HT40 13.5 151 5755 36.42 ≥0.5 Pass 802.11n-HT40 13.5 159 5795 36.40 ≥0.5 Pass 802.11ac-VHT20 6.5 149 5745 17.69 ≥0.5 Pass 802.11ac-VHT20 6.5 157 5785 17.66 ≥0.5 Pass 802.11ac-VHT20 6.5 165 5825 17.68 ≥0.5 Pass 802.11ac-VHT40 13.5 151 5755 36.41 ≥0.5 Pass 802.11ac-VHT40 13.5 159 5795 36.41 ≥0.5 Pass 802.11ac-VHT80 29.3 155 5775 75.25 ≥0.5 Pass Ant 3 / Ant 0 + 1 + 2 + 3 802.11a 6 149 5745 16.43 ≥0.5 Pass 802.11a 6 157 5785 16.44 ≥0.5 Pass 802.11a 6 165 5825 16.43 ≥0.5 Pass 802.11n-HT20 6.5 149 5745 17.69 ≥0.5 Pass 802.11n-HT20 6.5 157 5785 17.66 ≥0.5 Pass 802.11n-HT20 6.5 165 5825 17.70 ≥0.5 Pass 802.11n-HT40 13.5 151 5755 36.41 ≥0.5 Pass 802.11n-HT40 13.5 159 5795 36.38 ≥0.5 Pass 802.11ac-VHT20 6.5 149 5745 17.66 ≥0.5 Pass 802.11ac-VHT20 6.5 157 5785 17.67 ≥0.5 Pass 802.11ac-VHT20 6.5 165 5825 17.69 ≥0.5 Pass 802.11ac-VHT40 13.5 151 5755 36.44 ≥0.5 Pass 802.11ac-VHT40 13.5 159 5795 36.42 ≥0.5 Pass 802.11ac-VHT80 29.3 155 5775 75.24 ≥0.5 Pass Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 84 of 394 802.11a 6dB Bandwidth - Ant 0 / Ant 0 + 1 + 2 + 3 Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 85 of 394 802.11n-HT20 6dB Bandwidth - Ant 0 / Ant 0 + 1 + 2 + 3 Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 86 of 394 802.11n-HT40 6dB Bandwidth - Ant 0 / Ant 0 + 1 + 2 + 3 Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 87 of 394 802.11ac-VHT20 6dB Bandwidth - Ant 0 / Ant 0 + 1 + 2 + 3 Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 88 of 394 802.11ac-VHT40 6dB Bandwidth - Ant 0 / Ant 0 + 1 + 2 + 3 Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 89 of 394 802.11ac-VHT80 6dB Bandwidth - Ant 0 / Ant 0 + 1 + 2 + 3 Channel 155 (5775MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 90 of 394 802.11a 6dB Bandwidth - Ant 1 / Ant 0 + 1 + 2 + 3 Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 91 of 394 802.11n-HT20 6dB Bandwidth - Ant 1 / Ant 0 + 1 + 2 + 3 Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 92 of 394 802.11n-HT40 6dB Bandwidth - Ant 1 / Ant 0 + 1 + 2 + 3 Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 93 of 394 802.11ac-VHT20 6dB Bandwidth - Ant 1 / Ant 0 + 1 + 2 + 3 Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 94 of 394 802.11ac-VHT40 6dB Bandwidth - Ant 1 / Ant 0 + 1 + 2 + 3 Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 95 of 394 802.11ac-VHT80 6dB Bandwidth - Ant 1 / Ant 0 + 1 + 2 + 3 Channel 155 (5775MHz) Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 96 of 394 802.11a 6dB Bandwidth - Ant 2 …

Text truncated - open the document above for the full version.

Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 111 of 394 N Tx MCS Index for 802.11ac Data Rate (Mbps) 20MHz Bandwidth 40MHz Bandwidth 80MHz Bandwidth 800ns GI 400ns GI 800ns GI 400ns GI 800ns GI 400ns GI 1 0 6.5 7.2 13.5 15.0 29.3 32.5 1 1 13.0 14.4 27.0 30.0 58.5 65.0 1 2 19.5 21.7 40.5 45.0 87.8 97.5 1 3 26.0 28.9 54.0 60.0 117.0 130.0 1 4 39.0 43.3 81.0 90.0 175.5 195.0 1 5 52.0 57.8 108.0 120.0 234.0 260.0 1 6 58.5 65.0 121.5 135.0 263.0 292.5 1 7 65.0 72.2 135.0 150.0 292.5 325.0 1 8 78.0 86.7 162.0 180.0 351.0 390.0 1 9 -- -- 180.0 200.0 390.0 433.3 4 0 26.0 28.9 54.0 60.0 117.0 130.0 4 1 52.0 57.8 108.0 120.0 234.0 260.0 4 2 78.0 86.7 162.0 180.0 351.0 390.0 4 3 104.0 115.6 216.0 240.0 468.0 520.0 4 4 156.0 173.3 324.0 360.0 702.0 780.0 4 5 208.0 231.1 432.0 480.0 936.0 1040.0 4 6 234.0 260.0 486.0 540.0 1053.0 1170.0 4 7 260.0 288.9 540.0 600.0 1170.0 1300.0 4 8 312.0 246.7 648.0 720.0 1404.0 1560.0 4 9 -- -- 720.0 800.0 1560.0 1733.3 Note: Power output test was verified over all data rates of each mode shown as above, and then choose the maximum power output (yellow marker) for final test of each channel. Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 112 of 394 Output power at various data rates for Ant 0 / Ant 0 + 1 + 2 + 3: Test Mode Bandwidth (MHz) Channel Frequency (MHz) Data Rate (Mbps) Average Power (dBm) 802.11a 20 60 5180 6 16.00 24 15.83 54 15.69 802.11n 20 60 5180 6.5 15.92 7.2 15.90 52 15.71 57.8 15.67 130 15.58 144 15.54 802.11n 40 62 5190 13.5 11.86 15 11.81 108 11.64 120 11.60 270 11.33 300 11.31 802.11ac 20 60 5180 6.5 16.24 7.2 16.21 78 16.07 86.7 15.97 156 15.85 173.4 15.79 802.11ac 40 62 5190 13.5 11.64 15 11.58 162 11.47 180 11.42 324 11.29 360 11.26 Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 113 of 394 802.11ac 80 58 5210 29.3 8.82 32.5 8.78 351 8.57 390 8.53 702 8.11 780 8.02 Report No.: 1501RSU00602 FCC ID: 2ABLK-844E-1 Page Number: 114 of 394 Test Mode Data Rate (Mbps) Channel No. Freq. (MHz) Ant 0 Average Power (dBm) Ant 1 Average Power (dBm) Ant 2 Average Power (dBm) Ant 3 Average Power (dBm) Total Average Power (dBm) Limit (dBm) Result 11a 6 36 5180 16.00 16.20 15.88 16.21 22.10 ≤27.96 Pass 11a 6 44 5220 17.46 17.89 17.74 17.71 23.72 ≤27.96 Pass 11a 6 48 5240 17.81 17.85 17.33 17.93 23.76 ≤27.96 Pass 11a 6 52 5260 14.64 14.86 14.95 14.94 20.87 ≤22.22 Pass 11a 6 60 5300 14.96 15.22 14.48 14.68 20.86 ≤22.22 Pass 11a 6 64 5320 14.72 14.91 14.47 14.46 20.66 ≤22.22 Pass 11a 6 100 5500 15.43 14.83 15.11 15.02 21.12 ≤21.62 Pass 11a 6 120 5600 14.56 14.15 14.52 14.80 20.53 ≤21.62 Pass 11a 6 140 5700 11.05 12.20 12.13 11.62 17.79 ≤21.62 Pass 11a 6 149 5745 20.49 21.06 20.94 20.42 26.76 ≤27.30 Pass 11a 6 157 5785 20.46 21.13 21.06 21.10 26.97 ≤27.30 Pass 11a 6 165 5825 20.08 20.61 20.39 20.05 26.31 ≤27.30 Pass 11n-HT20 6.5 36 5180 15.92 16.15 15.92 16.43 22.13 ≤27.96 Pass 11n-HT20 6.5 44 5220 17.74 18.05 17.69 17.96 23.88 ≤27.96 Pass 11n-HT20 6.5 48 5240 17.67 18.01 17.92 18.00 23.92 ≤27.96 Pass 11n-HT20 6.5 52 5260 14.70 14.95 14.83 14.93 20.87 ≤22.22 Pass 11n-HT20 6.5 60 5300 14.60 15.12 14.70 14.93 20.86 ≤22.22 Pass 11n-HT20 6.5 64 5320 14.62 14.99 14.52 15.25 20.88 ≤22.22 Pass 11n-HT20 6.5 100 5500 15.04 14.02 14.25 15.58 20.79 ≤21.62 Pass 11n-HT20 6.5 120 5600 15.36 14.75 14.90 15.80 21.24 ≤21.62 Pass 11n-HT20 6…
