2ABLK-844E-2WiFi Concurrent 4 Port GE LAN VoIP Ethernet Gateway with USB

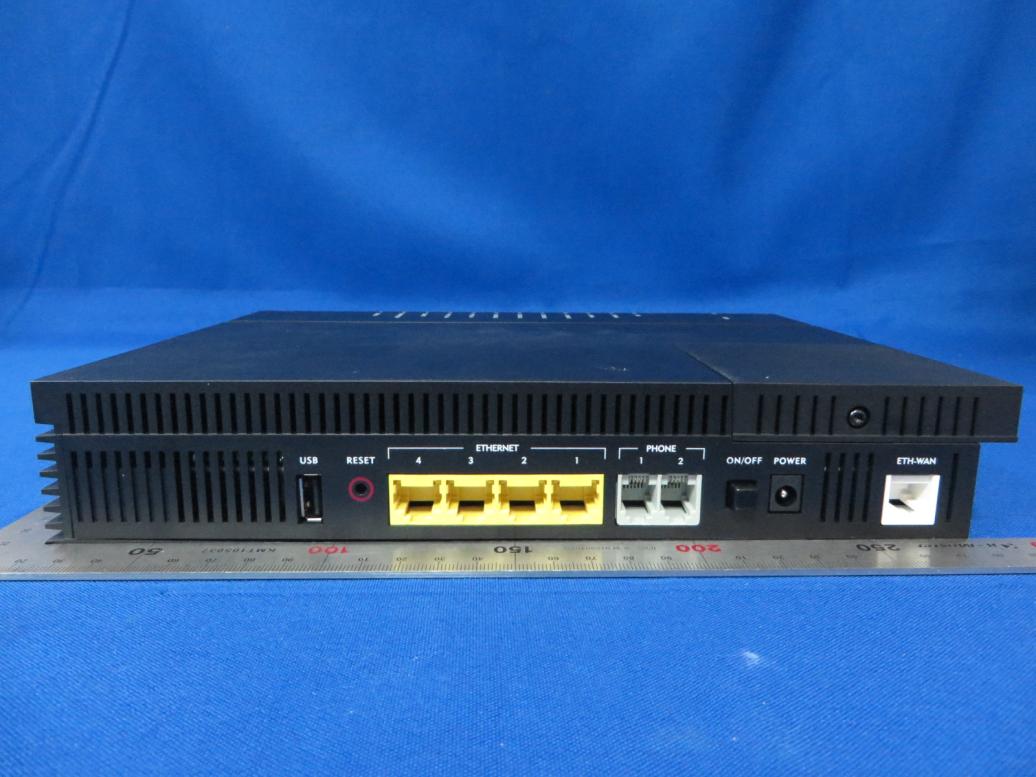

844E-2 WIFI Dual Band 4 GE LAN Ethernet Gateway with USB Version 1.0 Date 2015.01.19 Copyright@2015 Mitrastar Network Technology Incorporation Quick Installation Guide Model List: Product Description Product Name POTS USB WiFi 2.4 WiFi 5.0 UPS Wall Adapter 844E-1 Service Gateway 844E-1 2 1 1 1 1 1 844E-2 Service Gateway 844E-2 2 1 1 1 1 1 1. How to Use the Devices? The device can be used in two types: Standing type and Wall mount type: a) Standing type (Vertically stand as below) b) Wall mount type (LED up and Cables down) 2. Hardware Connections for the 4 models a.Use a Gigabit Ethernet Cable to connect a computer to an ETHERNET port for initial configuration and/or internet connection. b. Use the provided UPS or Power Adaptor source to the POWER Socket. Need to push the ON/OFF button to the ON position if Power Adaptor is used. d. Connect the USB dongle to the USB port if USB wants to be used. Model: 844E-2 (Refer to the Pic.) Rear Panel (From Up to Down) Front Panel LED printing (From Up to Down) USB POWER RESET BROADBAND ETHERNET 4 SERVICE ETHERNET 3 WiFi 2.4GHz ETHERNET 2 WiFi 5GHz ETHERNET 1 ETHERNET 4 PHONE 1 ETHERNET 3 PHONE 2 ETHERNET 2 POWER ETHERNET 1 PHONE 1 PHONE 2 USB 3. Configurations Step1: In your browser, go to http://192.168.1.1, the following screen appears, enter the default username and password: admin/admin and click Login. Step2: After Log into the Web GUI, click Quick Start, then configure the device for Internet Connection and Wireless connection. Step 3: Click Connect to Internet, Configure the Connection Type and DNS that ISP assigned. Step 4: Click Configure Wireless Network, Enable the wireless and configure the SSID as you like, the wireless WPA/WPA2 password will be generated automatically. Click Here Search the SSID CXNK12345678, type the correct WiFi password, then your Notebookcan be connected to the device via WiFi for the internet. Certifications Federal Communications Commission (FCC) Interference Statement The device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operations. This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio/television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement • This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. • For operation within 5.15 ~ 5.25GHz frequency range, it is restricted to indoor environment. • IEEE 802.11b, 802.11g or 802.11n (20MHz) operation of this product in the U.S.A. is firmware-limited to channel 1 through 11. IEEE 802.11n (40MHz) operation of this product in the U.S.A. is firmware-limited to channel 3 through 9. • This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Notices Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The device complies with the essential requirements of the R&TTE Directive 1995/5/EC. Radiation Exposure Statement This equipment complies with EU radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. National Communications Commission (NCC) Article 12 Without permission, any company, firm or user shall not alter the frequency, increase the power, or change the characteristics and functions of the original design of the certified lower power frequency electric machinery. Article 14 The application of low power frequency electric machineries shall not affect the navigation safety nor interfere a legal communication, if an interference is found, the service will be suspended until improvement is made and the interference no longer exists. Industry Canada (IC) CAN ICES-3 (B)/NMB-3(B) This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-192 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body…

Text truncated - open the document above for the full version.

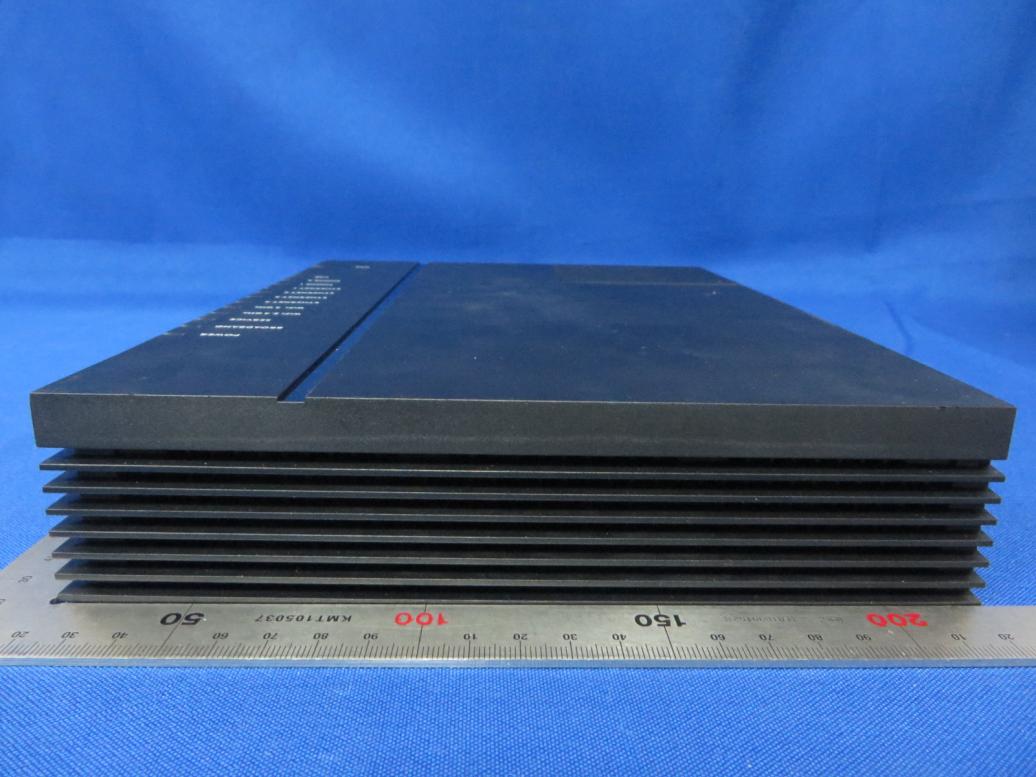

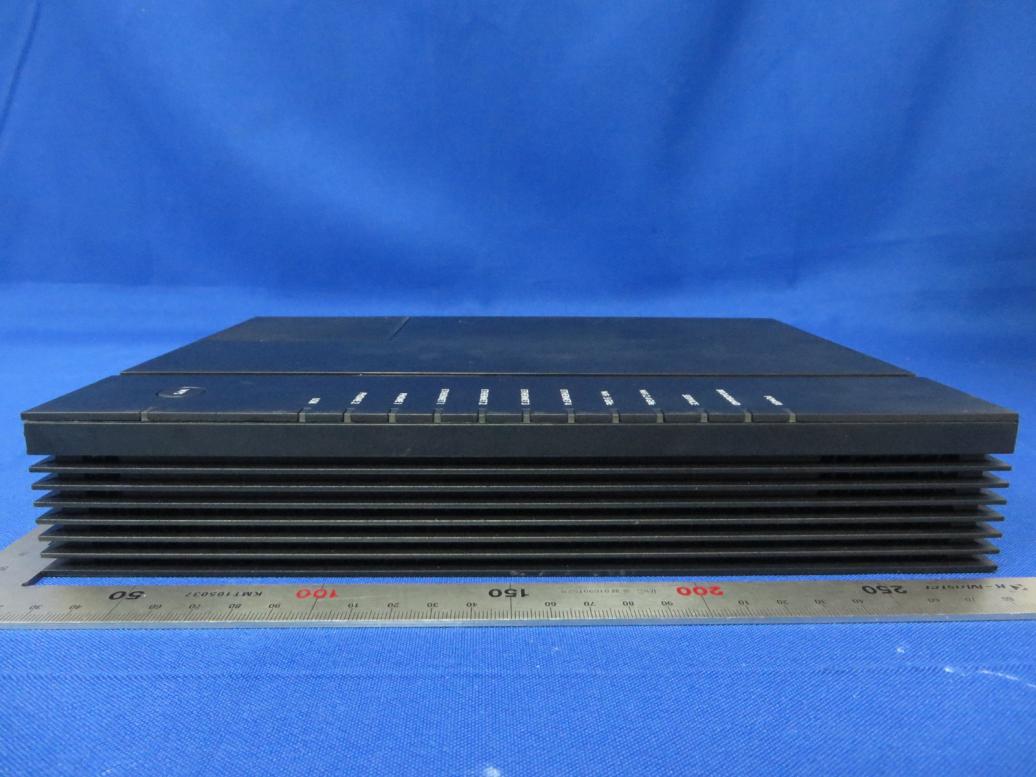

External Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (10) EUT Photo

Label Label Location

Internal Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (10) EUT Photo (11) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 1501RSU00704 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 03-21-2015 Web: www.mrt-cert.com FCC ID: 2ABLK-844E-2 Page Number: 1 of 8 RF Exposure Evaluation Declaration FCC ID: 2ABLK-844E-2 APPLICANT: Calix Inc. Application Type: Certification Product: WiFi Concurrent 4 Port GE LAN VoIP Ethernet Gateway with USB Model No.: 844E-2 Trademark: Calix FCC Classification: Digital Transmission System (DTS) Unlicensed National Information Infrastructure (UNII) Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1501RSU00704 FCC ID: 2ABLK-844E-2 Page Number: 2 of 8 Revision History Report No. Version Description Issue Date 1501RSU00704 Rev. 01 Initial report 03-21-2015 Report No.: 1501RSU00704 FCC ID: 2ABLK-844E-2 Page Number: 3 of 8 1. PRODUCT INFORMATION 1.1. Equipment Description Product Name WiFi Concurrent 4 Port GE LAN VoIP Ethernet Gateway with USB Model No. 844E-2 Frequency Range For 2.4GHz Band: 802.11b/g/n-HT20: 2412 ~ 2462MHz 802.11n-HT40: 2422 ~ 2452MHz For 5GHz Band: For 802.11a/n-HT20: 5180~5320MHz, 5500~5700MHz, 5745~5825MHz For 802.11ac-VHT20: 5180~5320MHz, 5500~5720MHz, 5745~5825MHz For 802.11n-HT40: 5190~5310MHz, 5510~5670MHz, 5755~5795MHz For 802.11ac-VHT40: 5190~5310MHz, 5510~5710MHz, 5755~5795MHz For 802.11ac-VHT80: 5210MHz, 5290MHz, 5530MHz, 5610MHz, 5690MHz, 5775MHz Type of Modulation 802.11b: DSSS 802.11g/a/n/ac: OFDM Maximum Average Output Power For 2.4GHz Band: 802.11b: 18.92dBm 802.11g: 18.74dBm 802.11n-HT20: 19.17dBm 802.11n-HT40: 18.74dBm For 5GHz Band: 802.11a: 26.97dBm 802.11n-HT20: 26.83dBm 802.11n-HT40: 27.19dBm 802.11ac-VHT20: 27.20dBm 802.11ac-VHT40: 27.16dBm 802.11ac-VHT80: 24.87dBm Report No.: 1501RSU00704 FCC ID: 2ABLK-844E-2 Page Number: 4 of 8 1.2. Antenna Description Antenna Type Frequency Band (GHz) T X Paths Directional Gain (dBi) Non Beam Forming Beam Forming CDD PCB Antenna 2.4 2 1.90 -- -- 5.2 4 2.17 8.04 8.04 5.3 4 2.03 7.78 7.78 5.6 4 2.55 8.38 8.38 5.8 4 2.70 8.70 8.70 Note: 1. Transmit at 2.4GHz support two antennas, and support four antennas at 5GHz transmit. 2. The EUT working on Beam Forming mode, and the Beam Forming support 802.11n/ac, not include 802.11a, and 802.11a working on CDD mode. 3. Correlated signals include, but are not limited to, signals transmitted in any of the following modes:  Any transmit Beam Forming mode, whether fixed or adaptive (e.g., phased array modes, closed loop MIMO modes, Transmitter Adaptive Antenna modes, Maximum Ratio Transmission (MRT) modes, and Statistical Eigen Beam Forming (EBF) modes). 4. Unequal antenna gains, with equal transmit powers. For antenna gains given by G 1 , G 2 , ..., G N dBi  transmit signals are correlated, then  Directional gain = 10 log[(10 G1/20 + 10 G2/20 + ... + 10 GN/20 ) 2 /N ANT ] dBi [Note the “20”s in the denominator of each exponent and the square of the sum of terms; the object is to combine the signal levels coherently.] Report No.: 1501RSU00704 FCC ID: 2ABLK-844E-2 Page Number: 5 of 8 2. RF Exposure Evaluation 2.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- f/1500 6 1500-100,000 -- -- 1 30 f= Frequency in MHz Calculation Formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 r = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1mW/cm². If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No.: 1501RSU00704 FCC ID: 2ABLK-844E-2 Page Number: 6 of 8 2.2. Test Result of RF Exposure Evaluation Product WiFi Concurrent 4 Port GE LAN VoIP Ethernet Gateway with USB Test Item RF Exposure Evaluation Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1.90dBi for 2.4GHz, 8.04dBi for 5.2GHz, 7.78dBi for 5.3GHz, 8.38dBi for 5.6GHz and 8.70dBi for 5.8GHz in logarithm scale. For 2.4GHz ISM Band: Test Mode Frequency Band (MHz) Maximum Average Output Power (dBm) Power Density at R = 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) 802.11b 2412 ~ 2462 18.92 0.0240 1 802.11g 2412 ~ 2462 18.74 0.0231 1 802.11n-HT20 2412 ~ 2462 19.17 0.0255 1 802.11n-HT40 2422 ~ 2452 18.74 0.0231 1 For 5GHz UNII Band: Test Mode Frequency Band (MHz) Maximum Average Output Power (dBm) Power Density at R = 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) 802.11a 5180 ~ 5240 23.76 0.3011 1 5260 ~ 5320 20.87 0.1458 1 5500 ~ 5700 21.12 0.1773 1 5725 ~ 5825 26.97 0.7341 1 802.11n-HT20 5180 ~ 5240 23.92 0.3124 1 5260 ~ 5320 20.88 0.1461 1 5500 ~ 5700 21.24 0.1823 1 5725 ~ 5825 26.83 0.7108 1 802.11n-HT40 5190 ~ 5230 24.11 0.3264 1 5270 ~ 5310 21.13 0.1548 1 5510 ~ 5670 21.23 0.1819 1 5755 ~ 5795 27.19 0.7722 1 Report No.: 1501RSU00704 FCC ID: 2ABLK-844E-2 Page Number: 7 of 8 802.11ac-VHT20 5180 ~ 5240 23.99 0.3175 1 5260 ~ 5320 21.10 0.1537 1 5500 ~ 5720 21.16 0.1789 1 5725 ~ 5825 27.20 0.7740 1 802.11ac-VHT40 5190 ~ 5230 24.31 0.3418 1 5270 ~ 5310 21.15 0.1555 1 5510 ~ 5710 21.27 0.1835 1 5755 ~ 5795 27.16 0.7669 1 802.11ac-VHT80 5210 16.25…

Text truncated - open the document above for the full version.

MRT Technology (Suzhou) Co., Ltd Report No.: 1501RSU00705 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 03-21-2015 Web: www.mrt-cert.com FCC ID: 2ABLK-844E-2 Page Number: 1 of 4 FCC ID: 2ABLK-844E-2 APPLICANT: Calix Inc. Application Type: Certification Product: WiFi Concurrent 4 Port GE LAN VoIP Ethernet Gateway with USB Model No.: 844E-2 Trademark: Calix FCC Classification: Digital Transmission System (DTS) Unlicensed National Information Infrastructure (UNII) Test Date: Jan. 13 ~ Mar. 08, 2015 Co-location Report Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2009. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1501RSU00705 FCC ID: 2ABLK-844E-2 Page Number: 2 of 4 Revision History Report No. Version Description Issue Date 1501RSU00705 Rev. 01 Initial report 03-21-2015 Report No.: 1501RSU00705 FCC ID: 2ABLK-844E-2 Page Number: 3 of 4 1. TEST RESULT of Radiated Emissions for Co-located Test Mode: 2.4GHz + 5GHz Transmit Test Site: AC1 Test Engineer: Roy Cheng Polarity: Horizontal Remark: There is the ambient noise within frequency range 9kHz~30MHz and 18GHz~40GHz, the permissible value is not show in the report. No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 3218.350 46.051 47.685 -7.949 54.000 -1.633 AV 2 * 3218.500 48.728 50.362 -25.272 74.000 -1.634 PK 3 4000.026 33.079 32.698 -20.921 54.000 0.381 AV 4 4000.500 41.179 40.798 -32.821 74.000 0.382 PK 5 6431.250 40.988 35.350 -13.012 54.000 5.638 AV 6 6431.500 47.217 41.577 -26.783 74.000 5.640 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB). Report No.: 1501RSU00705 FCC ID: 2ABLK-844E-2 Page Number: 4 of 4 Test Mode: 2.4GHz + 5GHz Transmit Test Site: AC1 Test Engineer: Roy Cheng Polarity: Vertical Remark: There is the ambient noise within frequency range 9kHz~30MHz and 18GHz~40GHz, the permissible value is not show in the report. No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 3218.500 45.278 46.912 -28.722 74.000 -1.634 PK 2 3218.562 42.401 44.035 -11.599 54.000 -1.634 AV 3 5241.200 34.825 31.637 -19.175 54.000 3.188 AV 4 5241.500 41.405 38.217 -32.595 74.000 3.188 PK 5 * 7987.000 46.701 37.958 -27.299 74.000 8.743 PK 6 7987.240 39.398 30.655 -14.602 54.000 8.743 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB). The End

MRT Technology (Suzhou) Co., Ltd Report No.: 1501RSU00701 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 03-21-2015 Web: www.mrt-cert.com FCC ID: 2ABLK-844E-2 Page Number: 1 of 175 FCC ID: 2ABLK-844E-2 APPLICANT: Calix Inc. Application Type: Certification Product: WiFi Concurrent 4 Port GE LAN VoIP Ethernet Gateway with USB Model No.: 844E-2 Trademark: Calix FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): ANSI C63.10-2013, KDB 558074 D01v03r02, KDB 662911 D01v02r01 Test Date: Jan. 13 ~ Mar. 08, 2015 MEASUREMENT REPORT FCC PART 15.247 WLAN 802.11b/g/n Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 D01v03r02. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1501RSU00701 FCC ID: 2ABLK-844E-2 Page Number: 2 of 175 Revision History Report No. Version Description Issue Date 1501RSU00701 Rev. 01 Initial report 03-21-2015 Report No.: 1501RSU00701 FCC ID: 2ABLK-844E-2 Page Number: 3 of 175 CONTENTS Description Page §2.1033 General Information ............................................................................................................ 5 1. INTRODUCTION ........................................................................................................................ 6 1.1. Scope .............................................................................................................................. 6 1.2. MRT Test Location .......................................................................................................... 6 2. PRODUCT INFORMATION ........................................................................................................ 7 2.1. Equipment Description .................................................................................................... 7 2.2. Applicable Standards ...................................................................................................... 8 2.3. Working Frequencies ...................................................................................................... 8 2.4. Description of Available Antennas .................................................................................. 9 2.5. Description of Antenna RF Port .................................................................................... 10 2.6. Test Mode ..................................................................................................................... 10 2.7. Test Software ................................................................................................................ 11 2.8. Device Capabilities ....................................................................................................... 12 2.9. Test Configuration ......................................................................................................... 13 2.10. EMI Suppression Device(s)/Modifications ..................................................................... 13 2.11. Labeling Requirements ................................................................................................. 13 3. DESCRIPTION of TEST .......................................................................................................... 14 3.1. Evaluation Procedure .................................................................................................... 14 3.2. AC Line Conducted Emissions...................................................................................... 14 3.3. Radiated Emissions ...................................................................................................... 15 4. ANTENNA REQUIREMENTS .................................................................................................. 16 5. TEST EQUIPMENT CALIBRATION DATE .............................................................................. 17 6. MEASUREMENT UNCERTAINTY ........................................................................................... 18 7. TEST RESULT ......................................................................................................................... 19 7.1. Summary ....................................................................................................................... 19 7.2. 6dB Bandwidth Measurement ....................................................................................... 20 7.2.1. Test Limit ................................................................................................................... 20 7.2.2. Test Procedure used ................................................................................................. 20 7.2.3. Test Setting ............................................................................................................... 20 7.2.4. Test Setup ................................................................................................................. 20 7.2.5. Test Result ................................................................................................................ 21 7.3. Output Power Measurement ......................................................................................... 33 7.3.1. Test Limit ................................................................................................................... 33 Report No.: 1501RSU00701 FCC ID: 2ABLK-844E-2 Page Number: 4 of 175 7.3.2. Test Procedure Used ................................................................................................. 33 7.3.3. Test Setting ...................................…

Text truncated - open the document above for the full version.

Report No.: 1501RSU00701 FCC ID: 2ABLK-844E-2 Page Number: 51 of 175 7.5.4. Test Setup Report No.: 1501RSU00701 FCC ID: 2ABLK-844E-2 Page Number: 52 of 175 7.5.5. Test Result Test Mode Data Rate (Mbps) Channel No. Frequency (MHz) Limit Result Ant 0 802.11b 1 01 2412 30dBc Pass 802.11b 1 06 2437 30dBc Pass 802.11b 1 11 2462 30dBc Pass 802.11g 6 01 2412 30dBc Pass 802.11g 6 06 2437 30dBc Pass 802.11g 6 11 2462 30dBc Pass 802.11n-HT20 6.5 01 2412 30dBc Pass 802.11n-HT20 6.5 06 2437 30dBc Pass 802.11n-HT20 6.5 11 2462 30dBc Pass 802.11n-HT40 13.5 03 2422 30dBc Pass 802.11n-HT40 13.5 06 2437 30dBc Pass 802.11n-HT40 13.5 09 2452 30dBc Pass Ant 1 802.11n-HT20 6.5 01 2412 30dBc Pass 802.11n-HT20 6.5 06 2437 30dBc Pass 802.11n-HT20 6.5 11 2462 30dBc Pass 802.11n-HT40 13.5 03 2422 30dBc Pass 802.11n-HT40 13.5 06 2437 30dBc Pass 802.11n-HT40 13.5 09 2452 30dBc Pass Report No.: 1501RSU00701 FCC ID: 2ABLK-844E-2 Page Number: 53 of 175 Test Mode Data Rate (Mbps) Channel No. Frequency (MHz) Limit Result Ant 0 / Ant 0 + 1 802.11n-HT20 6.5 01 2412 30dBc Pass 802.11n-HT20 6.5 06 2437 30dBc Pass 802.11n-HT20 6.5 11 2462 30dBc Pass 802.11n-HT40 13.5 03 2422 30dBc Pass 802.11n-HT40 13.5 06 2437 30dBc Pass 802.11n-HT40 13.5 09 2452 30dBc Pass Ant 1 / Ant 0 + 1 802.11n-HT20 6.5 01 2412 30dBc Pass 802.11n-HT20 6.5 06 2437 30dBc Pass 802.11n-HT20 6.5 11 2462 30dBc Pass 802.11n-HT40 13.5 03 2422 30dBc Pass 802.11n-HT40 13.5 06 2437 30dBc Pass 802.11n-HT40 13.5 09 2452 30dBc Pass Report No.: 1501RSU00701 FCC ID: 2ABLK-844E-2 Page Number: 54 of 175 802.11b Out-of-Band Emissions - Ant 0 100kHz PSD reference Level Channel 01 (2412MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1501RSU00701 FCC ID: 2ABLK-844E-2 Page Number: 55 of 175 Channel 11 (2462MHz) High Band Edge Spurious Emission Report No.: 1501RSU00701 FCC ID: 2ABLK-844E-2 Page Number: 56 of 175 802.11g Out-of-Band Emissions - Ant 0 100kHz PSD reference Level Channel 01 (2412MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1501RSU00701 FCC ID: 2ABLK-844E-2 Page Number: 57 of 175 Channel 11 (2462MHz) High Band Edge Spurious Emission Report No.: 1501RSU00701 FCC ID: 2ABLK-844E-2 Page Number: 58 of 175 802.11n-HT20 Out-of-Band Emissions - Ant 0 100kHz PSD reference Level Channel 01 (2412MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1501RSU00701 FCC ID: 2ABLK-844E-2 Page Number: 59 of 175 Channel 11 (2462MHz) High Band Edge Spurious Emission Report No.: 1501RSU00701 FCC ID: 2ABLK-844E-2 Page Number: 60 of 175 802.11n-HT40 Out-of-Band Emissions - Ant 0 100kHz PSD reference Level Channel 03 (2422MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1501RSU00701 FCC ID: 2ABLK-844E-2 Page Number: 61 of 175 Channel 9 (2452MHz) High Band Edge Spurious Emission Report No.: 1501RSU00701 FCC ID: 2ABLK-844E-2 Page Number: 62 of 175 802.11n-HT20 Out-of-Band Emissions - Ant 1 100kHz PSD reference Level Channel 01 (2412MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1501RSU00701 FCC ID: 2ABLK-844E-2 Page Number: 63 of 175 Channel 11 (2462MHz) High Band Edge Spurious Emission Report No.: 1501RSU00701 FCC ID: 2ABLK-844E-2 Page Number: 64 of 175 802.11n-HT40 Out-of-Band Emissions - Ant 1 100kHz PSD reference Level Channel 03 (2422MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1501RSU00701 FCC ID: 2ABLK-844E-2 Page Number: 65 of 175 Channel 9 (2452MHz) High Band Edge Spurious Emission Report No.: 1501RSU00701 FCC ID: 2ABLK-844E-2 Page Number: 66 of 175 802.11n-HT20 Out-of-Band Emissions - Ant 0 / Ant 0 + 1 100kHz PSD reference Level Channel 01 (2412MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1501RSU00701 FCC ID: 2ABLK-844E-2 Page Number: 67 of 175 Channel 11 (2462MHz) High Band Edge Spurious Emission Report No.: 1501RSU00701 FCC ID: 2ABLK-844E-2 Page Number: 68 of 175 802.11n-HT40 Out-of-Band Emissions - Ant 0 / Ant 0 + 1 100kHz PSD reference Level Channel 03 (2422MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1501RSU00701 FCC ID: 2ABLK-844E-2 Page Number: 69 of 175 Channel 9 (2452MHz) High Band Edge Spurious Emission Report No.: 1501RSU00701 FCC ID: 2ABLK-844E-2 Page Number: 70 of 175 802.11n-HT20 Out-of-Band Emissions - Ant 1 / Ant 0 + 1 100kHz PSD reference Level Channel 01 (2412MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1501RSU00701 FCC ID: 2ABLK-844E-2 Page Number: 71 of 175 Channel 11 (2462MHz) High Band Edge Spurious Emission Report No.: 1501RSU00701 FCC ID: 2ABLK-844E-2 Page Number: 72 of 175 802.11n-HT40 Out-of-Band Emissions - Ant 1 / Ant 0 + 1 100kHz PSD reference Level Channel 03 (2422MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1501RSU00701 FCC ID: 2ABLK-844E-2 Page Number: 73 of 175 Channel 9 (2452MHz) High Band Edge Spurious Emission Report No.: 1501RSU00701 FCC ID: 2ABLK-844E-2 Page Number: 74 of 175 7.6. Radiated Spurious Emission Measurement 7.6.1. Test Limit All out of band emissions appearing in a restricted band as specified in Section 15.205 of the Title 47 CFR must not exceed the limits shown in Table per Section 15.209. FCC Part 15 Subpart C Paragraph 15.209 Frequency [MHz] Field Strength [V/m] Measured Distance [Meters] 0.009 - 0.490 2400/F (kHz) 300 0.490 - 1.705 24000/F (kHz) 30 1.705 - 30 30 30 30 - 88 100 3 88 - 216 150 3 216 - 960 200 3 Above 960 500 3 7.6.2. Test Procedure Used KDB 558074 D01v03r02 - Section 12.2.3 (quasi-peak measurements) KDB 558074 D01v03r02 - Section 12.2.4 (peak power measurements) KDB 558074 D01v03r02 - Section 12.2.5 (average power measurements) 7.6.3. Test Setting Peak Field Strength Measurements 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = as specified in Tabl…

Text truncated - open the document above for the full version.

Report No.: 1501RSU00701 FCC ID: 2ABLK-844E-2 Page Number: 101 of 175 Test Mode: 802.11n-HT40 - Ant 0 + 1 Test Site: AC1 Test Channel: 09 Test Engineer: Roy Cheng Remark: 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 4983.4 35.9 3.0 38.9 74.0 -35.1 Peak Horizontal * 6872.4 35.3 6.4 41.7 82.5 -40.8 Peak Horizontal 9186.4 34.8 10.0 44.8 74.0 -29.2 Peak Horizontal * 12769.4 35.8 11.7 47.5 82.5 -35.0 Peak Horizontal 4926.4 37.6 2.8 40.4 74.0 -33.6 Peak Vertical * 6726.4 35.9 5.7 41.6 82.5 -40.9 Peak Vertical 9153.6 35.2 9.8 45.0 74.0 -29.0 Peak Vertical * 12786.4 35.9 11.7 47.6 82.5 -34.9 Peak Vertical Note 1: “*” is not in restricted band, its limit is 20dBc of the fundamental emission level (102.5dBμV/m). Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: 1501RSU00701 FCC ID: 2ABLK-844E-2 Page Number: 102 of 175 The worst case of Radiated Emission below 1GHz: Site: AC1 Time: 2015/03/08 - 15:07 Limit: FCC_Part15.209_RE(3m) Engineer: Roy Cheng Probe: VULB9162_0.03-8GHz Polarity: Horizontal EUT: WiFi Concurrent 4 Port GE LAN VoIP Ethernet Gateway with USB Power: AC 120V/60Hz Note: There is the worst case within frequency range 30MHz~1GHz. No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 54.250 31.650 16.863 -8.350 40.000 14.787 QP 2 210.220 27.644 15.250 -15.856 43.500 12.393 QP 3 375.021 34.394 18.241 -11.606 46.000 16.152 QP 4 412.422 28.499 11.660 -17.501 46.000 16.839 QP 5 750.254 34.153 12.035 -11.847 46.000 22.118 QP 6 875.020 35.827 12.050 -10.173 46.000 23.777 QP Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 1501RSU00701 FCC ID: 2ABLK-844E-2 Page Number: 103 of 175 Site: AC1 Time: 2015/03/08 - 15:07 Limit: FCC_Part15.209_RE(3m) Engineer: Roy Cheng Probe: VULB9162_0.03-8GHz Polarity: Vertical EUT: WiFi Concurrent 4 Port GE LAN VoIP Ethernet Gateway with USB Power: AC 120V/60Hz Note: There is the worst case within frequency range 30MHz~1GHz. No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 53.330 27.211 12.360 -12.789 40.000 14.851 QP 2 151.980 27.404 17.890 -16.096 43.500 9.514 QP 3 400.000…

Text truncated - open the document above for the full version.
