P/N 220-01099 Rev 12 Calix Safety and Regulatory Statements - GigaSpire NOTE: This Safety and Regulatory Statements Guide applies to all GigaSpire devices that may or may not include a Wi-Fi radio. Disregard any statements made here if the feature or function is not present on any particular model. Before you Begin IMPORTANT SAFETY INSTRUCTIONS When using your equipment, basic safety precautions should always be followed to reduce the risk of fi re, electric shock, and injury to persons, including the following: • Read all the instructions listed here and/or in the user manual before you operate this device. Give attention to all safety precautions. Retain the instructions for future reference. • Always use caution when handling live electrical connections. • Do not install electrical equipment in wet or damp conditions. • Ensure that the power source for the system is adequately rated to assure safe operation and provides current overload protection. • Do not allow anything to rest on the power cable, and do not place this product where people will stand or walk on the power cable. • To avoid electric shock caused by over-voltage from the PSTN, DO NOT connect the POTS port on this unit directly to any external PSTN line. • Children: Do not allow children to play with the GigaSpire. It contains small parts that could become detached and create a choking hazard. • This unit must only be used with the certifi ed power adapter model inside the package, which complies with the requirement of a limited power source. • Installation of this device must be in accordance with national wiring codes and conform to local regulations and electrical codes. • Do not use any accessories other than those approved by the manufacturer or your service provider. Use of non-original or non-approved accessories may result in loss of performance, damage to the product, fi re, electric shock or injury, and may violate regulations. The warranty does not cover product failures that have been caused by use of non-original or non-approved accessories. • It is recommended that the customer install an AC surge protector in the AC outlet to which this device is connected. This is to avoid damaging the device by local lightning strikes and other electrical surges. • The minimum distance between the user and/or any bystander and the radiating structure of the transmitter varies based on the country where it is deployed. For US deployments, 27 cm is the minimum distance while Canada requires a minimum of 33 cm. • The pluggable external power supply provided with the unit should be mounted indoors. If other power supplies are employed, they should be LISTED ITE with a Limited Power Source (LPS) output or LISTED with a National Electric Code (NEC) Class 2 output. • All installation methods shall be in accordance with national and local regulations and practices. The wiring method should include the use of Listed wire/cable acceptable for the application per the National Code, and should be one that an Authority Having Jurisdiction (AHJ) can approve per the Code. • For US products, no wiring to the product should be exposed in lengths beyond 140 feet, as the circuits should avoid exposure to acci- dental contact with lightning and power conductors in accordance with NEC Article 725-57 (NEC 2005). The installer should also consider Articles 210, 240, 250, 770, and 810 of the NEC. ENVIRONMENTAL CONDITIONS • Maximum environmental values during use: • Temperature: 0° C to +40° C (32° to 104° F), Humidity: 10% to 90% RH, non-condensing, -200 to 10,000 feet altitude. REQUIRED SAFETY STATEMENTS • Potentially Explosive Atmosphere: Do not use the GigaSpire in an area where a potentially explosive atmosphere exists. • Atmosphère potentiellement explosive: N’utilisez pas le GigaSpire dans un endroit où existe une atmosphère potentiellement explosive. • Intended Use: This product is classifi ed as telecommunication equipment not intended for direct purchase by the public. • This product is designed and approved for use in an indoor location only. ! CAUTION! Use of any controls, adjustments, or procedures other than those specifi ed herein may result in hazardous radiation exposure. • Utilisation prévue: Ce produit est classé comme équipement de télécommunication non destiné à l’achat direct par le public. Ce produit est conçu et approuvé pour utilisation en intérieur uniquement. ! MISE EN GUARDE ! L’utilisation de contrôles, réglages ou procédures autres que ceux spécifi és dans ce manuel peut entraîner une exposition dangereuse à des rayonnements. • Connect the power supply cord only to an AC power outlet that meets GigaSpire specifi cations. • Never alter the AC power cord. If necessary, have the correct outlet installed by a qualifi ed electrician or call your service provider for assistance. • To reduce the risk of damage to the electric cord, remove it from the outlet by holding onto the AC power adapter rather than the cord. • Make sure the cord is positioned so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress. ! WARNING! Do not use any other power adapter except the one that accompanies this unit or a power supply identifi ed in the list below. Use of another adapter could result in damage to the unit. To prevent electrical shock, please do not open the cover. The following power adapter is qualifi ed for use with this GigaSpire. This GigaSpire must be powered by Frecom F60-120500SPA or equivalent UL Listed LPS power source rated at: Input: 100-240 VAC, 50-60 Hz, 1.6A Max, Output: Nominal 12 VDC, 5A Max, 60W Max www.calix.com - 2 - ALIMENTATION ÉLECTRIQUE • Connectez le cordon d’alimentation uniquement à uneprise d’alimentation CA conforme aux spécifi cations GigaSpire. • Ne modifi ez jamais le cordon d’alimentation CA. Si nécessaire, faites installer la bonne prise par un électricien qualifi é ou appelez votre fournisseur de servicepour obtenir de l’aide. • Pour réduire le risque d’endomma…

Text truncated - open the document above for the full version.

Calix Inc. 1035 N. McDowell Blvd Petaluma, CA94954 U.S.A Declaration of Conformity We Name: Calix Inc. Address: 1035 N. McDowell Blvd Petaluma, CA94954 U.S.A Declare that: Product: GigaSpire FCC ID: 2ABLK-GS4227E Model: GS4227E, GS4220E Brand: Calix Product which bears the above FCC ID is also compliant with the FCC requirements for sDOC. And the sDOC procedure shall be carried out prior to marketing the device in the US. Sincerely, _________________ Name: Harish Bhakta Position: Date: 2020-01-14

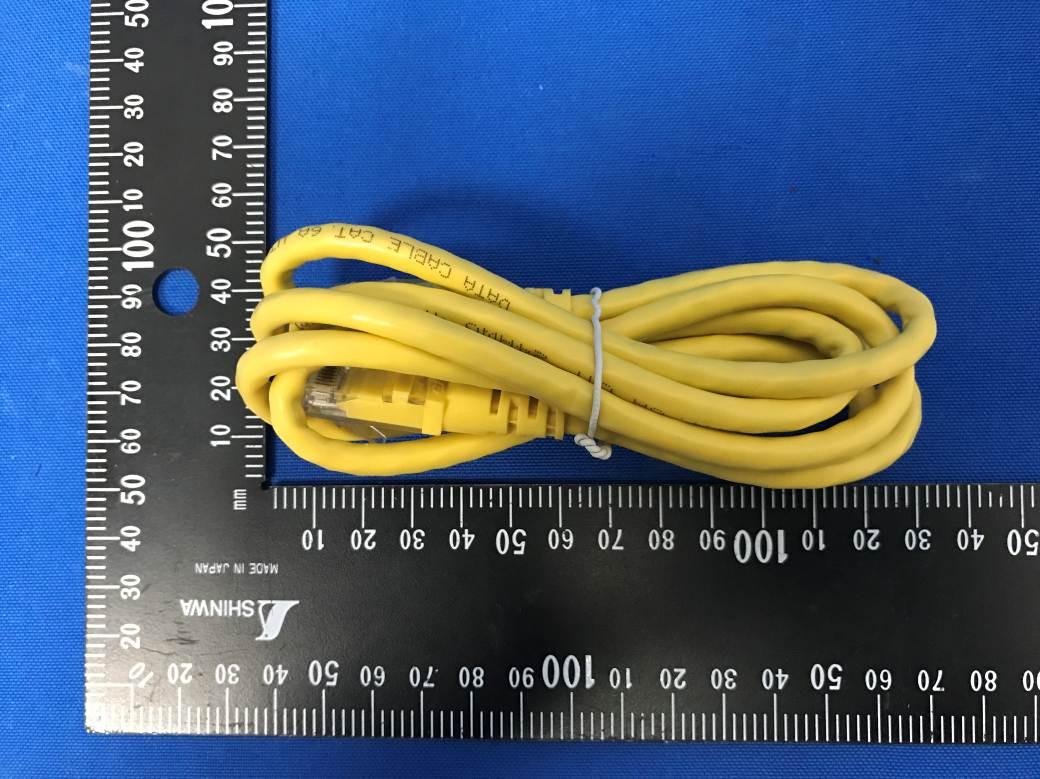

Report No.: 1911RSU033-UE 1 of 5 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 1911RSU033-UE (3) EUT Photo (4) EUT Photo Report No.: 1911RSU033-UE (5) EUT Photo (6) EUT Photo Report No.: 1911RSU033-UE (7) EUT Photo (8) EUT Photo Report No.: 1911RSU033-UE (9) EUT Photo (10) EUT Photo

Label Label Label Location Label LocationLabel Location

Report No.: 1911RSU033-UE 1 of 9 Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 1911RSU033-UE (3) EUT Photo (4) EUT Photo Report No.: 1911RSU033-UE (5) EUT Photo (6) EUT Photo Report No.: 1911RSU033-UE (7) EUT Photo (8) EUT Photo Report No.: 1911RSU033-UE (9) EUT Photo (10) EUT Photo Report No.: 1911RSU033-UE (11) EUT Photo (12) EUT Photo Report No.: 1911RSU033-UE (13) EUT Photo (14) EUT Photo Report No.: 1911RSU033-UE (15) EUT Photo (16) EUT Photo Report No.: 1911RSU033-UE (17) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 1911RSU033-U1 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 02-02-2020 FCC ID: 2ABLK-GS4227E Page Number: 1 of 166 FCC ID: 2ABLK-GS4227E APPLICANT: Calix Inc. Application Type: Certification Product: GigaSpire, GigaSpire BLAST u6.1 Model No.: GS4227E, GS4220E Brand Name: FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part15 Subpart C (Section 15.247) Test Procedure(s): ANSI C63.10-2013, KDB 662911 D01v02r01 Test Date: November 22, 2019 ~ January 06, 2020 MEASUREMENT REPORT FCC PART 15 Subpart C WLAN 802.11b/g/n/VHT/ax The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2013. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Reviewed By: ( Kevin Guo ) Approved By: ( Robin Wu ) Report No.: 1911RSU033-U1 FCC ID: 2ABLK-GS4227E Page Number: 2 of 166 Revision History Report No. Version Description Issue Date Note 1911RSU033-U1 Rev. 01 Initial report 02-02-2020 Valid Report No.: 1911RSU033-U1 FCC ID: 2ABLK-GS4227E Page Number: 3 of 166 CONTENTS Description Page §2.1033 General Information ............................................................................................................ 5 1. INTRODUCTION ........................................................................................................................ 6 1.1. Scope .............................................................................................................................. 6 1.2. MRT Test Location .......................................................................................................... 6 2. PRODUCT INFORMATION ........................................................................................................ 7 2.1. Feature of Equipment under Test ................................................................................... 7 2.2. Product Specification Subjective to this Report .............................................................. 7 2.3. Working Frequencies for this report ................................................................................ 8 2.4. Description of Available Antennas ................................................................................... 8 2.5. Description of Antenna RF Port ...................................................................................... 9 2.6. Test Mode ....................................................................................................................... 9 2.7. Description of Test Software ........................................................................................... 9 2.8. Duty Cycle ..................................................................................................................... 10 2.9. EMI Suppression Device(s)/Modifications ..................................................................... 11 2.10. Labeling Requirements ................................................................................................. 11 3. DESCRIPTION of TEST .......................................................................................................... 12 3.1. Evaluation Procedure .................................................................................................... 12 3.2. AC Line Conducted Emissions...................................................................................... 12 3.3. Radiated Emissions ...................................................................................................... 13 4. ANTENNA REQUIREMENTS .................................................................................................. 14 5. TEST EQUIPMENT CALIBRATION DATE .............................................................................. 15 6. MEASUREMENT UNCERTAINTY ........................................................................................... 17 7. TEST RESULT ......................................................................................................................... 18 7.1. Summary ....................................................................................................................... 18 7.2. 6dB Bandwidth Measurement ....................................................................................... 19 7.2.1. Test Limit ................................................................................................................... 19 7.2.2. Test Procedure used ................................................................................................. 19 7.2.3. Test Setting ............................................................................................................... 19 7.2.4. Test Setup ................................................................................................................. 19 7.2.5. Test Result ................................................................................................................ 20 7.3. Output Power Measurement ......................................................................................... 27 7.3.1. Test Limit ................................................................................................................... 27 7.3.2. Test Procedure Used ................................................................................................. 27 Report No.: 1911RSU033-U1 FCC ID: 2ABLK-GS4227E Page Number: 4 of 166 7.3.3. Test Setting ............................................................................................................... 27 7.3.4. Test Setup ....................................................................…

Text truncated - open the document above for the full version.

Report No.: 1911RSU033-U1 FCC ID: 2ABLK-GS4227E Page Number: 47 of 166 802.11ax-HE40 AVGPSD - Ant 0 / Ant 0 + 1 (Beam-Forming Mode) Channel 03 (2422MHz) Channel 06 (2437MHz) Channel 09 (2452MHz) Report No.: 1911RSU033-U1 FCC ID: 2ABLK-GS4227E Page Number: 48 of 166 802.11ax-HE20 AVGPSD - Ant 1 / Ant 0 + 1 (Beam-Forming Mode) Channel 01 (2412MHz) Channel 06 (2437MHz) Channel 11 (2462MHz) Report No.: 1911RSU033-U1 FCC ID: 2ABLK-GS4227E Page Number: 49 of 166 802.11ax-HE40 AVGPSD - Ant 1 / Ant 0 + 1 (Beam-Forming Mode) Channel 03 (2422MHz) Channel 06 (2437MHz) Channel 09 (2452MHz) Report No.: 1911RSU033-U1 FCC ID: 2ABLK-GS4227E Page Number: 50 of 166 7.5. Conducted Band Edge and Out-of-Band Emissions 7.5.1.Test Limit The limit for out-of-band spurious emissions at the band edge is 30dB below the fundamental emission level, as determined from the in-band power measurement of the DTS channel performed in a 100 kHz bandwidth per the PSD procedure. 7.5.2.Test Procedure Used ANSI C63.10 Section 11.11 7.5.3.Test Setting Reference level measurement 1. Set instrument center frequency to DTS channel center frequency 2. Set the span to ≥ 1.5 times the DTS bandwidth 3. Set the RBW = 100 kHz 4. Set the VBW ≥ 3 x RBW 5. Detector = peak 6. Sweep time = auto couple 7. Trace mode = max hold 8. Allow trace to fully stabilize Emission level measurement 1. Set the center frequency and span to encompass frequency range to be measured 2. RBW = 1.3MHz 3. VBW = 4MHz 4. Detector = Peak 5. Trace mode = max hold 6. Sweep time = auto couple 7. The trace was allowed to stabilize Report No.: 1911RSU033-U1 FCC ID: 2ABLK-GS4227E Page Number: 51 of 166 Test Notes 1. RBW was set to 1.3MHz rather than 100 kHz in order to increase the measurement speed. 2. The display line shown in the following plots denotes the limit at 30dB below the fundamental emission level measured in a 100 kHz bandwidth. However, since the traces in the following plots are measured with a 1.3MHz RBW, the display line may not necessarily appear to be 30dB below the level of the fundamental in a 1.3MHz bandwidth. 3. For plots showing conducted spurious emissions near the limit, the frequencies were investigated with a reduced RBW to ensure that no emissions were present. 7.5.4.Test Setup Report No.: 1911RSU033-U1 FCC ID: 2ABLK-GS4227E Page Number: 52 of 166 7.5.5.Test Result Product GigaSpire Temperature 25°C Test Engineer Bacon Dong Relative Humidity 54% Test Site TR3 Test Date 2019/12/04 Test Mode Data Rate / MCS Channel No. Frequency (MHz) Limit (dBc) Result Ant 0 / Ant 0 + 1 802.11b 1Mbps 01 2412 30 Pass 802.11b 1Mbps 06 2437 30 Pass 802.11b 1Mbps 11 2462 30 Pass 802.11g 6Mbps 01 2412 30 Pass 802.11g 6Mbps 06 2437 30 Pass 802.11g 6Mbps 11 2462 30 Pass 802.11n-HT20 MCS0 01 2412 30 Pass 802.11n-HT20 MCS0 06 2437 30 Pass 802.11n-HT20 MCS0 11 2462 30 Pass 802.11n-HT40 MCS0 03 2422 30 Pass 802.11n-HT40 MCS0 06 2437 30 Pass 802.11n-HT40 MCS0 09 2452 30 Pass 802.11ax-HE20 MCS0 01 2412 30 Pass 802.11ax-HE20 MCS0 06 2437 30 Pass 802.11ax-HE20 MCS0 11 2462 30 Pass 802.11ax-HE40 MCS0 03 2422 30 Pass 802.11ax-HE40 MCS0 06 2437 30 Pass 802.11ax-HE40 MCS0 09 2452 30 Pass Report No.: 1911RSU033-U1 FCC ID: 2ABLK-GS4227E Page Number: 53 of 166 802.11b Out-of-Band Emissions - Ant 0 / Ant 0 + 1 100kHz PSD reference Level Channel 01 (2412MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1911RSU033-U1 FCC ID: 2ABLK-GS4227E Page Number: 54 of 166 802.11b Out-of-Band Emissions - Ant 0 / Ant 0 + 1 Channel 11 (2462MHz) High Band Edge Spurious Emission Report No.: 1911RSU033-U1 FCC ID: 2ABLK-GS4227E Page Number: 55 of 166 802.11g Out-of-Band Emissions - Ant 0 / Ant 0 +1 100kHz PSD reference Level Channel 01 (2412MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1911RSU033-U1 FCC ID: 2ABLK-GS4227E Page Number: 56 of 166 802.11g Out-of-Band Emissions - Ant 0 / Ant 0 +1 Channel 11 (2462MHz) High Band Edge Spurious Emission Report No.: 1911RSU033-U1 FCC ID: 2ABLK-GS4227E Page Number: 57 of 166 802.11n-HT20 Out-of-Band Emissions - Ant 0 / Ant 0 + 1 100kHz PSD reference Level Channel 01 (2412MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1911RSU033-U1 FCC ID: 2ABLK-GS4227E Page Number: 58 of 166 802.11n-HT20 Out-of-Band Emissions - Ant 0 / Ant 0 + 1 Channel 11 (2462MHz) High Band Edge Spurious Emission Report No.: 1911RSU033-U1 FCC ID: 2ABLK-GS4227E Page Number: 59 of 166 802.11n-HT40 Out-of-Band Emissions - Ant 0 / Ant 0 + 1 100kHz PSD reference Level Channel 03 (2422MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1911RSU033-U1 FCC ID: 2ABLK-GS4227E Page Number: 60 of 166 802.11n-HT40 Out-of-Band Emissions - Ant 0 / Ant 0 + 1 Channel 09 (2452MHz) High Band Edge Spurious Emission Report No.: 1911RSU033-U1 FCC ID: 2ABLK-GS4227E Page Number: 61 of 166 802.11ax-HE20 Out-of-Band Emissions - Ant 0 / Ant 0 + 1 100kHz PSD reference Level Channel 01 (2412MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1911RSU033-U1 FCC ID: 2ABLK-GS4227E Page Number: 62 of 166 802.11ax-HE20 Out-of-Band Emissions - Ant 0 / Ant 0 + 1 Channel 11 (2462MHz) High Band Edge Spurious Emission Report No.: 1911RSU033-U1 FCC ID: 2ABLK-GS4227E Page Number: 63 of 166 802.11ax-HE40 Out-of-Band Emissions - Ant 0 / Ant 0 + 1 100kHz PSD reference Level Channel 03 (2422MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1911RSU033-U1 FCC ID: 2ABLK-GS4227E Page Number: 64 of 166 802.11ax-HE40 Out-of-Band Emissions - Ant 0 / Ant 0 + 1 Channel 09 (2452MHz) High Band Edge Spurious Emission Report No.: 1911RSU033-U1 FCC ID: 2ABLK-GS4227E Page Number: 65 of 166 7.6. Radiated Spurious Emission Measurement 7.6.1.Test Limit All out of band emissions appearing in a restricted band as specified in Section 15.205 of the Title 47CFR must not exceed the limits shown in Table per Section 15.209. FCC Part 15 S…

Text truncated - open the document above for the full version.

Report No.: 1911RSU033-U1 FCC ID: 2ABLK-GS4227E Page Number: 116 of 166 Site: AC1 Time: 2019/11/26 - 21:24 Limit: FCC_Part15_RSE(3m) Engineer: Larry Yan Probe: AC1_BBHA9120D_1-18GHz Polarity: Vertical EUT: GigaSpire Power: AC 120V/60Hz Test Mode: Transmit by 802.11n-HT20 at Channel 2412MHz (Non Beam-Forming Mode) No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.000 53.801 21.729 -0.199 54.000 32.072 AV 2 * 2410.912 103.449 71.368 N/A N/A 32.081 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 1911RSU033-U1 FCC ID: 2ABLK-GS4227E Page Number: 117 of 166 Site: AC1 Time: 2019/11/26 - 21:32 Limit: FCC_Part15_RSE(3m) Engineer: Larry Yan Probe: AC1_BBHA9120D_1-18GHz Polarity: Horizontal EUT: GigaSpire Power: AC 120V/60Hz Test Mode: Transmit by 802.11n-HT20 at Channel 2462MHz (Non Beam-Forming Mode) No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2462.728 115.659 83.580 N/A N/A 32.079 PK 2 2483.500 67.915 35.878 -6.085 74.000 32.037 PK 3 2486.992 69.629 37.599 -4.371 74.000 32.031 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 1911RSU033-U1 FCC ID: 2ABLK-GS4227E Page Number: 118 of 166 Site: AC1 Time: 2019/11/26 - 21:33 Limit: FCC_Part15_RSE(3m) Engineer: Larry Yan Probe: AC1_BBHA9120D_1-18GHz Polarity: Horizontal EUT: GigaSpire Power: AC 120V/60Hz Test Mode: Transmit by 802.11n-HT20 at Channel 2462MHz (Non Beam-Forming Mode) No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2466.952 103.486 71.416 N/A N/A 32.070 AV 2 2483.500 53.214 21.177 -0.786 54.000 32.037 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 1911RSU033-U1 FCC ID: 2ABLK-GS4227E Page Number: 119 of 166 Site: AC1 Time: 2019/11/26 - 21:27 Limit: FCC_Part15_RSE(3m) Engineer: Larry Yan Probe: AC1_BBHA9120D_1-18GHz Polarity: Vertical EUT: GigaSpire Power: AC 120V/60Hz Test Mode: Transmit by 802.11n-HT20 at Channel 2462MHz (Non Beam-Forming Mode) No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2464.480 116.935 84.860 N/A N/A 32.075 PK 2 2483.500 69.473 37.436 -4.527 74.000 32.037 PK 3 2484.856 69.015 36.981 -4.985 74.000 32.035 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 1911RSU033-U1 FCC ID: 2ABLK-GS4227E Page Number: 120 of 166 Site: AC1 Time: 2019/11/26 - 21:30 Limit: FCC_Part15_RSE(3m) Engineer: Larry Yan Probe: AC1_BBHA9120D_1-18GHz Polarity: Vertical EUT: GigaSpire Power: AC 120V/60Hz Test Mode: Transmit by 802.11n-HT20 at Channel 2462MHz (Non Beam-Forming Mode) No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2464.072 104.532 72.456 N/A N/A 32.076 AV 2 2483.500 52.701 20.664 -1.299 54.000 32.037 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 1911RSU033-U1 FCC ID: 2ABLK-GS4227E Page Number: 121 of 166 Site: AC2 Time: 2019/12/12 - 01:07 Limit: FCC_Part15_RSE(3m) Engineer: Dillon Diao Probe: AC2_BBHA9120D_1-18GHz Polarity: Horizontal EUT: GigaSpire Power: AC 120V/60Hz Test Mode: Transmit by 802.11n-HT40 at Channel 2422MHz (Non Beam-Forming Mode) No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 2383.450 65.292 66.607 -8.708 74.000 -1.316 PK 2 2390.000 64.836 66.171 -9.164 74.000 -1.335 PK 3 * 2418.225 108.841 110.236 N/A N/A -1.395 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB). Report No.: 1911RSU033-U1 FCC ID: 2ABLK-GS4227E Page Number: 122 of 166 Site: AC2 Time: 2019/12/12 - 01:09 Limit: FCC_Part15_RSE(3m) Engineer: Dillon Diao Probe: AC2_BBHA9120D_1-18GHz Polarity: Horizontal EUT: GigaSpire Power: AC 120V/60Hz Test Mode: Transmit by 802.11n-HT40 at Channel 2422MHz (Non Beam-Forming Mode) No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.000 51.395 52.730 -2.605 54.000 -1.335 AV 2 * 2418.355 97.964 99.360 N/A N/A -1.396 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB). Report No.: 1911RSU033-U1 FCC ID: 2ABLK-GS4227E Page Number: 123 of 166 Site: AC2 Time: 2019/12/12 - 01:07 Limit: FCC_Part15_RSE(3m) Engineer: Dillon Diao Probe: AC2_BBHA9120D_1-18GHz Polarity: Vertical EUT: GigaSpire Power: AC 120V/60Hz Test Mode: Transmit by 802.11n-HT40 at Channel 2422MHz (Non Beam-Forming Mode) No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 2384.035 64.076 65.393 -9.924 74.000 -1.317 PK 2 2390.000 63.774 65.109 -10.226 74.000 -1.335 PK 3 * 2417.900 108.970 110.362 N/A N/A -1.392 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB). Report No.: 1911RSU033-U1 FCC ID: 2ABLK-GS4227E Page Number: 124 of 166 Site: AC2 Time: 2019/12/12 - 01:06 Limit: FCC_Part15_RSE(3m) Engineer: Dillon Diao Probe: AC2_BBHA9120D_1-18GHz Polarity: Vertical EUT: GigaSpire Power: AC 120V/60Hz Test Mode: Transmit by 802.11n-HT40 at Channel 2422MHz (Non Beam-Forming Mode) No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.000 52.123 53.458 -1.877 54.000 -1.335 AV 2 * 2419.785 97.243 98.651 N/A N/A -1.409 A…

Text truncated - open the document above for the full version.

Report No.: 1911RSU033-UT 1 of 2 Test Setup Photograph Description: Front View of Conducted Emission Test Setup for Power Port Description: Back View of Conducted Emission Test Setup for Power Port Report No.: 1911RSU033-UT Description: Radiated Spurious Emission Test Setup for Below 1GHz Description: Radiated Spurious Emission Test Setup for Above 1GHz
