2ABLK-T077GT073GGPON ONT

Calix Inc.
GPON ONT - FCC ID 2ABLK-T077GT073G - Calix Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jan 09, 2014
Application Purpose
Original Equipment
Date of Application
Jan 09, 2014
Equipment Note
GPON ONT
Frequency Range
2412.00000000 - 2462.00000000
Company
Calix Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗
↗

Cover Letter(s)

↗
↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

User Guide T073G HGU ONT 220-00602 Rev 10 Copyright © Calix. All rights reserved. No part of this document may be reproduced in any form without the written permission of the copyright owner. Disclaimer The contents of this document are subject to revision without notice due to continued progress in methodology, design, and manufacturing. Calix shall have no liability for any error or damage of any kind resulting from the use of this document. Trademark List Calix Calix is the trademark or registered trademark of Calix. All other trademarks mentioned herein are the property of their respective owners. 220-00602 R10 | October, 2013 Contents Contents 1 Product Description 1 1.1 Introduction 1 1.2 Services 1 1.3 Features 1 1.4 Specifications 2 2 Safety 4 2.1 Electrical Safety 4 2.2 Laser Safety 4 3 Installation 6 3.1 Get to Know the ONT 6 3.2 Connecting to the PON Network 6 3.3 Connecting Power 7 3.4 Connecting Telephone (POTS) Service 9 3.5 Connecting Ethernet Service 9 3.6 Verifying the Installation 10 4 Troubleshooting 12 4.1 ONT Status LEDs 12 4.2 Troubleshooting Procedures 13 220-00602 R10 | October, 2013 User Guide 220-00602 R10 | October, 2013 Product Description 1 Product Description 1.1 Introduction The T073G Optical Network Terminal (ONT) is an ITU-T G.984 compliant device that receives voice, data, and video traffic in the form of optical signal from the service provider Passive Optical Network (PON) and transmitted it to the desired format at residential or business premises. Upstream traffic is likewise transmitted to the PON network through the fiber optic cable. A single optical fiber carries both upstream and downstream traffic. 1.2 Services T073G is equipped with ITU-T G.984 compliant 2.5 Gbps Downstream and 1.25 Gbps Upstream interface, and the following service ports: • Four 10/100/1000 Base-T Gigabit Ethernet ports for high speed internet access and IPTV/VOD services • Two POTS (VoIP) service ports for voice services • Integrated IEEE 802.11b/g/n wireless • One USB host port 1.3 Features The ONT incorporates the following features: • Single fiber GPON interface with 1244 Mbps upstream and 2488 Mbps downstream data rates • Advanced data features such as VLAN tag manipulation, classification, and filtering • Traffic classification and QoS capability • SIP-based Analog Telephone Adapter (ATA) function, which provides the different classification services, and supports caller display, call waiting, call transfer, and call forwarding. • 5 REN per line • Multiple voice Codec • Rich set of LED indications for alarming and maintenance • Built-in capability for remote management like supervision, monitoring, and maintenance 220-00602 R10 | October, 2013 1 User Guide 1.4 Specifications Table 1 lists the physical specification. Table 2 lists the electrical specification. Table 3 lists the environmental specification. Table 4 lists the optical specification. Table 1 Physical Specifications Dimensions • Height: 47 mm (1.85 inch) • Width: 229 mm (9 inch) • Depth: 174 mm (6.85 inch) Weight 640 g GPON interface SC/APC angled optical connector POTS interface RJ-11 connector Ethernet interface RJ-45 connector Table 2 Electrical Specification Input Power +12V DC power input Power Supply AC power supply with included power adapter Power Consumption <14.4 W Table 3 Environmental Specification Temperature Operating: 0° C to +40° C (32° to 104° F) Humidity 5% to 95% Relative Humidity (RH), non-condensing Table 4 Optical Specification Minimum Nominal Maximum Notes Transmitter Wavelength 1260 nm 1310 nm 1360 nm Transmit power Digital receiver 0.5 dBm +5 dBm Wavelength 1480 nm 1490 nm 1500 nm 2 220-00602 R10 | October, 2013 Product Description Minimum Nominal Maximum Notes Sensitivity -27 dBm Minimum received power for BER<10 -10 Overload -8 dBm Maximum received power for BER<10 -10 220-00602 R10 | October, 2013 3 User Guide 2 Safety Read and follow all warning notices and instructions marked on the product or included in its packaging, and observe all safety instructions listed in this guide while handling any ONT. 2.1 Electrical Safety • Always use caution when handling live electrical connections. • Do not install electrical equipment in wet or damp conditions. • Ensure that the power source for the system is adequately rated to assure safe operation and provides current overload protection. • Do not allow anything to rest on the power cable, and do not place this product where people will stand or walk on the power cable. • To avoid electric shock of user which caused by over-voltage from PSTN. DO NOT connect the POTS port on this unit directly to external PSTN line. • This unit can only be used with the certified adaptor model inside the package, which complies with the requirement of limited power source. 2.2 Laser Safety Caution! Use of controls or adjustments, or performance of procedures other than those specified herein may result in hazardous laser radiation exposure. Invisible laser radiation may be emitted from the ends of un-terminated fiber cables or connectors. Never look directly into an un-terminated cable or connector. Note: This ONT uses a class 1 laser device. 4 220-00602 R10 | October, 2013 Safety Danger! Personnel handling fiber optic cables must be trained for laser safety. Caution! Do not bend the fiber optic cable to a diameter smaller than 7.5 cm (3 inches). Doing so may damage the fiber or prevent the signal from passing through properly. 220-00602 R10 | October, 2013 5 User Guide 3 Installation 3.1 Get to Know the ONT The figures below show the overview of the ONT. Ethernet ports POTS ports Power switch DC power connector USB connector UPS connector G102382A Figure 1 T073G Back and Right-Side Overview WPS RESET WLAN Figure 2 T073G Left-Side Overview 3.2 Connecting to the PON Network 1. Locate a safe and accessible site for installation. G102296A 6 220-00602 R10 | October, 2013 Installation 2. Remove the dust covers from the SC/APC optical connector. Clean the connecto…

Text truncated - open the document above for the full version.

Users Manual

User Guide T077G HGU ONT 220-00599 Rev 10 Copyright © Calix. All rights reserved. No part of this document may be reproduced in any form without the written permission of the copyright owner. Disclaimer The contents of this document are subject to revision without notice due to continued progress in methodology, design, and manufacturing. Calix shall have no liability for any error or damage of any kind resulting from the use of this document. Trademark List Calix Calix is the trademark or registered trademark of Calix. All other trademarks mentioned herein are the property of their respective owners. 220-00599 R10 | October, 2013 Contents Contents 1 Product Description 1 1.1 Introduction 1 1.2 Services 1 1.3 Features 1 1.4 Specifications 2 2 Safety 4 2.1 Electrical Safety 4 2.2 Laser Safety 4 3 Installation 6 3.1 Get to Know the ONT 6 3.2 Connecting to the PON Network 6 3.3 Connecting Power 7 3.4 Connecting Telephone (POTS) Service 9 3.5 Connecting Ethernet Service 9 3.6 Connecting RF Overlay Video Service 10 3.7 Verifying the Installation 10 4 Troubleshooting 12 4.1 ONT Status LEDs 12 4.2 Troubleshooting Procedures 14 220-00599 R10 | October, 2013 User Guide 220-00599 R10 | October, 2013 Product Description 1 Product Description 1.1 Introduction The T077G Optical Network Terminal (ONT) is an ITU-T G.984 compliant device that receives voice, data, and video traffic in the form of optical signal from the service provider Passive Optical Network (PON) and transmitted it to the desired format at residential or business premises. Upstream traffic is likewise transmitted to the PON network through the fiber optic cable. A single optical fiber carries both upstream and downstream traffic. 1.2 Services The T077G is equipped with ITU-T G.984 compliant 2.5 Gbps Downstream and 1.25 Gbps Upstream interface, and the following service ports: • Four 10/100/1000 Base-T Gigabit Ethernet ports for high speed internet access and IPTV/VOD services • Two POTS (VoIP) service ports for voice services • Integrated IEEE 802.11b/g/n wireless • One coaxial port for RF overlay video services • One USB host port 1.3 Features The ONT incorporates the following features: • Single fiber GPON interface with 1244 Mbps upstream and 2488 Mbps downstream data rates • Advanced data features such as VLAN tag manipulation, classification, and filtering • Traffic classification and QoS capability • SIP-based Analog Telephone Adapter (ATA) function, which provides the different classification services, and supports caller display, call waiting, call transfer, and call forwarding. • 5 REN per line • Multiple voice Codec 220-00599 R10 | October, 2013 1 User Guide • Rich set of LED indications for alarming and maintenance • Built-in capability for remote management like supervision, monitoring, and maintenance 1.4 Specifications Table 1 lists the physical specification. Table 2 lists the electrical specification. Table 3 lists the environmental specification. Table 4 lists the optical specification. Table 1 Physical Specifications Dimensions • Height: 47 mm (1.85 inch) • Width: 229 mm (9 inch) • Depth: 174 mm (6.85 inch) Weight 700 g GPON interface SC/APC angled optical connector POTS interface RJ-11 connector Ethernet interface RJ-45 connector RF interface Type F connector Table 2 Electrical Specification Input Power +12V DC power input Power Supply AC power supply with included power adapter Power Consumption <16.8 W Table 3 Environmental Specification Temperature Operating: 0° to +40° C (32° to 104° F) Humidity 5% to 95% Relative Humidity (RH), non-condensing Table 4 Optical Specification Minimum Nominal Maximum Notes Transmitter Wavelength 1260 nm 1310 nm 1360 nm Transmit power Digital receiver 0.5 dBm +5 dBm 2 220-00599 R10 | October, 2013 Product Description Minimum Nominal Maximum Notes Wavelength 1480 nm 1490 nm 1500 nm Sensitivity -27 dBm Minimum received power for BER<10 -10 Overload -8 dBm Maximum received power for BER<10 -10 220-00599 R10 | October, 2013 3 User Guide 2 Safety Read and follow all warning notices and instructions marked on the product or included in its packaging, and observe all safety instructions listed in this guide while handling any ONT. 2.1 Electrical Safety • Always use caution when handling live electrical connections. • Do not install electrical equipment in wet or damp conditions. • Ensure that the power source for the system is adequately rated to assure safe operation and provides current overload protection. • Do not allow anything to rest on the power cable, and do not place this product where people will stand or walk on the power cable. • To avoid electric shock of user which caused by over-voltage from PSTN. DO NOT connect the POTS port on this unit directly to external PSTN line. • This unit can only be used with the certified adaptor model inside the package, which complies with the requirement of limited power source. 2.2 Laser Safety Caution! Use of controls or adjustments, or performance of procedures other than those specified herein may result in hazardous laser radiation exposure. Invisible laser radiation may be emitted from the ends of un-terminated fiber cables or connectors. Never look directly into an un-terminated cable or connector. Note: This ONT uses a class 1 laser device. 4 220-00599 R10 | October, 2013 Safety Danger! Personnel handling fiber optic cables must be trained for laser safety. Caution! Do not bend the fiber optic cable to a diameter smaller than 7.5 cm (3 inches). Doing so may damage the fiber or prevent the signal from passing through properly. 220-00599 R10 | October, 2013 5 User Guide 3 Installation 3.1 Get to Know the ONT The figures below show the overview of the ONT. RF interface GB Ethernet ports POTS ports DC power connector USB UPS connector Power switch G102356A Figure 1 T077G Back and Right-Side Overview WPS RESET WLAN Figure 2 T077G Left-Side Overview 3.2 Connecting to the PON Network 1. Locate a safe and accessible site for installation. G10…

Text truncated - open the document above for the full version.

Cover Letter(s)

Calix Inc. 1035 N. McDowell Blvd. Petaluma, CA 94954 U.S.A. Attestation for FCC Declaration of Conformity FCC ID: 2ABLK-T077GT073G Date: 2014/01/07 Please be notified that we, the undersigned, Calix Inc. declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DOC. And the DoC procedure shall be carried out prior to marketing the device in the US. The test report number supporting the DOC is 13B0453R-ITUSP01V02 Testing in regards to this report was done by QuieTek Corp., located at No.5-22, Rueishu Keng, Rueiping Tsuen, Linkou Shiang, Taipei County 244, Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, Harish Bhakta / Manager Calix Inc.

Cover Letter(s)

Calix Inc. Date: 2014-01-07 Federal Communications Commission Authorization and Evaluation Division FCC ID: 2ABLK-T077GT073G ATTESTATION FCC ID: 2ABLK-T077GT073G Product: GPON ONT Model: T077G, T073G We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, Harish Bhakta / Manager Calix Inc.

Cover Letter(s)

Calix Inc. Family Certification Cover Letter FCC ID: 2ABLK-T077GT073G Date: 2014/01/07 Please be notified that we, the undersigned, Calix Inc. declares that the product which bears the above FCC ID Contains 2 model numbers: T077G, T073G . Note: The EUT includes three models, the difference of them as show bellow: T077G T073G L A N P o r t * 4 Ye s Ye s ADSL Port*1 Yes Yes RF Port*1 Yes No U S B * 1 Ye s Ye s W i F i Ye s Ye s Your understanding will be highly appreciated. Sincerely, Harish Bhakta / Manager Calix Inc.

Cover Letter(s)

RF_160, Issue 02 Calix Inc. Declaration of Authorization We Name: Calix Inc. Address: 1035 N. McDowell Blvd. Petaluma, CA 94954 U.S.A. City: ......... Petaluma ................................................................ Country:.........U.S.A ............................................................................ Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: GPON ONT Type designation: T077G, T073G on our behalf. Date: 2014-01-07 City: Petaluma Name: Harish Bhakta (2) Function: Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

Cover Letter(s)

Calix Inc. Date: 2014-01-07 Federal Communications Commission Authorization and Evaluation Division FCC ID: 2ABLK-T077GT073G Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1 Schematics 2 Block Diagram 3 Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Harish Bhakta / Manager Calix Inc.

External Photos

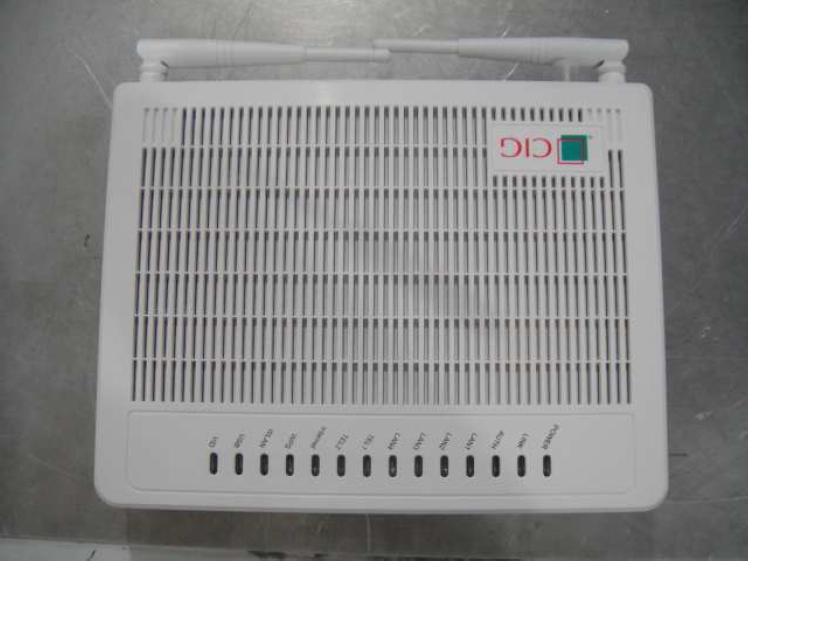

EUT Photograph (1) EUT Photo(TO77G) (2) EUT Photo (TO77G) (3) EUT Photo(TO77G) (4) EUT Photo (TO77G) (5) EUT Photo(TO77G) (6) EUT Photo (TO77G&TO73G) (7) EUT Photo (TO77G&TO73G) (8) EUT Photo (TO73G) (9) EUT Photo (TO73G)

ID Label/Location Info

PRODUCT ID: KDU 137 845/1 R1B T077G ERSNxxxxxxxx XXXXXXXXXXXX SERIAL NUMBER: MAC ID: ONU / FSAN: CLEI Code: SBM4D00ARA 1035 N McDowell Blvd.,Petaluma,CA 94954 RATING: 12VDC 2.0A Made in China 100-LEVEL NO.: 100-03577 12 23YYMMxxxxxx SSID: XXXX WPA PSK: XXXXXXXXXX MAC1 XXXXXXXXXXXX MAC2 XXXXXXXXXXXX This device co mplie s with Part 15 of the FCC Rules. Operation is su bject to the follo wing two co nditions: (1) th is device may not cause harmful interference, and (2) th is device must accept any interference rece ive d, incl uding interference that may ca use undesired operation. This device is intended to be attached to a receiver that is not used to receive over-the-air broadcast signals. Connection of this device in any other fashion may cause harmful interference to radio communications and is in violation of the FCC Rules, Part 15. FCC ID: 2 ABLK-T077GT073G

Internal Photos

(1) EUT Photo (TO77G) (2) EUT Photo(TO77G) (3) EUT Photo(TO77G) (4) EUT Photo(TO73G) (4) EUT Photo(TO73G)

RF Exposure Info

RF Exposure Evaluation Declaration Product Name : GPON ONT Model No. : T077G, T073G FCC ID : 2ABLK-T077GT073G Applicant : Calix Inc. Address : 1035 N. McDowell Blvd. Petaluma, CA 94954 U.S.A. Date of Receipt : Nov. 22, 2013 Issued Date : Dec. 18, 2013 Report No. : 13B0453R-RF-US-P20V01 Report Version : V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, CNAS or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No: 13B0453R-RF-US-P20V01 Page: 2 of 5 Test Report Certification Issued Date : Dec. 18, 2013 Report No. : 13B0453R-RF-US-P20V01 Product Name : GPON ONT Applicant : Calix Inc. Address : 1035 N. McDowell Blvd. Petaluma, CA 94954 U.S.A. Manufacturer : Calix Inc. Address : 1035 N. McDowell Blvd. Petaluma, CA 94954 U.S.A. Model No. : T077G, T073G FCC ID : 2ABLK-T077GT073G EUT Voltage : DC 12V, 2A Brand Name : Calix Applicable Standard : FCC OET 65 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : Reviewed By : Approved By : Report No: 13B0453R-RF-US-P20V01 Page: 3 of 5 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. : BSMI, NCC, TAF Germany : TUV Rheinland Norway : Nemko, DNV USA : FCC Japan : VCCI China : CNAS Report No: 13B0453R-RF-US-P20V01 Page: 4 of 5 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No: 13B0453R-RF-US-P20V01 Page: 5 of 5 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78% RH. 1.3. Test Result of RF Exposure Evaluation Product : GPON ONT Test Item : RF Exposure Evaluation Test Site : AC-6 z Antenna Gain: Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi for 2.4GHz in logarithm scale. z Output Power into Antenna & RF Exposure Evaluation Distance: Test Mode Frequency Band (MHz) Maximum Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 802.11b/g/n(20MHz) 2412~2462 576.7665 0.181857 802.11n(40MHz) 2422~2452 561.0480 0.176901 Note: The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm2. The End

Test Report

Test Report FCC Part15 Subpart C Product Name : GPON ONT Model No. : T077G, T073G FCC ID : 2ABLK-T077GT073G Applicant : Calix Inc. Address : 1035 N. McDowell Blvd. Petaluma, CA 94954 U.S.A. Date of Receipt : Nov. 22, 2013 Test Date : Nov. 22, 2013~Dec. 13, 2013 Issued Date : Dec. 18, 2013 Report No. : 13B0453R-RF-US-P05V01 Report Version : V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, CNAS or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No: 13B0453R-RF-US-P05V01 Page: 2 of 186 Test Report Certification Issued Date : Dec. 18, 2013 Report No. : 13B0453R-RF-US-P05V01 Product Name : GPON ONT Applicant : Calix Inc. Address : 1035 N. McDowell Blvd. Petaluma, CA 94954 U.S.A. Manufacturer : Calix Inc. Address : 1035 N. McDowell Blvd. Petaluma, CA 94954 U.S.A. Model No. : T077G, T073G FCC ID : 2ABLK-T077GT073G EUT Voltage : DC 12V, 2A Brand Name : Calix Applicable Standard : FCC CFR Title 47 Part 15 Subpart C: 2012 ANSI C63.4: 2009; KDB 558074 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : Reviewed By : Approved By : Report No: 13B0453R-RF-US-P05V01 Page: 3 of 186 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. : BSMI, NCC, TAF Germany : TUV Rheinland Norway : Nemko, DNV USA : FCC Japan : VCCI China : CNAS Report No: 13B0453R-RF-US-P05V01 Page: 4 of 186 TABLE OF CONTENTS Description Page 1. General Information ................................................................................................. 6 1.1. EUT Description ...................................................................................................... 6 1.2. Mode of Operation ................................................................................................... 9 1.3. Tested System Details ........................................................................................... 10 1.4. Configuration of Tested System ............................................................................. 11 1.5. EUT Exercise Software .......................................................................................... 12 2. Technical Test ........................................................................................................ 13 2.1. Summary of Test Result ......................................................................................... 13 2.2. Test Environment ................................................................................................... 14 3. Conducted Emission .............................................................................................. 15 3.1. Test Equipment ...................................................................................................... 15 3.2. Test Setup.............................................................................................................. 15 3.3. Limit ....................................................................................................................... 16 3.4. Test Procedure ...................................................................................................... 16 3.5. Uncertainty ............................................................................................................ 16 3.6. Test Result ............................................................................................................. 17 4. Radiated Emission ................................................................................................. 19 4.1. Test Equipment ...................................................................................................... 19 4.2. Test Setup.............................................................................................................. 20 4.3. Limit ....................................................................................................................... 21 4.4. Test Procedure ...................................................................................................... 21 4.5. Uncertainty ............................................................................................................ 22 4.6. Test Result ...........................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Test Setup Photograph for Part 15.247/15B(Rx) Test Mode : Mode 1: Normal Operation Description : Front View of Conducted Test Test Mode : Mode 1: Normal Operation Description : Back View of Conducted Test Description: Radiated Emission Test Setup for Below 30MHz Description: Radiated Emission Test Setup for Below 1GHz Description: Radiated Emission Test Setup for 1~18GHz Description: Radiated Emission Test Setup for Above 18GHz

Contact Information

Applicant

Harish Bhakta
[email protected]707-332-7467Fax: 707-283-3155

Technical Contact

QuieTek Technology (Suzhou) Co.,Ltd.Jame Yuan
[email protected]86-0512-6251-5088

No.99 Hongye RD.Suzhou Industrial Park, · Suzhou · China

Non-Technical Contact

QuieTek Technology (Suzhou) Co.,Ltd.Yuki Li
[email protected]86-0512-6251-5088

Test Firm

DEKRA Testing and Certification (Suzhou) Co., Ltd.Jerry Pan
[email protected]86-512-62515088Fax: 86-512-62515098

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz576.77 mW
Confidentiality
Long Term
Grant Notes
Power Output listed is conducted. Device is an 802.11n device in a 2x2 Spatial Multiplexing MIMO configuration as described in this filing.The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has a 20 MHz and 40 MHz bandwidth mode.
