2ABM8-WNA0112.4GHz WIFI WIRELESS LAN ADAPTER

2T2R2.4GHz300Mbps WirelessPCI-EAdapter UserManual Version1.0|12/28/2013 WirelessPCI-EAdapter 1 Tableofcontents Notices...............................................................................................................................................2 1ProductIntroduction..................................................................................................................3 1.1ProductFeatures...............................................................................................................3 1.2LED’sDescription..............................................................................................................3 1.3ProductApplication............................................................................................................3 1.4SecurityWarning................................................................................................................4 1.5PackageContents.............................................................................................................4 2InstallationGuide........................................................................................................................5 2.1HardwareConnection.......................................................................................................5 2.2SoftwareInstallation..........................................................................................................6 3ConnecttoNetwork..................................................................................................................10 WirelessPCI-EAdapter 2 Notices FederalCommunicationsCommission ThisdevicecomplieswithFCCRulesPart15.Operationissubjecttothefollowingtwo conditions: •Thisdevicemaynotcauseharmfulinterference. •Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay causeundesiredoperation. ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaclassBdigital devicepursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovide reasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.This equipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalled andusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradio communications.However,thereisnoguaranteethatinterferencewillnotoccurina particularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioor televisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,the userisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowing measures: •Reorientorrelocatethereceivingantenna. •Increasetheseparationbetweentheequipmentandreceiver. •Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe receiverisconnected. •Consultthedealeroranexperiencedradio/TVtechnicianforhelp. WARNING:Anychangesormodificationsnotexpresslyapprovedbythe partyresponsibleforcompliancecouldvoidtheuser’sauthoritytooperate theequipment. ProhibitionofCo-location Thisdeviceanditsantenna(s)mustnotbeco-locatedoroperatinginconjunctionwithany otherantennaortransmitter. FCCRadiationExposureStatement ThisequipmentcomplieswithRFCCradiationexposurelimitssetforthforan uncontrolledenvironment. Thisequipmentshouldbeinstalledandoperatedwithminimum20cmbetweenthe radiatorandyourbody. WirelessPCI-EAdapter 3 1ProductIntroduction The2T2R2.4GHz300MbpsWirelessPCI-EAdapterisahighlyintegratedand cost-effectiveWirelessAdapterthatprovidesPCIExpressinterface,andfullcompliance withIEEE802.11nandIEEE802.11b/gstandards.Connectyourdesktopcomputertoa high-speedWi-Finetworkusingthe300MbpsWirelessPCI-EAdaptertoexperience fasterfiletransfersandbrowsetheInternetfromgreaterdistancesacrossyourhomethan pervious-generationWirelessGtechnology.Upgradingyourcomputerwiththe300Mbps WirelessPCI-EAdapterdeliversbetterwirelessperformanceandfasterconnectiontoa high-speedwirelessnetwork. 1.1ProductFeatures ComplieswithIEEE802.11n,IEEE802.11b/gstandards SupportsPCI-E1.0x1bus SupportsIEEE802.11n2.0standard,300MbpsTX/RXrates SupportsWEP64/128,WPA,WPA2,TKIP,AES,WAPI Supports20MHz/40MHzbandwidth SupportsCiscoCCS SupportsmultipleBSSID SupportsdriversforWindowsXP32/64,Windows2000,Vista32/64,Windows7 32/64,Windows832/64 1.2LED’sDescription InthefrontoftheWirelessPCI-EAdapter,thereisastatusindicator.Itwillflashwhilea normaldatacommunication. 1.3ProductApplication The300MbpsWirelessPCI-EAdapterprovidesfast,reliable,low-costsolutionfor wirelessaccess.Theconcreteapplicationisasfollows: Requiringmoremobilityofstaff,theywanttoaccessthewirelessnetworkanywhere inacompany. Duetoconstructionorbudgetconstraints,someplacearenotsuitableforLANwiring, suchashistory,ancientbuildings,theleaseoflandortemporarylocation. Avoidingexpensivecable,leasedlinesorright-of-wayofthecompanies,individuals. WirelessPCI-EAdapter 4 1.4SecurityWarning Pleaseinstallandusethisproductuntilyoucompletetoreadthisusermanual; Inordertoguaranteetheproducttoworkcorrectly,pleasepayattentiontothe waterproofinganddampproofing; Preventsomeharmfulsubstances(suchasacid,alkali,etc.); Pleasedonotusethisproductplaceddirectlyinthesunorothersourcesofheat; Ifafailureoccurs,pleasecontactourcustomerservicedept,donotopenthisproduct byyourself. 1.5PackageContents CheckyourWirelessPCI-EAdapterpackageforthefollowingitems. •WirelessPCI-EAdapter •UseCD-ROM •Warrantycard WirelessPCI-EAdapter 5 2InstallationGuide ThissectionwillteachyouhowtousetheCD-ROMsoftwarefortheinstallationofyour WirelessPCI-EAdapterpackage,thepackagehasbeenthedriver,configurationsoftware, whichinstallsitsconfigurationsoftwarewillautomaticallyinstallthedriver. TakeWindowsXPOperatingsystemasanexample,installationstepsforotheroperating systemsaresimilar. 2.1HardwareConnection 1.Turnoffyourcomputerandunplugthepowercordfromthecomputer. 2.Openthecase.LocateanavailablePCIExpressslotandremoveitsslotcover. 3.InserttheadapterintothePCIExpressslotasshownbelow. (Figure1) 4.SecuretheadapterwiththescrewremovedinStep2. 5.Closethecaseandinsertthepowercordbackintothecomputer. 6.Turnonyourcomputer. …

Text truncated - open the document above for the full version.

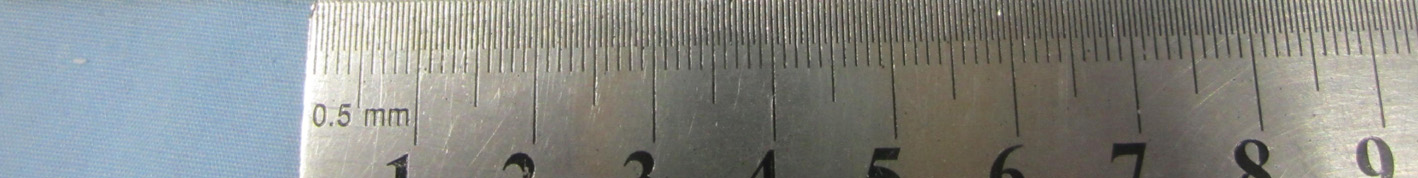

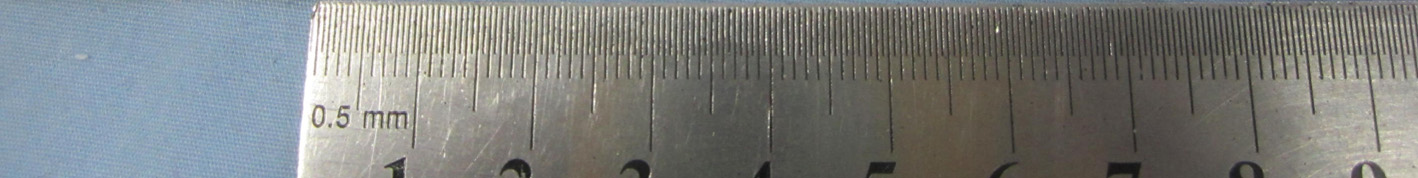

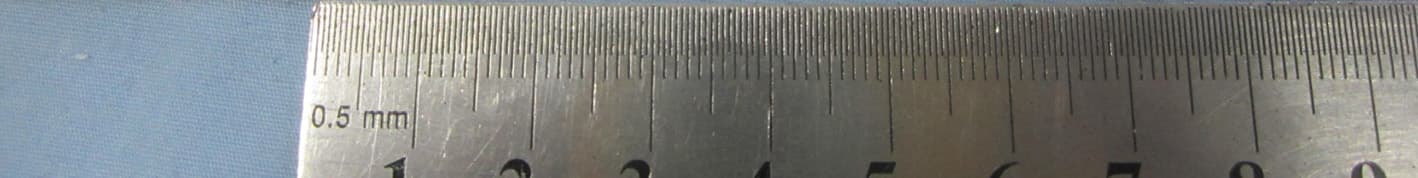

Trend-tech Technology Co., Limited Model: WNA011 REPORT NO.: STR13128352I FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Trend-tech Technology Co., Limited Model: WNA011 REPORT NO.: STR13128352I FCC PART 15.247 EUT View 3 EUT View 4 Trend-tech Technology Co., Limited Model: WNA011 REPORT NO.: STR13128352I FCC PART 15.247 Antenna View

Trend-tech Technology Co., Limited Model: WNA011 REPORT NO.: STR13128352I FCC PART 15.247 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2ABM8-WNA011 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Trend-tech Technology Co., Limited Model: WNA011 REPORT NO.: STR13128352I FCC PART 15.247 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2ABM8-WNA011 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

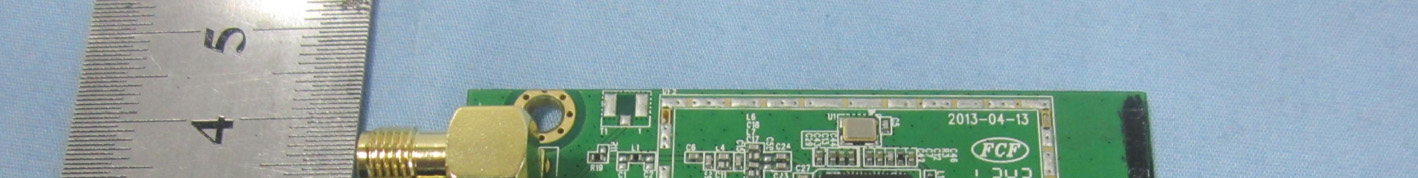

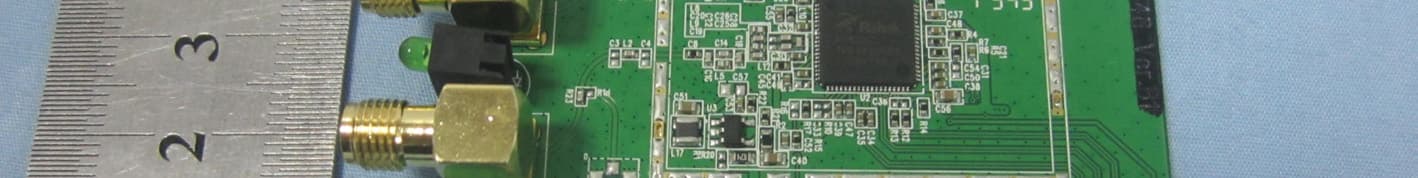

Trend-tech Technology Co., Limited Model: WNA011 REPORT NO.: STR13128352I FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS Solder Board-Component View 1 Solder Board-Component View 2 Antenna 1 Antenna 0

1. MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 Standard Applicable According to §1.1307(b)(1), system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. (a) Limits for Occupational / Controlled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 / / F/300 6 1500-100000 / / 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-100000 / / 1 30 Note: f = frequency in MHz: * = Plane-wave equivalents power density 1.2 MPE Calculation Method S = (30*P*G) / (377*R 2 ) S = power density (in appropriate units, e.g., mw/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mw) G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor is normally numeric gain. R = distance to the center of radiation of the antenna (in appropriate units, e.g., cm) 1.3 MPE Calculation Result According to KDB 447498 D01 v05 and KDB 662911 D01, the following MPE calculation shall to demonstrate RF exposure compliance. The worst case: Maximum peak output power: 17.68dBm (Conducted) (802.11b, Lowest Channel) Maximum peak output power at antenna input terminal: 58.61 (mW) Prediction distance: >20 (cm) Prediction frequency: 2412 (MHz) Antenna gain (typical): 2 (dBi) Antenna gain (typical): 1.58 (numeric) The worst case is power density at prediction frequency at 20cm: 0.0185(mw/cm 2 ) MPE limit for general population exposure at prediction frequency: 1 (mw/cm 2 ) 0.0185 (mw/cm 2 ) < 1 (mw/cm 2 )

Trend-tech Technology Co., Limited Model: WNA011 REPORT NO.: STR13128352I PAGE 1 OF 114 FCC PART 15.247 FCC Part 15C Measurement and Test Report For Trend-tech Technology Co., Limited No. 609, Noble Plaza, QianJin YiLu, Bao’An District, Shenzhen, CHINA FCC ID: 2ABM8-WNA011 FCC Rules: FCC Part 15C Product Description: 2.4GHz WIFI Wireless LAN Adapter Tested Model: WNA011 Report No.: STR13128352I Tested Date: 2013-12-26 to 2014-01-04 Issued Date: 2014-01-04 Tested By: Seven Song / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C (518101) Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM.Test Technology Co., Ltd. Trend-tech Technology Co., Limited Model: WNA011 REPORT NO.: STR13128352I PAGE 2 OF 114 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 3 1.2 TEST STANDARDS ................................................................................................................................................... 4 1.3 TEST METHODOLOGY ............................................................................................................................................. 4 1.4 TEST FACILITY ....................................................................................................................................................... 4 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 5 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 6 3. RF EXPOSURE ......................................................................................................................................................... 7 3.1 STANDARD APPLICABLE ......................................................................................................................................... 7 3.2 TEST RESULT.......................................................................................................................................................... 7 4. ANTENNA REQUIREMENT .................................................................................................................................. 8 4.1 STANDARD APPLICABLE ......................................................................................................................................... 8 4.2 EVALUATION INFORMATION .................................................................................................................................. 8 5. POWER SPECTRAL DENSITY ............................................................................................................................. 9 5.1 STANDARD APPLICABLE ......................................................................................................................................... 9 5.2 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................................... 9 5.3 TEST PROCEDURE ................................................................................................................................................... 9 5.4 ENVIRONMENTAL CONDITIONS .............................................................................................................................. 9 4.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 10 6. 6DB BANDWIDTH ................................................................................................................................................. 23 6.1 STANDARD APPLICABLE ....................................................................................................................................... 23 6.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 23 6.3 TEST PROCEDURE ................................................................................................................................................. 23 6.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 23 6.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 24 7. RF OUTPUT POWER ............................................................................................................................................ 37 7.1 STANDARD APPLICABLE ....................................................................................................................................... 37 7.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 37 7.3 TEST PROCEDURE ................................................................................................................................................. 37 7.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 37 7.5 SUMMARY OF TEST RESULTS/PLOTS ................................…

Text truncated - open the document above for the full version.

Trend-tech Technology Co., Limited Model: WNA011 REPORT NO.: STR13128352I FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup (30MHz to 1GHz) Trend-tech Technology Co., Limited Model: WNA011 REPORT NO.: STR13128352I FCC PART 15.247 Radiation Emission Test Setup (Above 1GHz) EUT Setup Photo 1 Trend-tech Technology Co., Limited Model: WNA011 REPORT NO.: STR13128352I FCC PART 15.247 EUT Setup Photo 2
