2ABM9T1Turntable

T1 User’s Manual FCC ID: 2ABM9T1 1. Key Feature - 3 speeds Turntable for 33 / 45 / 78 RPM - RCA out - Internal rechargeable Li-ion battery or USB power supply - Bluetooth 2.1+EDR,works with most Bluetooth smartphones, tablets, music devices - Connectivity: Bluetooth profiles: A2DP, AVRCP Bluetooth range: Line of sight, 10M or 30FT - Internal rechargeable Li-ion battery 2. Operating Instruction No# Instruction 1 Stop controller 2 Speed selection (Three speed for choice: 33, 45, 78 rpm) 3 LED charging indicator light 4 LED Bluetooth mode indicator light 5 LED Power indicator light 6 Power ON/OFF = Rotate the knob Left Rotate = decrease volume Right Rotate = increase volume 5 BT/PHONO Switch = Select Bluetooth or PHONO mode 6 RCA OUT R = Connect R channel to the mixer or amplifier 7 RCA OUT L = Connect L channel to the mixer or amplifier 8 DC charging port (DC 5V) USB charge cable 2.1 LED indicator light LED charging indicator light - Charging -- Blue - Fully charged -- LED off LED Bluetooth model indicator light - Bluetooth mode -- Blue fast flashing - Bluetooth paired and connected -- Blue slow flashing LED Power indicator light - Power -- Red Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help

Shenzhen Tongke Electronics Co., Ltd. The Second Industrial Zone, Phoenix Village, Fuyong Town, Shenzhen, China April 30, 2015 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Subject: Explanation of differences between product types FCC ID : 2ABM9T1 Model Number: T1, T2, PBT4000 To Whom It May Concern: We, The Shenzhen Tongke Electronics Co., Ltd. hereby declare that the model : T2, PBT4000 is identical with the model : T1, except the model name. Except for the different above, no other modification is performed. Sincerely, Shenzhen Tongke Electronics Co., Ltd. Signature: Company Officer: Cody Huang Telephone Number: 0755-33856685 Email: [email protected]

Shenzhen Tongke Electronics Co., Ltd. The Second Industrial Zone, Phoenix Village, Fuyong Town, Shenzhen, China Date (30/04/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: 2ABM9T1 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Shenzhen Tongke Electronics Co., Ltd. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Cody Huang Telephone Number: 0755-33856685 Email: [email protected]

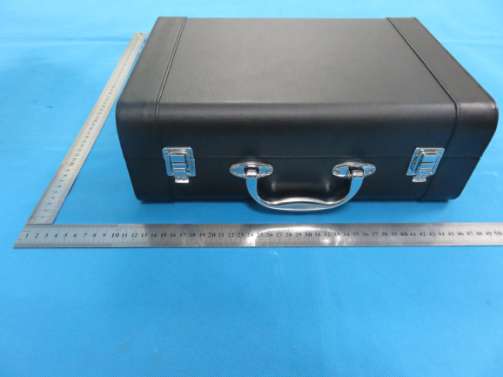

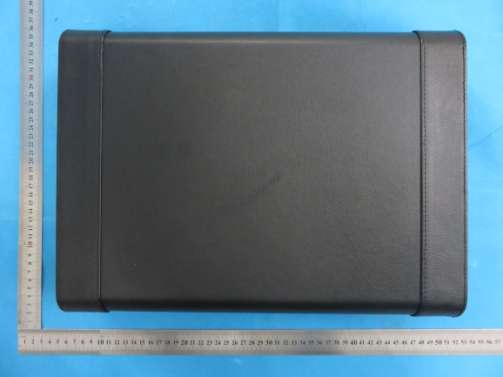

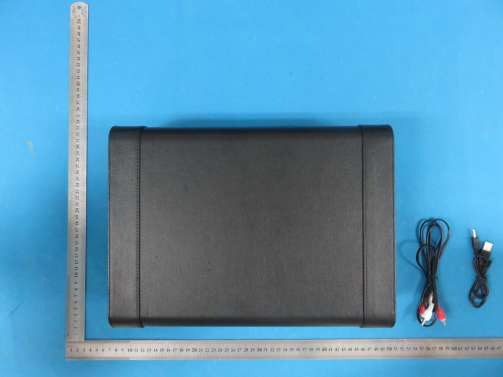

External Photos TOTAL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (PORT)

FCC ID Label Location FCC ID: 2ABM9T1

Internal Photos OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 Antenna INTERNAL VIEW OF EUT-7 INTERNAL VIEW OF EUT-8 INTERNAL VIEW OF EUT-9

RF Exposure evaluation Product Description: Turntable Model Number: T1, T2, PBT4000 FCC ID: 2ABM9T1 According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power（P t ）formula： P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data, Emax=98.60 dBuv/m=0.085V/m,d=3m,g t =1 P t =（E x d） 2 /（30 x g t ）=(0.085x3) 2 /(30x1)=0.002168W=2.17mW The result is rounded to one decimal place for comparison Worse case is as below: [2441MHz -2.17mW output power] (2.17mW /5mm) .[√2.441(GHz)]= 0.68<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: For the maximum power, you can refer FCC test report.

Page 1 of 53 FCC Test Report Report No.: AGC00608150401FE03 FCC ID : 2ABM9T1 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : 2ABM9T1 BRAND NAME : SIGN, Polaroid MODEL NAME : T1, T2, PBT4000 CLIENT : Shenzhen Tongke Electronics Co., Ltd. DATE OF ISSUE : APR.29,2015 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00608150401FE03 Page 2 of 53 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Apr.29,2015 Valid Original Report Report No.: AGC00608150401FE03 Page 3 of 53 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 4 2. GENERAL INFORMATION .................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................... 5 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 5 3. MEASUREMENT UNCERTAINTY........................................................................................ 6 4. DESCRIPTION OF TEST MODES ........................................................................................ 6 5. SYSTEM TEST CONFIGURATION ...................................................................................... 7 5.1. CONFIGURATION OF EUT SYSTEM .......................................................................................... 7 5.2. EQUIPMENT USED IN EUT SYSTEM ......................................................................................... 7 5.3. SUMMARY OF TEST RESULTS .................................................................................................. 7 6. TEST FACILITY .................................................................................................................... 8 7 ALL TEST EQUIPMENT LIST ............................................................................................... 8 8. RADIATED EMISSION ......................................................................................................... 9 8.1TEST LIMIT ..................................................................................................................................... 9 8.2. MEASUREMENT PROCEDURE ................................................................................................ 10 8.3. TEST SETUP .............................................................................................................................. 12 8.4. TEST RESULT(Worst modulation:GFSK) ................................................................................... 14 9. BAND EDGE EMISSION .................................................................................................... 27 9.1. MEASUREMENT PROCEDURE ................................................................................................ 27 9.2 TEST SETUP ............................................................................................................................... 27 9.3 RADIATED TEST RESULT(Worst modulation:GFSK) ................................................................. 28 10. 20DB BANDWIDTH .......................................................................................................... 32 10.1. MEASUREMENT PROCEDURE .............................................................................................. 32 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ..................................................... 32 10.3. LIMITS AND MEASUREMENT RESULTS ................................................................................ 32 11. FCC LINE CONDUCTED EMISSION TEST ..................................................................... 39 11.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................... 39 11.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ................................................. 39 11.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST .............................. 40 11.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................. 40 11.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ....................................................... 41 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ............................................................... 43 APPENDIX B: PHOTOGRAPHS OF EUT .............................................................................. 44 Report No.: AGC00608150401FE03 Page 4 of 53 1. VERIFICATION OF CONFORMITY Applicant Shenzhen Tongke Electronics Co., Ltd. Address The Second Industrial Zone, Phoenix Village, Fuyong Town, Shenzhen, China Manufacturer Shenzhen Tongke Electronics Co., Ltd. Address The Second Industrial Zone, Phoenix Village, Fuyong Town, Shenzhen, China Product Designation Turntable Brand Name SIGN, Polaroid Test Model T1 Series Model T2, PBT4000 Different Description All the same except for the model name Date of test Apr.25,2015 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Compliance Certification Service(Shenzhen) Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.249. Prepared By Water Zuo Apr.29,2015 Checked By Forrest Lei Apr.29,2015 Authorized By Solger Zhang Apr.29,2015 Report No.: AGC00608150401FE03 Page 5 of 53 2. GEN…

Text truncated - open the document above for the full version.

Test Setup Photos FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
