2ABMCS15Professional & Outdoor Support Phone

V Mobile power adapter using the matters needing attention FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modi?cations to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Remark: This device is designed to compliant with EN 50360: 2001/A1: 2012&EN 62209-1: 2006&EN 62209-2: 2010 and FCC OET 65. This radio device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Attention: ---USB Type: USB 2.0 (USB just only be used for data transmission and charging) The product shall only be connected to a USB interface of version USB 2.0 ---Extreme Temperature: 45 degree centigrade(Max.) ---This product respects the current regulations for limiting the output volume of consumer audio devices to a safe level. By listening to your device with headphones or earbuds at high volumes, you run the risk of permanent damage to your ears. Use careful with the earphone maybe possible excessive sound pressure from earphones and headphones can cause hearing loss. ---If charge by power adapter, power adapter shall be considered as safety approval by CE. (For CE Market---Adapter Input: AC 100-240V 50/60Hz 0.15A; Output: 5.0V-1000mA Manufacturer of Adapter: Shenzhen Huiyuda Electronic Co.,Ltd. Model No.:UOH-E1A3-000A4) Adapter shall be installed near the equipment and shall be easily accessible. (The plug considered as disconnect device of adapter)

Shenzhen Outfone Technology CO., LTD Add: Room 408, Jianda building, #10 KeYuan Rd. Nanshan District, Shenzhen, China Tel: 0755-21536160 Fax: 0755-21536163 2014-01-15 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: 2ABMCS15 We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation Description - BOM List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : Gao Yu / General Manager Address: Room 408, Jianda building, #10 KeYuan Rd. Nanshan District, Shenzhen, China Tel: 0755-21536160 Fax: 0755-21536163 E-mail: [email protected]

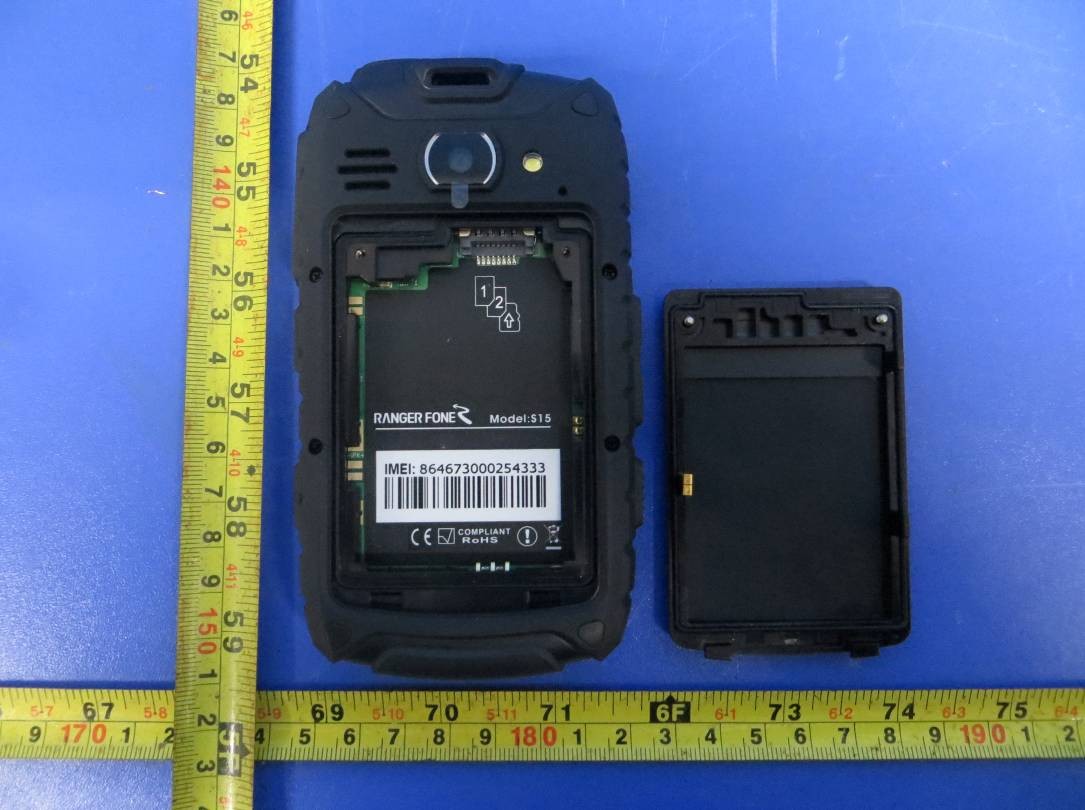

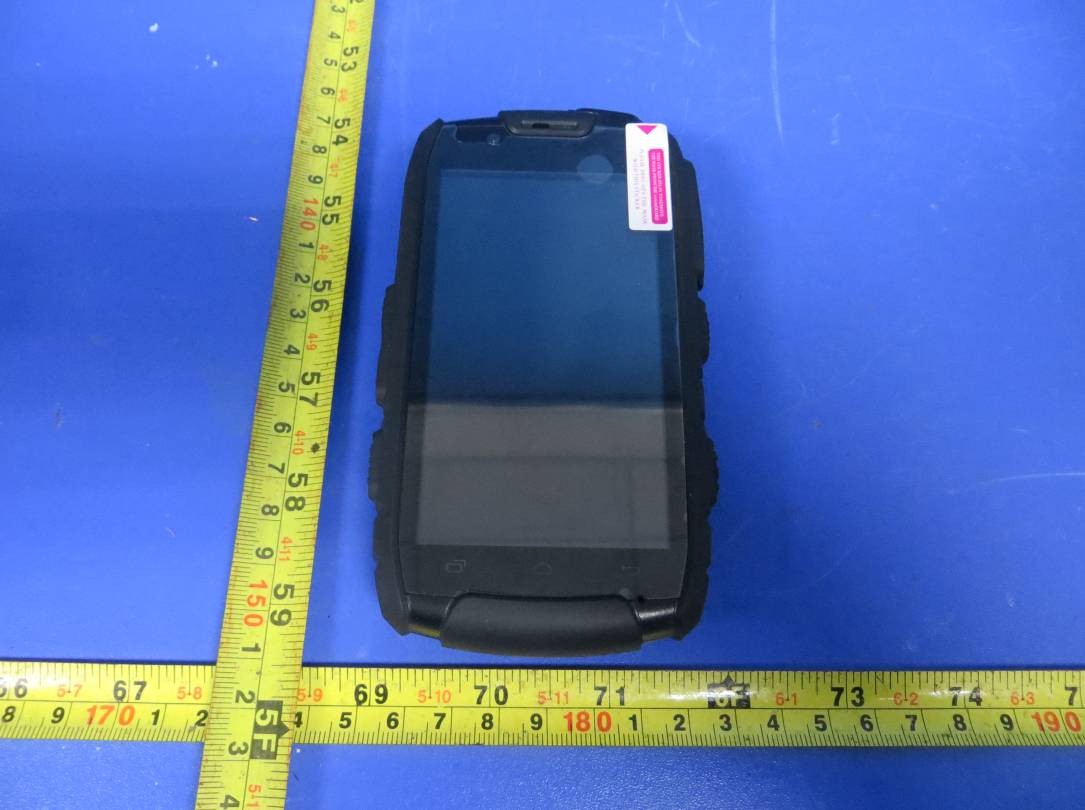

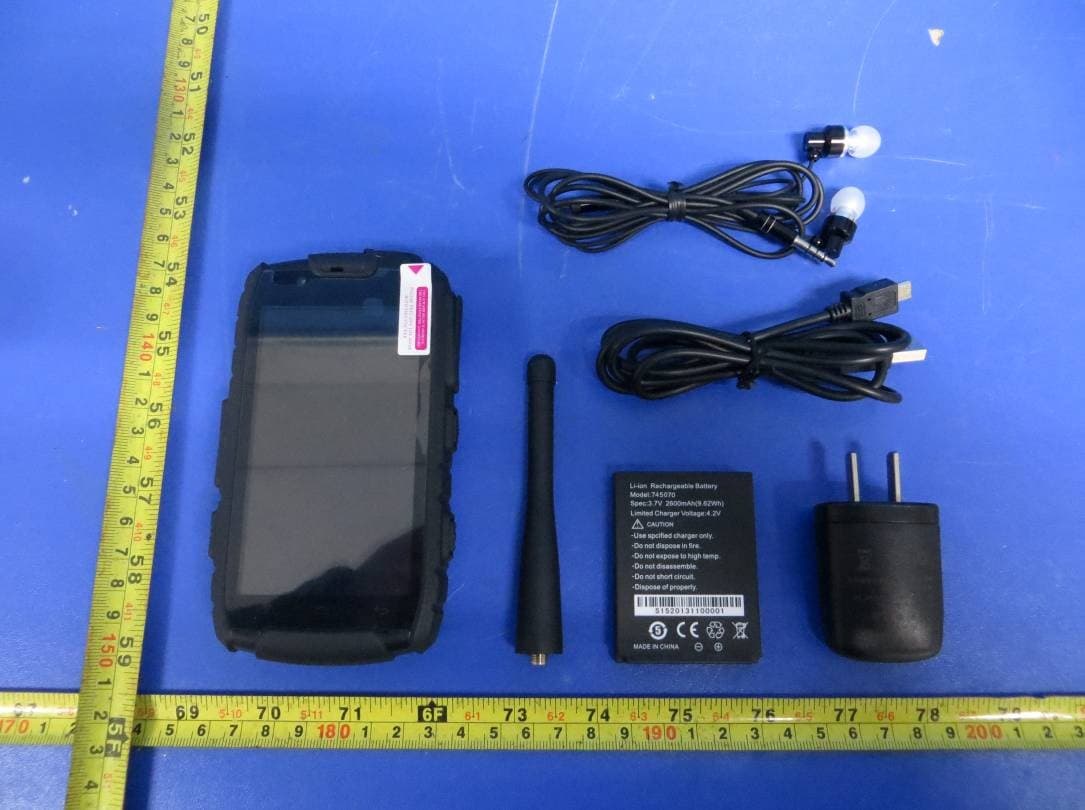

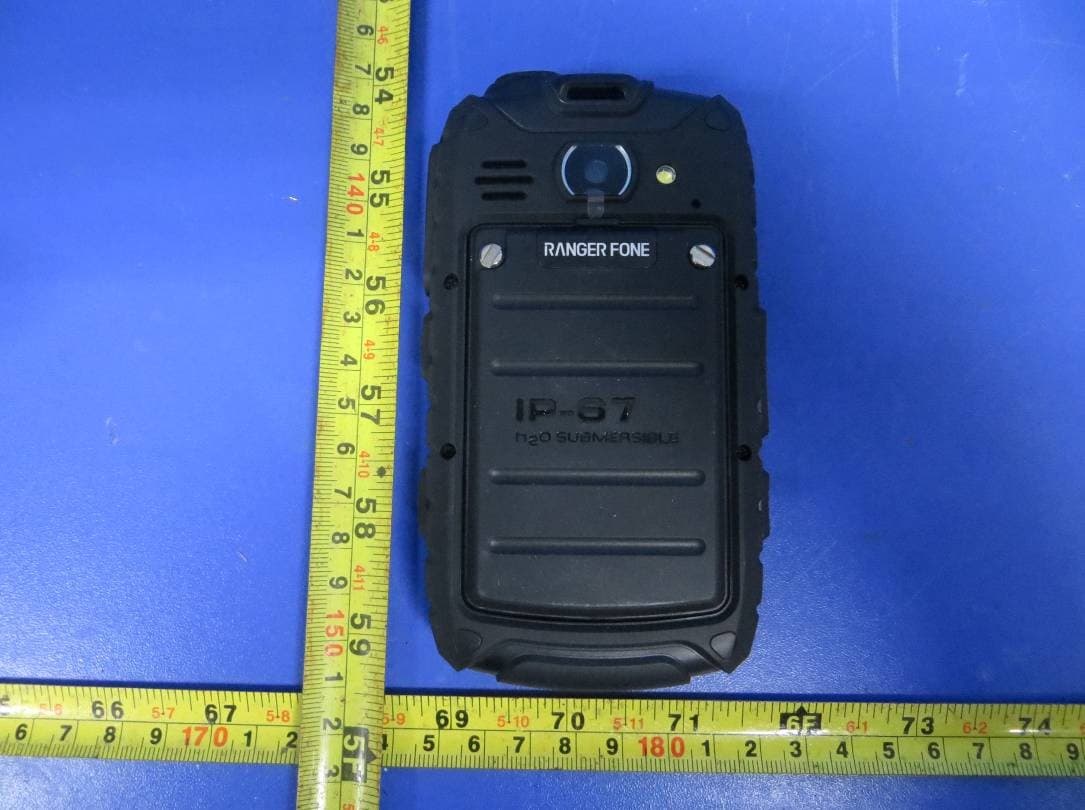

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABMCS15 Report No.: LCS131225770TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 5 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABMCS15 Report No.: LCS131225770TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 5 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABMCS15 Report No.: LCS131225770TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 5 Fig. 5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABMCS15 Report No.: LCS131225770TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 5 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABMCS15 Report No.: LCS131225770TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 5 Fig.9 Fig.10

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ABMCS15 Report No.: LCS131225770TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: 3.0cm(L) x 1.0cm(W) Label Location Material: Tagboard Glue: adhesive sticker Font color: White Label color: Black FCC ID: 2ABMCS15

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABMCS15 Report No.: LCS131225770TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 7 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 GPS Antenna Two Way Radio Antenna Connector WIFI/BT Antenna Contactor GSM/WCDMA Antenna Contactor NFC Antenna Contactor SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABMCS15 Report No.: LCS131225770TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 7 Fig.3 Fig.4 GSM/WCDMA Antenna WIFI/BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABMCS15 Report No.: LCS131225770TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 7 Fig.5 Fig.6 NFC Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABMCS15 Report No.: LCS131225770TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 7 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABMCS15 Report No.: LCS131225770TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 7 Fig.9 Fig.10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABMCS15 Report No.: LCS131225770TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 6 of 7 Fig.11 Fig.12 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABMCS15 Report No.: LCS131225770TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 7 of 7 Fig.13

TEST REPORT Report Reference No. ..................... : FCC ID. ............................................. : TRE14010002 R/C: 57158 2ABMCS15 Compiled by ( position+printed name+signature) .. : File administrators Jerome Luo Supervised by ( position+printed name+signature) .. : Test Engineer Yuchao Wang Approved by ( position+printed name+signature) .. : Manager Wenliang Li Date of issue ..................................... : Jan 13, 2014 Testing Laboratory Name .............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................ : No.149, Gongye 7th Road, Shekou Nanshan, Shenzhen, CHINA Applicant’s name ............................ : Shenzhen Outfone Technology CO., LTD Address ............................................ : Room 408, Jianda building, #10 KeYuan Rd. Nanshan District, Shenzhen, China Test specification: Standard ........................................... : RSS 102 OET 65C ANSI C95.1–1999 47CFR §2.1093 KDB 447498 TRF Originator .................................. : Shenzhen Huatongwei International Inspection CO., Ltd Master TRF ....................................... : Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Professional & Outdoor Support Phone Trade Mark ....................................... : RANGERFONE Manufacturer .................................... : Shenzhen Outfone Technology CO., LTD Model/Type reference....................... : S15 Listed Models .................................. : S15T, S15C, S15Q, S15L, S12, S19, Defender, RS61D Ultimate， PROCOM Director, ROVER, TITAN T1 Hardware version ............................. : 1325_Main_PCB_V2.0 Software version ............................... : S15 V8 Andriod version ................................. : 4.2.2 Ratings ............................................. : DC 3.70V Modulation ....................................... : GSM(GMSK),WCDMA(QPSK),WLAN(CCK,OFDM),Bluetooth(GSF K,GFSK,8DPSK,π/4DQPSK),Radio(FM) Radio Channel Separation ................ 12.5KHz Result................................................ : Positive Report No.: TRE14010002 Page 2 of 117 Issued:2014-01-13 T E S T R E P O R T Test Report No. : TRE14010002 Jan 13, 2014 ______________________________________________________________________________________________ Date of issue Equipment under Test : Professional & Outdoor Support Phone Model /Type : S15 Listed Models : S15T, S15C, S15Q, S15L, S12, S19, Defender, RS61D Ultimate，PROCOM Director, ROVER, TITAN T1 Applicant : Shenzhen Outfone Technology CO., LTD Address : Room 408, Jianda building, #10 KeYuan Rd. Nanshan District, Shenzhen, China Manufacturer : Shenzhen Outfone Technology CO., LTD Address : Room 408, Jianda building, #10 KeYuan Rd. Nanshan District, Shenzhen, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TRE14010002 Page 3 of 117 Issued:2014-01-13 Contents 1. T E S T S T A N D A R D S 4 2. S U M M A R Y 5 2.1. General Remarks 5 2.2. Product Description 5 2.3. Equipment under Test 7 2.4. Short description of the Equipment under Test (EUT) 7 2.5. TEST Configuration 7 2.6. EUT operation mode 8 2.7. EUT configuration 8 2.8. Related Submittal(s) / Grant (s) 8 2.9. Modifications 8 2.10. Note 8 3. T E S T E N V I R O N M E N T 9 3.1. Address of the test laboratory 9 3.2. Test Facility 9 3.3. Environmental conditions 9 3.4. SAR Limits 9 3.5. Equipments Used during the Test 10 4. S A R M E A S U R E M E N T S S Y ST E M C O N F I G U R A T I O N 11 4.1. SAR Measurement Set-up 11 4.2. DASY5 E-field Probe System 12 4.3. Phantoms 13 4.4. Device Holder 13 4.5. Scanning Procedure 14 4.6. Data Storage and Evaluation 14 4.7. Tissue Dielectric Parameters for Head and Body Phantoms 16 4.8. Tissue equivalent liquid properties 17 4.9. System Check 17 5. T E S T C O N D I T I O N S A N D R E S U L T S 25 5.1. Conducted Power Results 25 5.2. SAR Measurement Results 31 5.3. Measurement Uncertainty 34 5.4. System Check Results 36 5.5. SAR Test Graph Results 44 6. C A L I B R A T I O N C E R T I F I CA T E 62 6.1. Probe Calibration Ceriticate 62 6.2. D450V3 Dipole Calibration Ceriticate 73 6.3. DAE4 Calibration Ceriticate 105 7. T E S T S E T U P P H O T O S 110 8. E U T P H O T O S 115 Report No.: TRE14010002 Page 4 of 117 Issued:2014-01-13 1. T E S T S T A N D A R D S The tests were performed according to following standards: IEEE Std C95.1, 1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 KHz to 300 GHz. It specifies the maximum exposure limit of 1.6 W/kg as averaged over any 1 gram of tissue for portable devices being used within 20 cm of the user in the uncontrolled environment. IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. SUPPLEMENT C Edition 01-01 to OET BULLETIN 65 Edition 97-01 June 2001 including DA 02-1438 June 19, 2002: Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields Additional Information for Evaluation Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions. KDB 447498 D01 Mobile Portable RF Exposure …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABMCS15 Report No.: LCS131212415TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 35 FCC Part 90 RF TEST REPORT For Shenzhen Outfone Technology CO., LTD Professional & Outdoor Support Phone Model No.: S15 Additional Model No.: S15T, S15C, S15Q, S15L, S12, S19, Defender, RS61D Ultimate, PROCOM Director, ROVER, TITAN T1 Prepared for : Shenzhen Outfone Technology CO., LTD Address : Room 408, Jianda Building, 10th Keyuan Road, Nanshan District, Shenzhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Date of receipt of test sample : December 12, 2013 Number of tested samples : 1 Serial number : Prototype Date of Test : December 12, 2013 – January 15, 2014 Date of Report : January 15, 2014 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABMCS15 Report No.: LCS131212415TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 35 FCC Part 90 RF TEST REPORT FCC CFR 47 PART 2 AND PART 90 Report Reference No. .............. : LCS131212415TF Date of Issue ................................ : January 15, 2014 Testing Laboratory Name ......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................ : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : Shenzhen Outfone Technology CO., LTD Address ........................................ : Room 408, Jianda Building, 10th Keyuan Road, Nanshan District, Shenzhen, China Test Specification Standard ....................................... : TIA-603-D, FCC CFR 47 PART 2 AND PART 90 Test Report Form No. ................ : LCSEMC-1.0 TRF Originator ............................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................. : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ............... : Professional & Outdoor Support Phone Trade Mark .................................. : RANGERFONE Model/ Type reference ................. : S15 Ratings ......................................... : DC 3.7V by battery(2600mAh) Recharge Voltage: DC 5V/1A Adapter Parameters: Input AC 100~240V, 50/60Hz 0.15A Output: DC 5V/1A Result ......................................... : Positive Compiled by: Supervised by: Approved by: Leo Lee/ File administrators Fox Zhang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABMCS15 Report No.: LCS131212415TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 35 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS131212415TF January 15, 2014 Date of issue Type / Model........................... : S15 EUT......................................... : Professional & Outdoor Support Phone Applicant............................... : Shenzhen Outfone Technology CO., LTD Address.................................. : Room 408, Jianda Building, 10th Keyuan Road, Nanshan District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen Outfone Technology CO., LTD Address................................... : Room 408, Jianda Building, 10th Keyuan Road, Nanshan District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen Outfone Technology CO., LTD Address................................... : Room 408, Jianda Building, 10th Keyuan Road, Nanshan District, Shenzhen, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABMCS15 Report No.: LCS131212415TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 35 TABLE OF CONTENTS 1. GENERAL INFORMATION ............................................................................................................................................ 5 1.1. DESCRIPTION OF DEVICE (EUT) ..................................................................................................................................... 5 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS ....................................................................................................... 6 1.3. EXTERNAL I/O CABLE .................................................................................................................................................... 6 1.4. DESCRIPTION OF TEST FACILITY ..................................................................................................................................... 6 1.5. STATEM…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABMCS15 Report No.: LCS131212415TF _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Spurious Emission Measurement (X Position) Fig.1 Fig.2
