F1 逐光声林⸺说明书（骑马钉装）/成册：207*290mm 120g太阳23书纸 207mm 封面1封底8 290mm INSTRUCTIONS NowGo Follow Light F1 NowGo微信公众号NowGo微信客服 NowGo Follow Light F1 If you need to connect to other Bluetooth devices, short press the 【 】 key to cutoff the connection with the current device, the blue light flashes, and the Bluetooth returns to the waiting connection state. Safe for use in non- tropical climates only 01 Important Reminder 03 Productsand accessories 04 Bodybutton functions 02 Product Features 1. Power on: long press for 2 seconds Power off: long press for 3 seconds 1. 2. TWS pairing: long press the Bluetooth button for 3 seconds to enter TWS pairing mode. Disconnect TWS : long press the main/secondary Bluetooth button. TWS Pairing: Long press bluetooth button 3 seconds on first F1 to enter TWS mode, this F1 to be master. Turn on another F1, this F1 to be slave. Master is left channel, Slave is right channel. Disconnect bluetooth : Short press Bluetooth button Factory Reset: Press and hold on bluetooth button 8 seconds. All paired listing will be removed. After successfull reset, LED indicators run from left to right, then frrom right to left, total 5 seconds. 1. 2. 3. 4. 5. 2. 3. 4. 5. 6. 7. 8. 9. 10. AFTER SALE After-sales Service 4. INSTRUCTIONS User Manual + 2. 3. ① Power Button/Power ② 蓝牙键/TWS F1 Chasing Light Sound Wood— Outdoor Multifunctional Bluetooth Speaker ·User Manual· NowGo Follow Light F1 / 01NowGo Follow Light F1 / 02 1. 1. Speaker 2. AUX audio cable 3. USB power cable/data cable 4. After-sales service card + user manual 1. Born in the wild, the master of outdoor camping atmosphere 2. 5200mAh energy storage capacity 3. Small and portable, with sound and light, elegant rhythm 4. A symphony of visual and music 5. Both a camping light and a bluetooth speaker VOL ④ Next song ③ Previous song ⑤ Volume Knob ⑥ Light Knob ⑧ Charging ⑨ USB playback/powerbank ⑦ AUX ③ Previous song: Short press the previous song button ④ Next song: Short press the next song button ⑤ Volume knob Please use a 5V/2A power adapter to charge the speaker In Bluetooth mode, plug in the AUX cable to enter AUX mode to play music. 1. 2. 1. 2. 3. 3. 4. 5. 6. ⑧ Charging port Turn on the speaker and insert the USB flash drive to play the USB flash drive. When turned on, it can directly output 5V 1A to charge external devices. ⑨ USB playback/mobile power output interface ⑦ AUX interface function It will automatically shut down after 15 minutes of no connection in the power-on state, and it will not shut down when it detects that the light is on. Automatic shut-down 1. The power indicator light will turn off automatically after it lights up for 5 seconds. 2. Short press the speaker button during use, the battery indicator light will turn on for 5 seconds, and the indicator light will stay on during charging. Smart Power Saving Mode ⑥ Light knob Brightening: Rotate clockwise Dim: Rotate counterclockwise Switch warm light/cold light clockwise 05 Power display 1. 2. 3. 4. 5. When 5%<battery <10%, LED1 red light is on When 15%<battery <25%, LED1 white light stays on When 25%<battery <45%, both LED1 and LED2 white light stays on When 50%<battery <75%, the LED1, LED2, and LED3 white light stays on at the same time; When 75%<battery <100%, 4 LEDs white light stays on at the same time Working status: 06 Chargingpower display 1. 2. 3. 4. 5. When battery <15%, LED1 white light flashes When 15%<battery <50%, LED1 stays white, LED2 white light flashes When 50%<battery <75%, LED1 and LED2 stays white, LED3 white flashes When 75%<battery <99%, LED1, LED2, LED3 stays white, LED4 white flashes When battery =100%, 4 LED stay white light Charging: 07 Press and hold on bluetooth button 8 seconds. All paired listing will be removed. After successfull reset, LED indicators run from left to right, then frrom right to left, total 5 seconds. 1. 2. Precautions: Bluetooth NOWGO F1 NOWGO F1 08 Bluetoothconnection 1. 2. 3. 4. Pair the speaker with a Bluetooth-enabled tablet or smartphone ② Bluetooth /TWS ① Power Please read and follow this user manual. Please store and use this product at room temperature. Please do not use this product in high temperature environments, such as in direct sunlight, near open flames, or other similar environments. Please do not throw it away to avoid damage to this product due to falling. Please use a power charger with the rated voltage of the speaker for charging. If the cable does not match your device, please contact the dealer. Please adjust the volume of the speaker to an appropriate level to avoid damage to your hearing This product is waterproof and can be used in environments with splashing water, but do not let this product be immersed in water. If liquid splashes on the surface of this product, please wipe it with a dry flannel or napkin. No matter the equipment is damaged due to any reason, it must be repairedby professional maintenance personnel in time. Unauthorized disassembly will invalidate the warranty. This product is made of recyclable high-performance materials and components. Do not dispose of this product with other household waste. Please understand the local regulations on the separate collection of electronic and electrical equipment and batteries. Your correct disposal of these products is a contribution to the protection of the environment, human health, conservation and rational use of natural resources. Only suitable for safe use in areas below 2000 meters above sea level Electronicinformationproductrecyclingsign WEEE waste electronic and electrical product recycling sign (not suitable for mixed dumping with domestic waste) Through light and sound, escapes the hustle and bustle and restlessness, and preserves the graceful time of the exclusive moment. The retro candlelight sound adds a sense of ritual to the ordinary life, and opens a 360° immersive sound journey. 5200mAh large-capacity battery can continuously provide lighting for up to 12 hours, lighting up the whole night. Meet your multiple ne…

Text truncated - open the document above for the full version.

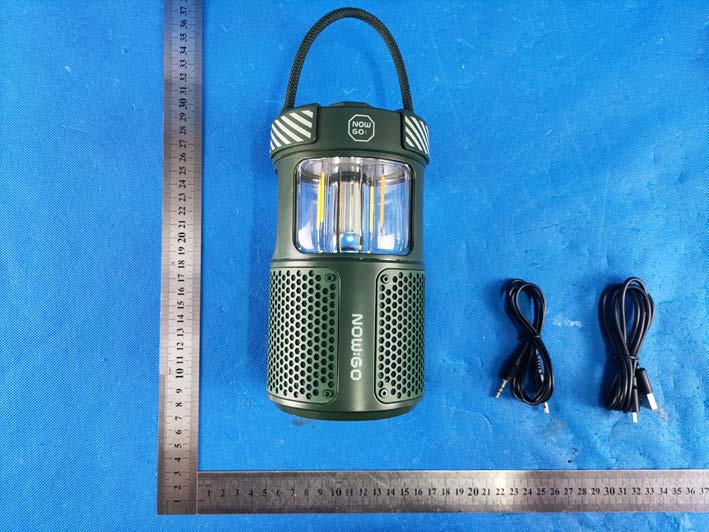

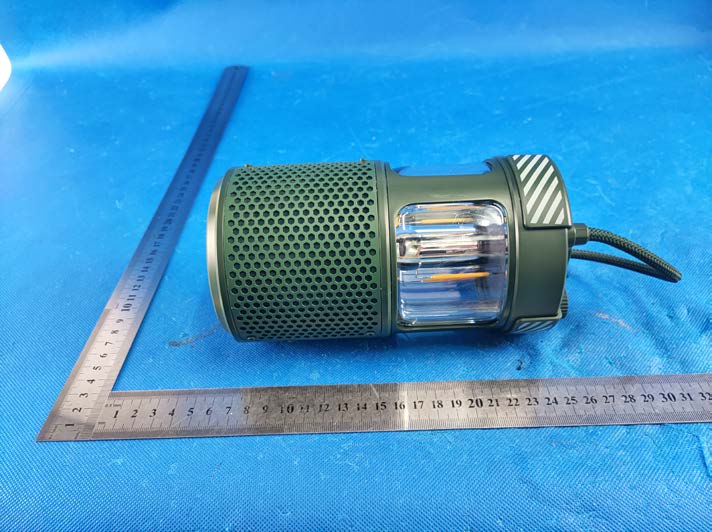

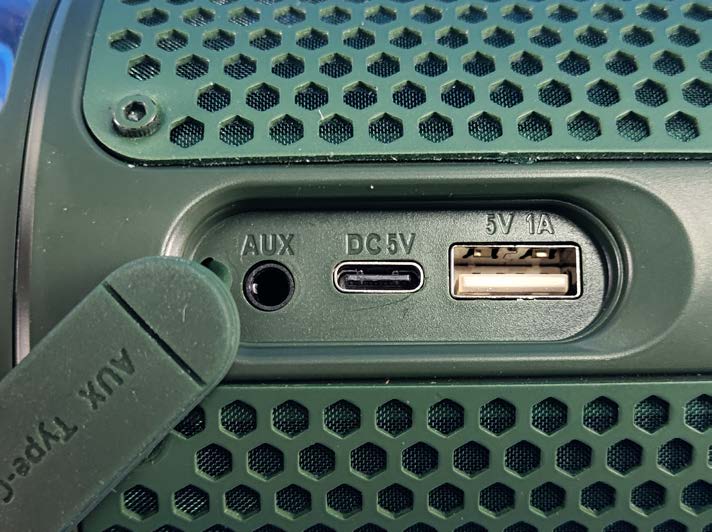

Page 1 of 5 FCC ID: 2ABMR-SPKR3 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. External Photos Photo 1 Photo 2 Page 2 of 5 FCC ID: 2ABMR-SPKR3 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 Page 3 of 5 FCC ID: 2ABMR-SPKR3 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 5 Photo 6 Page 4 of 5 FCC ID: 2ABMR-SPKR3 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 7 Photo 8 Page 5 of 5 FCC ID: 2ABMR-SPKR3 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 9 ------End------

FCCLabel lightSPKRcampingspeaker ModelName:SPKR-light FCCID:2ABMR-SPKR3

Page 1 of 7 FCC ID: 2ABMR-SPKR3 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Internal Photos Photo 1 Photo 2 Page 2 of 7 FCC ID: 2ABMR-SPKR3 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 Page 3 of 7 FCC ID: 2ABMR-SPKR3 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 5 Photo 6 Antenna Page 4 of 7 FCC ID: 2ABMR-SPKR3 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 7 Photo 8 Page 5 of 7 FCC ID: 2ABMR-SPKR3 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 9 Photo 10 Page 6 of 7 FCC ID: 2ABMR-SPKR3 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 11 Photo 12 Page 7 of 7 FCC ID: 2ABMR-SPKR3 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 13 Photo 14 ------End------

RF Exposure evaluation FCC ID: 2ABMR-SPKR3 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: •f (GHz) is the RF channel transmit frequency in GHz •Power and distance are rounded to the nearest mW and mm before calculation •The result is rounded to one decimal place for comparison •3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 m m, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance BR - EDR Frequency (MHz) GFSK 2402 2441 2480 Target (dBm) 0.0 1.0 1.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) π/4DQPSK 2402 2441 2480 Target (dBm) 0.0 2.0 1.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 8DPSK 2402 2441 2480 Target (dBm) 0.0 1.0 1.0 Tolerance ± (dB) 1.0 1.0 1.0 Page 2 of 2 2. Evaluation Result Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) Max.RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BR-EDR 2.5 5 2 1.58 0.5 <3 Yes 3. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

P age 1 of 38 Report No.: AIT23091401FW1 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. TEST REPORT Client Information: Applicant: S2E, Inc. Applicant add.: 817 Lawson St.City of Industry,CA 91748,United States Manufacturer: S2E, Inc. Manufacturer add.: 817 Lawson St.City of Industry,CA 91748,United States Product Information: Product Name: lightSPKR camping speaker Model No.: SPKR-light,SPKR-light-bk,SPKR-light-gn,SPKR-light-sd Brand Name: MEE audio FCC ID: 2ABMR-SPKR3 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Prepared By: Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang,Dongguan, Guangdong, China Tel.: +86-769-8202 0499 Fax.: +86-769-8202 0495 Date of Receipt: Sep. 14, 2023 Date of Test: Sep. 15~Sep. 18, 2023 Date of Issue: Sep. 19, 2023 Test Result: Pass This device described above has been tested by Dongguan Yaxu (AiT) Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Dongguan Yaxu (AiT) Technology Limited, this document may be altered or revised by Dongguan Yaxu (AiT) Te chnology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by:Approved by: Simba Huang Seal.chen Page 2 of 38 Report No.: AIT23091401FW1 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. 1 Contents Page COVER PAGE 1 CONTENTS .................................................................................................................................................................... 2 2 TEST SUMMARY .......................................................................................................................................................... 4 2.1 Statement of the Measurement Uncertainty ................................................................................ 4 2.2 Measurement Uncertainty ........................................................................................................... 4 3 TEST FACILITY ............................................................................................................................................................. 5 3.1 Deviation from standard .............................................................................................................. 5 3.2 Abnormalities from standard conditions ...................................................................................... 5 3.3 Test Location ............................................................................................................................... 5 4 GENERAL INFORMATION ......................................................................................................................................... 6 4.1 Test frequencies .......................................................................................................................... 7 4.2 EUT Peripheral List ..................................................................................................................... 8 4.3 Test Peripheral List ...................................................................................................................... 8 4.4 TEST METHODOLOGY .............................................................................................................. 9 4.5 Description of Test Modes ......................................................................................................... 10 5 EQUIPMENT USED DURING TEST ........................................................................................................................ 11 6 TEST RESULTS AND MEASUREMENT DATA .................................................................................................... 11 6.1 Antenna requirement ................................................................................................................. 12 6.2 Peak Power Measurement ........................................................................................................ 13 6 .3 Frequency Separation and 20 dB Bandwidth ............................................................................ 15 6.4 Number of Hopping Frequency ................................................................................................. 17 6.5 Time of Occupancy (Dwell Time) .............................................................................................. 18 6.6 Conducted Spurious Emissions and Band Edges Test ............................................................. 20 6.7 Restrict-band Band-edge Measurements ................................................................................. 22 6.8 Radiated Emissions Measurement ........................................................................................... 24 6.9 Conducted Emissions ................................................................................................................ 34 6.10 Pseudorandom frequency hopping sequence .......................................................................... 37 7 TEST SETUP PHOTOGRAPHS OF EUT ................................................................................................................ 38 8 EXTERNAL PHOTOGRAPHS OF EUT ................................................................................................................... 38 9 INTERNAL PHOTOGRAPHS OF EUT .................................................................................................................... 38 Page 3 of 38 Report No.: AIT23091401FW1 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3r…
