2ABNS1400MID

Color Side 1: BLACK + PMS 2925 Flat size: 12.75 x 5.5 in. Fold 1: 3-panel accordion Color Side 2: BLACK + PMS 2925 Finished size: 4.25 x 5.5 in. 6620 Cypresswood Drive Suite 120 Spring, TX 77379 832.717.4331 SD Quick Start Note: Features may vary by model and country. Product description This product is a lightweight tablet and features a thin-panel display, processor, RAM, integrated battery pack, and an external AC adapter. The printed Quick Start guide identifies the hardware components of your tablet. The AC adapter has a rating of 100-240 V ac, 50/60 Hz, 0.3-1.0 A. To access the latest user guide, go to http://www. hp.com/support, and select your country. Select Drivers & Downloads, and then follow the on-screen instructions. Specification The tablet operates on DC power, which can be supplied by an AC or a DC power source. The AC power source must be rated at 100—240 V, 50/60 Hz. Note: The tablet can operate on DC power using an industry-standard micro-A or micro-B USB cable. The HP 5V 2A adapter included with your tablet is recommended for charging the tablet. Temperature Operating: Metric, 0°C to 40°C; U.S., 32°F to 104°F Relative humidity (noncondensing) Operating: 10% to 90% Regulatory information For regulatory identification purposes, your prod- uct is assigned a Regulatory Model Number on the exterior cover with the format HSTNN-XXXX, where “XXXX” will vary. This regulatory number should not be confused with the marketing name (if any, etc.) or product numbers (HP P/N, etc.). The Product Notices document provides country- and region-specific non-wireless and wireless regulatory notices and compliance information for the product. Some notices may not apply to your product. One or more integrated wireless devices may be installed. In some environments, the use of wire- less devices may be restricted. Such restrictions may apply on-board airplanes, in hospitals, near explosives, in hazardous locations, and so on. If you are uncertain of the policy that applies to the use of this product, ask for authorization to use it before you turn it on. Regulatory markings for your country or region may be located on the back of the tablet or may be located in the Product Notices document. More HP resources ResourceContents HP support: • Online chat with an HP technician. • Email support. • Find telephone numbers. • Select Support and Troubleshooting to access the User Guide. For worldwide support, go to http://welcome.hp.com/country/us/en/ wwcontact_us.html. Serial number, product number, IMEI number, and model number • Bottom edge or back of tablet Limited Warranty The warranty is located in the document folder of the tablet box. • Warranty information about this tablet. WARNING: To reduce the risk of electric shock or damage to the equipment, plug the AC adapter into an AC outlet that is easily accessible at all times. WARNING: To reduce potential safety issues, only the AC adapter provided with the product, a replacement AC adapter provided by HP, or an AC adapter purchased as an accessory from HP should be used with the product. WARNING: To reduce the possibility of heat-related injuries or of overheating the tablet, do not place the tablet directly on your lap. Do not allow a soft surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The tablet and the AC adapter comply with the user-accessible surface temperature limits defined by the International Standard for Safety of Information Technology Equipment (IEC 60950). WARNING: The battery in this product is not user-replaceable. Do not attempt to remove or replace it. Removing or replacing the battery could affect your warranty coverage. If the battery is no longer holding a charge, contact support. WARNING: To reduce the risk of fire or burns, do not disassemble, crush, or puncture; do not short external contacts; do not dispose of in fire or water. WARNING: Listening to music at high volume levels and for extended durations can damage one’s hearing. To reduce the risk of hearing damage, lower the volume to a safe, comfortable level and reduce the amount of time listening at high levels. For your own safety, before using headsets or earphones, always reset the volume. Some head- phones are louder than other headphones, even if the volume control setting is the same. Changing the default audio or equalizer settings might lead to higher volume and should only be done with caution. For your own safety, headsets or earphones used with this product should comply with the headphone limits in EN 50332-2. If the product includes a headset or earphones, this combination is in compliance to EN 50332-1. MOB_QSB_Fir 1.0_759718-001.indd 112/16/2013 1:43:54 PM Color Side 1: BLACK + PMS 2925 Flat size: 12.75 x 5.5 in. Fold 1: 3-panel accordion Color Side 2: BLACK + PMS 2925 Finished size: 4.25 x 5.5 in. 6620 Cypresswood Drive Suite 120 Spring, TX 77379 832.717.4331 Printed in China Imprimé en Chine Stampato in Cina Impreso en China Impresso na China 中国印刷 중국에서 인쇄 759718-001 © Copyright 2013 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and ser- vices. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical and editorial errors or omissions contained herein. First Edition: December 2013 Setting up your tablet 1 1 2 3 4 2 After charging the battery, press and hold the power button for up to 5 seconds until the HP or Compaq logo is displayed. IMPORTANT: If the battery image is not displayed on the screen, press the power button briefly to display the image, and then press and hold the power button until the logo is displayed. 3 Follow the on-screen instructions to select a l…

Text truncated - open the document above for the full version.

Product Notices 748474-B21.fm Page 1 Thursday, September 26, 2013 12:15 PM 2 Regulatory notices Federal Communications Commission notice The FCC has granted an Equipment Authorization for this model device with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/ea/fccid. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio or television technician for help. Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by HP may void the user's authority to operate the equipment. Cables To maintain compliance with FCC Rules and Regulations, connections to this device must be made with shielded cables having metallic RFI/EMI connector hoods. Declaration of Conformity for products marked with the FCC logo (United States only) This device complies with Part 15 of the FCC Rules. Operation is subject to the following 2 conditions: 1.This device may not cause harmful interference. 2.This device must accept any interference received, including interference that may cause undesired operation. For further information, contact: Manager of Corporate Product Regulations Hewlett-Packard Company 3000 Hanover Street Palo Alto, CA 94304 (650) 857-1501 To identify your product, refer to the part, series, or model number located on the product. Products with wireless LAN devices or HP Mobile Broadband Modules This device must not be co-located or operating in conjunction with any other antenna or transmitter. Australia and New Zealand notices This equipment incorporates a radio transmitting and receiving device. In normal use, a separation distance of 1 cm ensures that radio frequency exposure levels comply with the Australian and New Zealand Standards. Avisos para o Brasil Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando em caráter primário. Este equipamento atende aos limites de Taxa de Absorção Específica referente à exposição a campos elétricos, magnéticos e eletromagnéticos de radiofreqüências adotados pela ANATEL. Canada notices This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations, CAN ICES-3(B)/NMB-3(B). If this device has WLAN or Bluetooth capability, the device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. WARNING: Exposure to Radio Frequency Radiation The radiated output power of this device is below the FCC radio frequency exposure limits. Nevertheless, the device should be used in such a manner that the potential for human contact is minimized during normal operation. The exposure standard for wireless devices employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/Kg. Tests for SAR are conducted using standard operating positions accepted by the FCC with the device transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value. This is because the device is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. To avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna should be minimized. This device has been tested and demonstrated compliance when Bluetooth and WiFi are transmitting simultaneously. CAUTION: When using IEEE 802.11a wireless LAN, this product is restricted to indoor use, due to its operation in the 5.15- to 5.25-GHz frequency range. The FCC requires this product to be used indoors for the frequency range of 5.15 GHz to 5.25 GHz to reduce the potential for harmful interference to co-channel mobile satellite systems. High-power radar is allocated as the primary user of the 5.25- to 5.35-GHz and 5.65- to 5.85-GHz bands. These radar stations can cause interference with and/or damage to this device. 748474-B21.fm Page 2 Thursday, September 26, 2013 12:15 PM 3 Avis pour le Canada Ce d ispositif numérique de Classe B répond aux exigences de la réglementation du Canada relative aux équipements causant des interférences CAN ICES-3(B)/NMB-3(B). Si ce d ispositif est doté de fonctionnalités de réseau sans fil ou Bluetooth, il est conforme aux normes d’exemption de licence RSS d’Industrie Canada. Son fonctionnement est…

Text truncated - open the document above for the full version.

1.1 EUT Constructional Details Test model No.: HSTNN-N03C “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of th…

Text truncated - open the document above for the full version.

ޫݺ͵  us 64 . 522m logo Center Logo centered horizontally Top Edge HP LOGO : Color = PANTONE Cool Grey 8C Diameter = 28mm HP LOGO : Color = PANTONE Cool Grey 8C 44.4mm 15mm G4B69AA 23mm*80mm

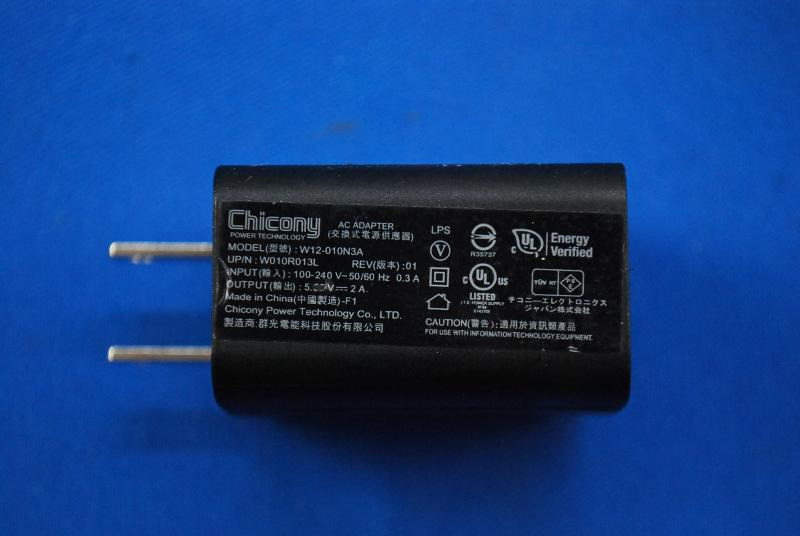

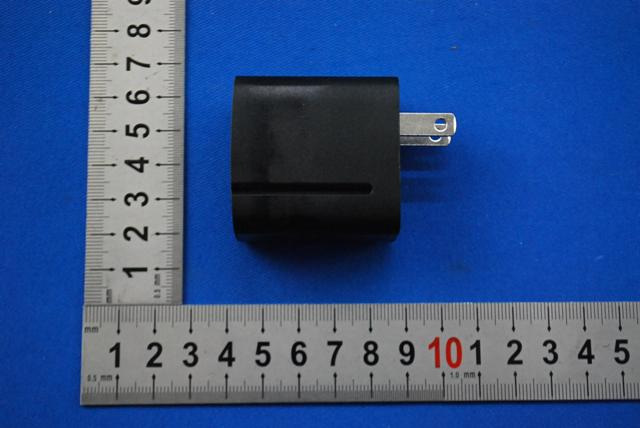

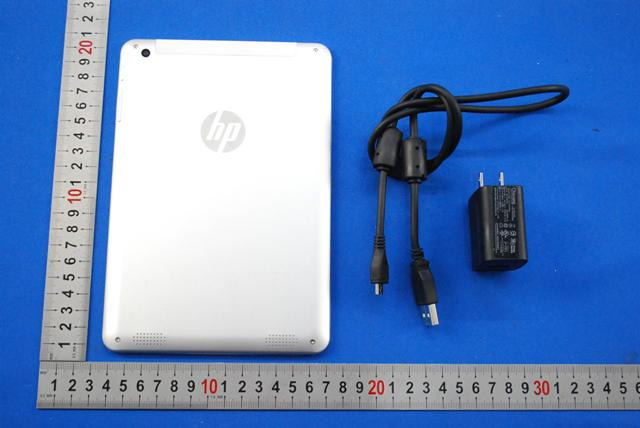

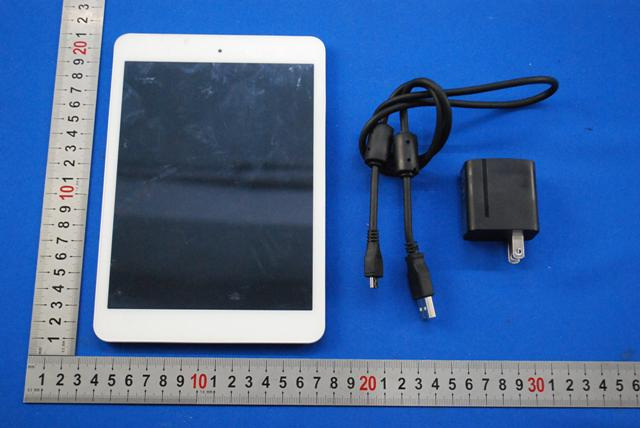

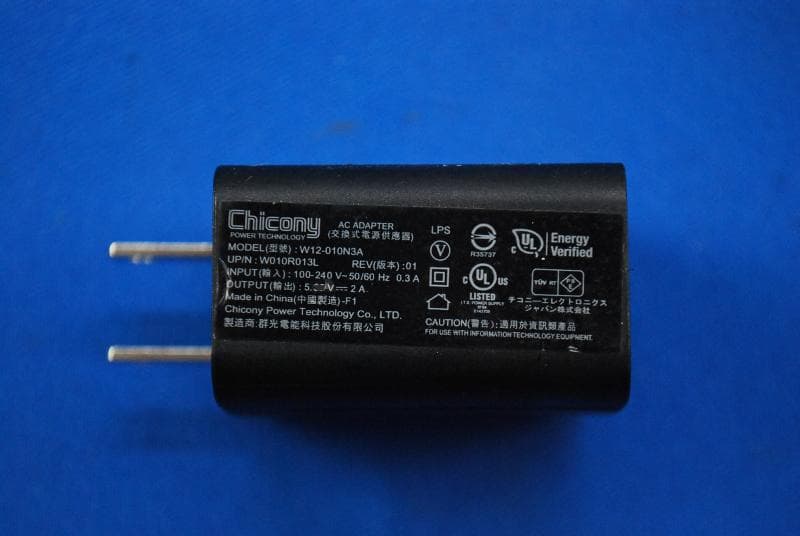

1 Photographs - EUT Constructional Details Test model No.: HSTNN-N03C

SGS-CSTC Standards Technical Services Co., Ltd. No. 1 W orkshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM131200680902 Page : 1 of 34 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 COVER PAGE FCC SAR TEST REPORT Application No.: SZEM1312006809RF Applicant: NEOSTRA INDUSTRIAL (HK) LIMITED Manufacturer: NEOSTRA INDUSTRIAL (HK) LIMITED Factory: Shenzhen Neostra Technology Co., Ltd. Product Name: MID Model No.(EUT): HSTNN-N03C FCC ID: 2ABNS1400 Standards: IEEE Std C95(1991) IEEE1528(2003) OET Bulletin No. 65, Supplement C (2001) Date of Receipt: 2013-12-22 Date of Test: 2013-12-23 to 2013-12-23 Date of Issue: 2014-01-21 Test Result : PASS * * In the configuration tested, the EUT detailed in this report complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM131200680902 Page: 2 of 34 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Test Summary Frequency Band Test positio n Test Ch. /Freq. Max average SAR1- g(W/kg) Conduct ed power (dBm) Tune up Limit （dBm） Scaling Factor Scaled SAR (W/kg) SAR limit (W/kg) verdict WIFI (2.4GHz) Body 6/2437 1.38 18.57 19.00 1.104 1.524 1.6 PASS Remark: The maximum Scaled SAR value of Body is 1.524 W/kg. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM131200680902 Page: 3 of 34 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 3 Contents Page 1 COVER PAGE ...................…

Text truncated - open the document above for the full version.

SGS -CSTC Standards Technical Services Co., Ltd. Report No.: SZEM131200680902 Appendix A Detailed System Validation Results System Performance Check 2450MHz Body Date/Time: 2013-12-23 9:38:28 Test Laboratory: SGS-SAR Lab System Performance Check 2450MHz Body DUT: Dipole 2450 MHz; Type: D2450V2; Serial: 733 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL2450 Medium parameters used: f = 2450 MHz; σ = 1.95 mho/m; ε r = 51.6; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ES3DV3 - SN3071; ConvF(4.02, 4.02, 4.02); Calibrated: 2013-6-18 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn679; Calibrated: 2013-1-16 Phantom: SAM 1; Type: SAM V4.0; Serial: TP-1283 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=10mm, Pin=250mW/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.1 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 86.1 V/m; Power Drift = -0.171 dB Peak SAR (extrapolated) = 29.8 W/kg SAR(1 g) = 13.2 mW/g; SAR(10 g) = 5.86 mW/g Maximum value of SAR (measured) = 14.8 mW/g 0 dB = 14.8mW/g

SGS -CSTC Standards Technical Services Co., Ltd. Report No.: SZEM131200680902 Appendix B Detailed Test Results WiFi 802.11b 6CH Back Side 0mm WiFi 802.11b 6CH Left Side 0mm WiFi 802.11b 6CH Top Side 0mm WiFi 802.11b 1CH Back Side 0mm WiFi 802.11b 11CH Back Side 0mm WiFi 802.11b 6CH Back Side 0mm-repeat Date/Time: 2013-12-23 15:45:35 Test Laboratory: SGS-SAR Lab HSTNN-N0 3C WiFi 802.11b 6CH Back Side 0mm DUT: HSTNN-N03C; Type: MID; Serial: NA Communication System: 802.11b/g; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 1.93 mho/m; ε r = 51.7; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ES3DV3 - SN3071; ConvF(4.02, 4.02, 4.02); Calibrated: 2013-6-18 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn679; Calibrated: 2013-1-16 Phantom: SAM 1; Type: SAM V4.0; Serial: TP-1283 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Body/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.25 mW/g Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.7 V/m; Power Drift = 0.143 dB Peak SAR (extrapolated) = 5.46 W/kg SAR(1 g) = 1.38 mW/g; SAR(10 g) = 0.451 mW/g Maximum value of SAR (measured) = 1.50 mW/g 0 dB = 1.50mW/g Date/Time: 2013-12-23 16:37:03 Test Laboratory: SGS-SAR Lab HSTNN-N03C WiFi 802.11b 6CH Left Side 0mm DUT: HSTNN-N03C; Type: MID; Serial: NA Communication System: 802.11b/g; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 1.93 mho/m; ε r = 51.7; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ES3DV3 - SN3071; ConvF(4.02, 4.02, 4.02); Calibrated: 2013-6-18 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn679; Calibrated: 2013-1-16 Phantom: SAM 1; Type: SAM V4.0; Serial: TP-1283 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Body/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.248 mW/g Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.53 V/m; Power Drift = -0.084 dB Peak SAR (extrapolated) = 0.776 W/kg SAR(1 g) = 0.246 mW/g; SAR(10 g) = 0.096 mW/g Maximum value of SAR (measured) = 0.287 mW/g 0 dB = 0.287mW/g Date/Time: 2013-12-23 16:13:02 Test Laboratory: SGS-SAR Lab HSTNN-N03C WiFi 8 02.11b 6CH Top Side 0mm DUT: HSTNN-N03C; Type: MID; Serial: NA Communication System: 802.11b/g; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 1.93 mho/m; ε r = 51.7; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ES3DV3 - SN3071; ConvF(4.02, 4.02, 4.02); Calibrated: 2013-6-18 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn679; Calibrated: 2013-1-16 Phantom: SAM 1; Type: SAM V4.0; Serial: TP-1283 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Body/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.571 mW/g Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.4 V/m; Power Drift = -0.096 dB Peak SAR (extrapolated) = 2.16 W/kg SAR(1 g) = 0.684 mW/g; SAR(10 g) = 0.236 mW/g Maximum value of SAR (measured) = 0.809 mW/g 0 dB = 0.809mW/g Date/Time: 2013-12-23 17:04:29 Test Laboratory: SGS-SAR Lab HSTNN-N0 3C WiFi 802.11b 1CH Back Side 0mm DUT: HSTNN-N03C; Type: MID; Serial: NA Communication System: 802.11b/g; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.9 mho/m; ε r = 51.8; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ES3DV3 - SN3071; ConvF(4.02, 4.02, 4.02); Calibrated: 2013-6-18 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn679; Calibrated: 2013-1-16 Phantom: SAM 1; Type: SAM V4.0; Serial: TP-1283 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Body/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.45 mW/g Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 27.6 V/m; Power Drift = -0.200 dB Peak SAR (extrapolated) = 4.86 W/kg SAR(1 g) = 1.27 mW/g; SAR(10 g) = 0.430 mW/g Maximum value of SAR (measured) = 1.43 mW/g 0 dB = 1.43mW/g Date/Time: 2013-12-23 17:27:33 Test Laboratory: SGS-SAR Lab HSTNN-N03C WiF…
